Raidmax Monster RX-700AT Power Supply Review

Reviews
By Aris Mpitziopoulos
published

Raidmax is the first company to utilize Andyson's new Titanium platform with its Monster RX-700AT PSU. This is a semi-modular unit with a double ball-bearing fan and Japanese capacitors, promising high performance and exceptional efficiency.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Transient Response Tests

Advanced Transient Response Tests

For details on our transient response testing, please click here.

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10A at +12V, 5A at 5V, 5A at 3.3V and 0.5A at 5VSB) is applied for 200ms while the PSU works at 20 percent load. In the second scenario, the PSU is hit by the same transient load while operating at 50 percent load. In both tests, we use our oscilloscope to measure the voltage drops caused by the transient load. The voltages should remain within the ATX specification's regulation limits.

These metrics are crucial because they simulate the transient loads a PSU is likely to handle (such as booting a RAID array or an instant 100 percent load of CPU/GPUs). We call them "Advanced Transient Response Tests," and they are designed to be very tough to master, especially for PSUs with less than 500W capacity.

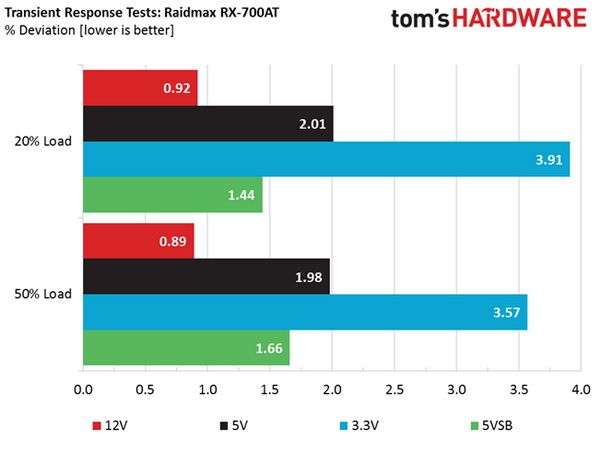

Advanced Transient Response at 20 Percent

Swipe to scroll horizontally
VoltageBeforeAfterChangePass/Fail
12V12.208V12.096V0.92%Pass
5V5.068V4.966V2.01%Pass
3.3V3.326V3.196V3.91%Pass
5VSB5.061V4.988V1.44%Pass

Advanced Transient Response at 50 Percent

Swipe to scroll horizontally
VoltageBeforeAfterChangePass/Fail
12V12.169V12.061V0.89%Pass
5V5.061V4.961V1.98%Pass
3.3V3.304V3.186V3.57%Pass
5VSB5.052V4.968V1.66%Pass

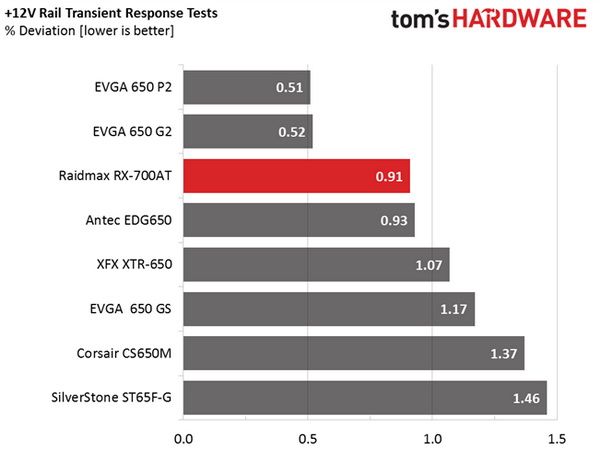

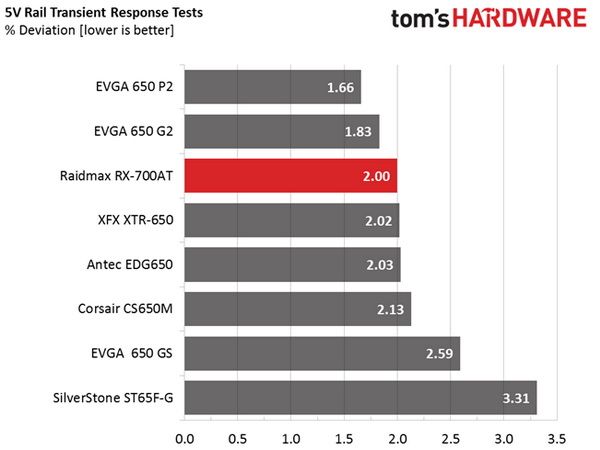

Image 1 of 5

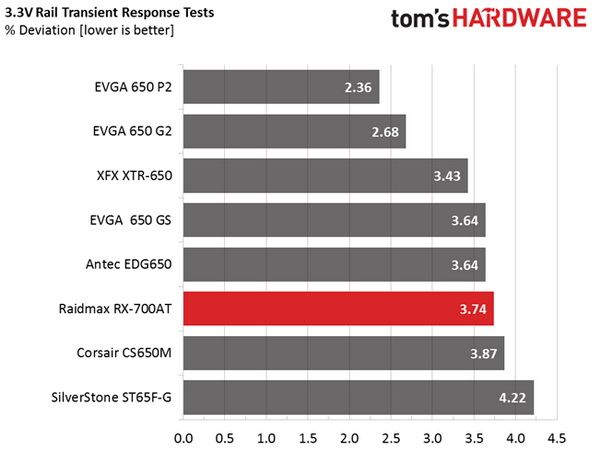

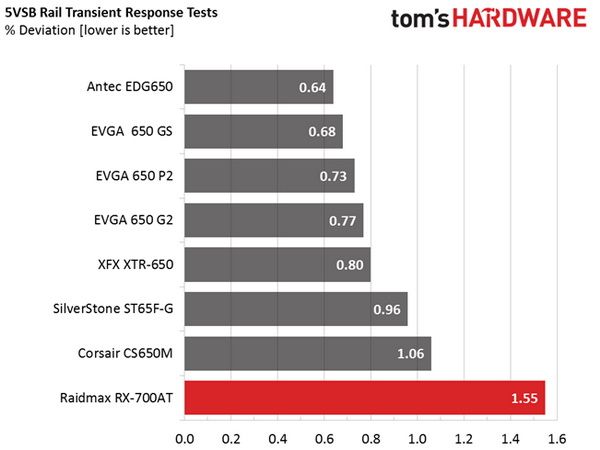

Voltage drops on the +12V, 5V and 5VSB rails are controlled well. However, at 3.3V the voltage falls below 3.2V in both cases. We don't like to see that, especially from high-end PSUs like this one.

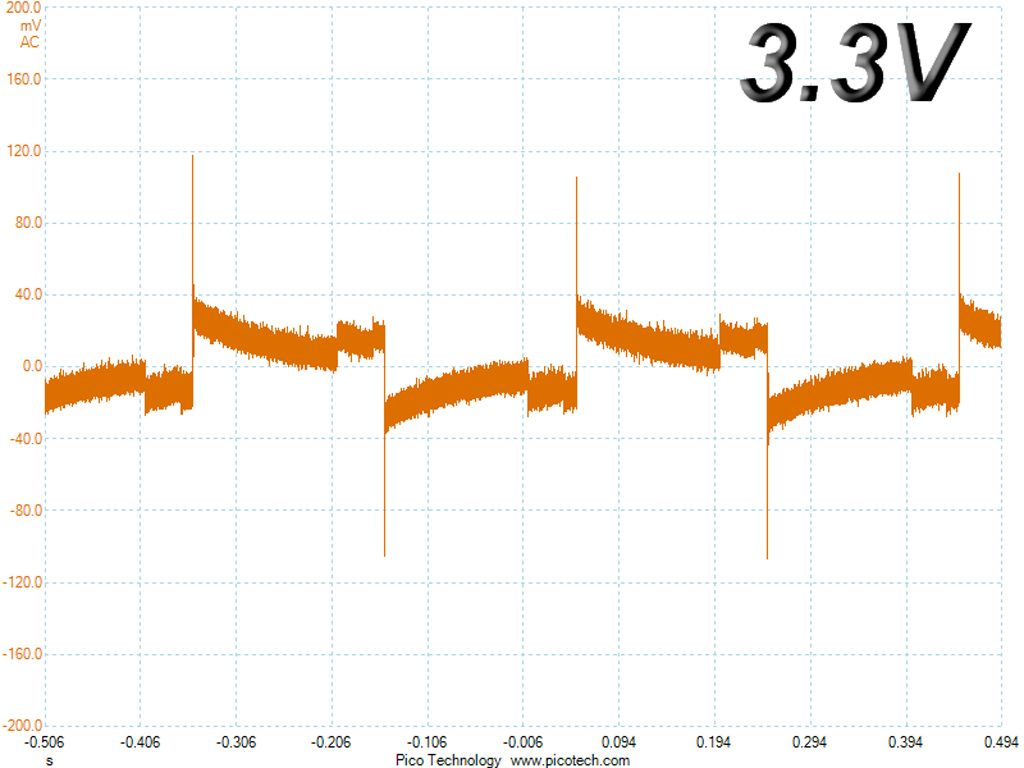

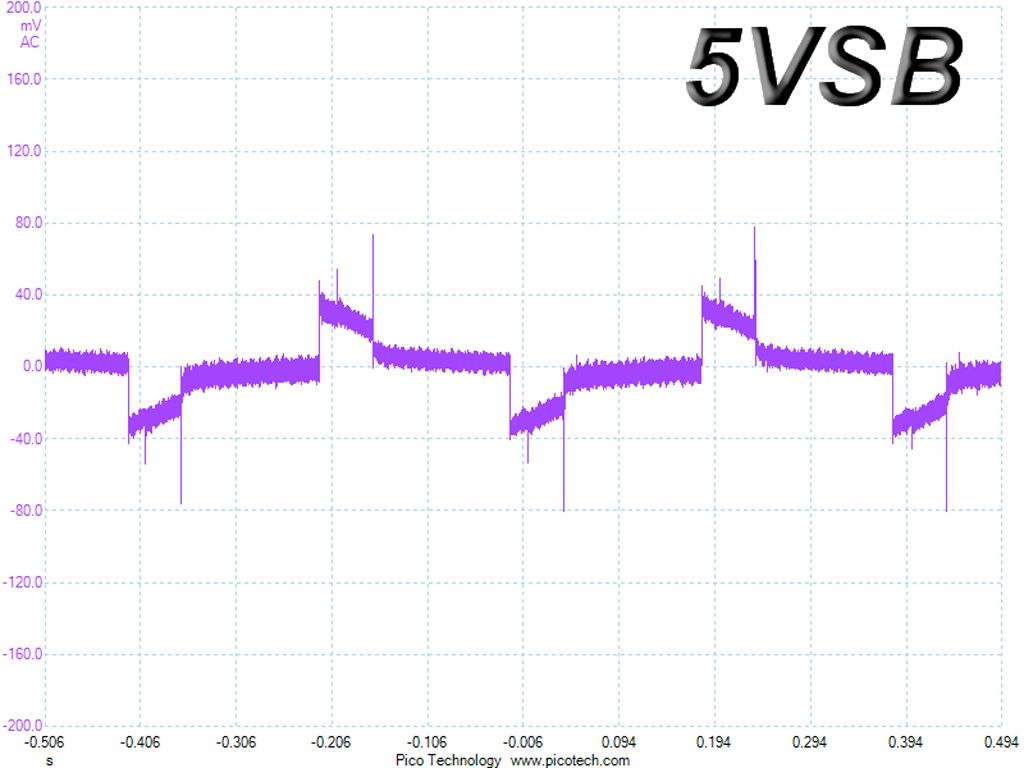

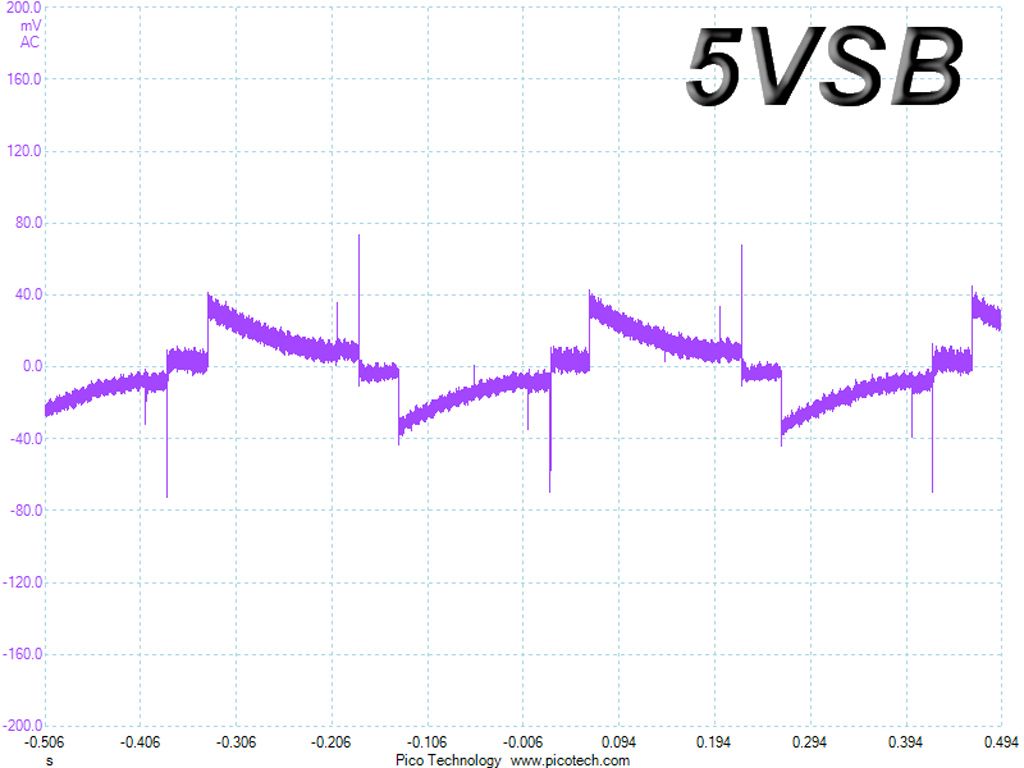

Here are the oscilloscope screenshots we took during Advanced Transient Response Testing:

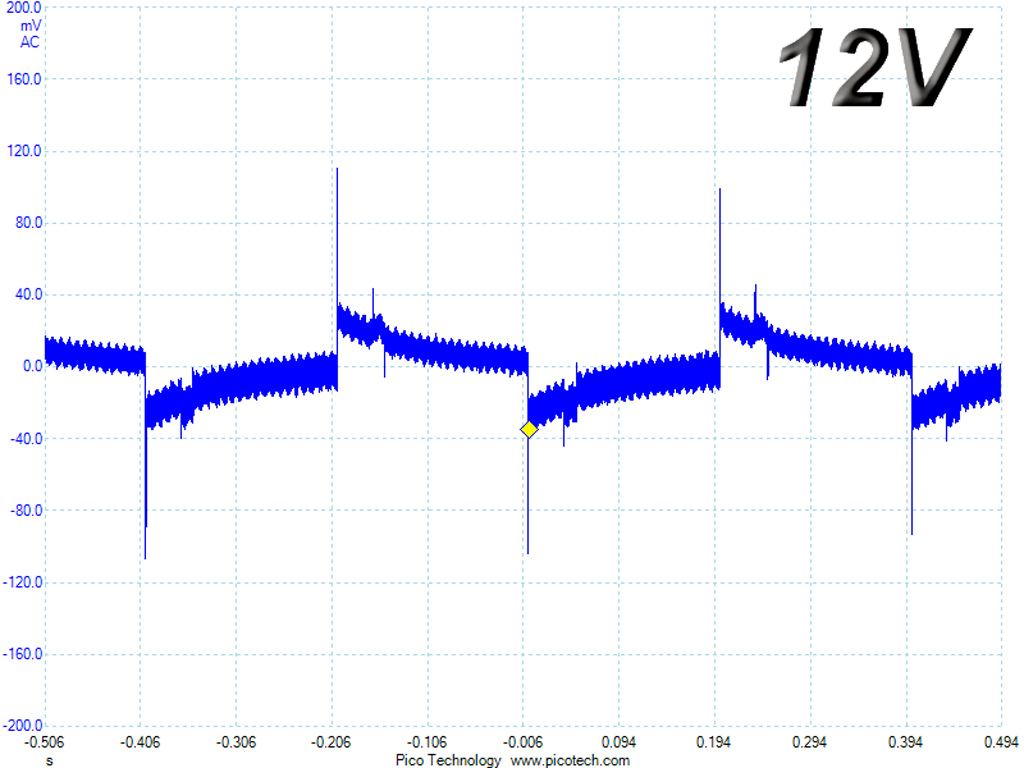

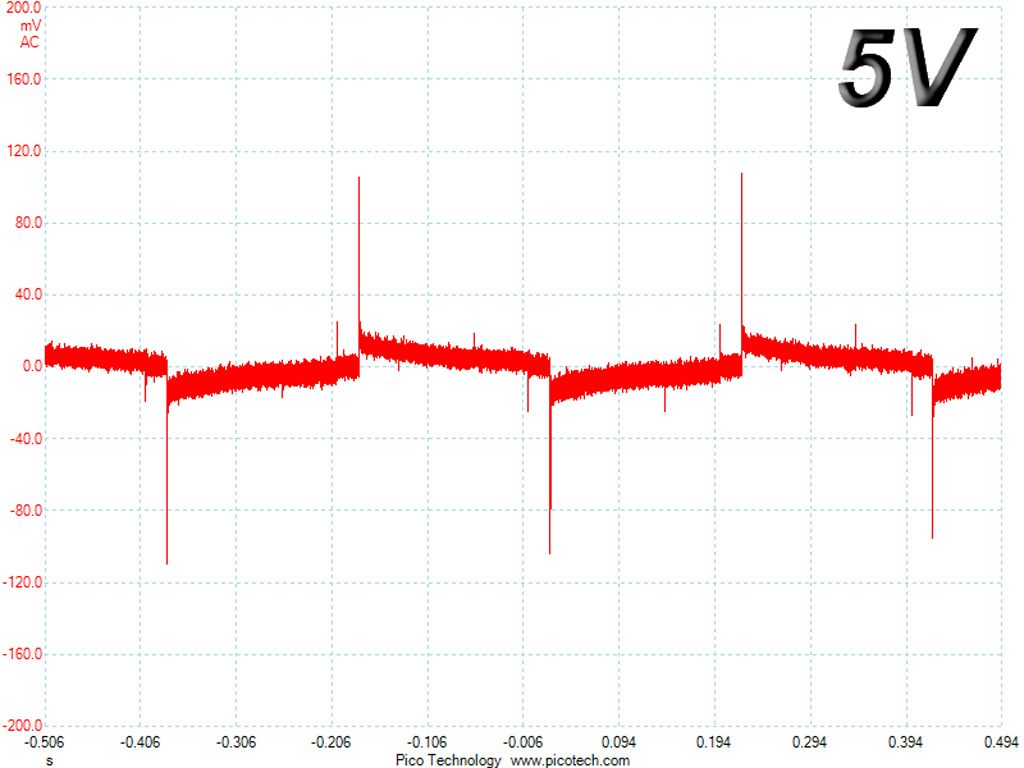

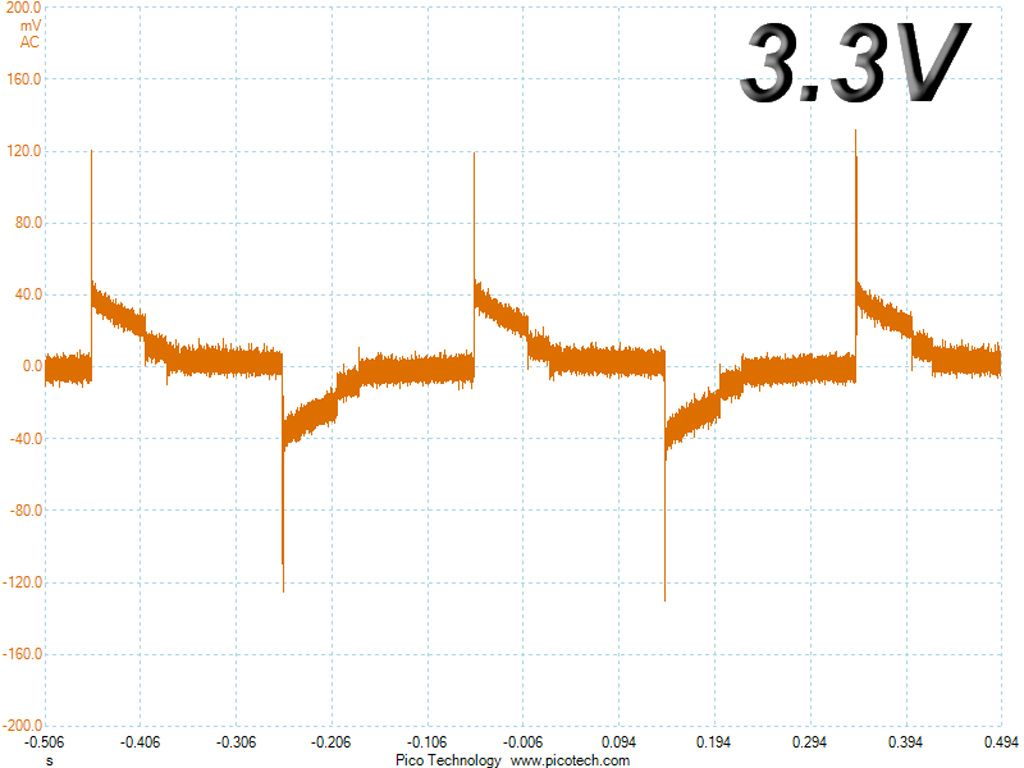

Transient Response At 20 Percent Load

Image 1 of 4

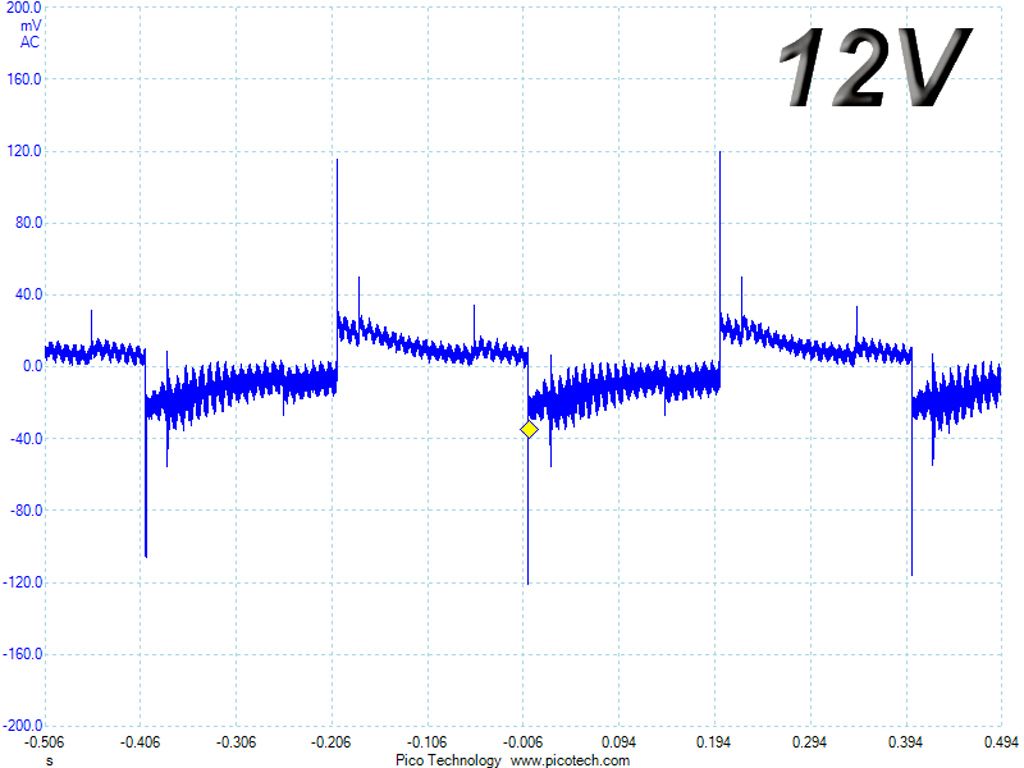

Transient Response At 50 Percent Load

Image 1 of 4

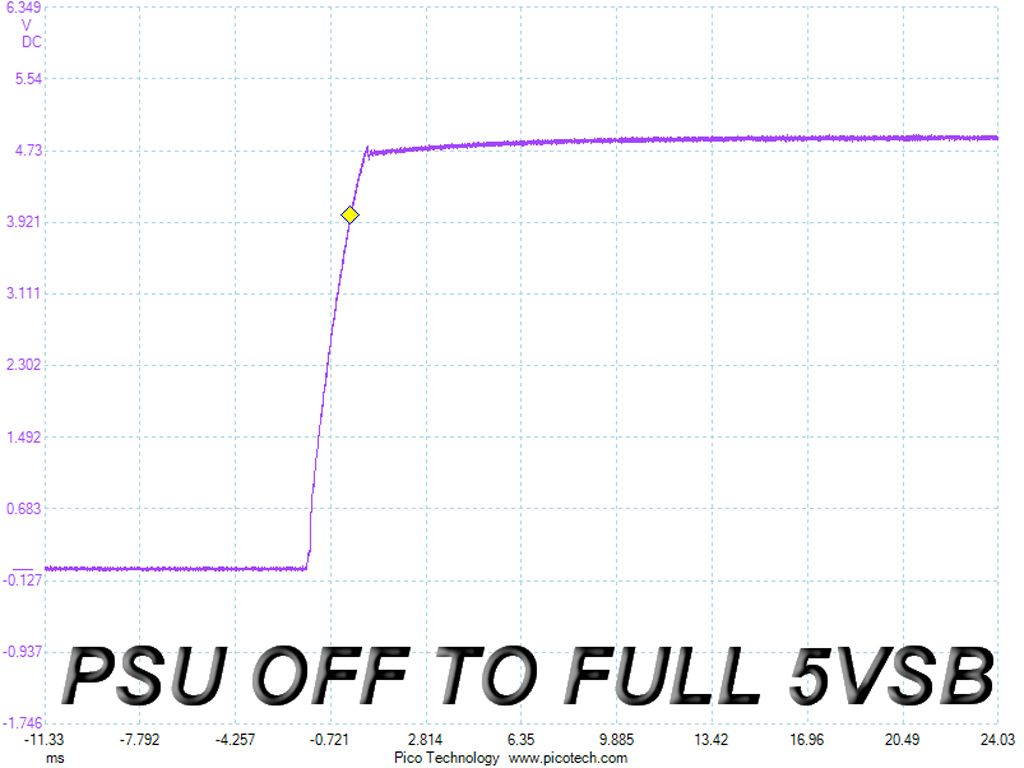

Turn-On Transient Tests

In the next set of tests, we measure the PSU's response in simpler transient load scenarios—during its power-on phase.

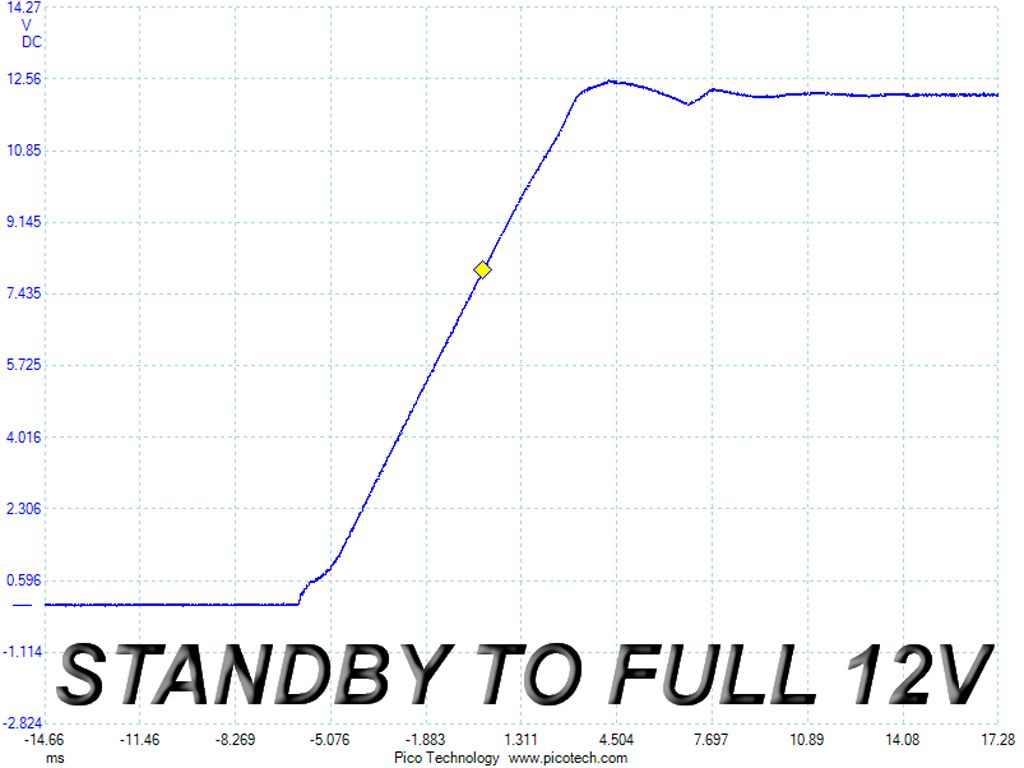

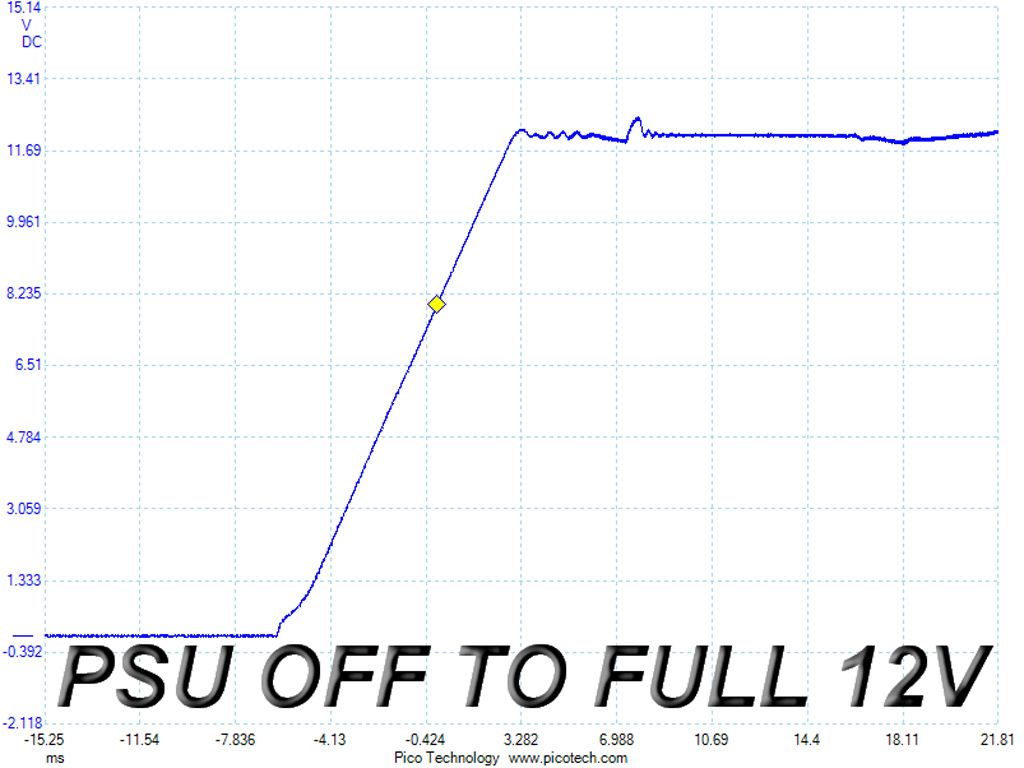

For the first measurement, we turn off the PSU, dial in the maximum current the 5VSB can output and switch on the PSU. In the second test, we dial the maximum load the +12V can handle and start the PSU while it's in standby mode. In the last test, while the PSU is completely switched off (we cut off the power or switch off the PSU by flipping its on/off switch), we dial the maximum load the +12V rail can handle before switching on the PSU from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10 percent of their nominal values (+10 percent for 12V is 13.2V, and 5.5V for 5V).

Image 1 of 3

There's a barely-noticeable spike at 5VSB and a small wave during the second test, both of which are nothing to worry about. Only during the last test do we measure a larger spike that exceeds 12.5V. It's still well under our upper limit, though.
