Samsung SM951 128GB And 256GB SSD Review
Samsung's SM951 is the hottest storage product on the market. Today we look at the two smaller versions, both of which still perform better than SATA.
Why you can trust Tom's Hardware
Latency Tests

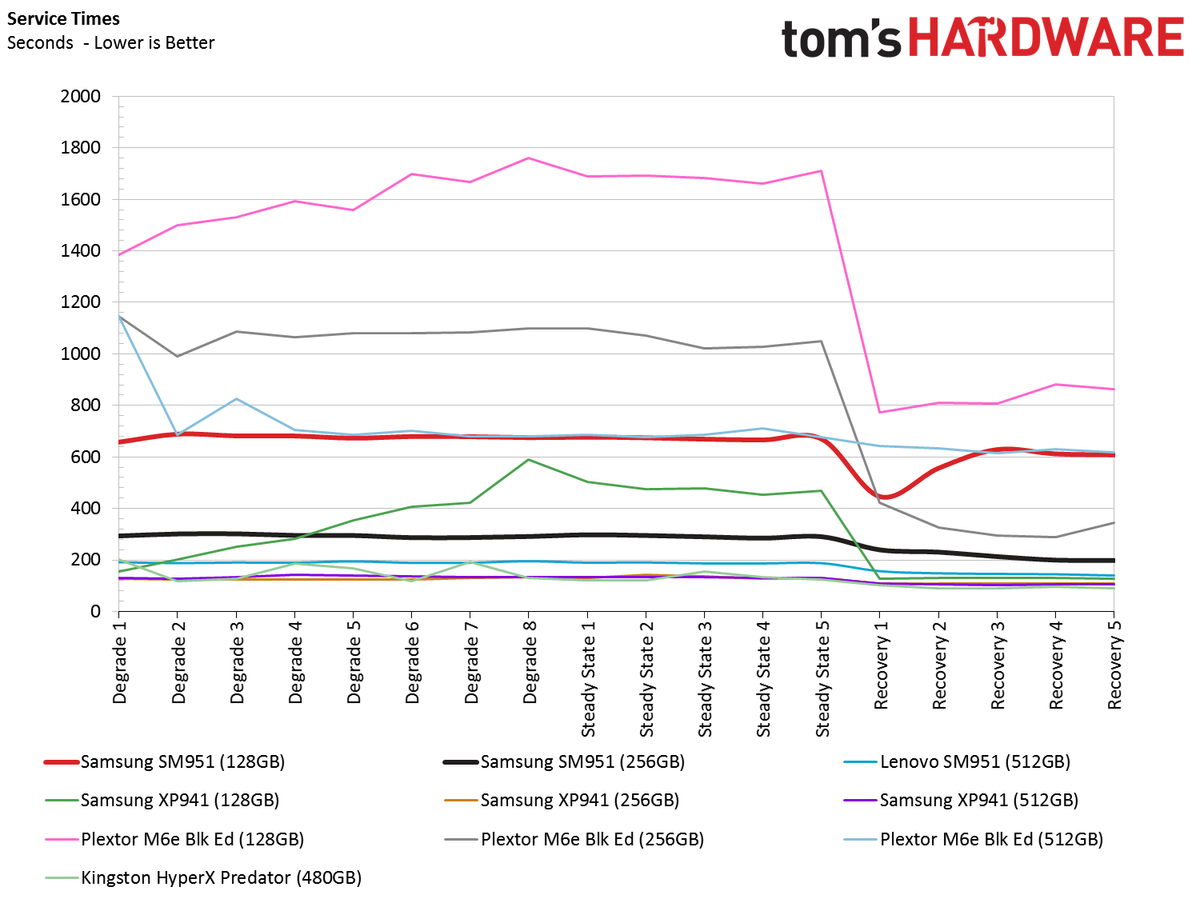

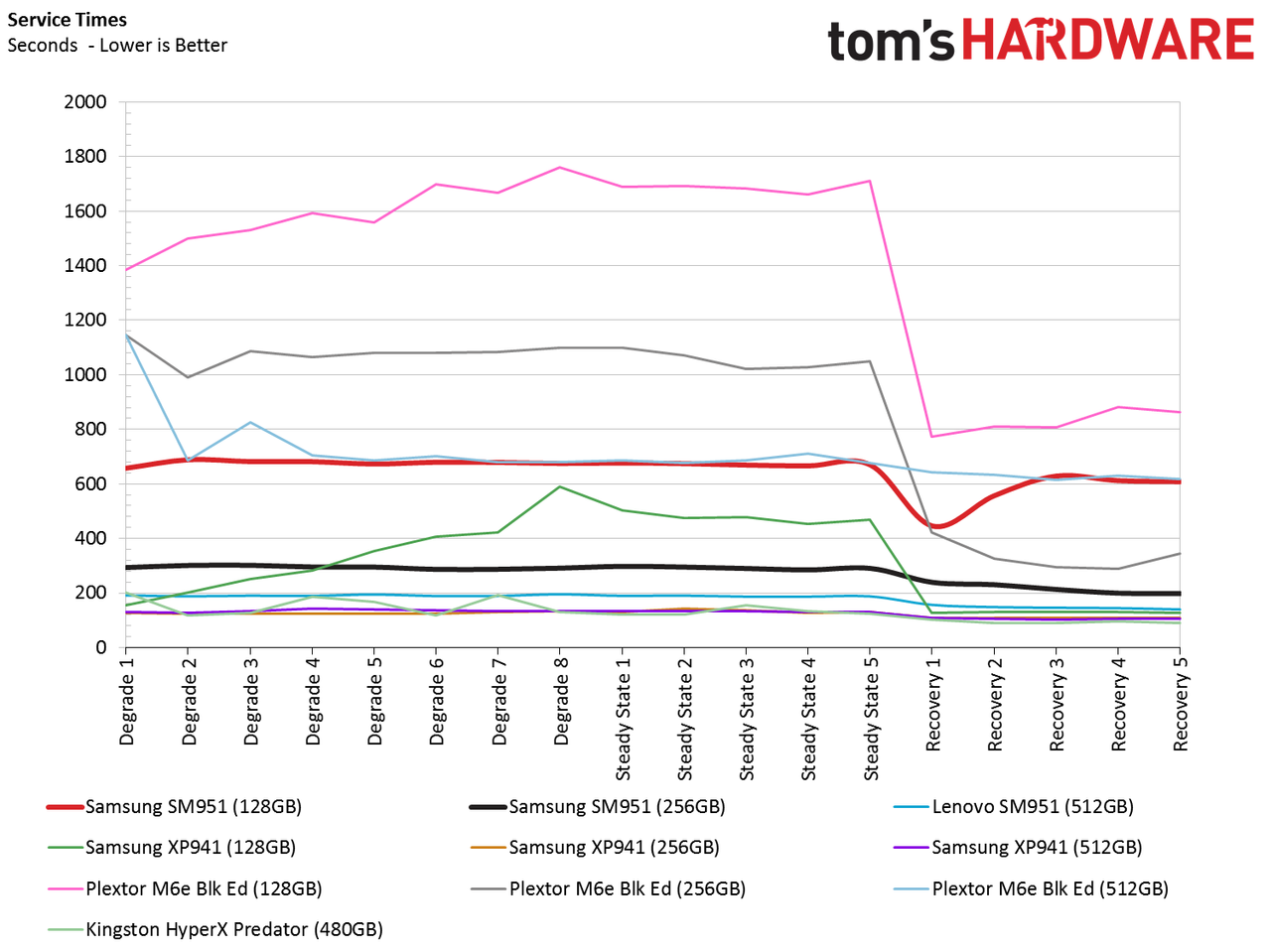

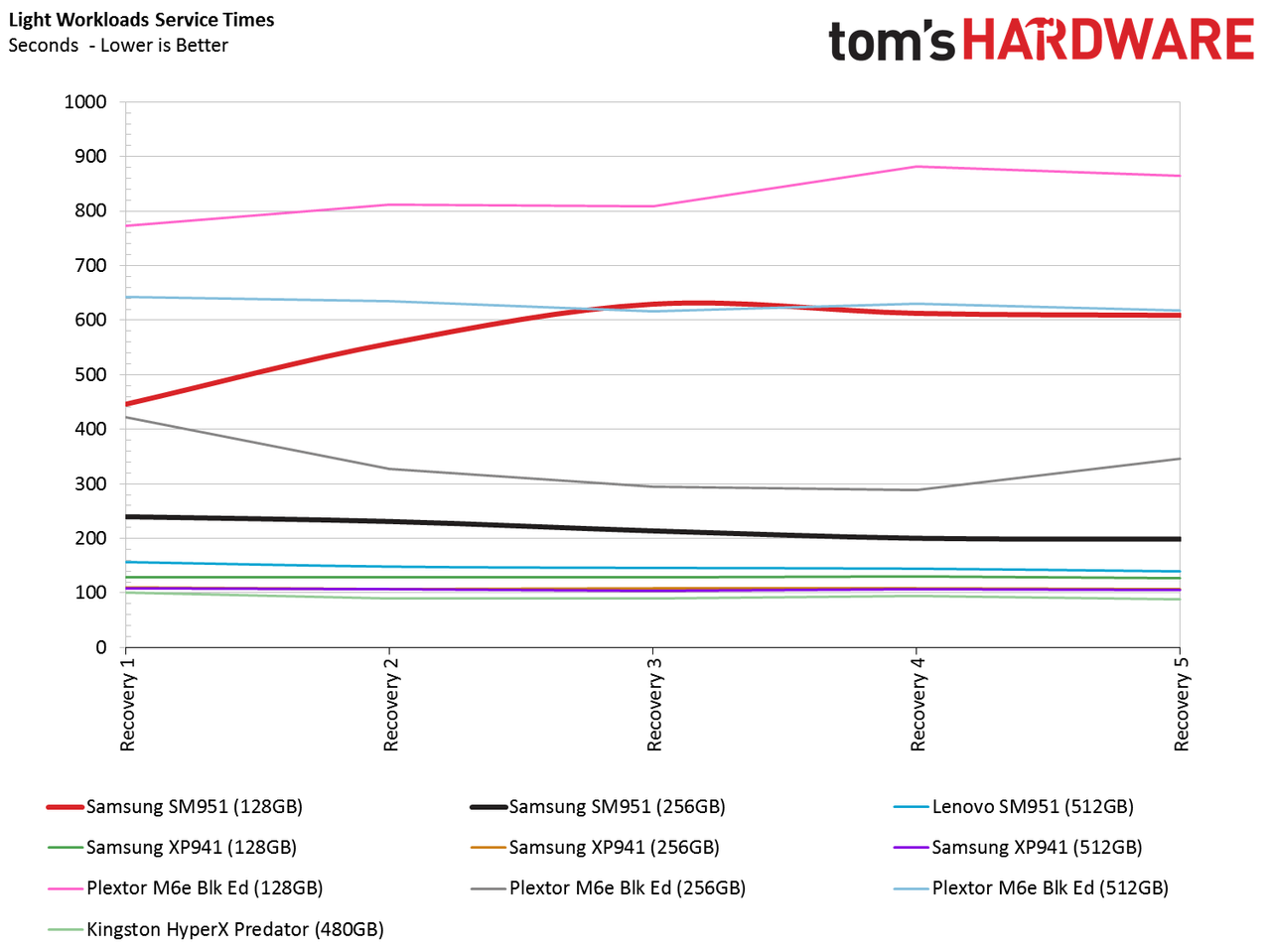

The two larger SM951s yield the best throughput of the drives on our chart, but the higher-capacity XP941s complete the tasks in less time. The Lenovo-specific SM951 lands just behind last year's OEM superstar from Samsung. Meanwhile, the smaller SM951s take longer to finish the tasks under light workload conditions coming out of heavy workloads.
Lower-capacity Samsung SSDs are hit and miss when it comes to cleaning up the NAND after heavy workloads. Many of the company's products displayed this behavior. What we're seeing is the clean-up process taking longer. New reads and writes happening at the same time as background operations increases latency. I noticed this with the 830- and 840-series drives. The 850s with 3D V-NAND were more resilient, even after especially taxing workloads. The SM951 uses 1xnm 2D planar MLC NAND that evolved from what we found in the 840-series, though.
The light workload set assumes that five minutes between tests is long enough for the drive to tidy up dirty cells. So either it takes longer to clean house, or the house gets dirty faster with the large 128Gb dies. Both the 128GB and 256GB SM951s use just two NAND packages and the 512GB model uses four. This can limit I/O, even with quad-plane packages.
Here we see the 128GB SM951 in a dirty state after a reasonable number of sequential and random writes. At this point in the test process, the drive wasn't being pushed particularly hard. Despite that, 128KB sequential write performance is already down to very low levels. Over time, the internal wear-leveling algorithms will clean the flash and write performance should recover where cells are free.
Current page: Latency Tests
Prev Page PCMark 8 Advanced Workload Performance Next Page Notebook Battery LifeStay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
This Raspberry Pi dashcam continuously records even when your car is off
Steam drops Windows 7 and 8 support with the latest client — users told to ‘update to a more recent version of Windows’ to continue gaming
S.T.A.L.K.E.R 2: Heart of Chornobyl and MSFS 2024 arrive next week — here are the system requirements and driver details
-
Soul_keeper Nice review.Reply
It'd be a shame to see this eventually end up as a 2 horse race intel vs. samsung.
Here's to hoping marvell and others step up this year. -
JQB45 Now we need articles telling us the difference in performance from one motherboard to the next, if any for their built in M2 slots. For example how does an ASUS motherboard compare to say ASRock, etc.Reply -
hrafn42 I would think that the biggest "difference in performance" would be between how many, and what generation, PCIe lanes the MB assigns to the M2 slot -- affecting the bandwidth available to the drive. Most "9-Series" MB only toss a couple of 2nd-Gen lanes, resulting in performance not much better than SATA. A few 9-Series MBs peel off some 3rd-Gen lanes from the graphics slot, and most X99 have 3rd Gen lanes to burn so assign a full four of them to the M2.Reply -
LuxZg # Sorry for previous comment, I pressed something * :P * and no edit / delete buddon in view :-/ #Reply
I'm really hoping for that editorial mentioned in this review. It's unbelivable that last mechanical HDD reviewed by Tom's Hardware was 4TB Seagate in July 2013 !! We've since gone to 8TB drives, new technologies, and so on. I know SSDs are future, but there are still millions of old fashioned HDDs sold each year. I still can't afford a 10TB storage build solely from SSDs.
So please, do a proper editorial, include everything from Intel 750 and new SM951 NVMe editions, performance SATA SSDs, lower end SATA SSDs, speedy SATA HDDs, large archival "green" HDDs, etc. Keep in mind that people have diverse needs. I want a relatively large SSD in my desktop, but one I can actually afford (not costing more than either CPU or GPU), I want a speedy yet small SSD for my laptop, and can afford more $/GB here because I don't need a 1TB drive, but I want it to have good performance per watt, and I also want large storage drive(s) for desktop, but we're always looking for good performance per $$$ spent. These are widely different categories, and some haven't been covered by Tom's in years.
Also, when doing the editorial, please keep the charts of "real-world performance" in seconds. It really is a better way to see where to draw the line. If a test lasts 5 minutes and a 1000$ drive shaves 5 seconds over 100$ drive, I don't want to spend extreme $$$$ for those 5 seconds. OK, someone will want to shave even those 5 seconds, but give us info so we can make our buying decisions.
I personaly am planning on building new PC, AND buying a new laptop, and I really want to make an optimal build(s) where I can decide how many GB/TB I'll appoint in SSDs, and how much in storage HDDs. SSD is getting cheaper all the time, but it's still not THAT cheap if your needs are measured in range of 10TB that you can just go buy some blindly.
As for last few SSD reviews, they really paint an interesting picture, and even more so makes me ask some questions like above. If you overlap some charts, and you're not a heavy workstation user, it does seem that any SSD drive will do for 99% of tasks.. and saving some serious money and investing it in other subsystems is probably a wise choice, instead of just going after benchmark numbers. I'm way past the "my benchmark is bigger than yours", and if it isn't translated in performance that you can percieve with our limited human senses - it's simply a number on paper, no more. -
Luay Two questions come to mind,Reply
Do Z97 motherboards with M.2 slots use Sata or PCI-E?
and, Do video cards installed on a motherboard with an occupied PCI-E M.2 slot operate at x8 bandwidth or at the full x16? -
danlw @LuxZg - I don't see much point in doing performance reviews for mechanical hard drives, other than to show just how much faster SSDs are in comparison. I'm at the point where if I get a mechanical hard drive, it's for archival reasons, and therefore a 5400RPM hard drive is sufficient. It's slower than 7200RPM drives, but I value noise (or rather, lack thereof) over speed when it comes to mechanical storage that I use for archiving. Therefore, the only benchmark metric I care about when it comes to mechanical storage is how quiet (or not) the drive is.Reply
Ultimately, I'd like to move completely away from mechanical storage. But it will be a few years until a 4TB SSD is affordable. Sure, mechanical storage may retain a $/GB edge, but there comes a point when solid state storage is plentiful and large enough that mechanical hard drives will join tape drives as an archive only format that will fade off into computing history as SSDs become large enough to meet most people's needs as both a system and archival drive. -
WyomingKnott I remember other "interim technologies." Personally, I wouldn't consider getting an m.2 drive until I could have nvme and 4 lanes - they are coming so soon, and the advantage will be so great.Reply
By the way, I've built my own systems for some time and this is the first time I have ever considered waiting for the next great thing to come out. It's so much more difference than the usual increment. -
John Philips I think it´s no good using it with a Z97 platform, since there are only 16 pcie lanes available, so these ssds may split to 8x for both, which is the case of the Impact vii. Go for X99.Reply -
Blueberries I think it´s no good using it with a Z97 platform, since there are only 16 pcie lanes available, so these ssds may split to 8x for both, which is the case of the Impact vii. Go for X99.
The SM951 uses 4 lanes, the XP941 uses 2.
-
hrafn42 The SM951 uses 4 lanes, the XP941 uses 2.
Actually, the XP941 uses 4 Gen2 lanes, the SM951 4 Gen3 lanes.
