Seagate's new BarraCuda 510 M.2 SSD comes in two capacities of 256GB and 512GB, and while the size and capacity of these SSDs are small, performance is anything but. With speeds of up to 3.4/2.1 GB/s read/write, the BarraCuda 510 can deliver that snappy user experience you crave, and then some.
Seagate BarraCuda 510 NVMe SSD (Credit: Tom's Hardware)
Seagate is a brand that is much more well known for its hard drives than its SSDs. For the company, SSDs haven’t been a big area of concern until recently. Now HDD sales are sinking, but to keep afloat amidst these rough seas, Seagate is looking to some fishy-branded SSDs for help. It’s latest products, the BarraCuda 510 and FireCuda 510 have been swimming about on its social media since CES, but neither of these SSDs has been available until now.
The BarraCuda and FireCuda are Seagate's response to WD’s Blue and Black NVMe SSDs. Instead of offering two distinct products, with one being a high-end performance model and the other being an entry-level device, Seagate has taken another approach. The company split the same product into two, separating them based on capacity and thus price, as well as a few other minor points. Therefore, the BarraCuda 510 series receives mainstream branding, encompassing the cheaper and lower capacities in their product line, while the FireCuda 510 series takes on enthusiast class/gaming branding, encompassing the pricier and higher capacity models.
These SSDs offer faster performance than any SATA drive could dream of, and they come in a small M.2 form factor. But, while they are new to Seagate, the design isn’t quite new to the market. While some manufacturers have taken the burden upon themselves to develop every aspect of their SSDs in-house, Seagate has opted for the easy route here.
The BarraCuda and FireCuda are manufactured using Phison’s tried-and-true E12 NVMe SSD controller rather than a drive with the company's own IP. The same goes for the Toshiba BiCS3 TLC NAND. We've seen this combination before, so there shouldn’t be any surprises during testing: overall performance should be along the lines of what we have seen in the past with similarly-built SSDs.
|Product||BarraCuda 510 256GB||BarraCuda 510 512GB|
|Capacity (User / Raw)||256GB / 256GB||512GB / 512GB|
|Form Factor||M.2 2280 single-sided||M.2 2280 single-sided|
|Interface / Protocol||PCIe 3.0 x4 / NVMe 1.3||PCIe 3.0 x4 / NVMe 1.3|
|Controller||Phison E12||Phison E12|
|NAND Flash||Toshiba BiCS3 64L TLC||Toshiba BiCS3 64L TLC|
|Sequential Read||3,050 MB/s||3,400 MB/s|
|Sequential Write||1,050 MB/s||2,100 MB/s|
|Random Read||180,000 IOPS||340,000 IOPS|
|Random Write||255,000 IOPS||500,000 IOPS|
|Encryption||TCG Pyrite / Opal||TCG Pyrite / Opal|
|Endurance||160 TBW||320 TBW|
|Part Number||ZP256CM30011 / ZP256CM30031||ZP512CM30011 / ZP512CM30031|
Like we've seen from similar SSDs, the 256GB BarraCuda 510 is rated for sequential performance up to 3.05/1.05 GB/s read/write and the 512GB sample we are reviewing is rated a bit higher at up to 3.4/2.1 GB/s read/write. In terms of random performance, the BarraCuda 510 can deliver up to 180,000/255,000 IOPS read/write at the 256GB capacity, and up to 340,000/500,000 read/write IOPS at the 512GB capacity.
With such high write speed, endurance has to be high enough to handle what you can throw at it over the years. The five-year warranty covers up to 160 TBW (terabytes written) at the 256GB capacity and 320 TBW at the 512GB capacity. Other Phison-equipped SSDs come with twice the endurance rating, though.
MSRPs come in at $70 for the 256GB model and $110 for the 512GB model, which is almost twice the price of competing SSDs. Seagate’s BarraCuda 510 also supports TRIM and S.M.A.R.T. data reporting, as well as the ability to secure erase with the company's SeaChest Utilities. The drive also supports hardware encryption if you purchase the TCG Opal-compliant SKU.
Software and Accessories

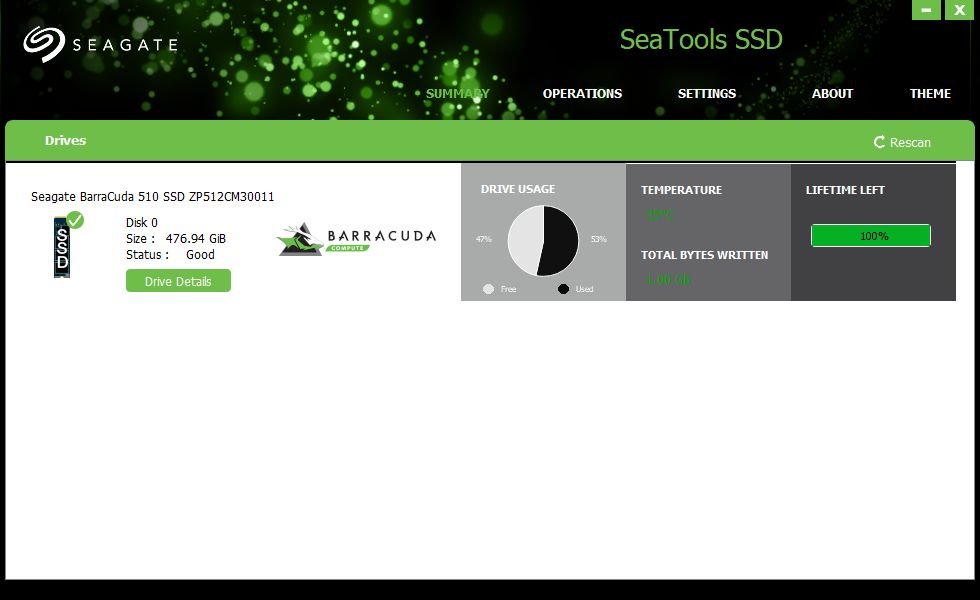

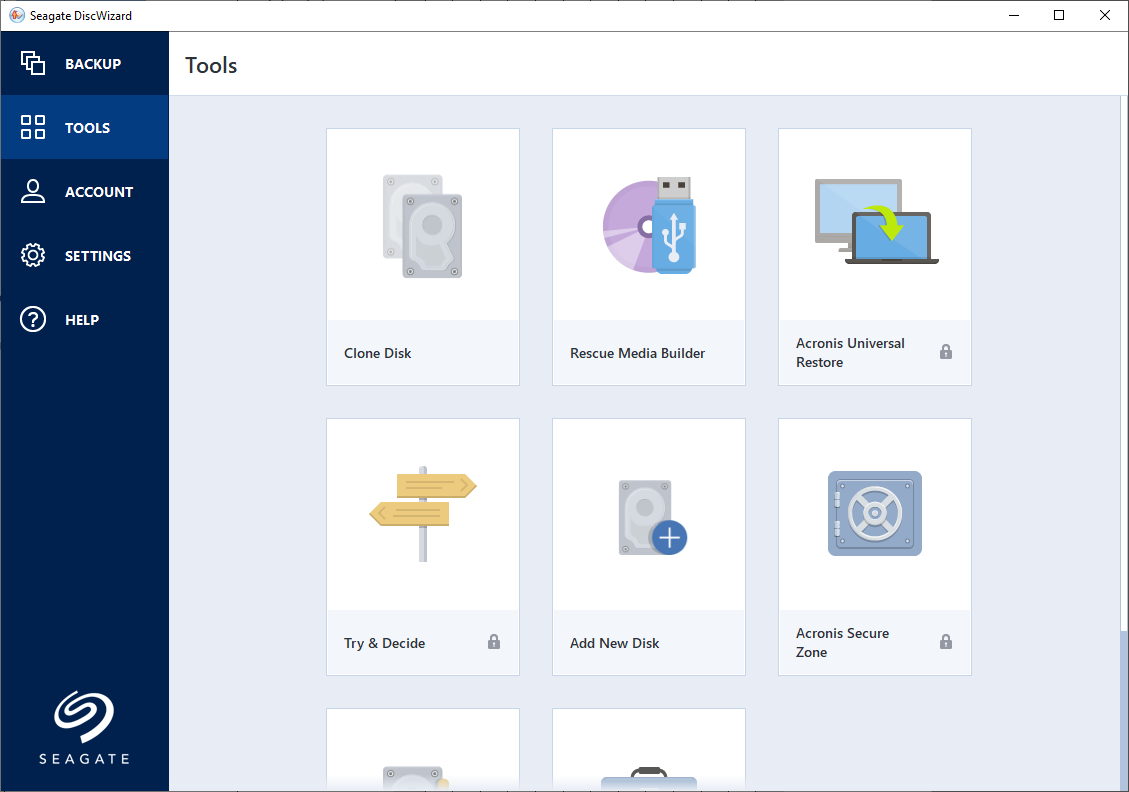

Our sample came to us without any accessories, but you can download support software for the BarraCuda 510 from Seagate’s website. For basic monitoring, you can use SeaTools SSD GUI. With it, you can view S.M.A.R.T. data as well as other useful details about your drive. You can also download DiscWizard. This software is basically Acronis True Image HD, but a streamlined free option for Seagate to port over to their customers. You can use it for basic cloning and system imaging, but more advanced features are disabled.
A Closer Look

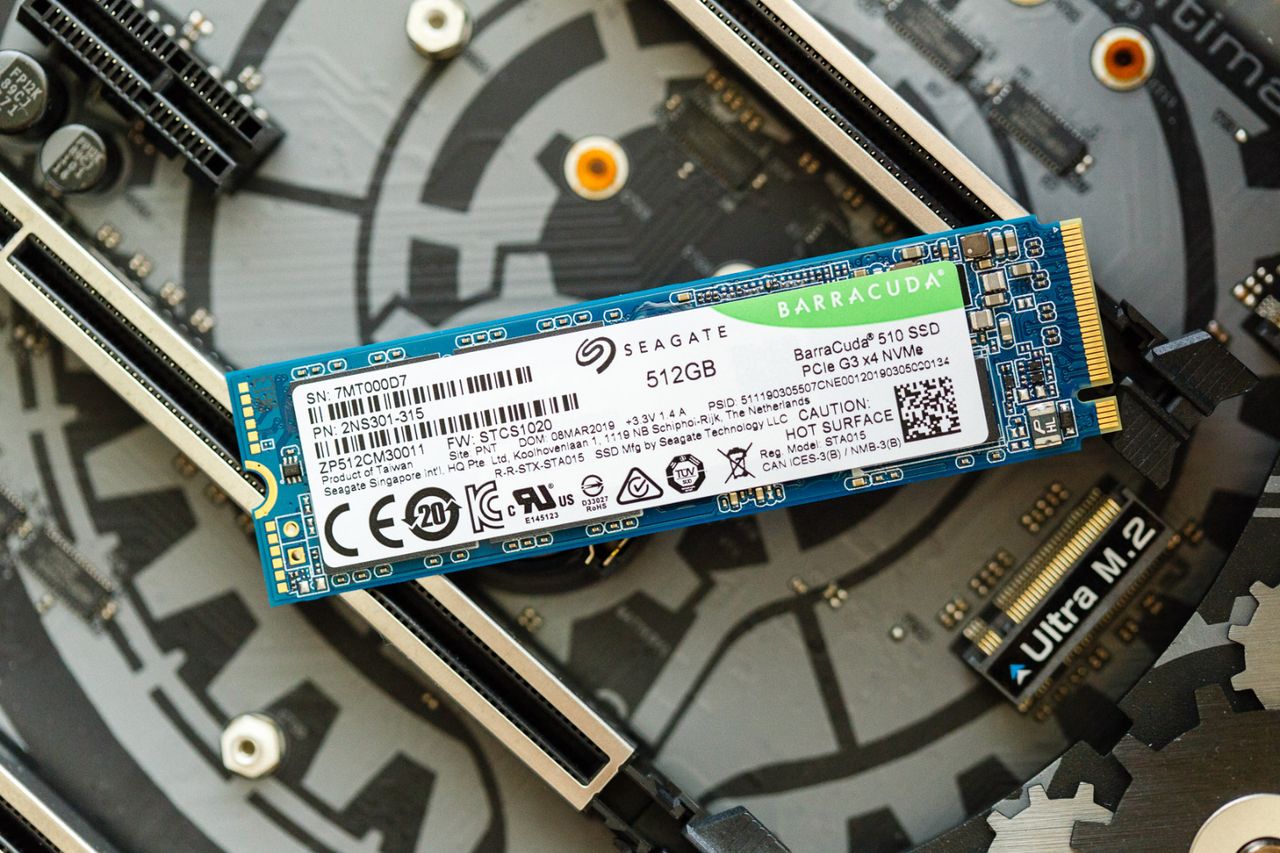

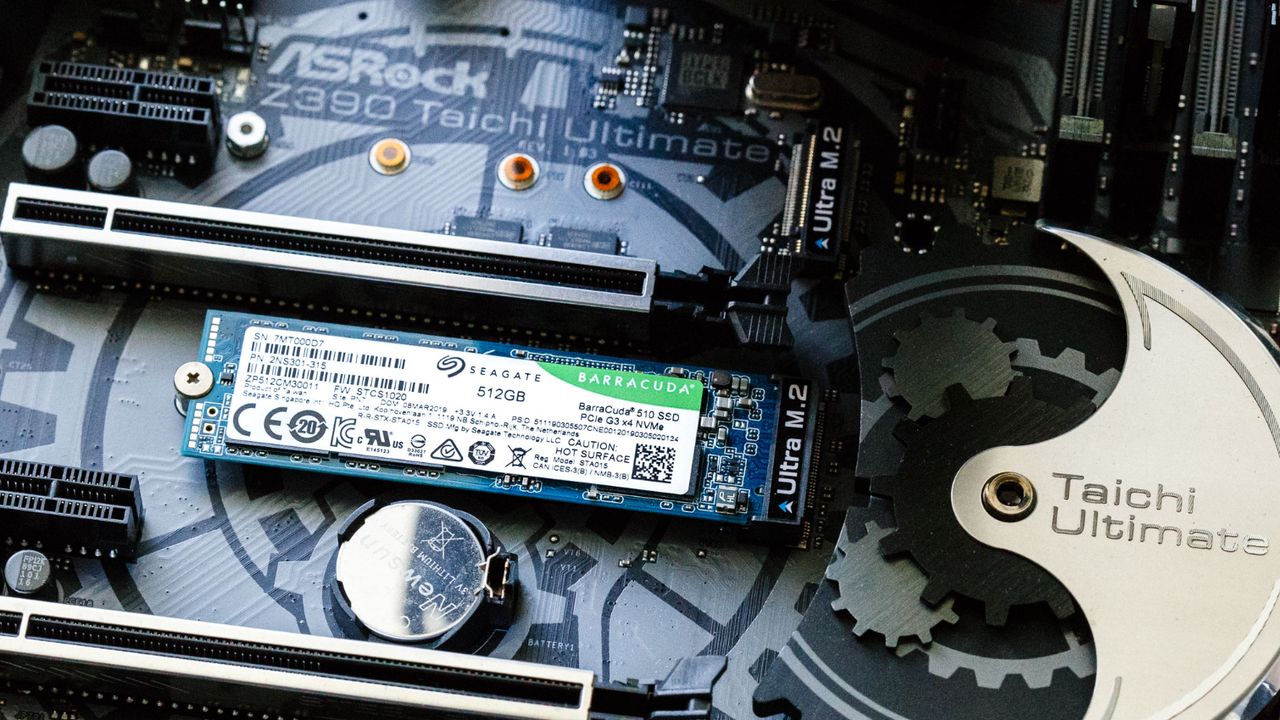

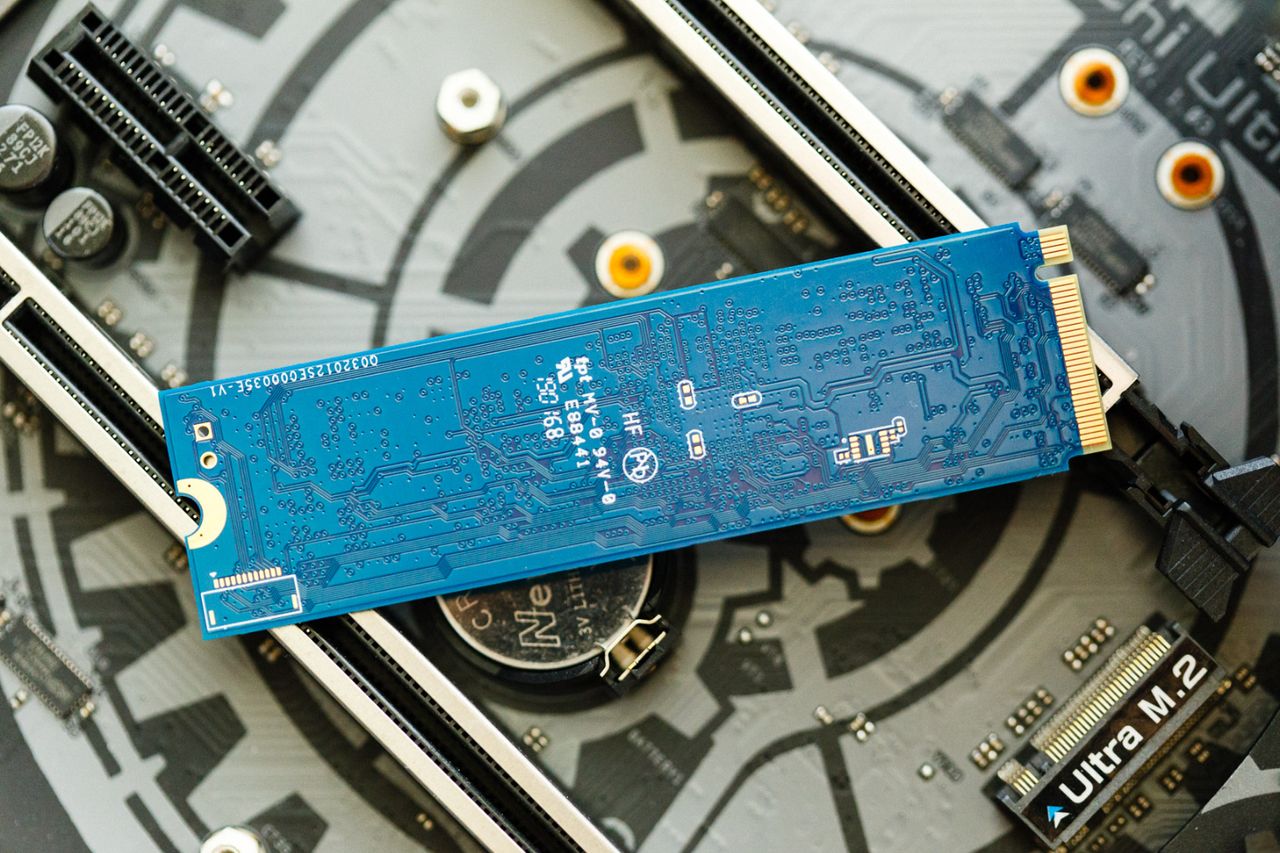

Seagate’s BarraCuda 510 comes in a single-sided M.2 2280 form factor, meaning it has all PCB components laid out on one side. The blue PCB and the white and green sticker don’t add anything positive to the aesthetics, but what really matters most is what's underneath.

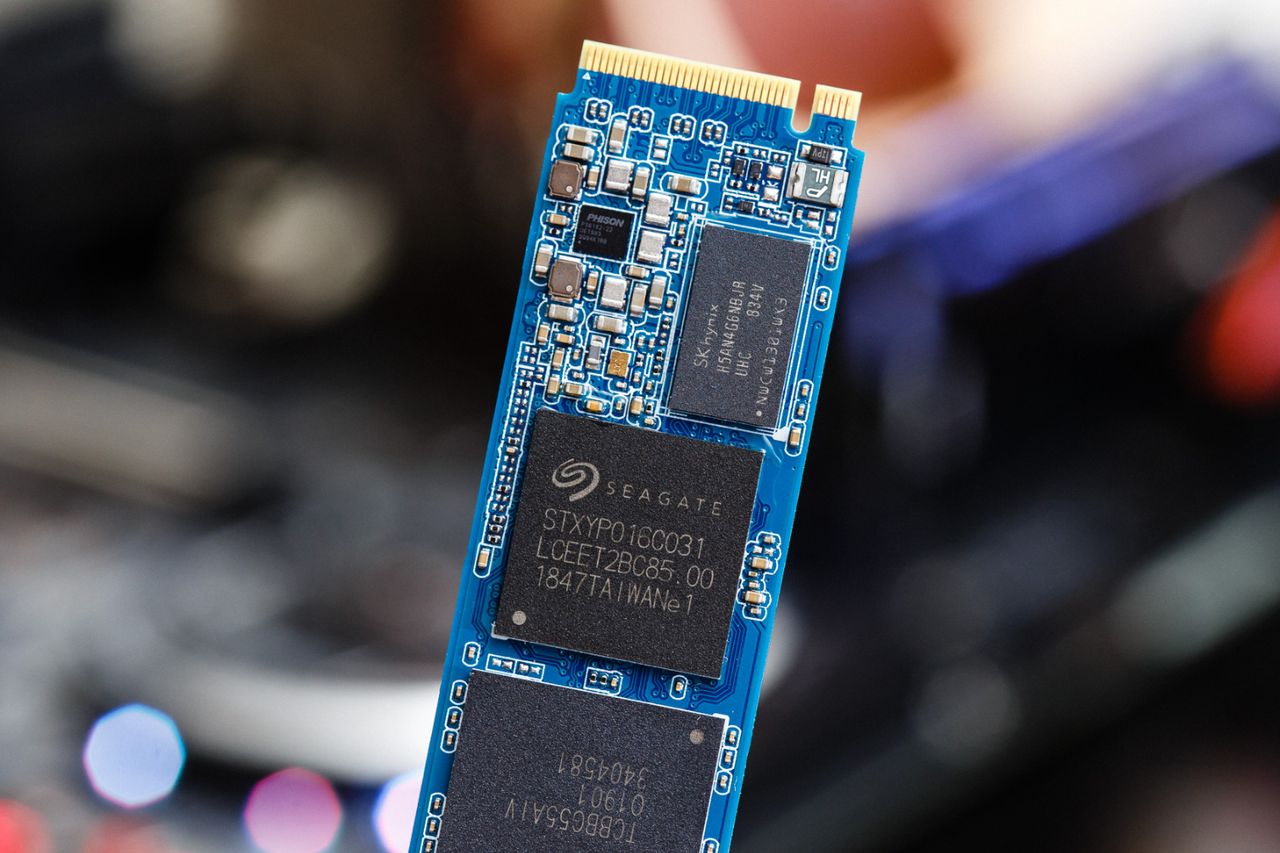

The BarraCuda 510 features Phison’s E12 PCIe 3.0 x4 NVMe 1.3 SSD controller, but unlike most, this one is stamped as Seagate’s own. There is a 512MB DDR4 DRAM cache for the FTL caching and two Toshiba BiCS3 NAND packages for storage. Once formatted, the drive exposes 476GB of usable capacity.
