Protection Features
Check out our PSUs 101 article to learn more about PSU protection features.
|
OCP (Cold @ 28°C) | 12V: 169A (126.77%), 11.991V 5V: 34.9A (139.6%), 5.053V 3.3V: 32.9A (131.6%), 3.341V 5VSB: 5.1A (170%), 5.210V |
|
OCP (Hot @ 41°C) | 12V: 168.4A (126.32%), 11.992V 5V: 34.8A (139.2%), 5.044V 3.3V: 33.0A (132%), 3.338V 5VSB: 4.8A (160%), 5.223V |
|
OPP (Cold @ 31°C) |
2089.77W (130.61%) |
|
OPP (Hot @ 41°C) |
2023.79W (126.49%) |
|
OTP |
✓ (162°C @ 12V Heat Sink) |
|
SCP |
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓ |
|
PWR_OK |
Proper operation |
|
NLO |
✓ |
|
SIP |
Surge: MOV Inrush: NTC Thermistor & Bypass relay |
The over power and over current protection features are correctly set on all rails but 5V, where OCP is set too high. Moreover, there is over temperature protection along with the other, essential protection features.
DC Power Sequencing
According to Intel’s most recent Power Supply Design Guide (revision 1.4), the +12V and 5V outputs must be equal to or greater than the 3.3V rail at all times. Unfortunately, Intel doesn't mention why it is so important to always keep the 3.3V rail's voltage lower than the levels of the other two outputs.
No problems here since the 3.3V rail is always lower than the other two.
Cross Load Tests
To generate the following charts, we set our loaders to auto mode through custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature during testing was between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
Load Regulation Charts

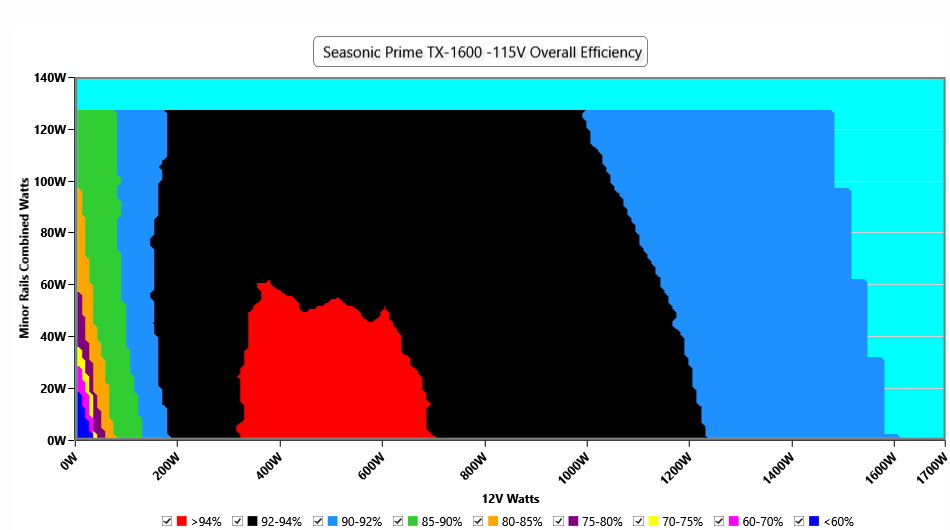

Efficiency Graph
Ripple Graphs
The lower the power supply's ripple, the more stable the system will be and less stress will also be applied to its components.
Infrared Images
We apply a half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with a modified Fluke Ti480 PRO camera able to deliver an IR resolution of 640x480 (307,200 pixels).
We didn't measure high temperatures inside the PSU during this test. The highly efficient platform minimizes energy losses,
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
