Thermaltake Toughpower Grand RGB 1050W Platinum Power Supply Review

The Toughpower Grand RGB 1050W is powerful and achieves high performance, thanks to its advanced platform.

(Image: © Thermaltake)

Tom's Hardware Verdict

Verdict

Pros

  • +

    Full power at 47 degrees Celsius

  • +

    High performance

  • +

    Goold build quality

  • +

    Efficient

  • +

    Fully modular

Cons

  • -

    Weird fan profile

  • -

    No Over Temperature Protection

  • -

    Not compatible with the alternative sleep mode

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

The Thermaltake Toughpower Grand RGB 1050W uses an advanced and reliable platform, provided by Channel Well Technology, which delivers high overall performance. The competition might be fierce in the 1000W zone, but this is not the case in the 1050W category, where only a handful of offerings are available, especially in the US market. If you don't mind 50W less and the lack of RGB lighting, the Corsair HX1000 is a good alternative and there is also the similar capacity Seasonic Prime Ultra offering with even higher performance.

If you are after a power supply featuring RGB lighting, you will soon find out that most of the major brands (e.g., Corsair, Seasonic, EVGA, etc.) don't have such offerings in their portfolios. Only Thermaltake seems to be a vivid supporter of RGB lighting in power supplies, having a great number of corresponding offerings in its line of products.

The Toughpower Grand RGB Platinum (and ETA-A in the Cybenetics efficiency scale), consists of three models with 850W, 1050W, and 1200W capacities. In this review, we will take a detailed look at the middle member of the line, which has enough power to support a potent system (with a glass side panel to show-off the PSU's RGB lighting, of course). Although not everyone likes RGB peripherals, many users do want a system that can offer a fancy lights show. What matters the most, though, especially when it comes to power supplies, is the build quality, besides the design and the parts that the manufacturer used.

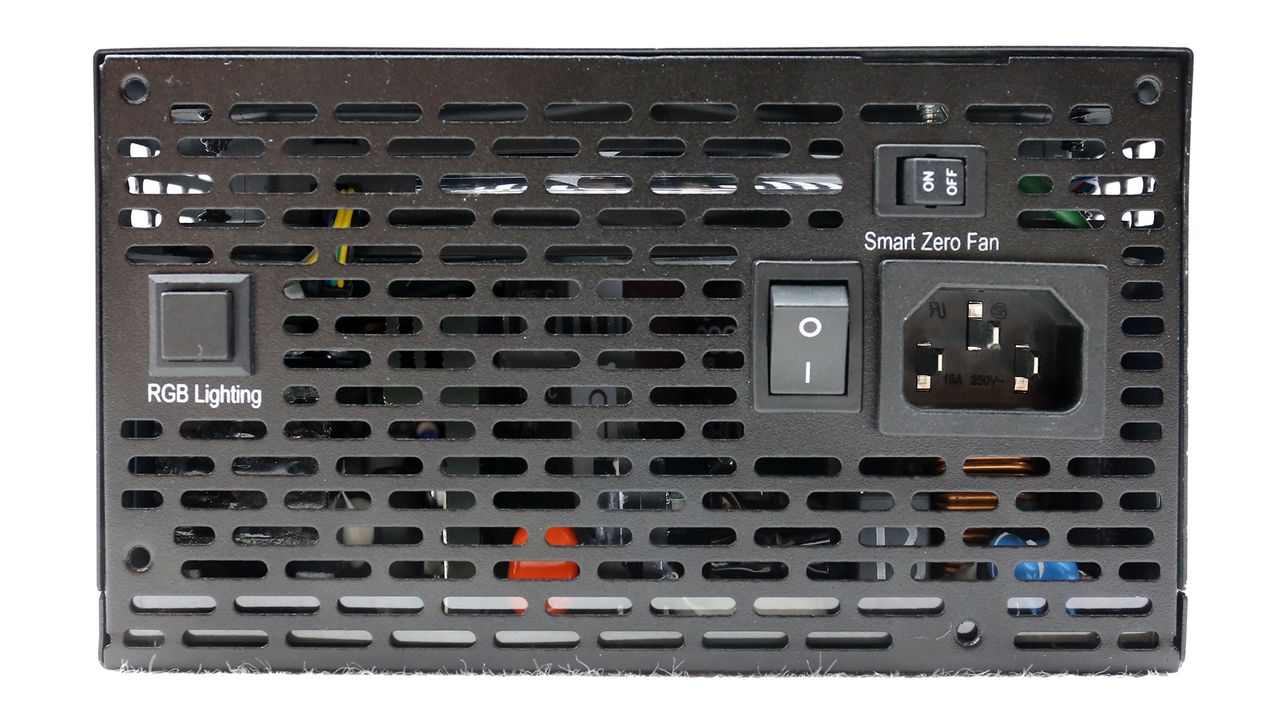

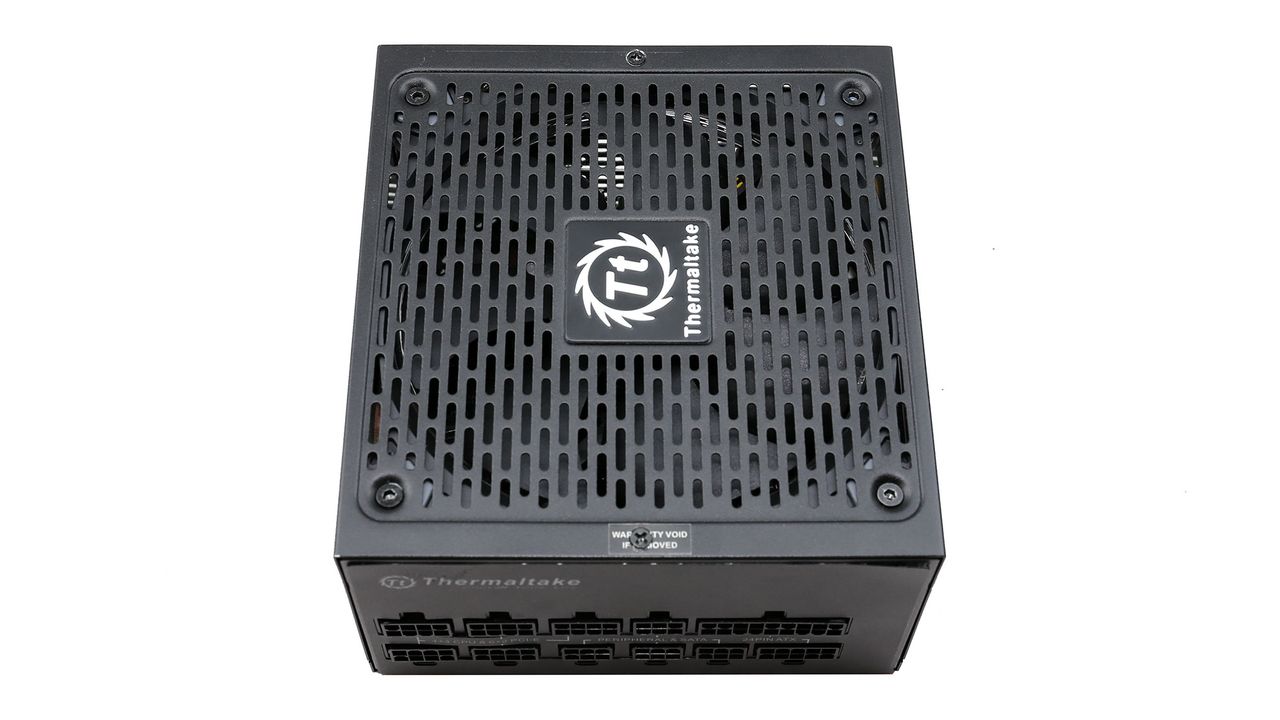

The Toughpower Grand RGB Platinum 1050W is fully modular, as are the other two members of the line. Its dimensions are compact since the chassis measures 16cm in length. Finally, the cooling fan uses a Hydro-Dynamic bearing, which will last for a prolonged period; if it didn't, Thermaltake wouldn't provide a ten-year warranty. Usually, the cooling fans are the first to go and this is why in applications where reliability comes first, the engineers try to push efficiency as high as possible to decrease the thermal loads and get rid of active cooling. This is not easy, though, for high-capacity power supplies.

Specifications

Swipe to scroll horizontally

Manufacturer (OEM)

CWT

Max. DC Output

1050W

Efficiency

80 PLUS Platinum, ETA-A (88-91%)

Noise

LAMBDA-S++ (30-35 dB[A])

Modular

✓ (Fully)

Intel C6/C7 Power State Support

Operating Temperature (Continuous Full Load)

0 - 50°C

Over Voltage Protection

Under Voltage Protection

Over Power Protection

Over Current (+12V) Protection

Over Temperature Protection

Short Circuit Protection

Surge Protection

Inrush Current Protection

Fan Failure Protection

No Load Operation

Cooling

140mm Hydro Dynamic Bearing Fan (TT-1425/A1425L12S)

Semi-Passive Operation

✓ (selectable)

Dimensions (W x H x D)

150 x 85 x 160mm

Weight

1.95 kg (4.3 lb)

Form Factor

ATX12V v2.4, EPS 2.92

Warranty

10 Years

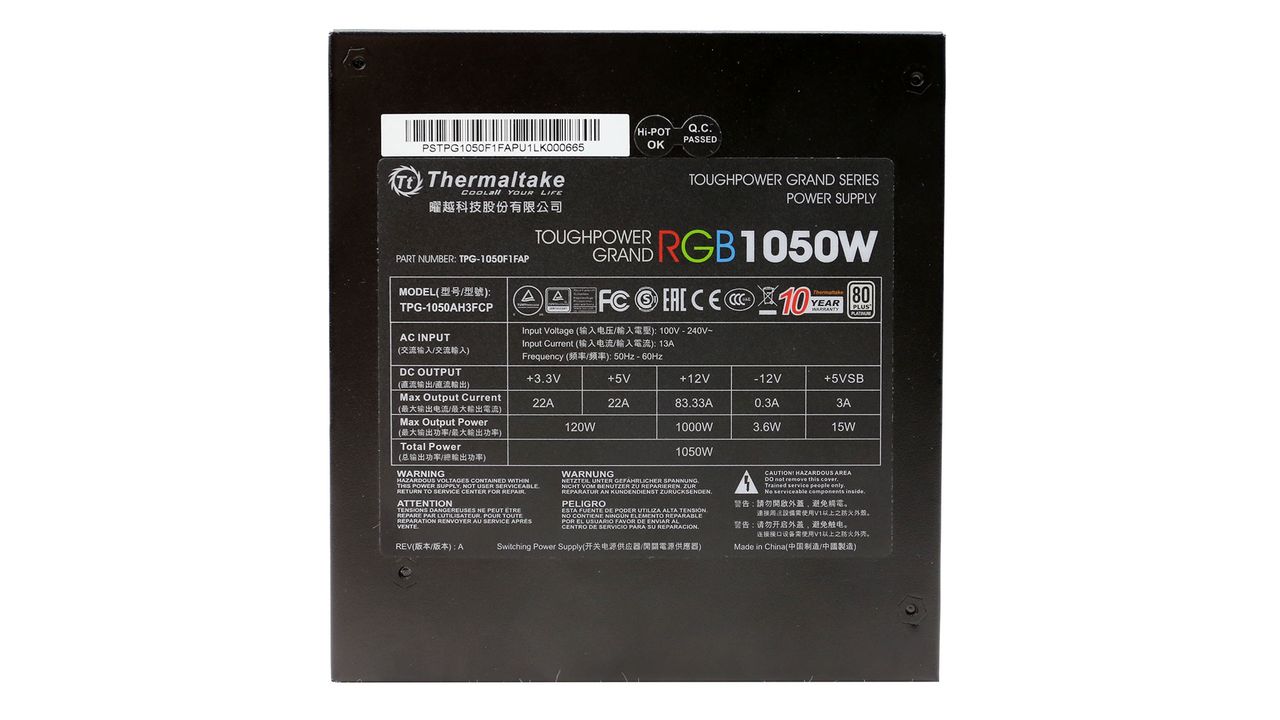

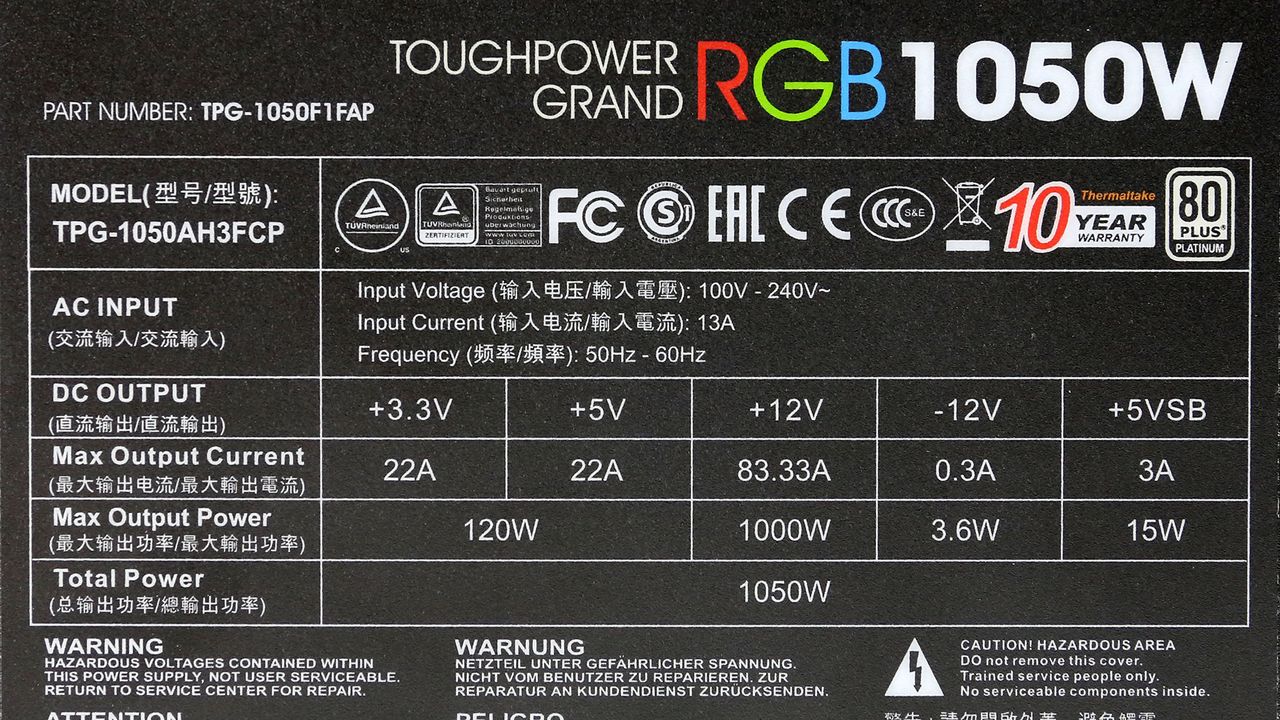

Power Specifications

Swipe to scroll horizontally
Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.330.30.5
Watts1201000153.6
Total Max. Power (W)1050

Cables & Connectors

Swipe to scroll horizontally
Modular CablesCable CountConnector Count (Total)GaugeIn Cable Capacitors
ATX connector 20+4 pin (600mm)1116AWGNo
4+4 pin EPS12V (650mm)1116AWGNo
8 pin EPS12V (650mm)1116AWGNo

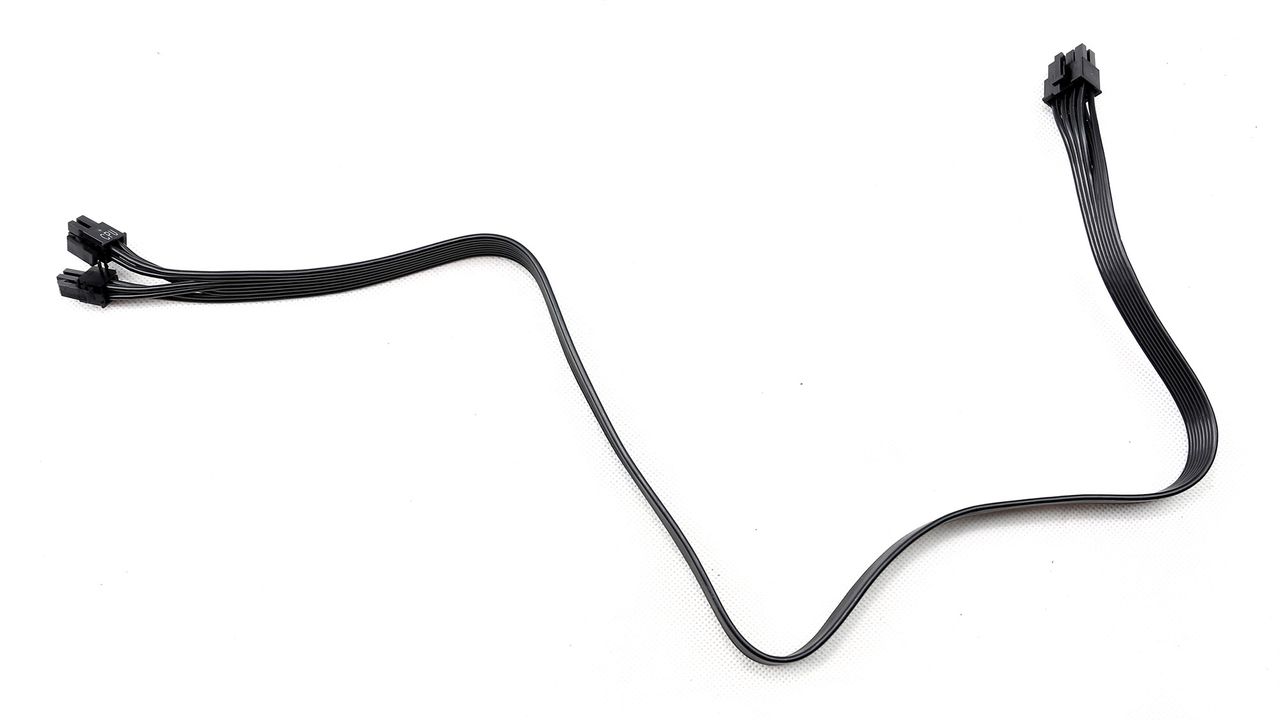

6+2 pin PCIe (500mm+150mm) 4816-18AWGNo
SATA (500mm+150mm+150mm+150mm)31218AWGNo
4-pin Molex (500mm+150mm+150mm+150mm)1418AWGNo

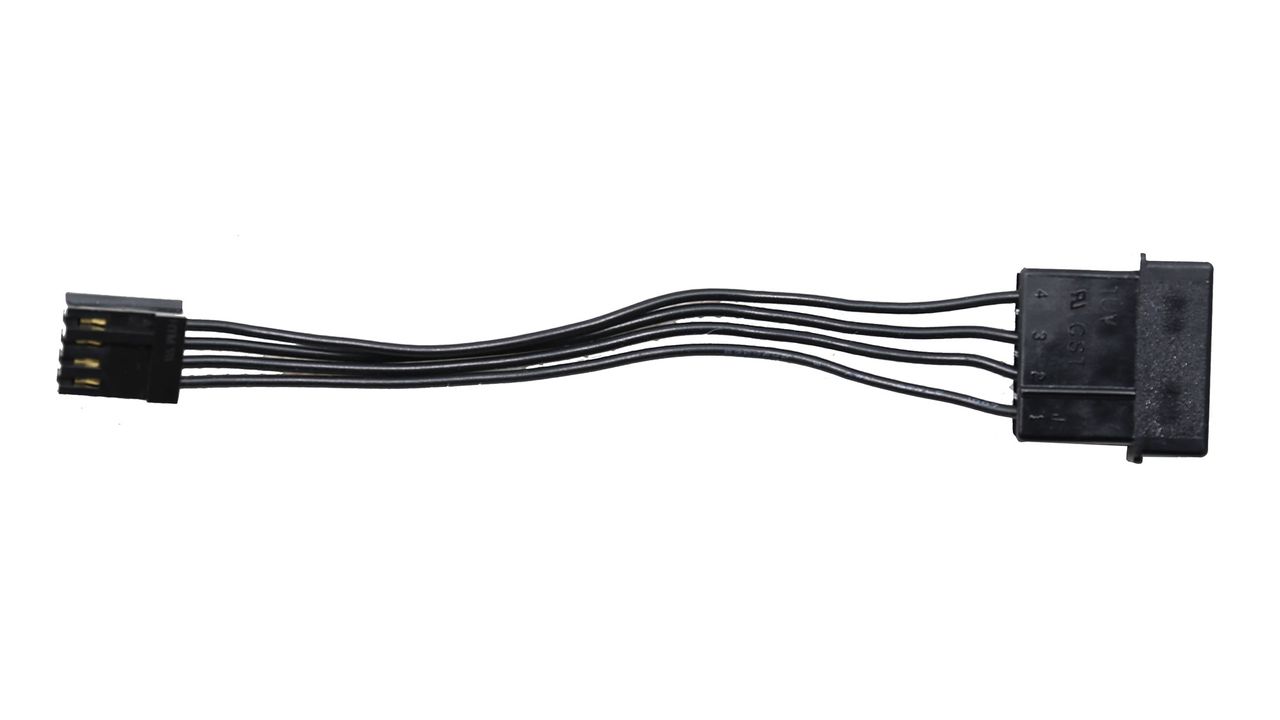

FDD Adapter (+100mm)1122AWGNo

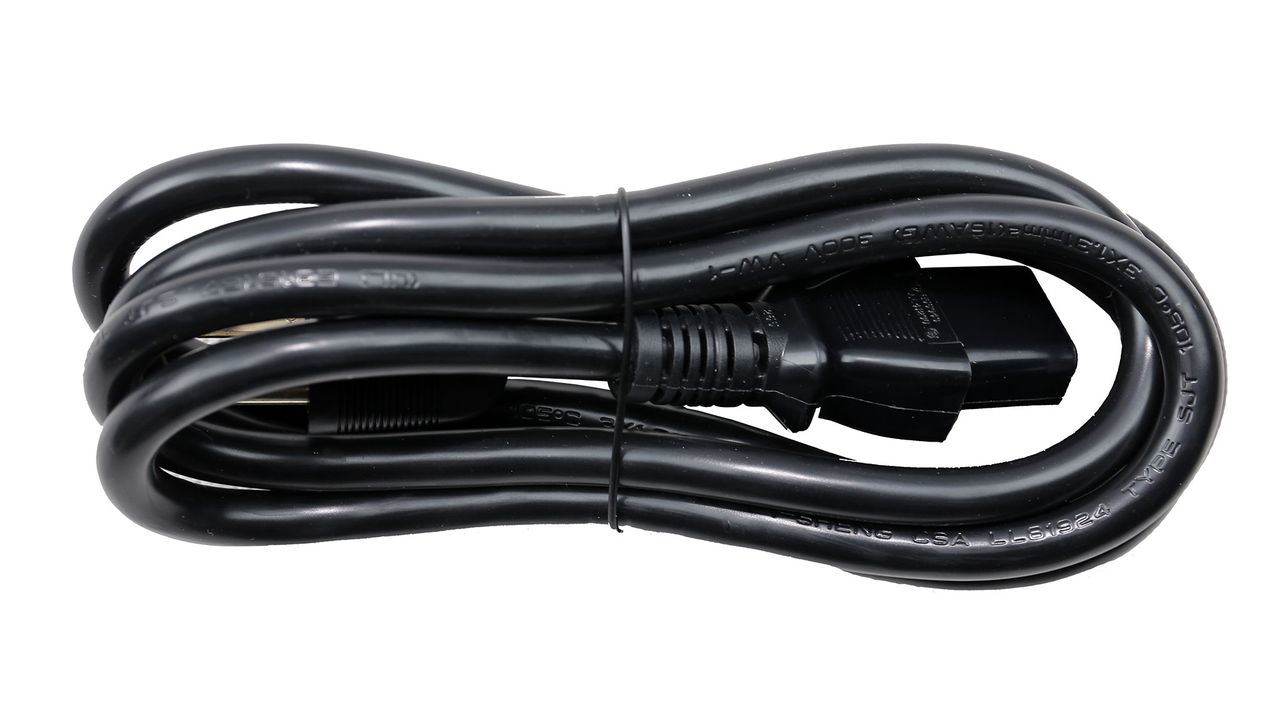

AC Power Cord (1440mm) - C13 coupler1116AWG-

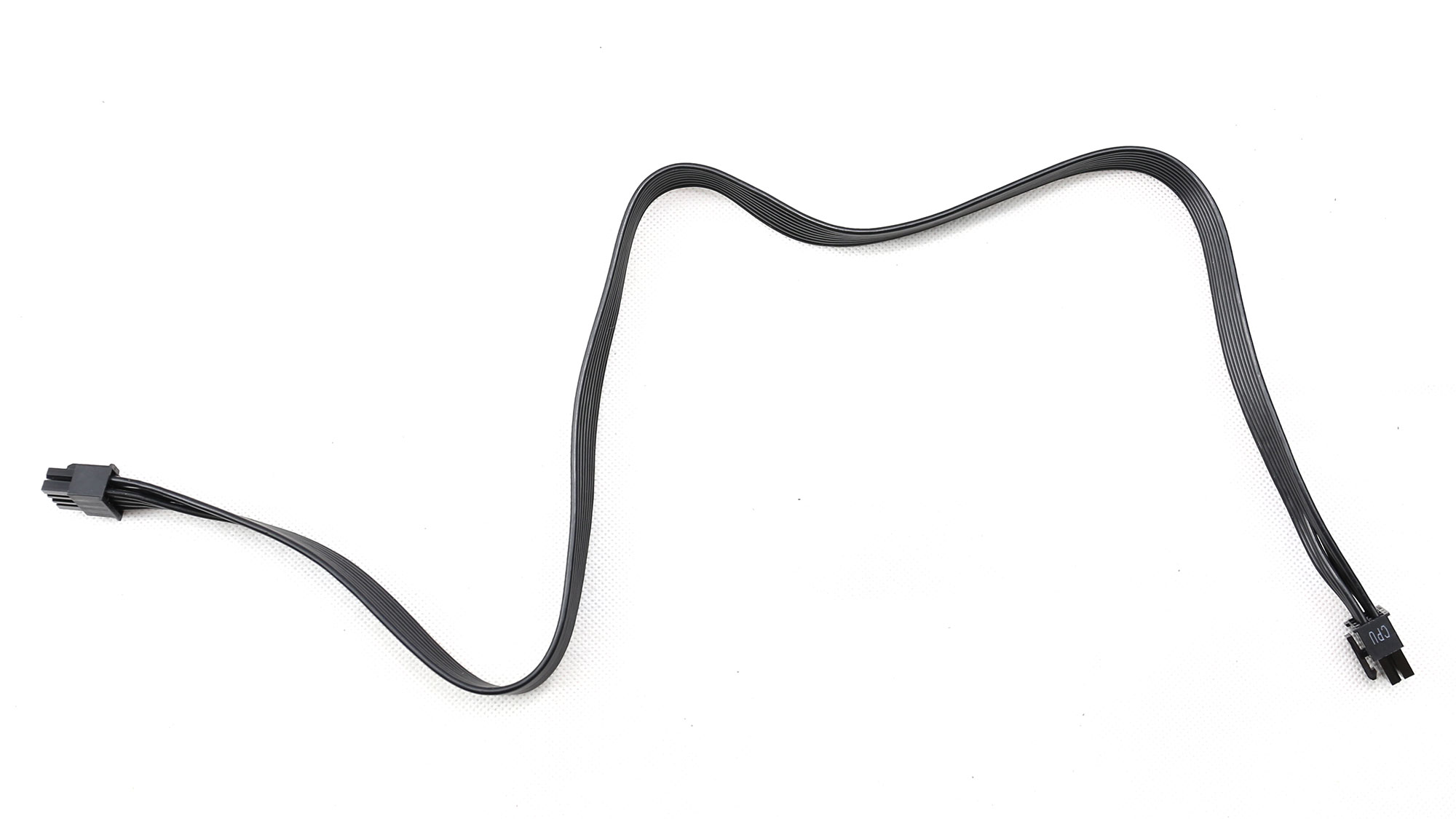

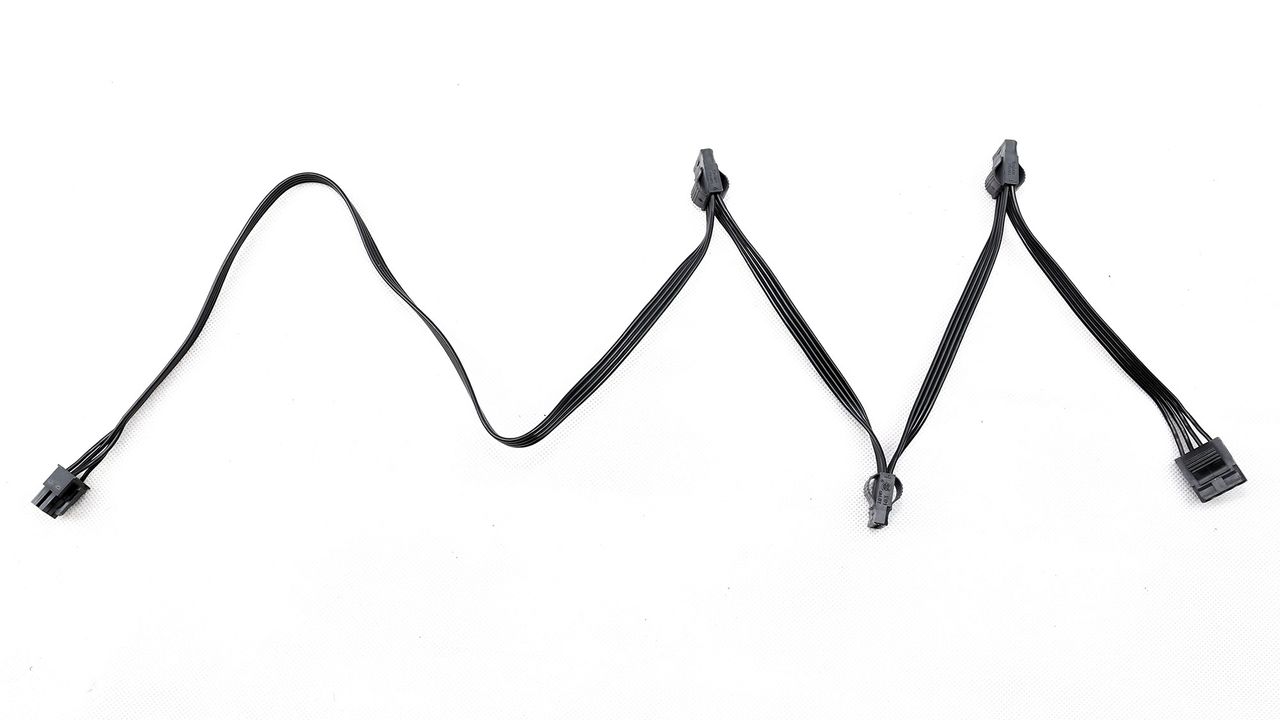

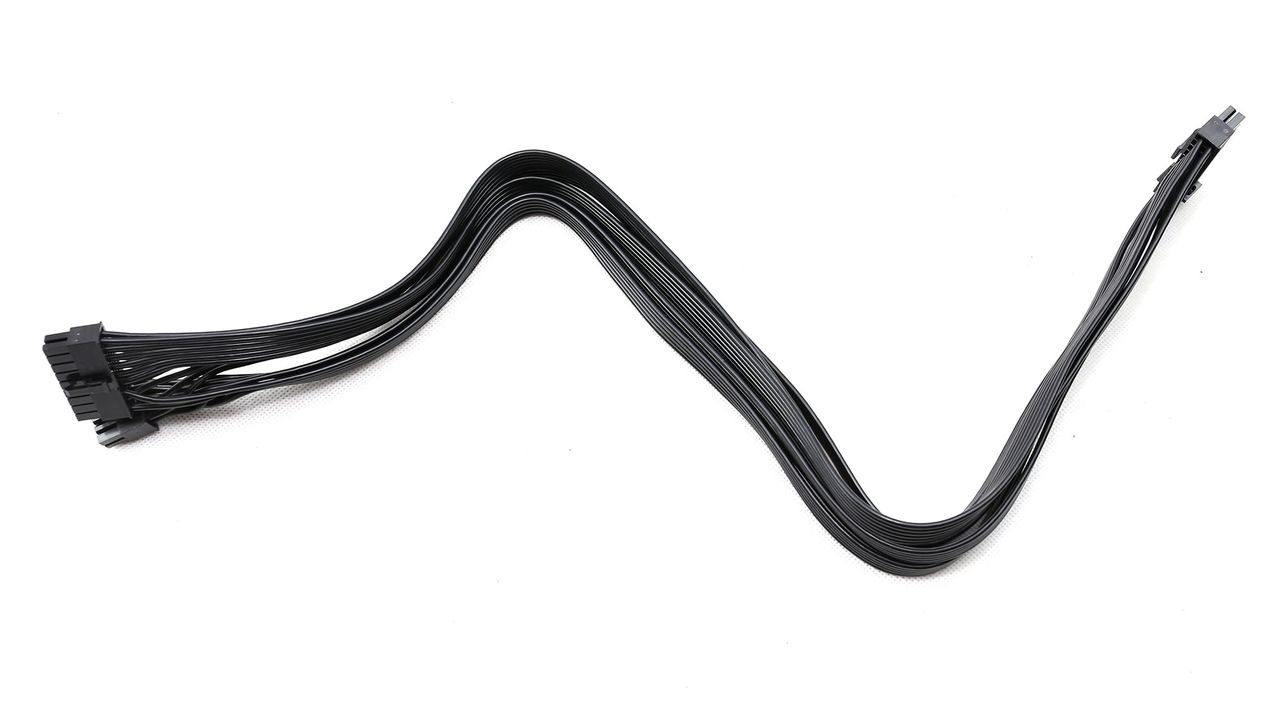

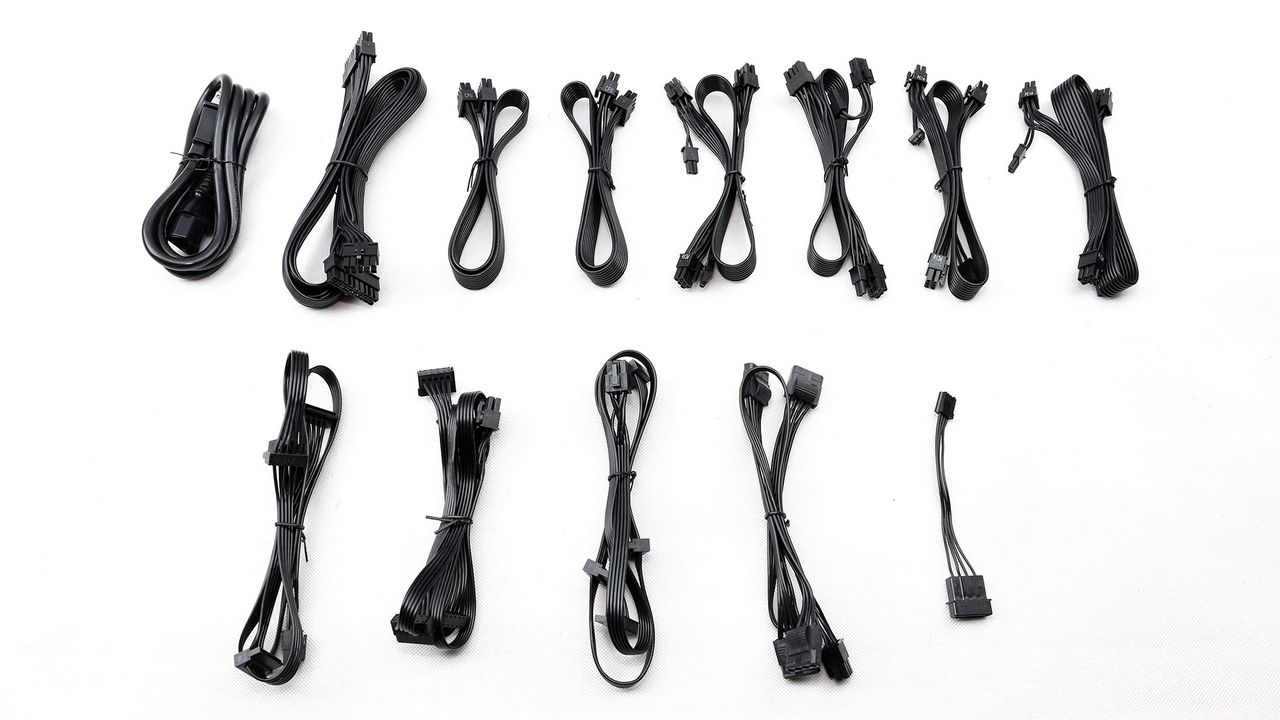

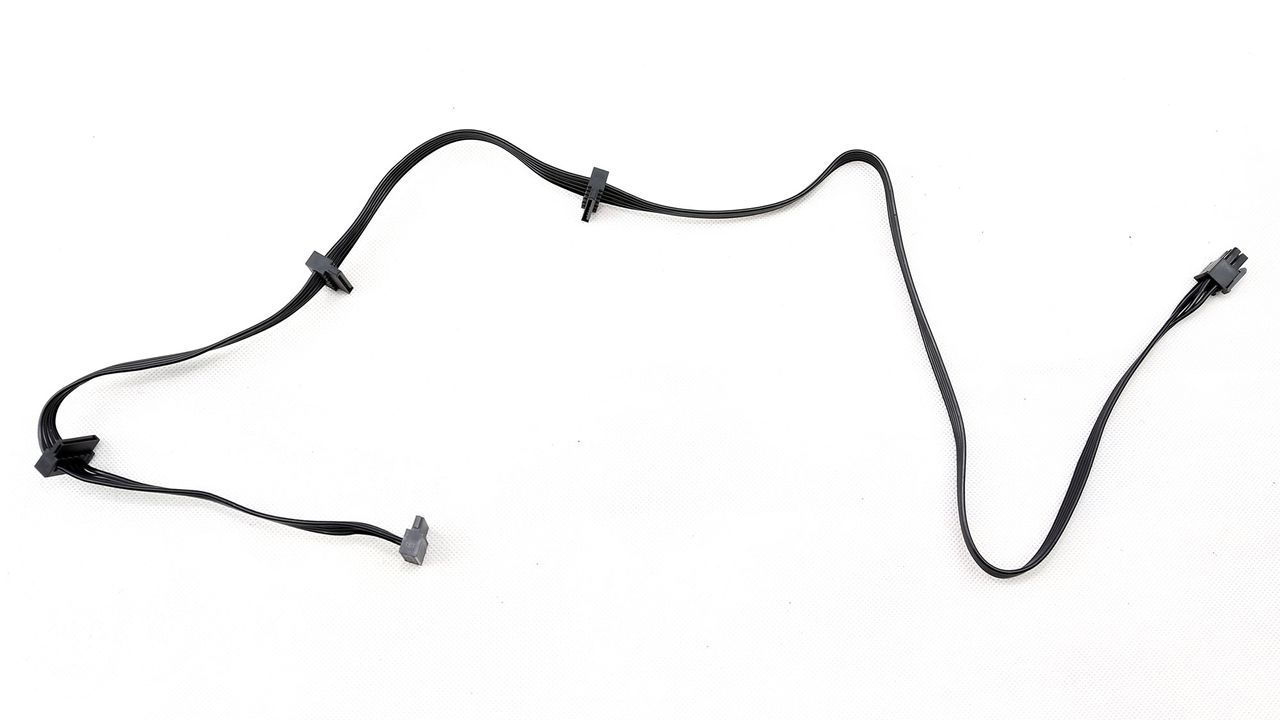

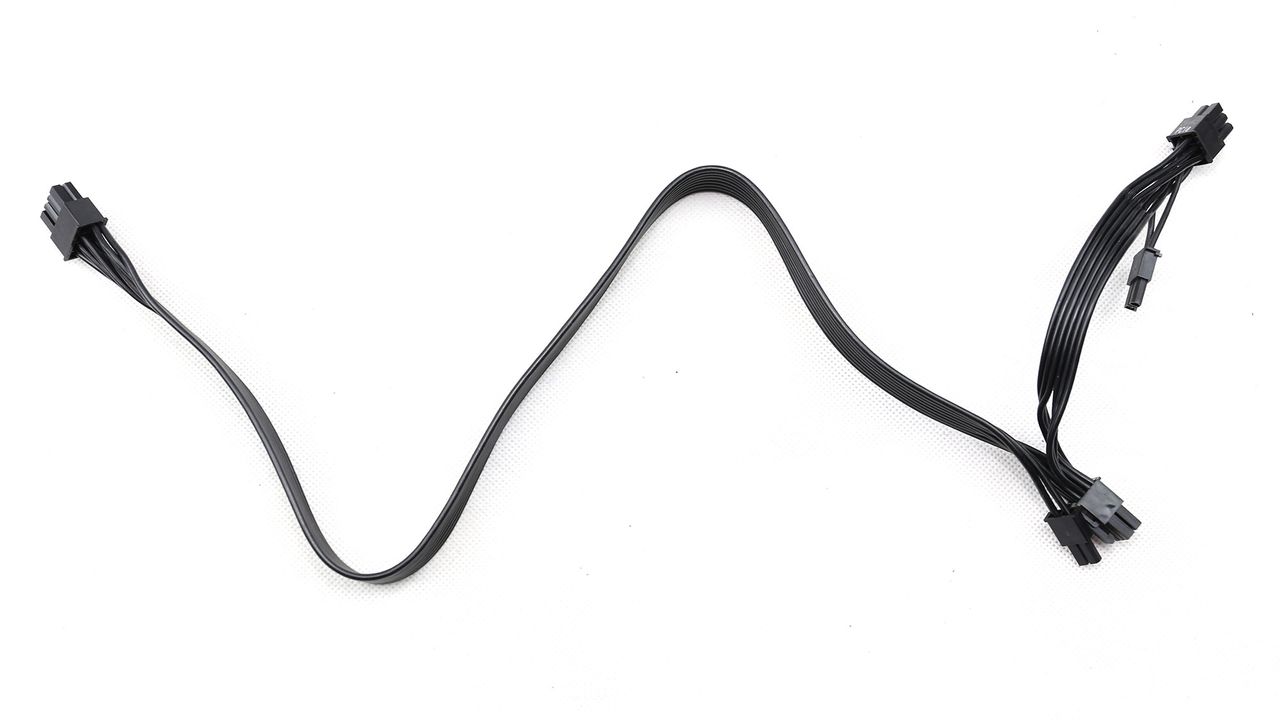

As expected from a 1050W power supply, there is a vast amount of cables and connectors provided. Besides a pair of EPS connectors, you will also have at your disposal eight PCIe and twelve SATA connectors along with four 4-pin Molex connectors. All cables are long and don't have in-cable caps which may provide better ripple suppression but also make harder the cable routing and management processes. Finally, the distance between the peripheral connectors is ideal, at 150mm.

Component Analysis

We strongly encourage you to have a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

Swipe to scroll horizontally
General Data-
Manufacturer (OEM)CWT
PCB TypeDouble Sided
Primary Side-
Transient Filter4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush ProtectionNTC Thermistor & Relay
Bridge Rectifier(s)2x GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETS2x ISC TK25A60X5 (600V, 25A @ 25°C, 0.14Ohm),1x Sync Power SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode2x CREE C3D06060A (600V, 6A @ 154°C)

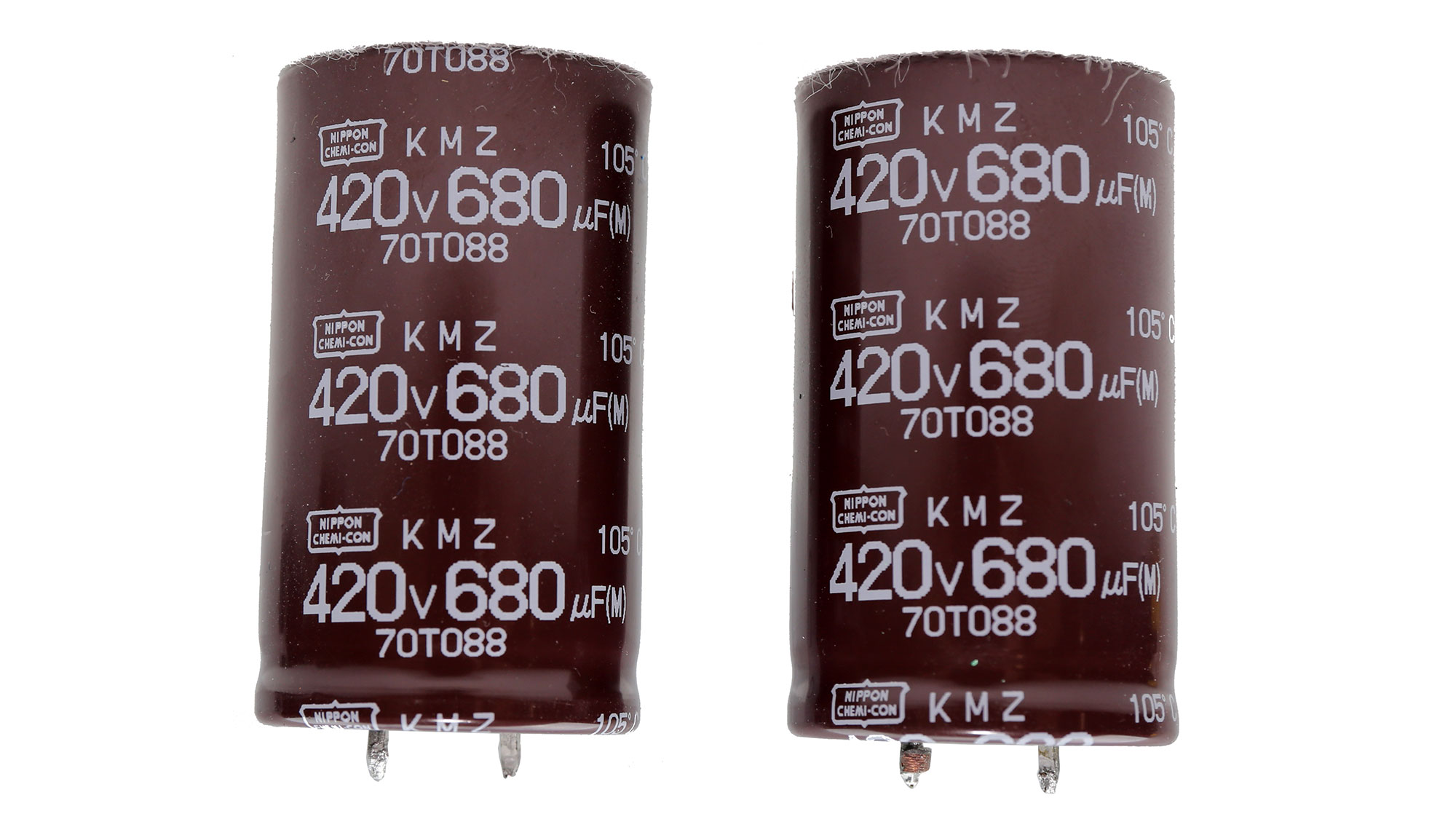

Hold-up Cap(s)2x Nippon Chemi-Con (420V, 680uF each or 1,360uF combined, 2,000h @ 105°C, KMZ)
Main Switchers4x Alpha & Omega Semi AOTF29S50 (500V, 18A @ 100°C, 0.4Ohm @ 150°C)

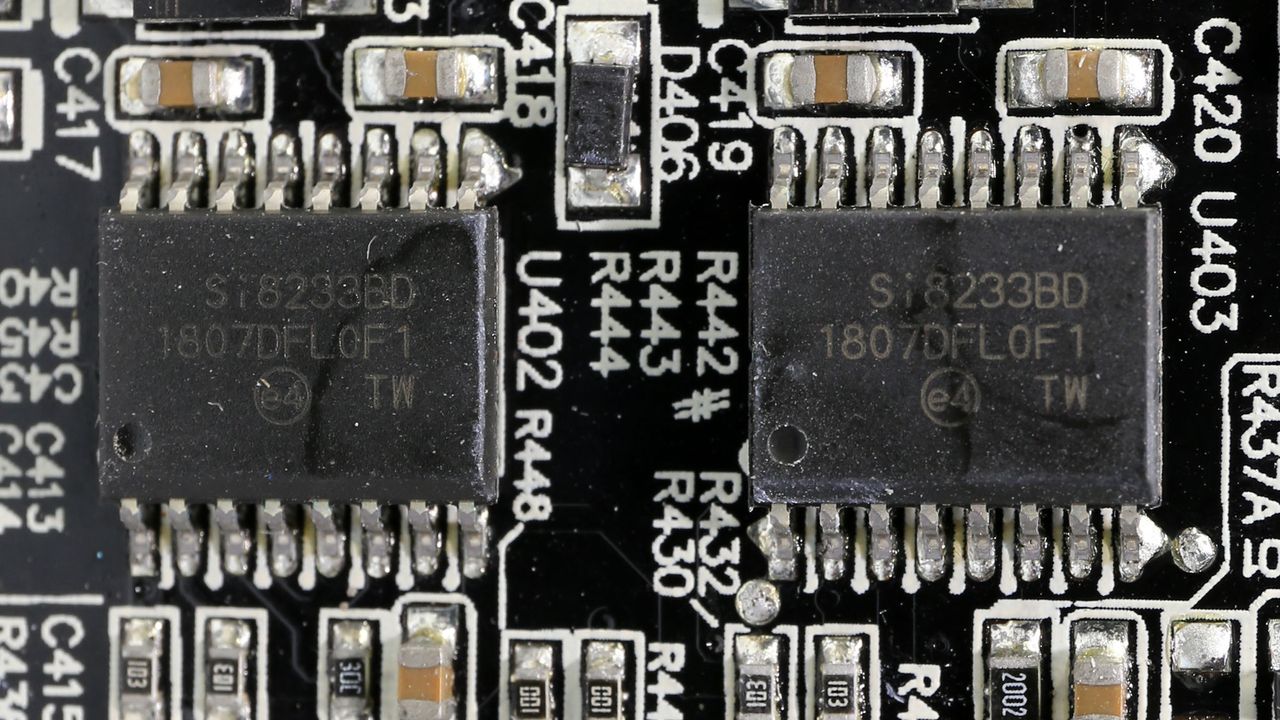

IC Driver2x Silicon Labs Si8233BD

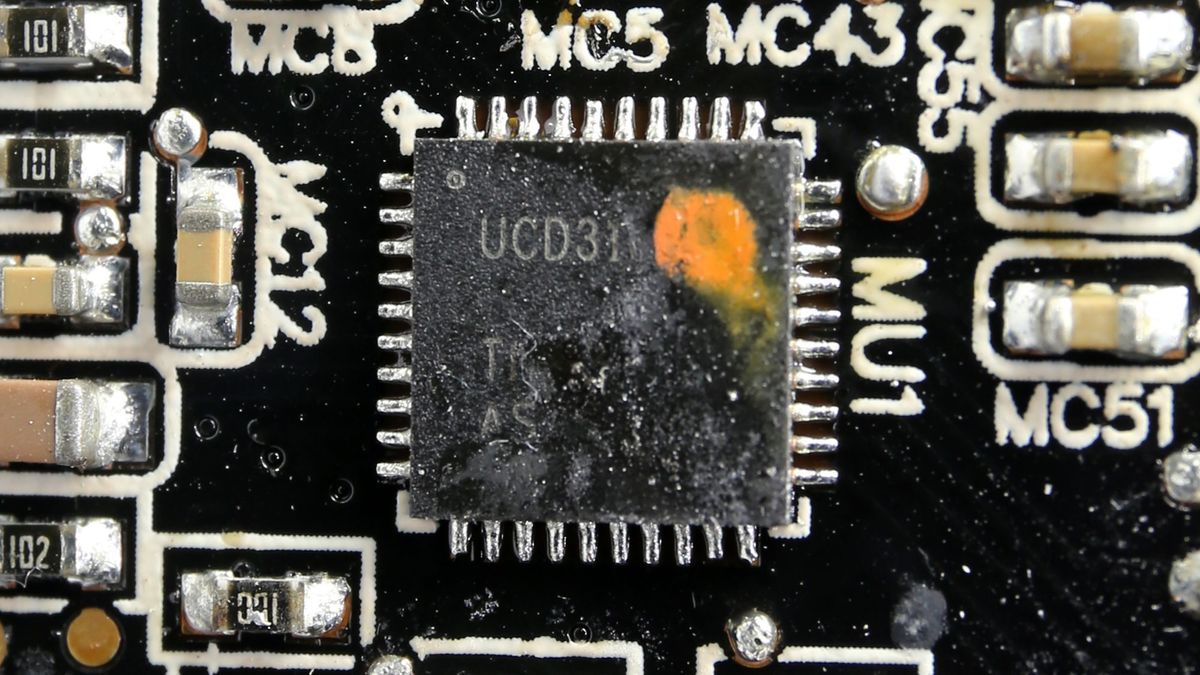

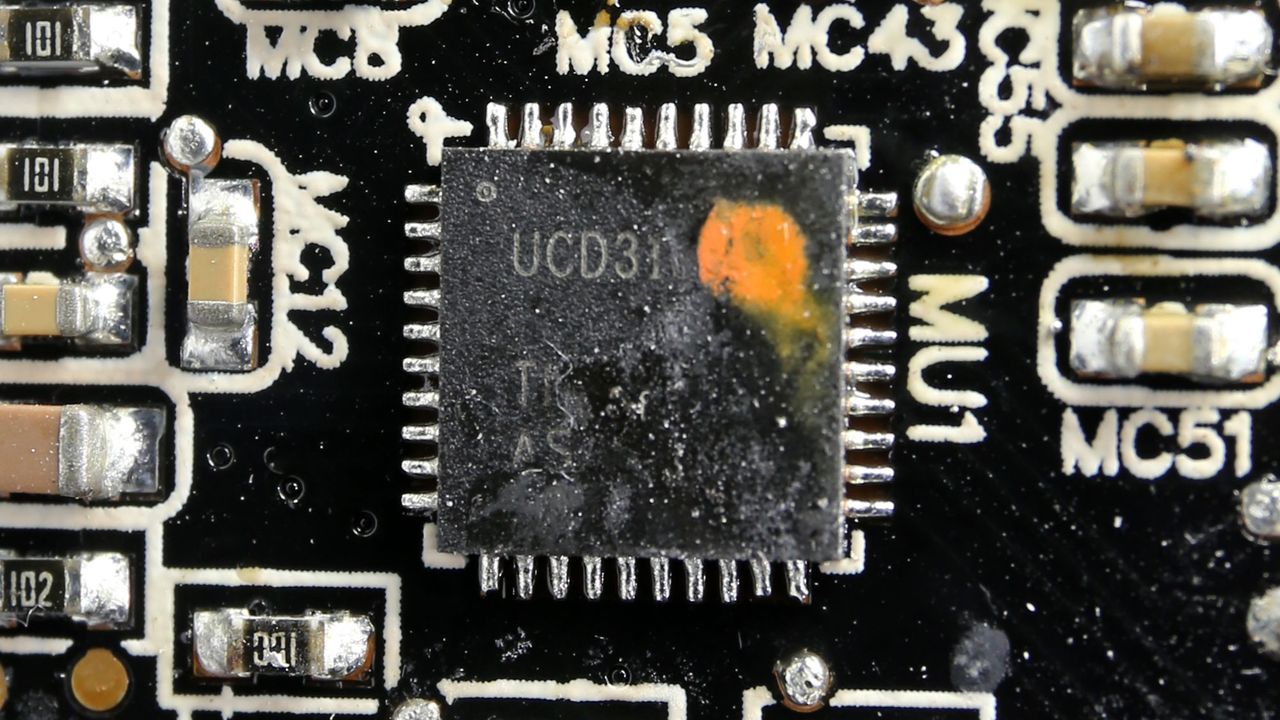

Digital Controllers2x Texas Instruments UCD3138A
TopologyPrimary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side-
+12V MOSFETS8x Infineon BSC014N06NS (60V, 100A @ 100°C, 1.45mOhm)
5V & 3.3VDC-DC Converters: 4x Infineon IPB06N03LA (25V, 50A @ 100°C, 5.9mOhm)
Filtering CapacitorsElectrolytics: 8x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Rubycon (3-6,000 @ 105°C, YXG),4x Nichicon (2-5,000h @ 105°C, HD), 2x Nichicon (1,000h @ 105°C, VY), 1x Nichicon (1,000h @ 105°C, VZ) Polymers: 6x Elite, 23x Su'scon, 8x NIC
Supervisor ICWeltrend WT7502 ( OVP, UVP, SCP, PG)
Fan ModelThermaltake TT-1425 (Hong Sheng OEM, A1425L12S, 140mm, 12V, 0.30A, Hydrodynamic Bearing, RGB LED Lighting Fan)
5VSB Circuit-
RectifierIPS ISD04N65A & PS1045L SBR (45V, 10A)
Standby PWM ControllerOn-Bright OB5282

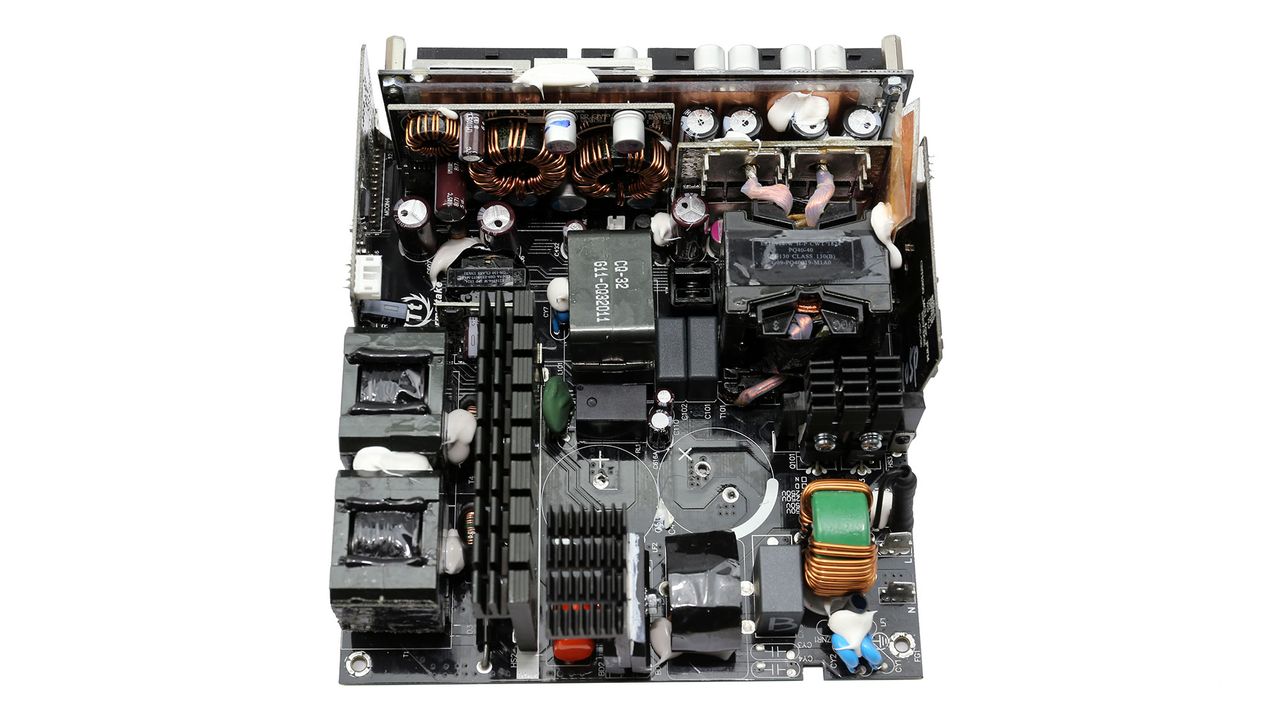

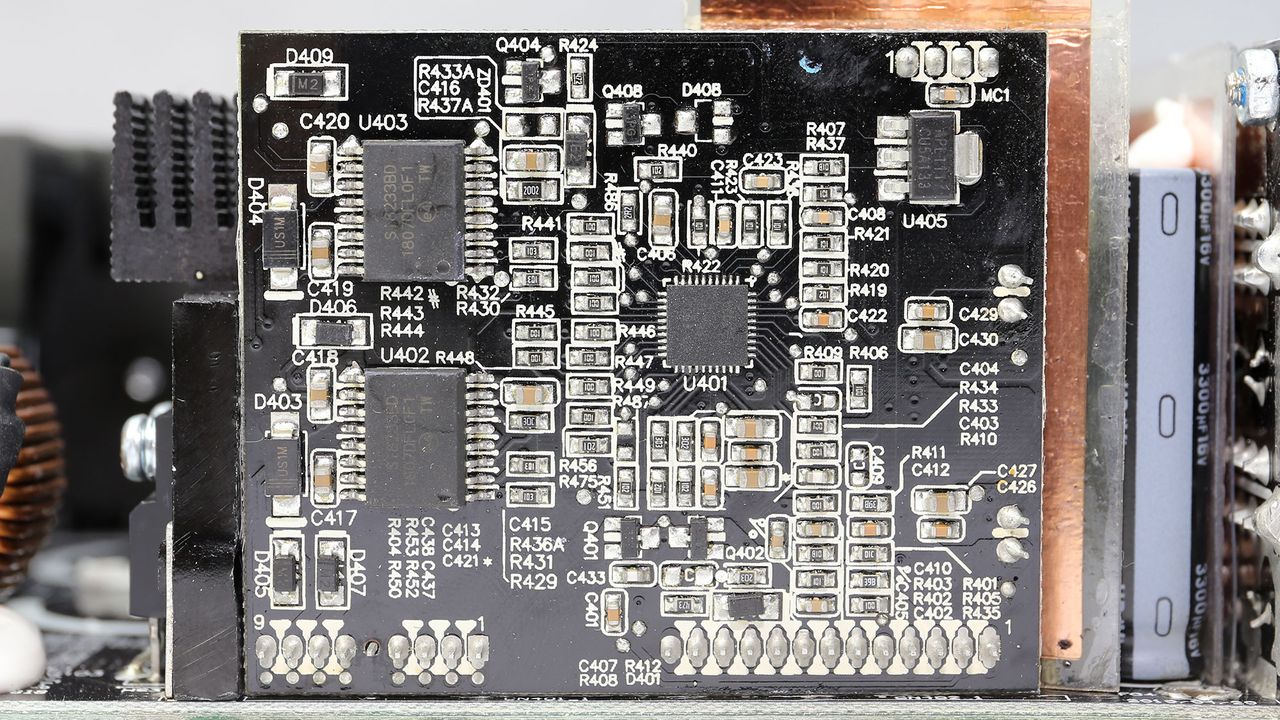

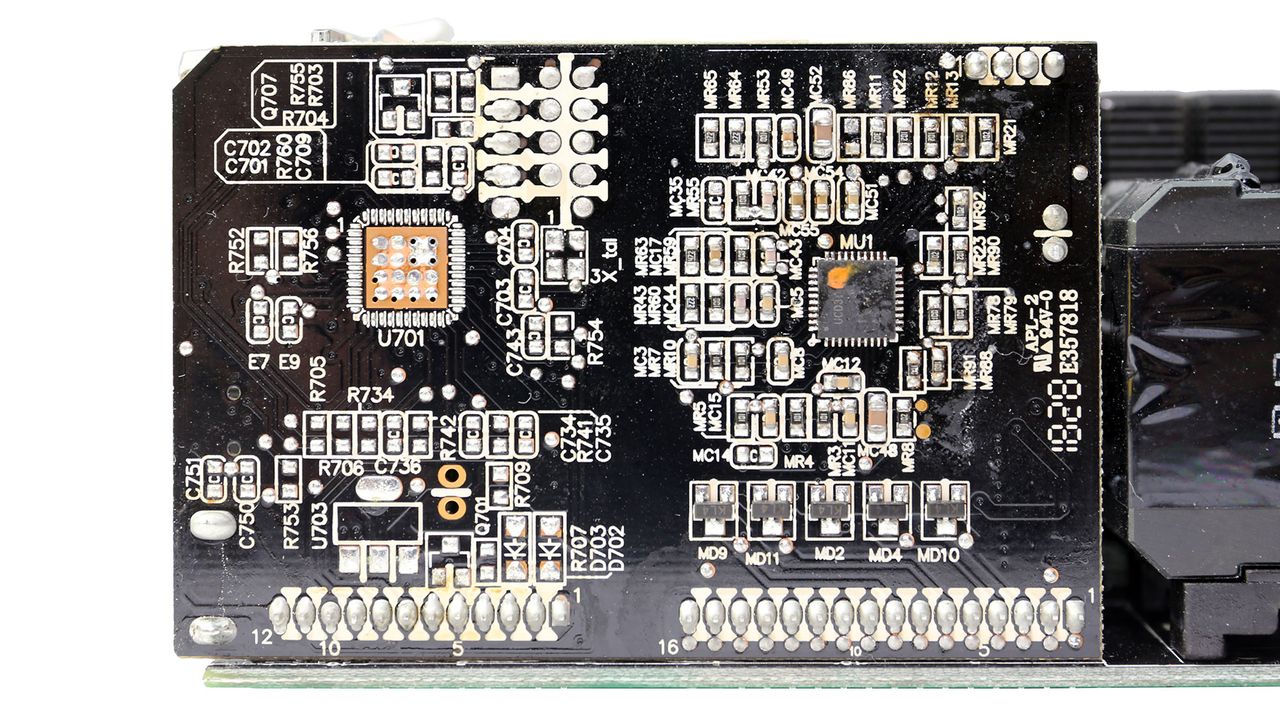

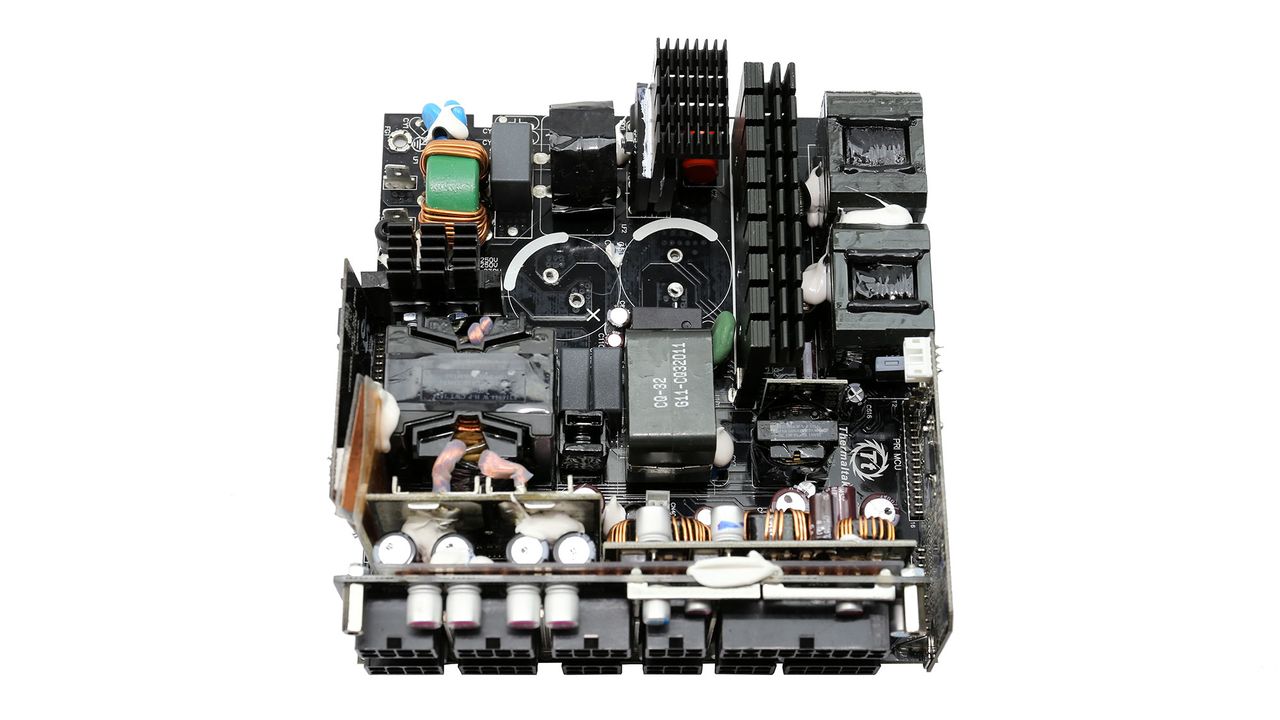

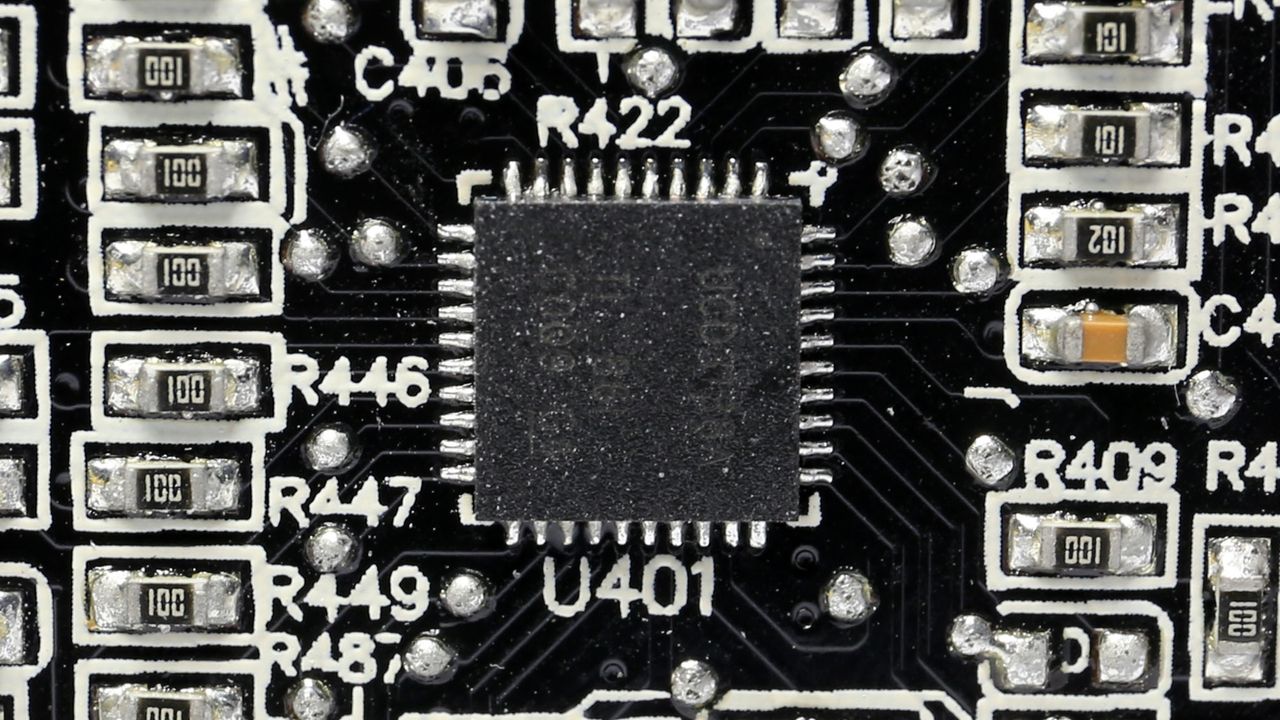

The platform is provided by Channel Well Technology (CWT), and it is one of the most advanced in today's market since it uses a couple of MCUs to control the entire primary side and a part of the secondary side. It is a semi-digital design since the VRMs that generate the minor rails use an analog PWM controller. This is the same platform with the TPI-1200F2FDP, which we evaluated quite some time ago.

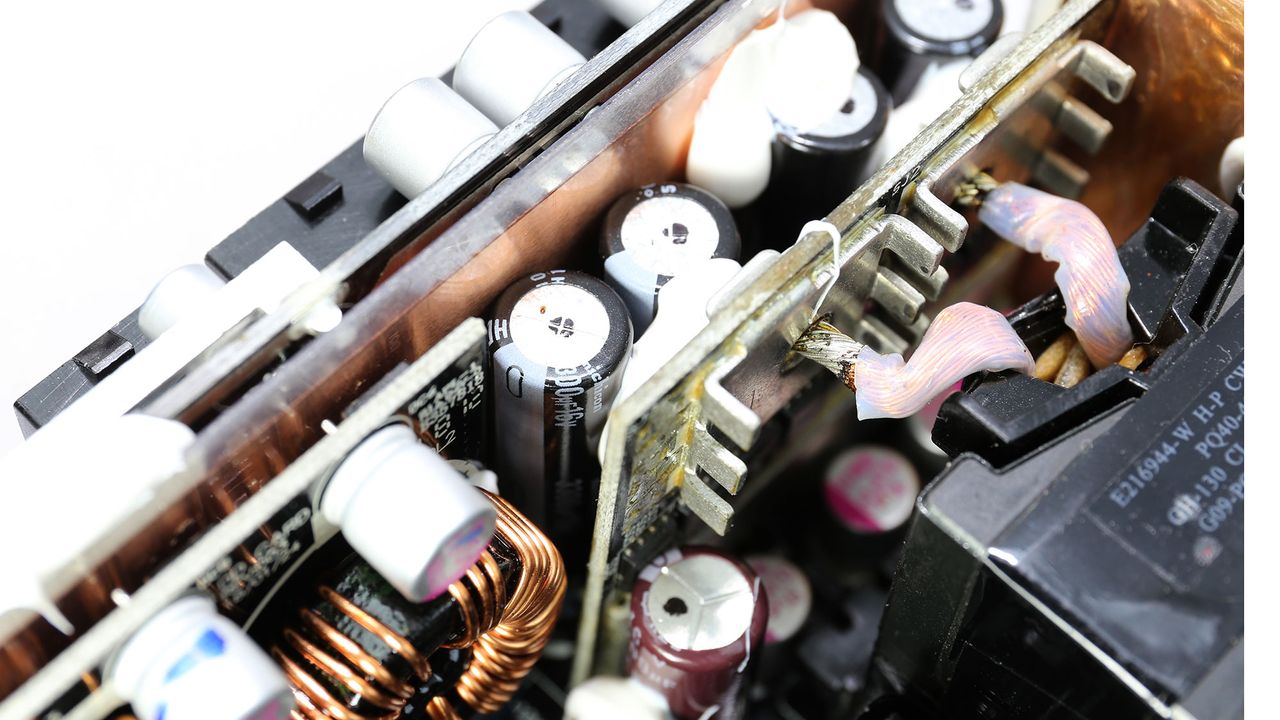

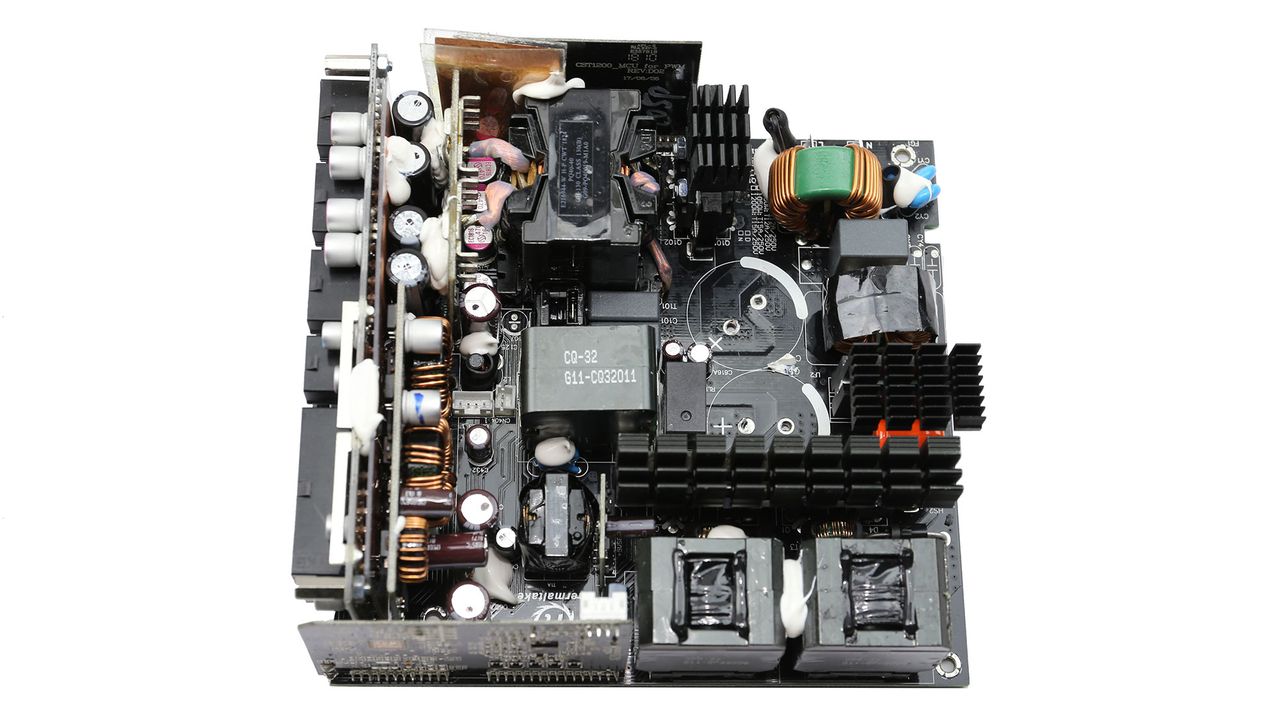

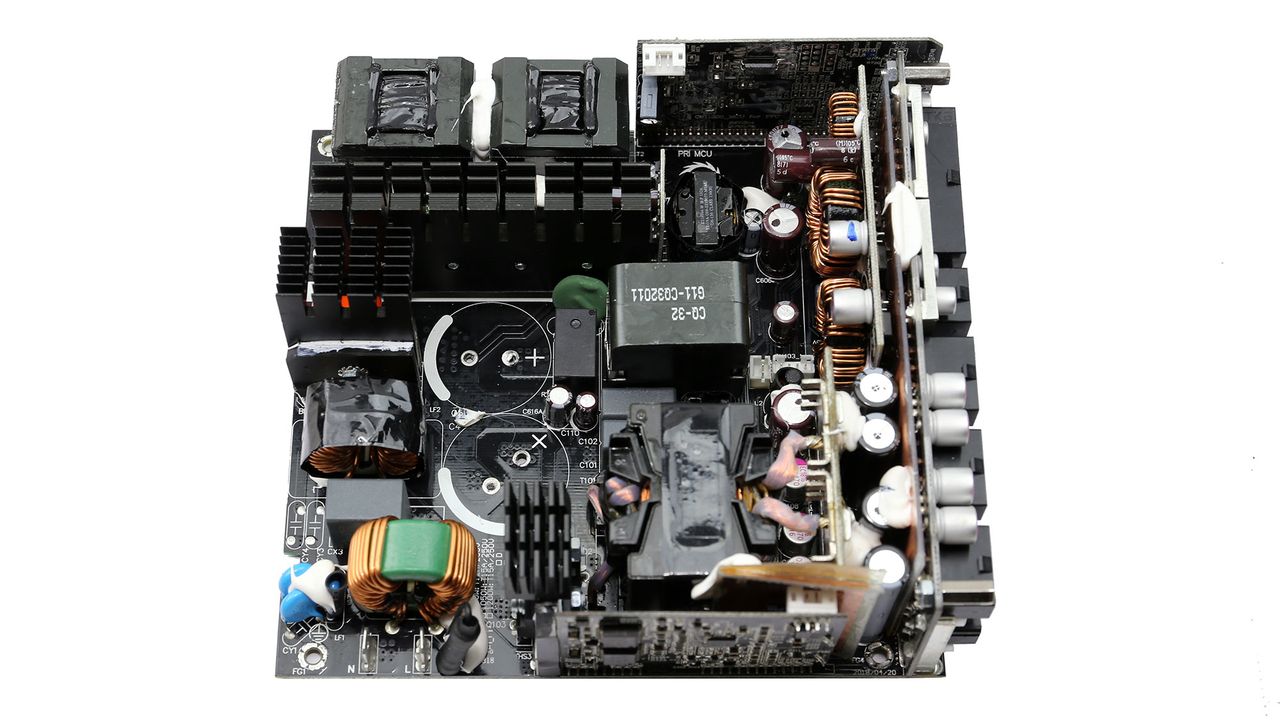

Because of the small PCB, for such a powerful PSU, the upper area close to the modular PCB is cramped with components, with several electrolytic caps close to the +12V FETs, which can get very hot. The build quality is high, though, and CWT used good parts to offer increased reliability.

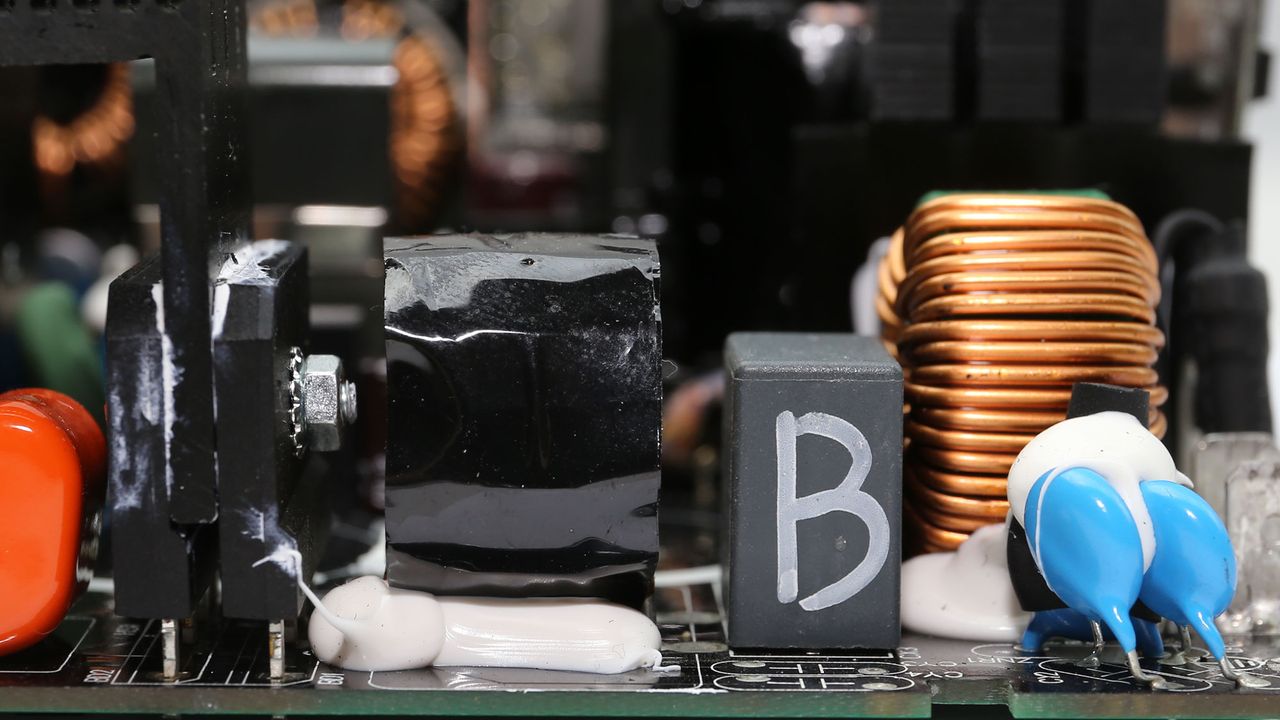

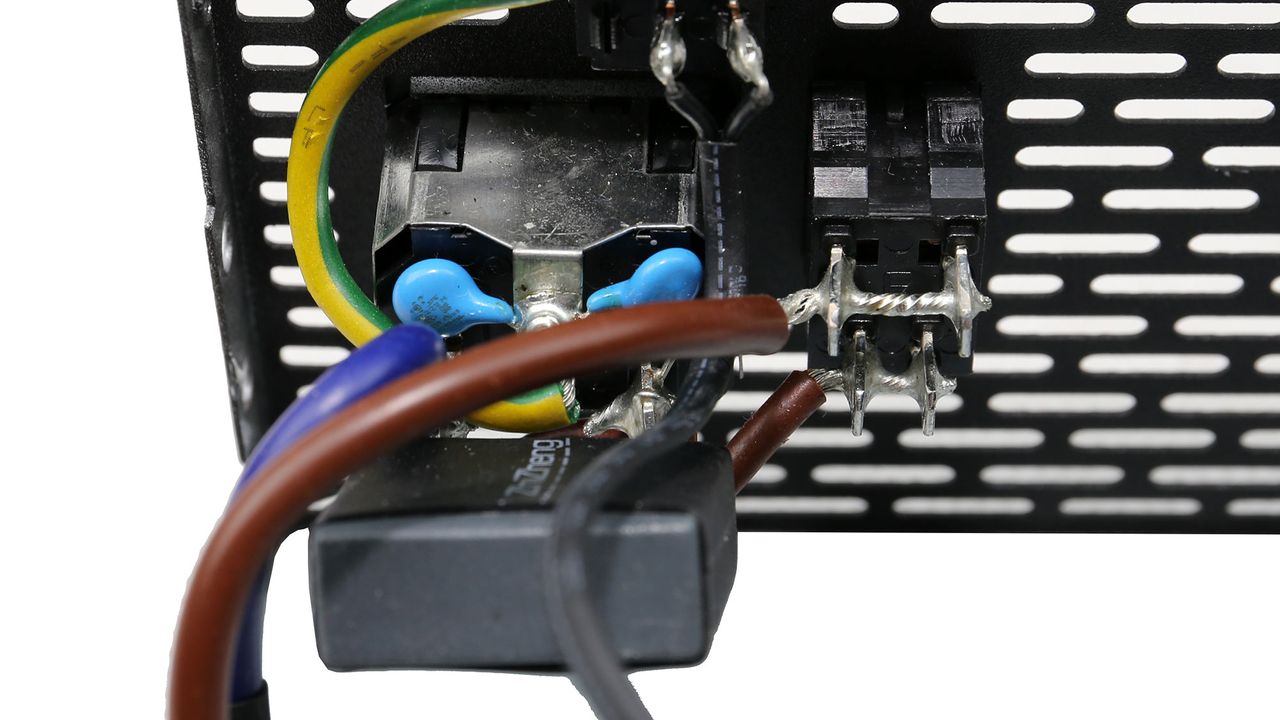

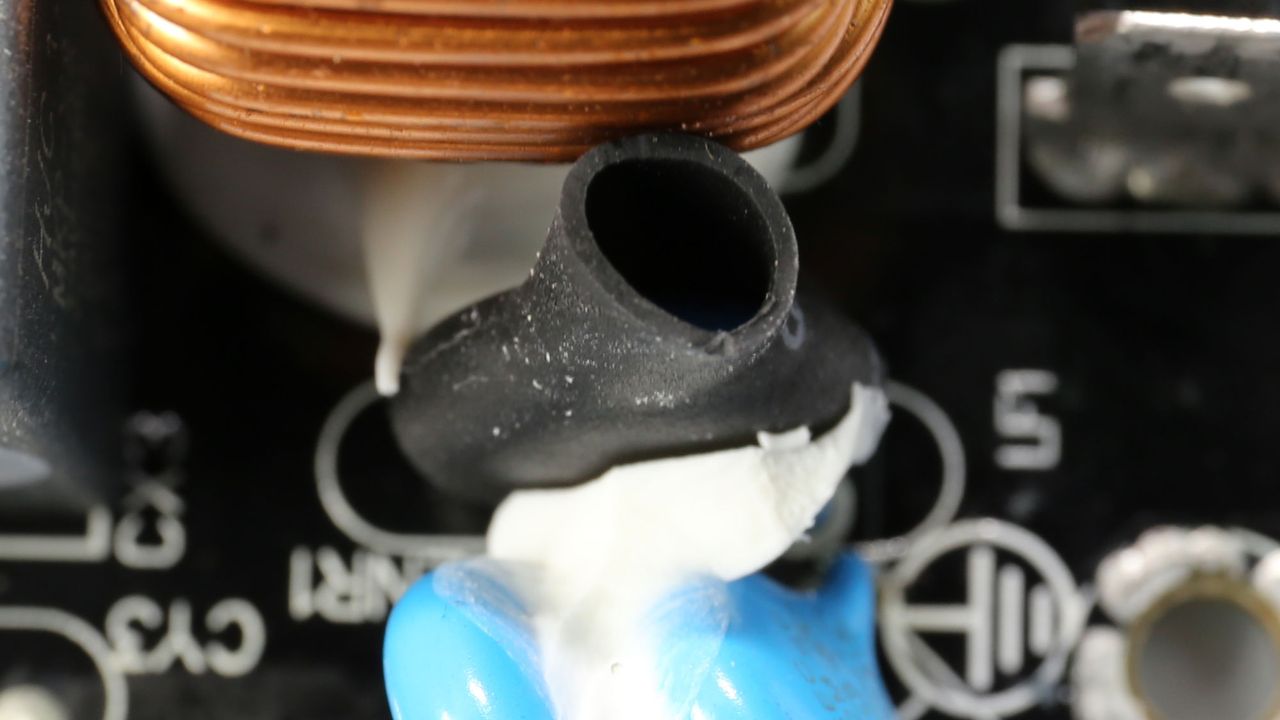

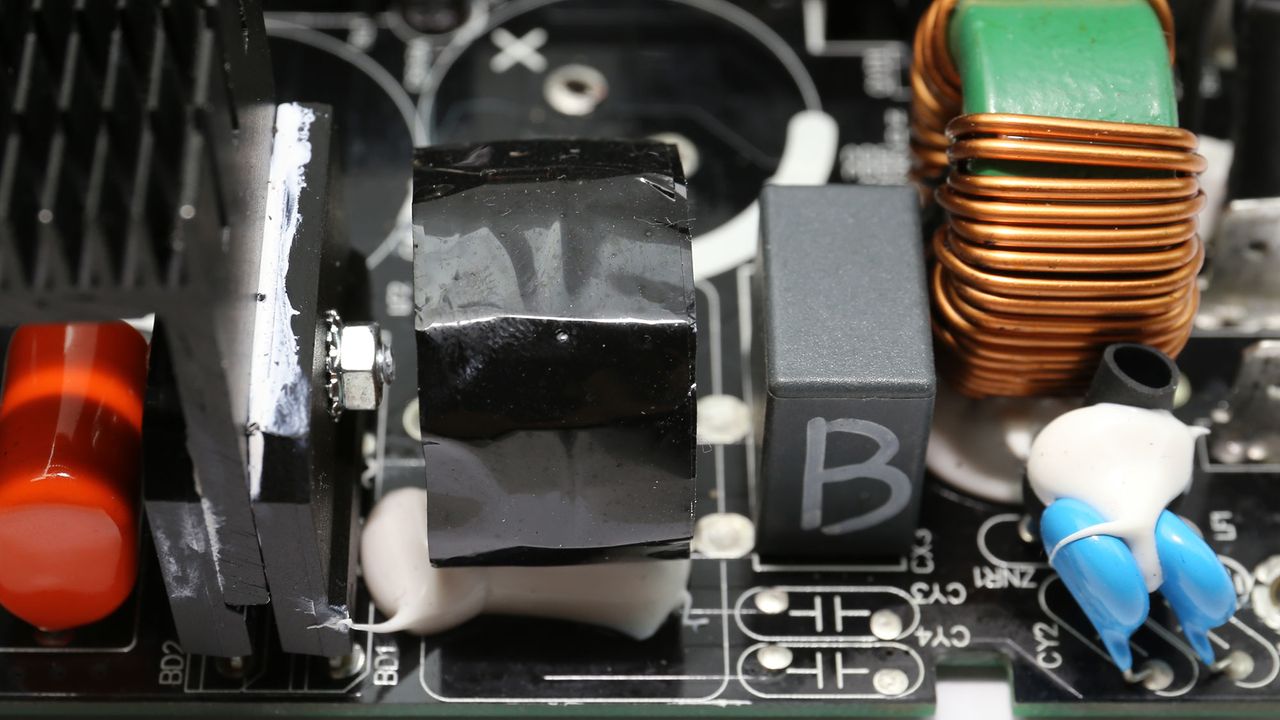

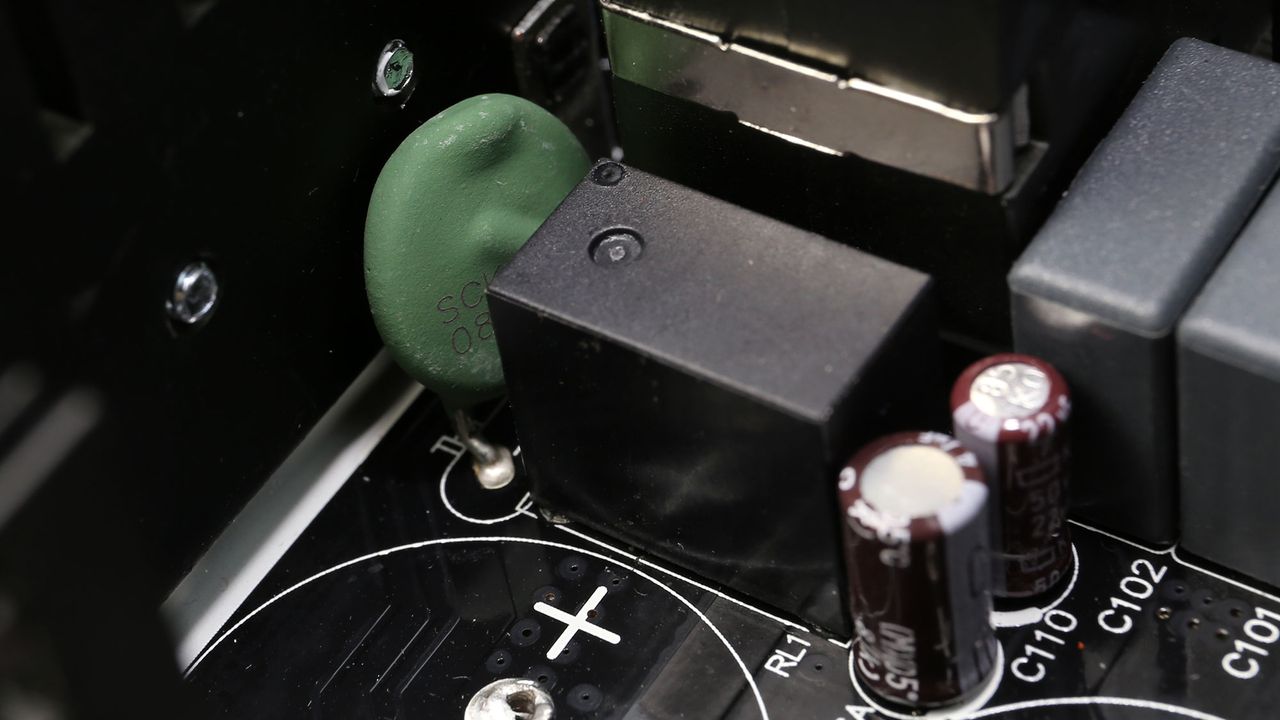

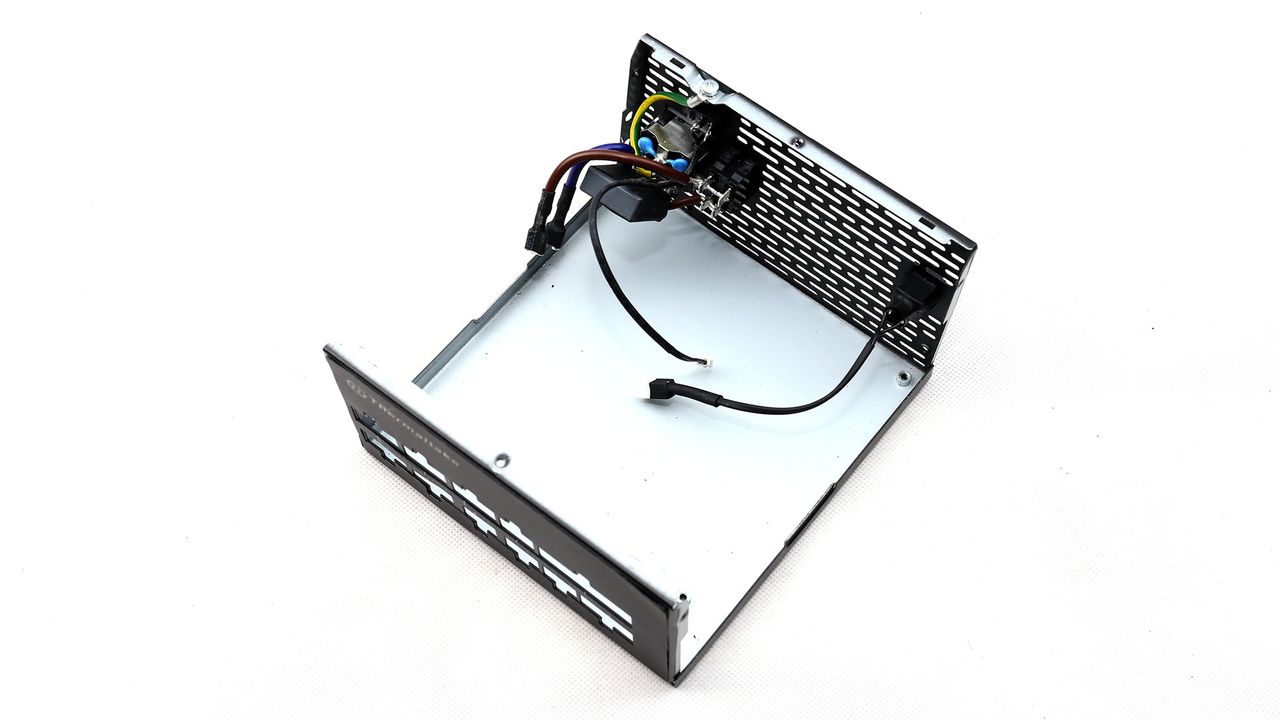

The transient filter is complete, and there is a MOV to protect against voltage spikes and surges. Moreover, the NTC thermistor that suppresses high inrush currents, is supported by a bypass relay.

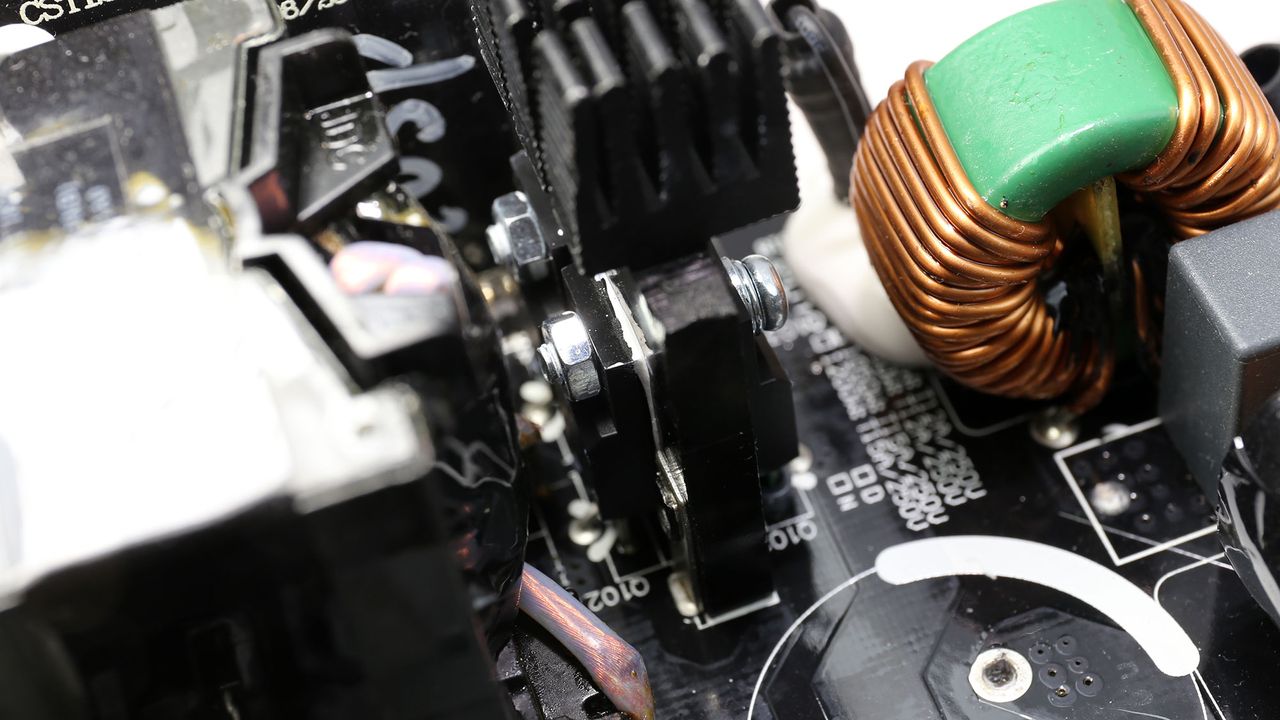

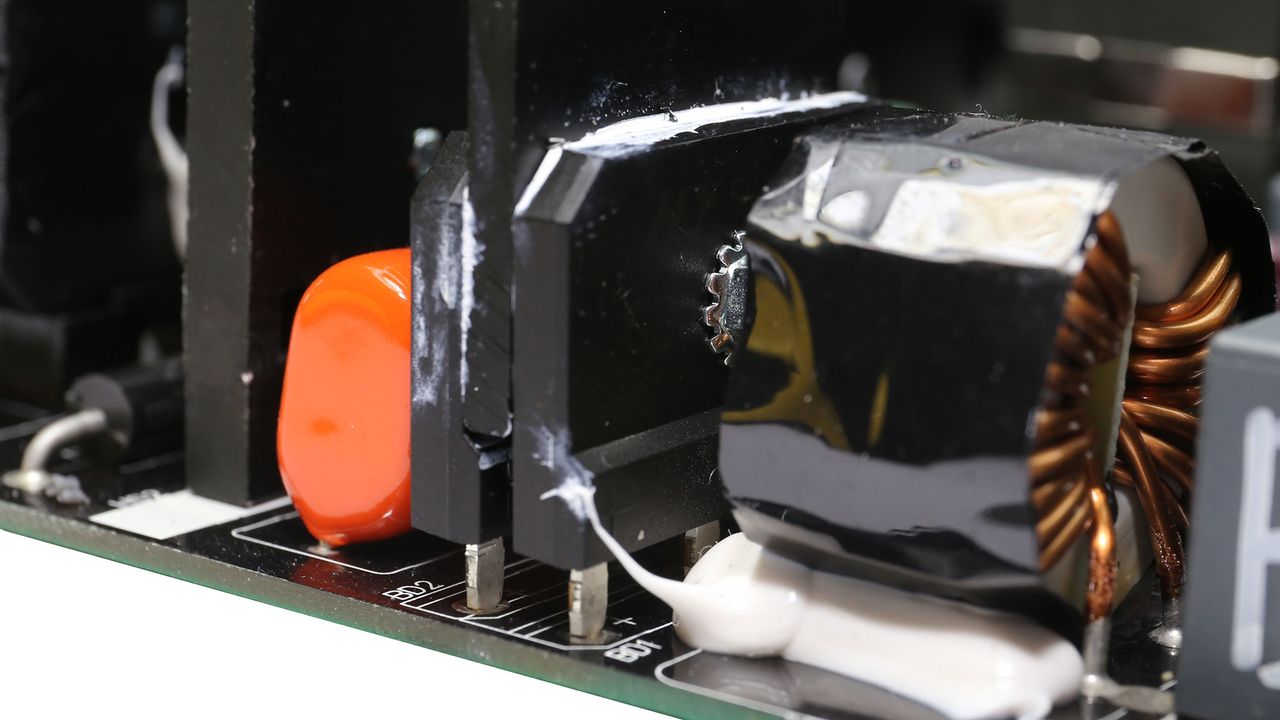

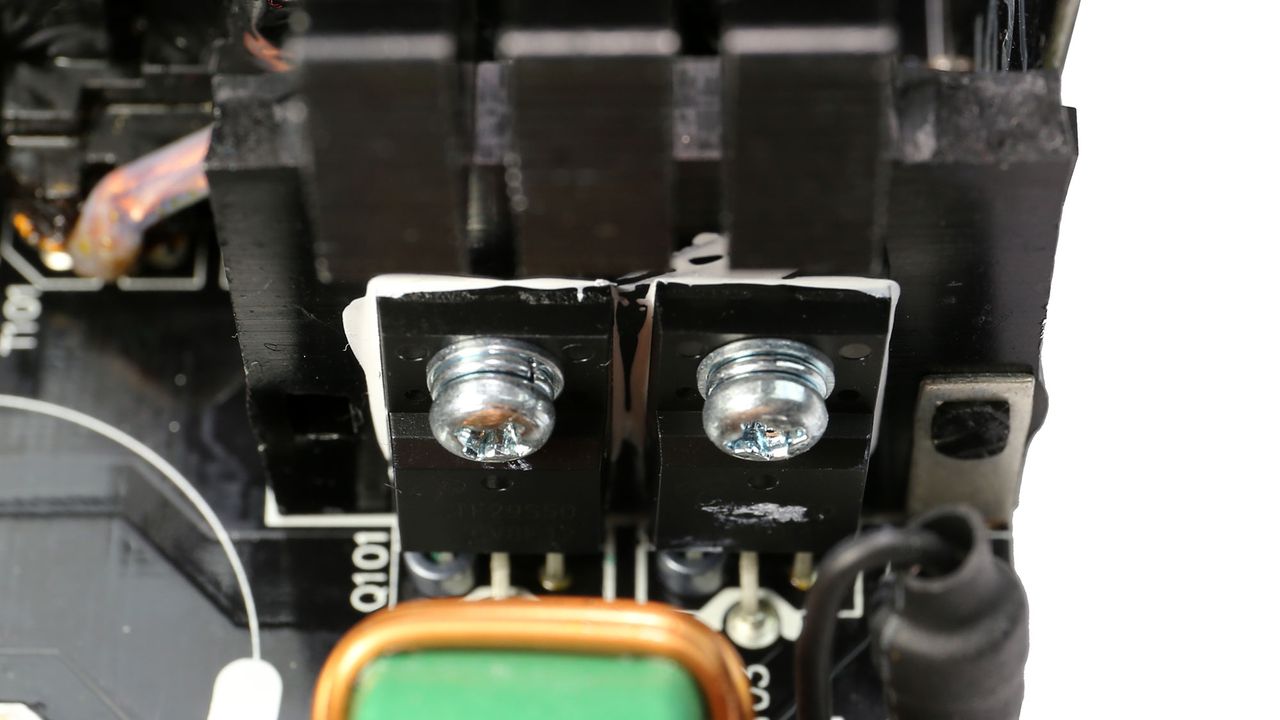

There are two bridge rectifiers, bolted on a dedicated heat sink.

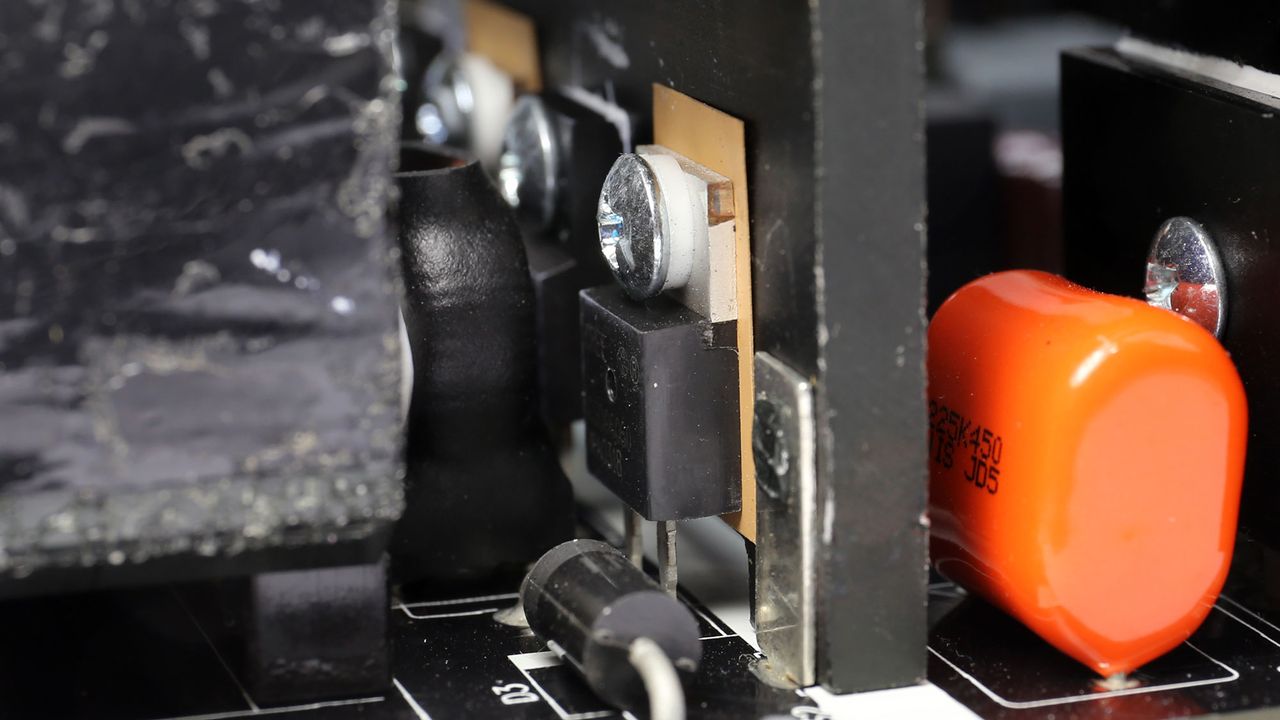

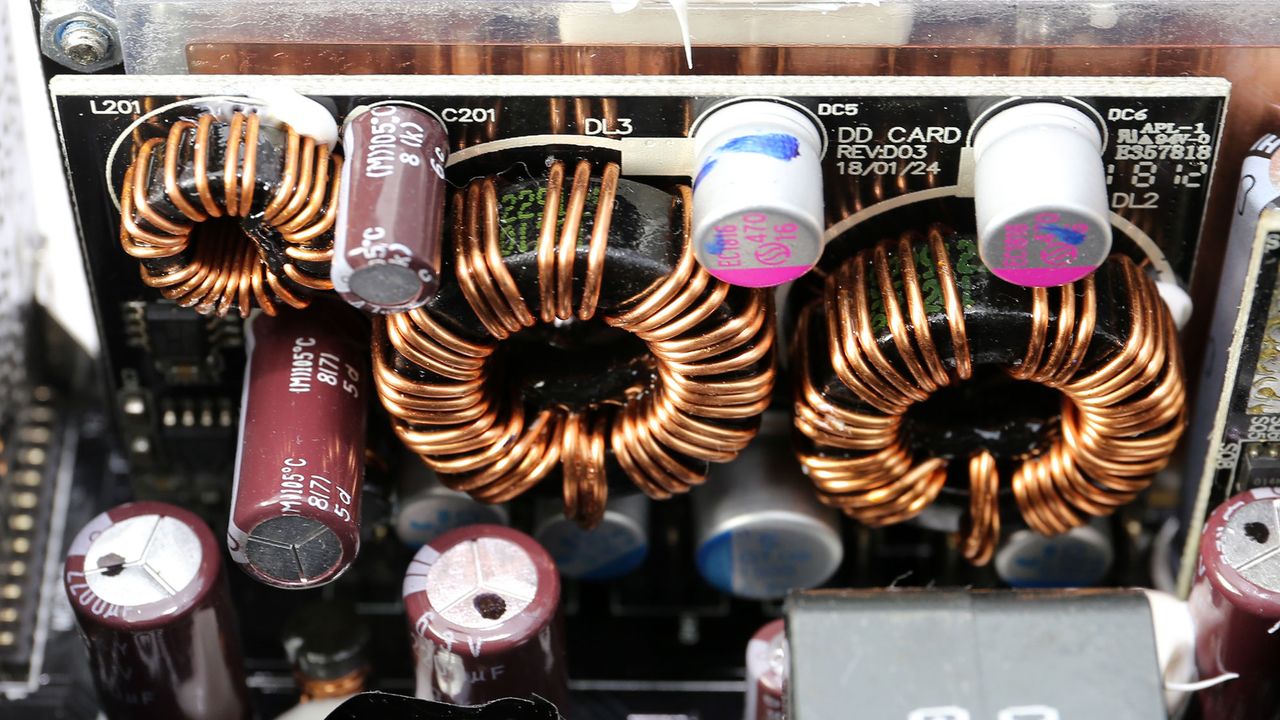

The PSU uses an interleaved PFC converter, which means that two APFC converters are operating in parallel with a phase difference between them. This minimizes input/output current ripple and lowers conduction losses, increasing efficiency, and doubling the effective switching frequency.

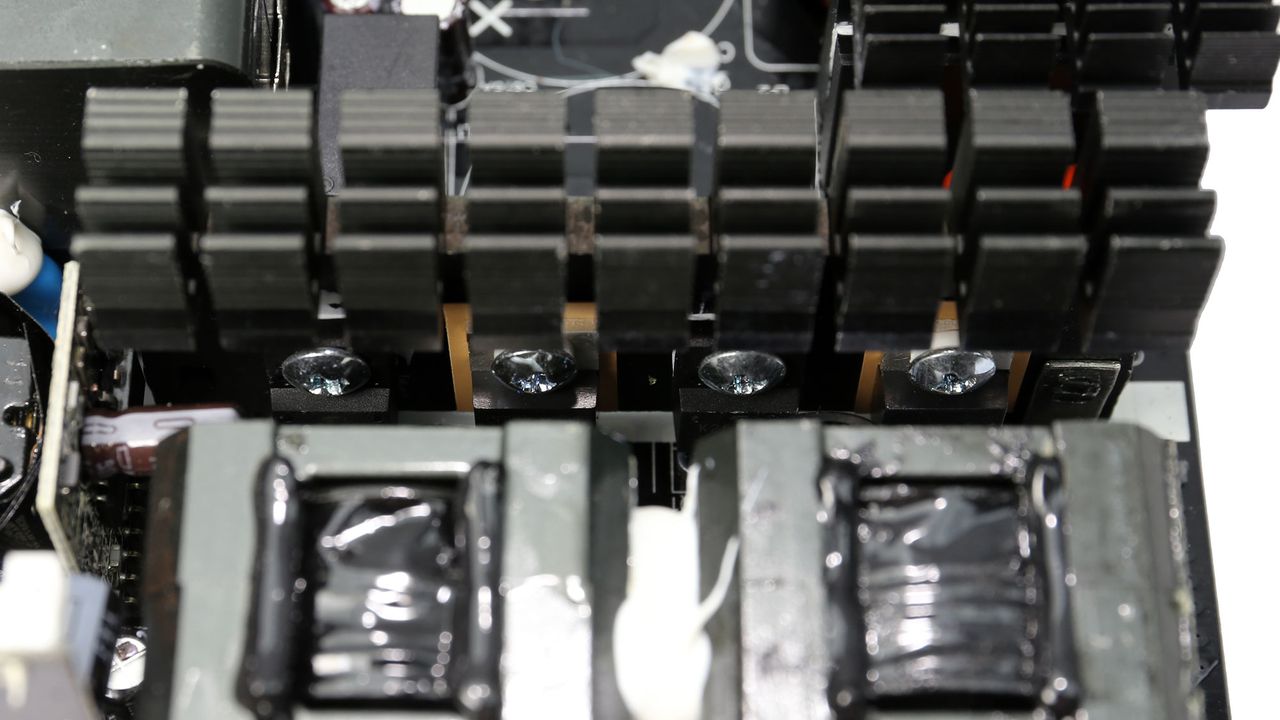

The four primary FETs are arranged in a full bridge topology and an LLC resonant converter is also utilized for increased efficiency.

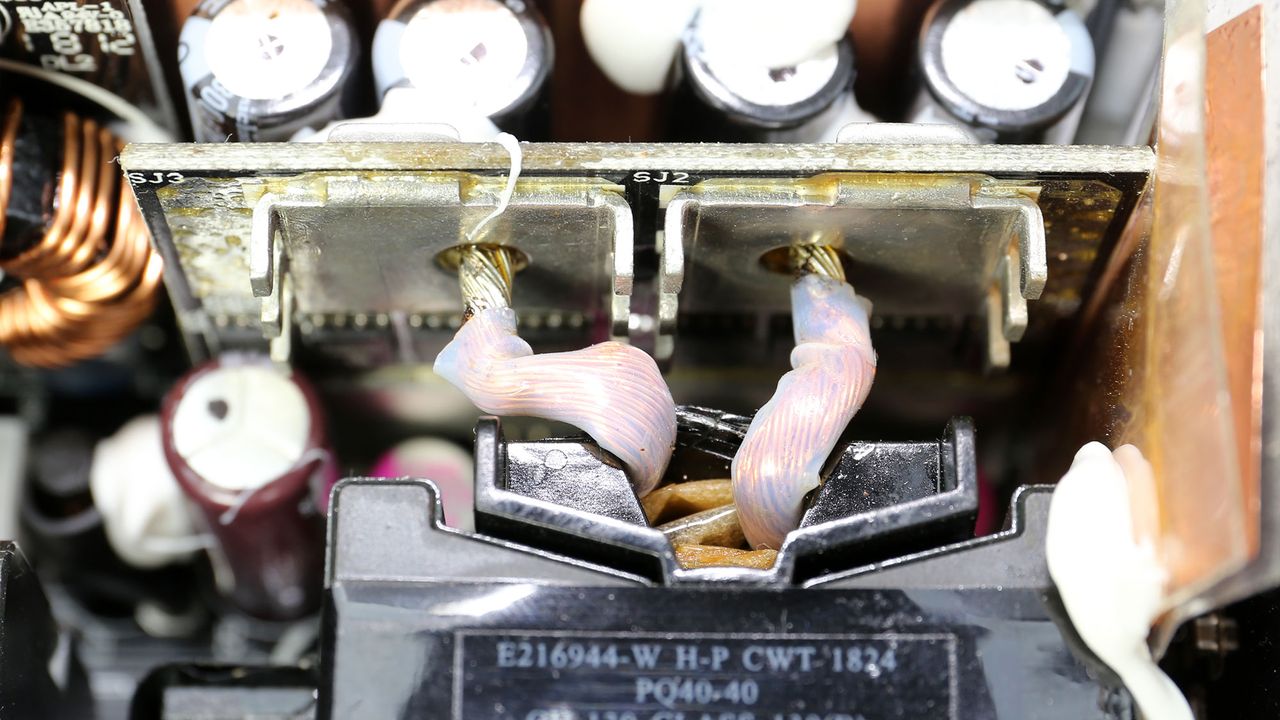

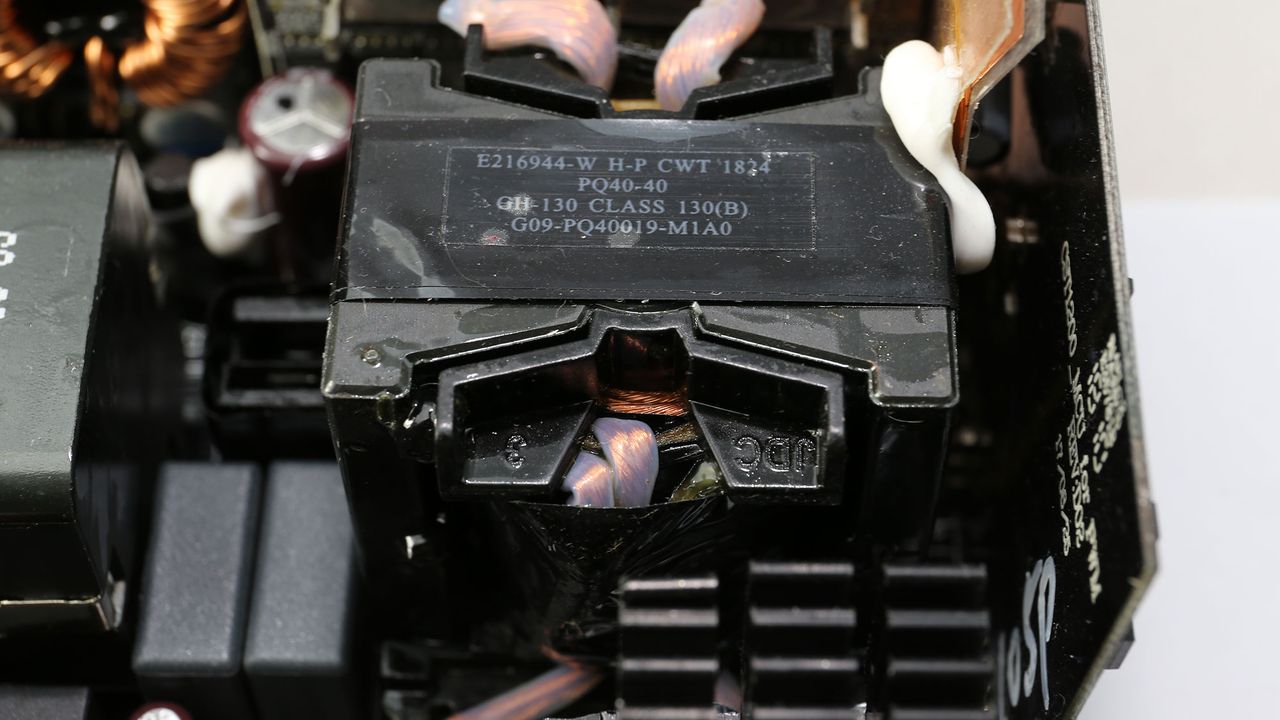

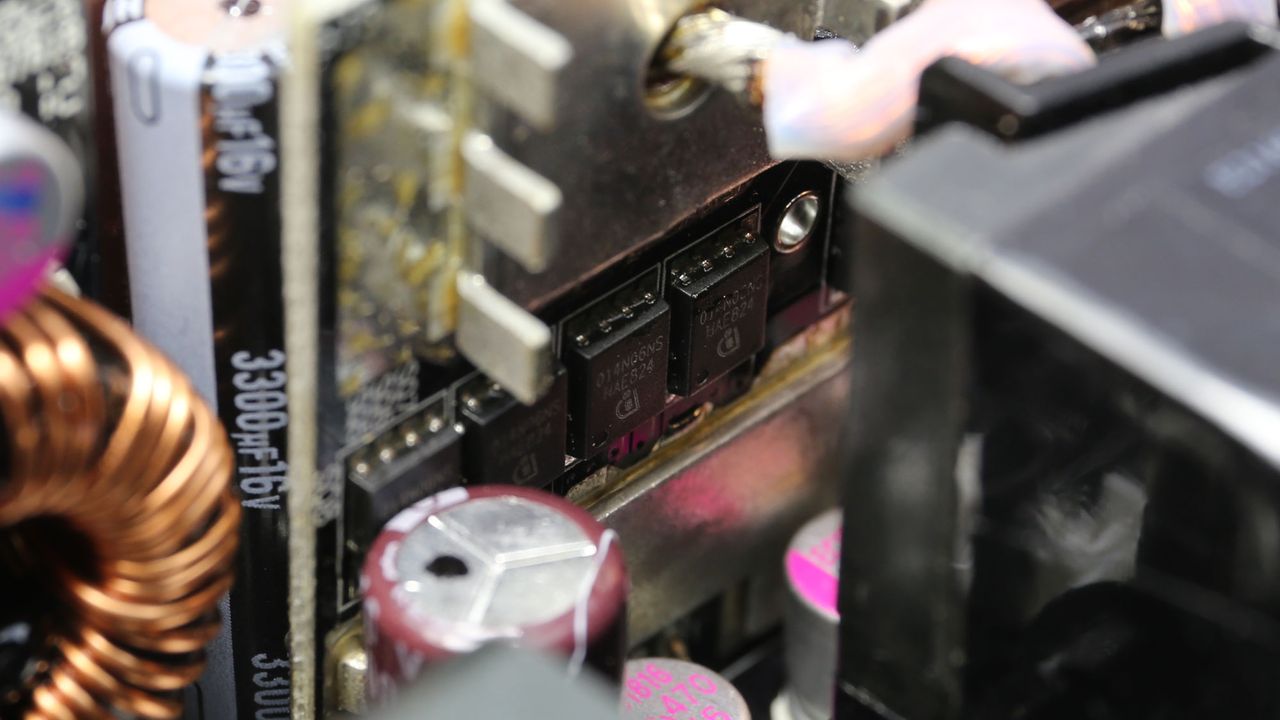

The +12V FETs are installed on a small daughter-board which is adjustment to the main transformer, in an effort to minimize energy losses. The +12V rail also powers a pair of VRMs, which generate the minor rails.

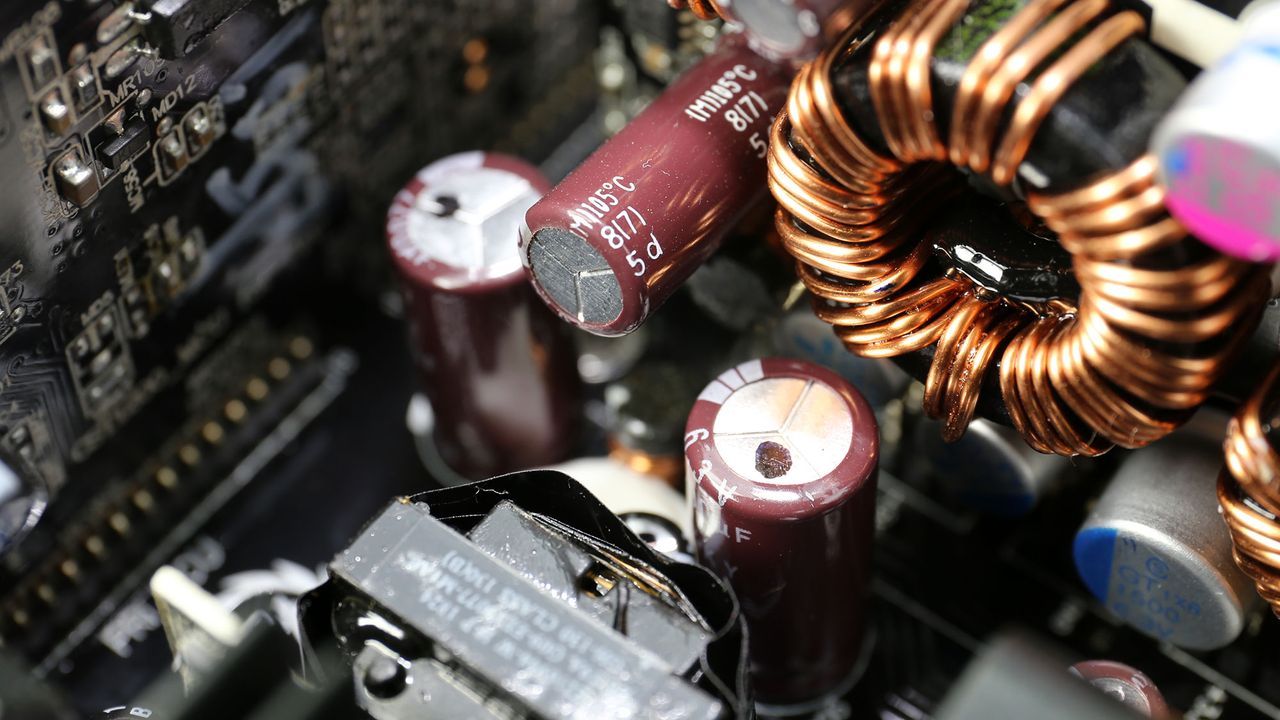

Most of the electrolytic caps are of high quality, with only three of them belonging to Nichicon's mainstream lines. A large number of polymer caps is also used, with most of them provided by Taiwanese companies (Elite and Suscon) which have manufacturing facilities in China.

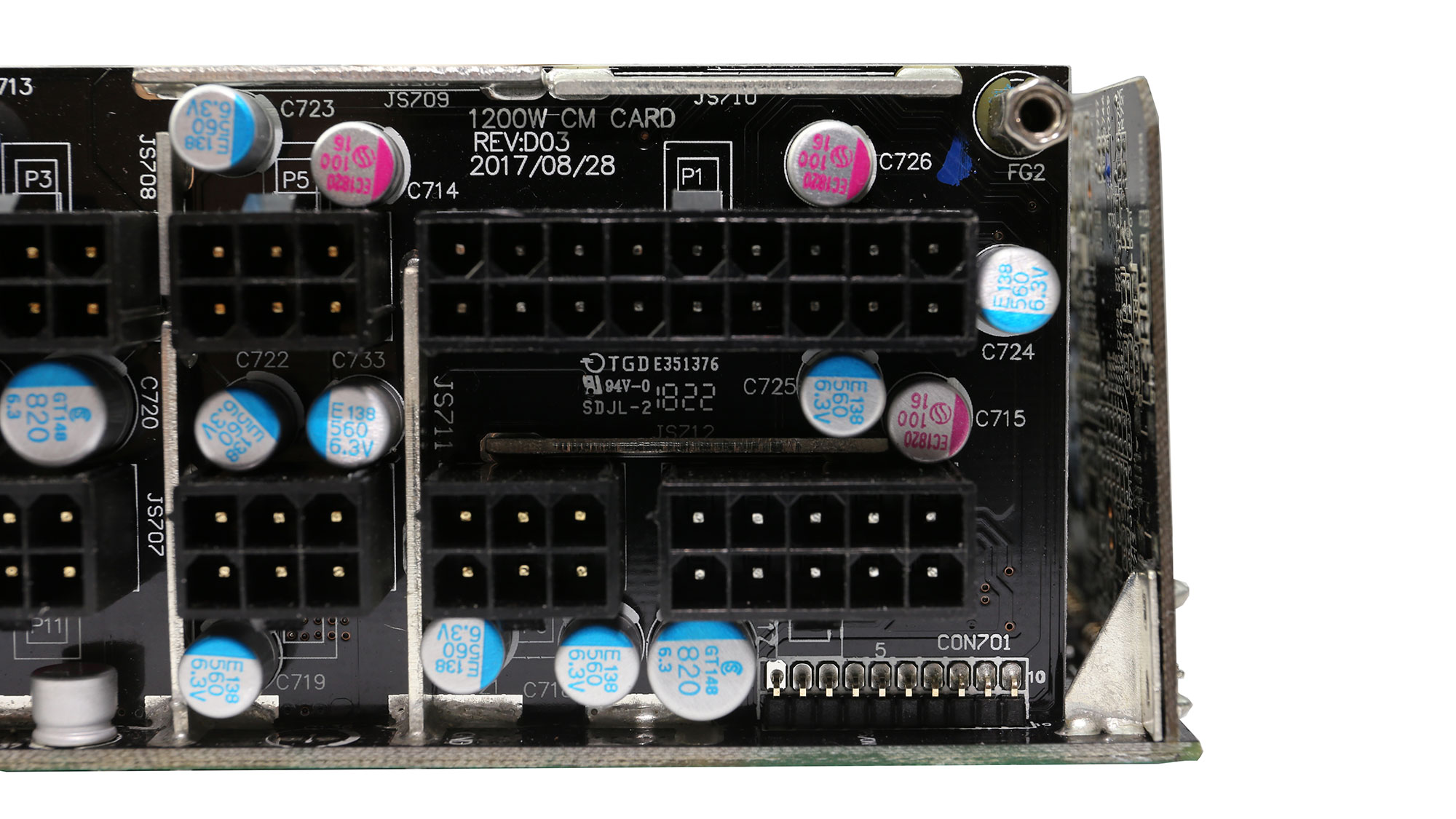

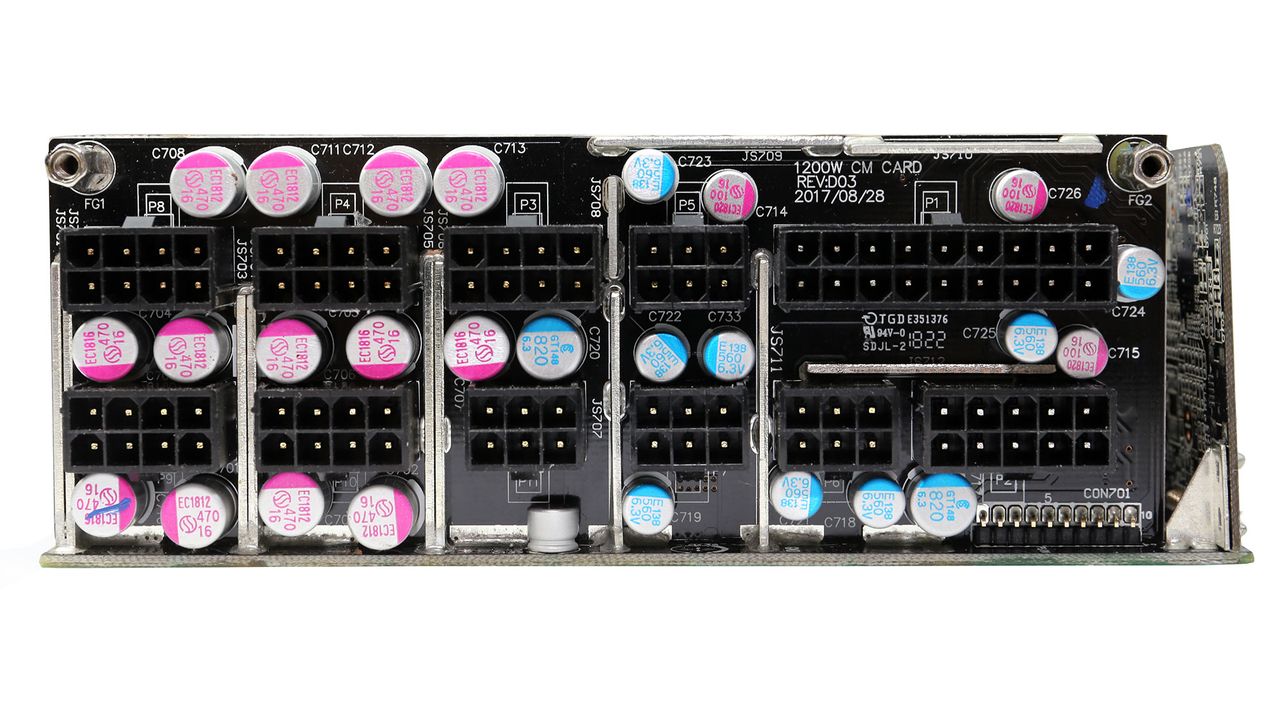

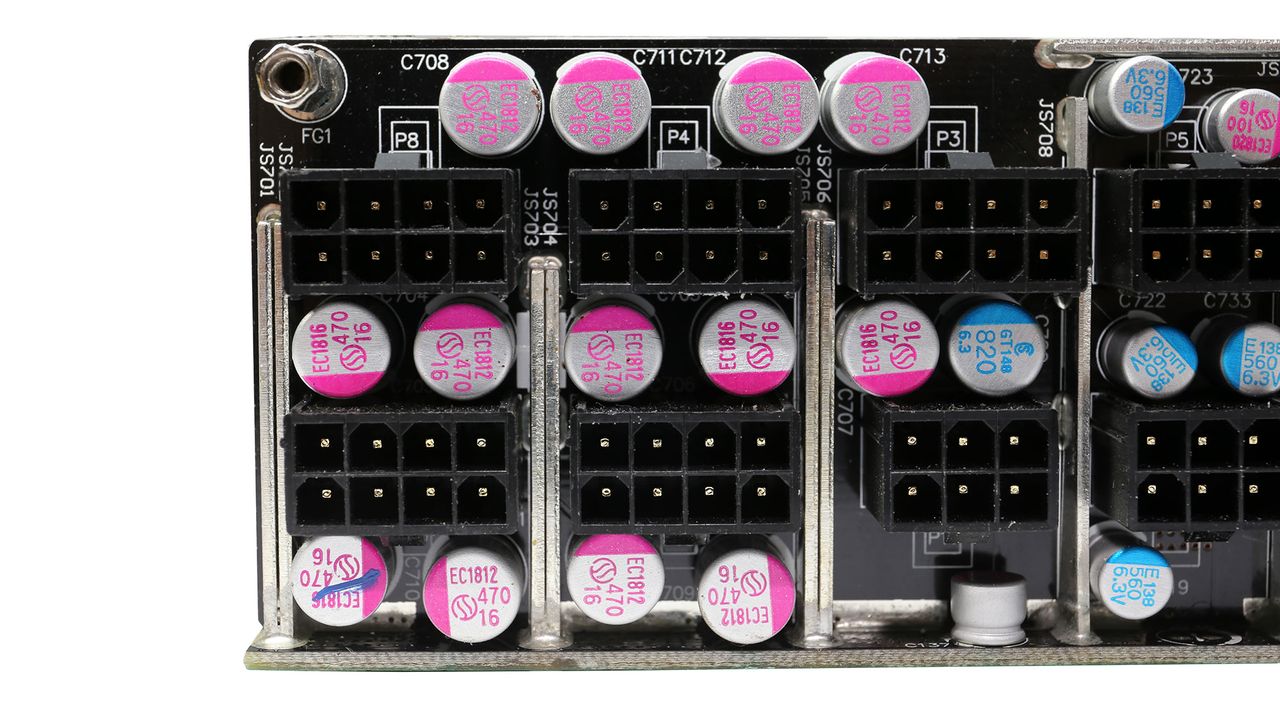

At the face of the modular PCB many polymer caps are used for ripple filtering.

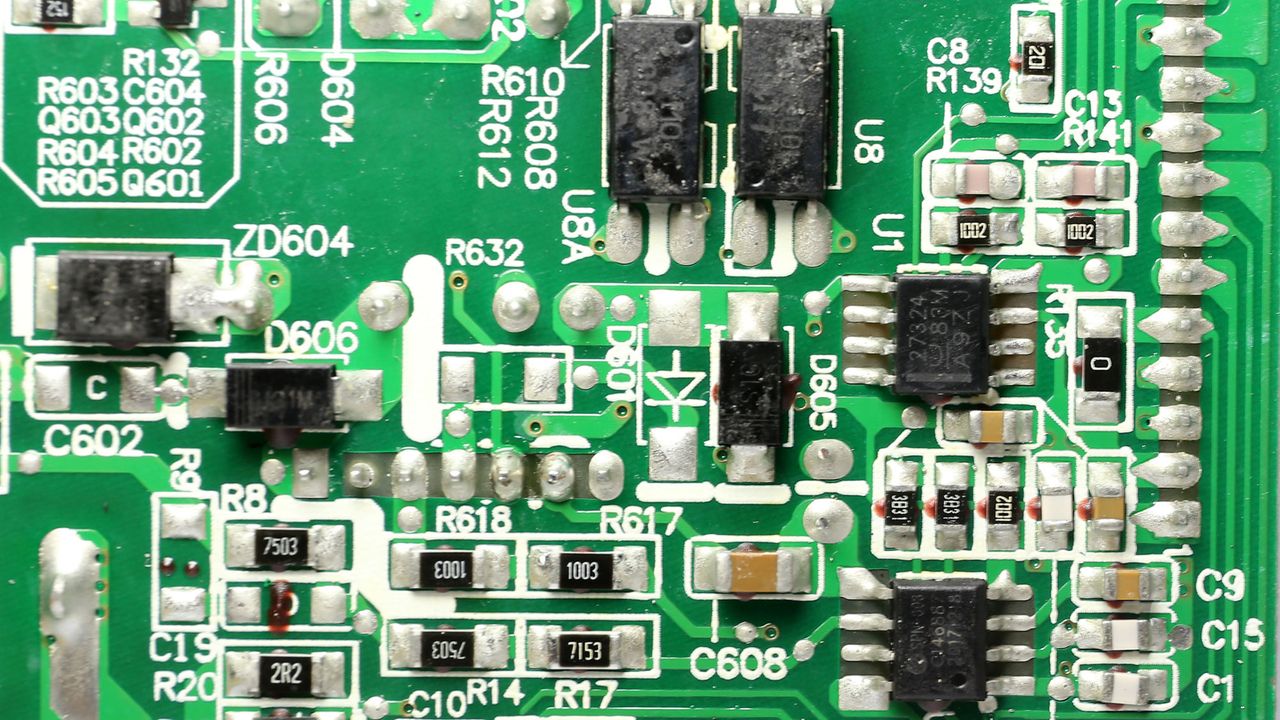

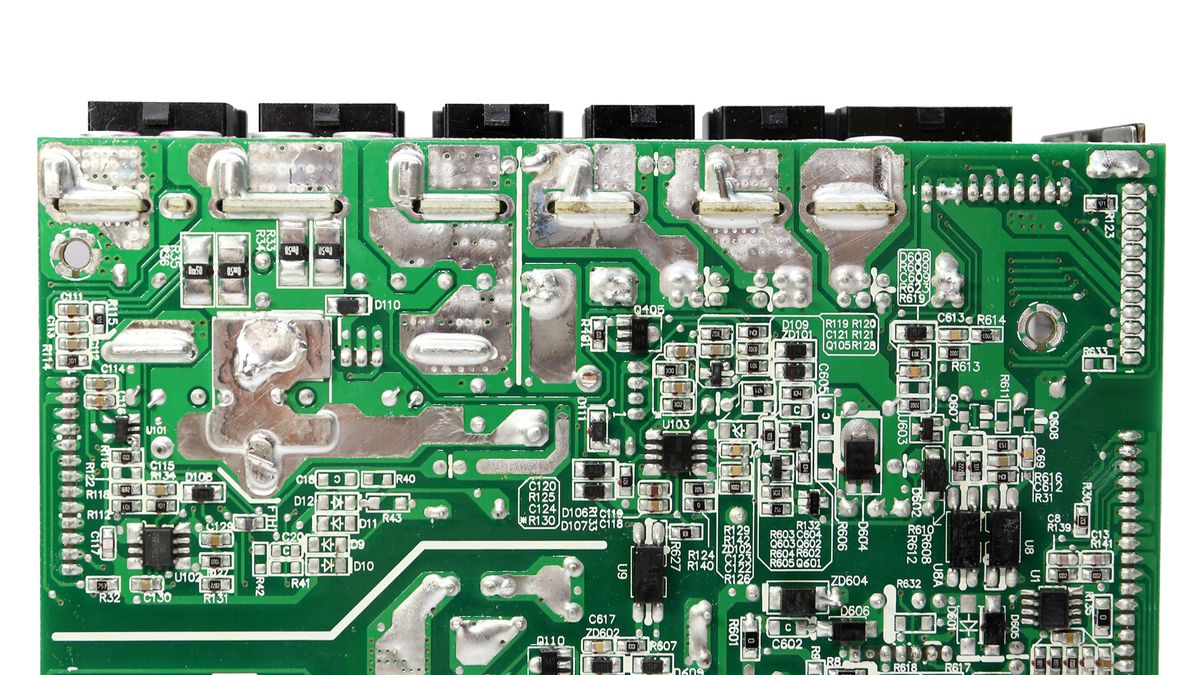

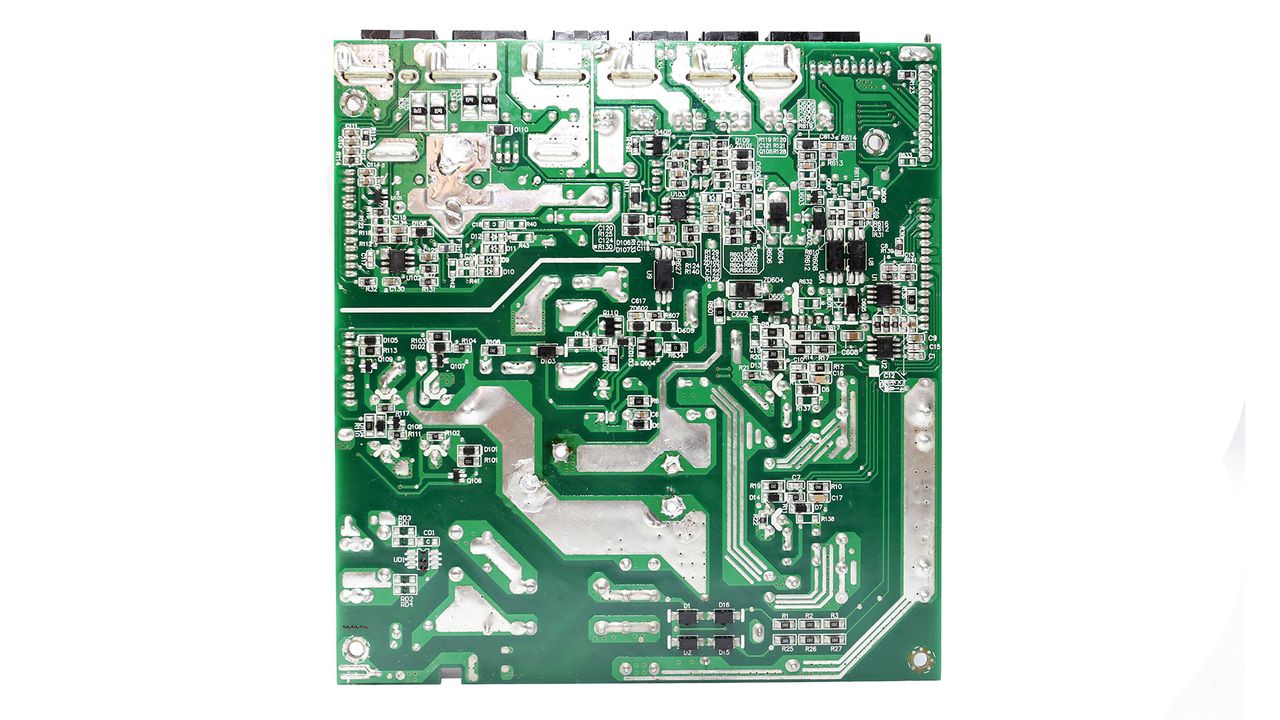

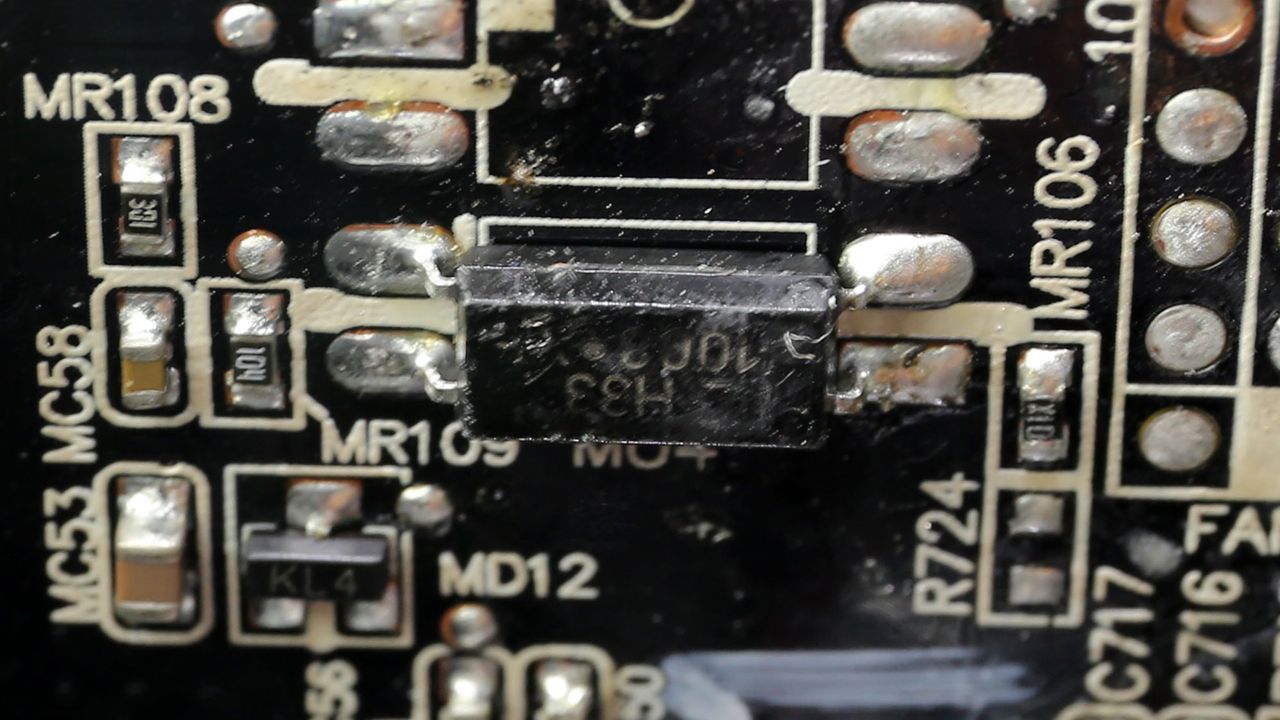

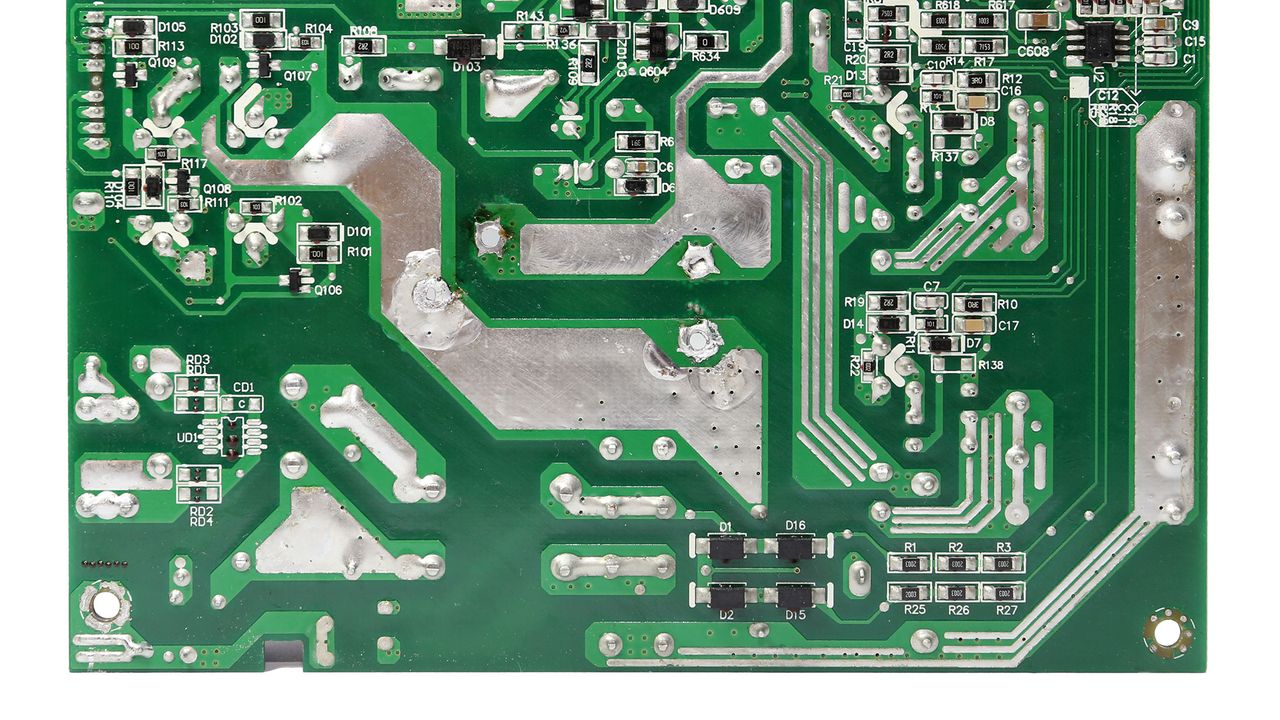

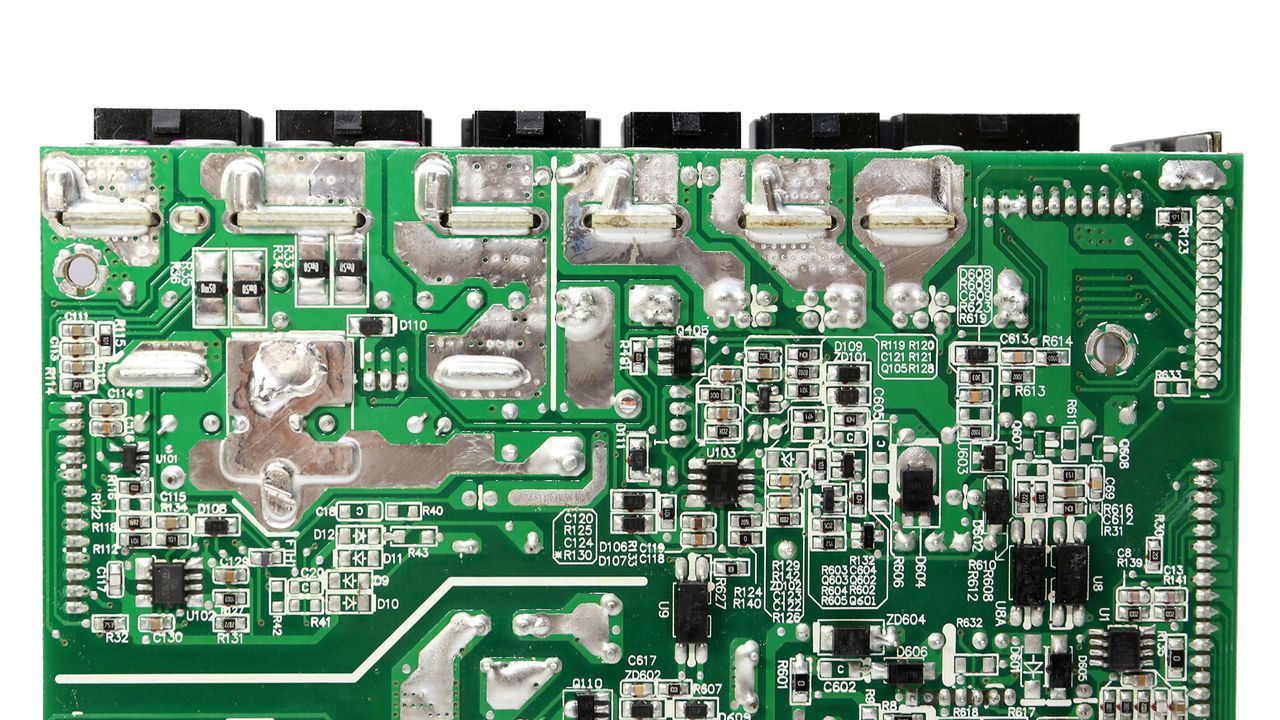

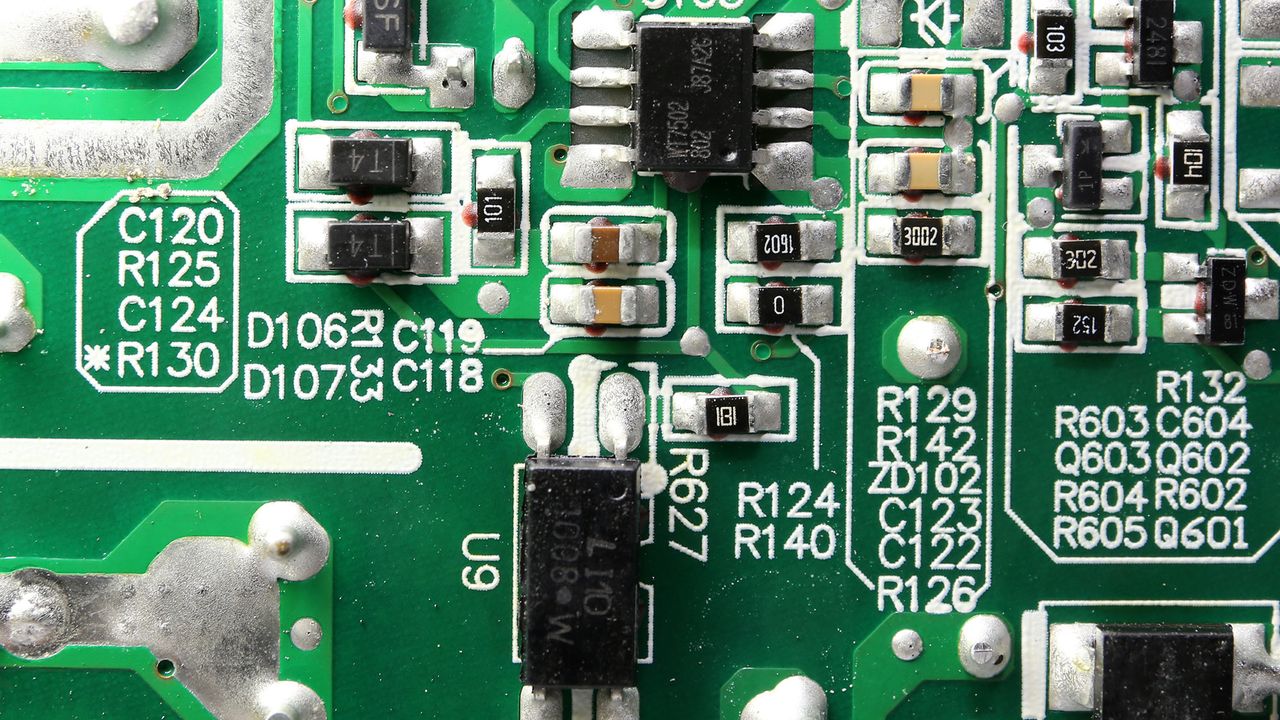

The soldering quality is good, something typical for CWT's implementations.

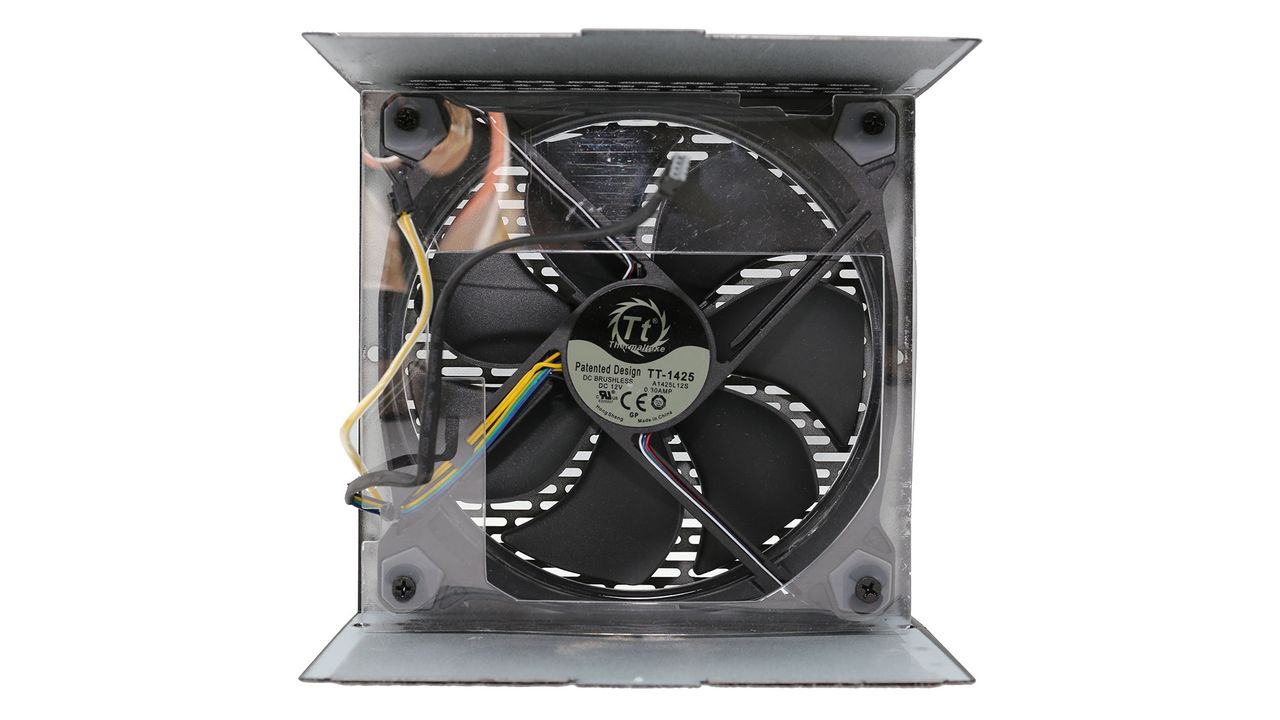

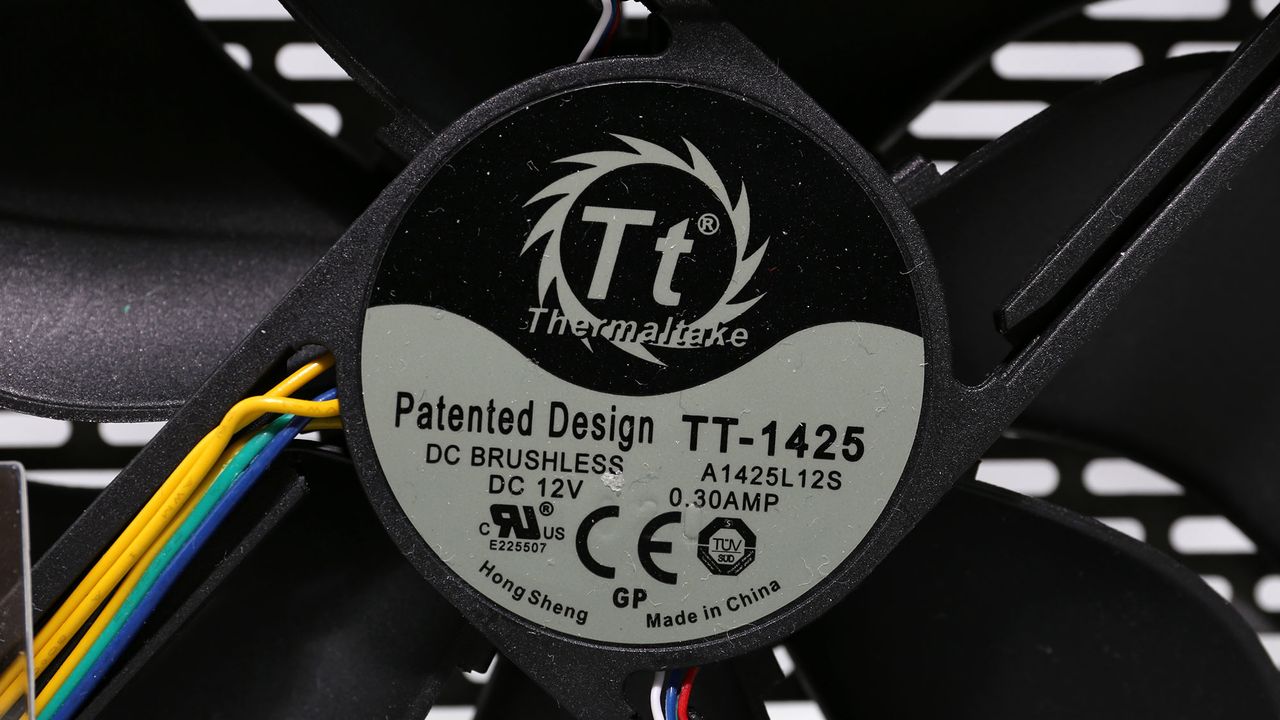

The cooling fan uses a Hydro-Dynamic bearing, which is similar to a Fluid Dynamic Bearing. It also has RGB lighting.
