Does Your Storage Controller Affect The Performance Of An SSD?

Chipsets, SATA Controllers, And The Test Platforms

Again, in order to measure the performance of our 840 Pro on various platforms, we rounded up a total of seven motherboards, each one sporting a different south bridge or platform controller hub.

South BridgeMotherboardChipsetSocketNumber and Type of SATA Ports
AMD A75MSI A75MA-G55AMD A75FM16 x SATA 6Gb/s
AMD SB750MSI 790FX-GD70AMD 790FXAM36 x SATA 3Gb/s
AMD SB950 Asus M5A99X EVOAMD 990XAM36 x SATA 6Gb/s
Intel ICH10R MSI Big BangIntel X58 Express
LGA 13666 x SATA 3Gb/s
Intel P55Gigabyte P55A-UD7Intel P55 Express
LGA 11566 x SATA 3Gb/s
Intel Z77 Asus P8Z77-V ProIntel Z77 ExpressLGA 11552 x SATA 6Gb/s
Intel Z87 Intel DZ87KLT-75KIntel Z87 ExpressLGA 11506 x SATA 6Gb/s

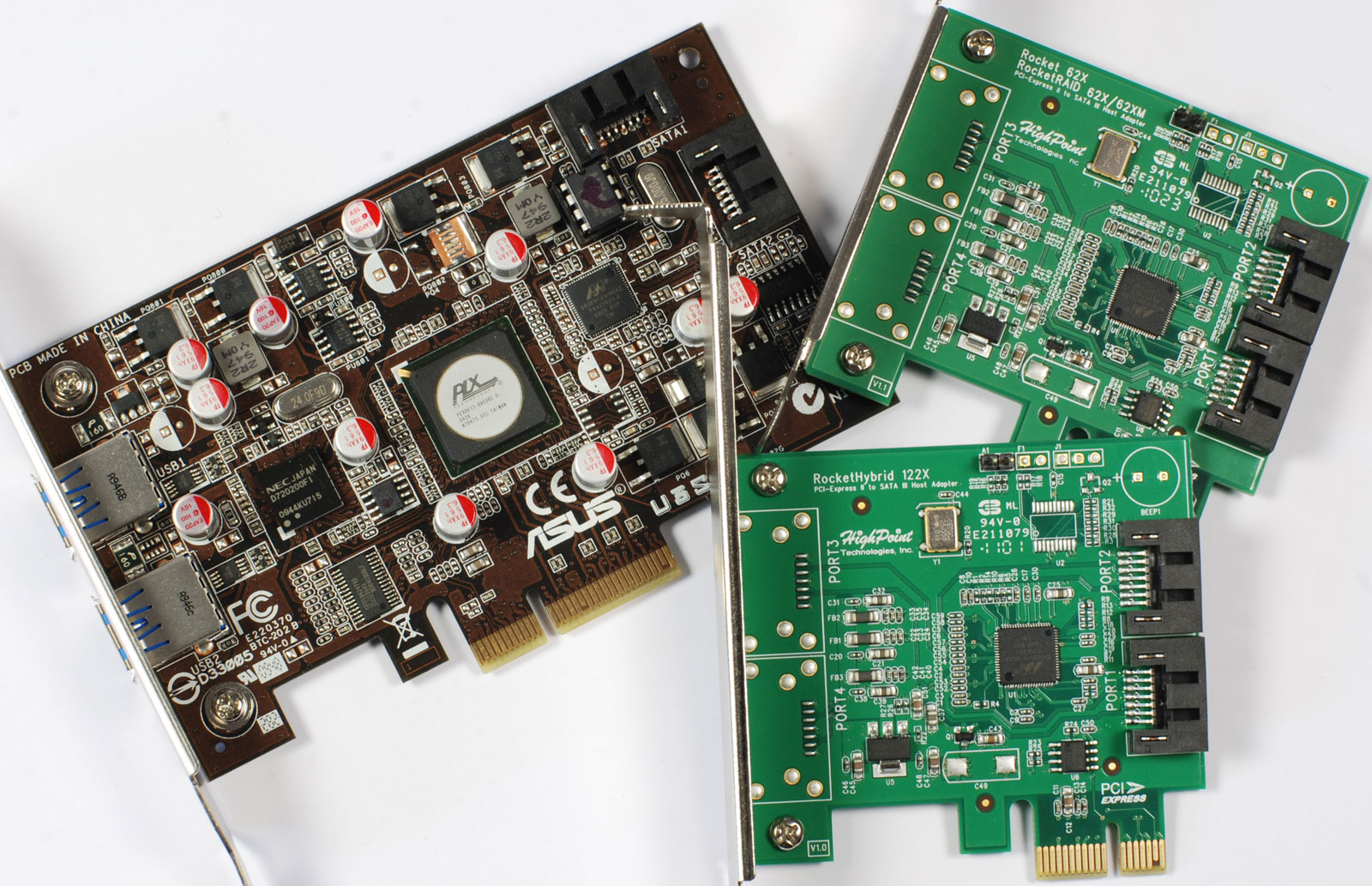

In addition to the seven different integrated storage controllers, we also used five third-party SATA controllers, three of which power PCIe add-in cards (Asus U3S6, HighPoint Rocket 620, and HighPoint Rocket 1220), while the other two are soldered onto a motherboard (Asus P8Z77-V Pro und MSI Big Bang).

SATA ControllerPCIe Slot Card or MotherboardMotherboard Used
ChipsetSocket# and Type of SATA Ports
ASMedia ASM1061Mounted on motherboardAsus P8Z77-V ProIntel Z77LGA 11552 x SATA 6Gb/s
Marvell 88SE9123-NAA2 Asus U3S6 (PCIe x4)Asus P8Z77-V ProIntel Z77LGA 11552 x SATA 6Gb/s
Marvell 88SE9125-NAA2 HighPoint Rocket 620Asus P8Z77-V ProIntel Z77LGA 11552 x SATA 6Gb/s
Marvell 88SE9128-NAA2 Mounted on motherboardMSI Big BangIntel X58LGA 13662 x SATA 6Gb/s
Marvell 88SE9130-NAA2 HighPoint Rocket 1220 (PCIe x1)Asus P8Z77-V ProIntel Z77LGA 11552 x SATA 6Gb/s

Test Configuration and Test Platform

System Hardware
HardwareDetails
Marvell 88SE9125-NAA2
Highpoint Rocket 620 (PCI x1)
2 x SATA 6Gb/s
Asus P8Z77-V Pro, Intel Core i7-3770K, Chipset: Intel Z77, LGA 1155
Marvell 88SE9123-NAA2
Asus U3S6 (PCI x4)
2 x SATA 6Gb/s
Marvell 88SE9130-NAA2
Highpoint Rocket 1220 (PCI x1)
2 x SATA 6Gb/s
ASMedia ASM1061
(Integrated)
2 x SATA 6Gb/s
Intel Z77 (SATA 6Gb/s)
Intel ICH10R
6 x SATA 3Gb/s
MSI Big Bang, Intel Core i7-980X, Chipset: Intel X58, LGA 1366
Marvell 88SE9128-NAA2
2 x SATA 6Gb/s
Intel P55
6 x SATA 3Gb/s
Gigabyte P55A-UD7, Intel Core i7-870, Chipset: Intel P55, LGA 1156
AMD SB950
6 x SATA 6Gb/s
Asus M5A99X EVO, AMD FX-8350, Chipset: AMD 990X, Socket AM3
Intel Z87
6 x SATA 6Gb/s
Intel DZ87KLT-75K, Intel Core i7-4770K, Chipset: Intel Z87, LGA 1150
AMD A75
6 x SATA 6Gb/s
MSI A75MA-G55, AMD A6-3670, Chipset: A75, Socket FM1
AMD SB750
6 x SATA 3Gb/s
MSI 790FX-GD70, AMD Phenom II X4 965, Chipset: AMD 790FX, Socket AM3
DDR3 Memory (Dual-Channel)
2 x 8 GB DDR3-1600 CL10-10-10-27, Corsair Vengance CMZ16GX3M2A1600C10
DDR3 Memory (Dual-Channel)2 x 8 GB DDR3-1866 CL10-11-10-30, G.Skill RipjawsX F3-14900CL10D-16GBXL
DDR3 Memory (Quad-Channel)4 x 4 GB Kingston KHX1600C9D3K2/8GX
System SSDIntel X25-M G1 , 80 GB, Firmware 0701, SATA 3Gb/s
ControllerIntel PCH Z68 SATA 6Gb/s
Power SupplySeasonic X-760 760 W, SS-760KM Active PFC F3
Benchmarks
Performance Measurementsh2benchw 3.16
PCMark 7 1.0.4
I/O PerformanceIometer 2006.07.27
File server Benchmark
Web server Benchmark
Database Benchmark
Workstation Benchmark
Streaming Reads
Streaming Writes
4 KB Random Reads
4 KB Random Writes
System Software & Drivers
DriverDetails
Operating SystemWindows 8 Pro x64
AMD South BridgesAMD Chipset Drivers 13.4
Intel Z77 And Z87 Express
Intel RST 12.​5.​0.​1066
All otherWindows 8 integrated driver
