Building Project A.R.E.S: My Award-Winning Sci-Fi Case Mod

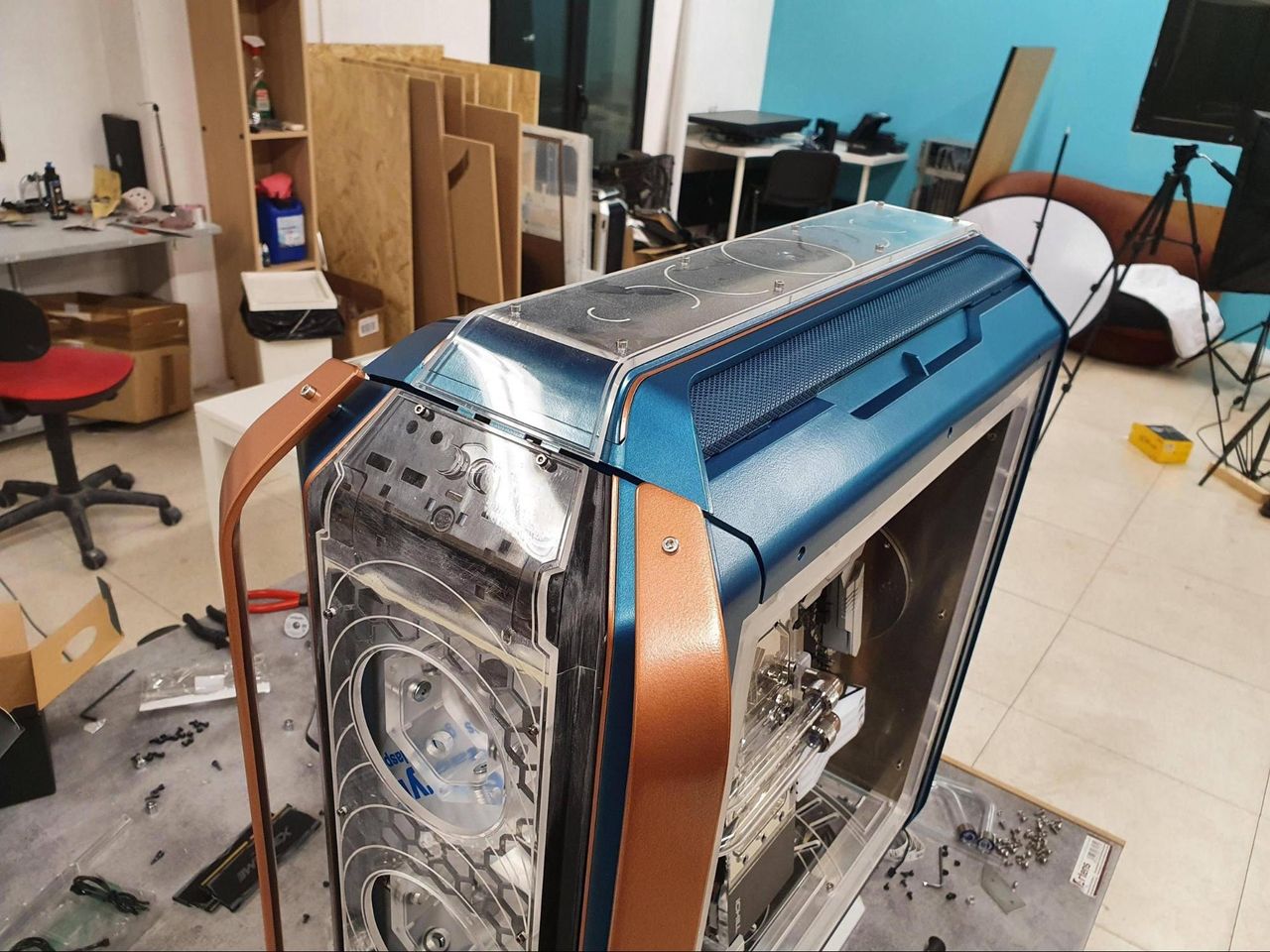

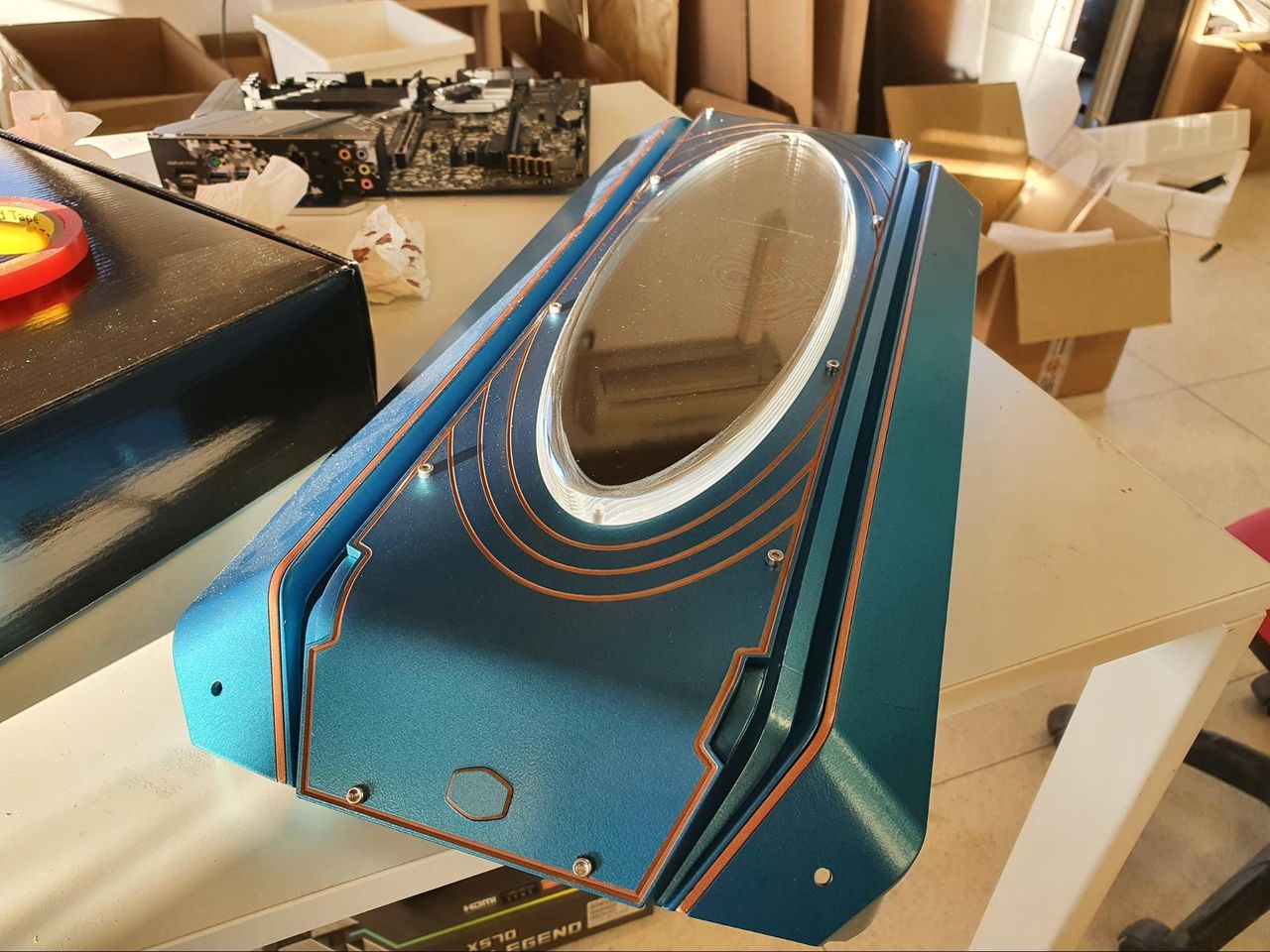

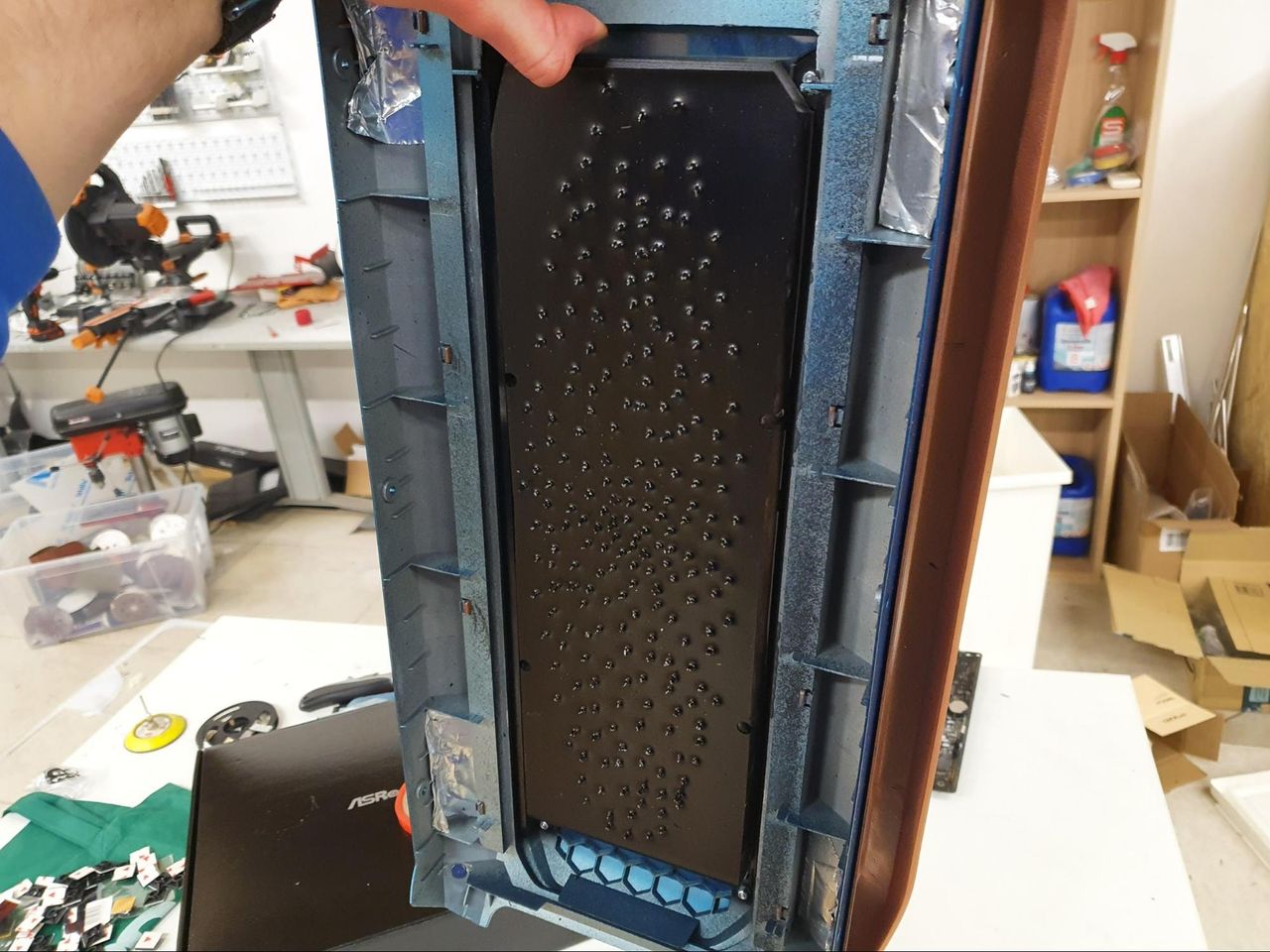

Now, it was finally time to get the paint job started. I began from the external panels and went through a couple attempts before I got a color I liked, so I wasn’t starting off very optimistic. The biggest obstacles were in trying not to overdo it with the blue or make the paint  clunky.

(Image credit: Tom's Hardware)

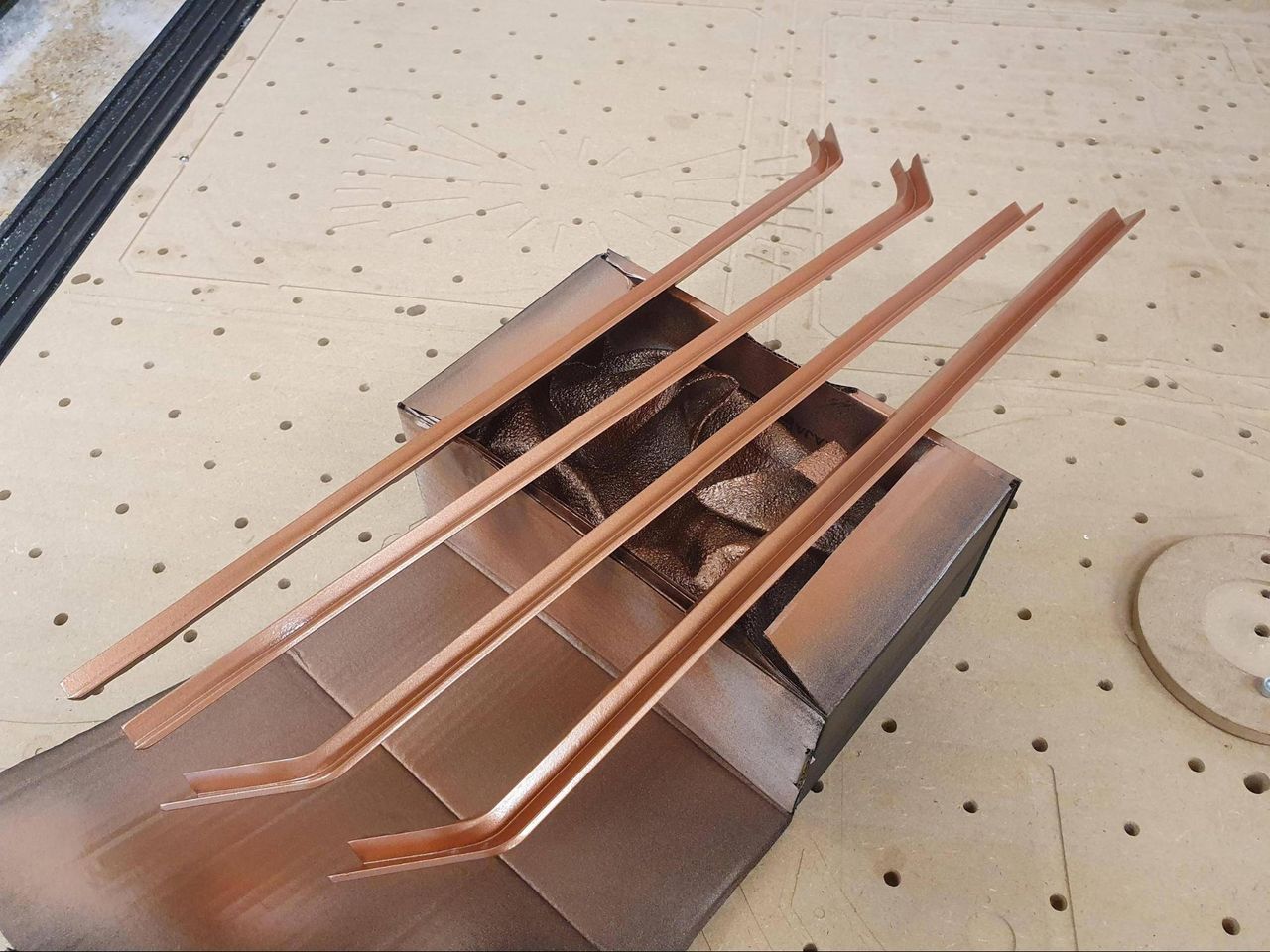

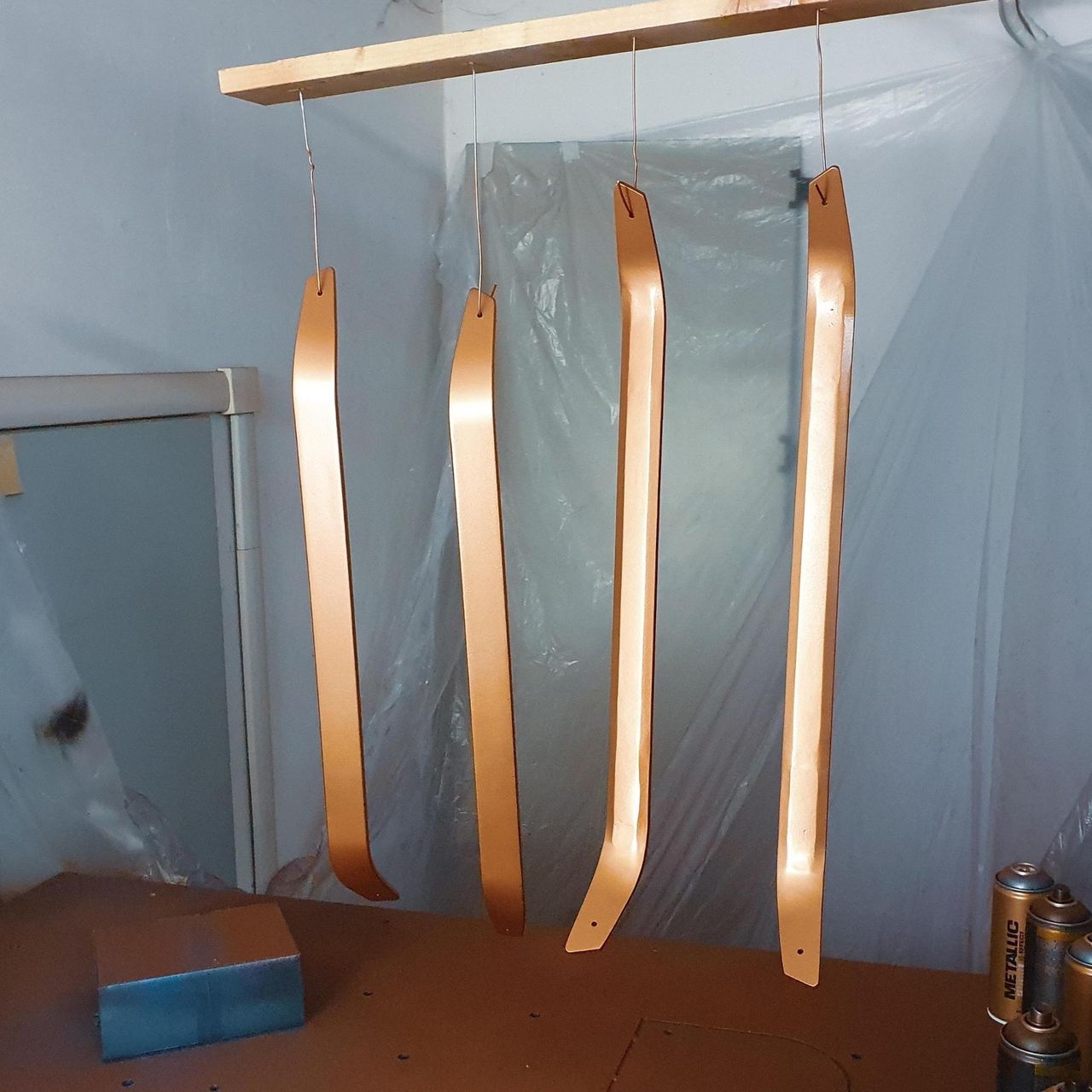

Thankfully, I was able to break up some of this blue with copper paint, starting from the C700M’s trims that normally have RGB lighting in the C700M. I decided to paint them in copper and remove the lighting to fit the overall design much better. The handles also got the copper treatment.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

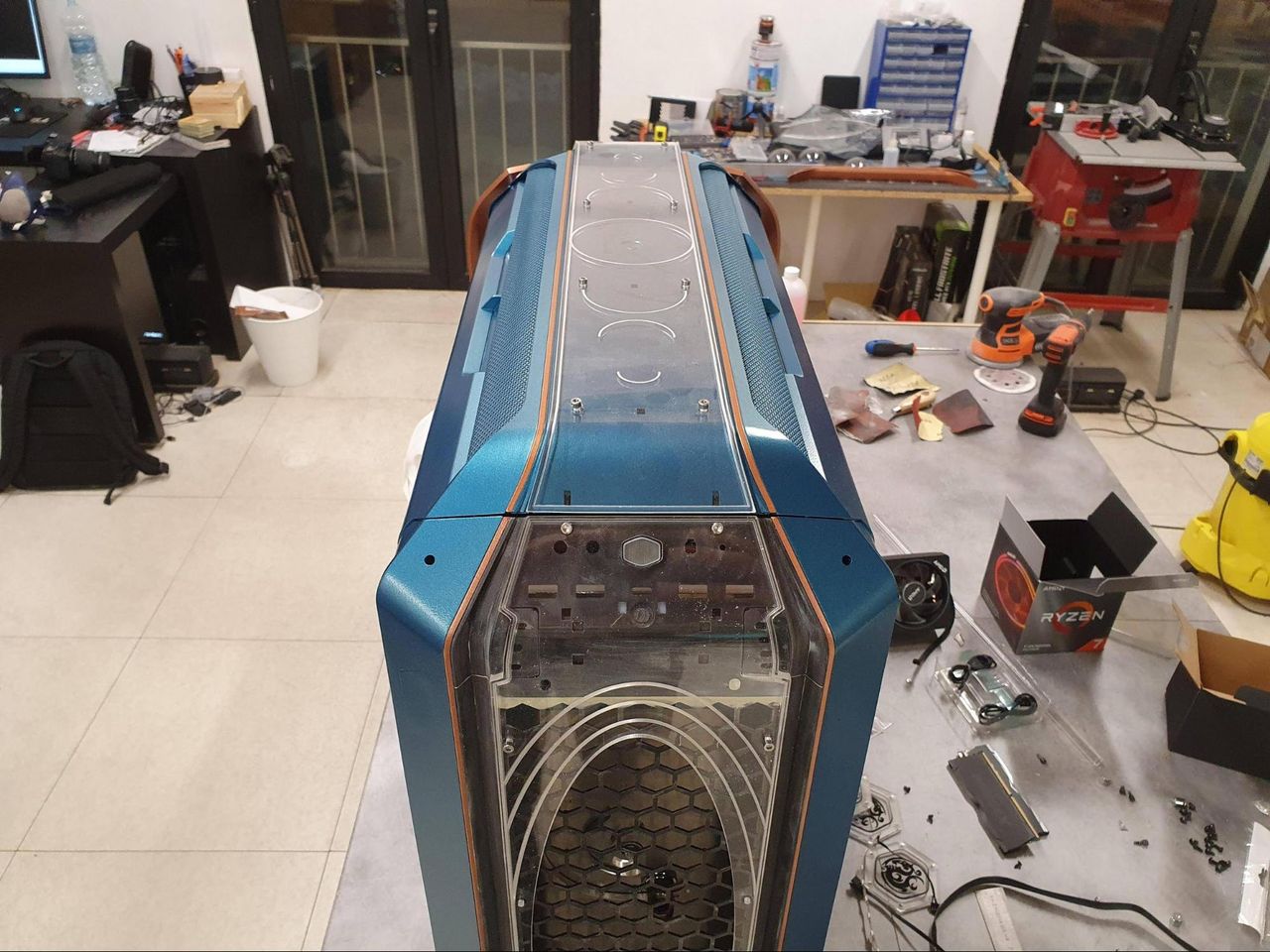

The more I painted, the more confident I got with my choice of colors. Project A.R.E.S. was starting to really come together as a beautiful piece.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

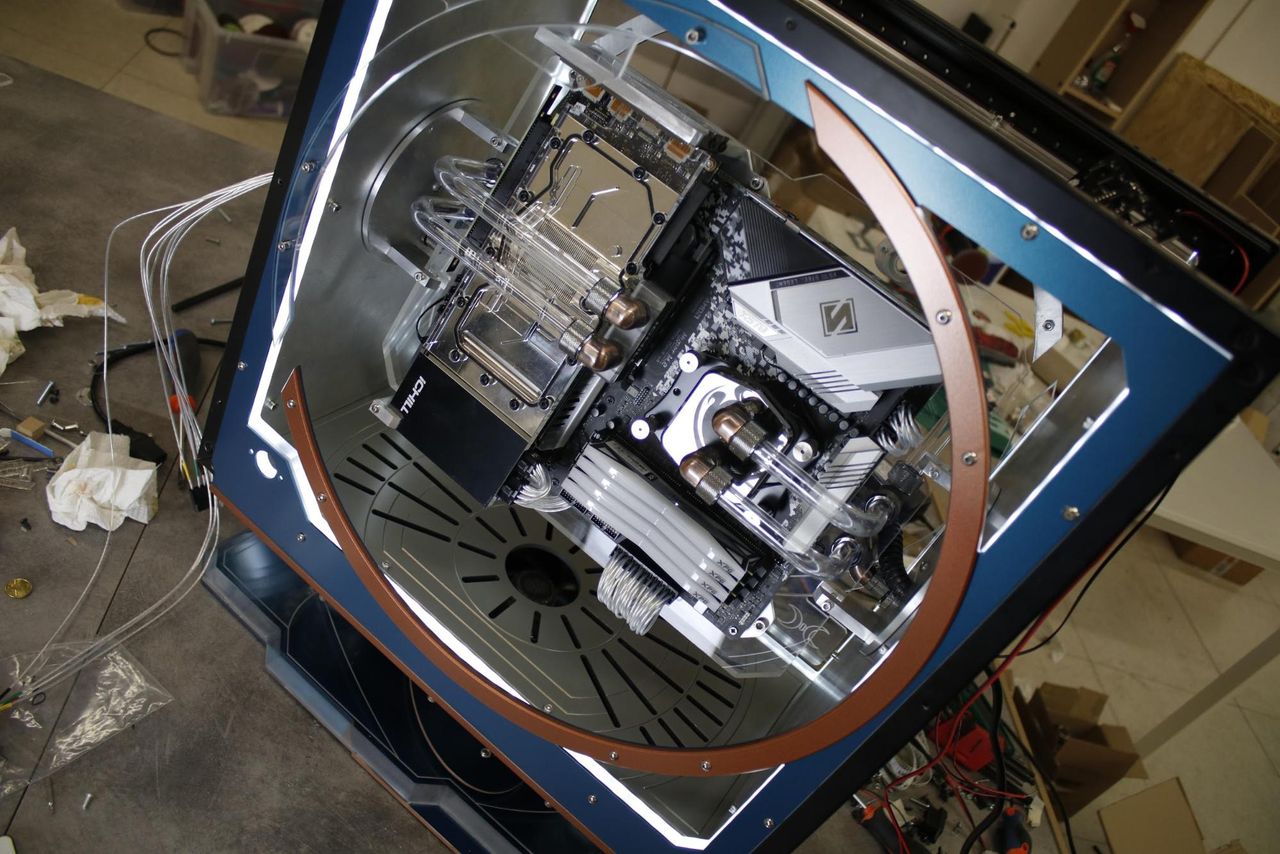

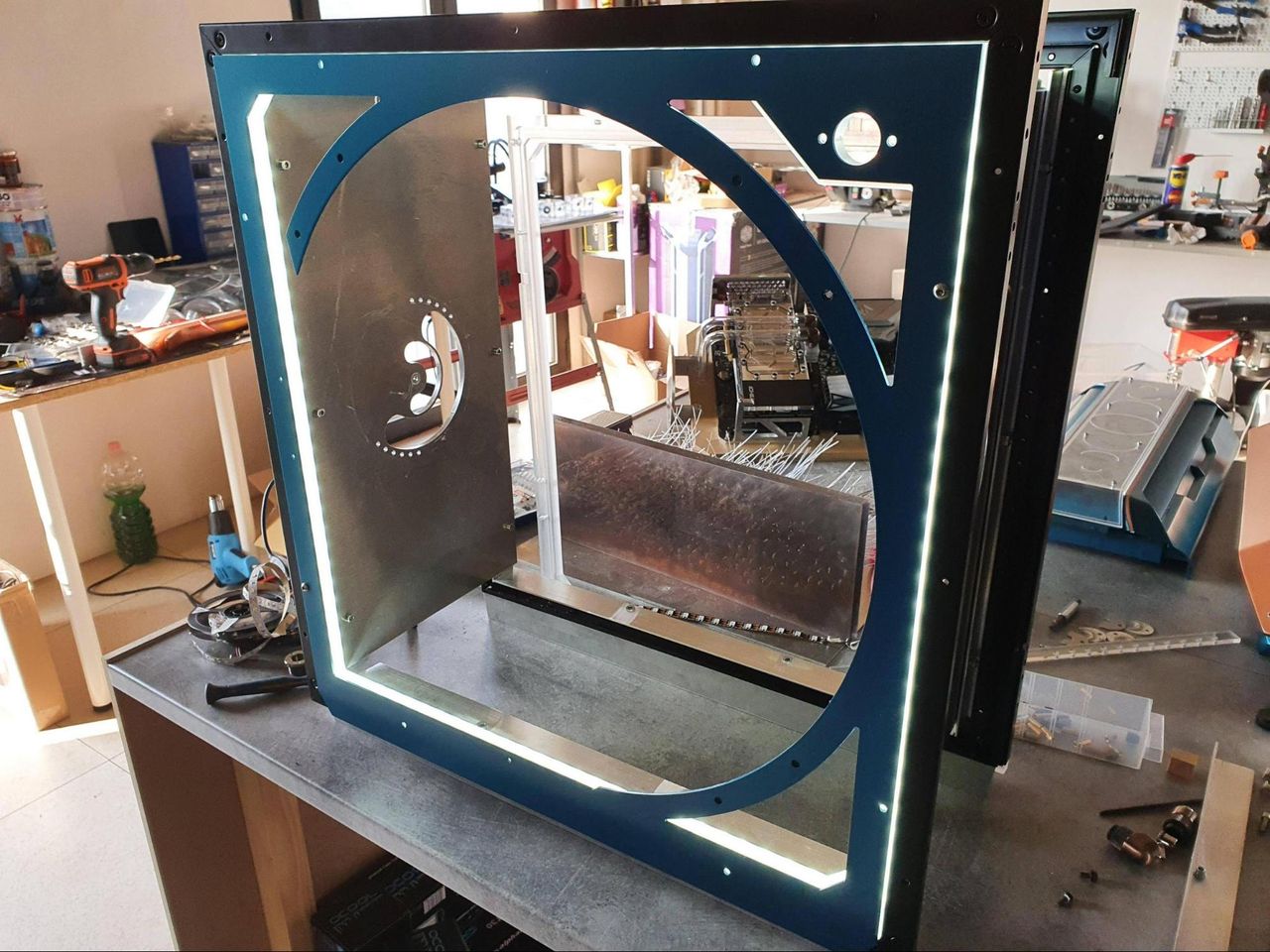

The side frames got the same blue treatment, and I finally added the edge lighting strips behind them.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

As I mentioned in my story at the beginning of this article, there are two color schemes Project A.R.E.S. represents. I wanted the inside of the mod to be painted and finished differently from the outside.

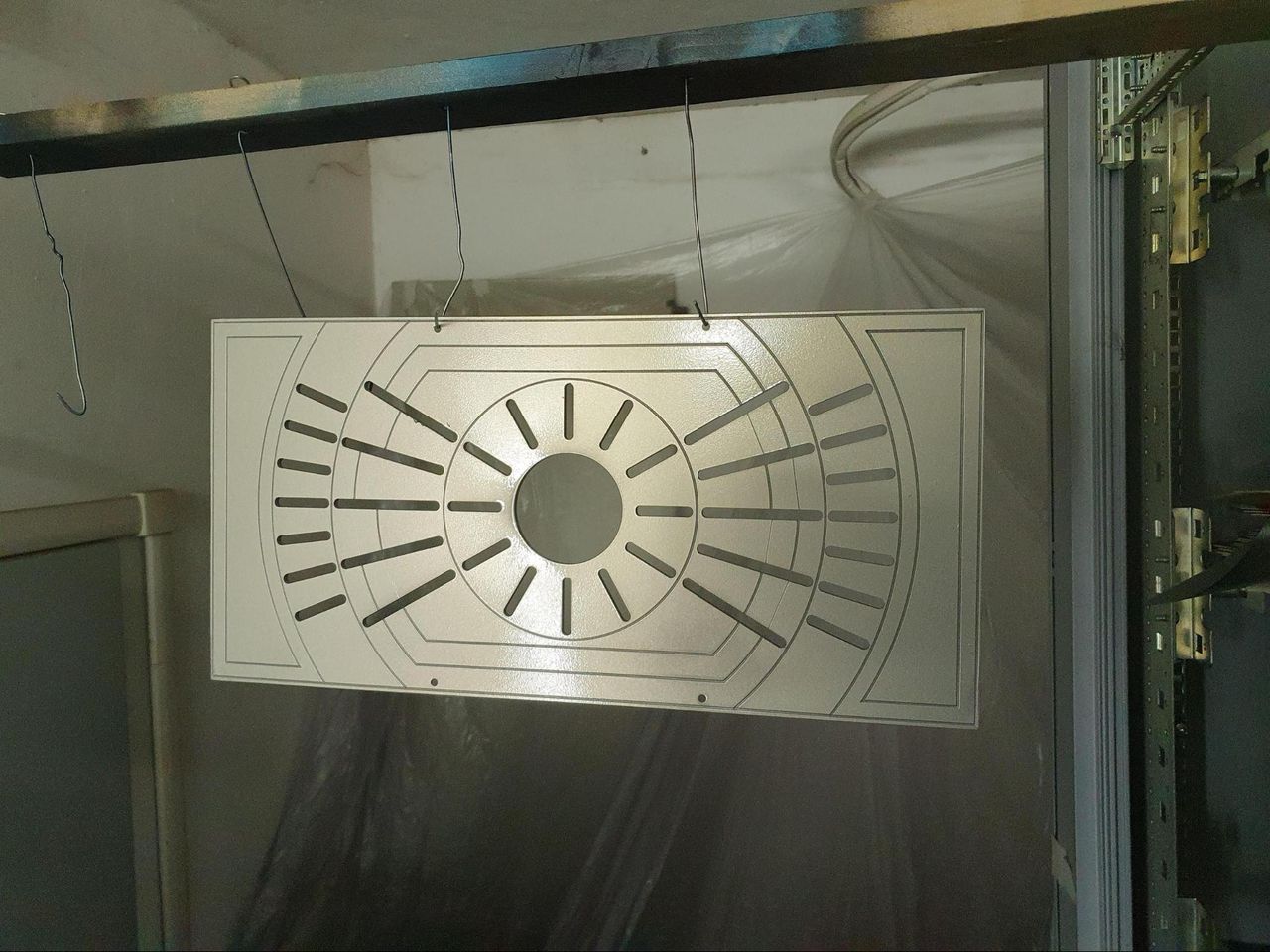

So I took the acrylic parts and painted them with a titanium color.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

Pump Mounting

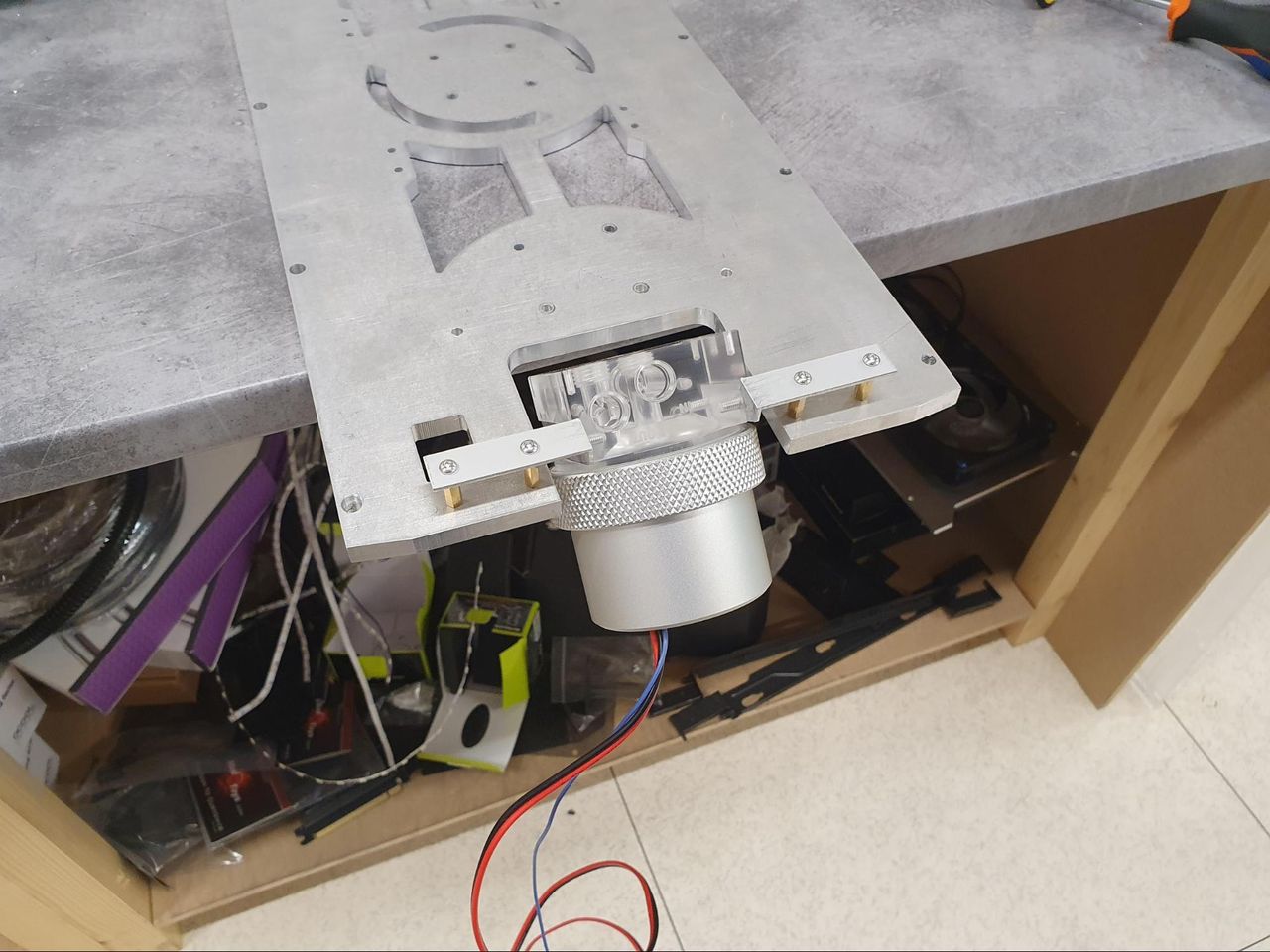

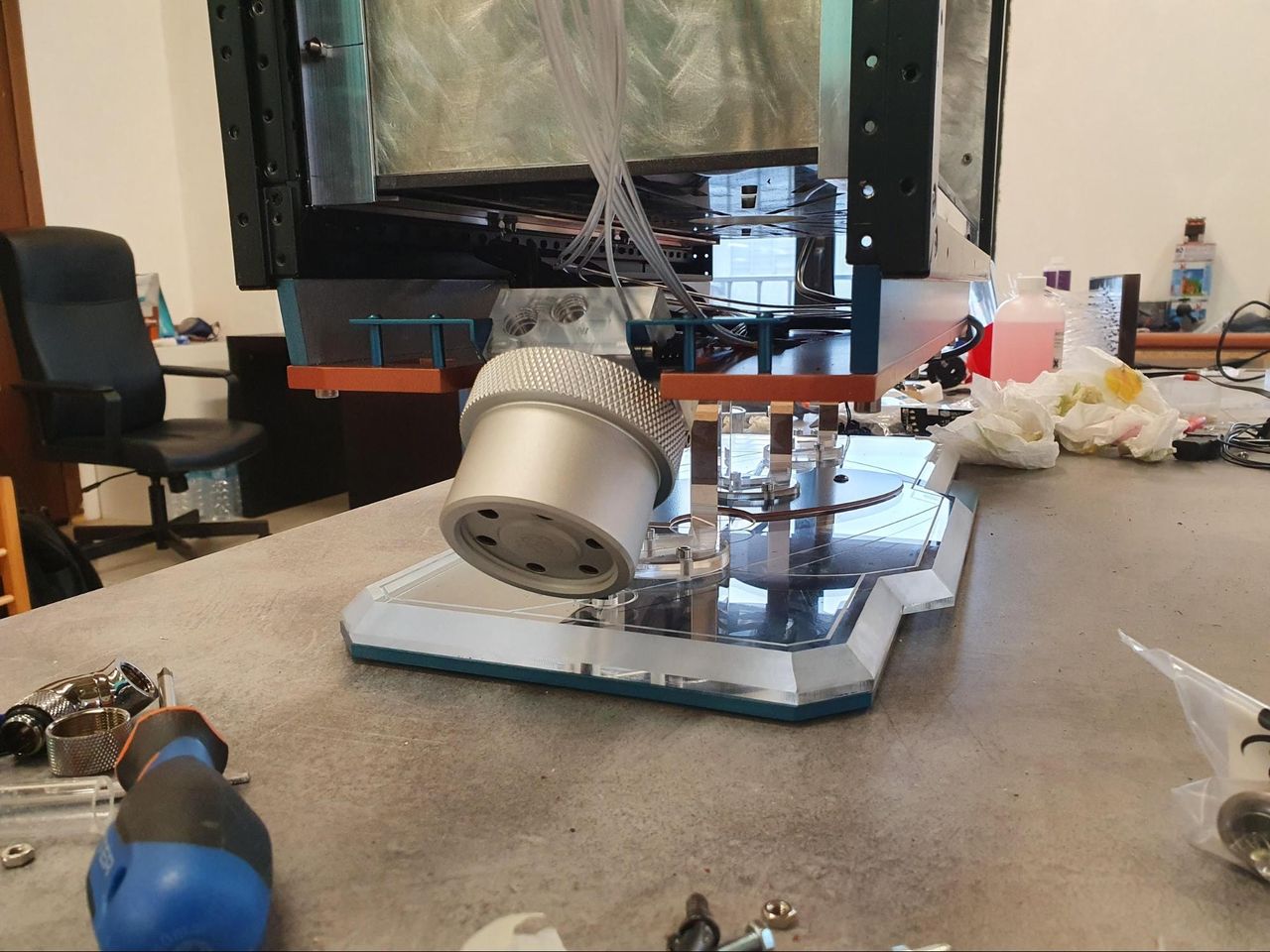

At this point, I took a break from the paint job to tackle a part that was long overdue: the pump mounting. I wanted the pump to look like the thruster of the starship, so I made simple brackets out of aluminum L-profiles and then modified the pump to make the cable come out of the side, instead of the bottom, of the pump for a much cleaner look.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

Finishing off the Internals

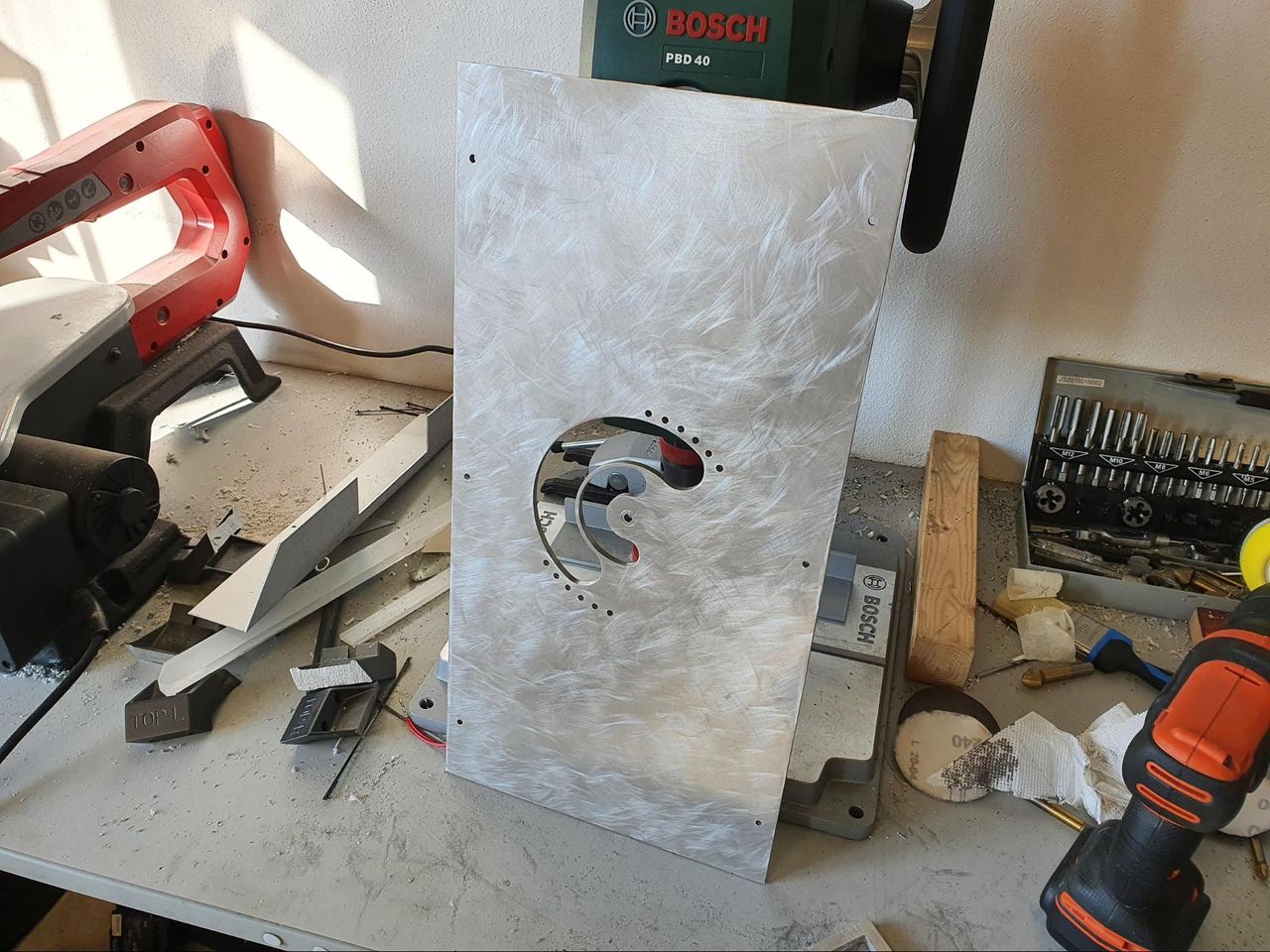

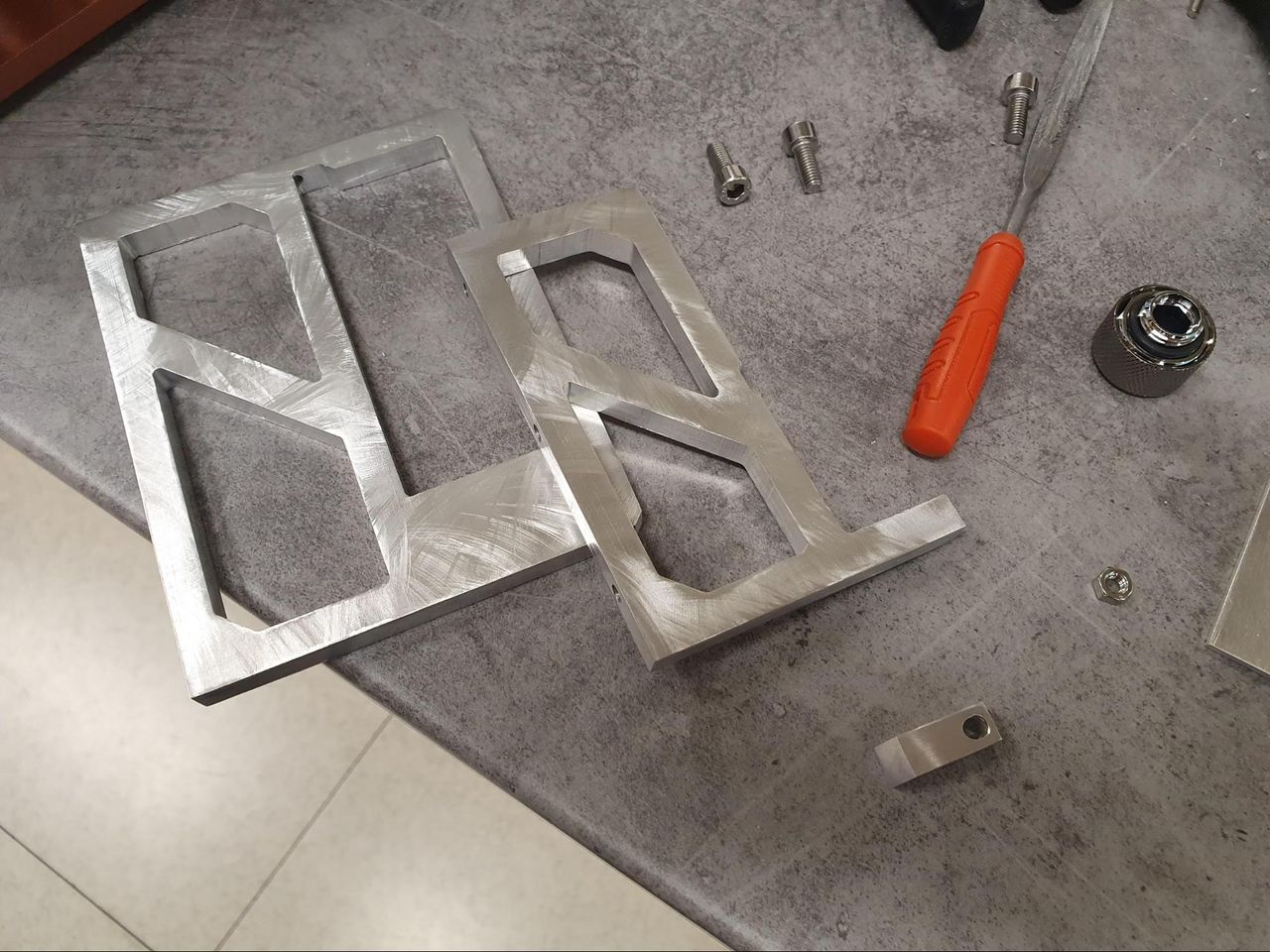

The internal aluminum panels were finished by initially brushing them and then making random strokes using abrasive discs mounted onto the power drill.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

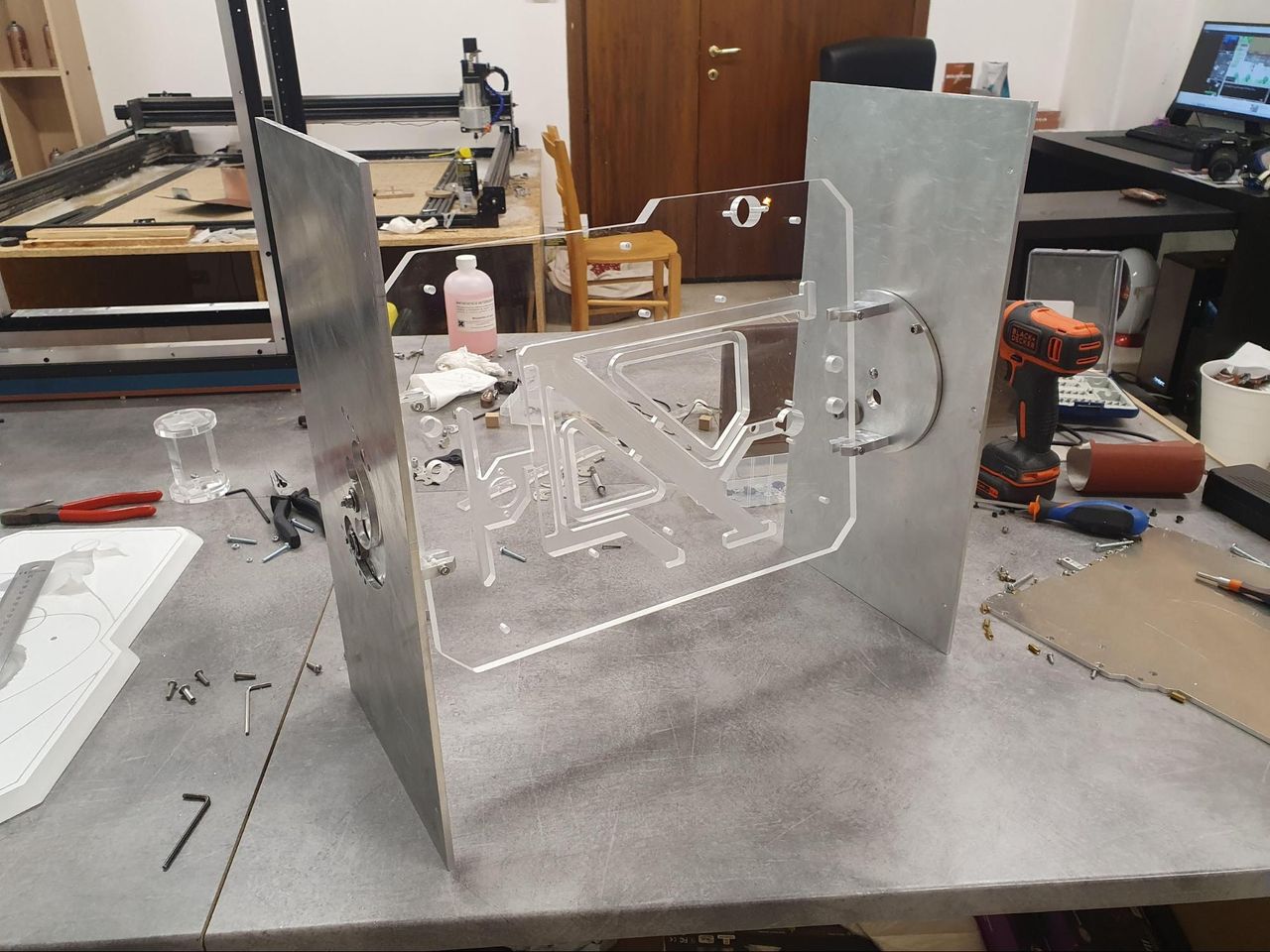

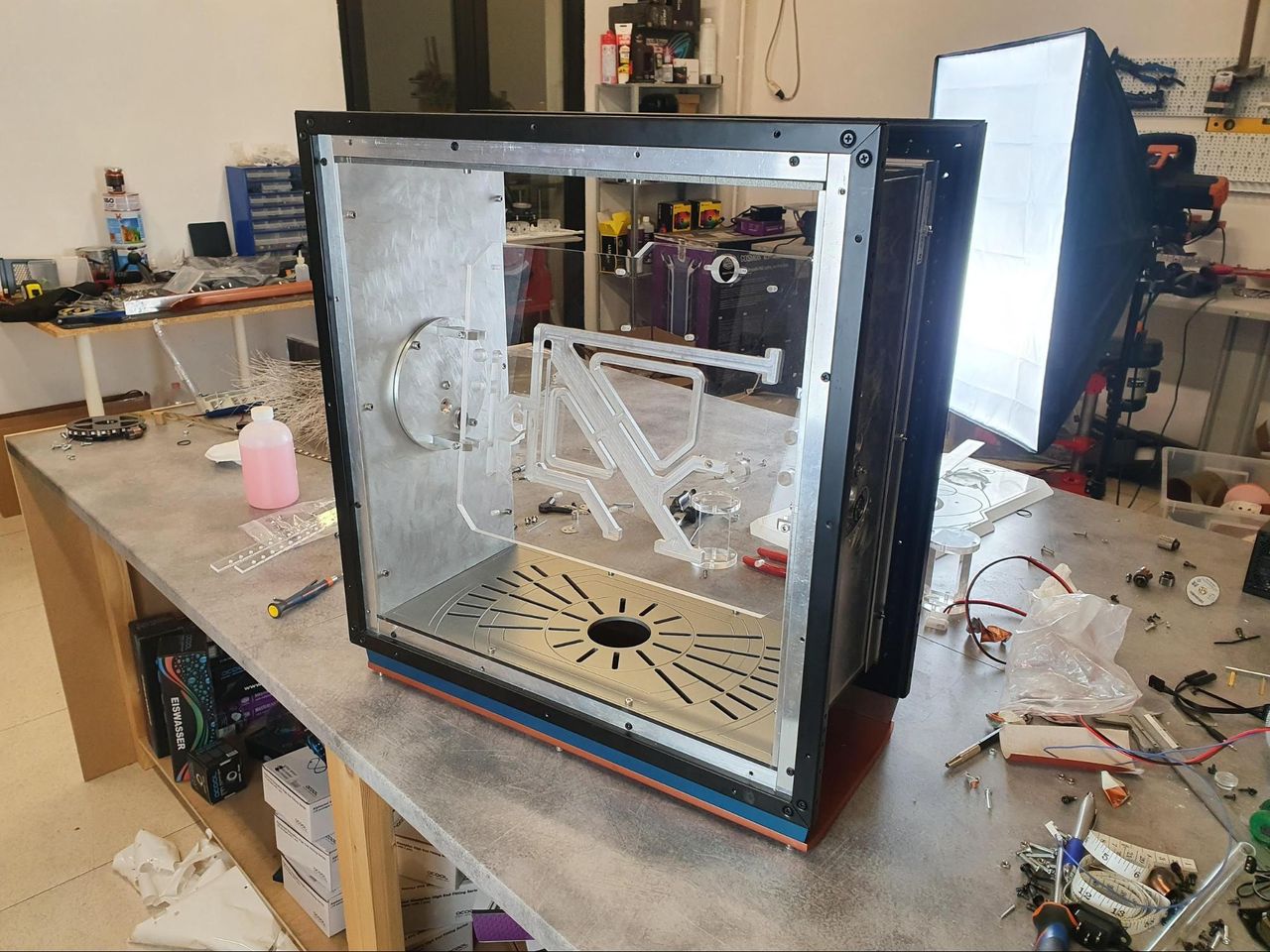

Final assembly of the internals started by putting together the acrylic panel and all the parts of the rotating hardware panel.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

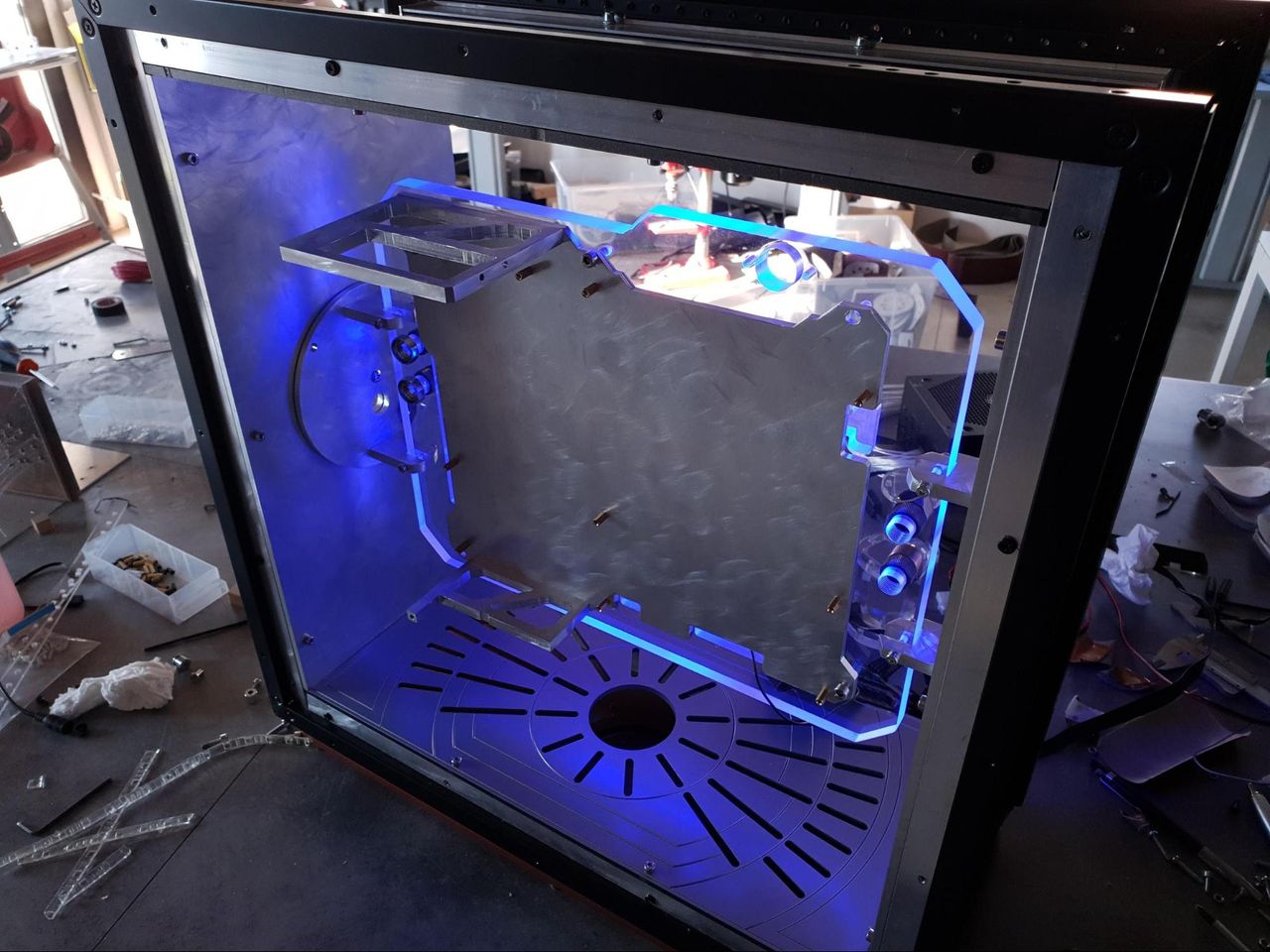

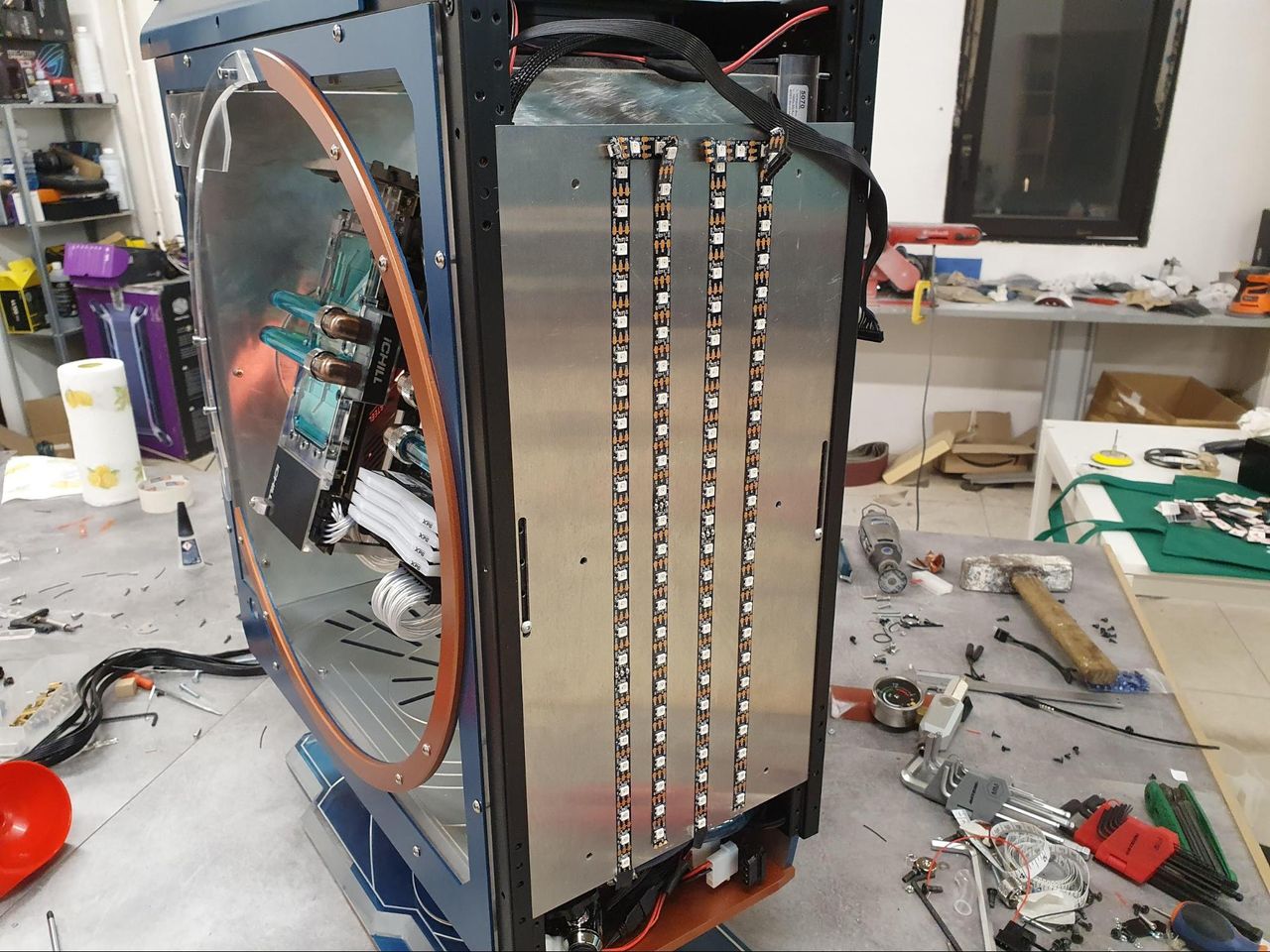

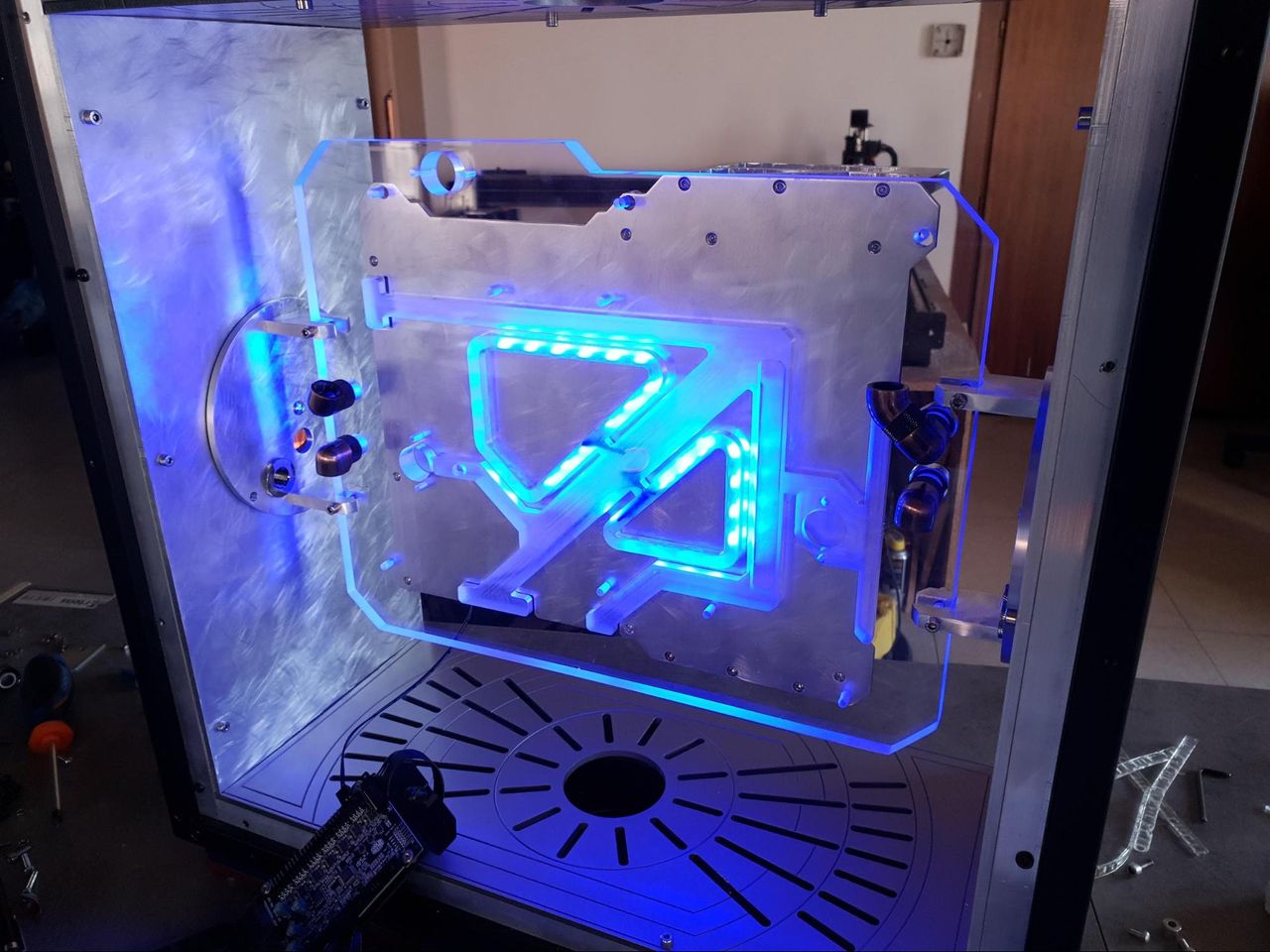

Blue LED strips embedded into the acrylic panel help things pop.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

With this done, it was time to finish the PSU side. I painted the acrylic covers with the same titanium color used before and added some details using a copper-colored acrylic marker.

(Image credit: Tom's Hardware)

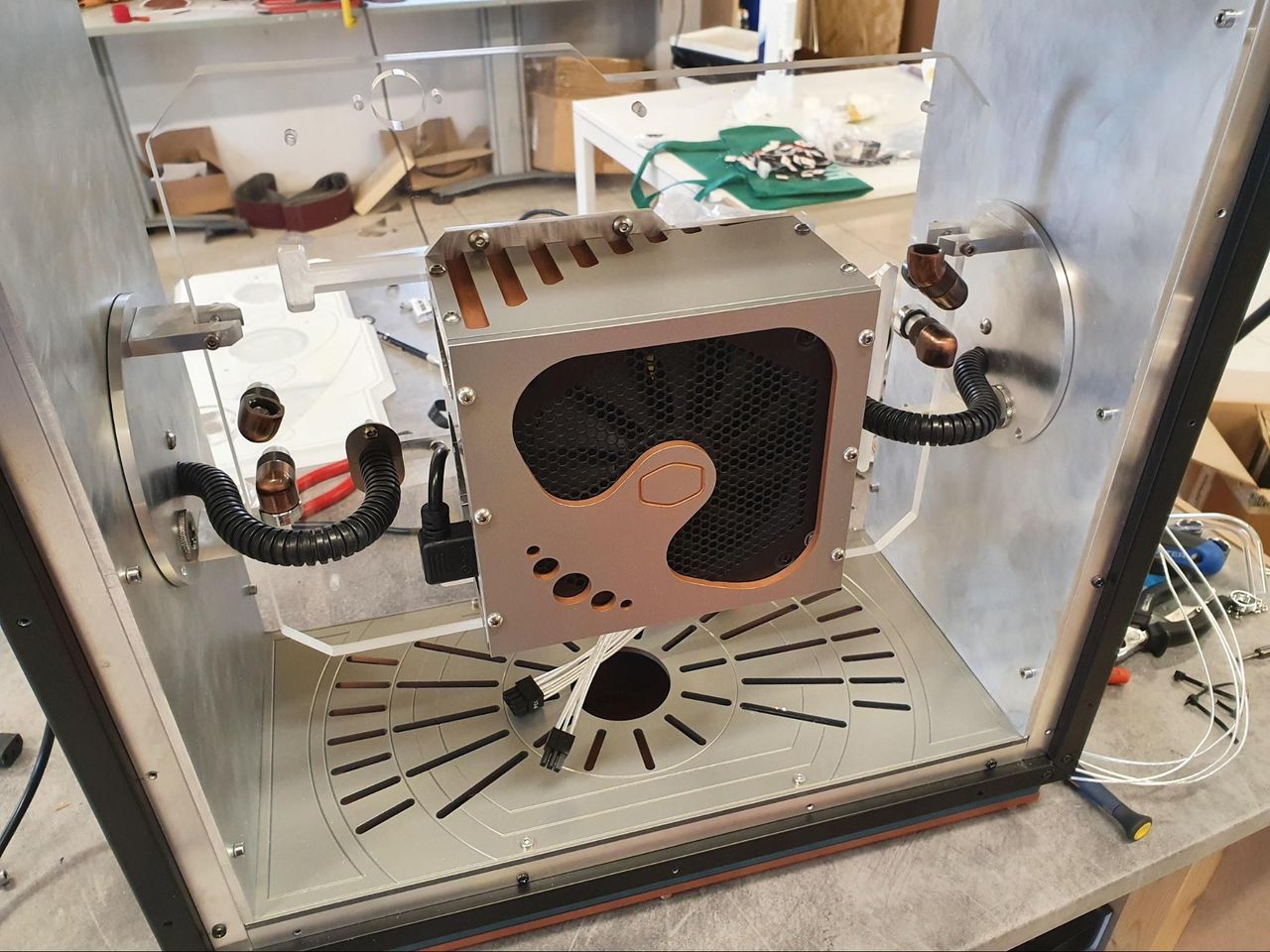

Finally, the PSU is mounted:

(Image credit: Tom's Hardware)

Cable Management

Now it’s time for the fun part: cable management! This was quite complicated because there just isn’t a lot of space here. I was definitely happy with how the corrugated pipes acted here though. They were both very useful and fit with my theme.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

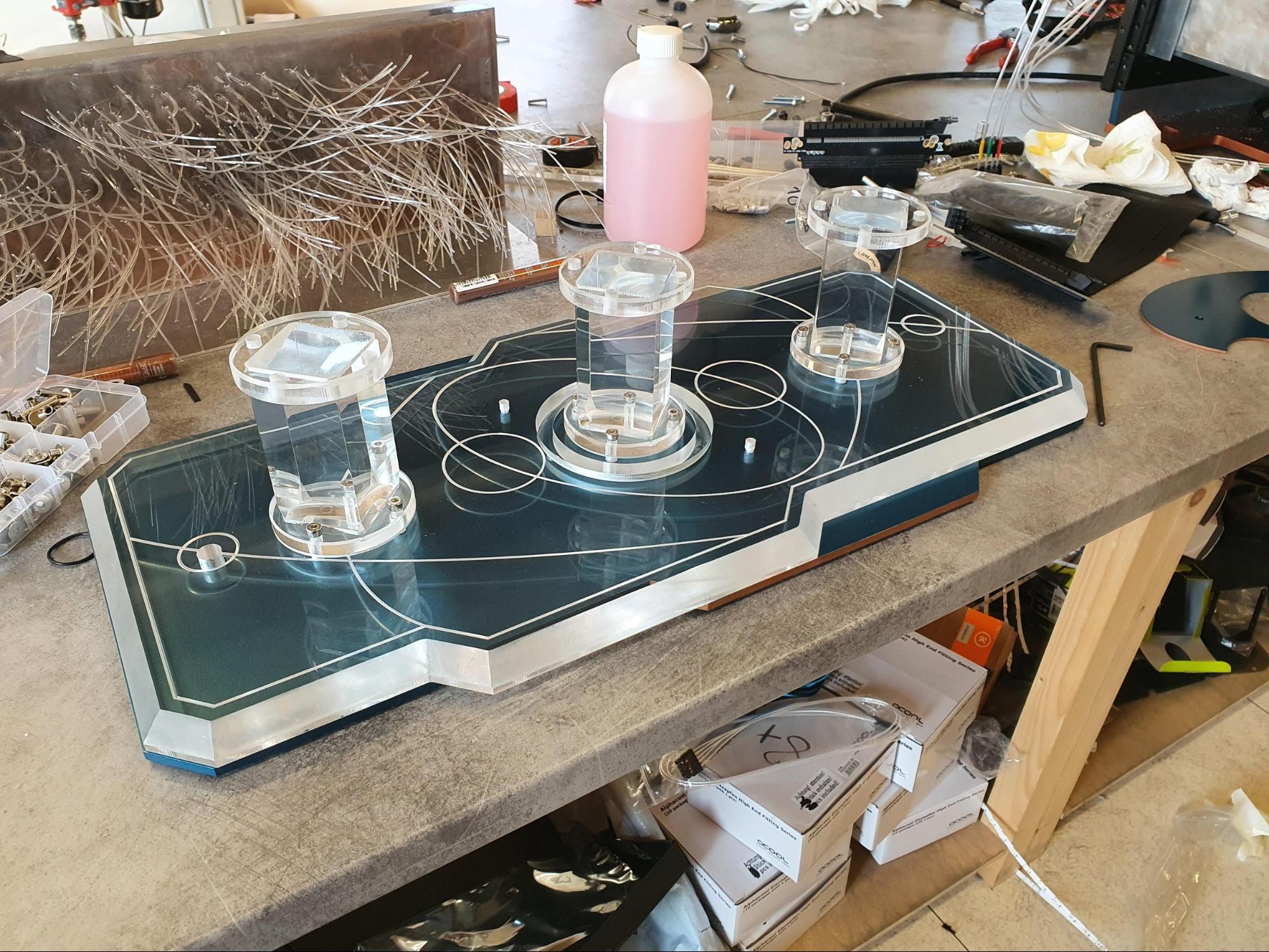

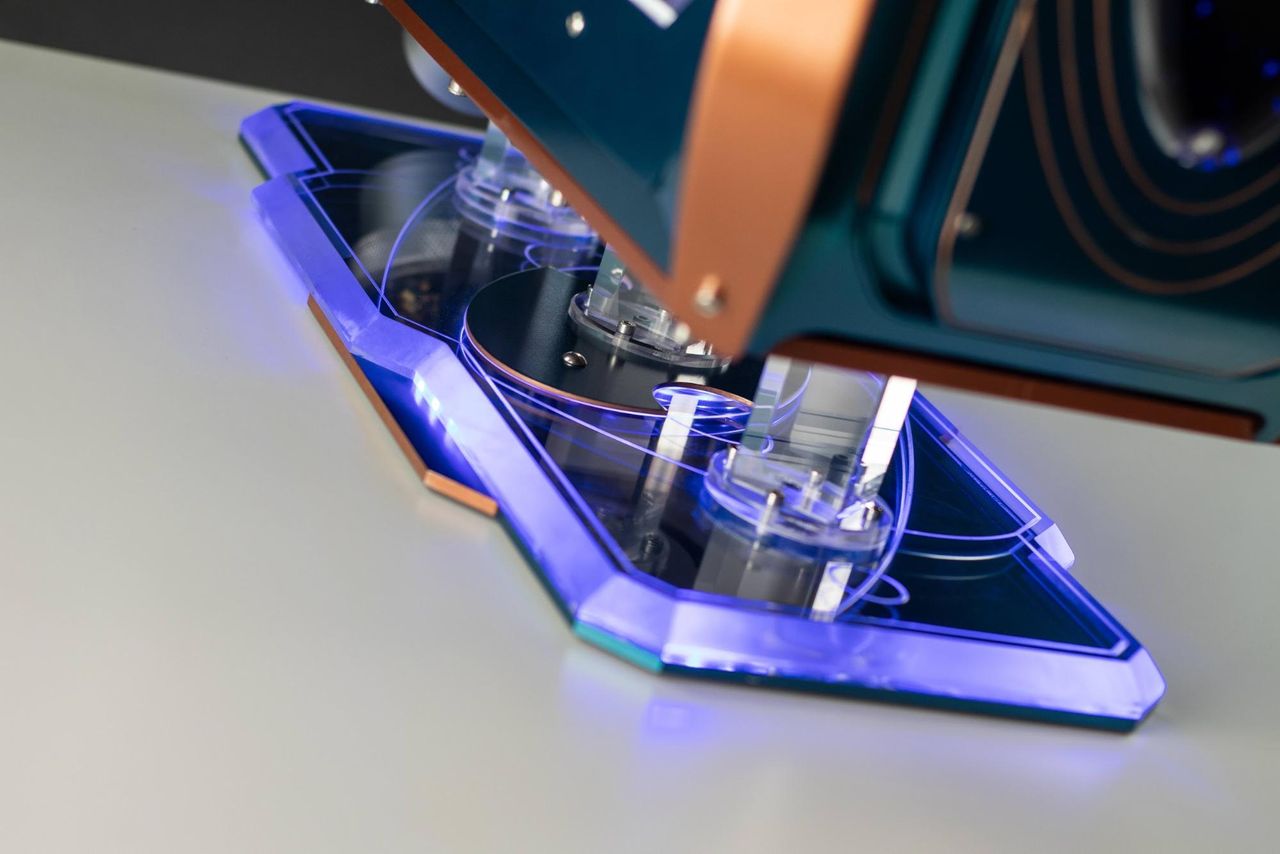

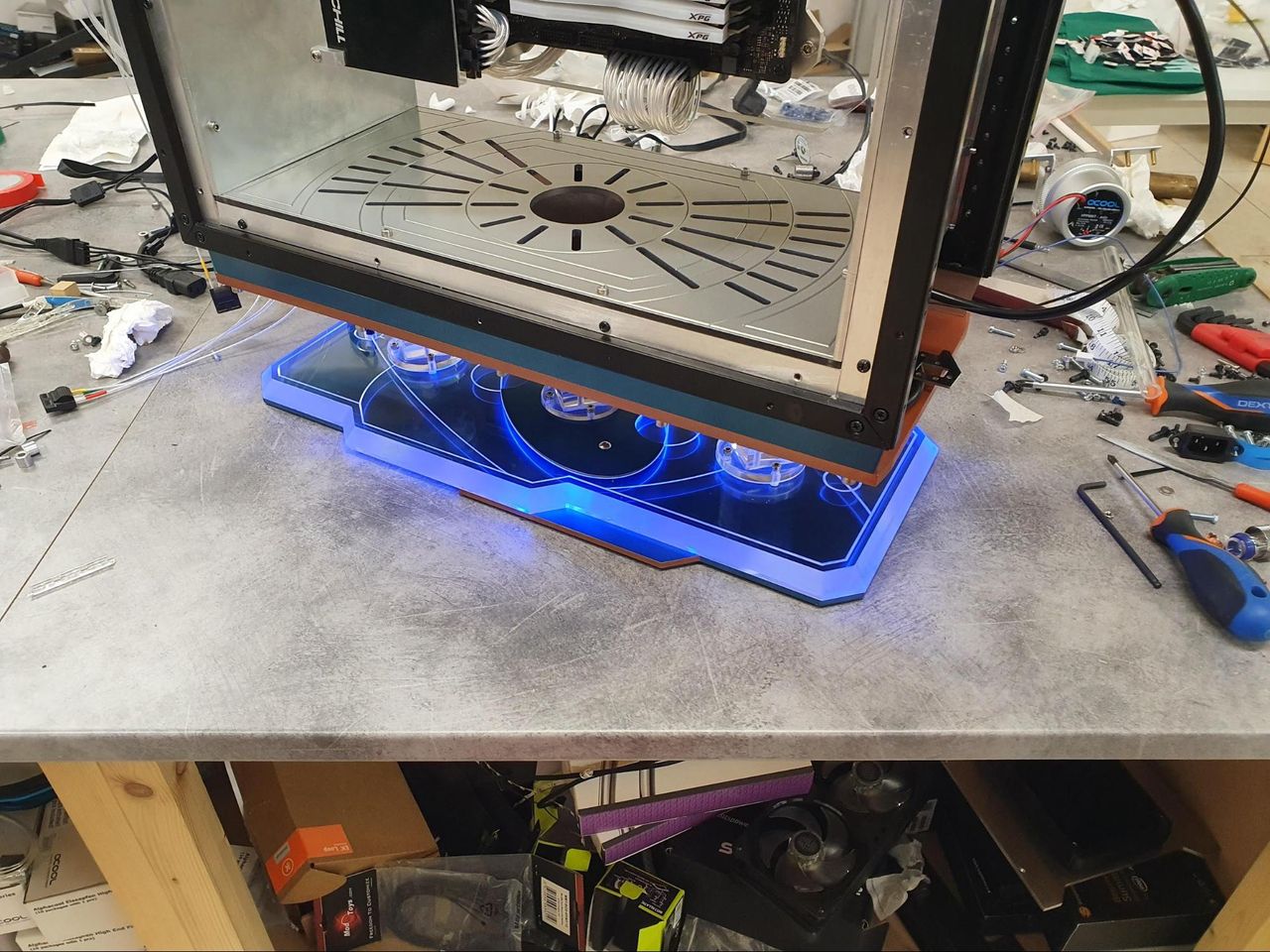

The pedestal was completed as well by painting the lower aluminum plate blue and adding a couple copper details with the aforementioned marker.

Next, I fixed everything together, including the acrylic blocks.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

Coming Together

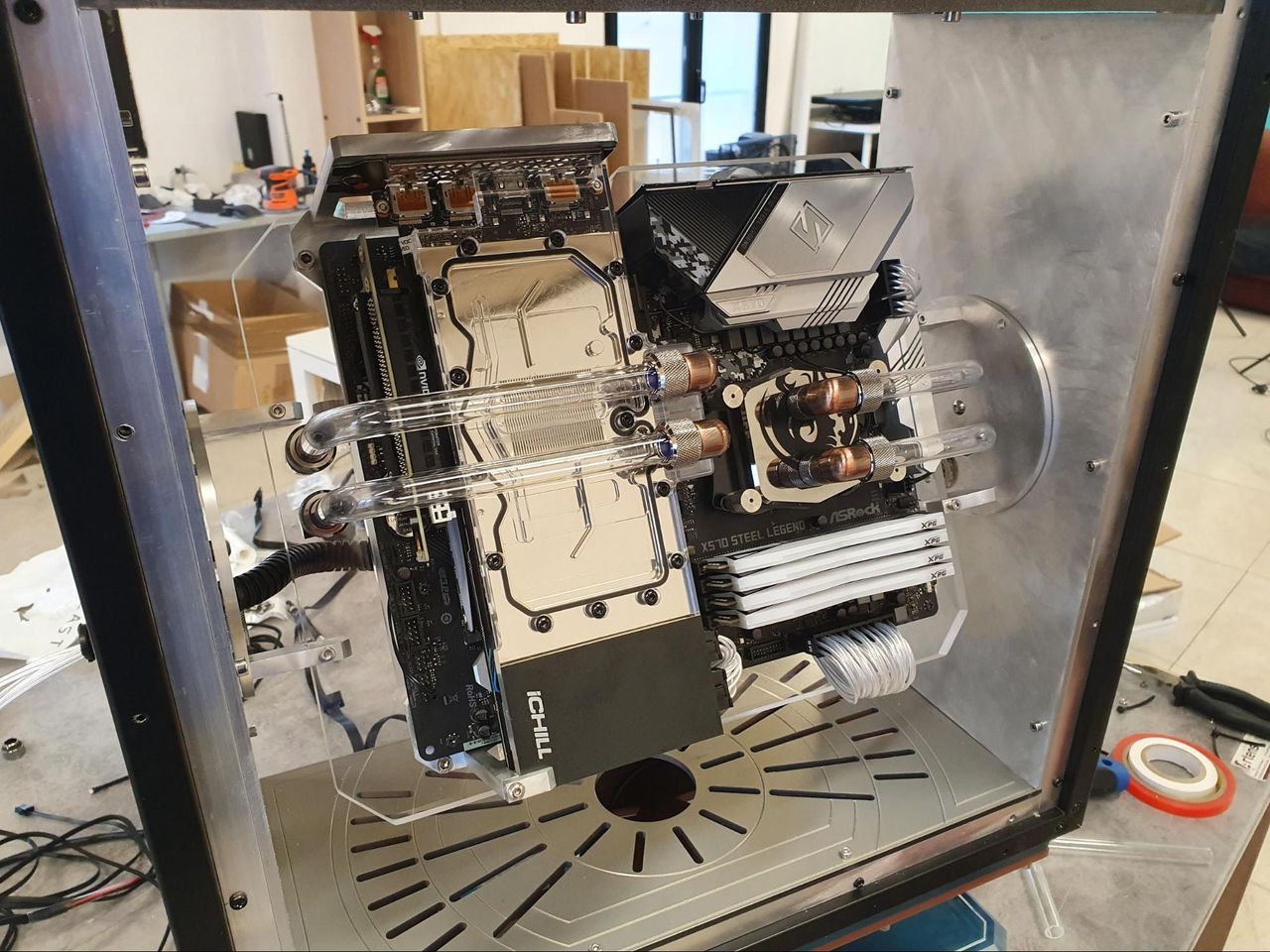

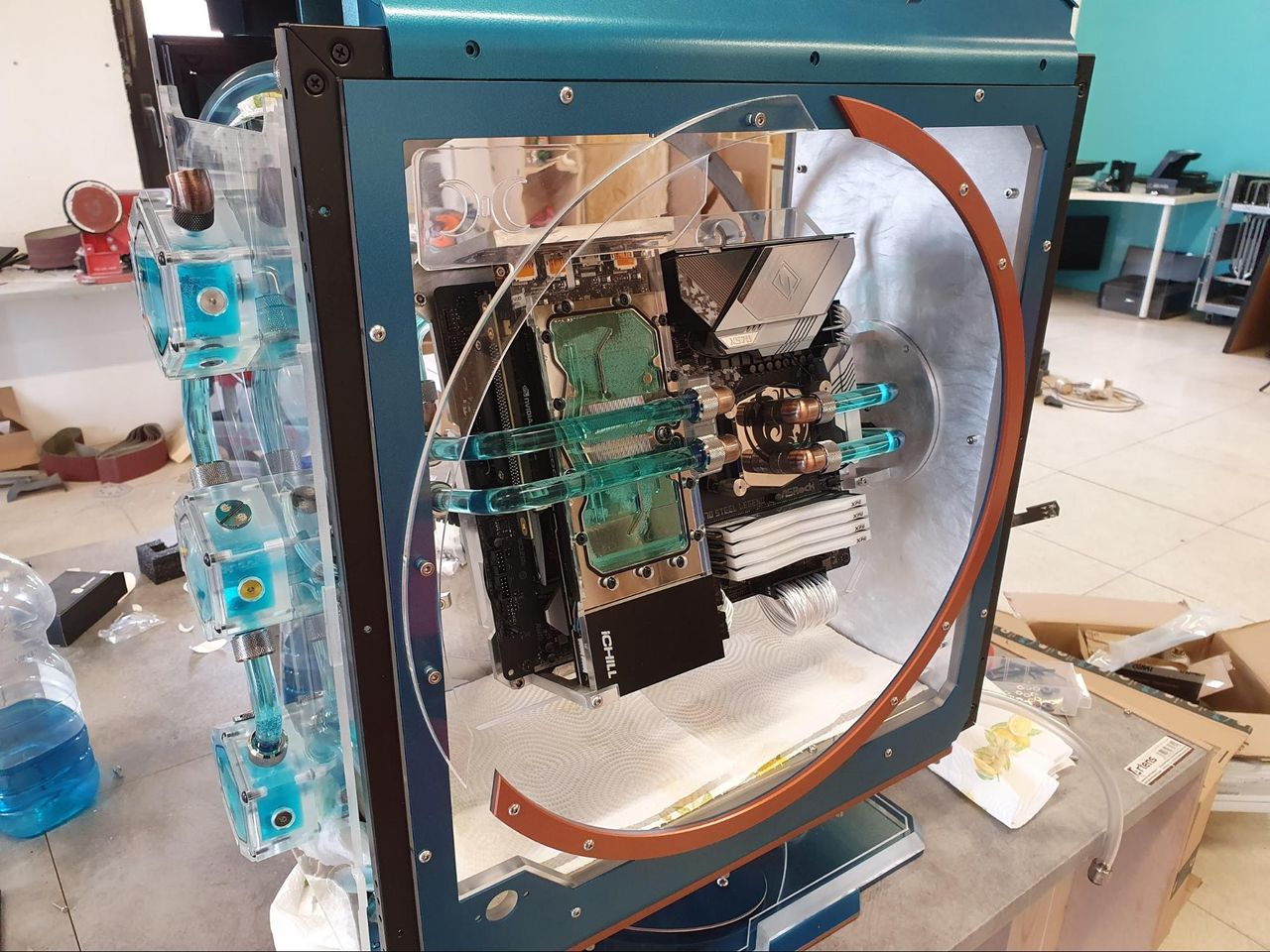

With cable management done, it was time to assemble the main hardware and ,with that, the internal tubing runs and last touches on the internal cables.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

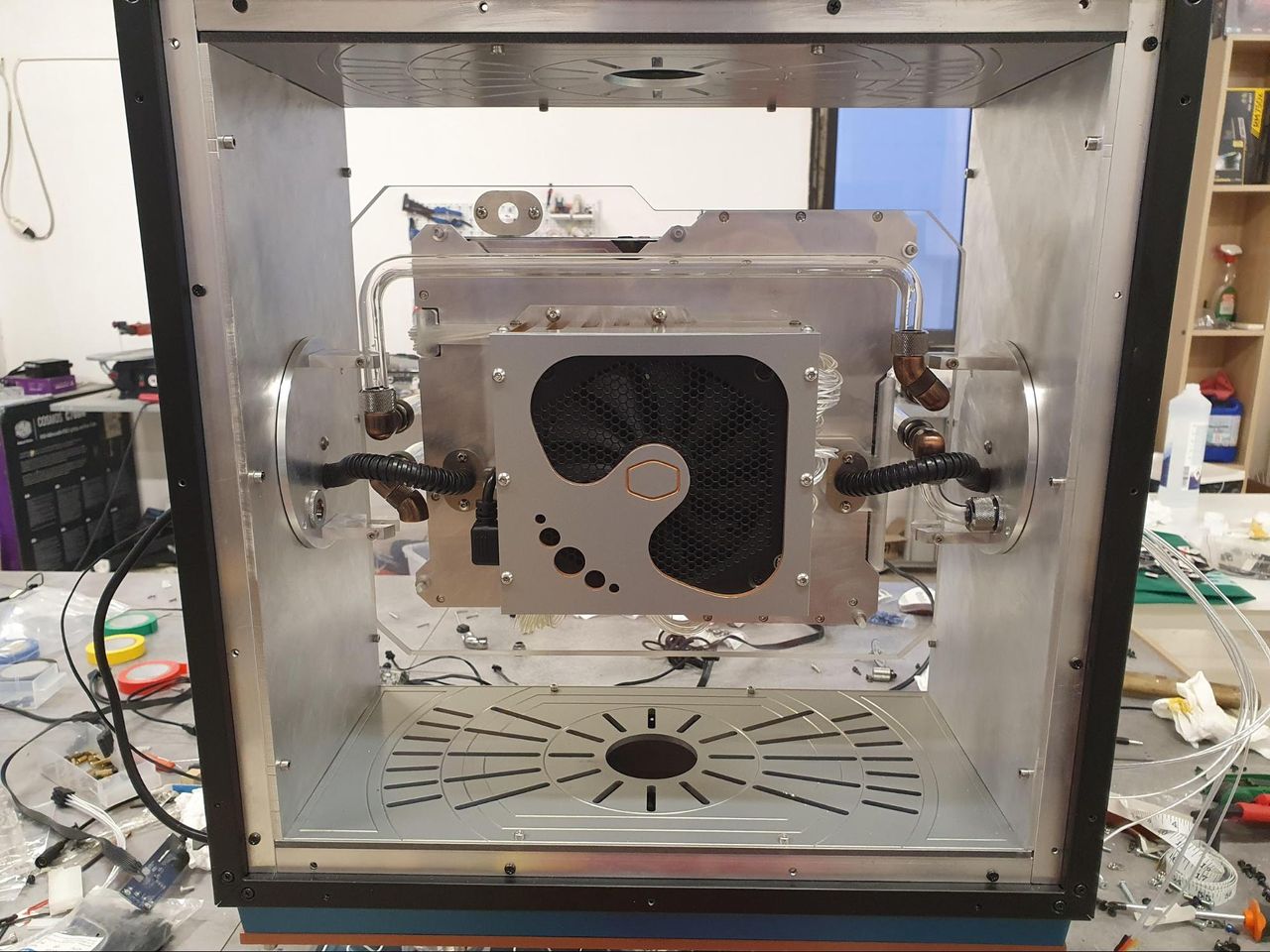

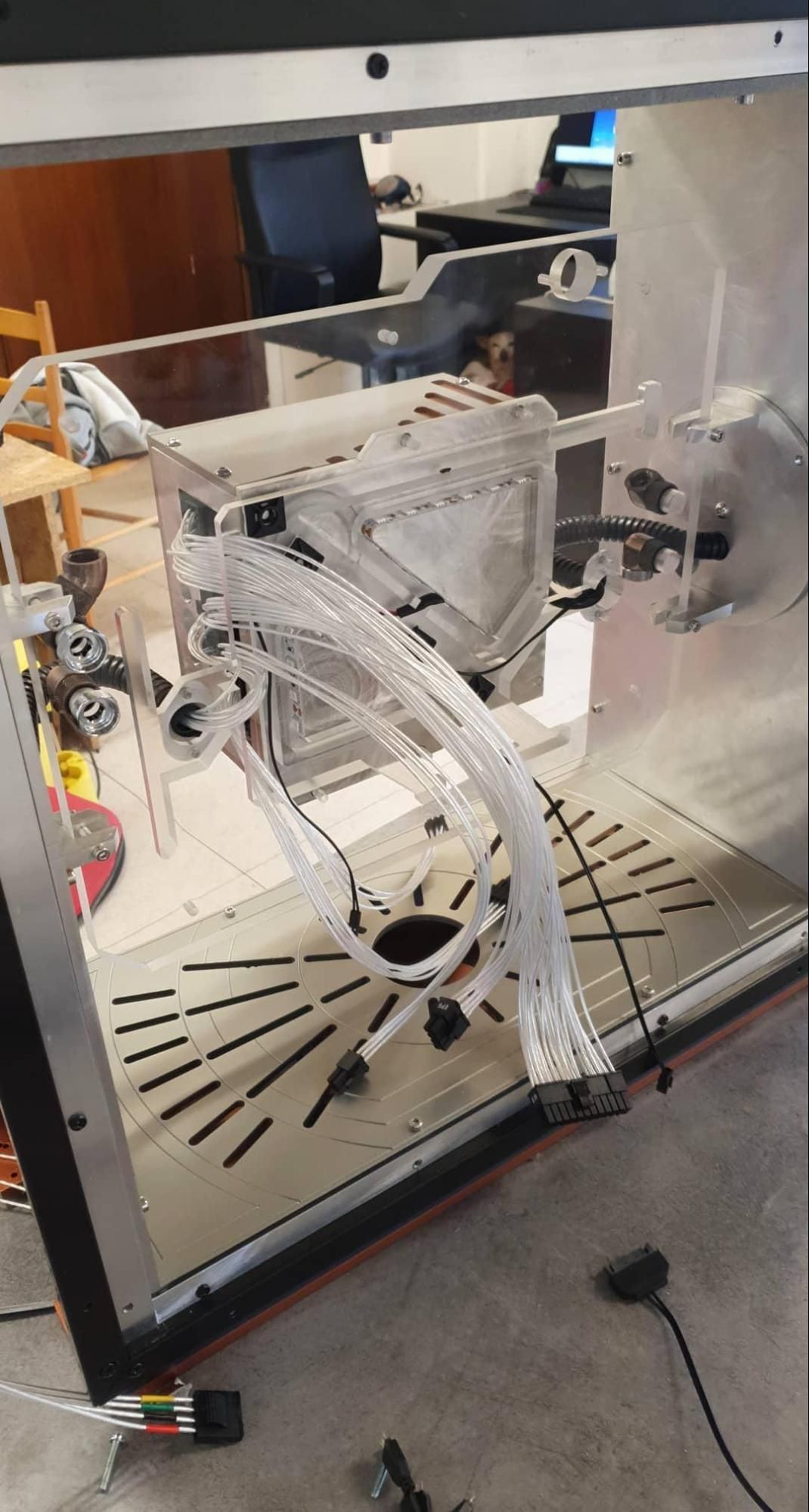

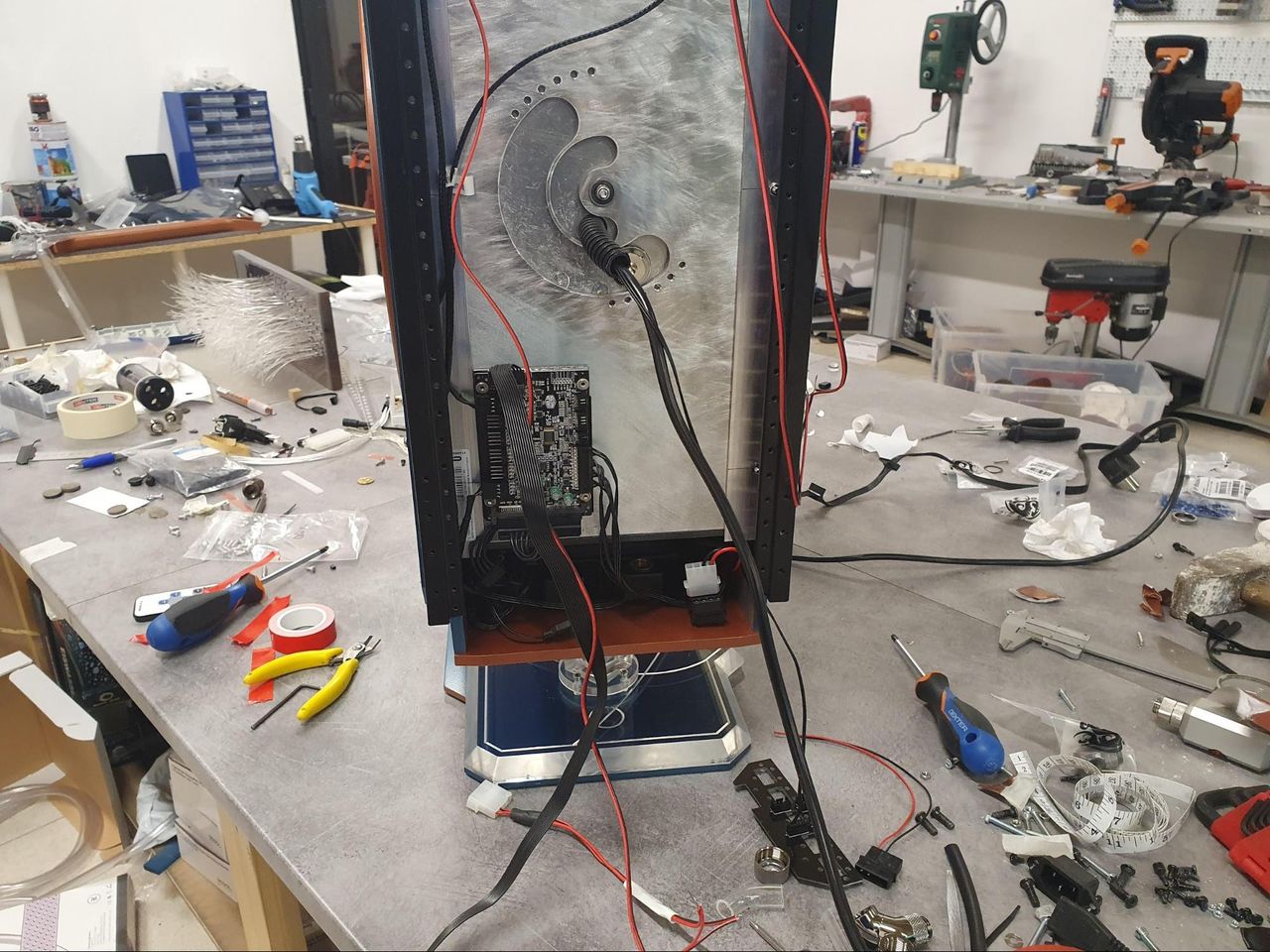

This is how the “dark side” looks with the cables through the rotating system. They will be fixed in place later on.

(Image credit: Tom's Hardware)

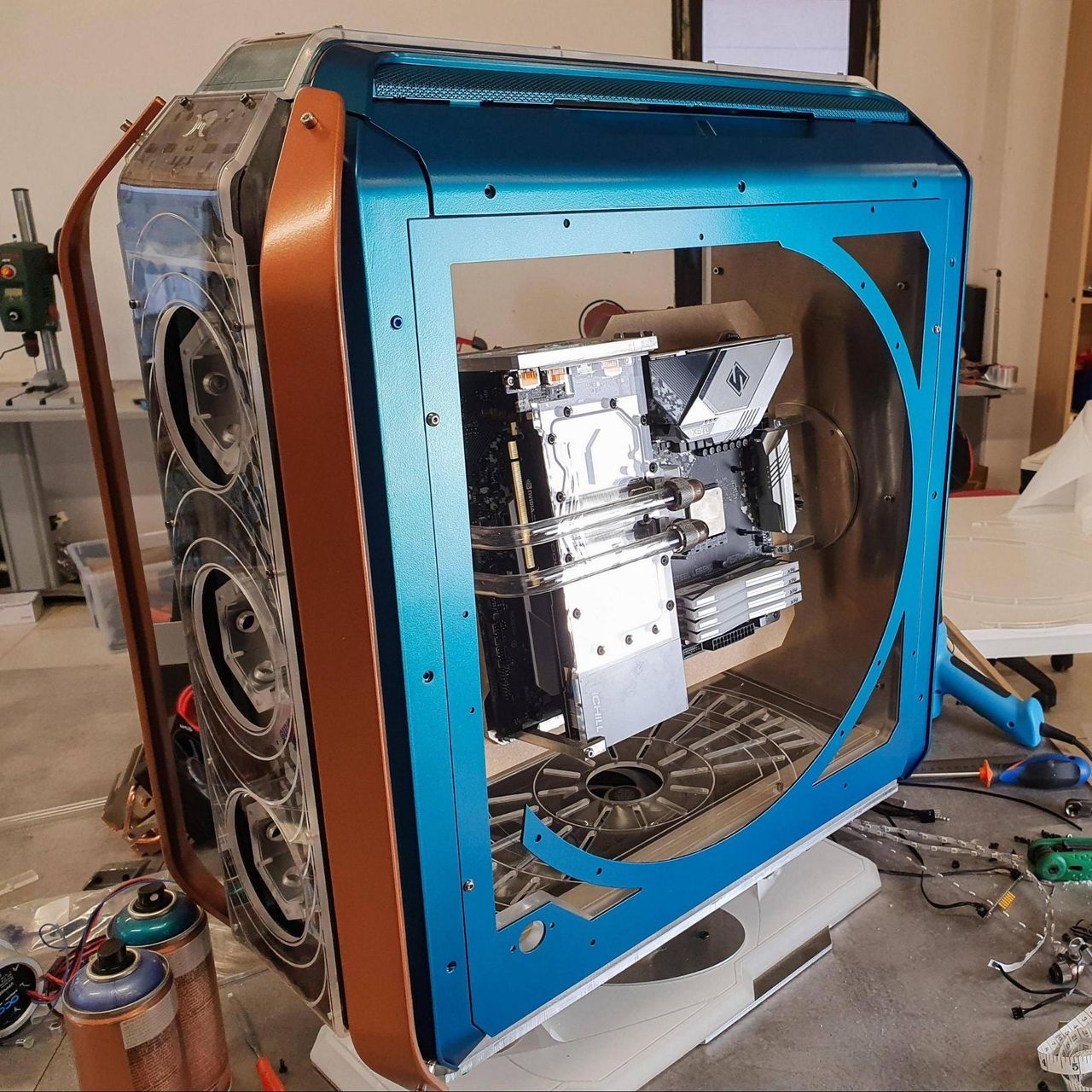

While I kept painting all the remaining parts, I kept on with cable management too, since at this point I was in a crunch time until the Case Mod World Series’ deadline (today, I’m definitely glad I worked my butt off to finish it in time).

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

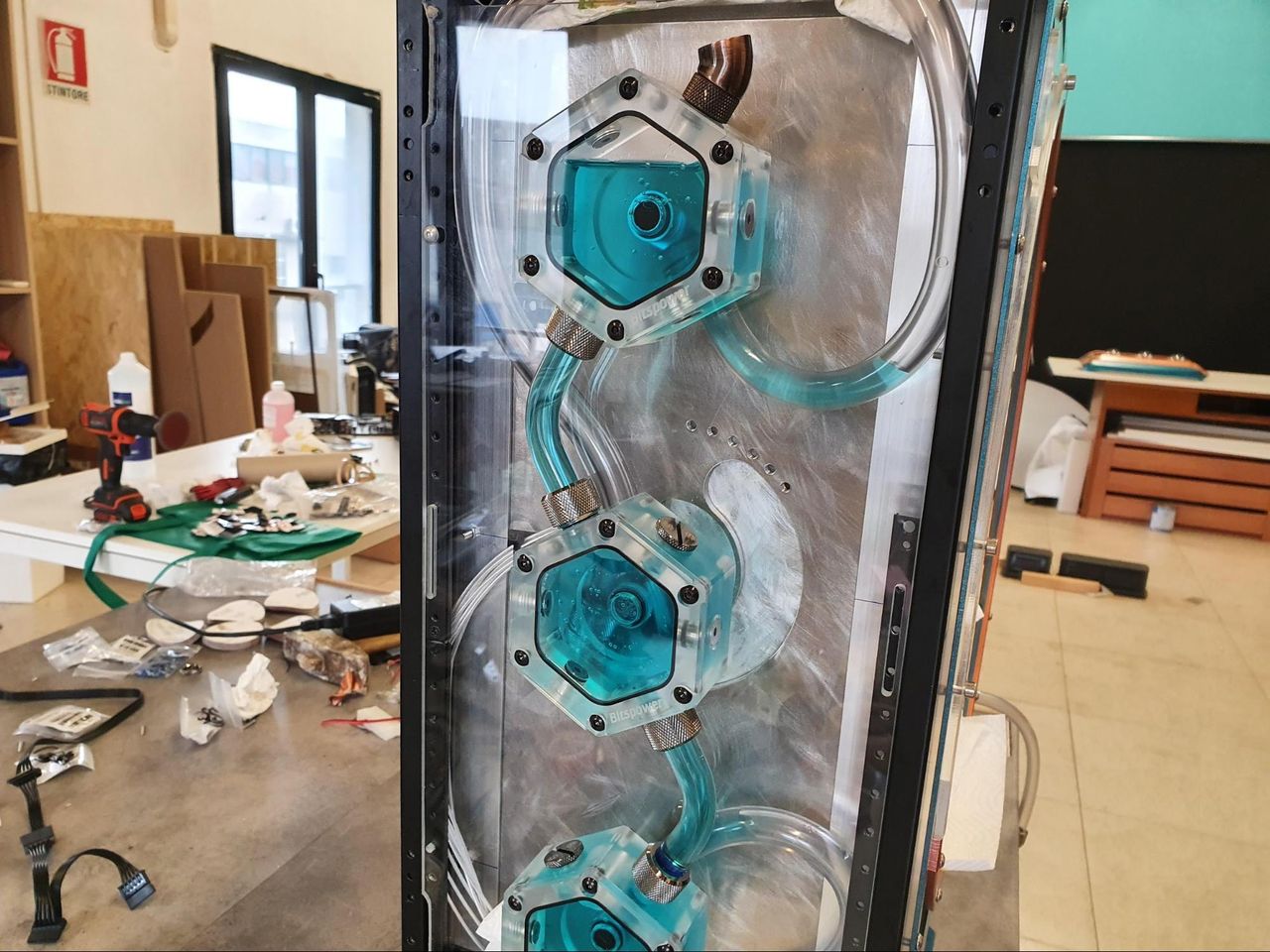

Almost everything was now assembled except for the external panels, which still had to be painted. But in the meantime I went ahead and filled the watercooling loop. I intentionally left long soft tubing runs behind the reservoirs so that I was able to remove the panel holding them to access the internals when needed.

Image 1 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 2

Project A.R.E.S:

(Image credit: Tom's Hardware)

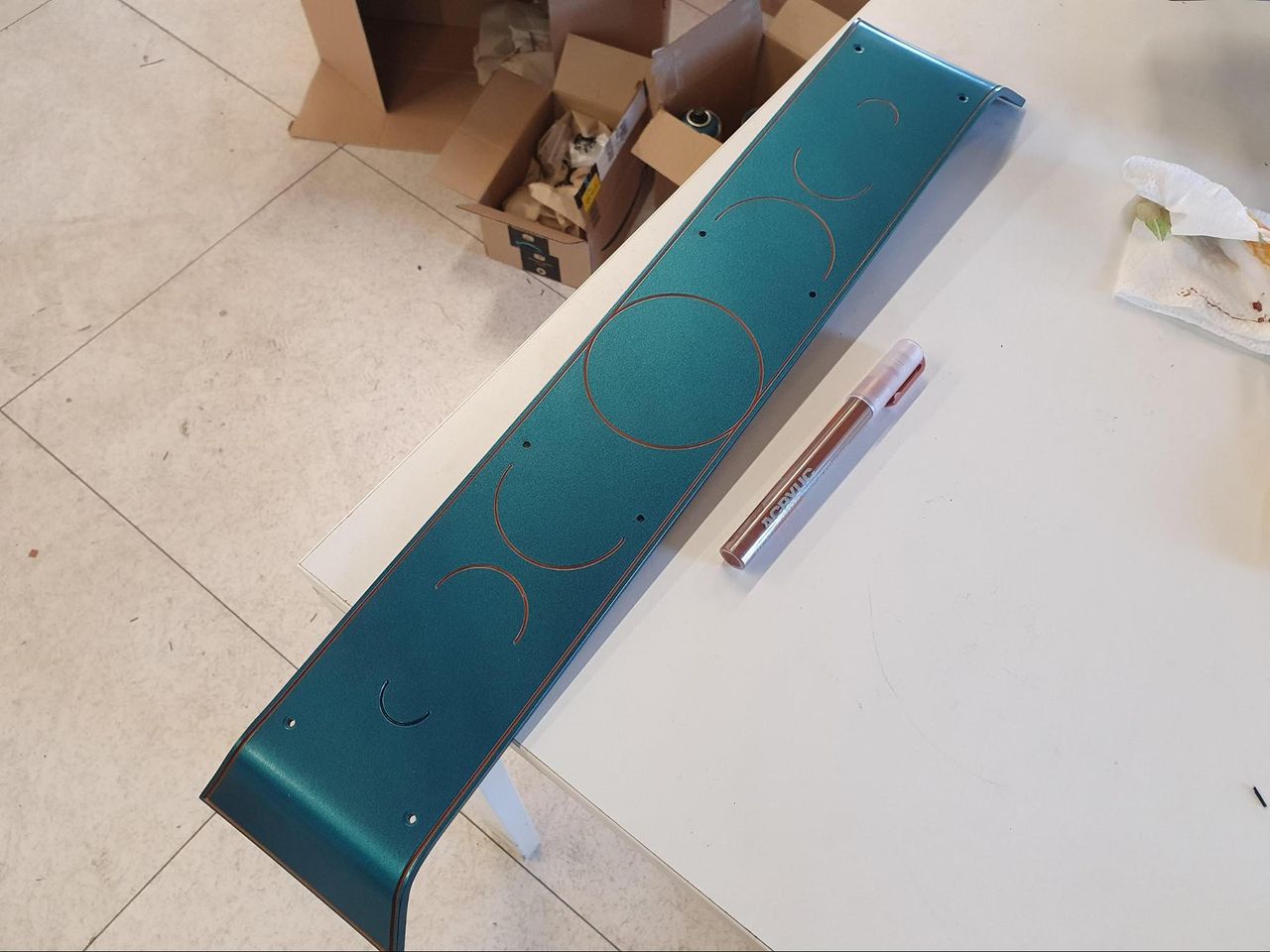

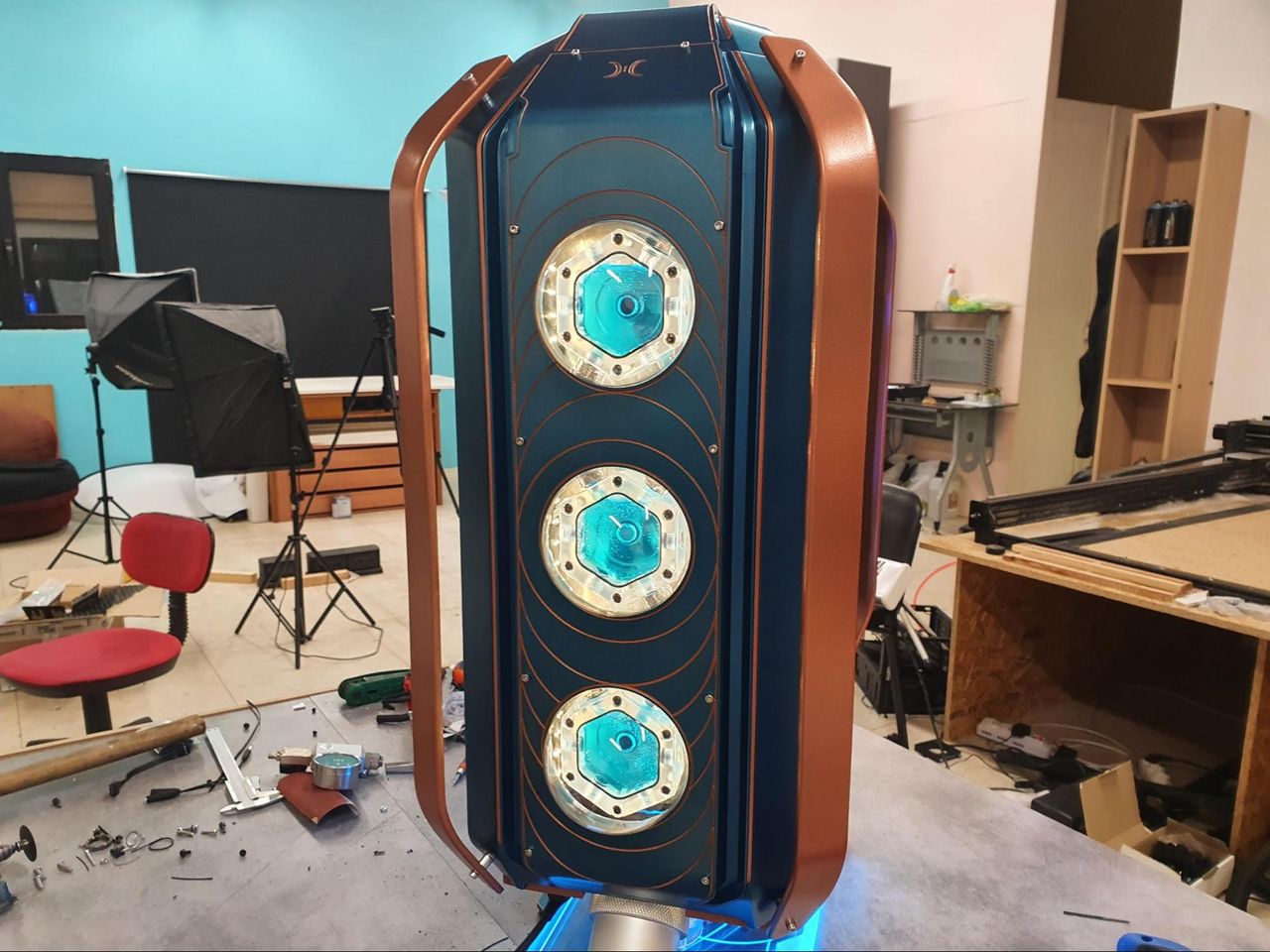

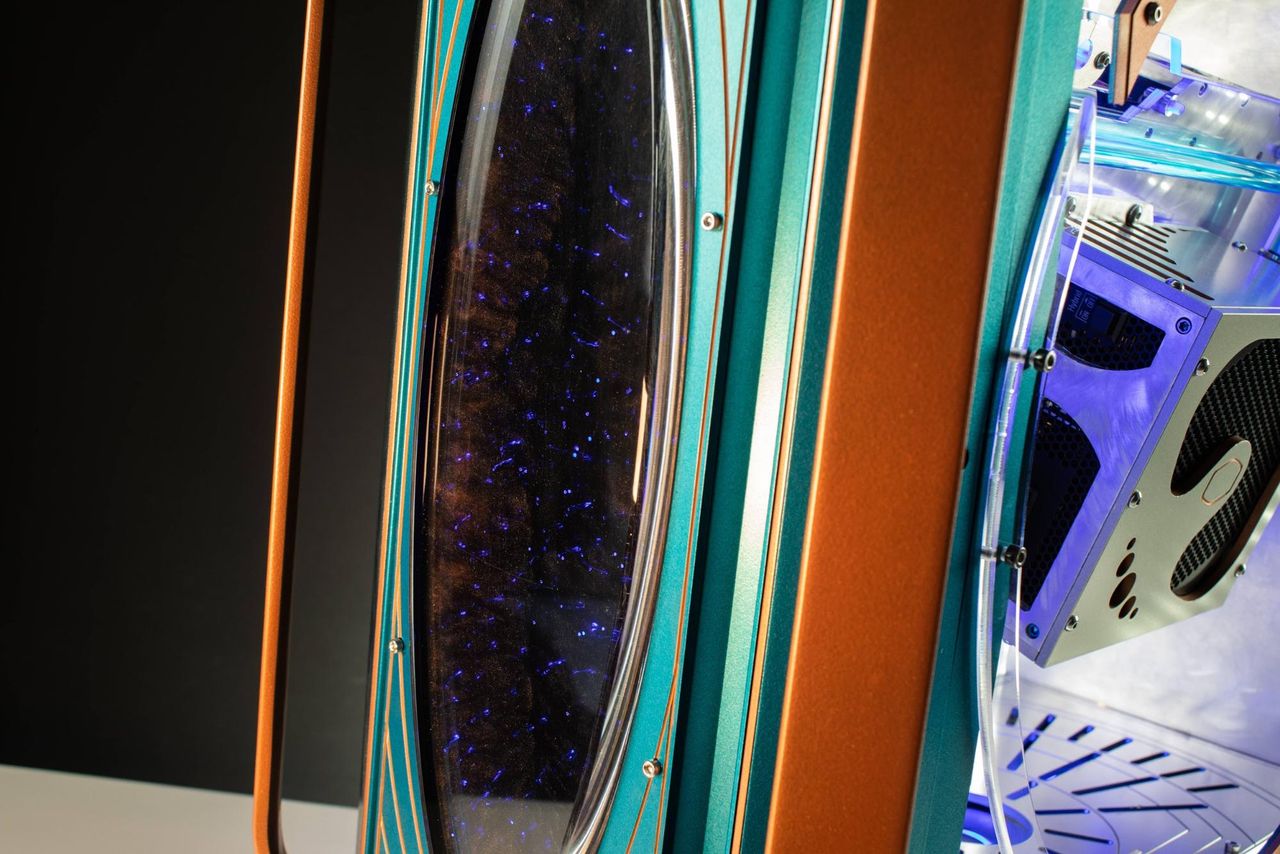

Here comes my favorite part of this project: the finished front. I painted all the parts, filled the engravings with the copper marker and installed the backlighting for the optic fibers.

Image 1 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 3 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)

Project A.R.E.S. Complete

(Image credit: Tom's Hardware)

My mind was already pretty blown when I saw how good Project A.R.E.S. looked assembled. But then I turned the backlighting on, my brain officially melted. I created the vision I had in my mind, but the end result was even better than I pictured.

Project A.R.E.S:

(Image credit: Tom's Hardware)

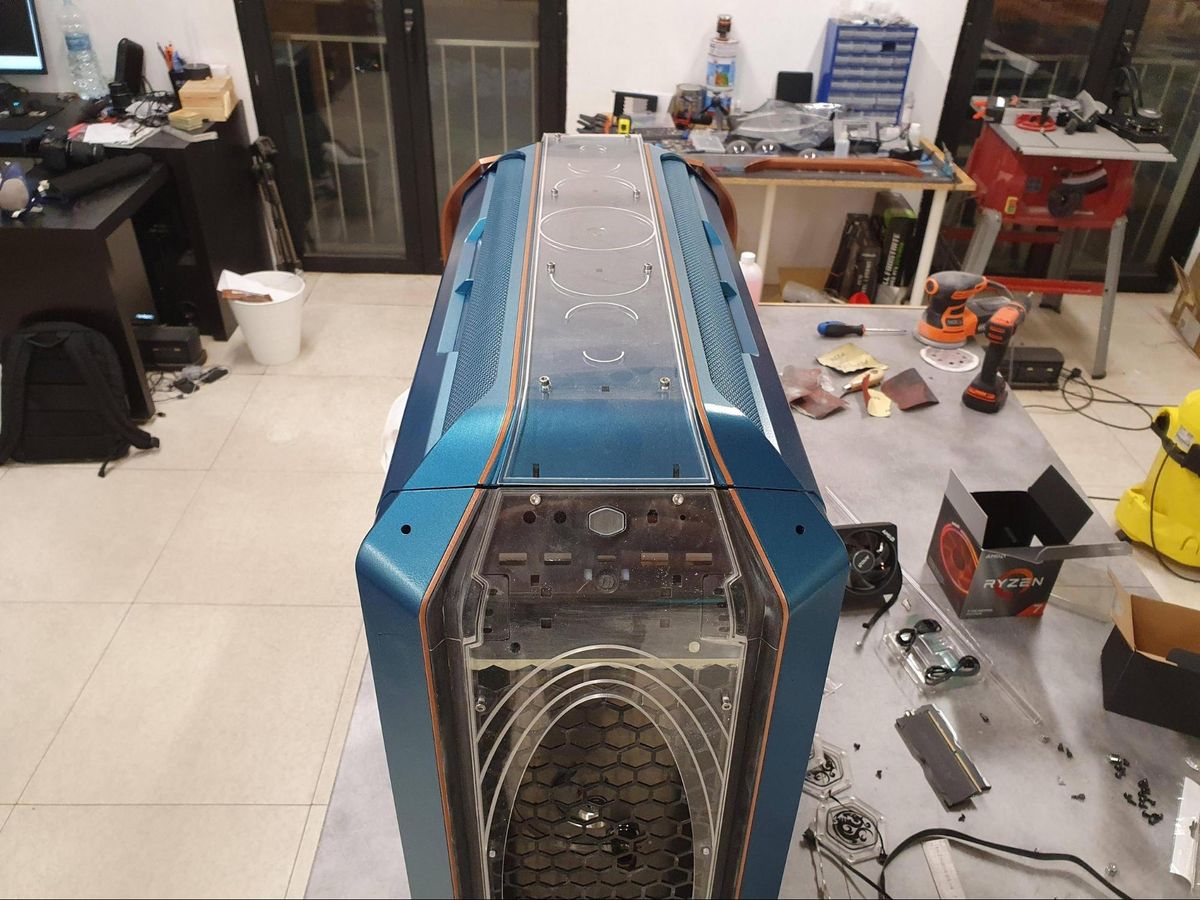

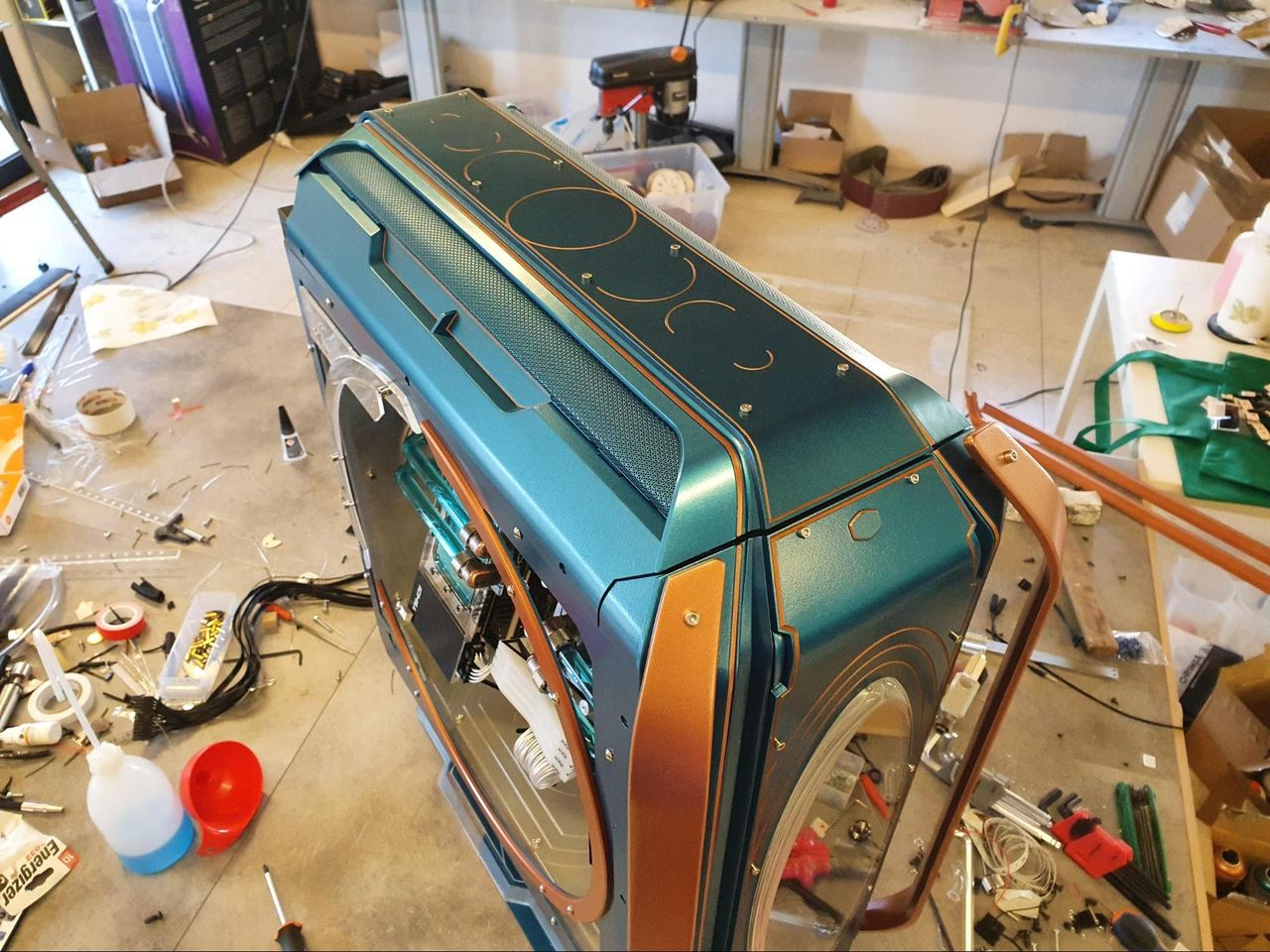

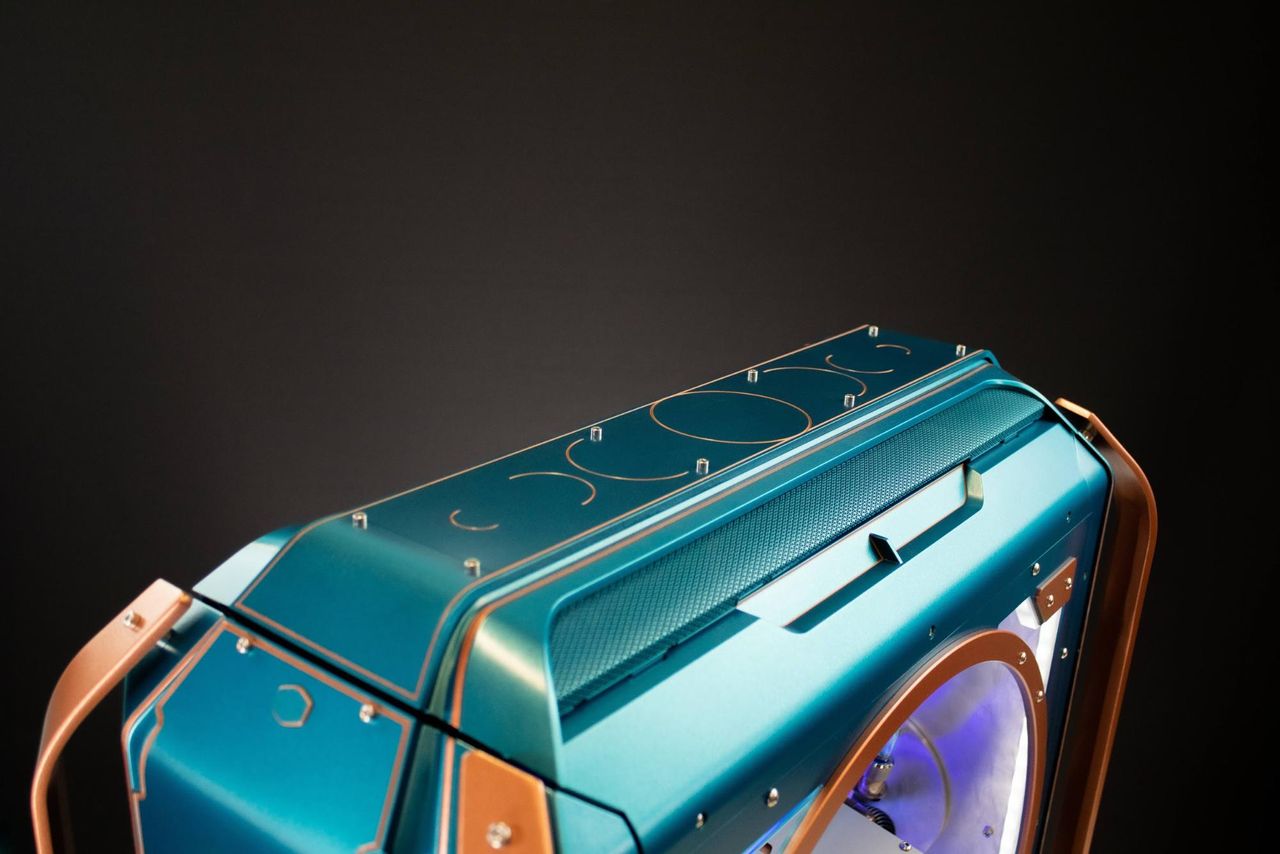

After recovering from a quick brain melting, I painted the top panel and added warm-white LED strips to the reservoirs area.

Image 1 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 2 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)
Image 3 of 3

Project A.R.E.S:

(Image credit: Tom's Hardware)

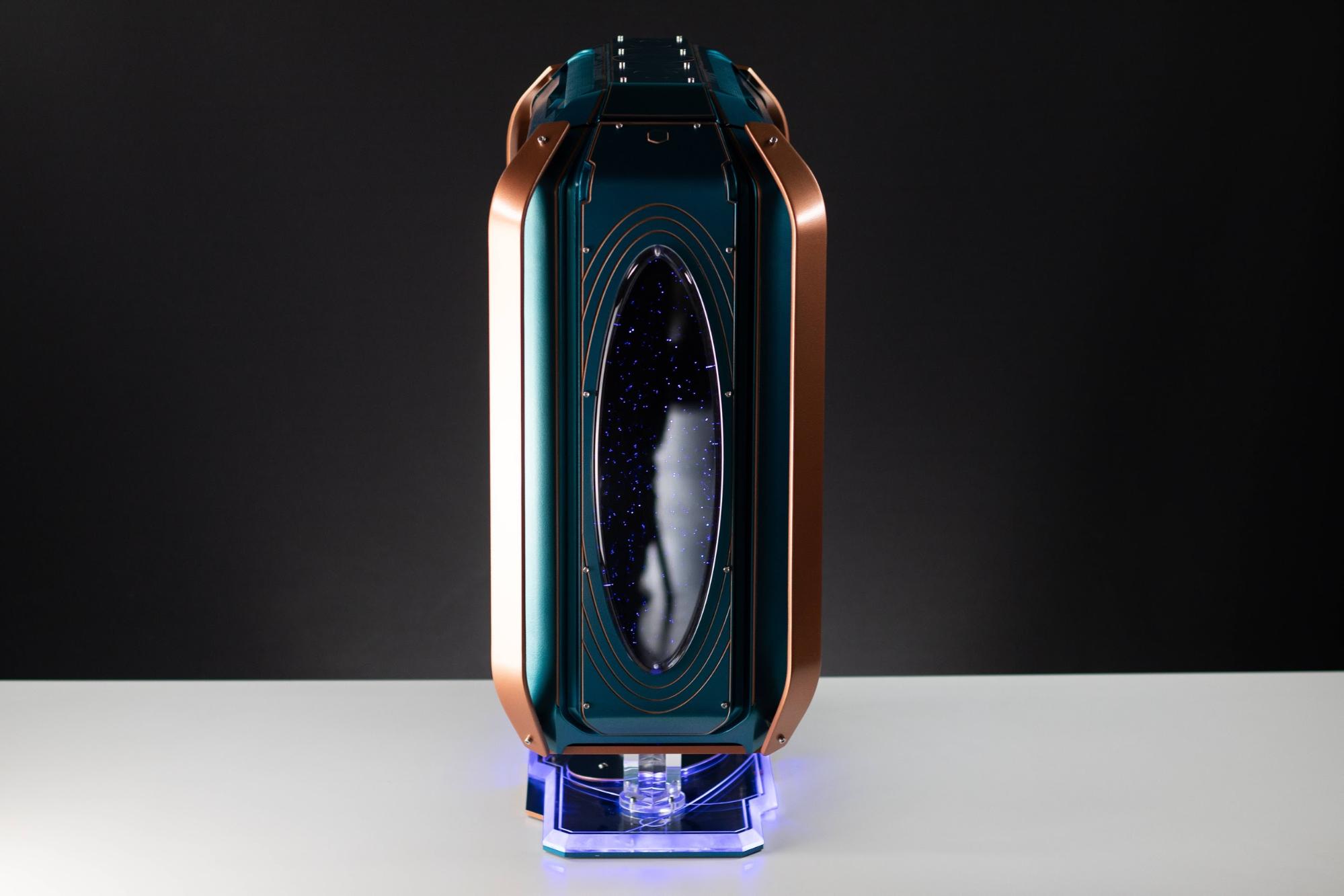

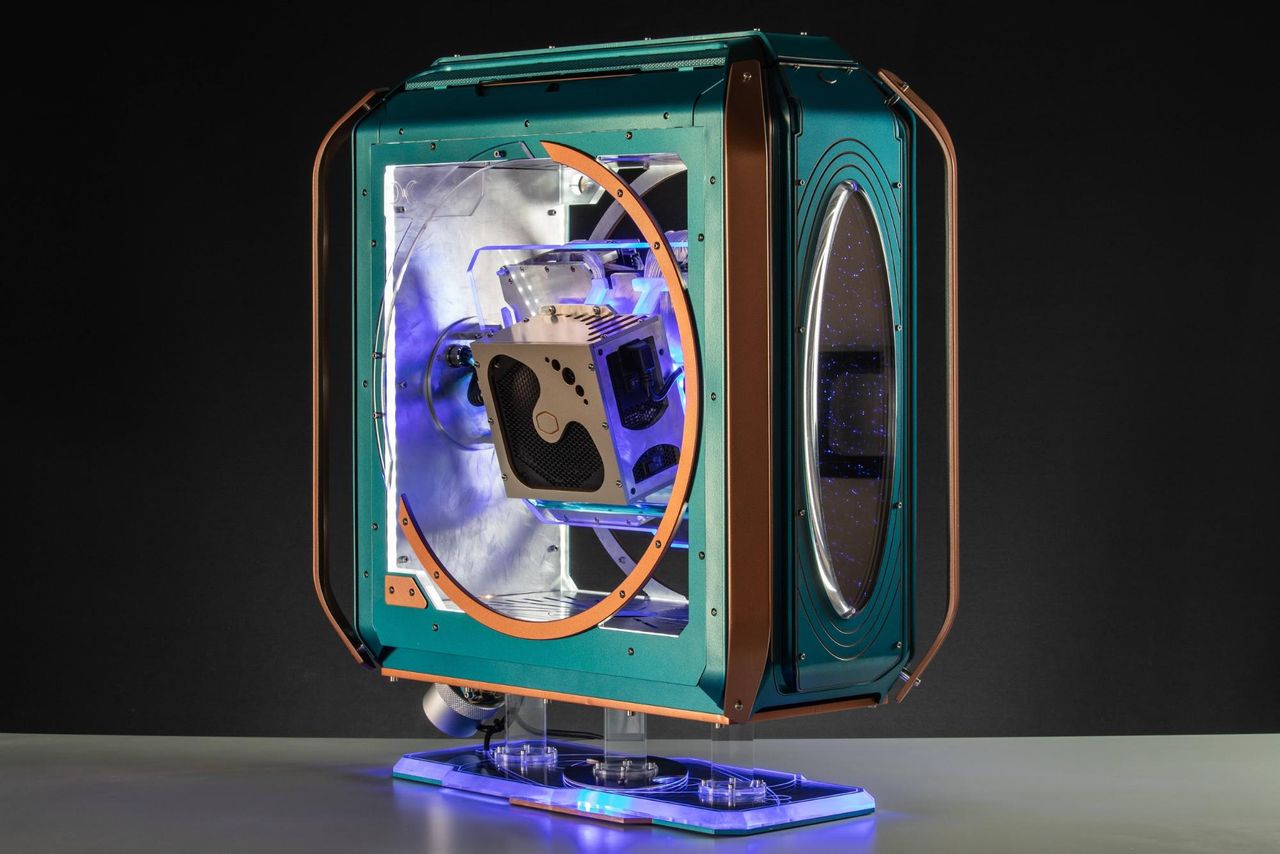

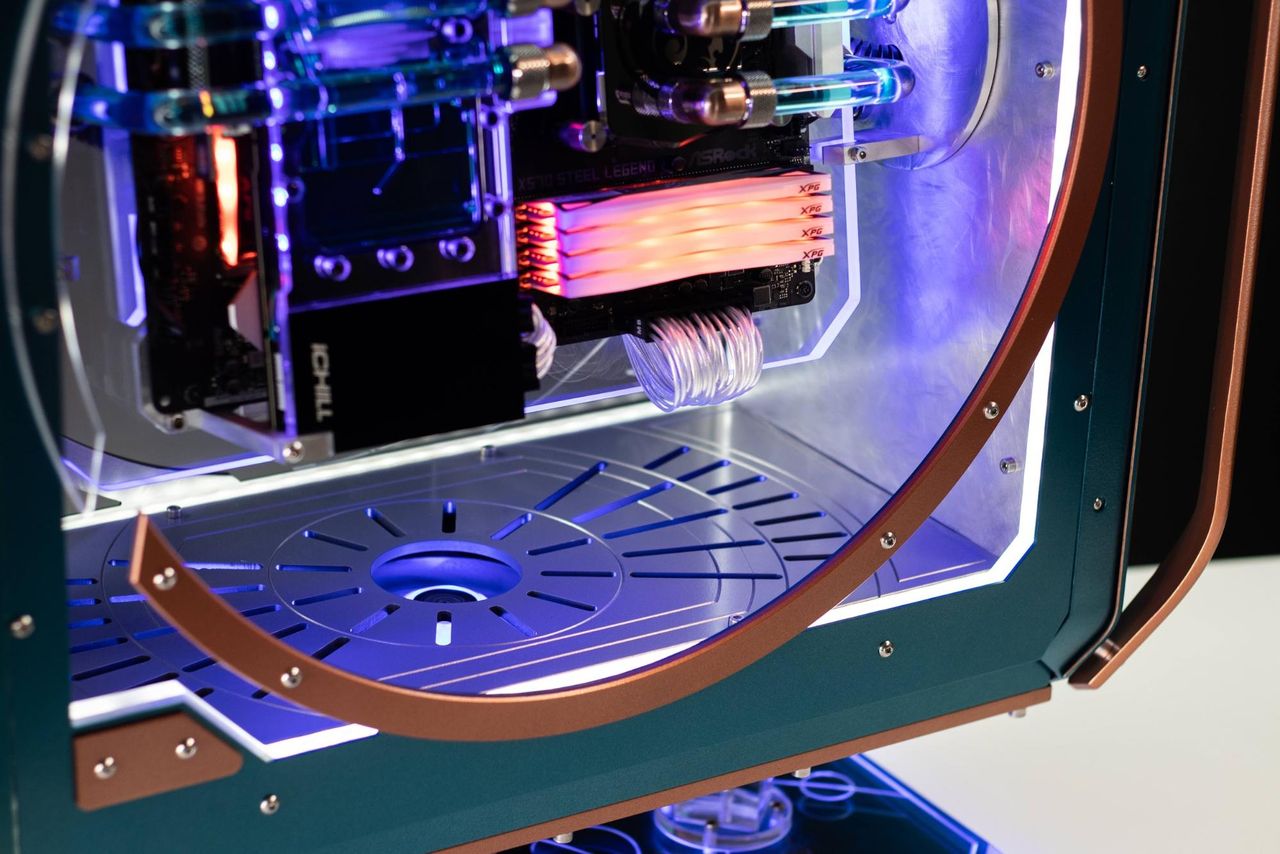

With this final touch, A.R.E.S. was finally complete and ready to take the win at this year’s Cooler Master World Series as Best Tower of the Year.

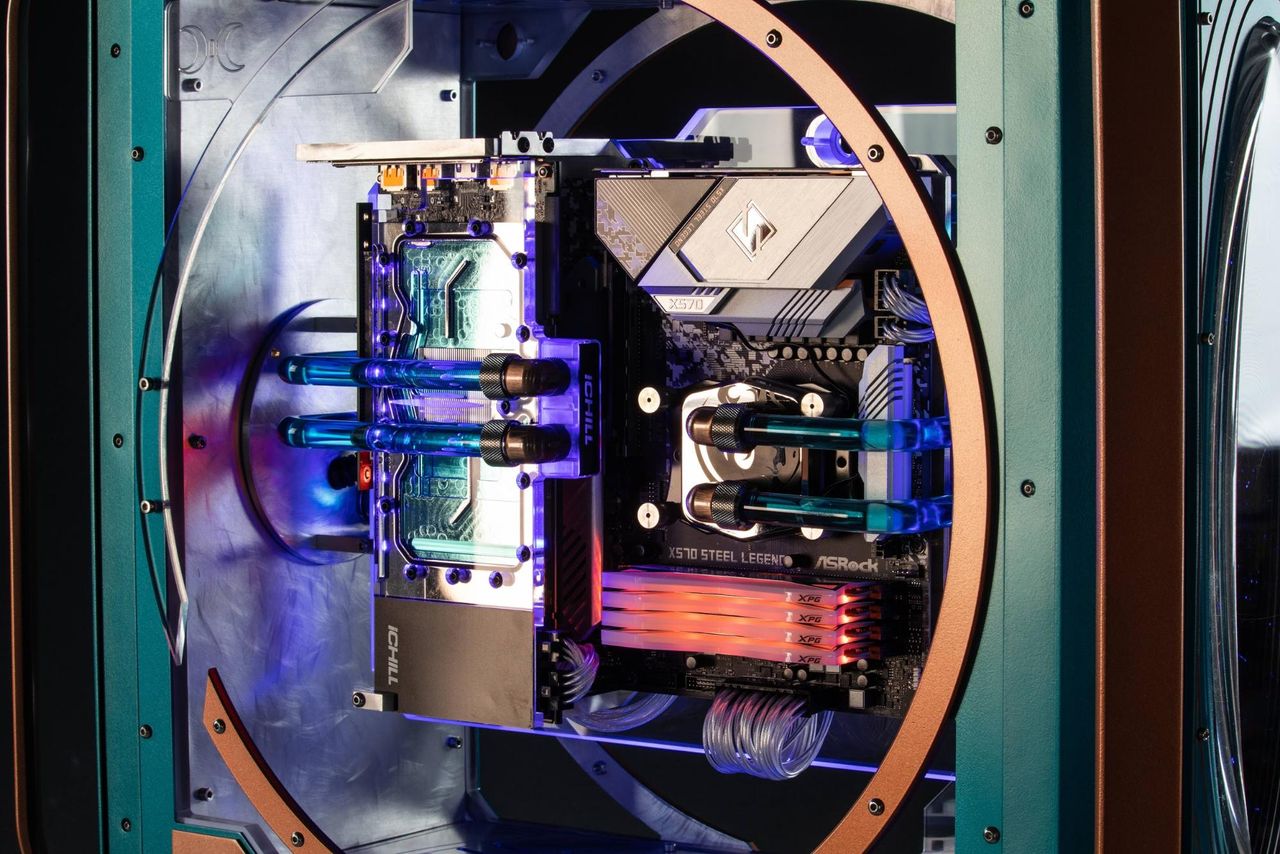

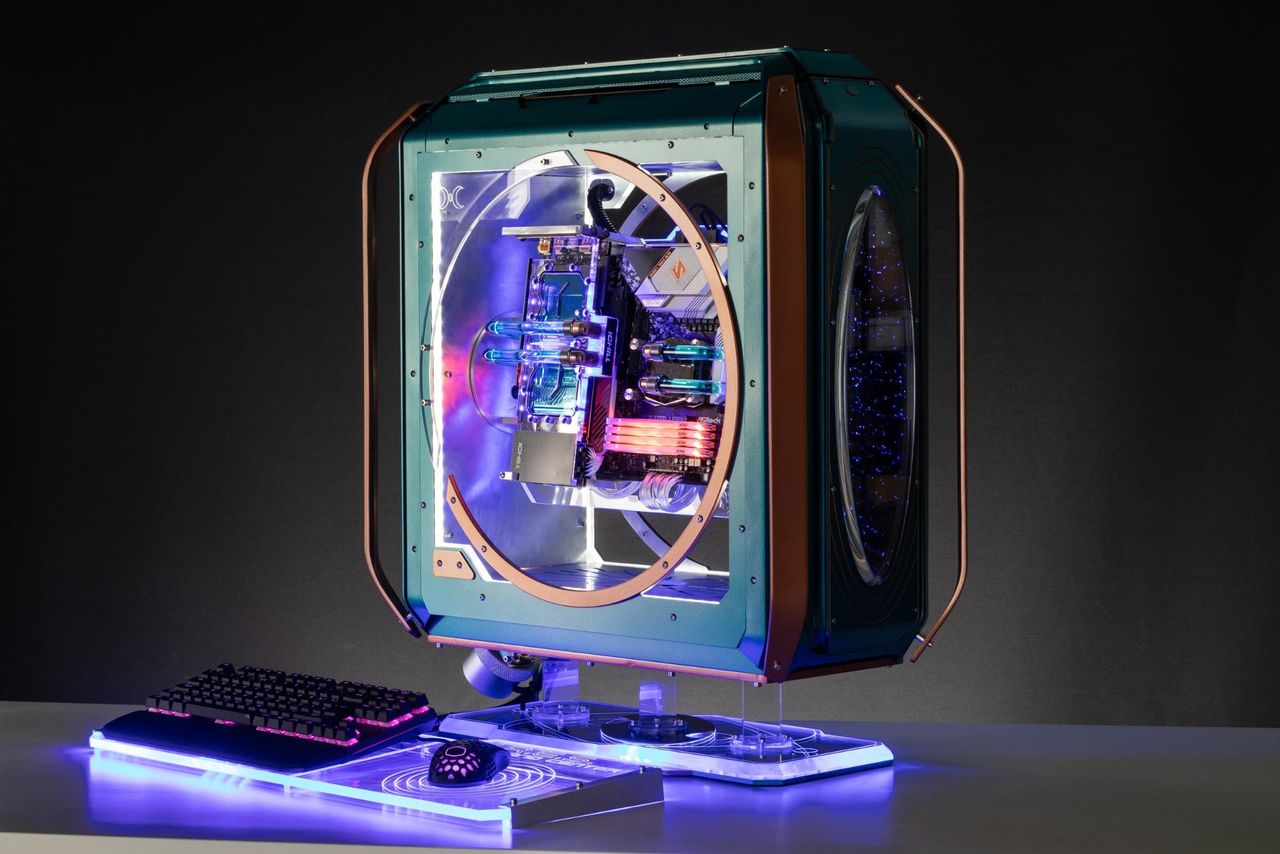

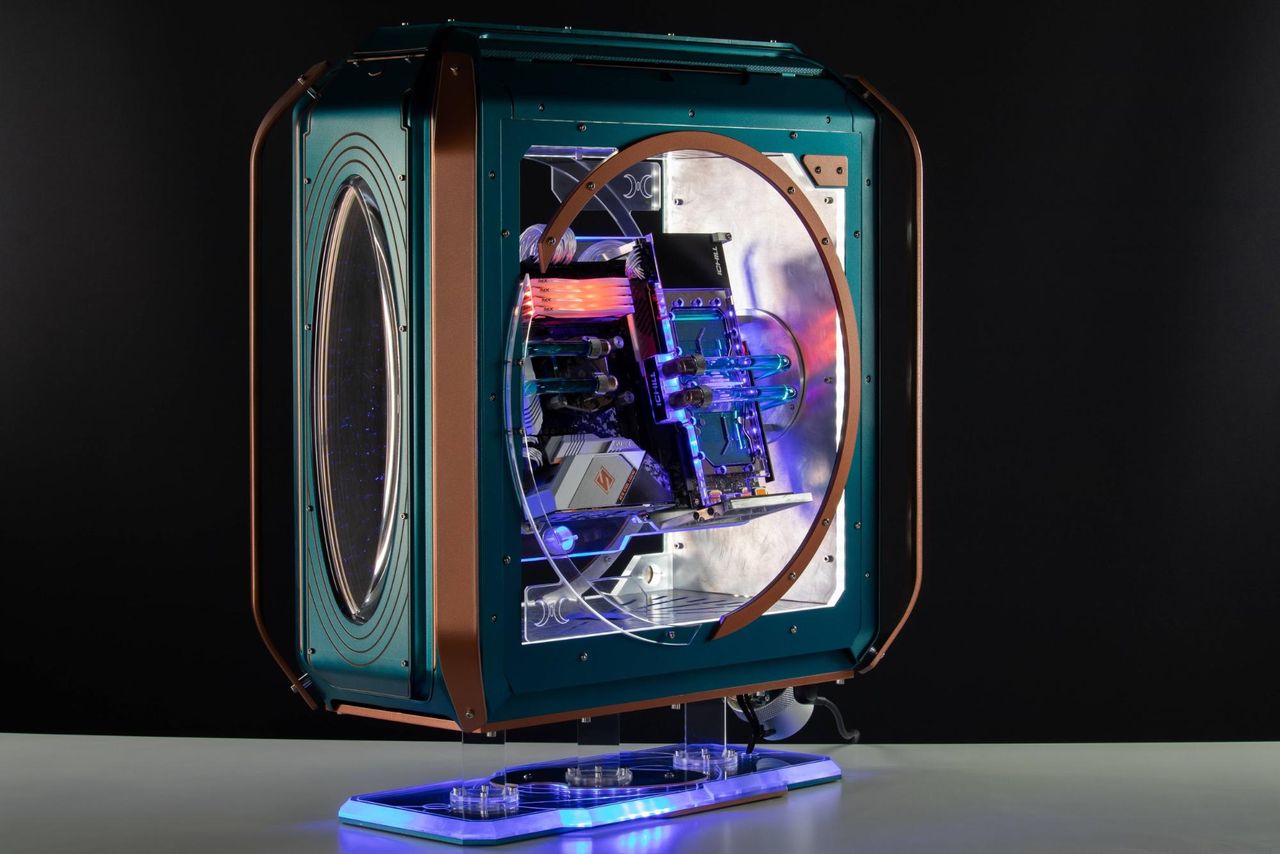

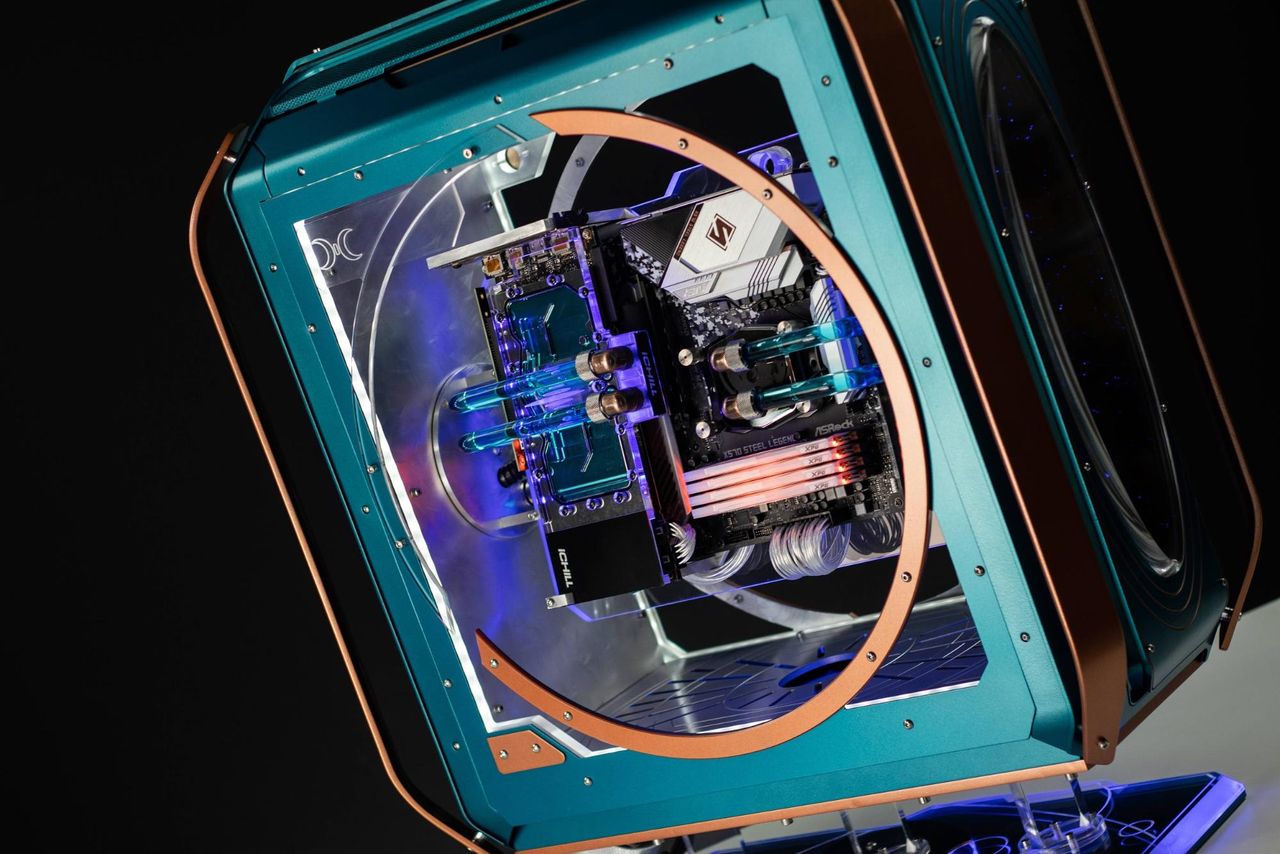

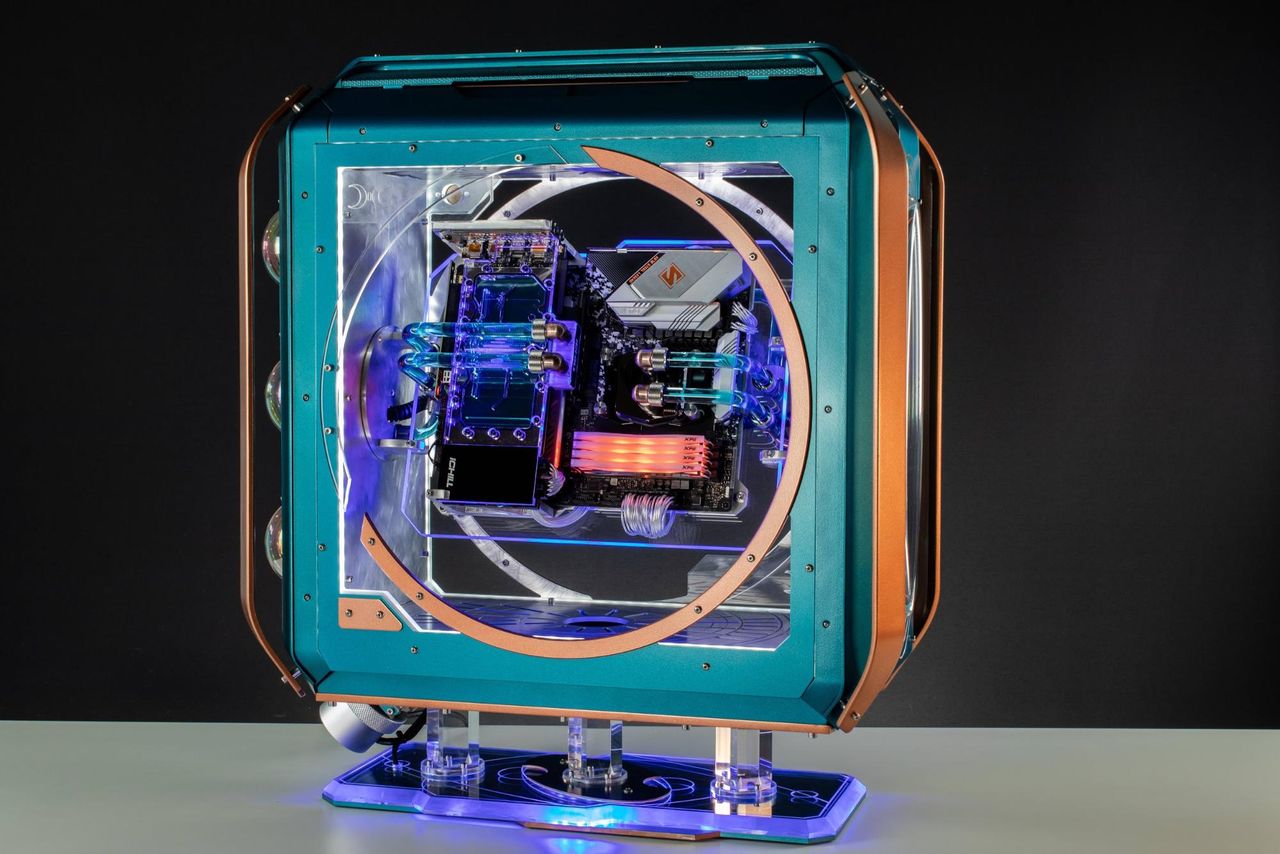

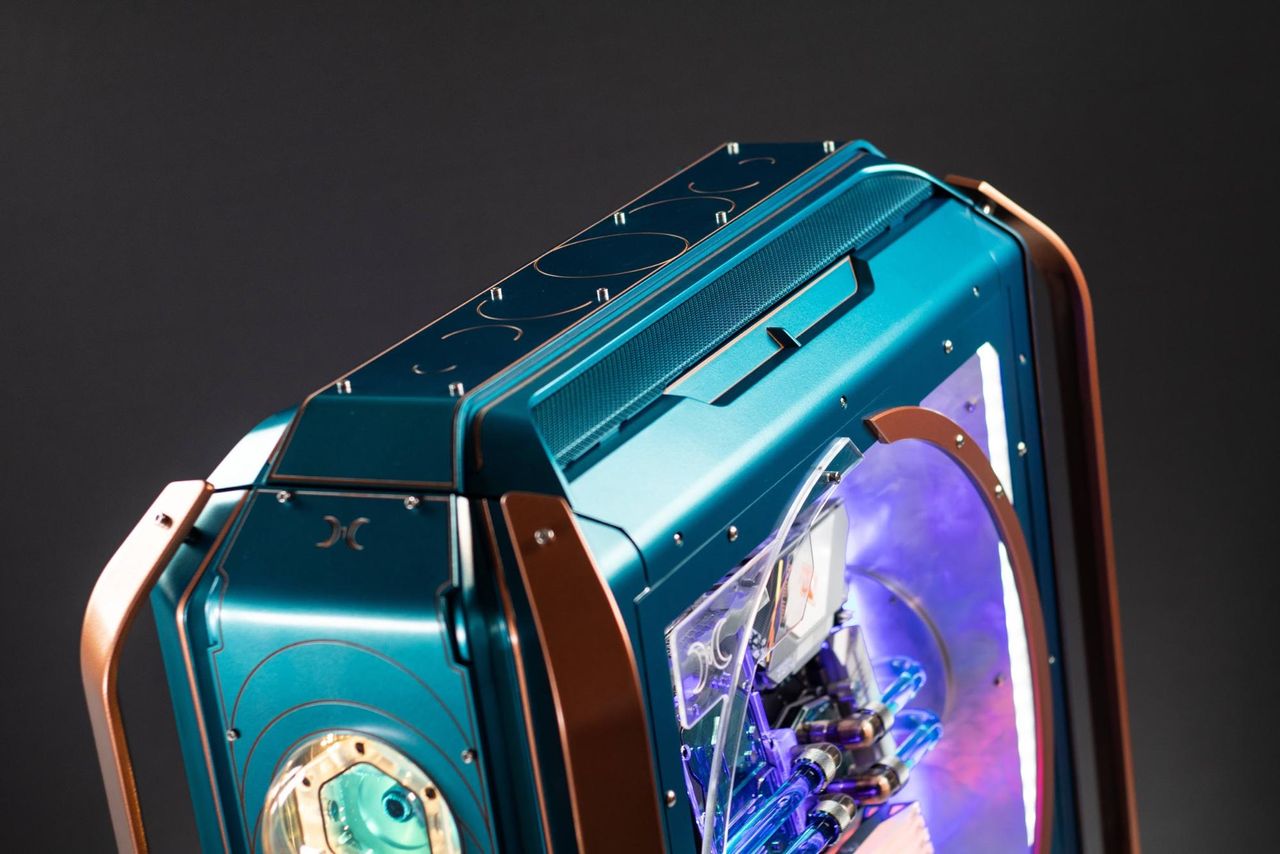

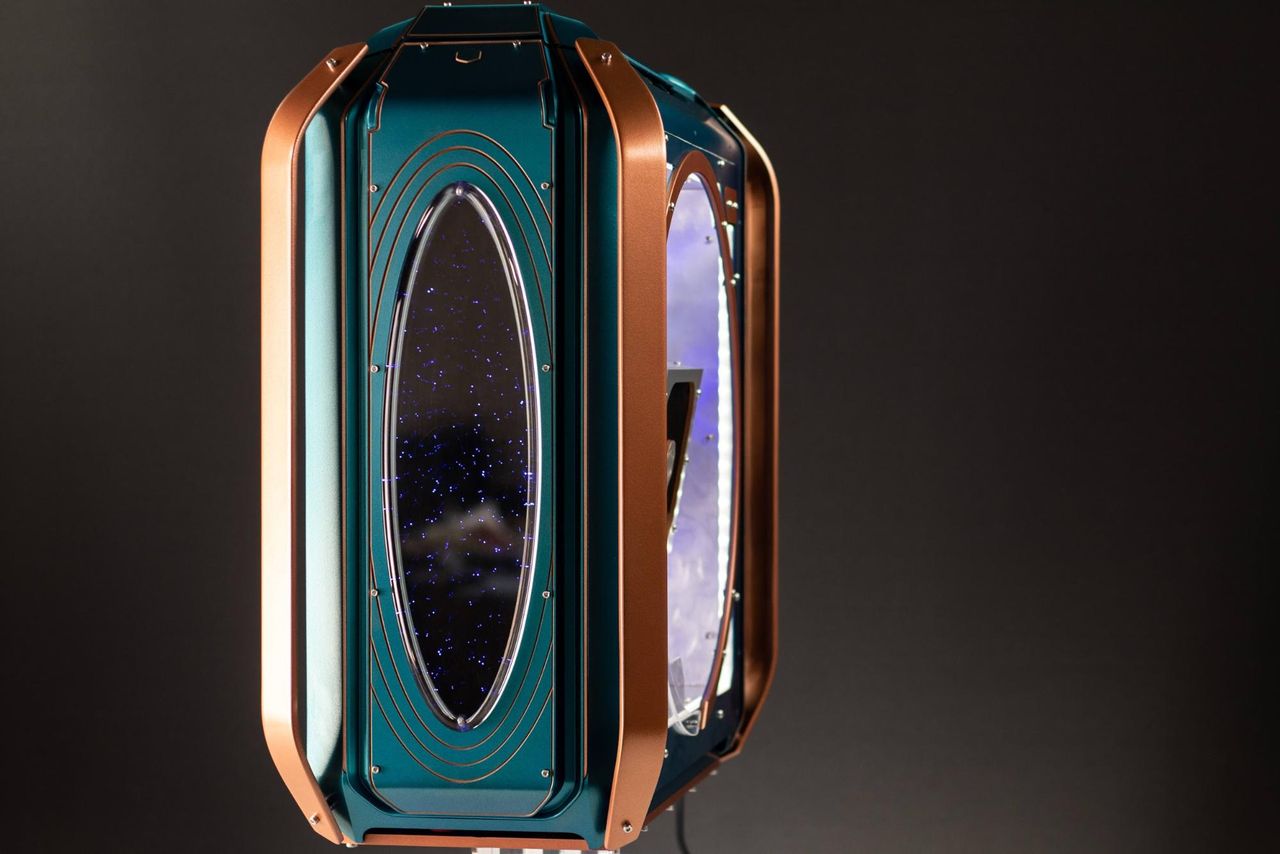

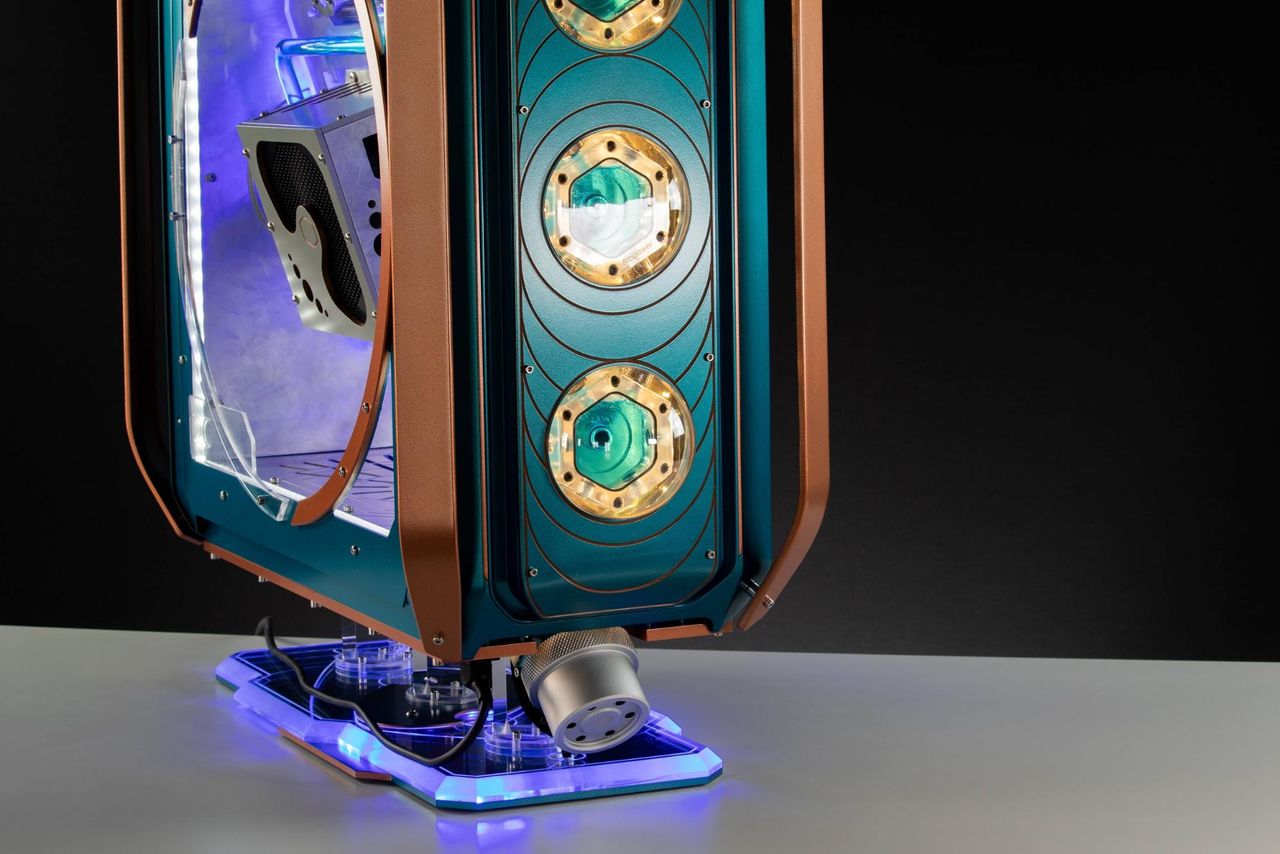

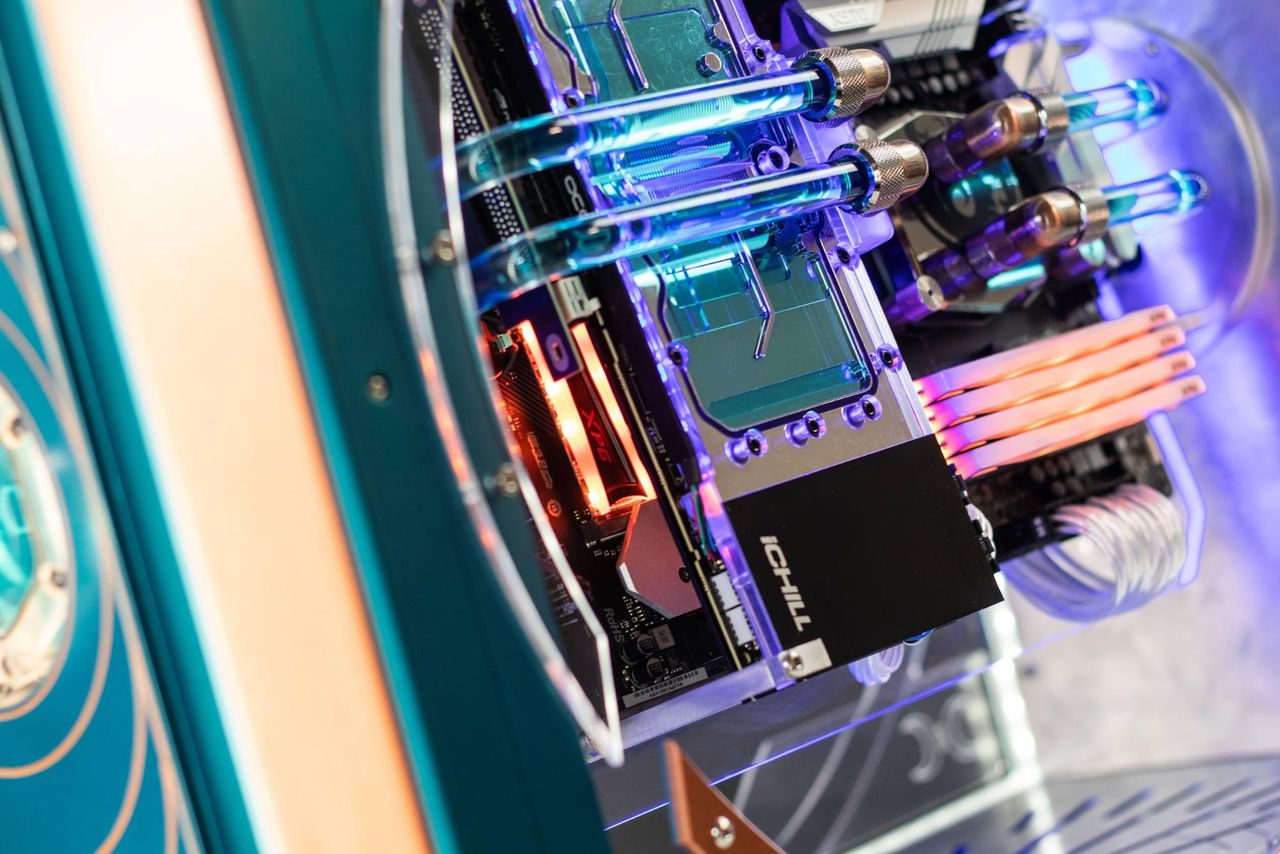

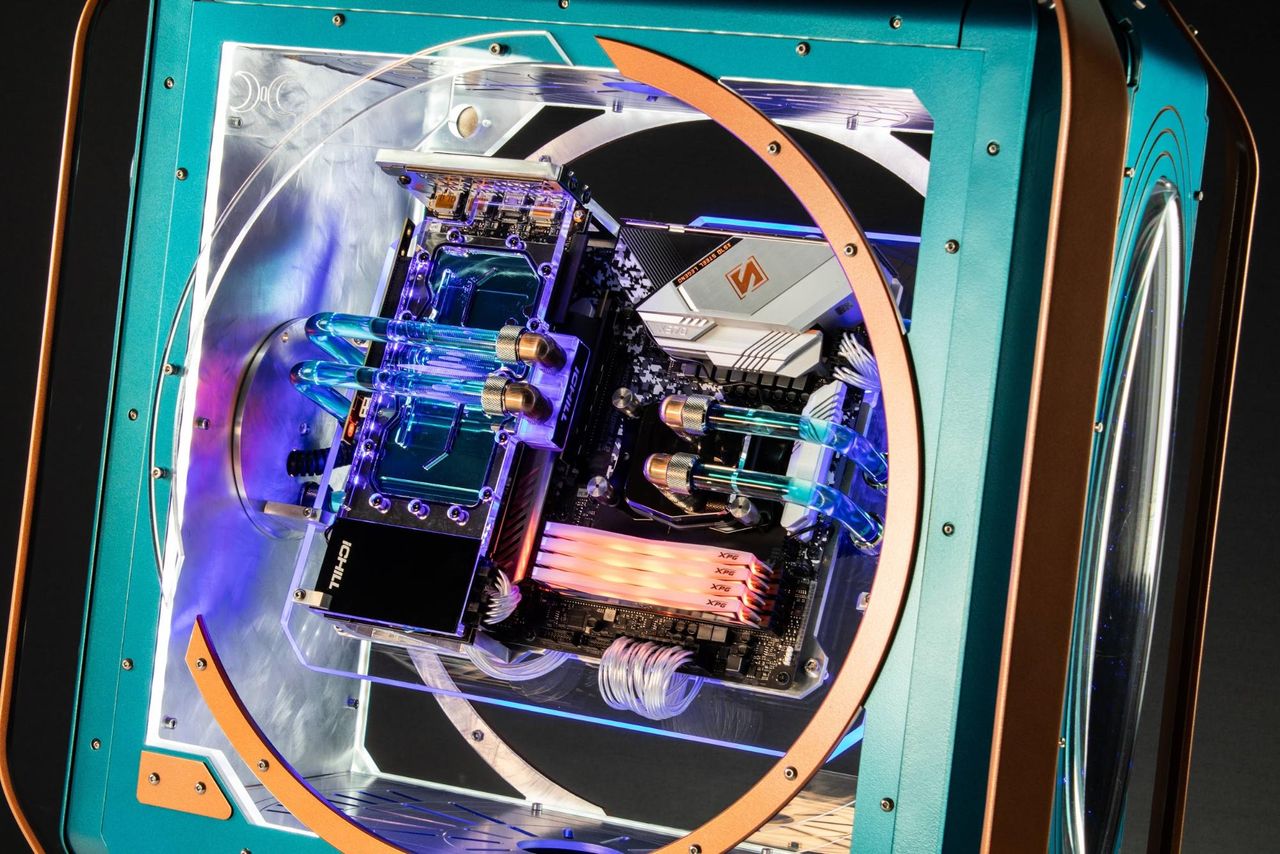

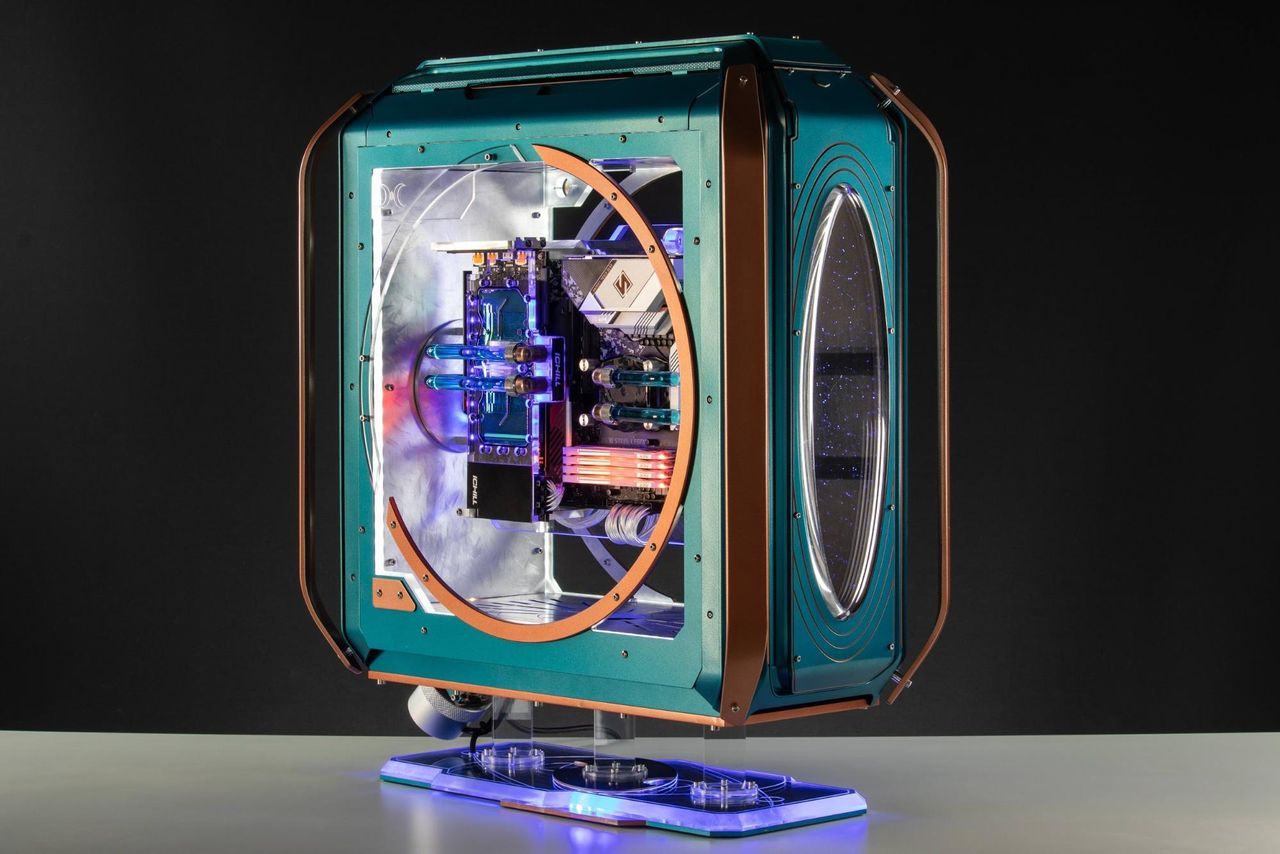

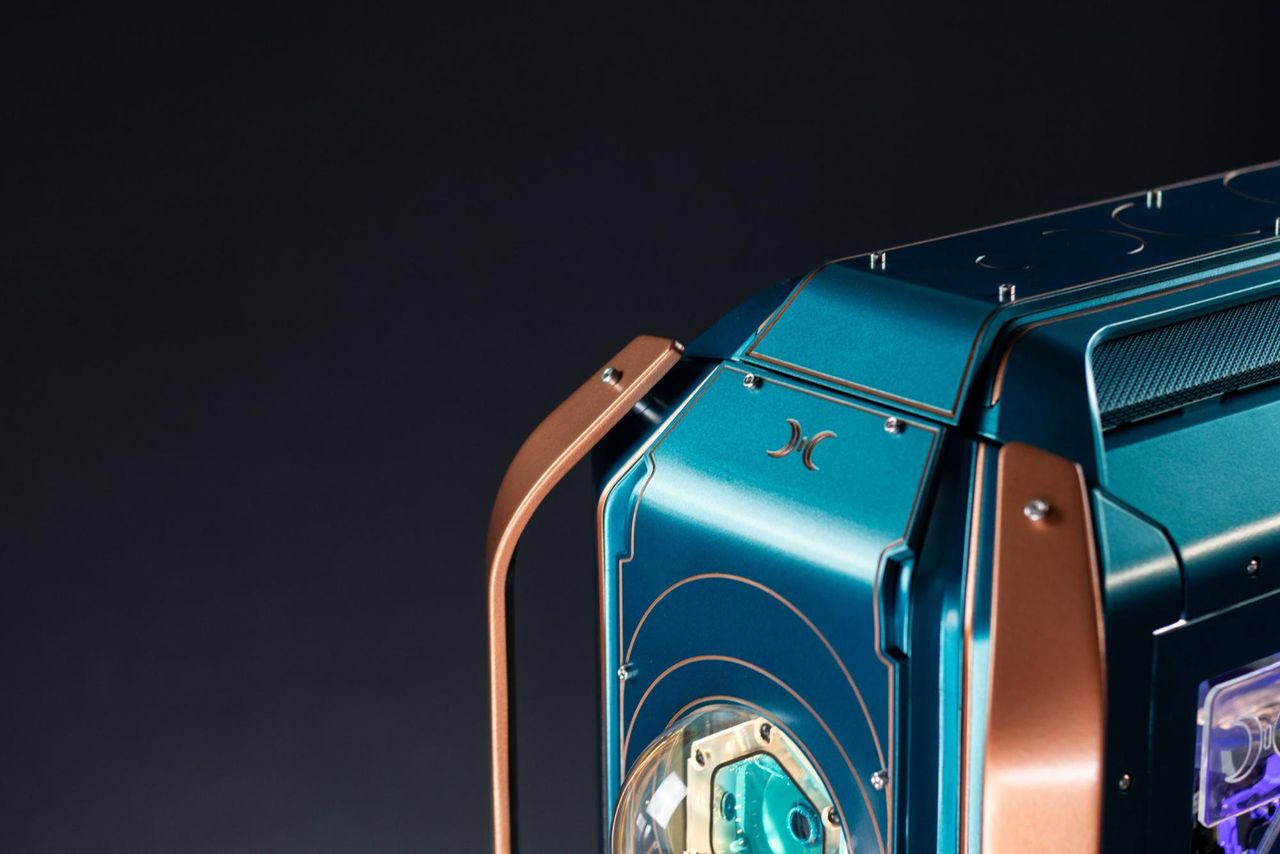

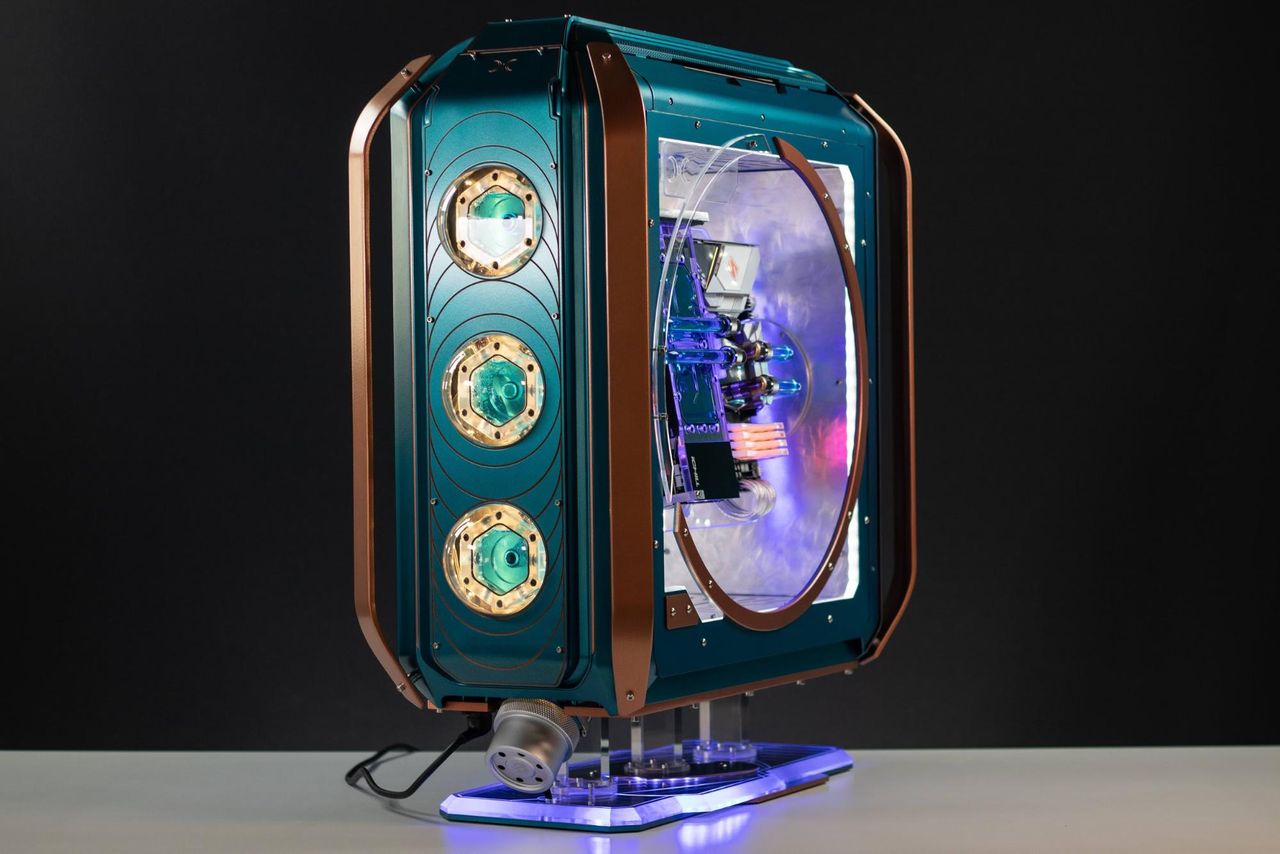

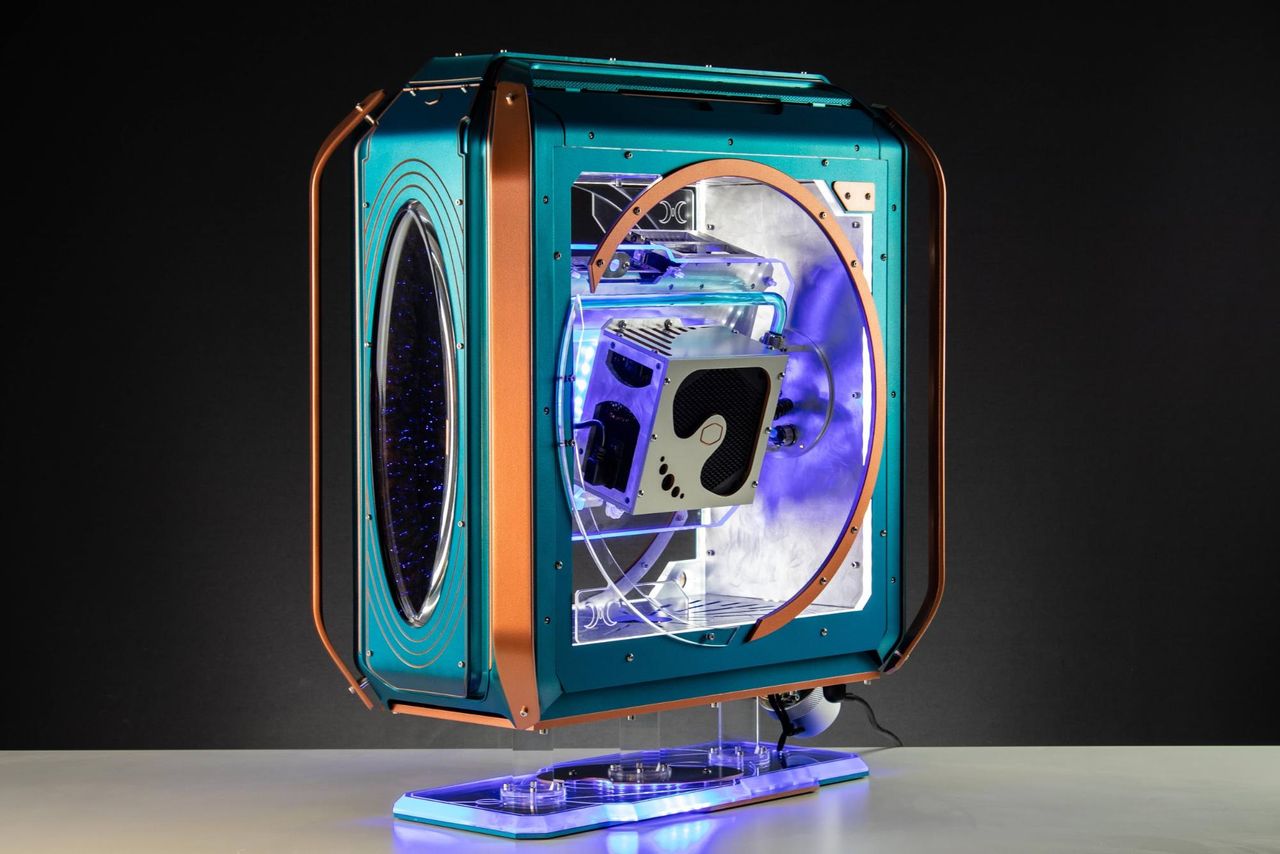

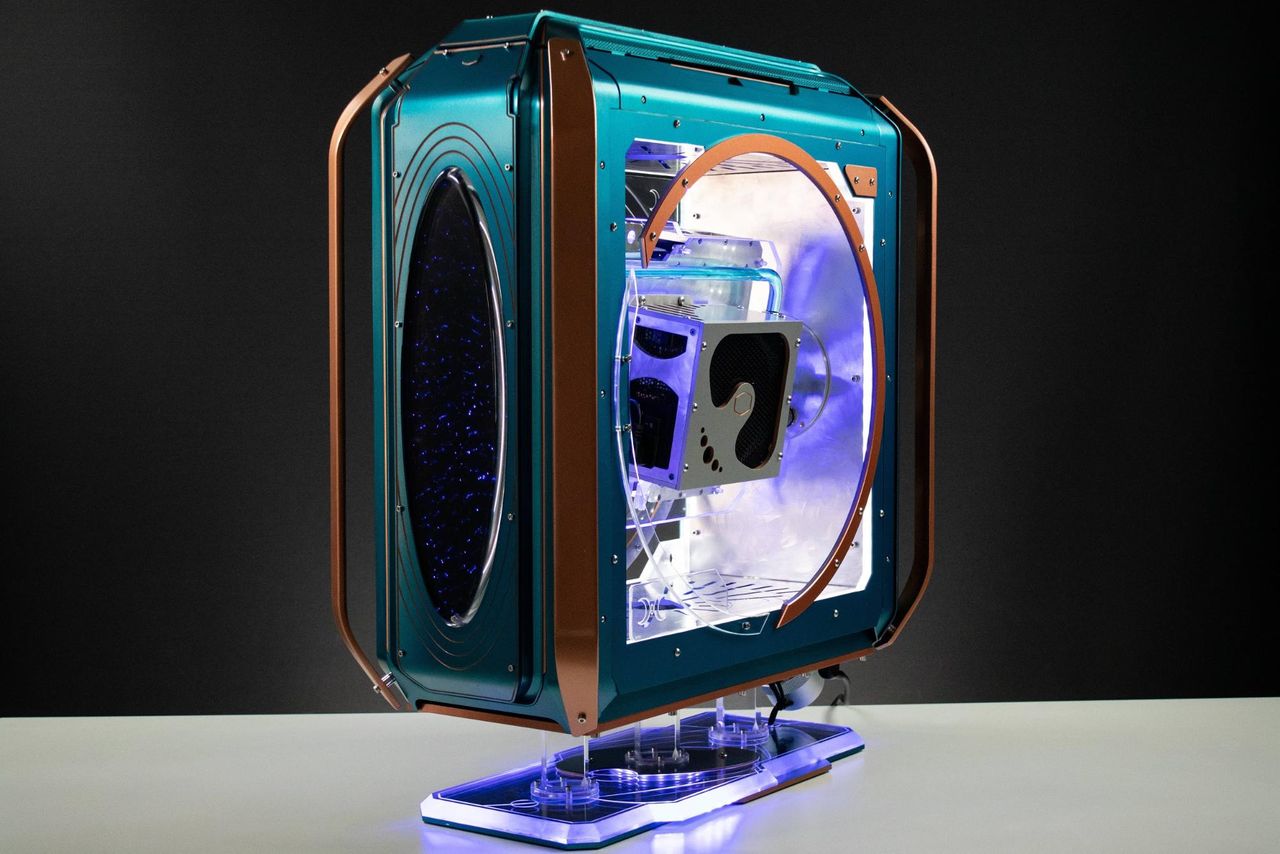

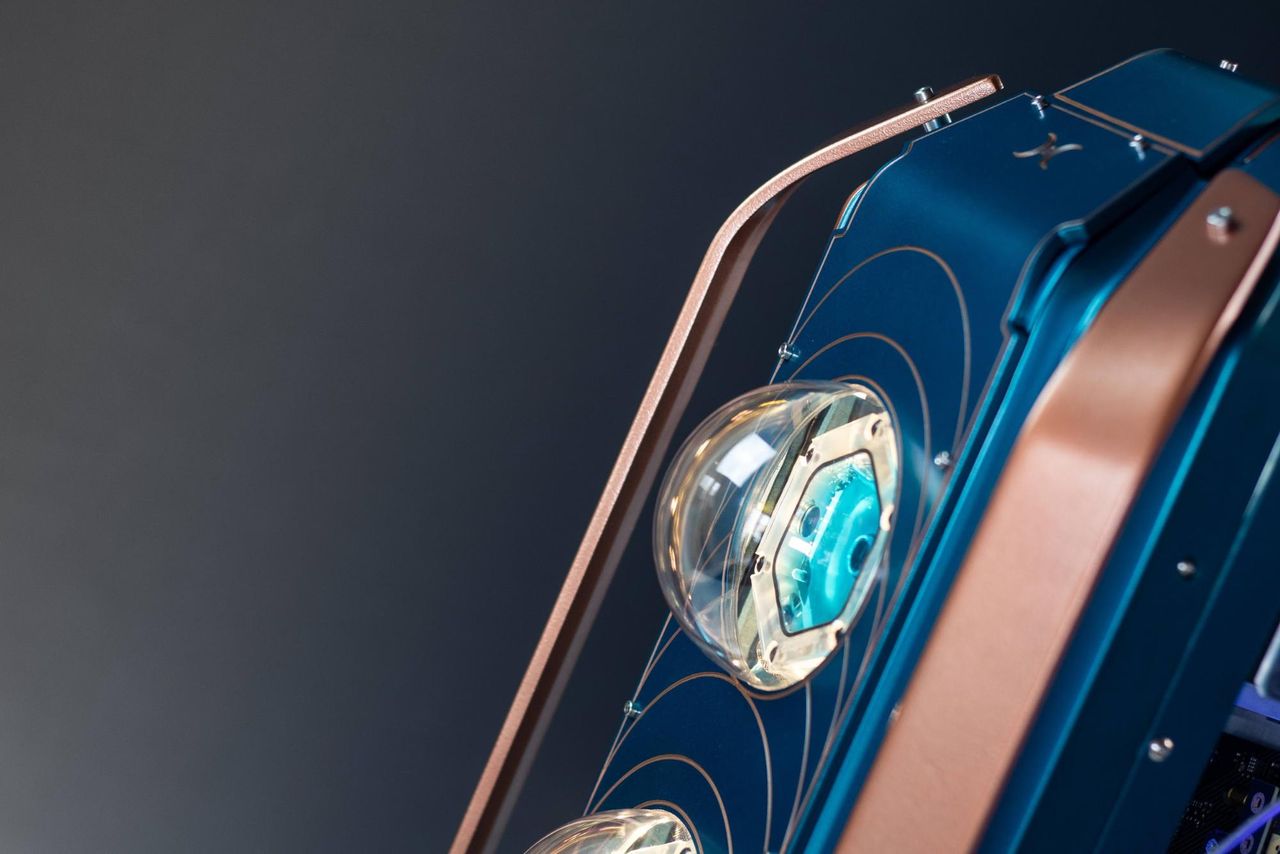

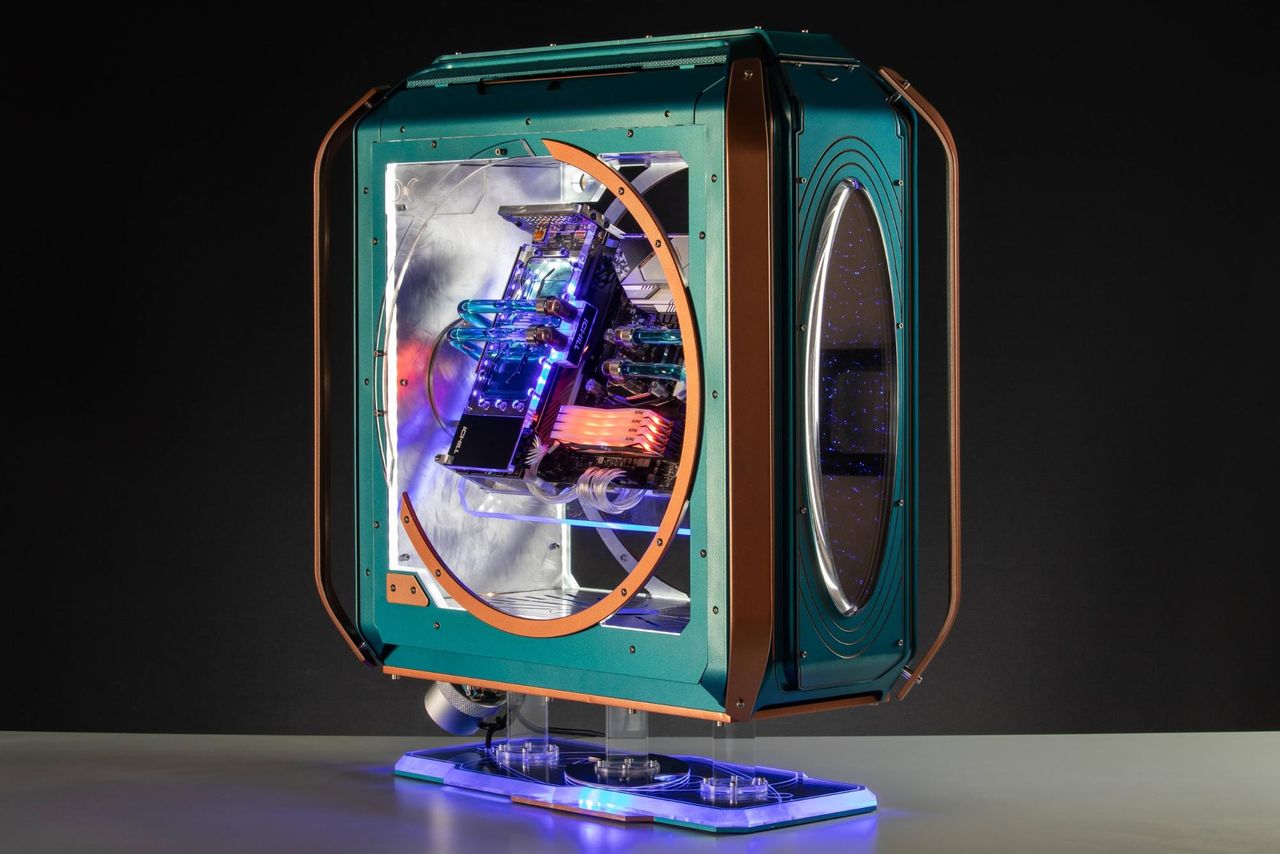

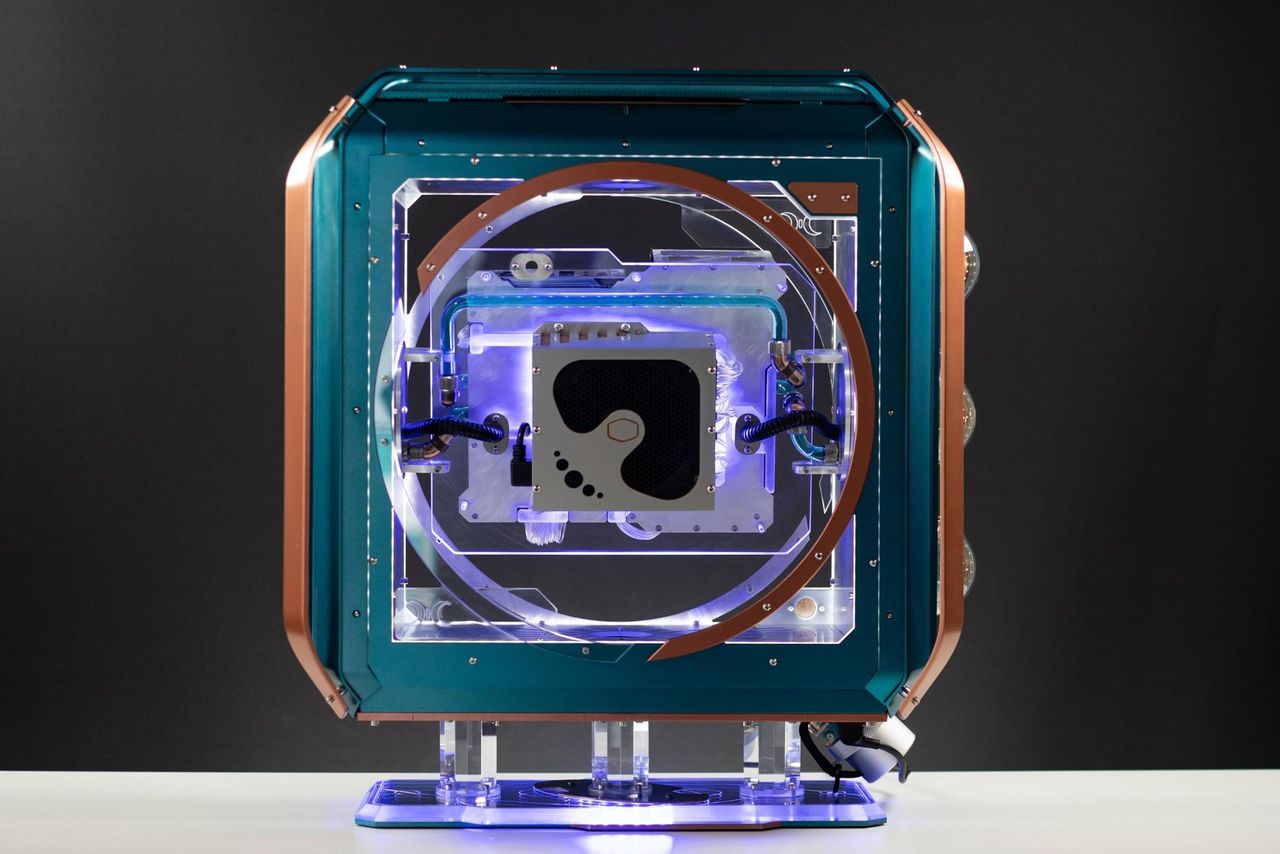

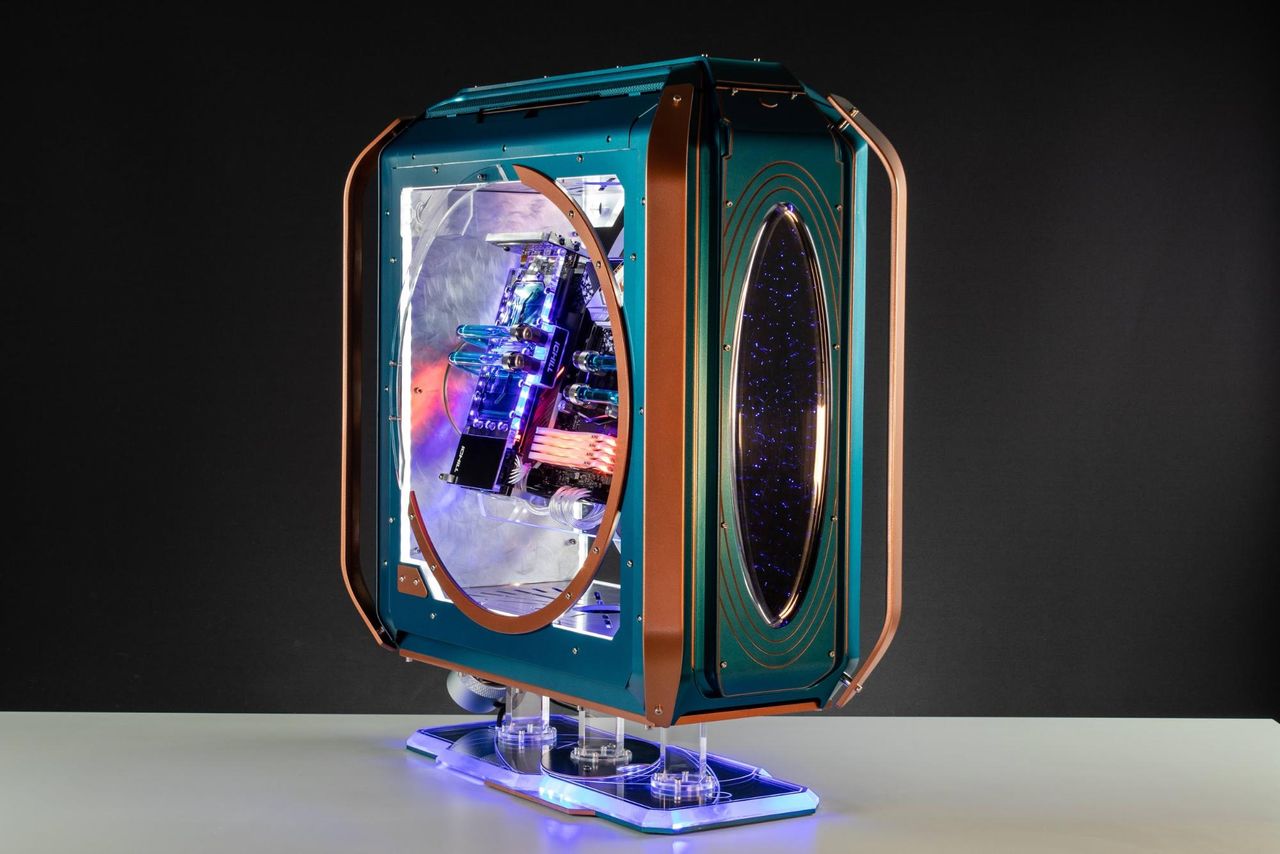

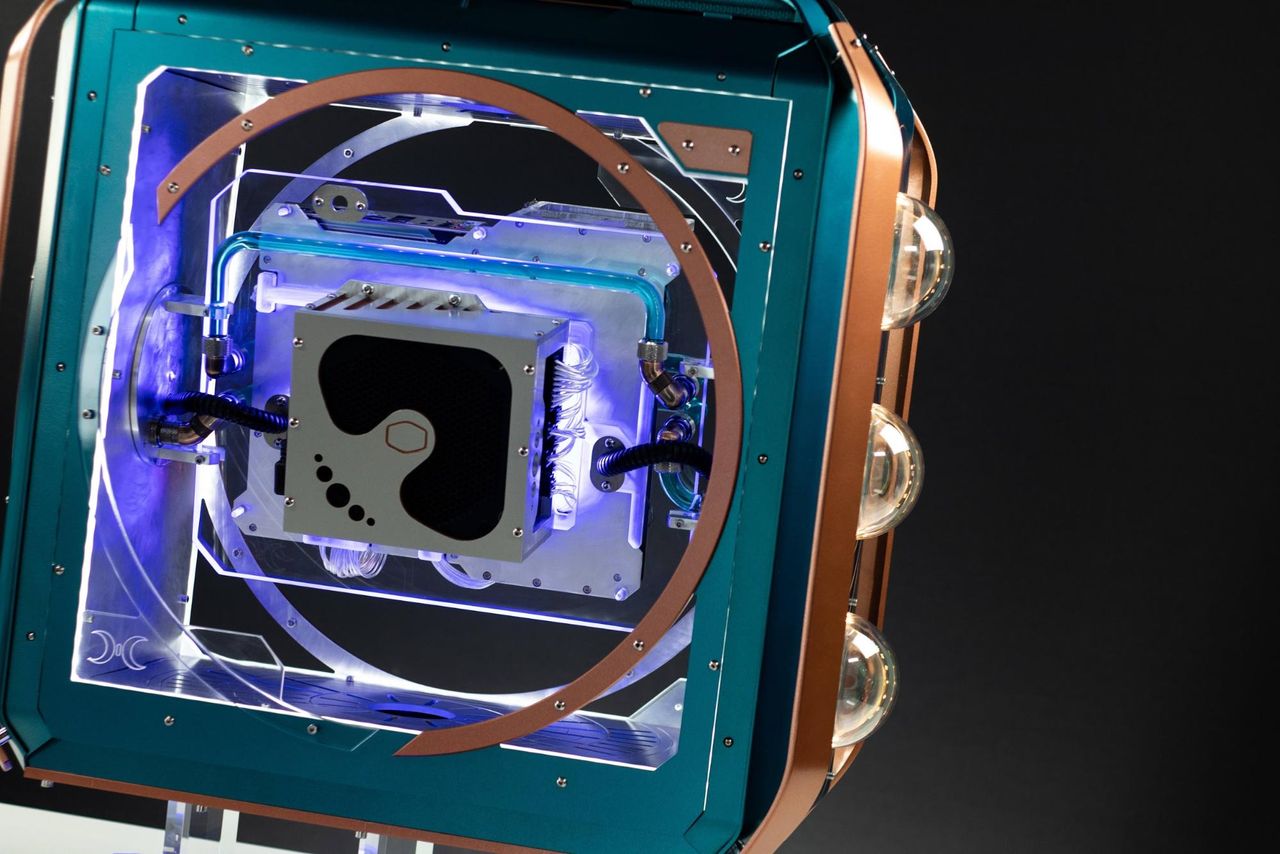

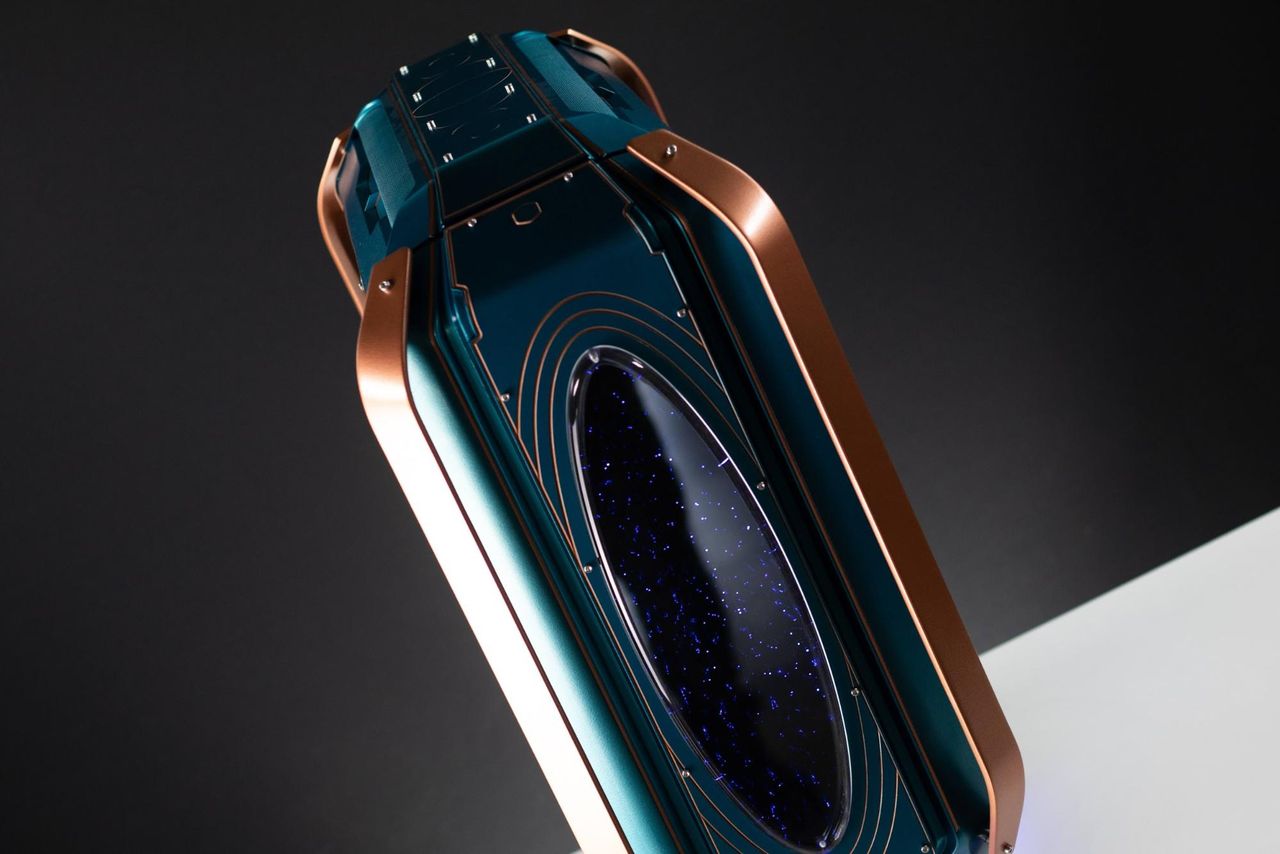

Final photos:
