ASRock 100-Series Motherboards Overwhelm Computex 2015 Coverage

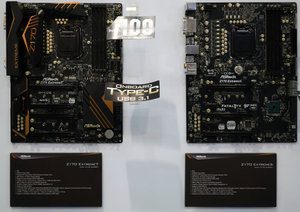

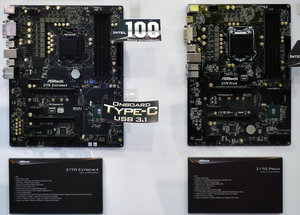

Nobody appeared better-prepared for Intel's upcoming 6th-generation CPU launch than ASRock, with a total of six Z170 models on display and a few B's and H's in the mix. The Z-models include advanced features, such as USB 3.1 on all but the low-cost Pro4.

Image 1 of 2

Swipe to scroll horizontally

Header Cell - Column 0	Z170 Extreme7	Z170 Extreme6	Z170 Extreme4	Z170 Pro4
Form Factor	ATX	ATX	ATX	ATX
Expansion Slots	4x x16*, 2x x1, 1x Mini	3x x16*, 3x x1	3x x16*, 3x x1	2x x16*, 3x x1
Memory Slots	4x DDR4	4x DDR4	4x DDR4	2x DDR3
Storage	3x 32 Gb/s 10x 6 Gb/s (6 for SATA-E)	1x 32 Gb/s 8x 6 Gb/s (2 for SATA-E)	1x 32 Gb/s 6x 6 Gb/s (2 for SATA-E)	1x 32 Gb/s 6x 6 Gb/s (2 for SATA-E)
Rear USB	USB 3.1 A+C, 4x 3.0, 2x 2.0	2x USB 3.1, 6x 3.0	2x USB 3.1, 4x 3.0	6x USB 3.0
Video	DVI-D, DisplayPort, HDMI	DVI-D, DisplayPort, HDMI	DVI-D, DisplayPort, HDMI	DVI-D, HDMI
Audio	5 Analog, 1 Optical	5 Analog, 1 Optical	6 Analog	6 Analog
Network	2x Gig-E	1x Gig-E	1x Gig-E	1x Gig-E
*unspecified lane count	Row 8 - Cell 1	Row 8 - Cell 2	Row 8 - Cell 3	Row 8 - Cell 4

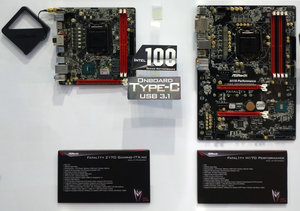

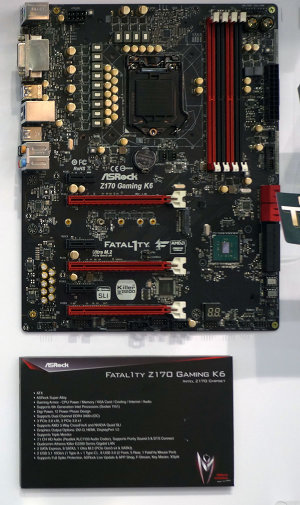

Top models including the Z170 Extreme7 provide top features such as triple 32 Gb/s M.2 connectors, which implies that additional parts such as third-party PCIe bridges are in play. Unlike its competitors, ASRock targets gamers with an optimized feature set at reduced cost. The Fatal1ty Z170 Gaming K6 topped a list that also includes the Wi-Fi-enhanced Fatal1ty Z170 Gaming-ITX/ac and lower-model Fatal1ty H170 Performance.

Image 1 of 2

Swipe to scroll horizontally

Header Cell - Column 0	Fatal1ty Z170 Gaming K6	Fatal1ty Z170 Gaming-ITX/ac	Fatal1ty H170 Performance
Form Factor	ATX	Mini ITX	ATX
Expansion Slots	3x x16*, 3x x1	1x x16, 1x Mini PCIe	2x x16*, 3x x1
Memory Slots	4x DDR4	2x DDR4	4x DDR4
Storage	1x 32 Gb/s 8x 6 Gb/s (2 for SATA-E)	1x 32 Gb/s 8x 6 Gb/s (2 for SATA-E)	1x 32 Gb/s 6x 6 Gb/s (2 for SATA-E)
Rear USB	USB 3.1 A+C, 6x USB 3.0	2x USB 3.1, 6x 3.0	USB 3.1 A+C, 4x 3.0, 2x 2.0
Video	DVI-D, HDMI, DisplayPort	2x HDMI, 1x DisplayPort	DVI-D, HDMI, DisplayPort
Audio	5 Analog, 1 Optical	3 Analog, 1 Optical	5 Analog, 1 Optical
Network	1x Gig-E	1x Gig-E	1x Gig-E
*unspecified lane count	Row 8 - Cell 1	Row 8 - Cell 2	Row 8 - Cell 3

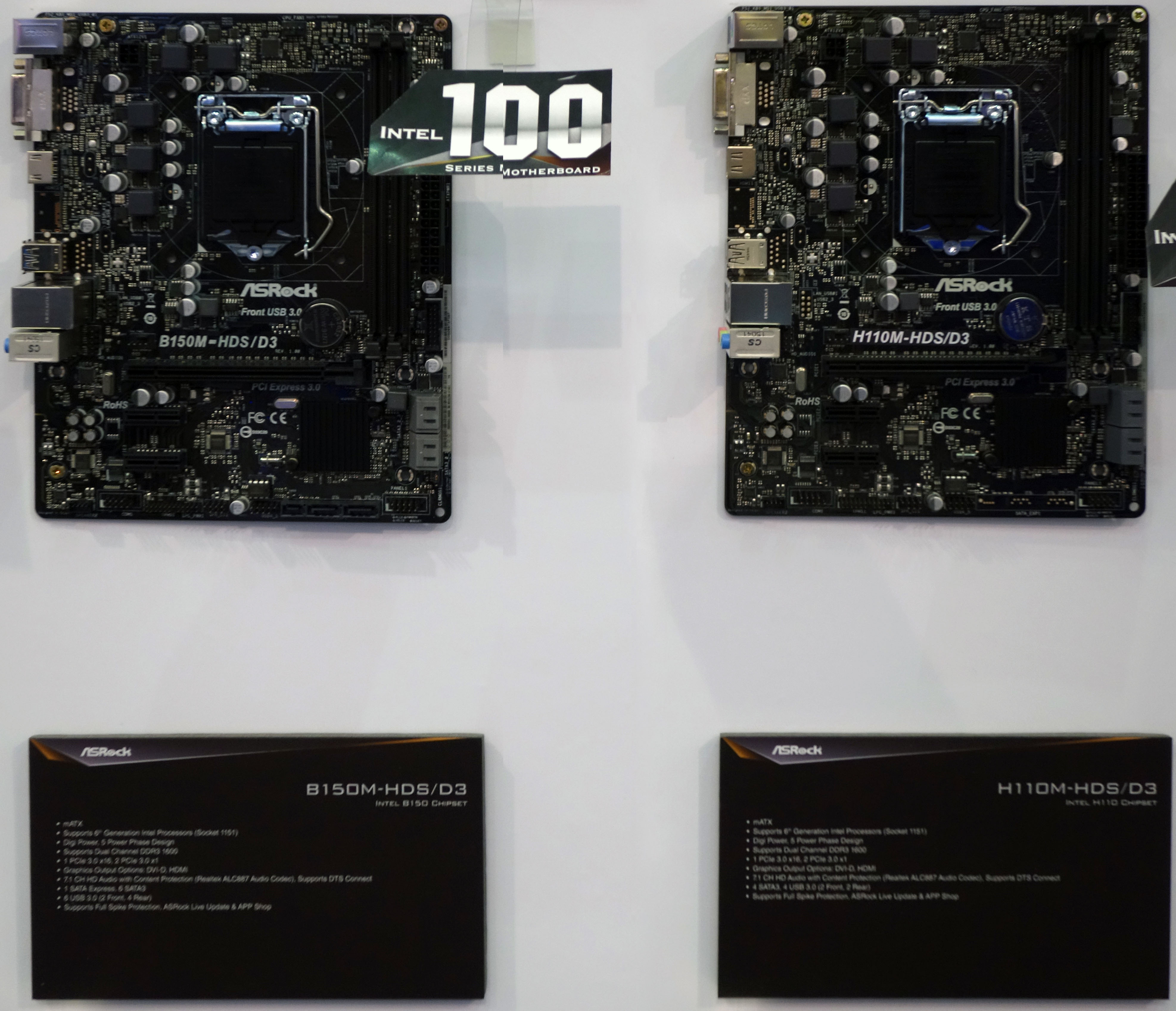

ASRock even had something on the budget menu for LGA 1151 business system builders in the B150M-HDS/D3 and H110M-HDS/D3. Both of these boards are one slot shorter than the Micro ATX standard, but they still bear that name because people have long forgotten Flex-ATX.

Swipe to scroll horizontally

Header Cell - Column 0	B150M-HDS/D3	H110M-HDS/D3
Form Factor	Micro ATX	Mini ITX
Expansion Slots	1x x16, 2x x1	1x x16, 2x x1
Memory Slots	2x DDR3	2x DDR3
Storage	6x 6 Gb/s (2 for SATA-E)	4x 6 Gb/s
Rear USB	4x USB 3.0, 2x USB 2.0	2x USB 3.0, 4x USB 2.0
Video	DVI-D, HDMI	DVI-D, HDMI
Audio	3 Analog	3 Analog
Network	1x Gig-E	1x Gig-E
*unspecified lane count	Row 8 - Cell 1	Row 8 - Cell 2
