Intel Reveals Specifications For Arc Alchemist Desktop GPUs

Intel Arc Specs
(Image credit: Intel)

Intel has published (opens in new tab) the specifications of all of its Arc Alchemist A-series discrete graphics cards for desktop PCs. Initially, Intel plans to release four graphics cards aimed at demanding, budget, and casual gamers.

Intel's Arc A-series family for desktops will consist of Arc A770, Arc A750, Arc A580, and the already well-known Arc A380. For now, Intel releases specifications of actual graphics processing units and recommended memory configurations, but graphics cards from the company's partners may have higher clocks and higher performance.

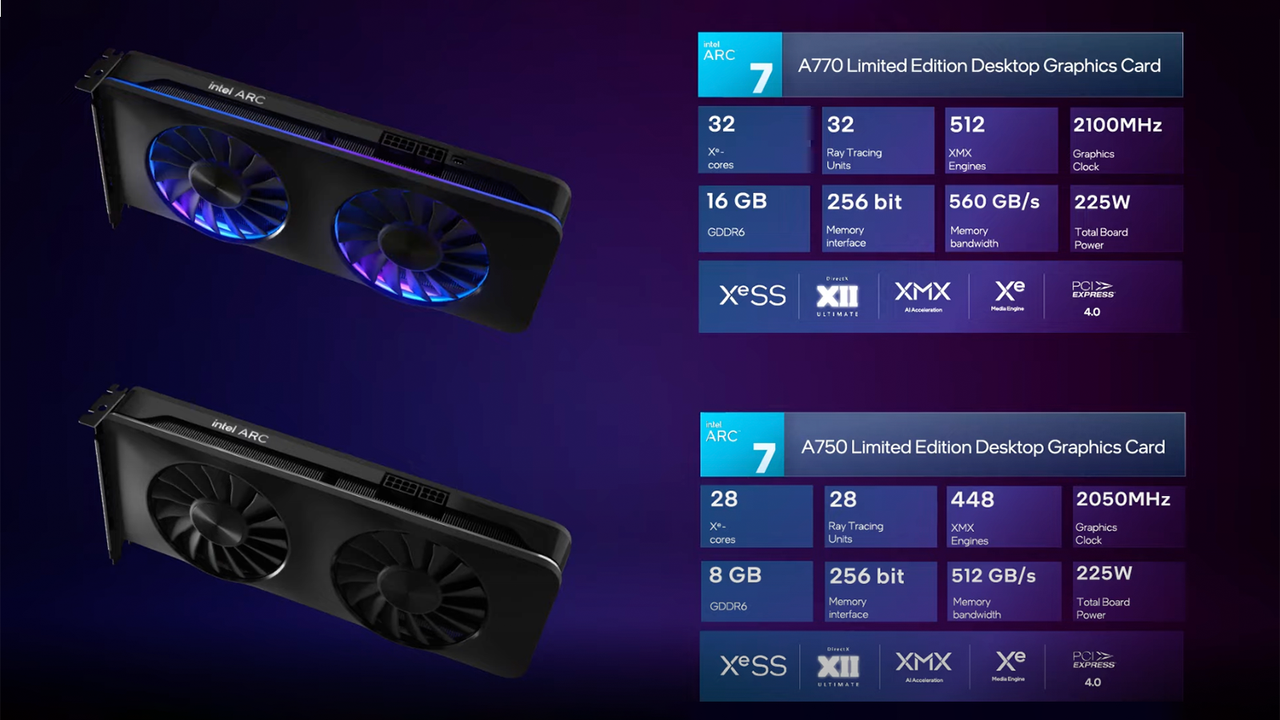

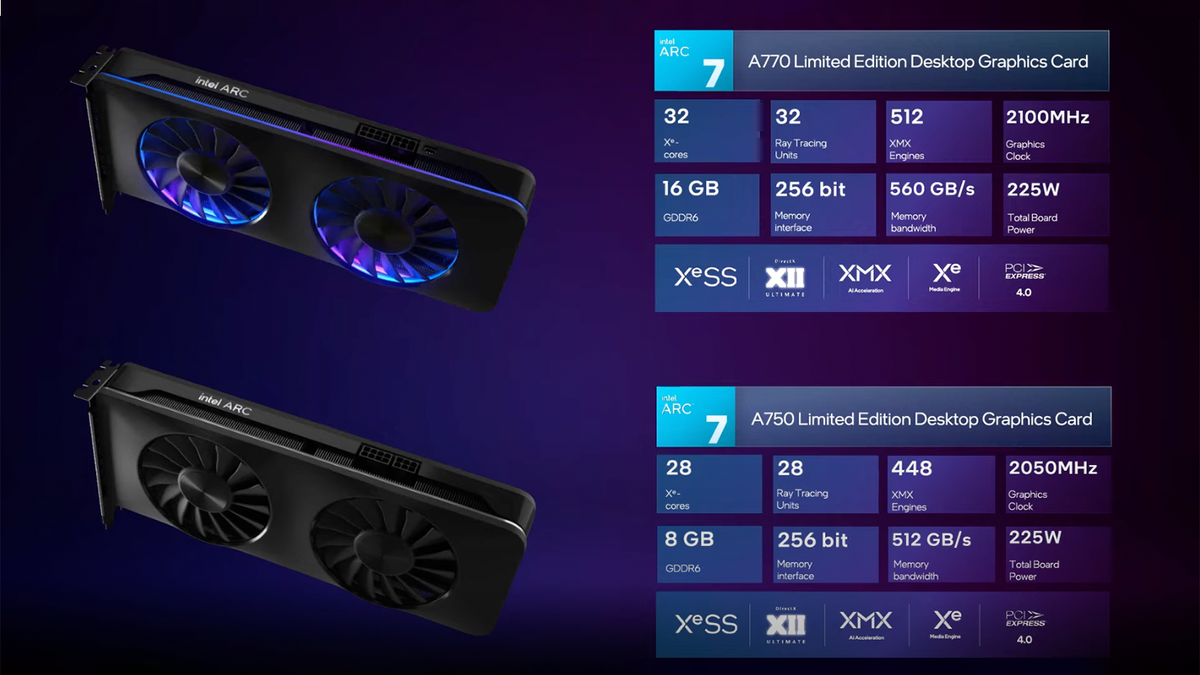

The Arc A770 will be Intel's top-of-the-range model based on the ACM-G10 graphics processor with 32 Xe cores (equivalent to 4,096 stream processors) operating at 2,100 MHz and equipped with 8GB or 16GB of GDDR6 memory featuring a peak bandwidth of 560 GBps. The Arc A750 will sit slightly below the flagship and feature a cut-down ACM-G10 GPU with 28 Xe cores (equivalent to 3,584 shading units) working at 2,050 MHz and connected to 8GB of GDDR6 memory with a peak bandwidth of 512 GBps. Both cards might find themselves among the best graphics cards, provided that they work flawlessly, offer decent performance, and their price is right.

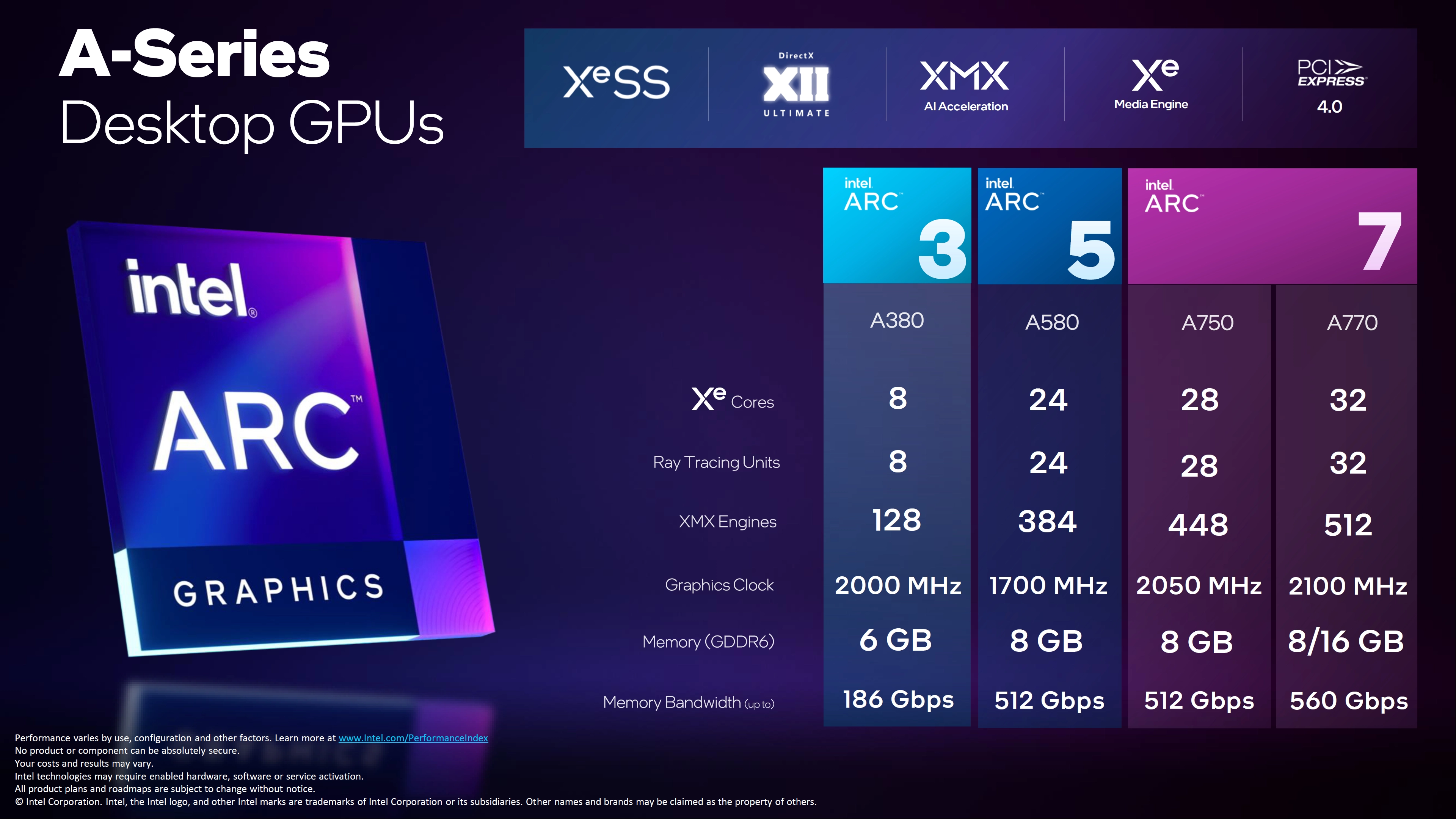

Intel Arc Alchemist Specifications

Intel Arc Alchemist Specifications
Arc A770Arc A750Arc A580Arc A380
ArchitectureACM-G10ACM-G10ACM-G10ACM-G11
Process TechnologyTSMC N6TSMC N6TSMC N6TSMC N6
Transistors (Billion)21.721.721.77.2
Die size (mm^2)406406406157
Xe-Cores3228248
GPU Cores (Shaders)4096358430721024
MXM Engines512448384128
RTUs3228248
Game Clock (MHz)2100205017002000
VRAM Speed (Gbps)17.5161615.5
VRAM (GB)16/8886
VRAM Bus Width25625625696
ROPs12812812832
TMUs25622419264
TFLOPS FP32 (Boost)17.214.710.44.1
TFLOPS FP16 (MXM)1381188433
Bandwidth (GBps)560512512186
TDP (watts)225225150?75
Launch DateOct 2022?Oct 2022?Oct 2022?Jun-22

Intel's Arc A580 will sit below the A750 and target gamers on a budget who still want to get a taste of Intel's top-end discrete GPU. This board will feature 24 Xe cores (3,072 shading units) running at 1,700 MHz so that it will be more than 30% slower than the top-of-the-range Arc A770. In addition, graphics cards based on the Arc A580 will carry 8GB of GDDR6 memory with up to 512GBps bandwidth.

Intel's entry-level offering is the Arc A380 based on the ACM-G11 GPU with eight Xe cores (1,024 shading units) operating at 2,000 MHz and connected to 6GB of GDDR6 memory. This board is already available from Newegg for $140 (opens in new tab).

Intel said that its IBCs — Intel branded cards — produced in Malaysia will be available starting Day 1 (but we do not know which day is day 1, for now), but it did not say anything about boards from its partners. The company also did not touch upon the prices of its graphics cards or recommended prices for partner boards. Still, considering that it positions its Arc A770 against Nvidia's GeForce RTX 3060 Ti, one can make some guesses about the pricing of these products. In a recent interview, Intel stated that Arc Alchemist desktop graphics cards will launch "very soon."

Anton Shilov
Freelance News Writer

Anton Shilov is a Freelance News Writer at Tom’s Hardware US. Over the past couple of decades, he has covered everything from CPUs and GPUs to supercomputers and from modern process technologies and latest fab tools to high-tech industry trends.
