AMD Launches Radeon RX 6900 XT Liquid Cooled

AMD

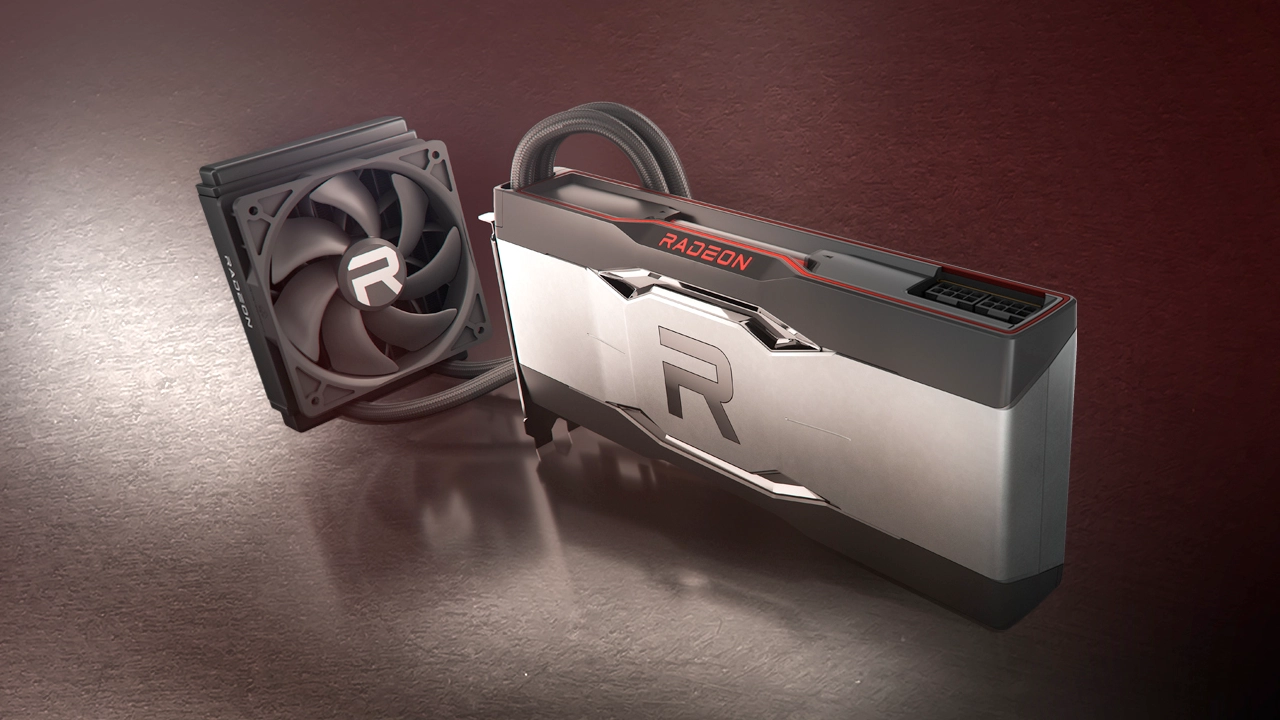

(Image credit: Maingear)

AMD on Wednesday unveiled a version of its flagship Radeon RX 6900 XT graphics card equipped with a closed-loop liquid cooling system (LCS). The new board boasts higher GPU and memory frequencies compared to AMD's reference air-cooled card, which is already among the best graphics cards, but it will (at least initially) be available exclusively to system integrators.

AMD's Radeon RX 6900 XT Liquid Cooled carries the company's Navi 21 GPU with 5120 stream processors that is clocked at up to 2250 MHz (game clock) and is accompanied with 16GB of 18Gbps GDDR6 memory. There are some Radeon RX 6900 XT graphics cards from manufacturers that have a higher GPU clock, but AMD's RX 6900 XT Liquid Cooled model is the only one to feature 18Gbps DRAM.

The board is rated for a 330W thermal design power and is cooled down using AMD's custom liquid cooling system featuring a 120-mm radiator equipped with a fan. This is hardly the most powerful cooler for AMD's Big Navi that is out there, but system integrators will likely appreciate it as it fits into almost any high-end desktop computer.

(Image credit: Maingear)

Unlike high-end Radeon RX 6900 XT from AMD's partners that feature three eight-pin auxiliary PCIe power connectors, the Radeon RX 6900 XT Liquid Cooled has two connectors, which are enough to deliver up to 300W of power to the board. Two connectors also mean that the card will be compatible with almost any high-performance PSU.

AMD's Radeon RX 6900 XT Liquid Cooled is clearly one of the world's fastest graphics cards based on AMD's Big Navi GPU, but for some reason the company has no plans to sell it in retail, but will offer it exclusively to system integrators, according to VideoCardz.

Since the Radeon RX 6900 XT Liquid Cooled will only be available to PC makers, AMD does not disclose its recommended price. Maingear will be one of the first system integrators to offer AMD's Radeon RX 6900 XT Liquid Cooled in the USA and already has a page up about it.

Anton Shilov
Contributing Writer

Anton Shilov is a contributing writer at Tom’s Hardware. Over the past couple of decades, he has covered everything from CPUs and GPUs to supercomputers and from modern process technologies and latest fab tools to high-tech industry trends.

  • peachpuff
    120mm rad and fan can dissipate 330 watts? Lol good luck with that
    Reply
  • spentshells
    peachpuff said:
    120mm rad and fan can dissipate 330 watts? Lol good luck with that
    Fury X already draws more than that. It works just fine
    Reply
  • escksu
    peachpuff said:
    120mm rad and fan can dissipate 330 watts? Lol good luck with that

    Lol.... Why not? Remember furyX? Its TDP is 275W and the fan is extremely quiet. Yet, it provides best cooling of all cards during that era. I used to have 2 of them in crossfire.

    330W? Its not that much more than 275w. Engineers in AMD knows way more than you.
    Reply
  • digitalgriffin
    peachpuff said:
    120mm rad and fan can dissipate 330 watts? Lol good luck with that

    I agree. That is laughable.
    Reply
  • digitalgriffin
    escksu said:
    Lol.... Why not? Remember furyX? Its TDP is 275W and the fan is extremely quiet. Yet, it provides best cooling of all cards during that era. I used to have 2 of them in crossfire.

    330W? Its not that much more than 275w. Engineers in AMD knows way more than you.

    I'm work with thermodynamics everyday. There's more than wattage to consider. Thermal density is one.

    The radiator is thin
    The tubes are thin meaning high back pressure
    This is a hard no. 55 wats more and a higher power density...sorry no not buying it at 330w
    Reply
  • daworstplaya
    Hopefully AIBs offer a version of this for a reasonable price.
    Reply
  • greatmaharg
    digitalgriffin said:
    I'm work with thermodynamics everyday. There's more than wattage to consider. Thermal density is one.

    The radiator is thin
    The tubes are thin meaning high back pressure
    This is a hard no. 55 wats more and a higher power density...sorry no not buying it at 330w

    The Fury X is only about 15% larger than the 6900 XT

    The way the pictures are shot, you can't see the thickness of the radiator

    AMD has cooled much more with a single 120mm rad - look at the R9 295x2
    Reply
  • usiname
    https://www.techpowerup.com/review/amd-r9-295-x2/22.htmlhttps://www.techpowerup.com/review/amd-r9-295-x2/28.htmlYes, this 120mm is fine
    Reply
  • spongiemaster
    Weird. This post isn't getting overrun by people accusing AMD of a money grab release despite this being another highend release, where one isn't needed. Not one person complaining about unavailability of GPU's either. Internet must be down where the chronic complainers are...
    Reply
  • digitalgriffin
    spongiemaster said:
    Weird. This post isn't getting overrun by people accusing AMD of a money grab release despite this being another highend release, where one isn't needed. Not one person complaining about unavailability of GPU's either. Internet must be down where the chronic complainers are...

    OEM only. Doesn't really affect us, even if it does come with a crap cooling solution. It doesn't have enough thermal overhead to allow overclocking any more than a standard air cooled heat pipe arrangement.
    Reply
