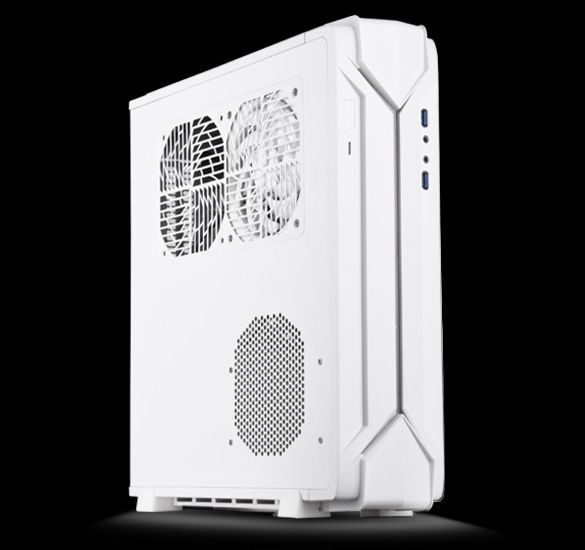

Silverstone’s latest addition to its growing Raven series of cases is the Raven RVZ03W. This SFF chassis comes with the Raven series’ signature styling and doesn’t trade hardware capacity for size.

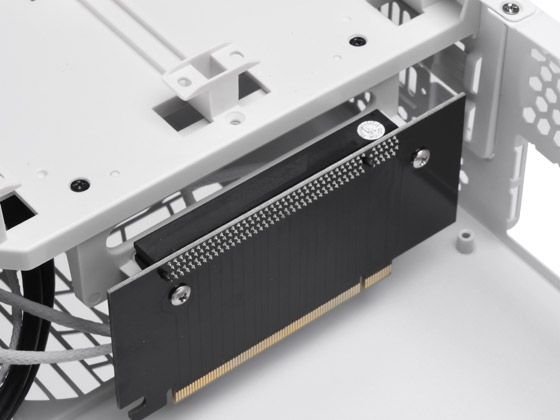

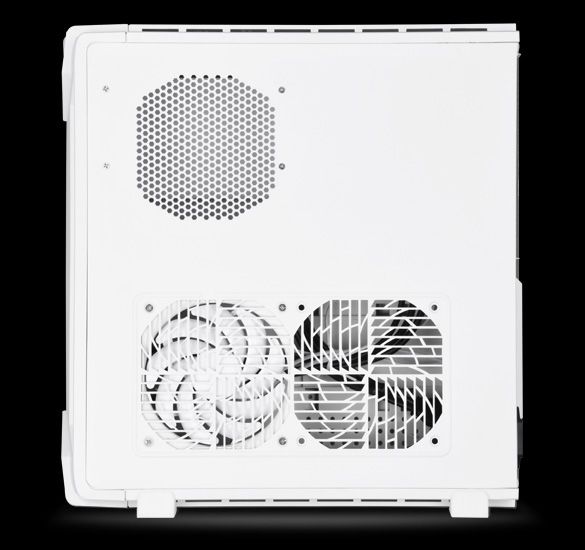

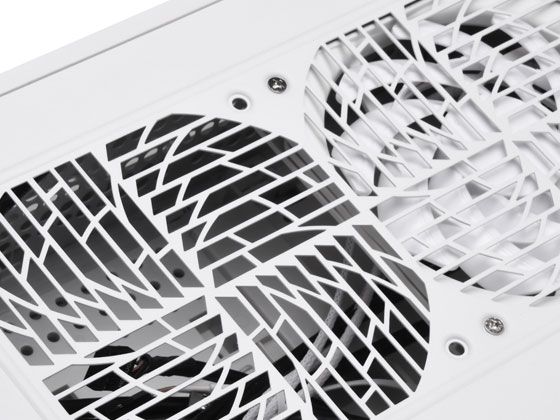

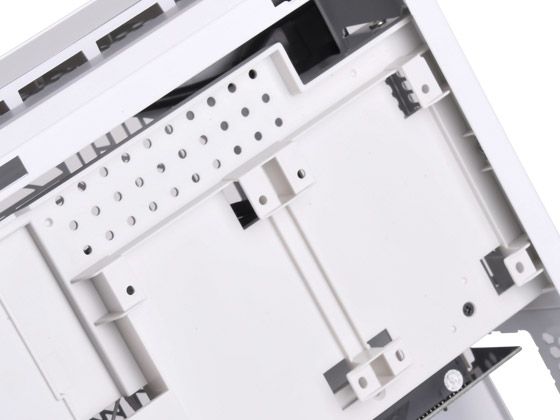

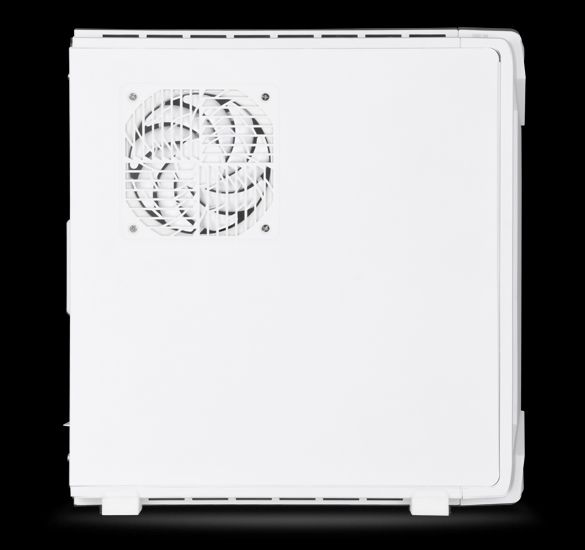

The RVZ03W is essentially a white version of the earlier released RVZ03 (black). We already covered the features of that case, but here are the highlights: The case fits a Mini-ITX motherboard, an ATX PSU, and four 2.5-in drives. Two stacked, vertically positioned PCIE slots and a PCIE riser card allow you to install a single dual-slot GPU of up to 330 x 149mm in size. Silverstone recommends that the PSU be limited to 140mm to prevent its cables from interfering with the installation of the two 2.5-in drives positioned below it. For cooling, there are two 120mm fans pre-installed with room for a third.

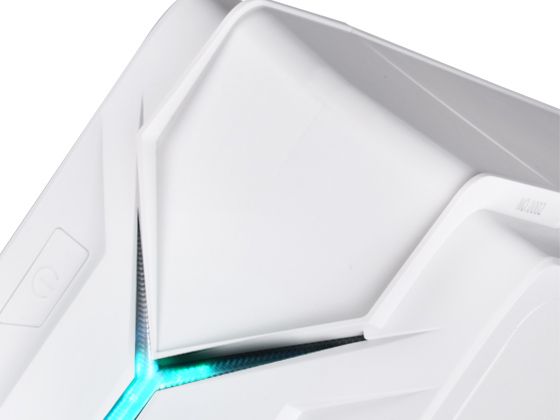

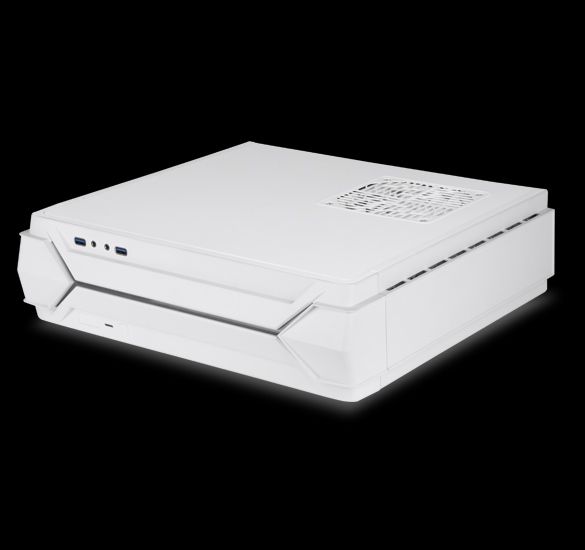

The RVZ03’s front panel has integrated RGB lighting controlled by an included LSB01 RGB LED controller, which still has room for additional LED strips. Also on the front panel are two USB3.0 Type-A ports and separate 3.5mm jacks for headphone and microphone. The case has removable feet that can be positioned on either edge, allowing it to be used standing on either end or horizontally.
The Raven RVZ03W is available now in Europe, but no pricing and availability was announced for North America. The black RVZ03 is currently available on Newegg for $105 USD, so it's likely that the white version will be priced similarly.
Header Cell - Column 0 | RVZ03 Specifications |
---|---|
Model No. | SST-RVZ03W |
Material | Reinforced plastic outer shell, steel body |
Motherboard | Mini-ITX |
Drive bay | 4 x 2.5" |
Cooling system | 1 x 120mm fan, 1500rpm, 18dBA (Top), 1 x 120mm fan, 1500rpm, 18dBA, 1 x 120mm fan slot (Bottom) |
Front I/O port | USB 3.0 x 2 audio x 1 Mic x 1 |
Power supply | Optional PS2(ATX) (maximum 800w on 110V due to internal power cord) |
Expansion card | Compatible up to 13" (330mm) long, width restriction-5.88" (149mm) |
Limitation of CPU cooler | 83mm |
Limitation of PSU | 150mm (Maximum 140mm if center bracket drive bay in use) |
Net weight | 4.05kg |
Dimension | 382mm (W) x 105mm (H) x 350mm (D), 14 Liters15.04" (W) x 4.13" (H) x 13.78" (D), 14 Liters |
Extra | Support Kensington lockPCI Express riser card set x 1RGB light strip control box x 1 |
