3,000W PSUs are taking over Computex — Seasonic and Superflower debut behemoth power supplies

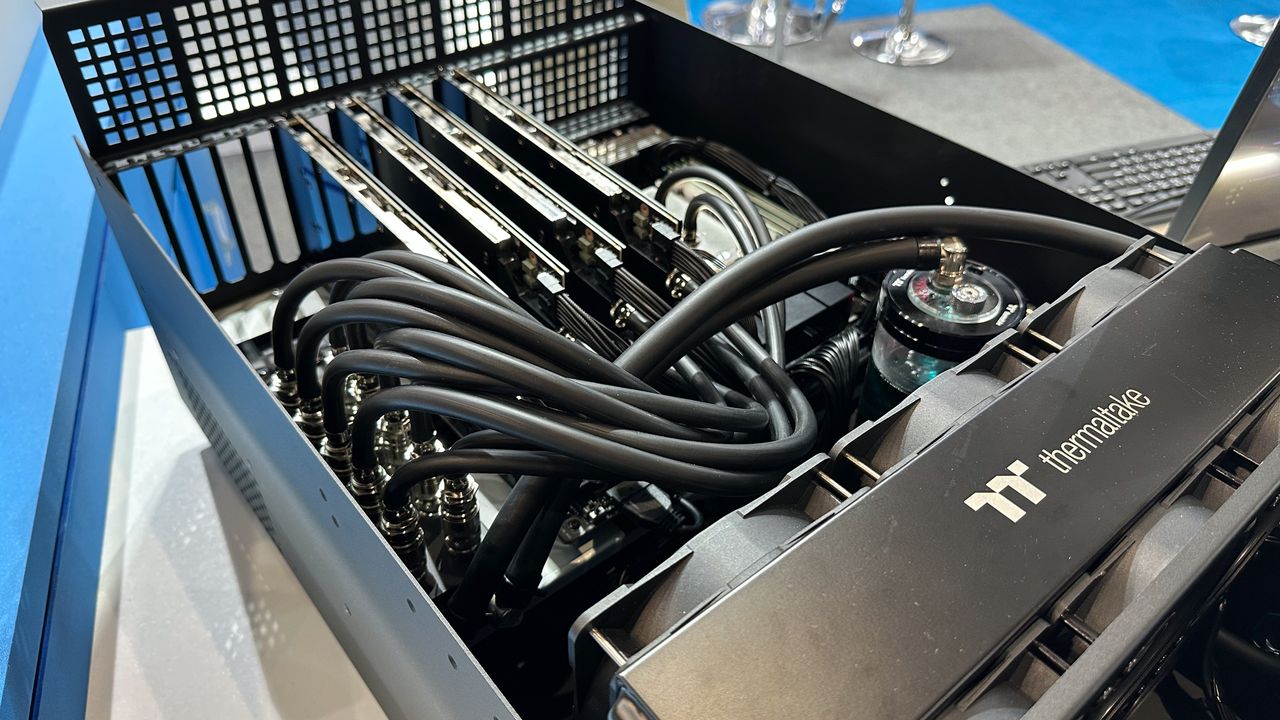

A massive PSU — (Image credit: Tom's Hardware)

As hardware gets more powerful and power hungry, makers of power supplies have to keep up to offer relevant PSUs to interested parties, and to that end, we see even more and more powerful PSUs at every Computex. If last year we thought that 2,800W was crazy, then this year we see that several manufacturers have managed to build 3,000W+ power supplies.

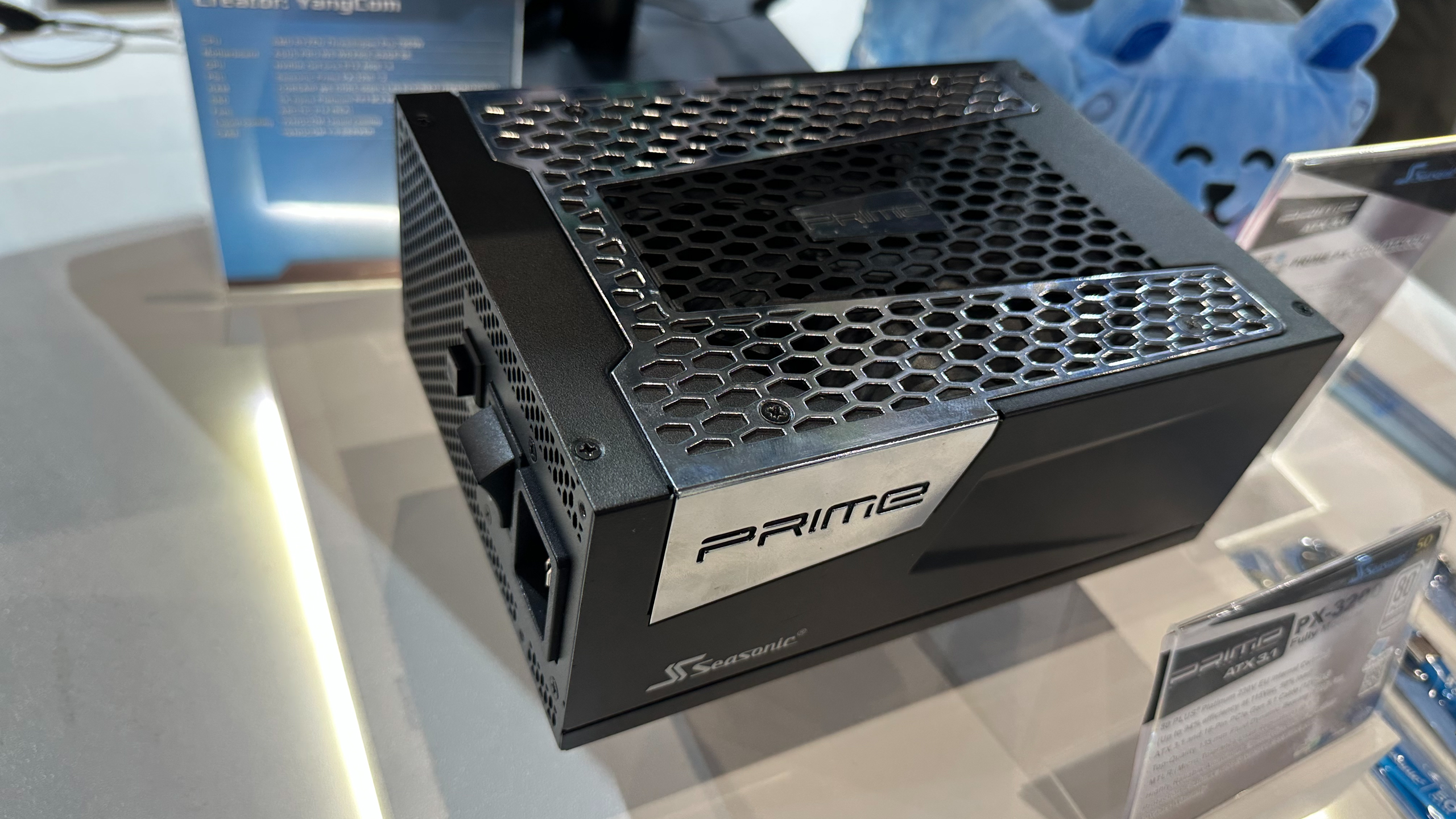

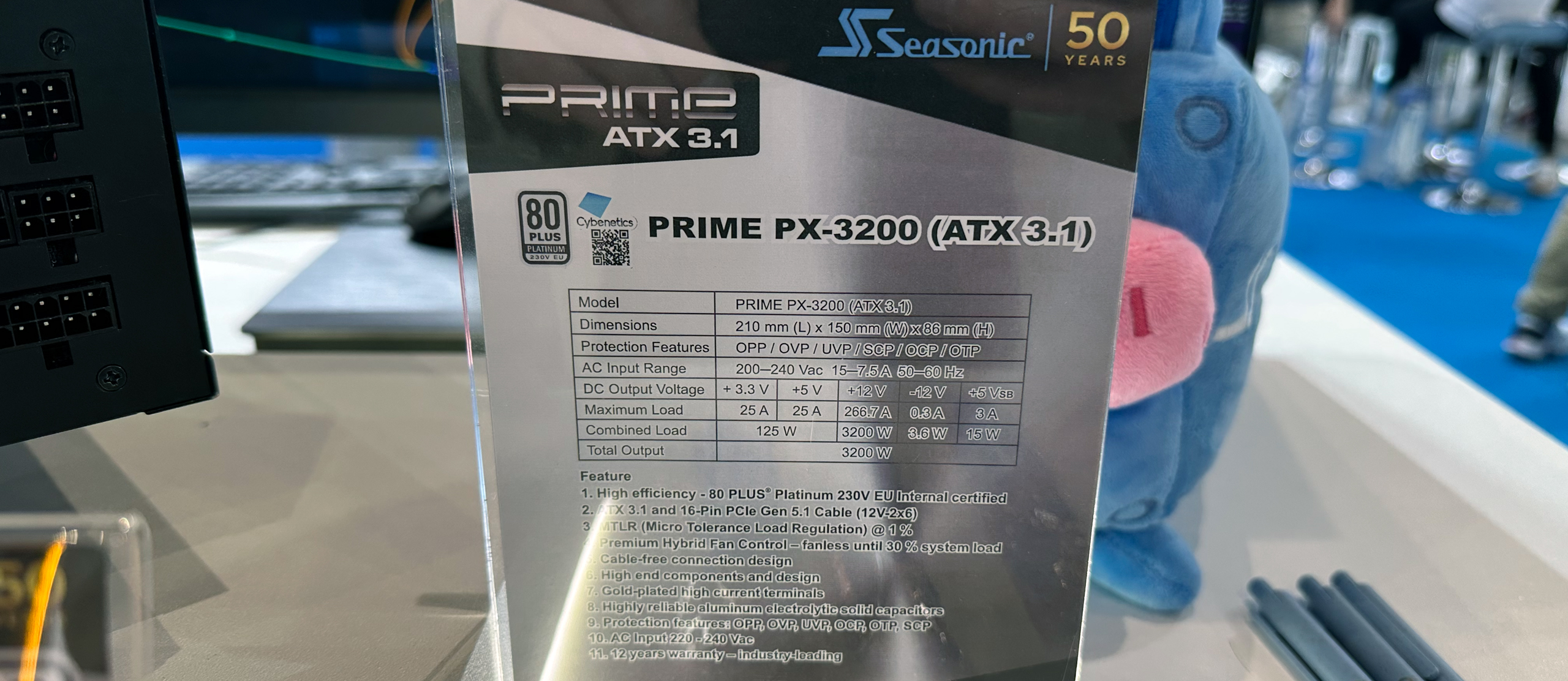

Seasonic introduced the Prime PX-2300, a 3,200W 80+ Platinum ATX 3.1 model, at the show, beating Asus’s 3,000W PSU that the company showcased earlier this week. The new unit features four 12V-2×6 connectors for high-performance gaming or AI/HPC GPUs, and to that end, it powered a server running four Nvidia datacenter-grade graphics cards and an AMD datacenter processor during the demonstration.

Latest Videos FromTom's Hardware

Watch full video here:

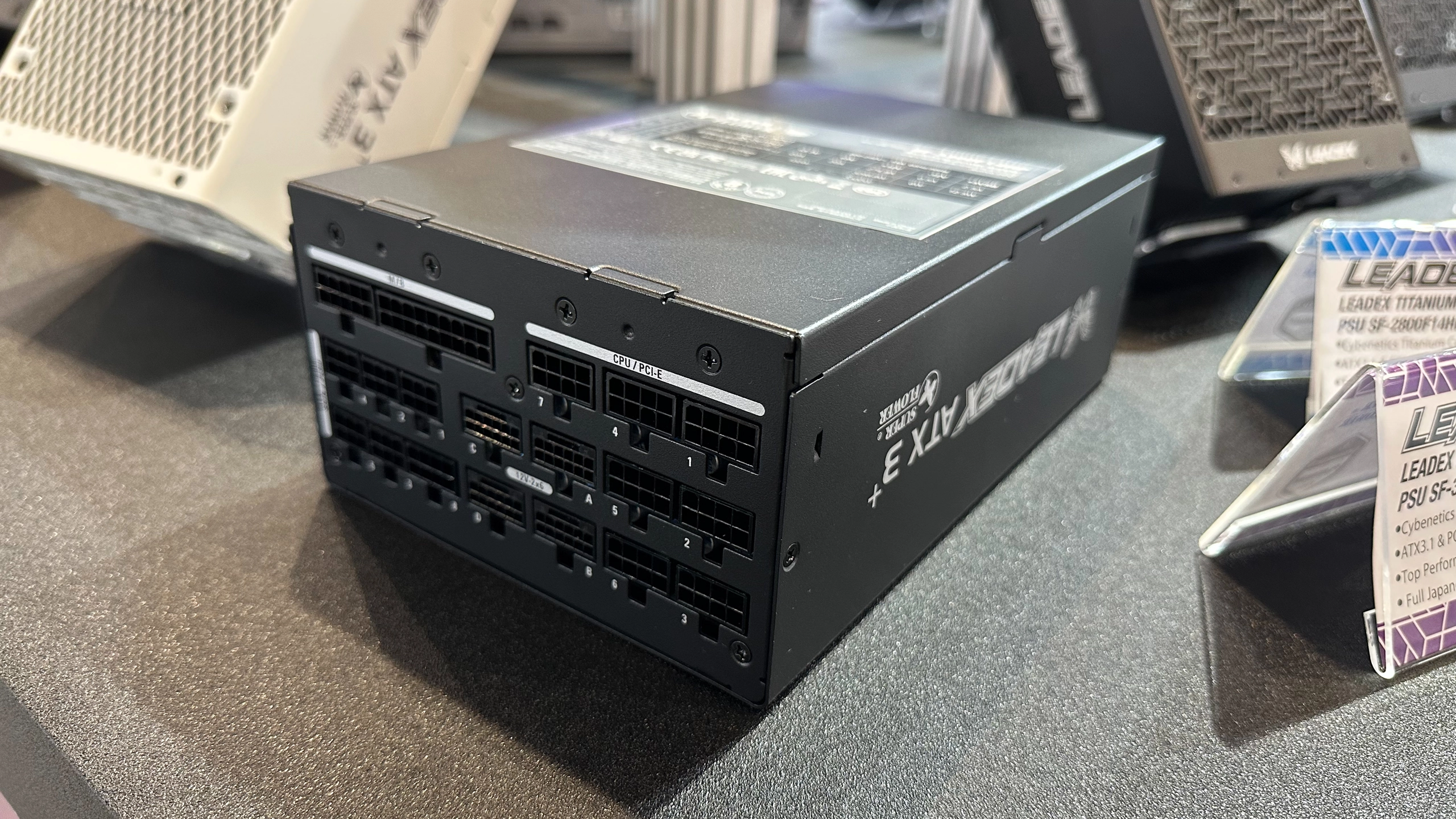

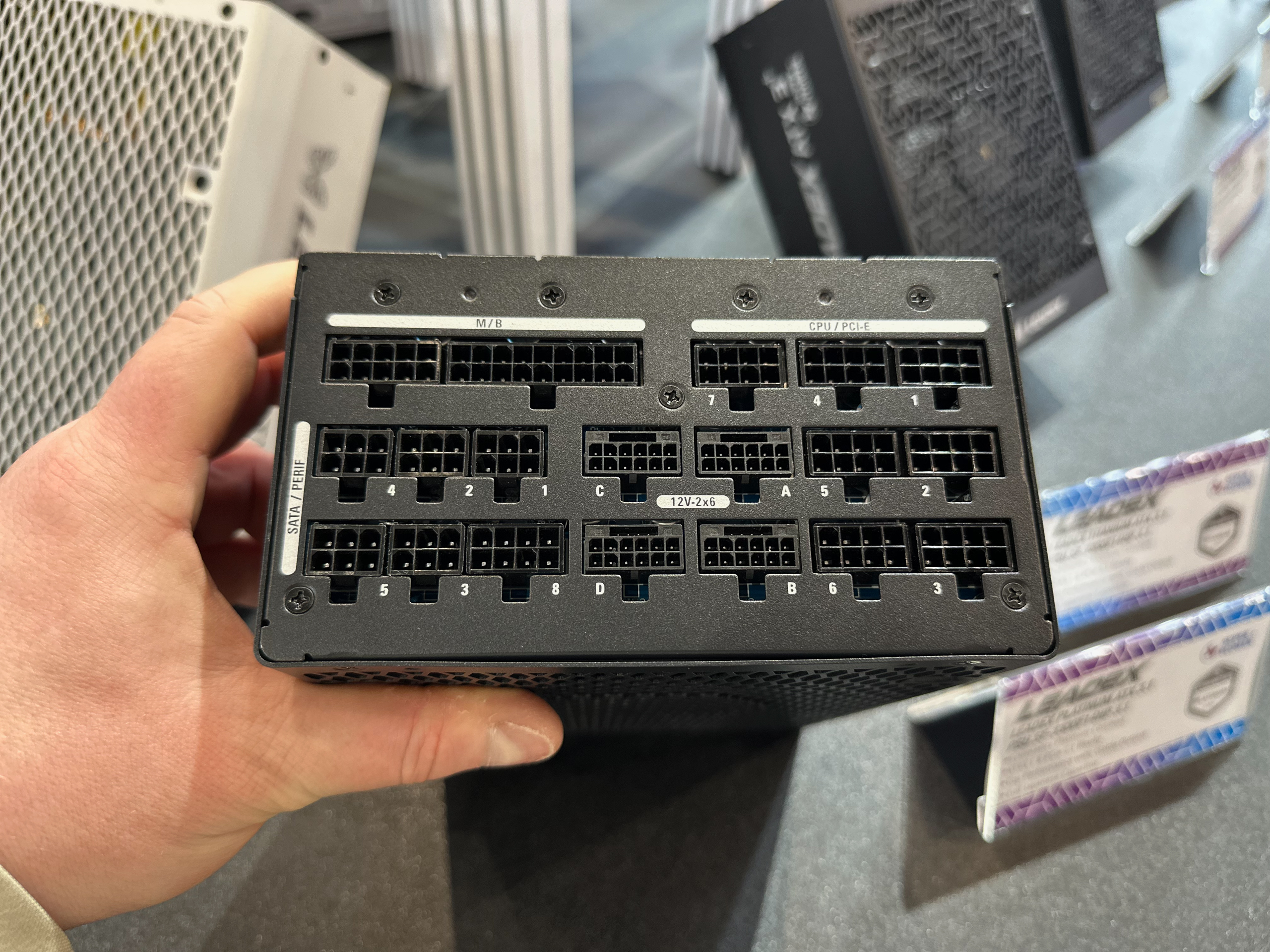

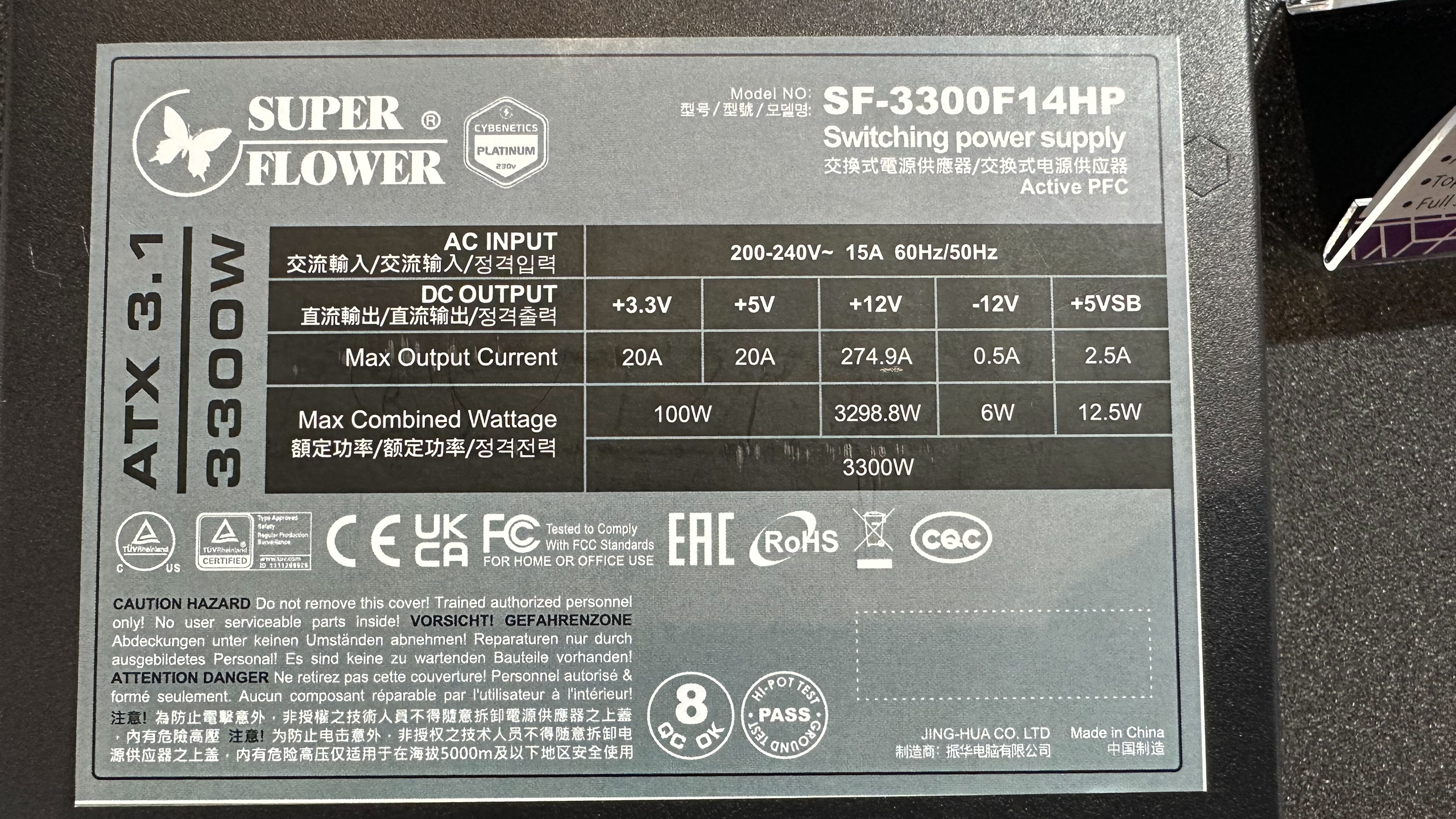

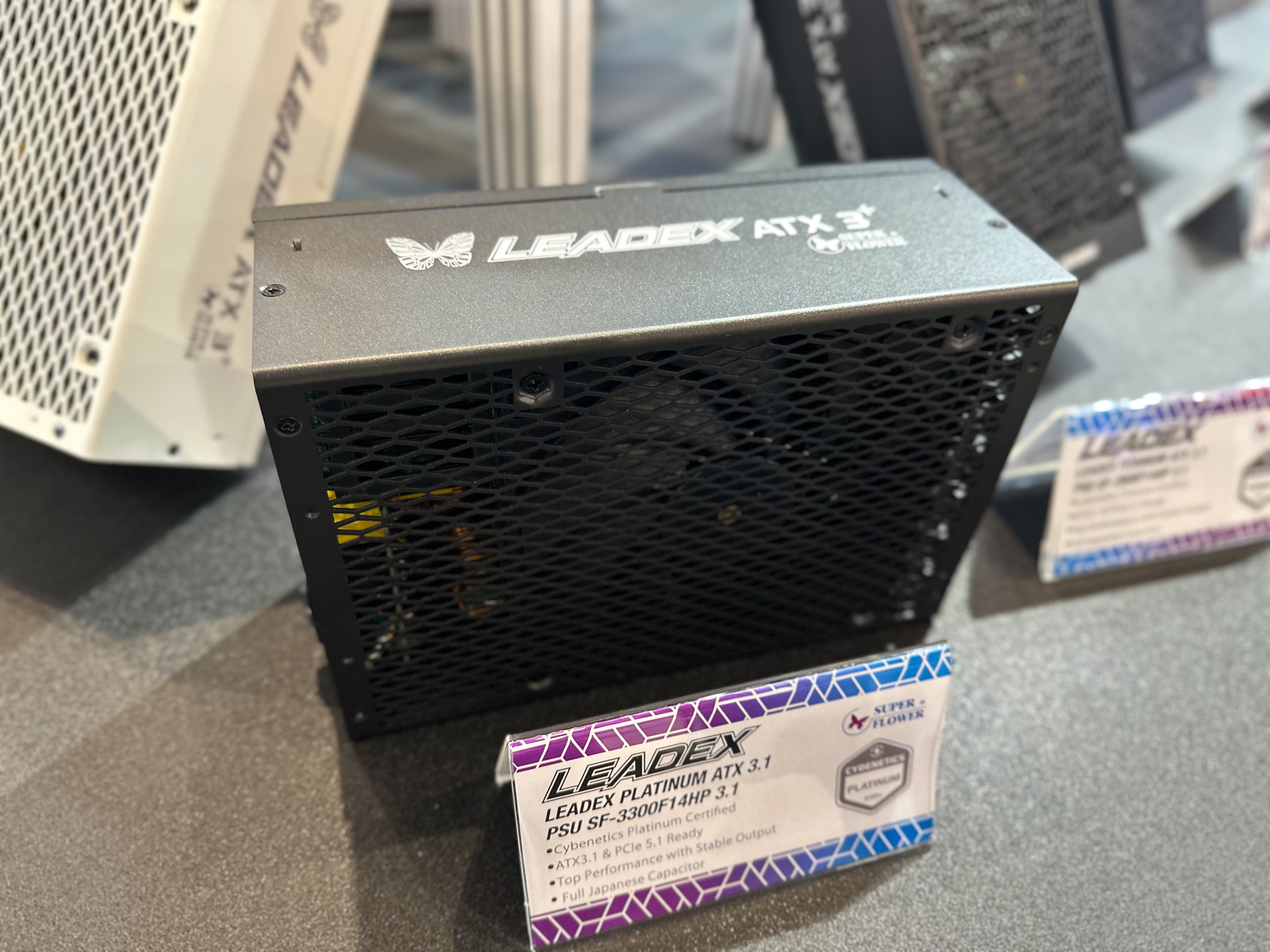

But as if 3200W is not enough, Super Flower stole Seasonic’s thunder with a 3,300W PSU. In fact, Super Flower again displayed the most powerful PSU at Computex — the Leadex SF-3300F14HP. This 3300W monster is also fully ATX 3.1 compliant, offers five power rails, and is capable of supplying power to high-end processors and four GPUs using four 12V-2×6 connectors. The company expects to start its mass production late this year, so expect its wide availability in late 2025 – early 2026. As for pricing, the company’s current-generation flagship 2800W PSU costs some $899. Since the new 3300W does not really replace the previous-gen, but rather enhances the product lineup, expect it to exceed the $1,000 mark.

In any case, such high-output power supplies are not universally deployable due to electrical limitations. In North America, typical 120V/15A outlets can only support PSUs up to around 1800W (though keep in mind that the ratings of power outlets are made for peak loads, not continuous loads, so 1600W or less is a more realistic target). So, in the U.S., these CPUs are good for facilities with upgraded power circuits. By contrast, a European 16A/230V outlet (not in all countries and not in all homes, though) can easily support PSUs rated at 3,000W+, depending on efficiency and continuous load.

TOPICS

Anton Shilov is a contributing writer at Tom’s Hardware. Over the past couple of decades, he has covered everything from CPUs and GPUs to supercomputers and from modern process technologies and latest fab tools to high-tech industry trends.

9 Comments Comment from the forums

John Nemesh

Perfect for the customer looking to upgrade to Nvidia's next gen POS. I am sure that card will need at least 1000W.
Reply
lmcnabney

A fine example of a product designed for bragging rights. There just aren't setups using ATX standards that can utilize this much power. AI/HPC can use that much, but those systems can't use ATX. SLI isn't a thing with modern GPUs. Every one of these is going to be used to power a single CPU and GPU and the PS won't ever go above 50% utilization.
Reply
AquarianVibe

I think the industry is ripe for innovative solutions for more performance while consuming less power.
Reply
SomeoneElse23

On a side note, if your peak usage is about 1500W, you'll be using these at peak efficiency, they won't run as hot, and they'll last longer.
Reply
dwd999

And a lot depends on where you live. In most of the U.S. houses are normally wired for either 1800 watt or 2400 watt circuits. So people would need to have a special 25 amp circuit installed just to drive their computer power supply. Perhaps something similar to the circuits for electric stoves, clothes dryers and air conditioners. Or perhaps a special 240V circuit. And probably a second circuit for the monitor, printer, audio, etc. Hopefully users won't risk running these on underpowered circuits and burn their house down. Maybe it won't be as bad for some businesses but how many will be willing to spend for the extra wiring, especially if they're leasing their site.
Reply
bill001g

They have to have something "new" from comdex. Not very exciting this year, then again at least everything does not say AI on it like last year.
Reply
SomeoneElse23

dwd999 said:
And a lot depends on where you live. In most of the U.S. houses are normally wired for either 1800 watt or 2400 watt circuits. So people would need to have a special 25 amp circuit installed just to drive their computer power supply. Perhaps something similar to the circuits for electric stoves, clothes dryers and air conditioners. Or perhaps a special 240V circuit. And probably a second circuit for the monitor, printer, audio, etc. Hopefully users won't risk running these on underpowered circuits and burn their house down. Maybe it won't be as bad for some businesses but how many will be willing to spend for the extra wiring, especially if they're leasing their site.
Fortunately circuit breakers will trip before fires start.
If properly wired...
But your point is valid. If you intend to really pull close to full capacity power, you're going to want a 220/240 outlet that is capable of 15-20A.
The average user isn't going to go there, or they will only use a fraction of the max power as it'll be tripping their breaker.
Reply
jp7189

lmcnabney said:
A fine example of a product designed for bragging rights. There just aren't setups using ATX standards that can utilize this much power. AI/HPC can use that much, but those systems can't use ATX. SLI isn't a thing with modern GPUs. Every one of these is going to be used to power a single CPU and GPU and the PS won't ever go above 50% utilization.
Atx is the standard for AI workstations, and that's exactly what this is targeted at.
Reply
jp7189

dwd999 said:
...Or perhaps a special 240V circuit. And probably a second circuit for the monitor, printer, audio, etc.
Check the input requirements for those devices. You might be surprised to learn switching power supplies in almost all electronics will accept 100-240 v range.
Reply
