Radeon RX 590 Review: AMD’s First 12nm GPU Hits 225W
Why you can trust Tom's Hardware
Power Consumption
This board’s 238W of power consumption in a gaming workload almost reaches the level of AMD’s Radeon RX Vega 56.
The 245W we measure during FurMark is ultimately only constrained by XFX’s power limit and the cooler’s inability to keep up. Spikes as high as 300W are downright unbecoming of a mainstream graphics card.
Voltage readings averaging 1.18V during our gaming sequence are right about what we expected. They remain consistent so long as the card isn’t thermally bottlenecked.
Load distribution between the rails is good, as our motherboard’s PCIe slot never even comes close to the maximum-allowed 5.5A. Compared to the first Polaris-based cards, which violated that limit, AMD clearly learned its lesson and is now configuring power consumption correctly.
The following graphs illustrate power consumption and current flow over time at idle, during a gaming test, and in FurMark.

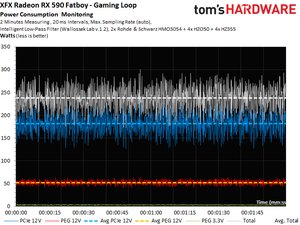

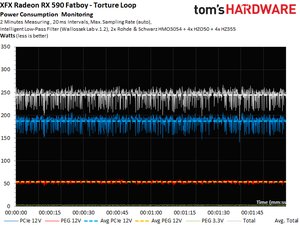

Power Consumption Over Time

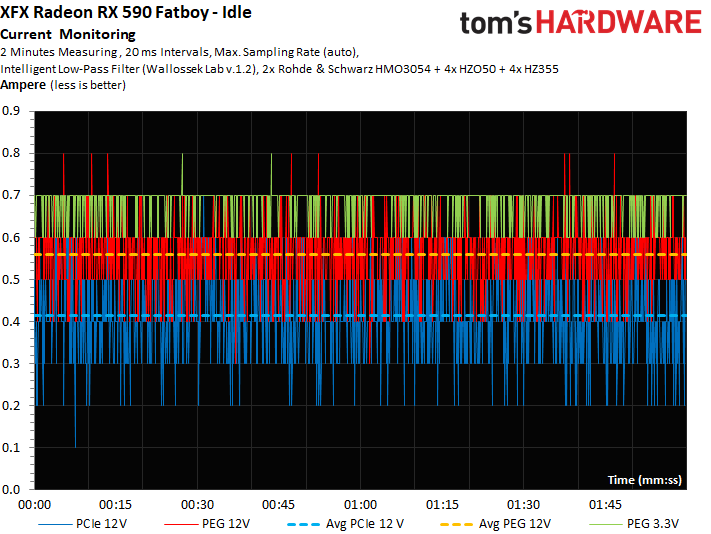

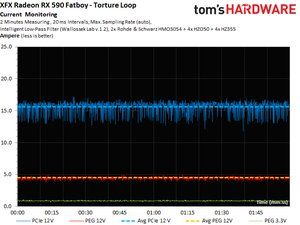

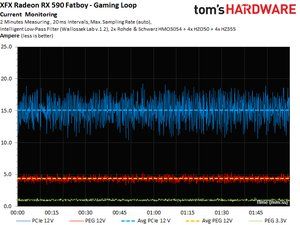

Current Over Time
MORE: Best Graphics Cards
MORE: Desktop GPU Performance Hierarchy Table
MORE: All Graphics Content
Current page: Power Consumption
