Anti-Aliasing Analysis, Part 2: Performance

Page 17 of 19:

Morphological Anti-Aliasing: 1920x1080

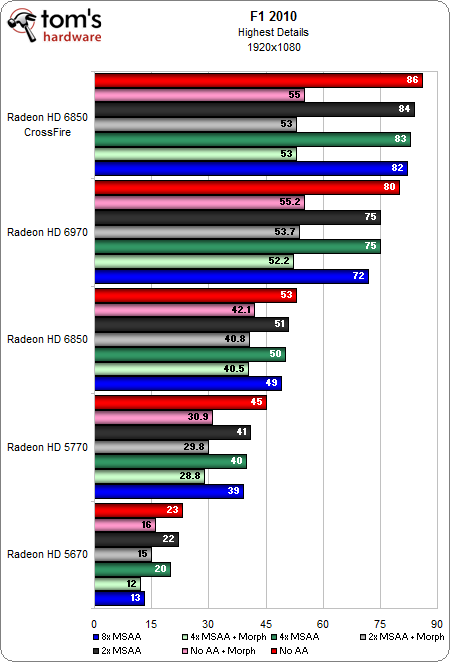

As you can see below, the performance hit caused by morphological AA is often too great to make it a viable option at 1920x1080. Having said that, this mode is designed to be used in specific circumstances where AA support is not built in to the game engine.

Current page: Morphological Anti-Aliasing: 1920x1080

Prev Page Morphological Anti-Aliasing: 1680x1050 Next Page Supersampling Anti-Aliasing Benchmarks
