Corsair's CX line is aimed at users with limited budgets who still want a branded, reliable, and well-supported PSU. Today we're reviewing the second-strongest member of the family, the CX750M.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

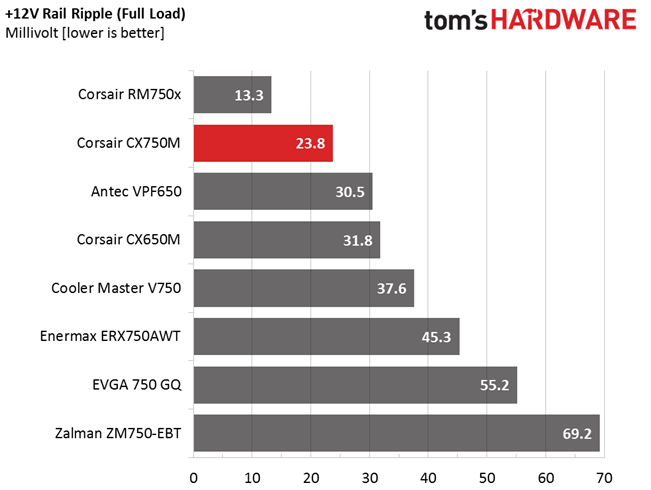

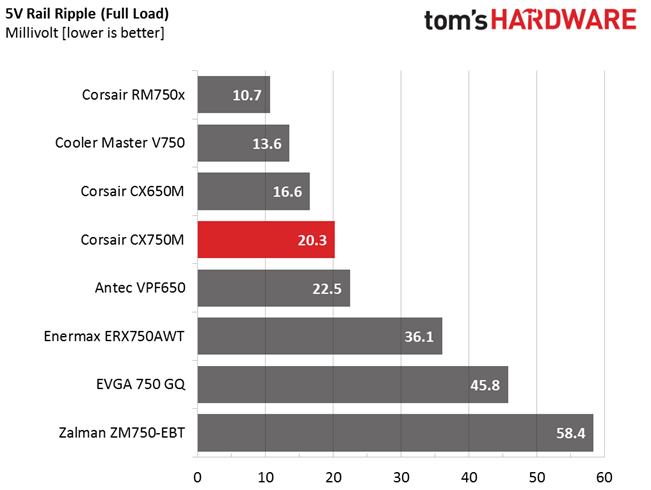

The following table includes the ripple levels we measured on the CX750M's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load5.2mV9.0mV7.1mV6.5mVPass
20% Load6.4mV9.7mV7.7mV7.0mVPass
30% Load8.9mV10.8mV8.3mV8.6mVPass
40% Load10.6mV11.8mV8.5mV8.9mVPass
50% Load12.9mV12.9mV9.8mV10.2mVPass
60% Load14.2mV13.2mV11.2mV10.7mVPass
70% Load16.0mV14.9mV11.3mV11.8mVPass
80% Load18.7mV15.9mV12.9mV13.5mVPass
90% Load21.4mV16.8mV14.2mV13.6mVPass
100% Load23.8mV20.3mV16.1mV14.8mVPass
110% Load25.9mV23.4mV16.4mV16.1mVPass
Cross-Load 112.6mV18.1mV13.1mV12.0mVPass
Cross-Load 221.3mV15.7mV13.2mV13.8mVPass
Image 1 of 4

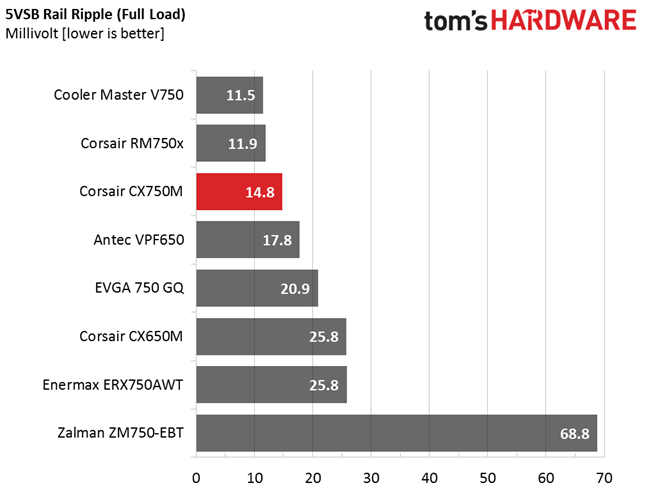

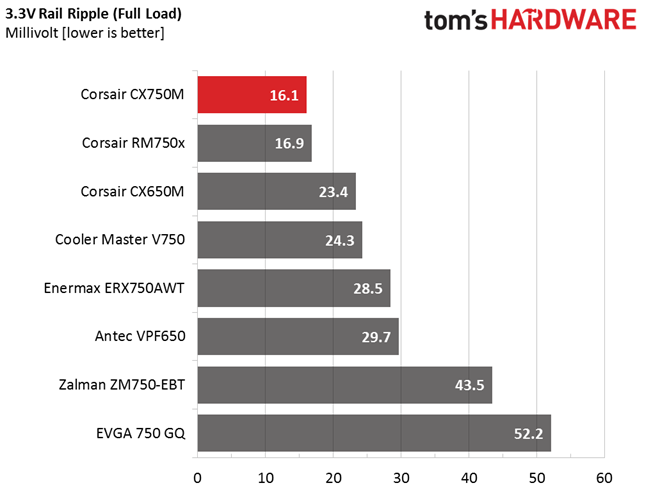

Ripple suppression is great, especially when we take this product's price into account.

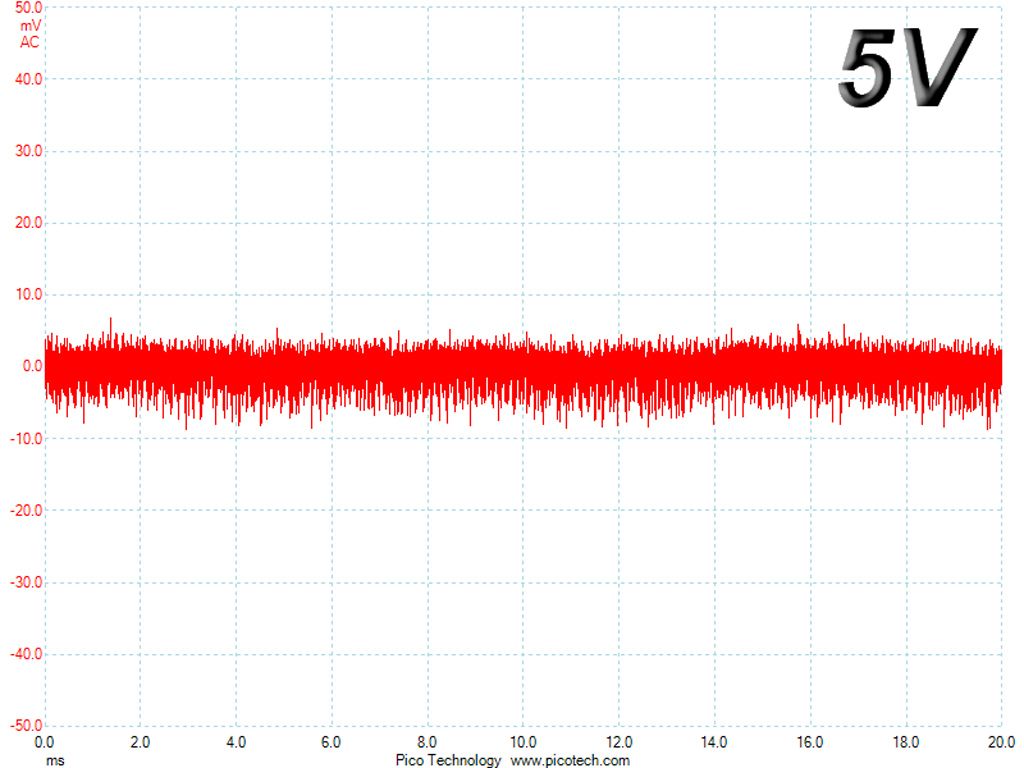

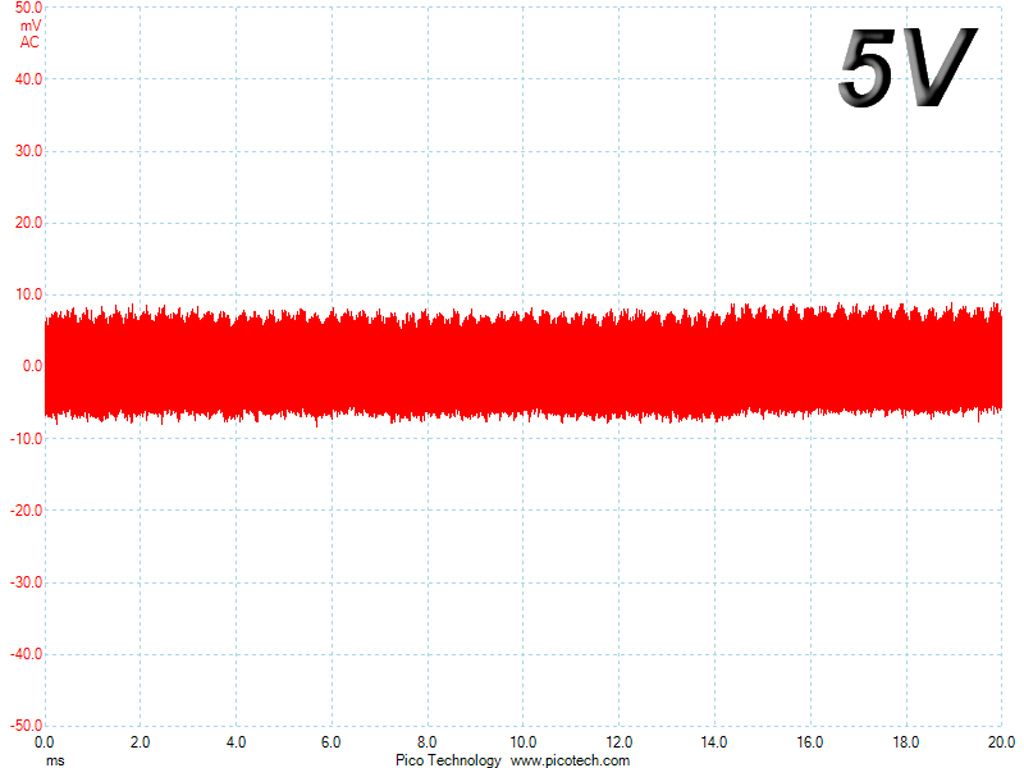

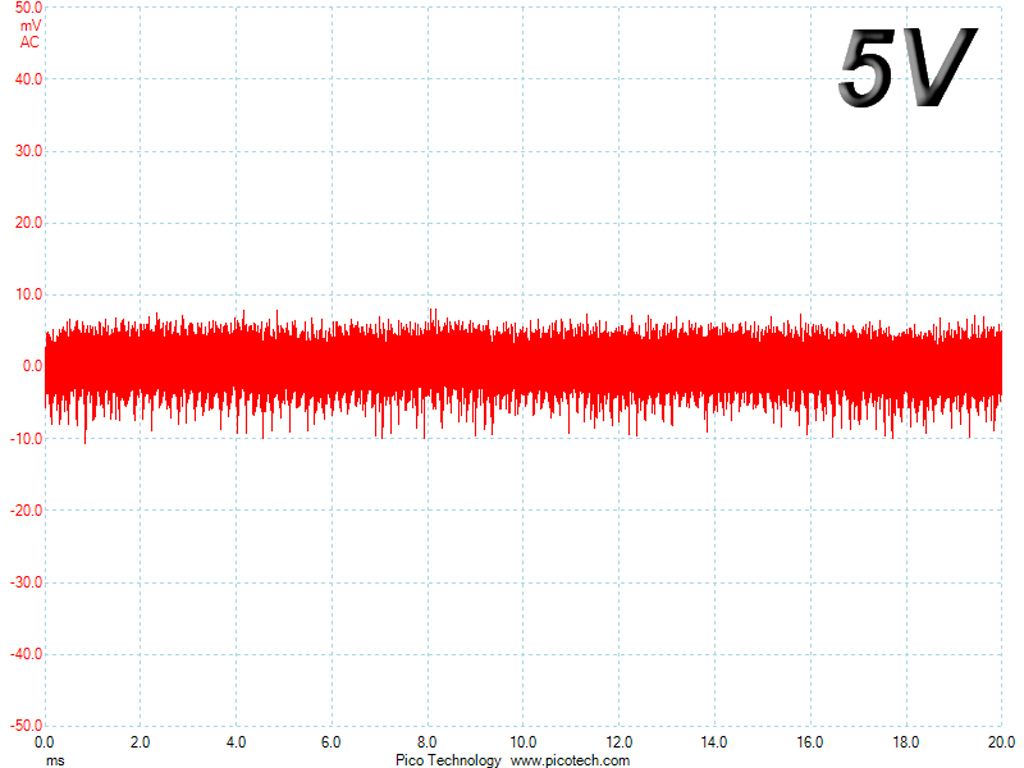

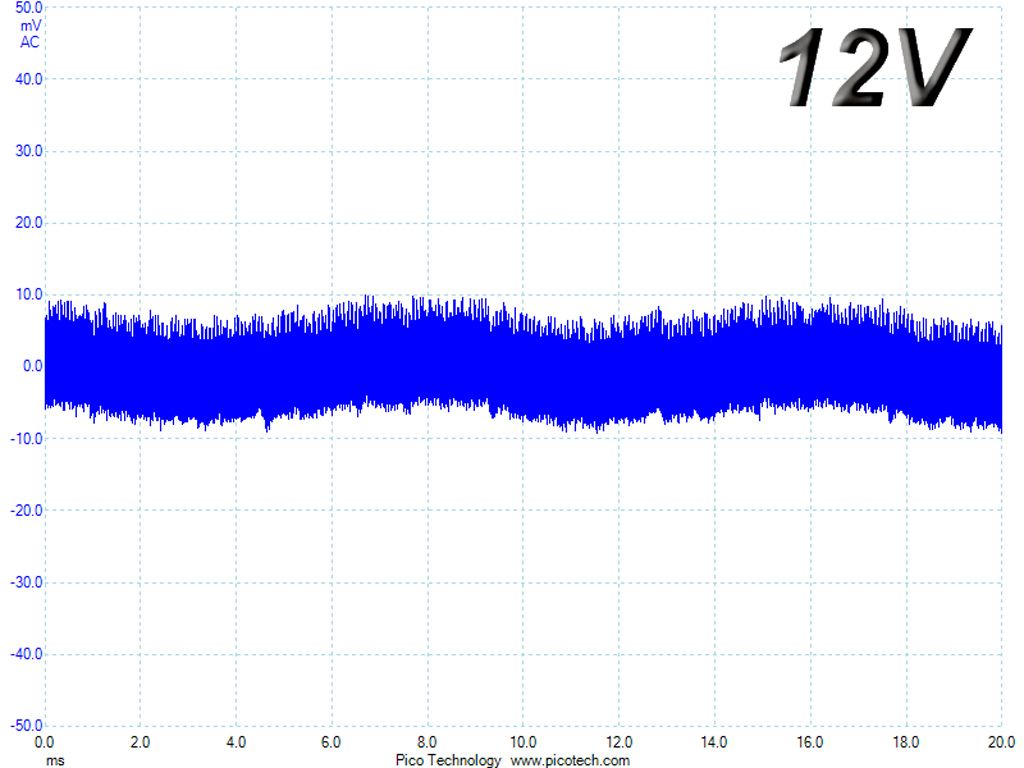

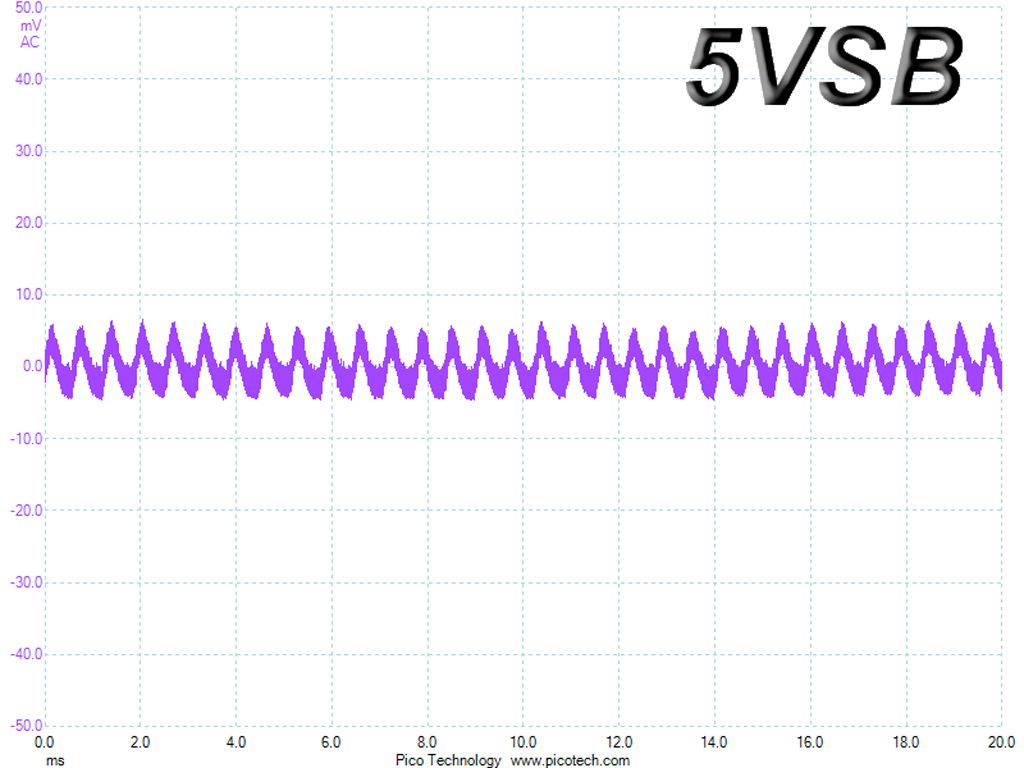

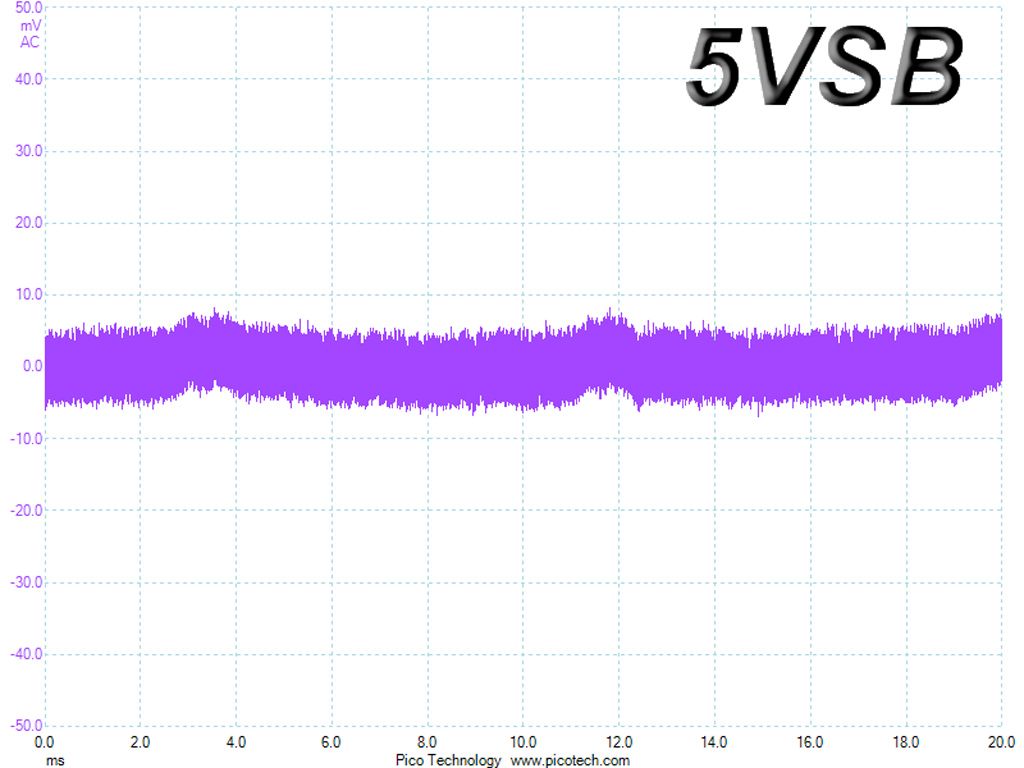

Ripple Oscilloscope Screenshots

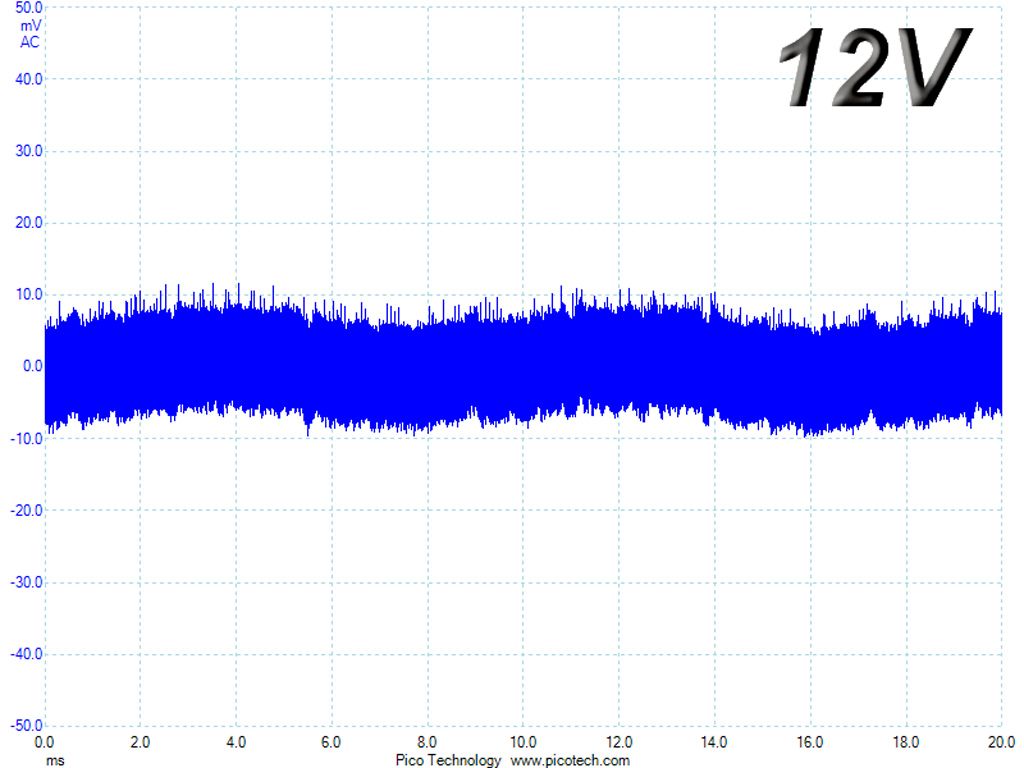

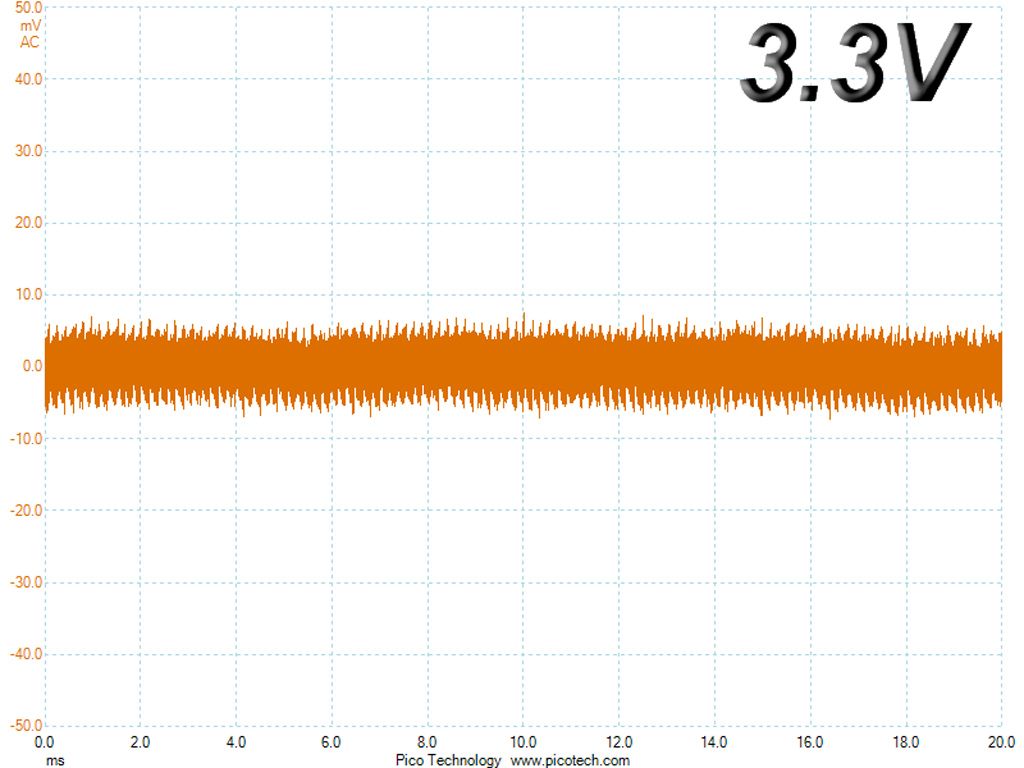

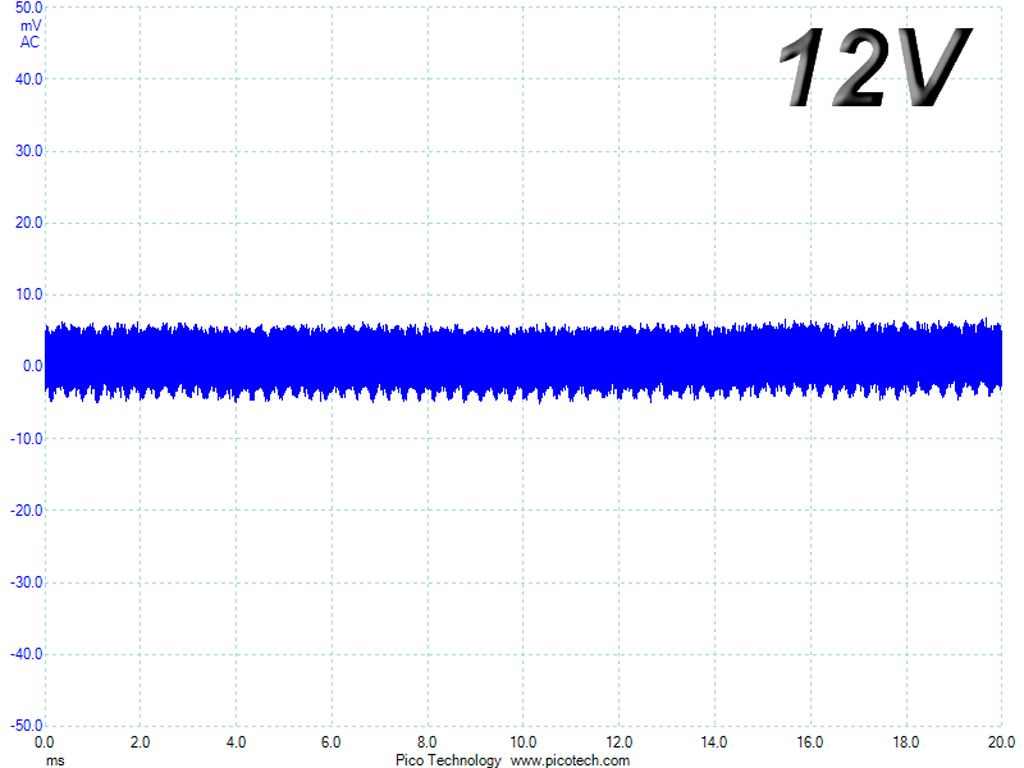

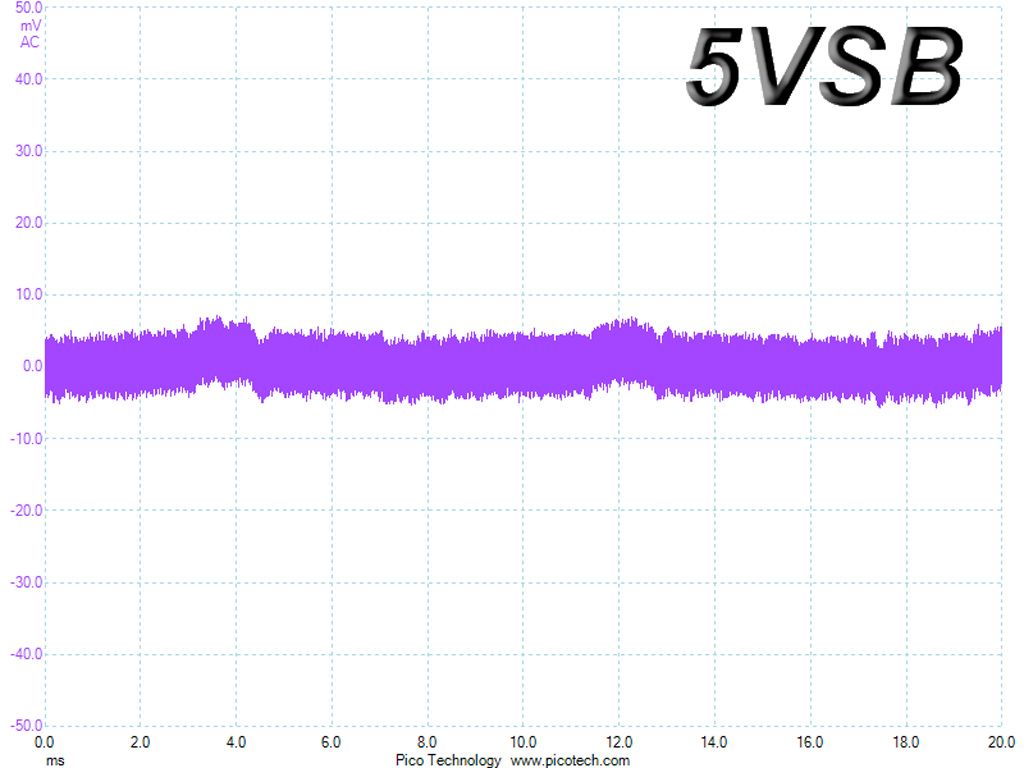

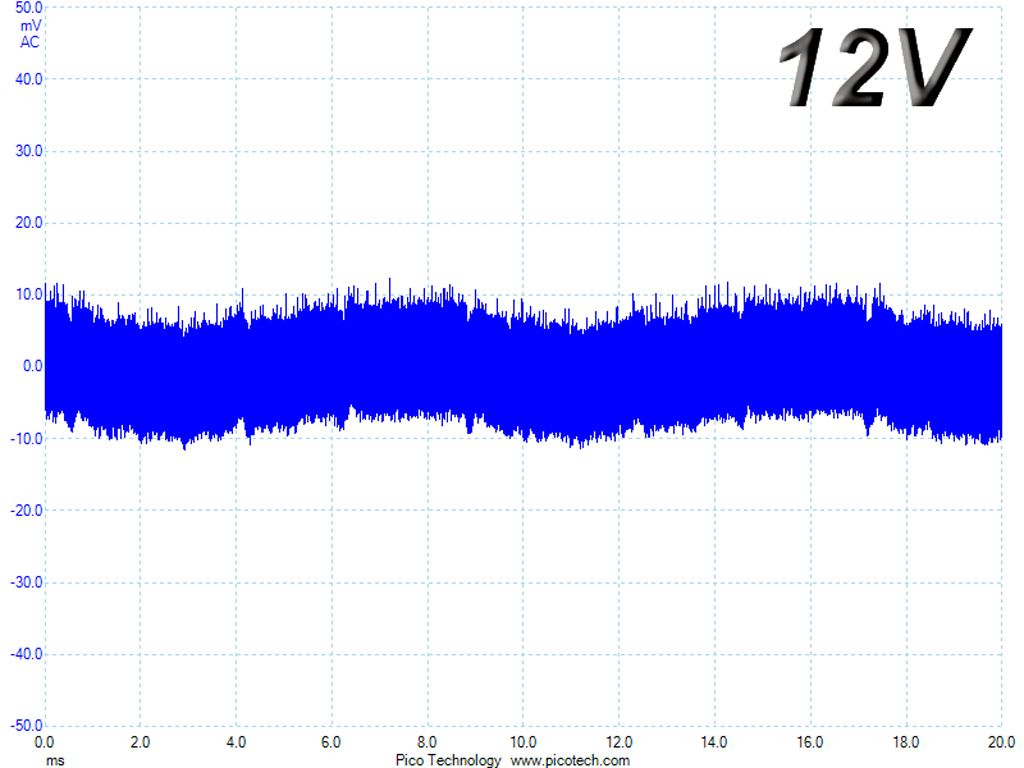

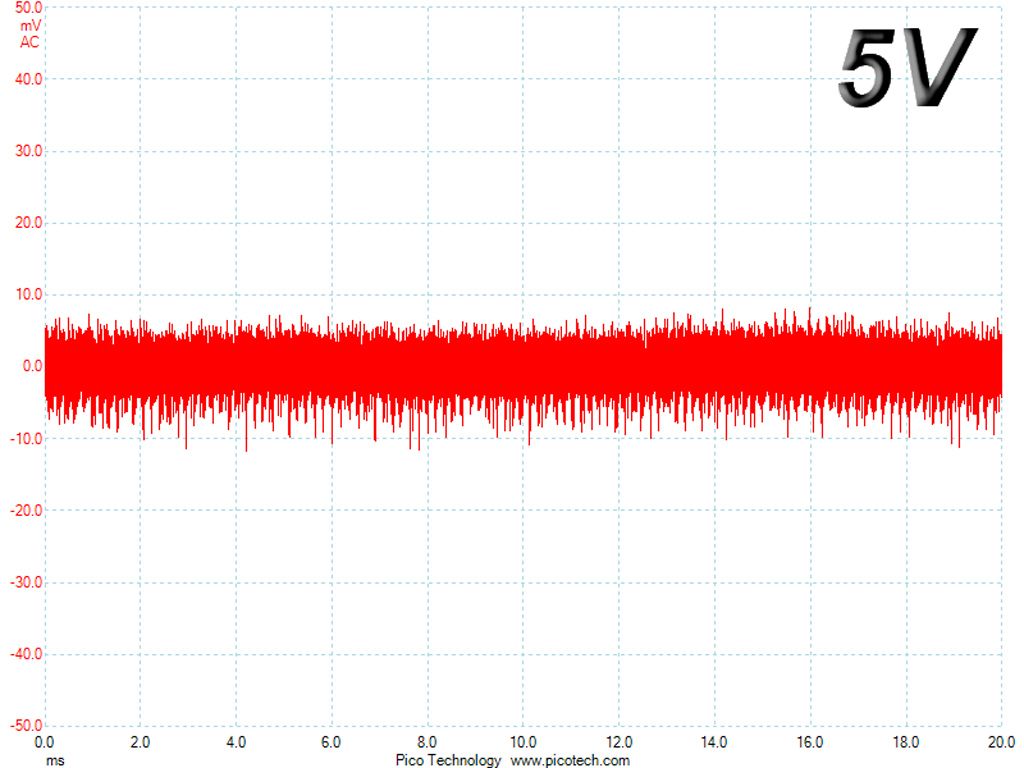

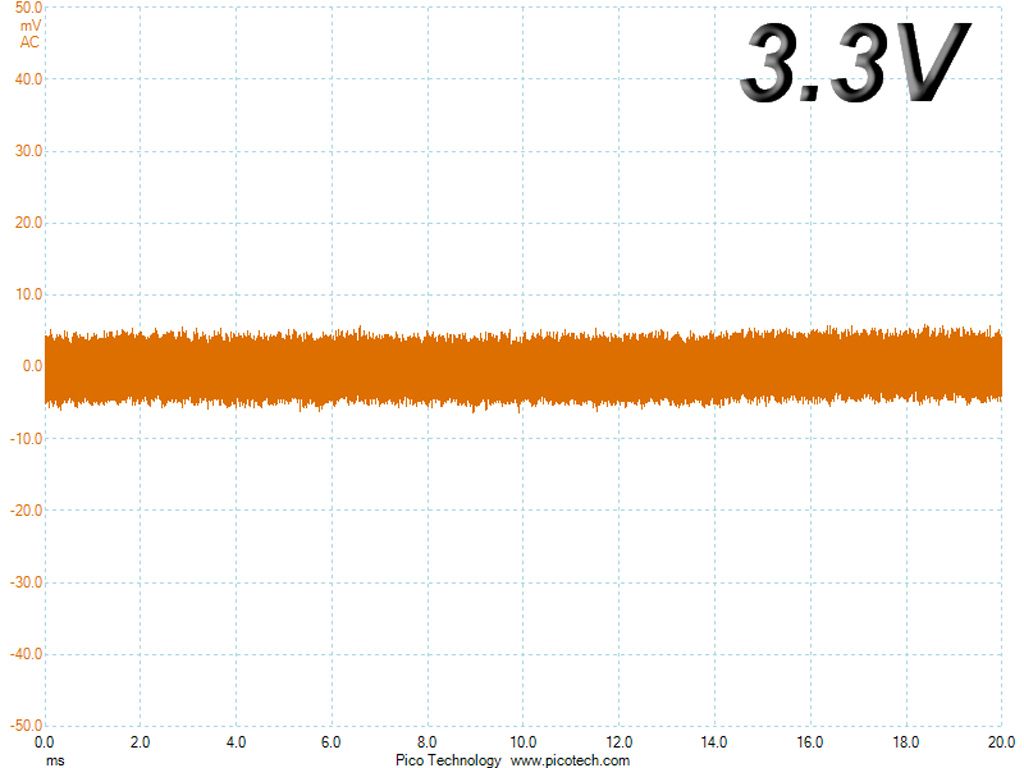

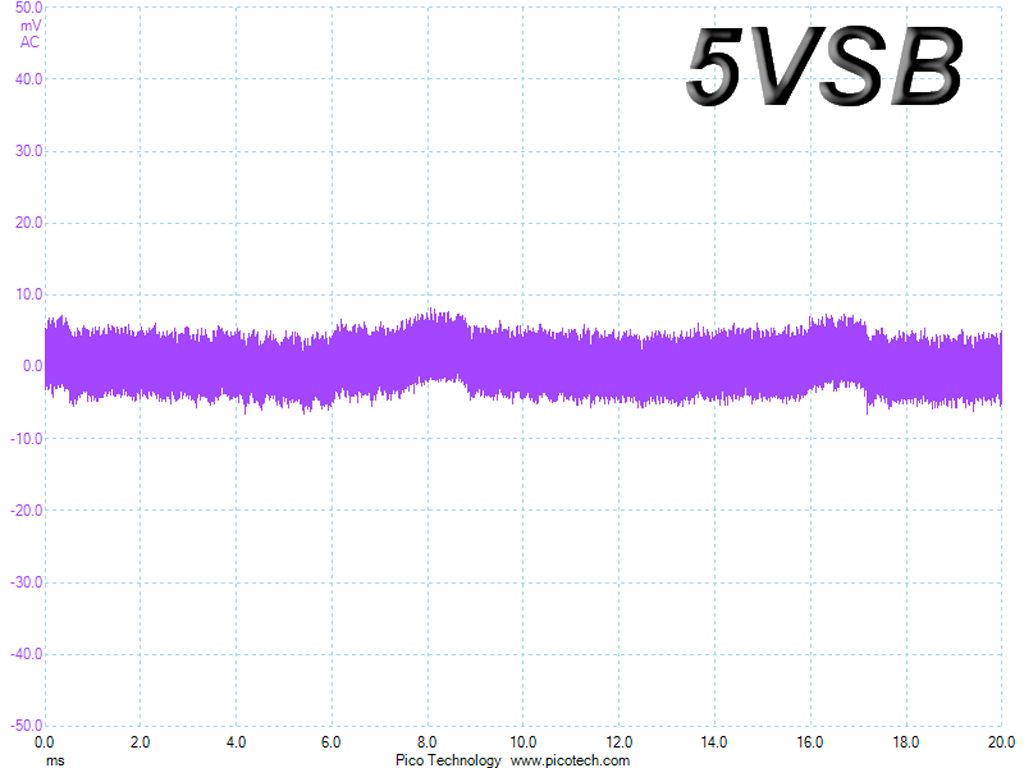

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

Ripple At Full Load

Image 1 of 4

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
