EVGA SuperNOVA 1000 G6 Power Supply Review: EVGA Meets Seasonic

EVGA tops the performance charts again.

By Aris Mpitziopoulos
published
EVGA SuperNOVA 1000 G6
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Performance Rating

(Image credit: Tom's Hardware)

We have a new performance king in the 1000W Gold category! The Corsair RM1000x follows closely behind.

Noise Rating

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

(Image credit: Tom's Hardware)

Average noise output is low, under normal operating conditions.

Efficiency Rating

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.

(Image credit: Tom's Hardware)

A small efficiency boost would be desirable here, since the G6's efficiency is actually below the G3 platform's levels.

Power Factor Rating

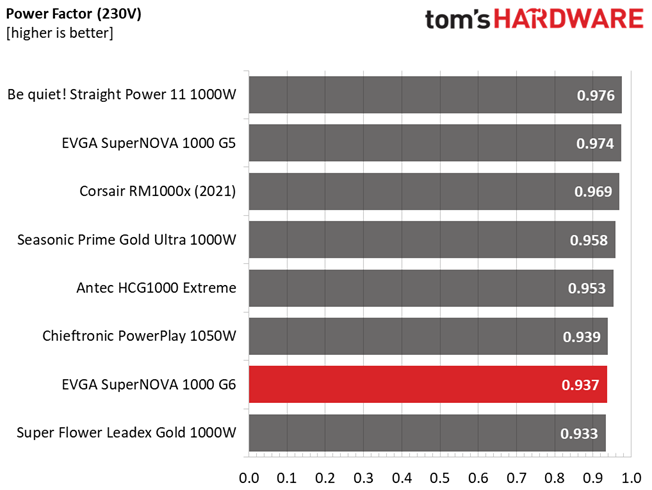

The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.

Image 1 of 2
EVGA 1000 G6
(Image credit: Tom's Hardware)

The PF readings are low, especially with 230V input.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
