Intel Core i5 & AMD Ryzen 5
We generated our stream using the "veryfast" encoder preset for this class of processors.
Battlefield 1

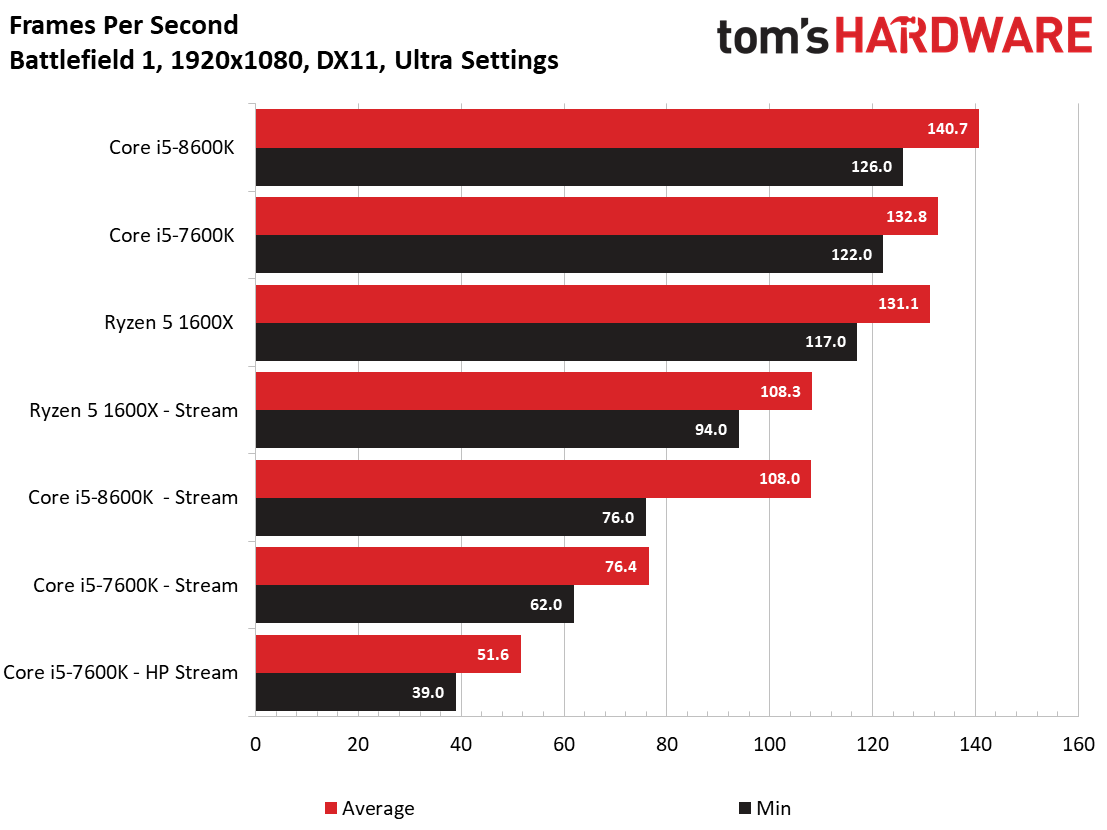

First, we run a set of baseline tests to gauge performance without an active YouTube stream. Intel's Core i5-8600K fares best, but the Core i5-7600K and Ryzen 5 1600X aren't far behind.
The story changes when we add streaming to the mix. All three CPUs lose varying amounts of performance, with Ryzen 5 1600X ending up on top (though not by much).

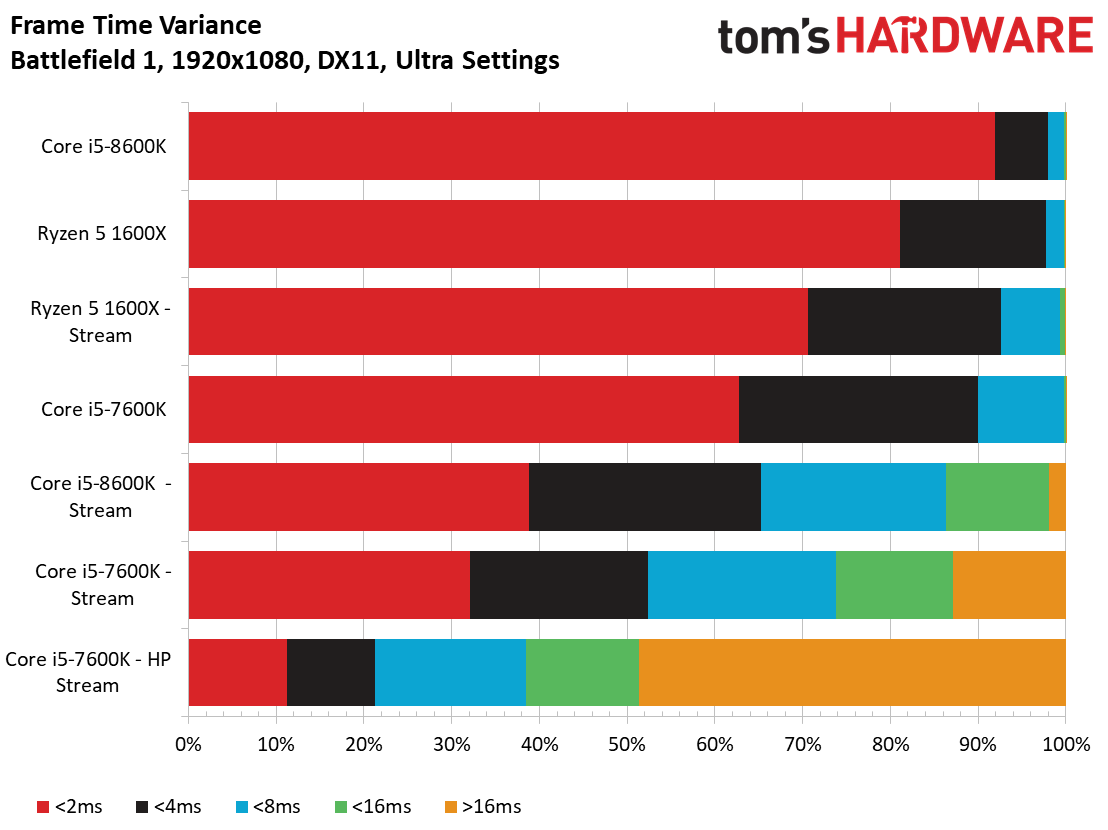

We have two entries in our charts for the Kaby Lake-based Core i5-7600K: normal and high-priority. First, let's talk about the normal results. Intel's 4C/4T architecture hamstrings the Core i5-7600K, and it loses nearly half of its average frame rate. Unsurprisingly, this has an impact on in-game frame time variance and unevenness measurements. Those numbers don't tell the entire story, though. Battlefield 1 is basically unplayable due to hitching and stuttering during our stream.

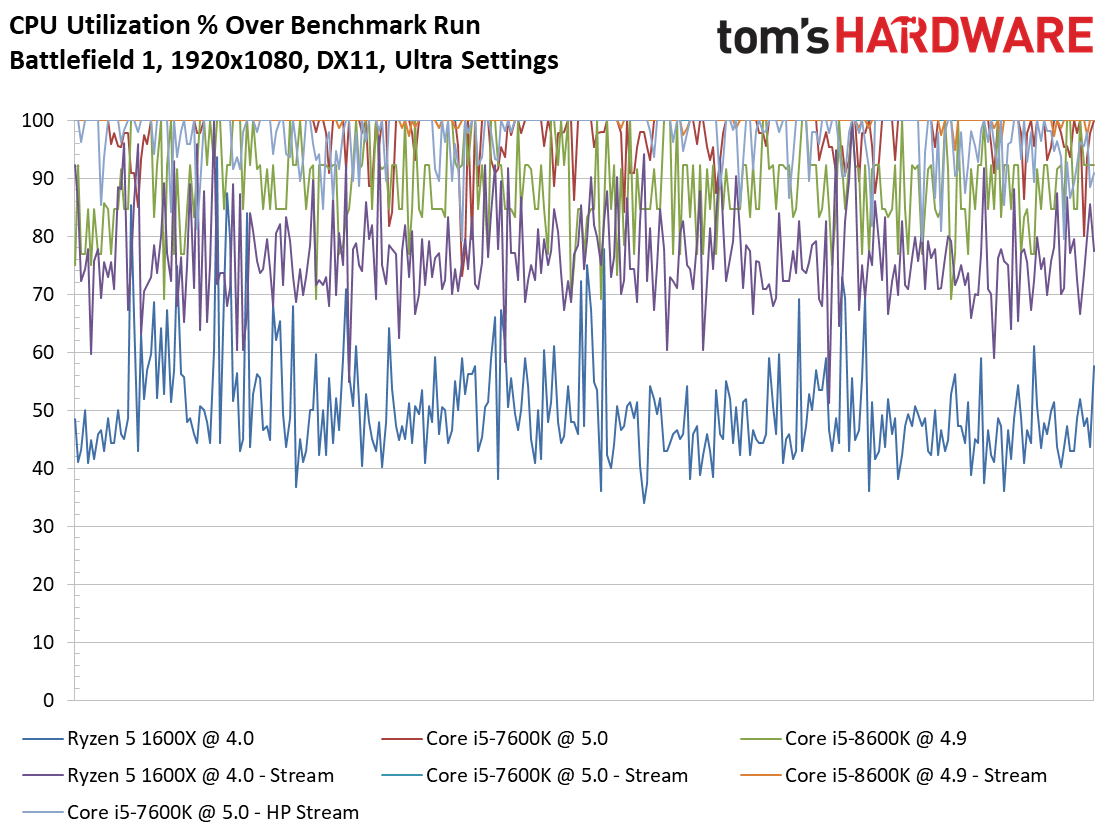

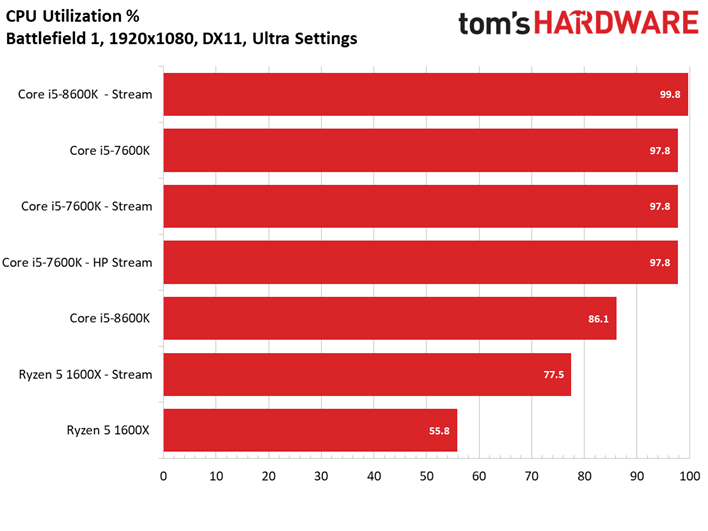

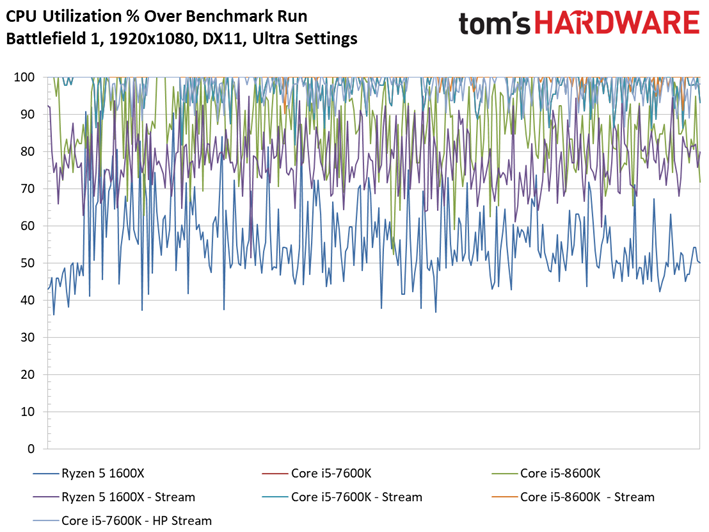

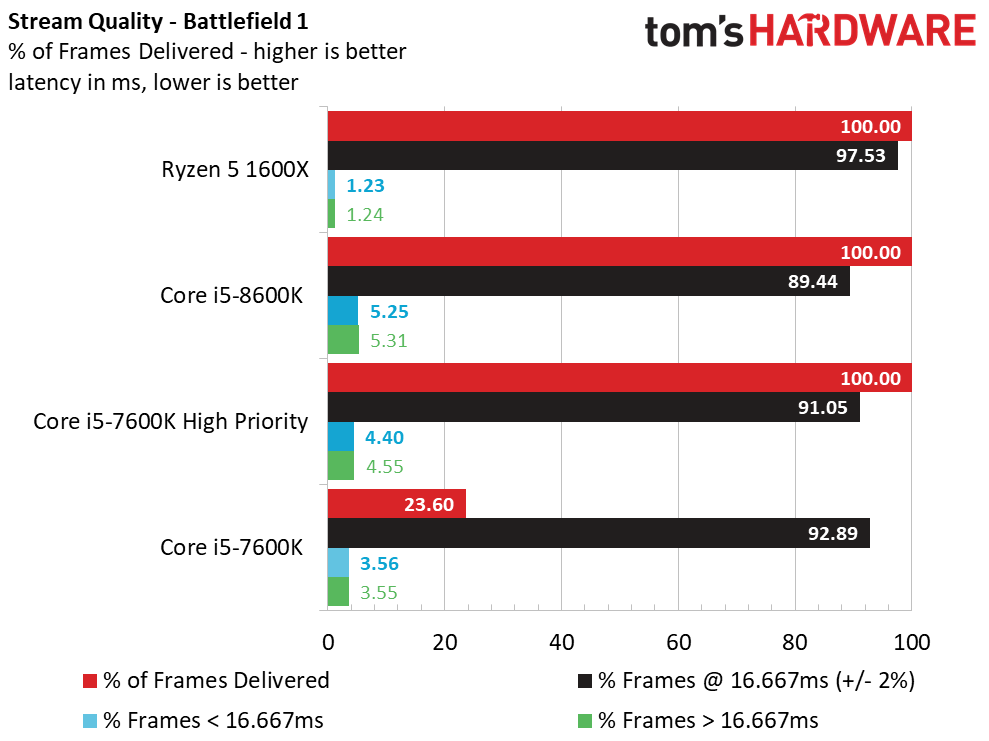

The stream quality chart shows that Core i5-7600K only delivers 23.6% of its frames during the test, which means it drops an astounding 76.4% of the frames. This also results in a completely unwatchable stream. Flip over to the CPU utilization charts; they tell a profound story. In short, Core i5-7600K doesn't have any headroom available to handle the parallelized encoding workload throughout most of our benchmark.

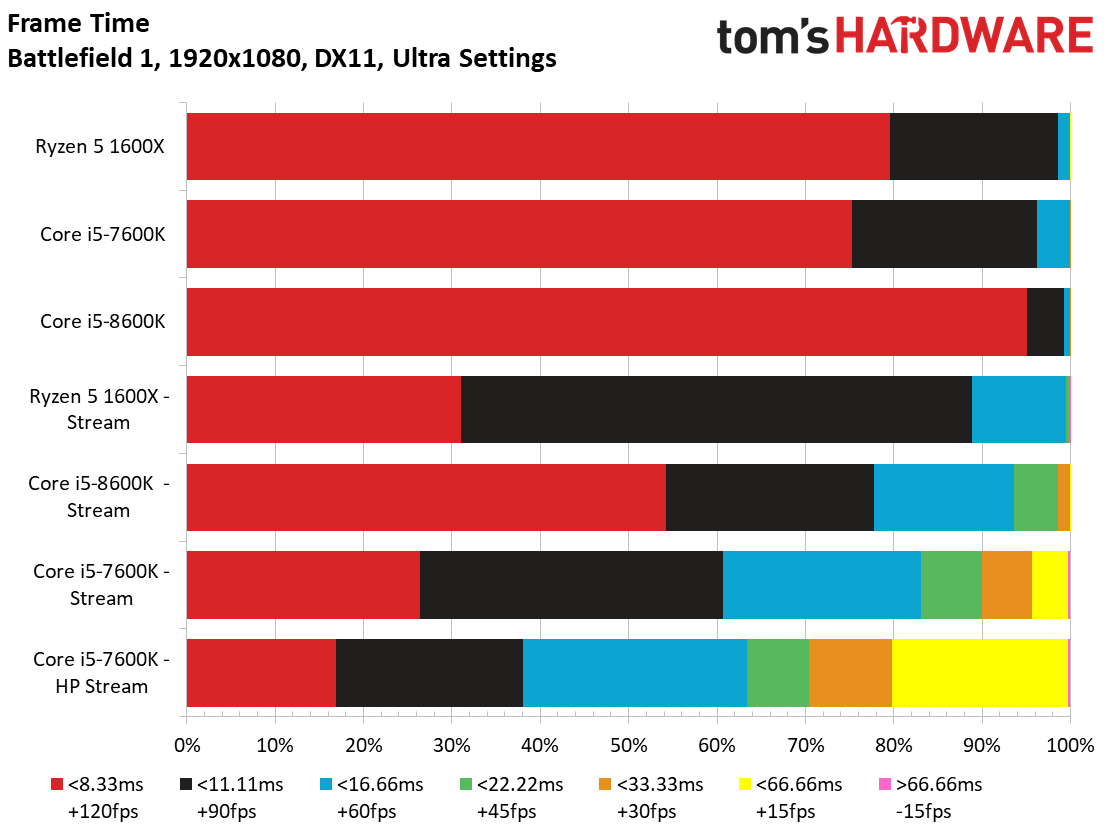

The OBS software has several different settings to optimize performance, and adjusting process priority is a common tactic to improve streaming on Kaby Lake-based processors. So, we selected the high-priority setting (marked HP Stream in the charts). Effectively, this allows the encoder to steal cycles from the game engine, resulting in lower frame rates. But the encoder successfully processes 100% of the frames. Our Core i5-7600K fell to 51.6 FPS, and its 99th percentile measurements nosedived. On the flip side, less performance means fewer frames to encode per second, which in turn boosts encoding efficiency. Surprisingly, 91.05% of the frames landed within the desirable 16.667ms range.
We could always dial-back the encoder preset to accommodate Intel's lackluster -7600K, but similarly-priced processors in the test pool handle these quality settings adeptly. While streaming, Core i5-8600K provides nearly the same in-game average frame rate as AMD's Ryzen 5 1600X and it encodes 100% of the frames. The -8600K's streaming quality isn't as impressive as Ryzen's: 89.44% of frames land within the desirable range and ~10% of frames fall either above or below the threshold. In our opinion, the stream looked fine, but wasn't as smooth as the Ryzen 5 1600X's output.

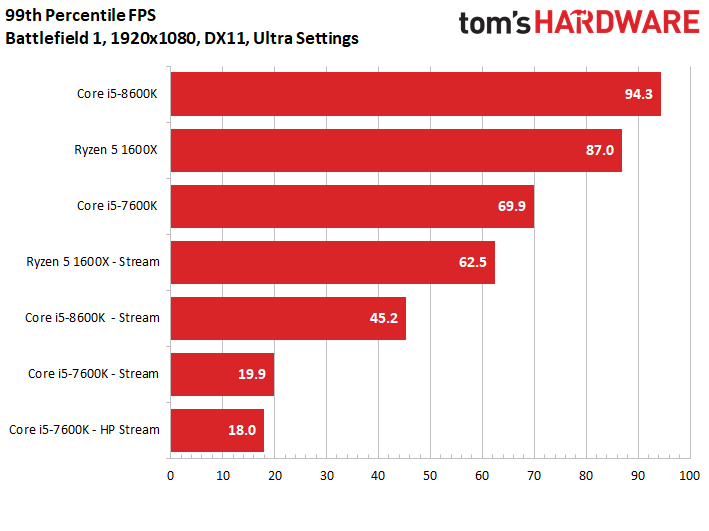

A glance at the 99th percentile FPS chart tells us that Ryzen 5 1600X delivers the smoothest gaming experience during our streaming session. It also has plenty of reserves left in the tank, even during the streaming workload. In other words, you could probably increase the encoding preset to a higher level than the competing processors.
AMD's Ryzen CPUs don't overclock as well as Core processors, though. We tuned each model to see if the Intel's available headroom turned the tables. The x264 encoder uses AVX instructions extensively, so it serves as a nice stress test for overclocking stability. No doubt, Coffee Lake's AVX offset could come in handy, though it might also result in lower frequencies during streaming if you activate the feature (or leave it on Auto in the UEFI).

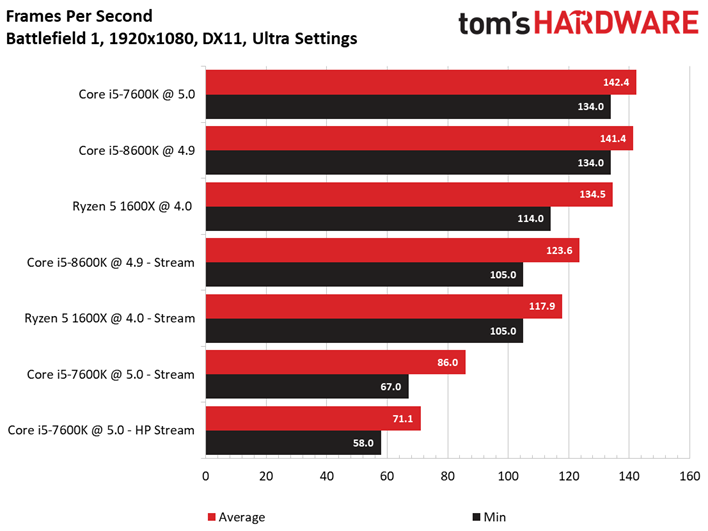

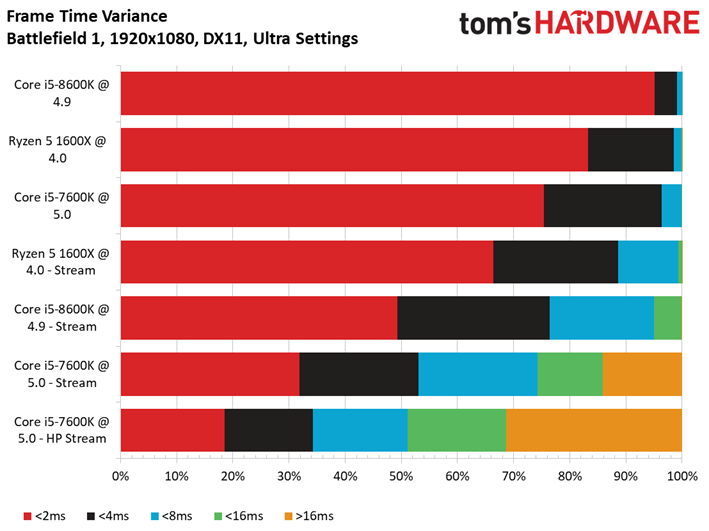

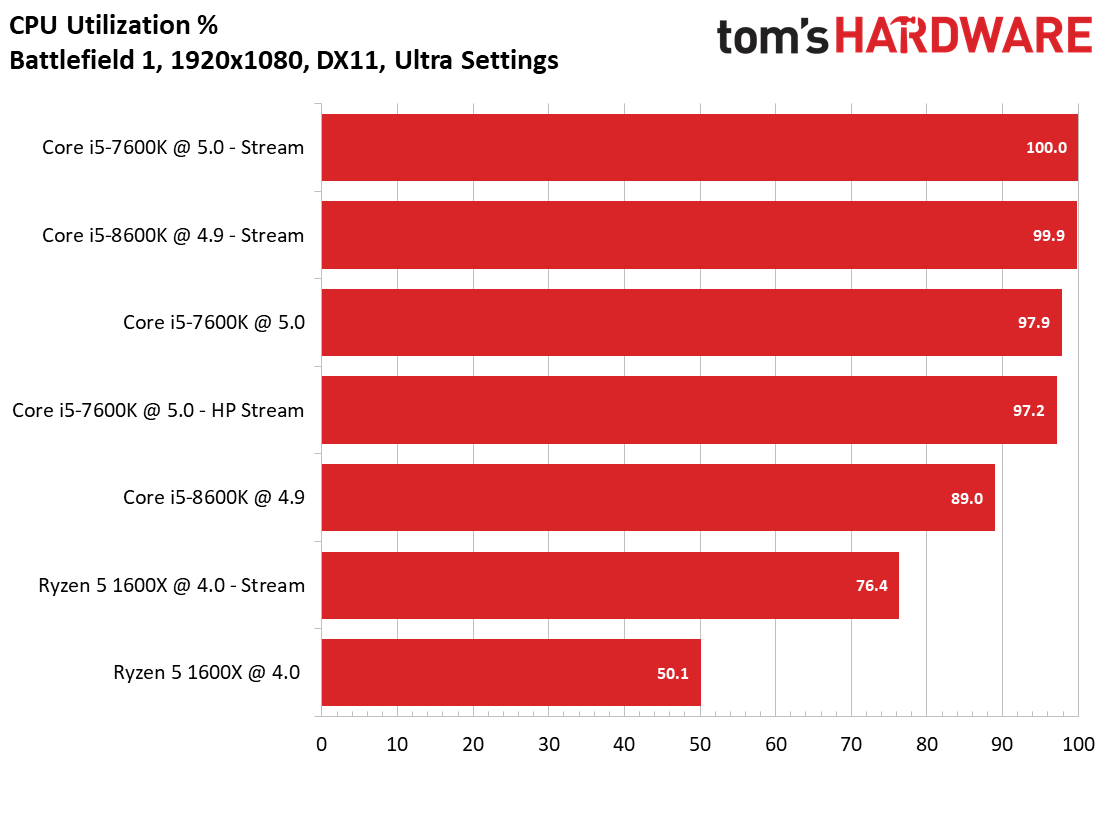

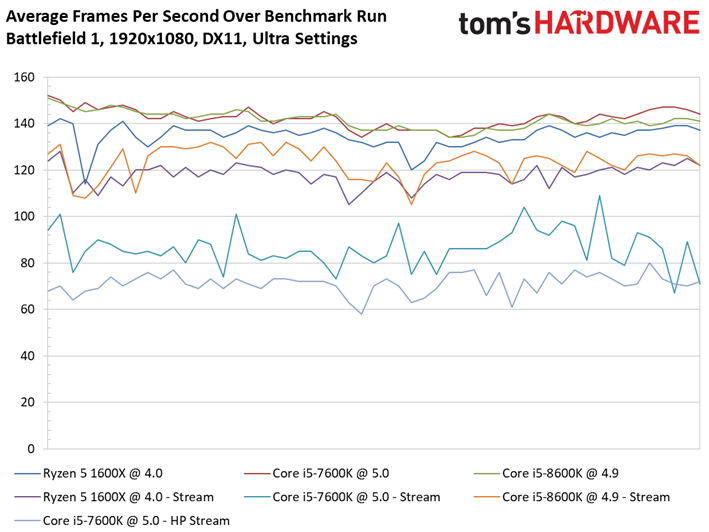

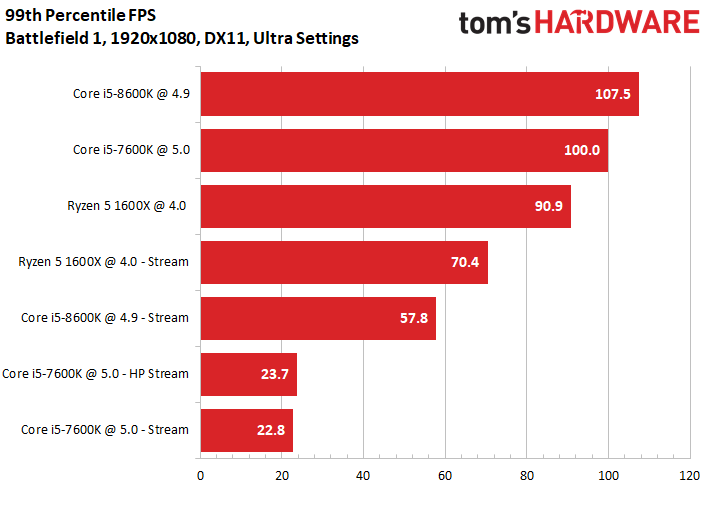

Overclocking nudges the Core i5-7600K ahead of Ryzen 5 1600X during our baseline gaming test, but it does little to rectify the issues encountered during our streaming workload. Four threads just can't hack it. Streaming suffers even after adjusting the priority status. The -7600K does serve up a higher percentage of frames with the overclocked settings and normal prioritization, but it still costs the chip game performance. Priority adjustments have little bearing on gaming smoothness: the -7600K's 99th percentile measurements are terrible with both settings.
A 4.9 GHz overclock does boost the Coffee Lake-based Core i5-8600K's 99th percentile measurements. However, it still trails Ryzen 5 1600X. The tuned -8600K is certainly competitive thanks to a compelling gaming experience, but it can't match the Ryzen 5 1600X's streaming performance. It's apparent the encoder appreciates lots of threads, so Ryzen's 12 are a big advantage.

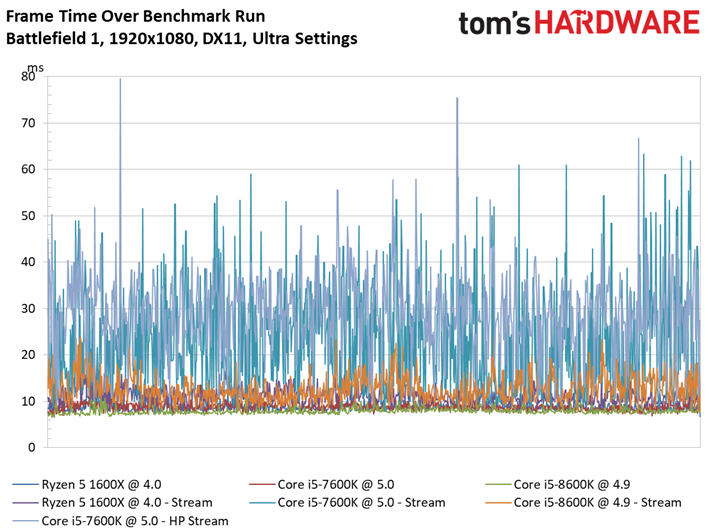

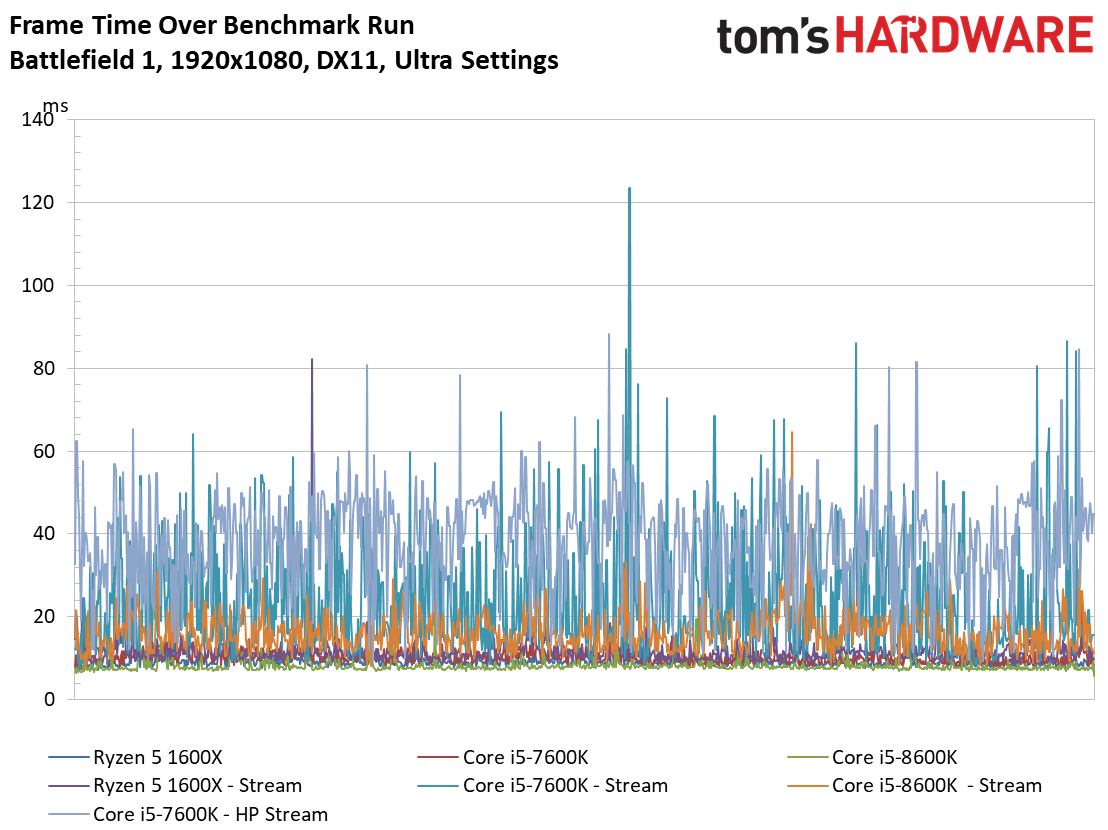

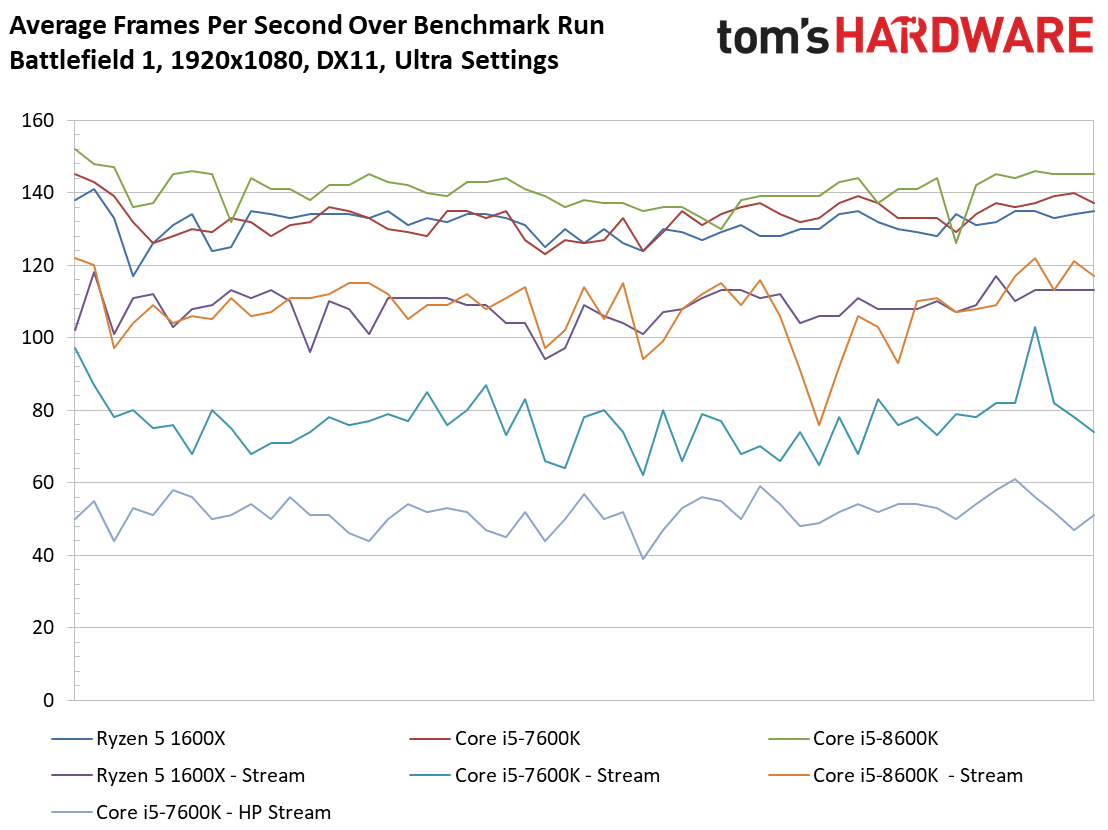

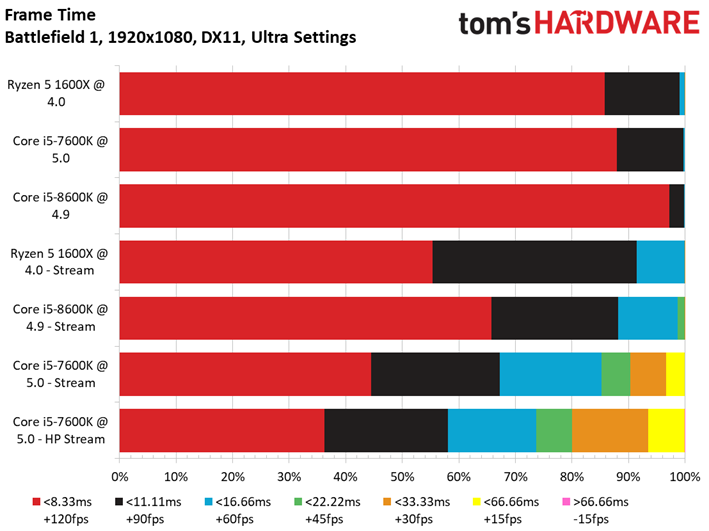

The frame time chart summarizes in-game performance well. Kaby Lake-based processors scribble their way across with extreme variance. The Core i5-8600K is also easy to spot during our streaming workload. Meanwhile, Ryzen 5 1600X provides a much more consistent in-game experience.

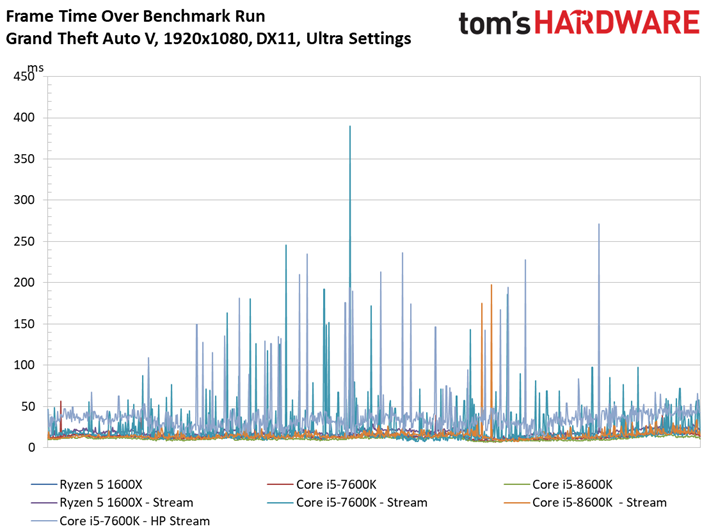

Grand Theft Auto V

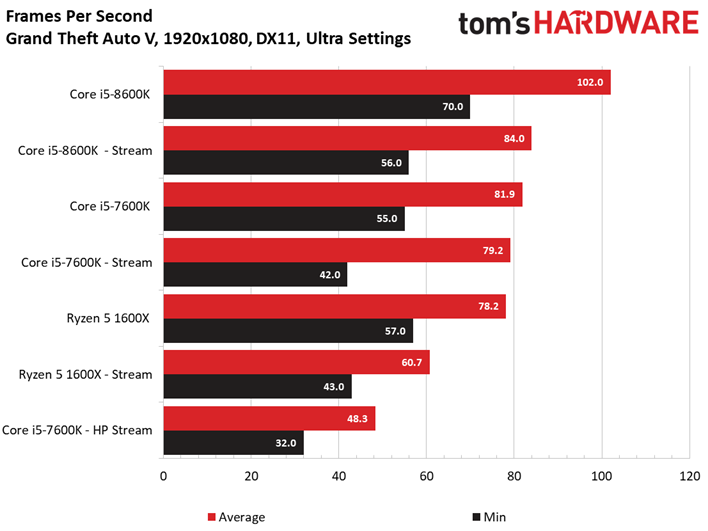

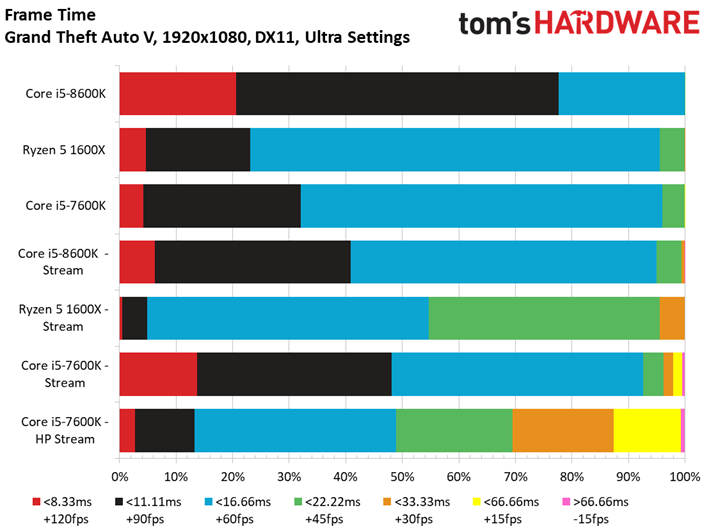

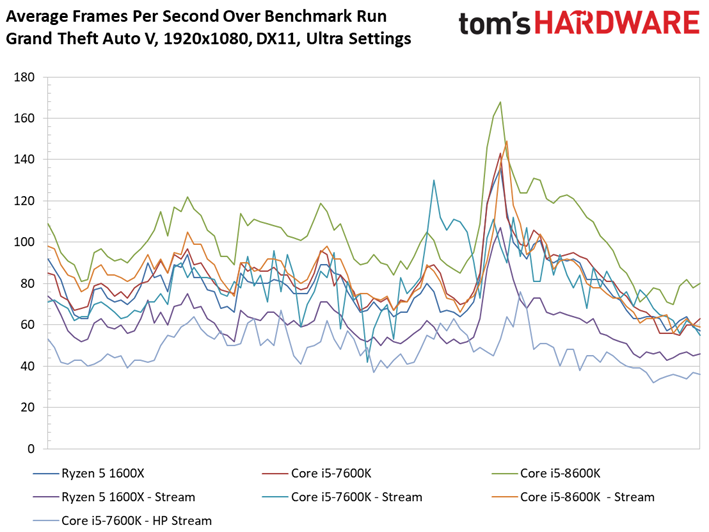

Grand Theft Auto V scales well with additional host processing resources and tends to favor Intel architectures. It isn't surprising to see the Core CPUs lead during our baseline tests. But we weren't expecting the Core i5-8600K to maintain its advantage over the competition while streaming.

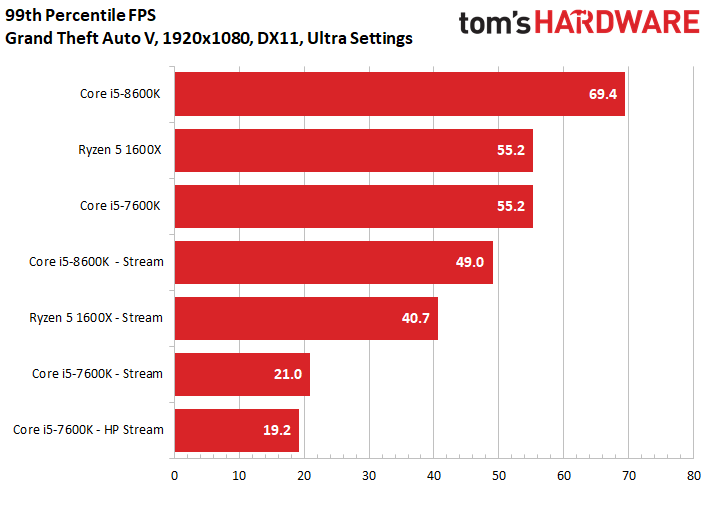

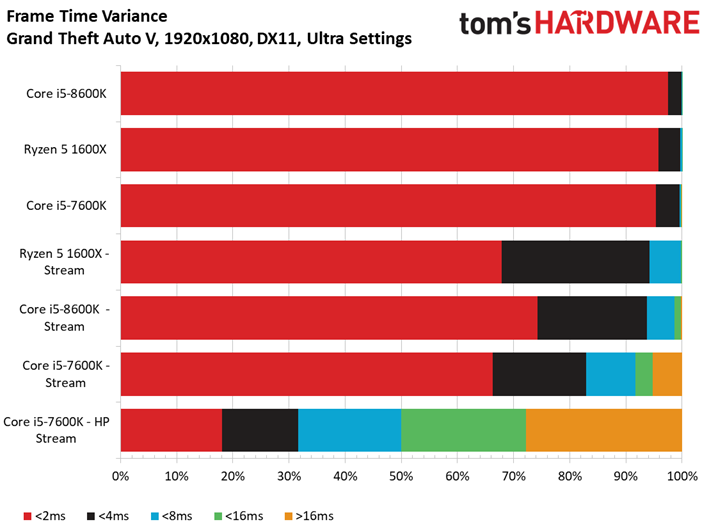

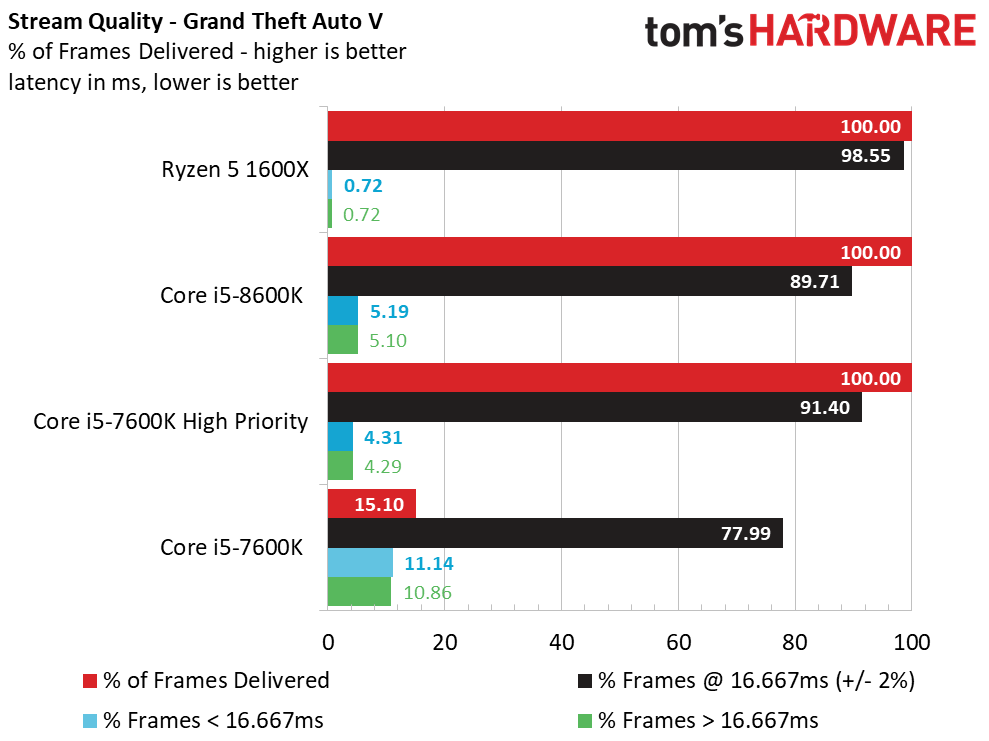

The Core i5-8600K delivers 100% of its frames during the test, though only 89.71% fall into the perfect 60 FPS bucket. We see a nearly even split of 5% above and below that mark. Visually, the stream looks fine. The -8600K takes more of a hit in the 99th percentile measurements, though it still leads the rest of our contenders.
AMD's Ryzen 5 1600X starts out with the lowest average frame rate during our baseline and falls to 60.7 FPS during the stream. It doesn't suffer too badly in 99th percentile measurements. Meanwhile, the chip provides stellar streaming performance, dropping no frames and almost landing at a smooth 60 FPS.
The Core i5-7600K provides a decent gaming experience during normal streaming, churning out 79.2 FPS. That's because it really isn't encoding frames, though—it drops 84.9% of them. The stream is unwatchable by any measurement. Again, we can boost the -7600K's encoding performance to 100% by specifying high priority, but then the gaming experience is terrible. In fact, large portions of the scene simply do not render correctly.

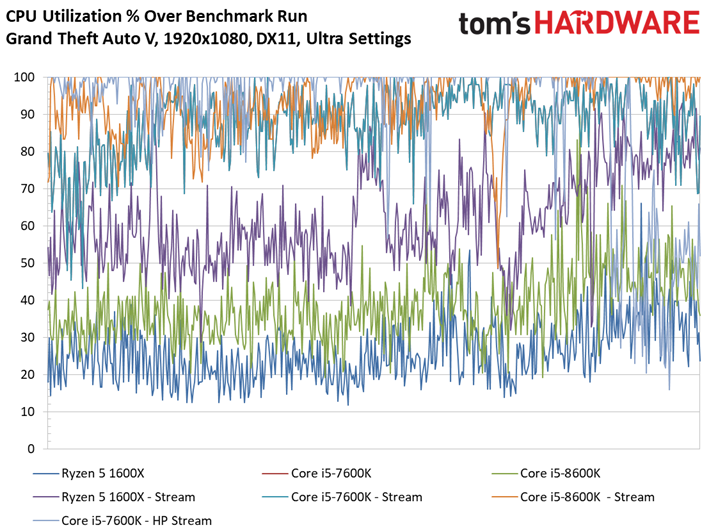

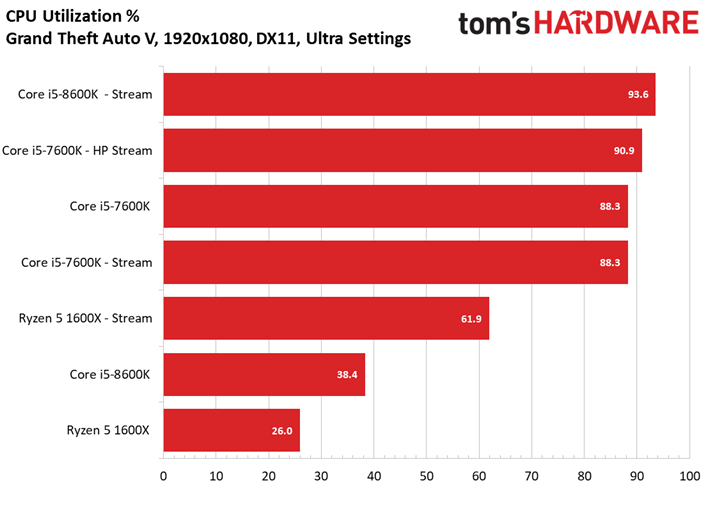

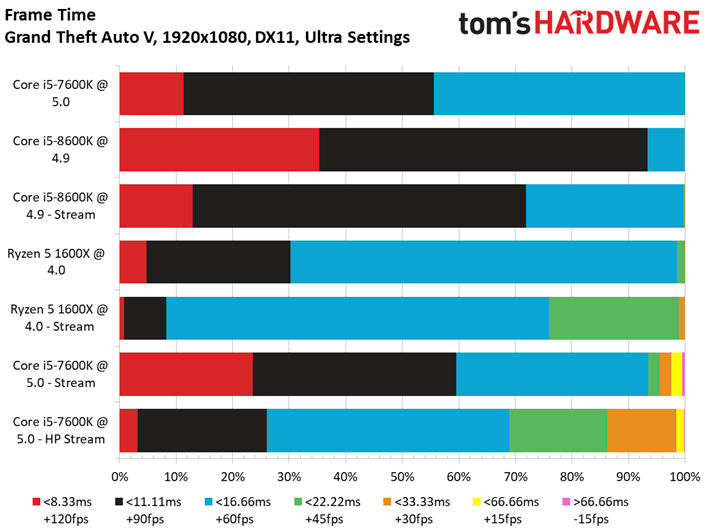

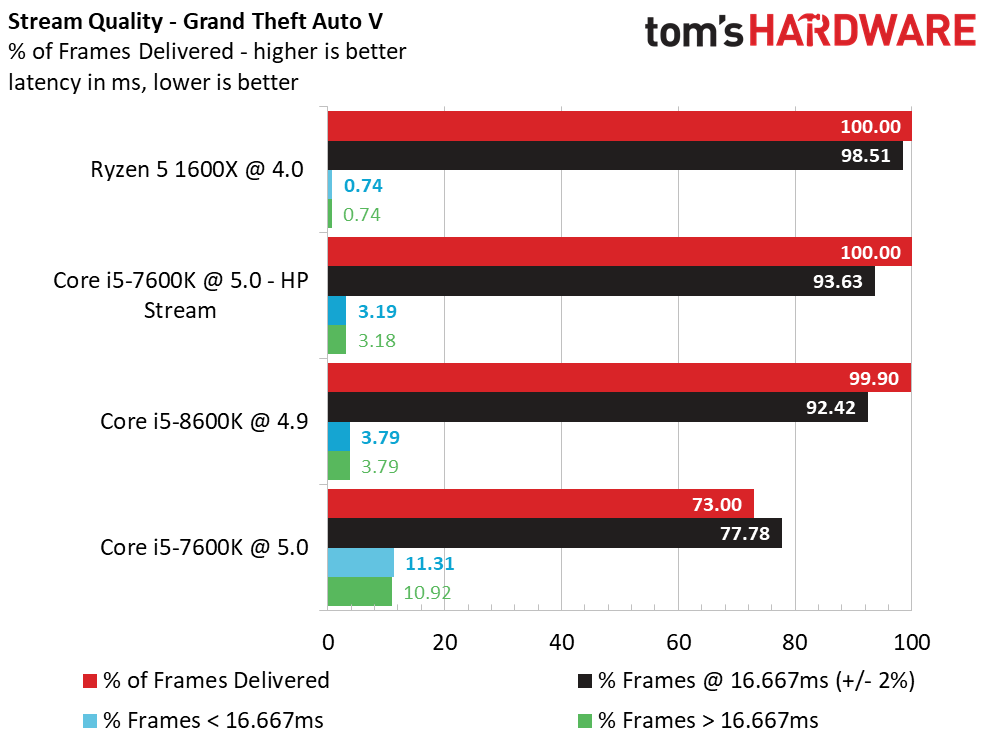

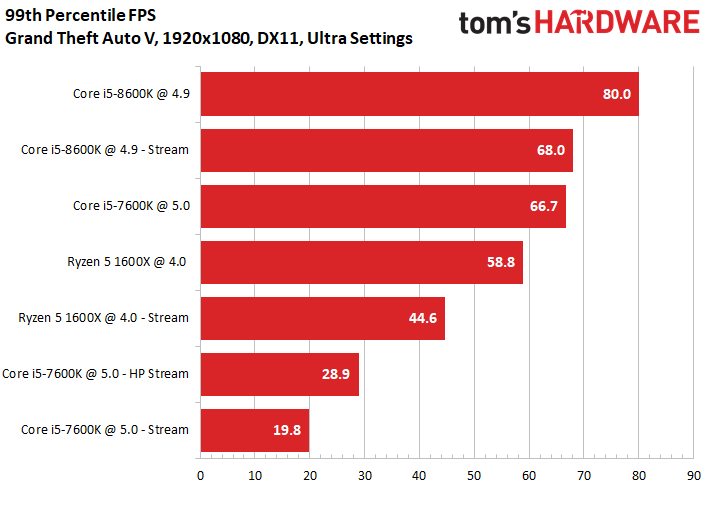

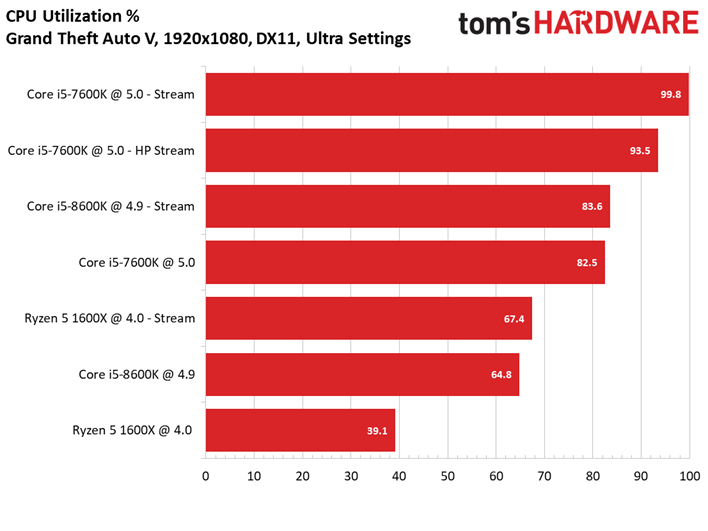

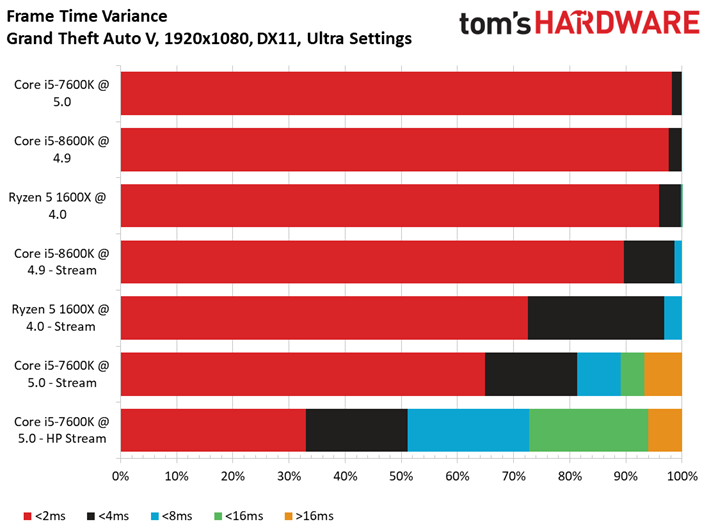

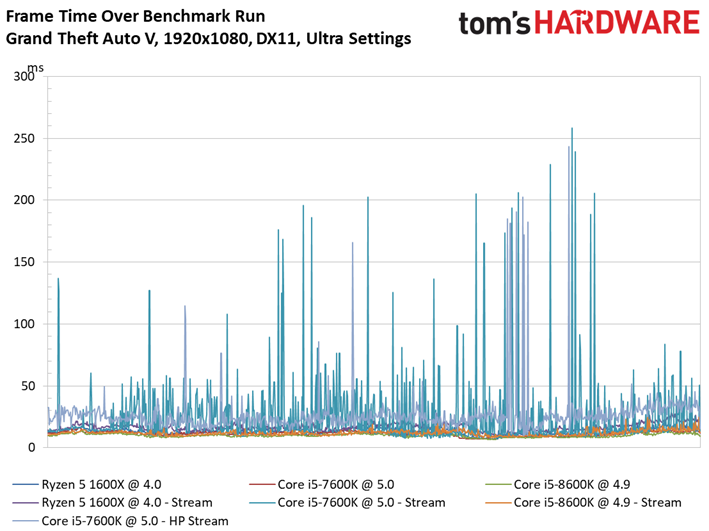

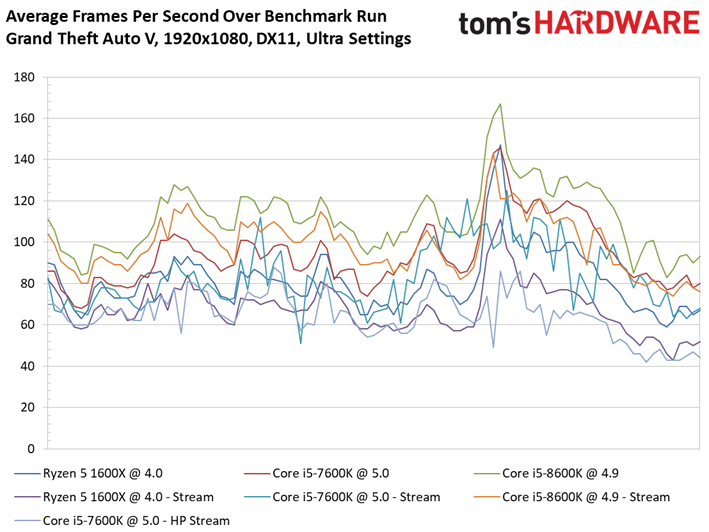

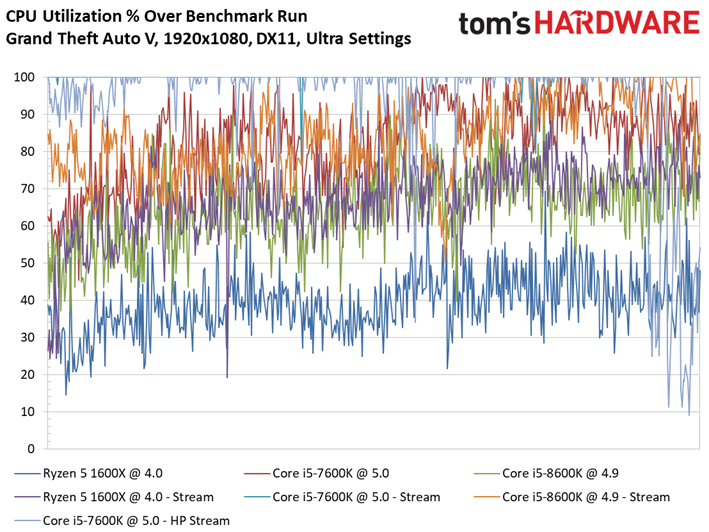

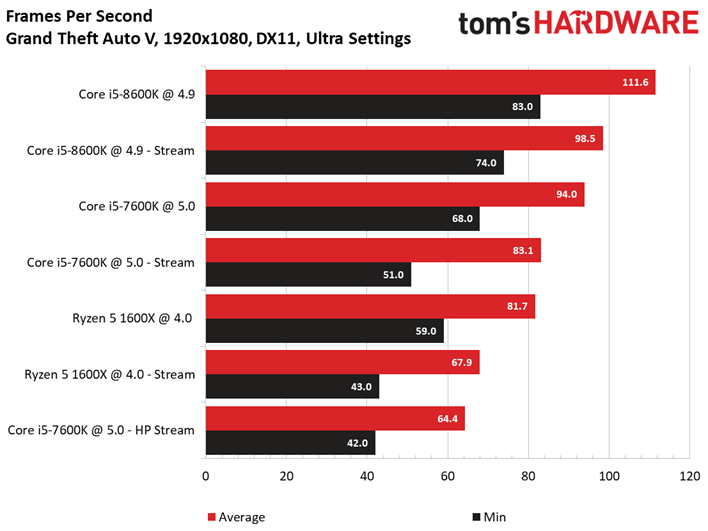

Overclocking the Core i5-7600K doesn't help; it's still entirely saturated during the streaming test. But tuning does benefit Intel's Core i5-8600K, which leads the pack in both average and 99th percentile metrics. Its streaming quality is decent as well.
The Ryzen 5 1600X's performance improves after overclocking, too. It doesn't provide the absolute best frame rate while streaming, but it is perfectly playable. Also, Ryzen 5 1600X still offers the smoothest stream, if only just barely.

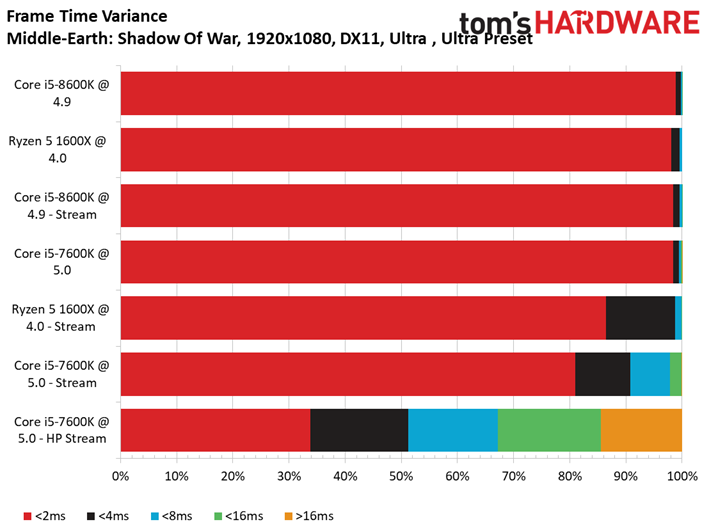

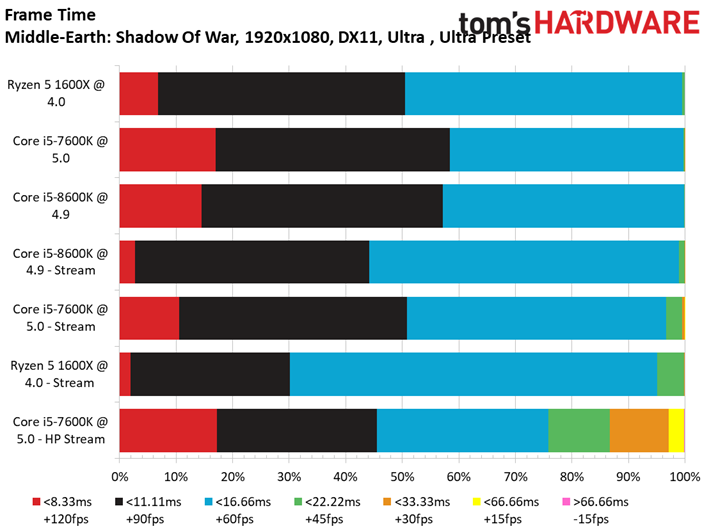

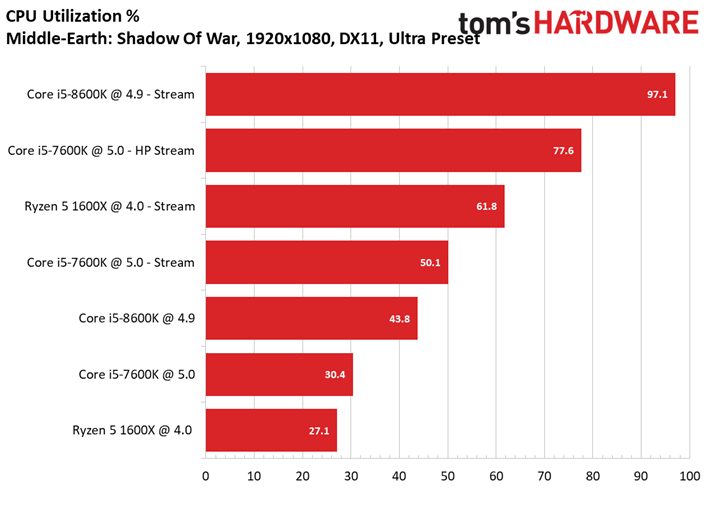

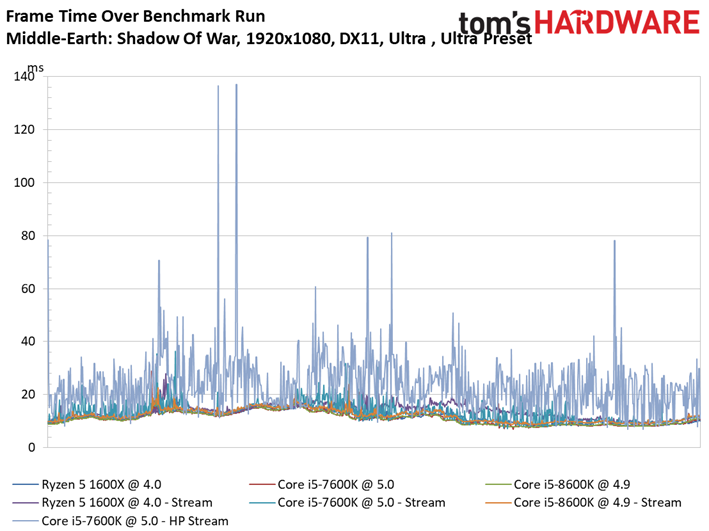

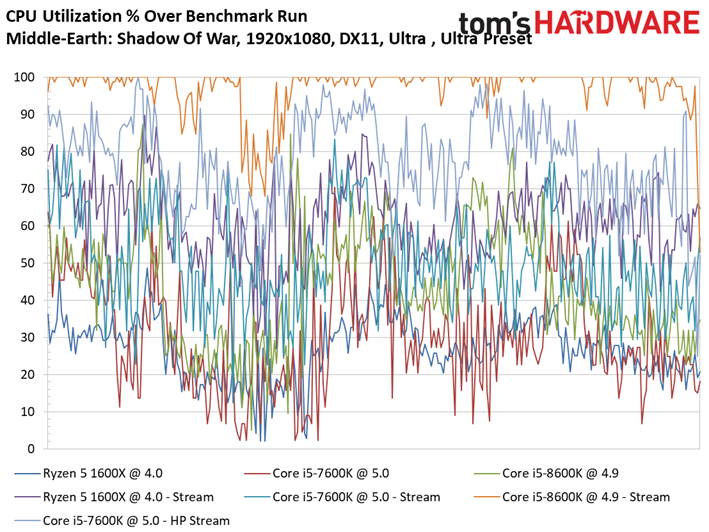

Middle-earth: Shadow of War

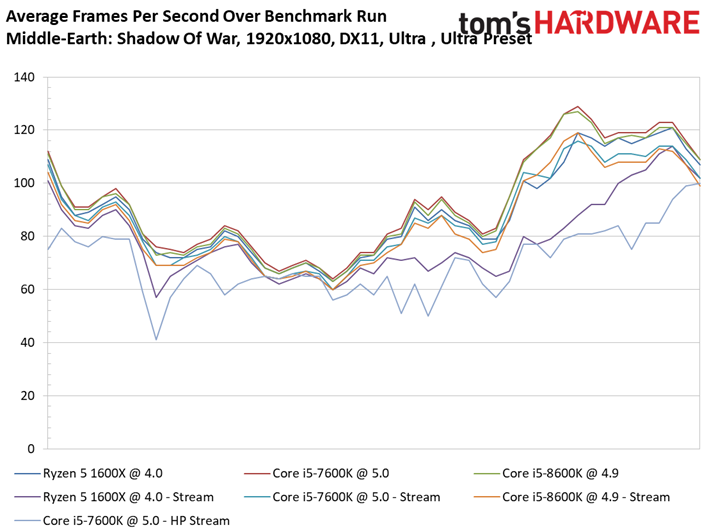

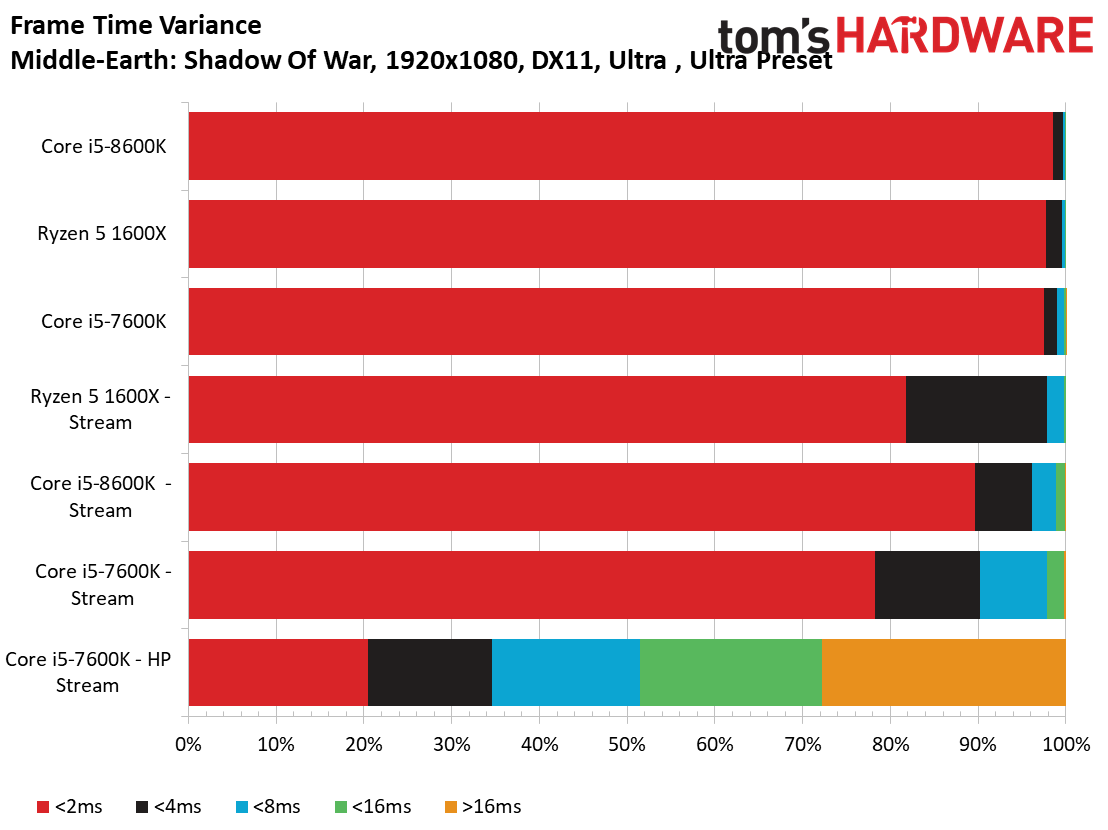

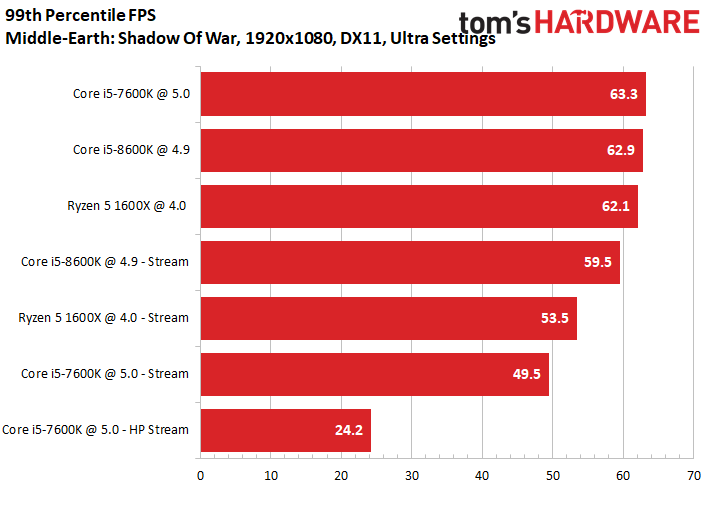

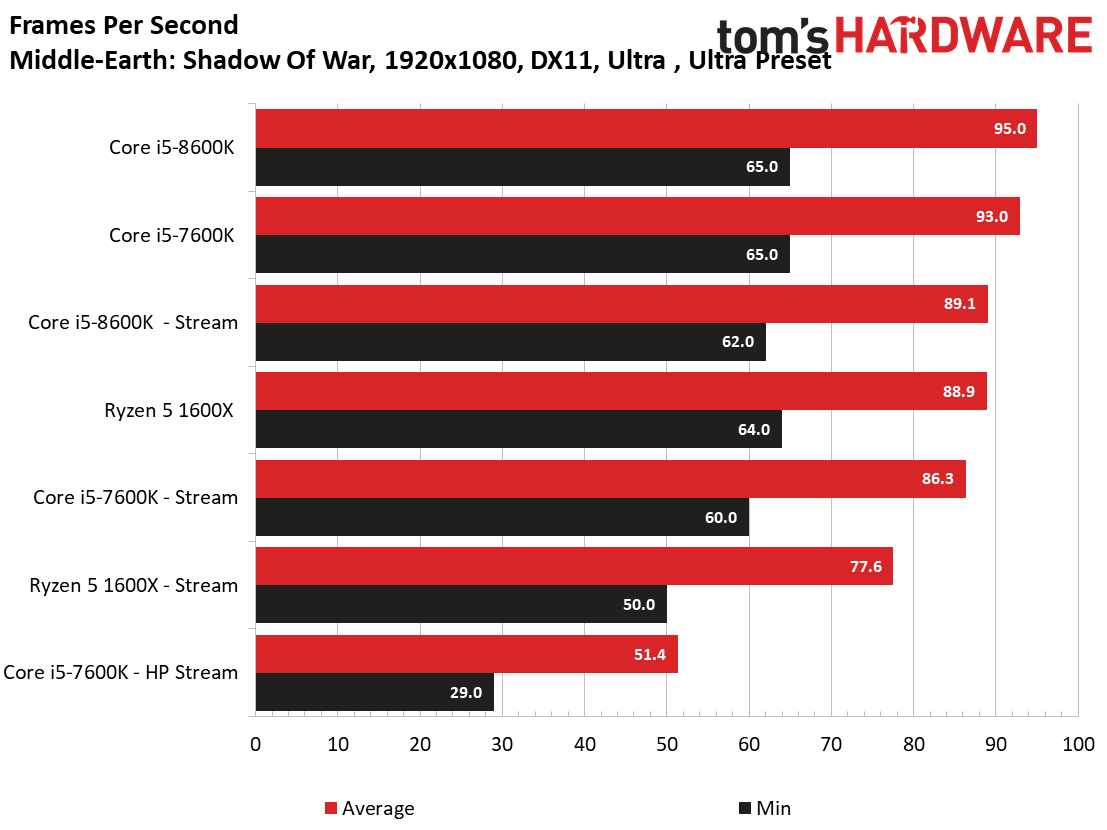

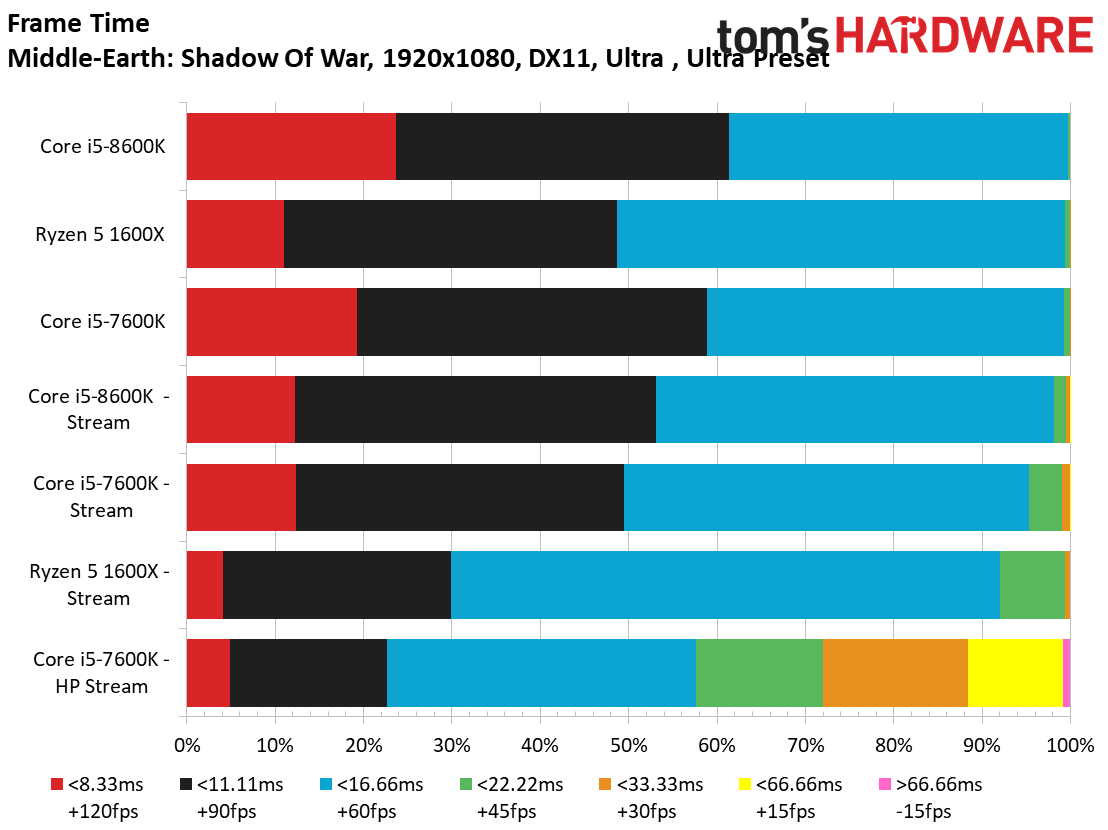

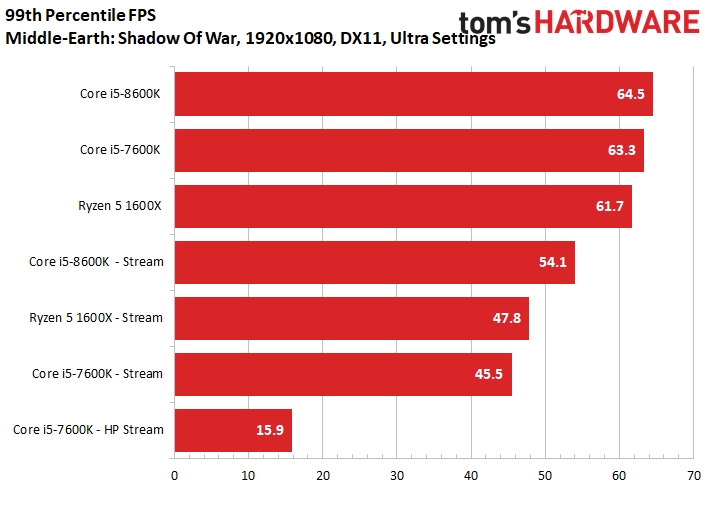

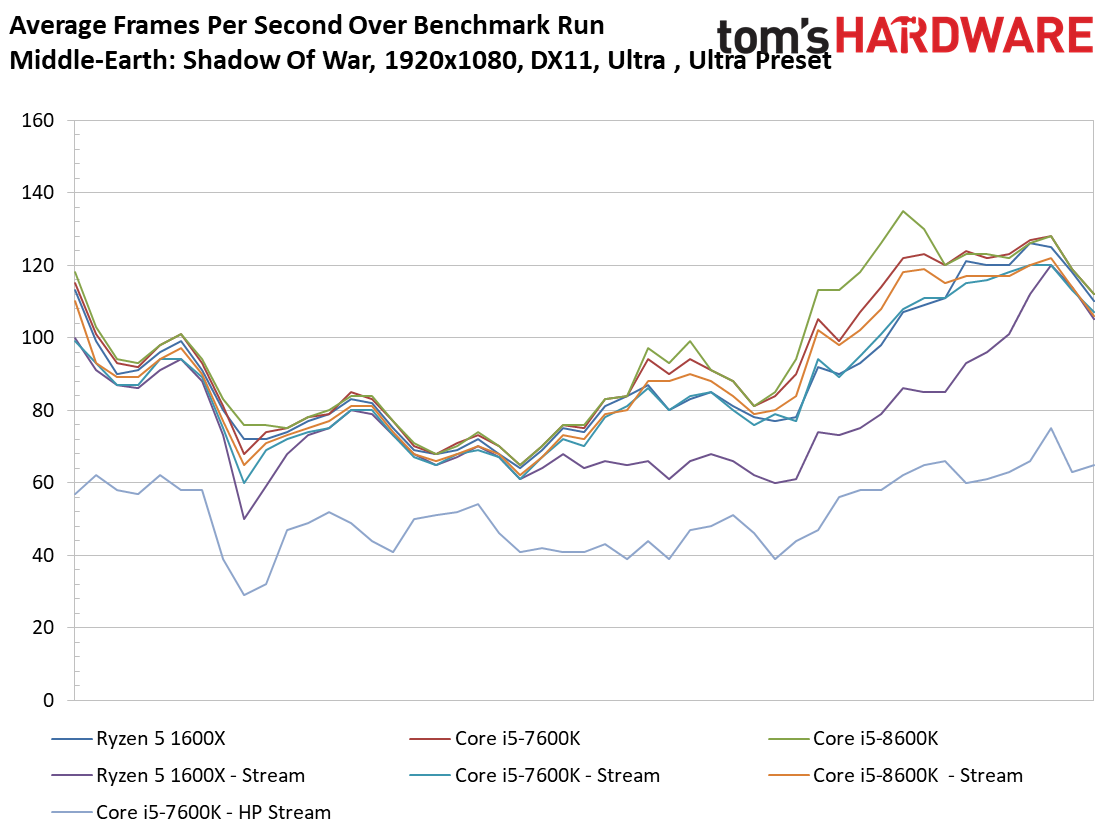

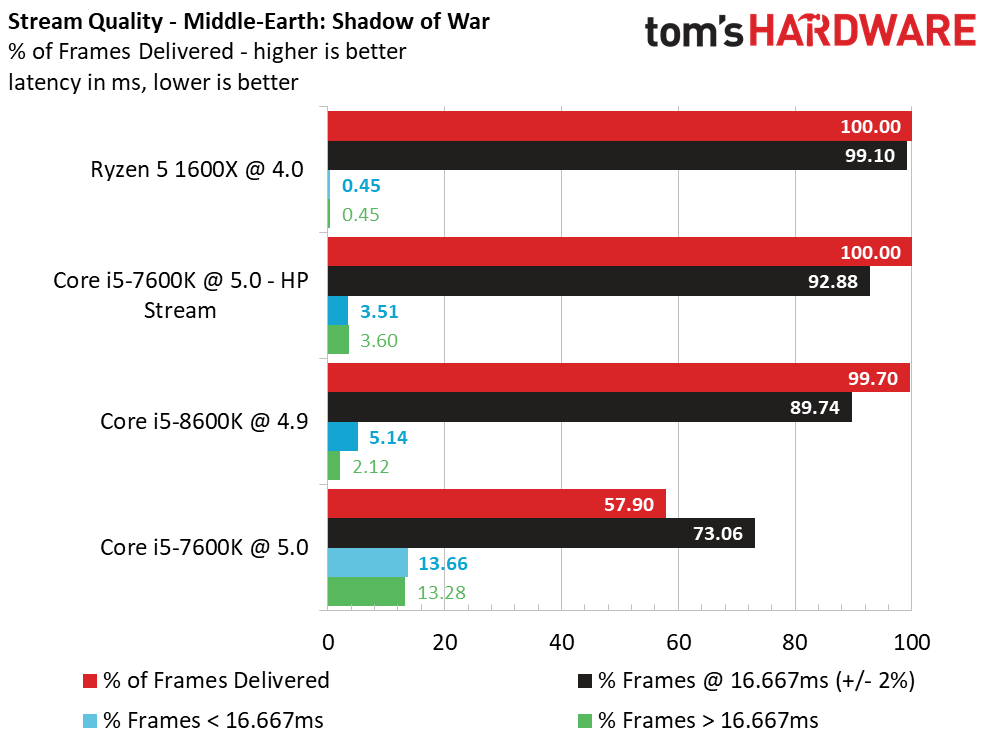

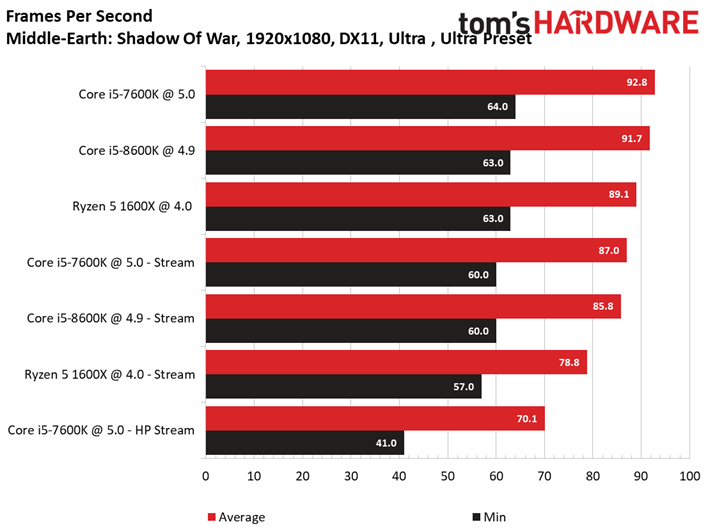

Intel's Core i5-7600K continues to disappoint. It serves up an average of 51.4 FPS while streaming (using the high priority setting) and encoding 100% of the frames. Unfortunately, game smoothness goes out the window again. The 15.9 FPS 99th percentile measurement tells us everything we need to know.
The Ryzen 5 1600X offers decent gaming performance while streaming, but that Coffee Lake-based -8600K continues leading.

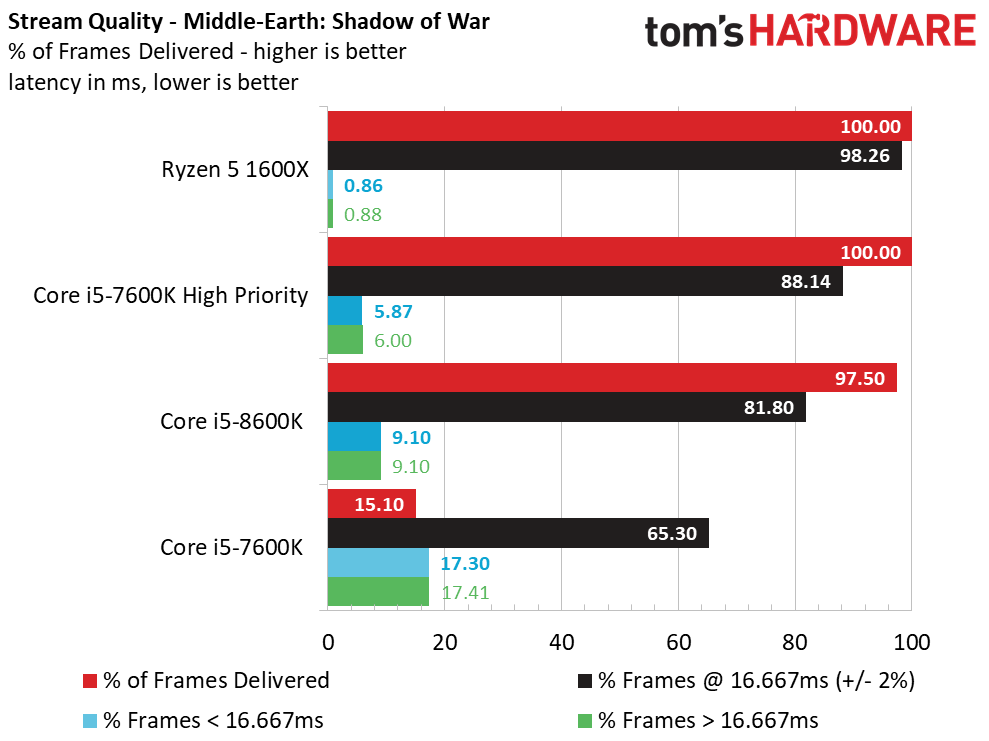

AMD's Ryzen 5 1600X offers the best of both worlds, though Core i5-8600K is also very capable. Perhaps tuning the encode could get more performance from the Intel chip. Then again, you could say the same thing about Ryzen 5, which offers the best mix of streaming and frame rates in its class. It's obvious from these results that a Kaby Lake-based Core i5 owner needs to dial back streaming settings dramatically or turn to faster hardware.
