Mainstream Graphics Card Roundup

Features
By Tino Kreiss
published

Power Consumption, Noise Levels, And Temperature Readings

Power consumption is measured in watts for the whole test platform. The 2D idle value comes from the normal Windows user interface without any load and with Windows Vista Aero turned off (minimal value). The 3D value is measured when the CPU and graphics card run under heavy load (peak value). Measurements took place at the wall socket. PSU efficiency averaged around 82.4% (according to manufacturer measurements).

Swipe to scroll horizontally
Power Consumption2D Watts3D WattsPower Adapters
GeForce GTX 285 (1,024 MB)1503482 x 6 pin PCIe
GeForce GTX 280 (1,024 MB)1553471 x 6 + 1 x 8 pin PCIe
GeForce GTX 275 (896 MB)1563512 x 6 pin PCIe
Zotac GeForce GTX 260² (GeForce GTX 260 216SPs 896 MB)1502952 x 6 pin PCIe
GeForce GTX 260 (896 MB)1502952 x 6 pin PCIe
GeForce GTX 260 (896 MB)1543302 x 6 pin PCIe
Zotac GTS 250 1 GB (1,024 MB)1562651 x 8 pin PCIe
GeForce GTS 250 (1,024 MB)1562651 x 8 pin PCIe
GeForce 9800 GX2 (2 x 512 MB)2153811 x 6 + 1 x 8 pin PCIe
GeForce 9800 GTX (512 MB)1702782 x 6 pin PCIe
GeForce 9600 GT (1,024 MB)1451951 x 6 pin PCIe
Asus GeForce 9600 GT (512 MB)1462061 x 6 pin PCIe
GeForce 8800 GTS (512 MB)1712821 x 6 pin PCIe
GeForce 8800 GT (1,024 MB)1482101 x 6 pin PCIe
GeForce 8800 GT (512 MB)1602541 x 6 pin PCIe
GeForce 8800 Ultra (768 MB)2033282 x 6 pin PCIe
GeForce 8800 GTX (768 MB)1862982 x 6 pin PCIe
GeForce 8800 GTS (640 MB)1782611 x 6 pin PCIe
GeForce 8800 GTS (320 MB)1702481 x 6 pin PCIe
Radeon HD 4890 (1,024 MB)1823122 x 6 pin PCIe
Radeon HD 4870 X2 (2 x 1,024 MB)2344651 x 6 + 1 x 8 pin PCIe
HIS H487QT1GP ICEQ4+ (Radeon HD 4870 1,024 MB)1962982 x 6 pin PCIe

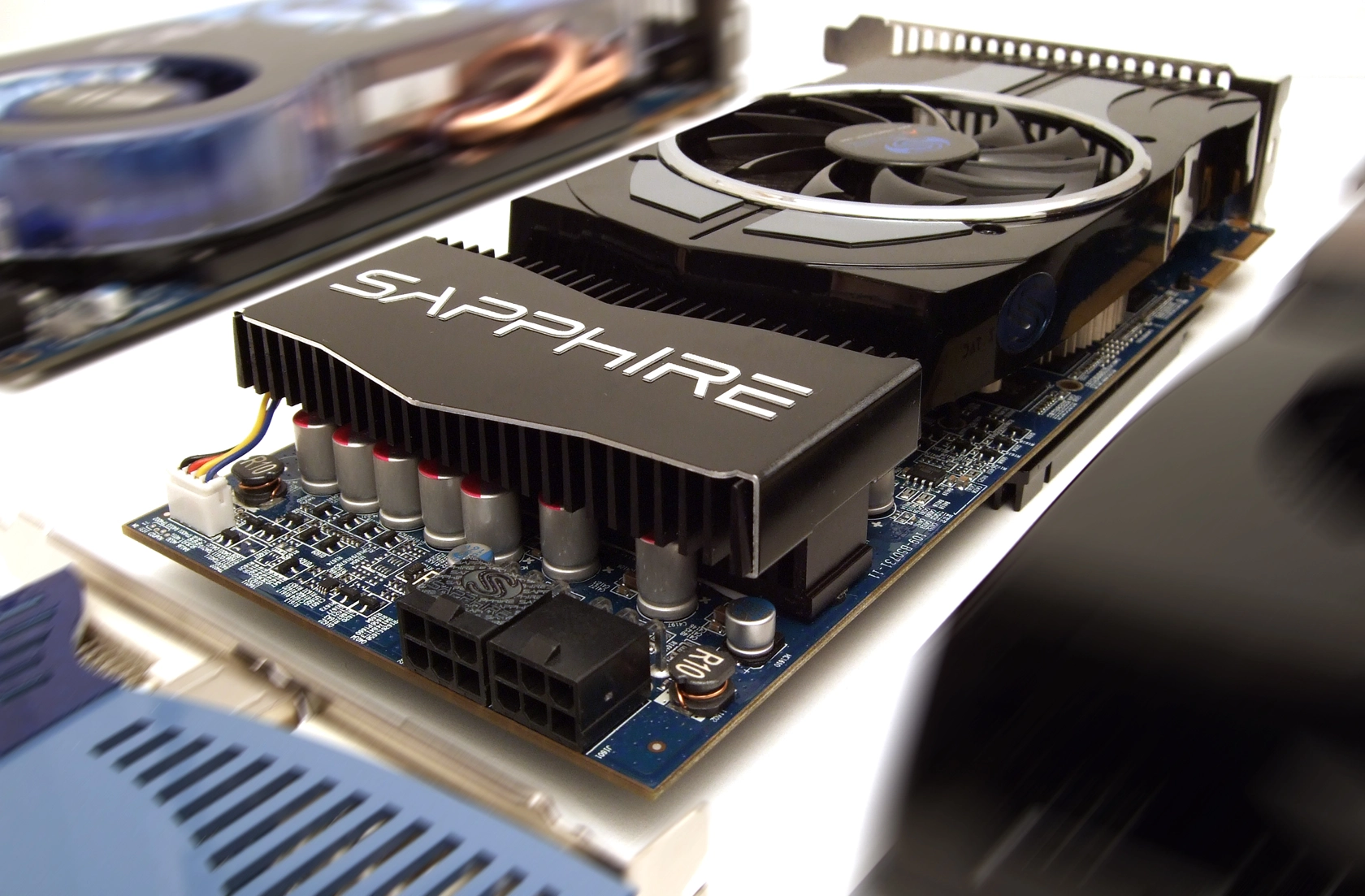

Sapphire Vapor-X HD 4870 2 GB (Radeon HD 4870 2,048 MB)1892932 x 6 pin PCIe
Radeon HD 4870 (512 MB)1912882 x 6 pin PCIe
Sapphire HD 4850 1 GB (Radeon HD 4850 1,024 MB)1652571 x 6 pin PCIe
Radeon HD 4850 (512 MB)1662701 x 6 pin PCIe
Radeon HD 4770 (512 MB)1521991 x 6 pin PCIe
Radeon HD 4670 (512 MB)125178None
Radeon HD 3870 X2 (2x512 MB)1863651 x 6 + 1 x 8 pin PCIe
Radeon HD 3870 (512 MB)1392231 x 6 pin PCIe
Radeon HD 3850 (256 MB)1341971 x 6 pin PCIe
Swipe to scroll horizontally
Noise Levels2D dB(A)3D dB(A)Fan Diameter
GeForce GTX 285 (1,024 MB)37.951.475 mm
GeForce GTX 280 (1,024 MB)38.045.475 mm
GeForce GTX 275 (896 MB)36.844.275 mm
Zotac GeForce GTX 260² (GTX 260 216 SPs 896 MB)37.541.275 mm
GeForce GTX 260 216 SPs (896 MB)37.541.275 mm
GeForce GTX 260 (896 MB)37.853.875 mm
Zotac GTS 250 1 GB (GTS 250 1,024 MB)39.650.275 mm
GeForce GTS 250 (1,024 MB)39.650.275 mm
GeForce 9800 GX2 (2 x 512 MB)37.953.575 mm
GeForce 9800 GTX (512 MB)37.244.870 mm
GeForce 9600 GT (1,024 MB)36.942.375 mm
GeForce 8800 GTS (512 MB)36.439.570 mm
GeForce 8800 GT (1,024 MB)36.640.875 mm
GeForce 8800 GT (512 MB)36.540.860 mm
GeForce 8800 Ultra (768 MB)37.144.673 mm
GeForce 8800 GTX (768 MB)37.540.575 mm
GeForce 8800 GTS (640 MB)37.137.475 mm
GeForce 8800 GTS (320 MB)36.237.075 mm
Radeon HD 4890 (1,024 MB)36.748.473 mm
Radeon HD 4870 X2 (2 x 1,024 MB)51.260.473 mm
HIS H487QT1GP ICEQ4+ (Radeon HD 4870 1,024 MB)36.852.180 mm
Sapphire Vapor-X HD4870 2 GB (Radeon HD 4870 2,048 MB)36.038.275 mm
Radeon HD 4870 (512 MB)38.049.473 mm
Sapphire HD 4850 1 GB (Radeon HD 4850 1,024 MB)36.750.460 mm
Radeon HD 4850 (512 MB)36.247.960 mm
Radeon HD 4770 (512 MB)36.338.570 mm
Radeon HD 4670 (512 MB)36.236.250 mm
Radeon HD 3870 X2 (2 x 512 MB)35.845.875 mm
Radeon HD 3870 (512 MB)35.938.775 mm
Radeon HD 3850 (256 MB)36.436.560 mm
Swipe to scroll horizontally
Temperatures And Slot Width2D Degrees3D DegreesFan Height
GeForce GTX 285 (1,024 MB)4585Double slot
GeForce GTX 280 (1,024 MB)4586Double slot
GeForce GTX 275 (896 MB)4792Double slot
Zotac GeForce GTX 260² (GTX 260 216 SPs 896 MB)4581Double slot
GeForce GTX 260 216 SPs (896 MB)4581Double slot
