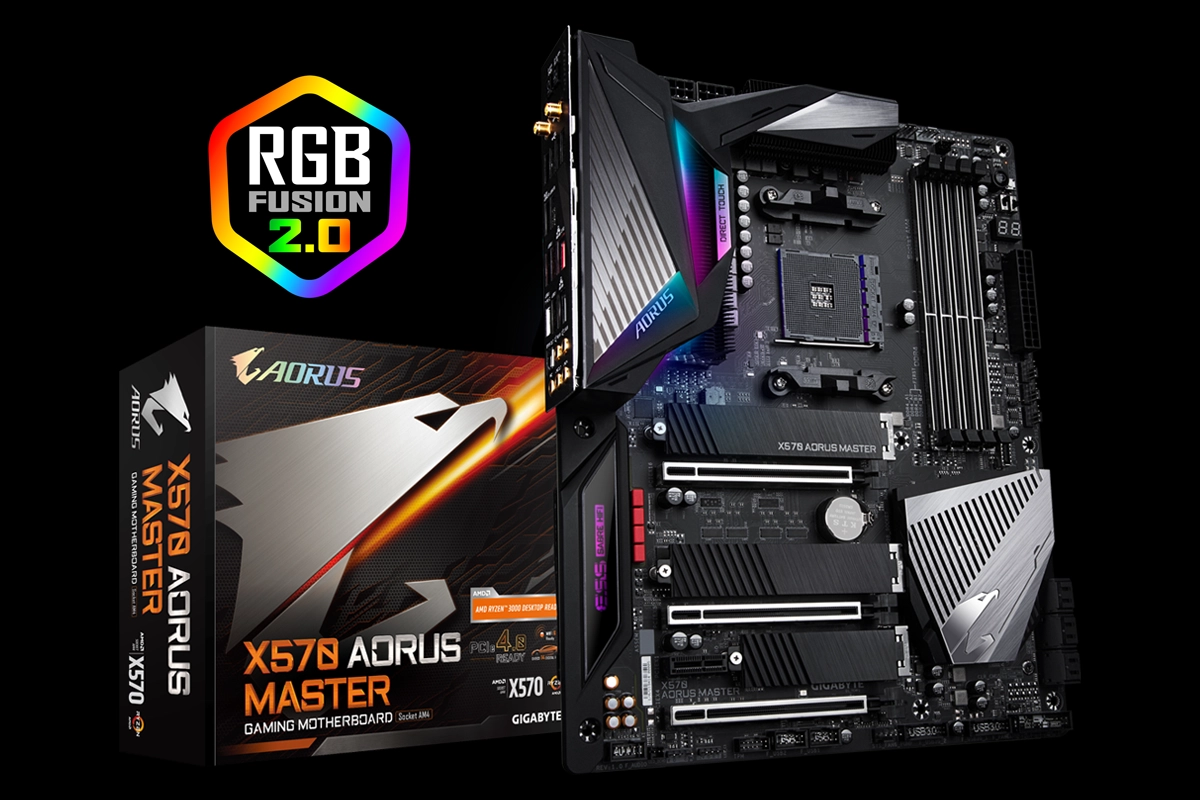

Gigabyte X570 Aorus Master Review: Expansion and M.2 Aplenty

Reviews
By Thomas Soderstrom
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Benchmark Results and Final Analysis

Gigabyte’s GeForce RTX 2070 Gaming OC 8G and AMD’s Ryzen 7 3700X update the hardware configuration of our most-recent X470 test system, while a newly configured test suite brings all the compatibility benefits of Microsoft’s latest Win10 patches.

3DMark and PCMark

Image 1 of 6

As motherboards jockey for leadership across most of our 3DMark and PCMark tests, the result that stand out most is the X570 Aorus Master’s 4% deficit in the Application Start Up test of PCMark Essentials.  We’ll see if it can make up some of that loss in the performance balance though other suites.

3D Games

Image 1 of 2

The MEG X570 Ace gets the highest score at Ashes’ lower test settings, but the X570 Aorus Master beats all competitor’s by a slightly greater margin at the game’s higher settings. F1 2017 is a dead heat.

Mixed Apps

Image 1 of 3

7.Zip shows a slight lead for the X570 Aorus Master in both reading and writing, but theX570 Taichi beats it in both Cinebench and Handbrake.

Power, Heat and Efficiency

The X570 Aorus Master crushes the X570 Taichi in power consumption, though it places third against the X570 Ace and its X470 predecessor. The reason for the difference is that it uses less voltage under loads this heavy, and runs up to 200 MHz slower.

The lower voltage allows both the board and voltage regulator to produce less heat, but the X570 Aorus Master still finishes second to the X570 Ace.

The X570 Taichi’s full-load power draw is so high that it skews the rest of the chart into positive efficiency numbers, though the X570 Aorus Master is the least positive of these.

Final Thoughts

The X570 Aorus Master costs $60 more than the X570 Taichi, and the onboard 2.5GbE controller for the second Ethernet port appears at a glance to be the only extra hardware.  A closer look reveals an extra switche to disable dual-BIOS mode, but hardcore overclockers would rather not have the board’s active selection process in the specs sheet.  We also get more cables, but can even those be added to the second Ethernet port to justify the extra $60?

For many buyers, the X570 Aorus Master achieves its greatest victory is in its combination of M.2 and PCIe slots that are all active at the same time, as opposed to the X570 Taichi sharing lanes between its third long PCIe slot and its third M.2 slot. Aorus Master buyers looking at that specific benefit will also note that filling the third M.2 slot knocks its SATA port count to four, but most enthusiasts prioritizing fast storage won't need more than four SATA ports.

Overall, the X570 Aorus Master appears to be a more-desirable board than some competitors, that also costs more. The combination of interface availability, added USB3 Gen2, and added 2GbE controller are arguably worth slightly more than the difference in price. But those features of course will of course only worth it to you if you're going to make use of them.

Image Credits: Tom's Hardware

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
