Ripple Measurements
To learn how we measure ripple, please click here.

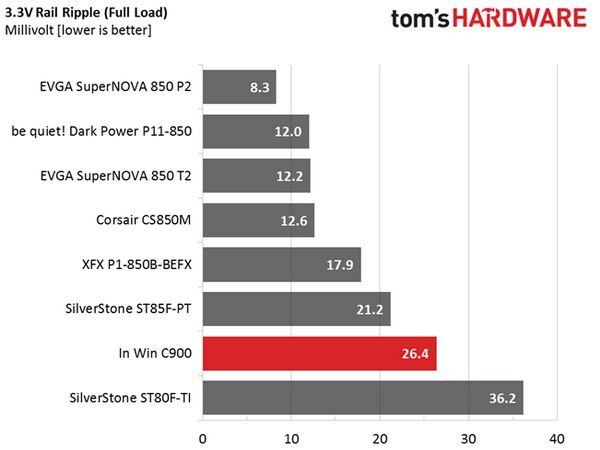

The following table includes the ripple levels we measured on the C900's rails. The limits, according to the ATX specification, are 120 mV (+12V) and 50 mV (5V, 3.3V and 5VSB).
Swipe to scroll horizontally
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 20.9 mV | 12.0 mV | 11.9 mV | 6.5 mV | Pass |
| 20% Load | 23.5 mV | 13.3 mV | 13.2 mV | 7.1 mV | Pass |
| 30% Load | 18.8 mV | 14.5 mV | 15.0 mV | 8.3 mV | Pass |
| 40% Load | 18.3 mV | 15.8 mV | 16.0 mV | 8.4 mV | Pass |
| 50% Load | 19.3 mV | 17.5 mV | 17.7 mV | 9.5 mV | Pass |
| 60% Load | 20.5 mV | 19.6 mV | 18.9 mV | 10.4 mV | Pass |
| 70% Load | 21.3 mV | 20.7 mV | 20.6 mV | 11.7 mV | Pass |
| 80% Load | 21.6 mV | 23.1 mV | 21.2 mV | 12.6 mV | Pass |
| 90% Load | 21.9 mV | 24.2 mV | 22.5 mV | 12.9 mV | Pass |
| 100% Load | 24.1 mV | 26.9 mV | 26.4 mV | 17.3 mV | Pass |
| 110% Load | 25.8 mV | 28.5 mV | 28.2 mV | 18.3 mV | Pass |
| Cross-Load 1 | 25.7 mV | 17.6 mV | 15.9 mV | 11.9 mV | Pass |
| Cross-Load 2 | 23.2 mV | 23.9 mV | 25.7 mV | 15.1 mV | Pass |

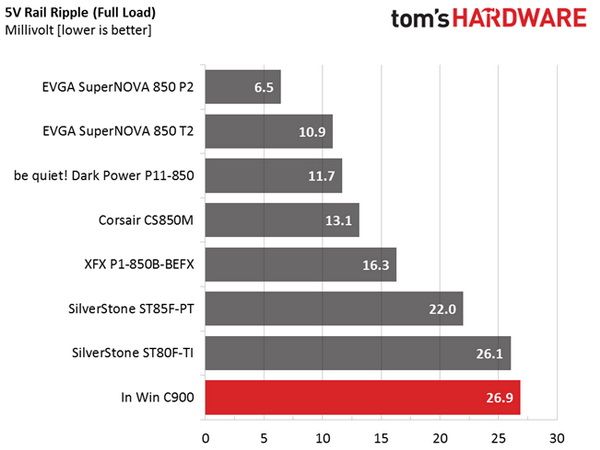

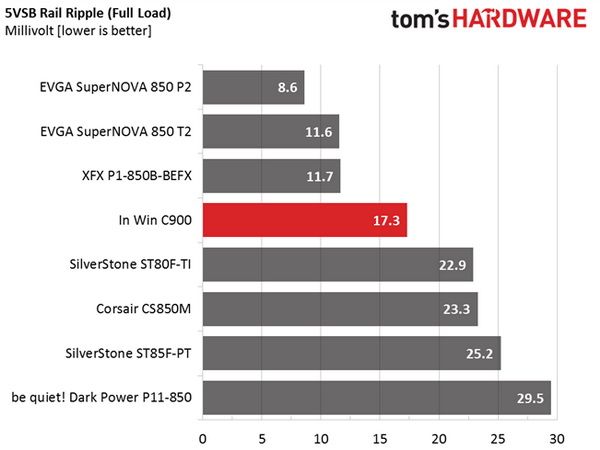

Image 1 of 4

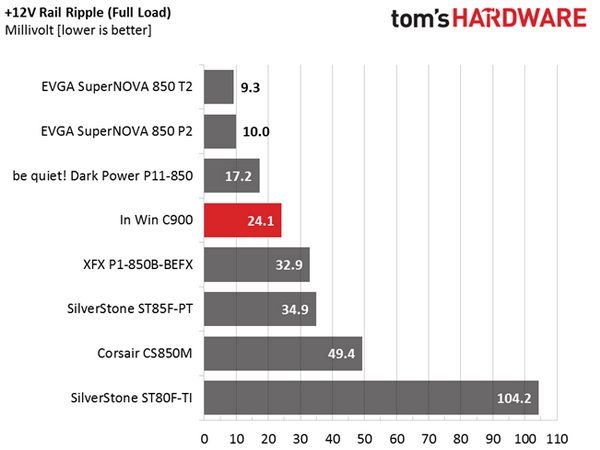

Ripple suppression at +12V is very good, even under extremely harsh conditions. The minor rails could perform better, though. The competition is tough in this segment, so In Win has to perform impeccably in order to shine.
Ripple Oscilloscope Screenshots

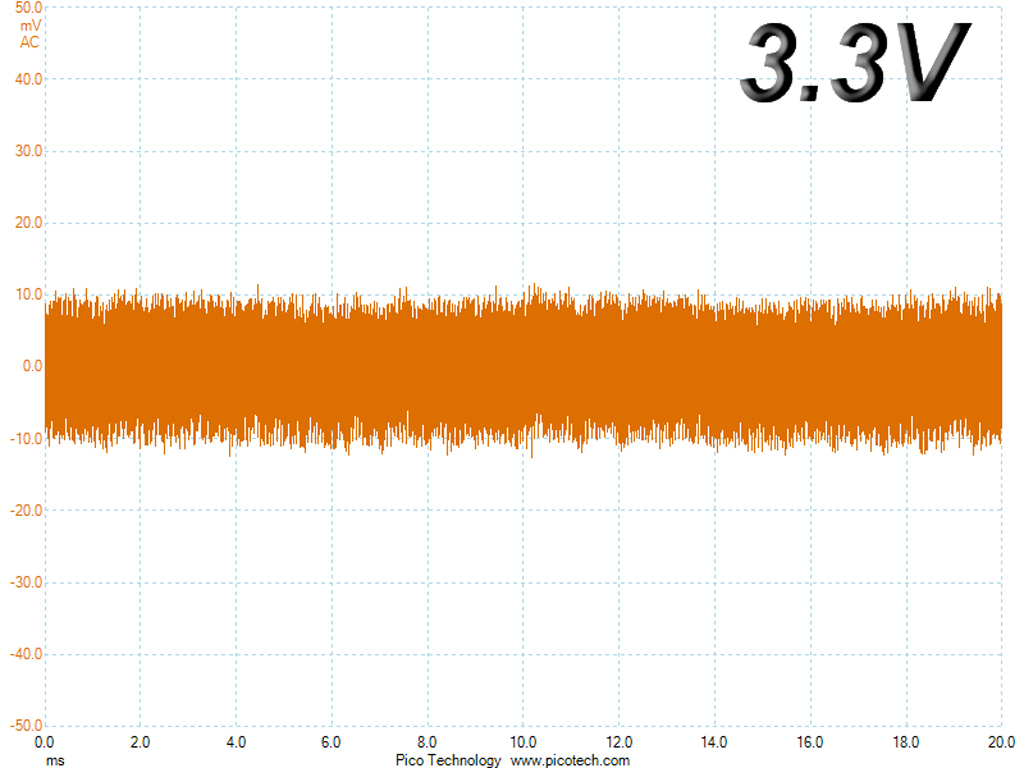

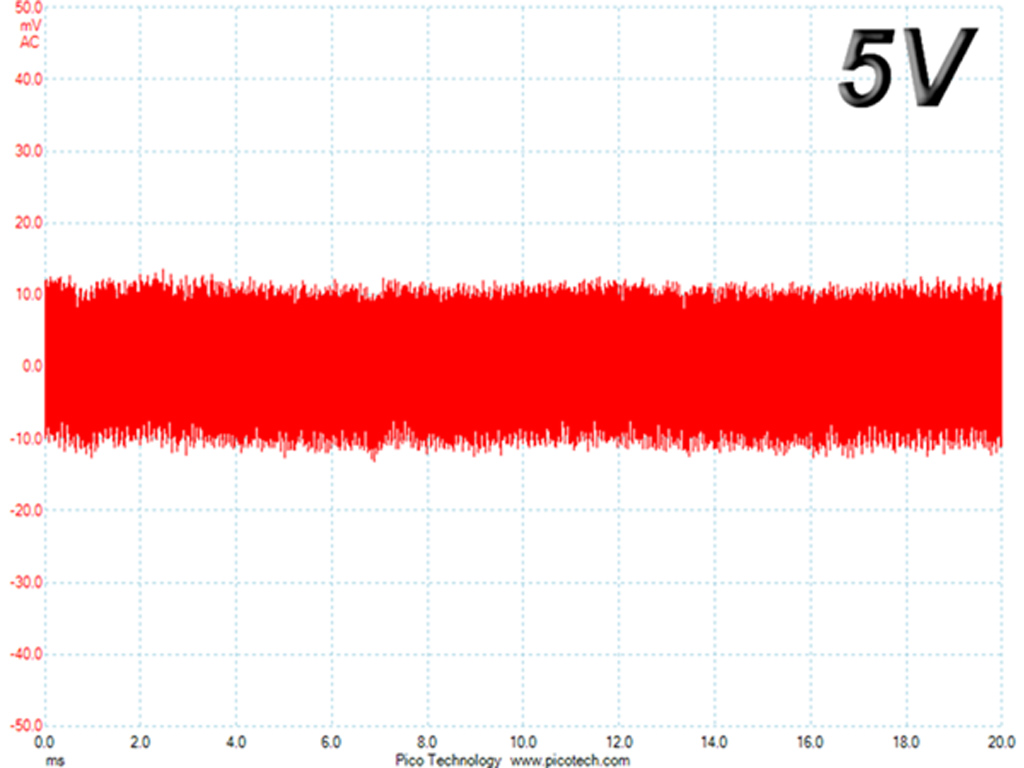

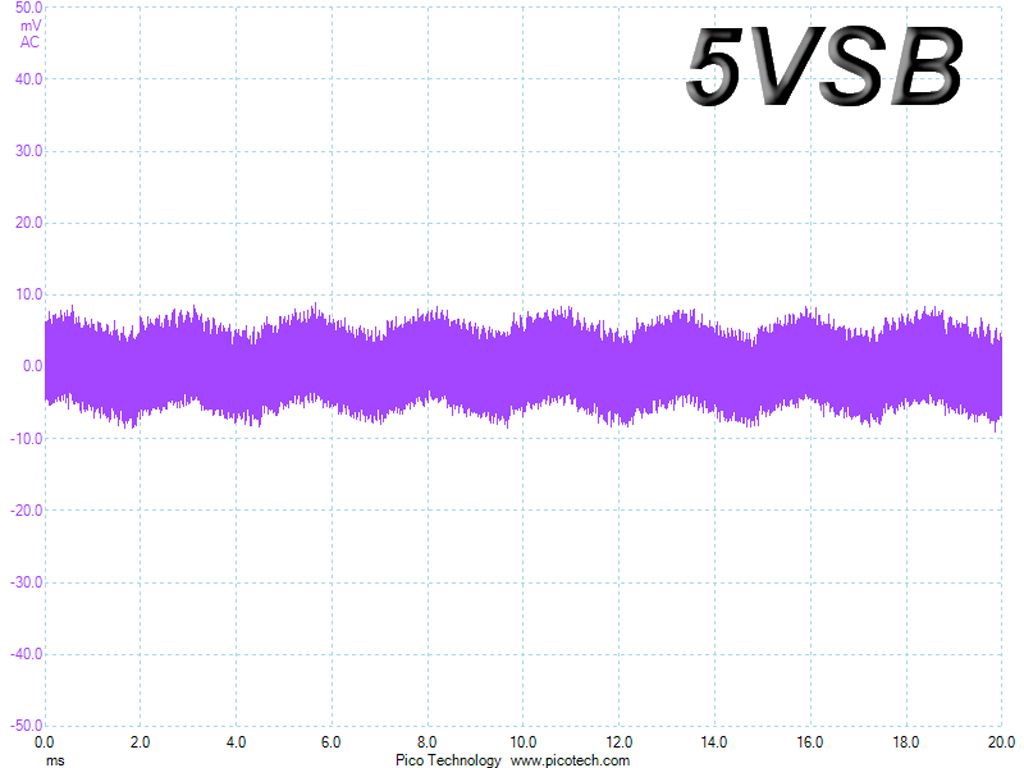

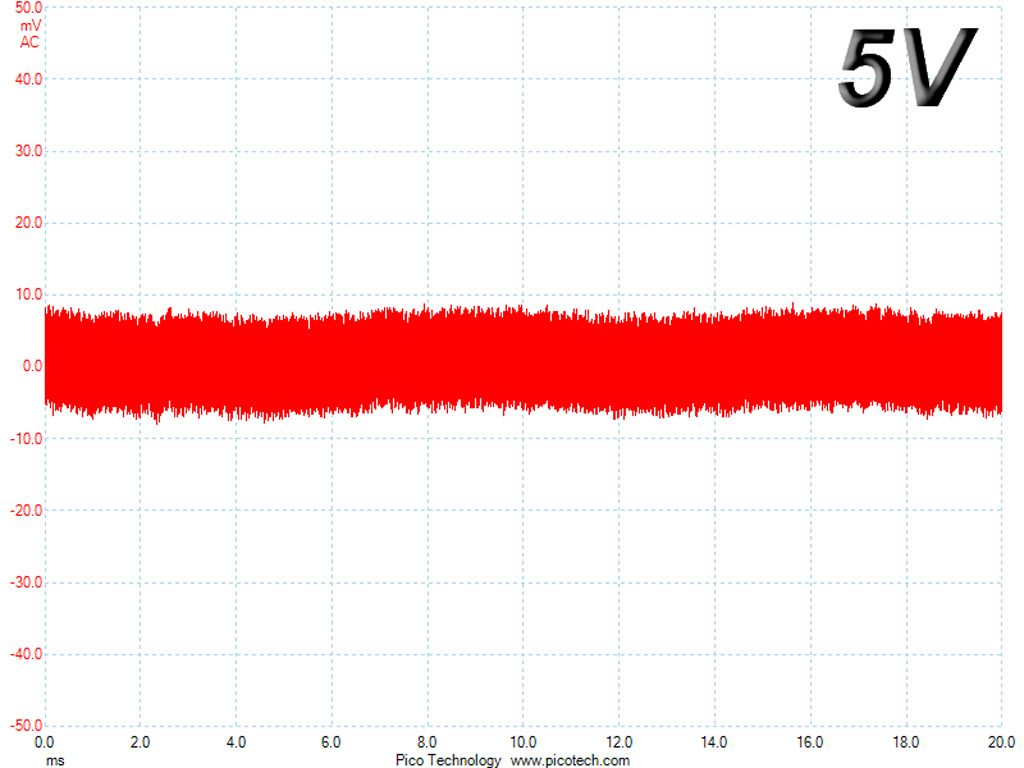

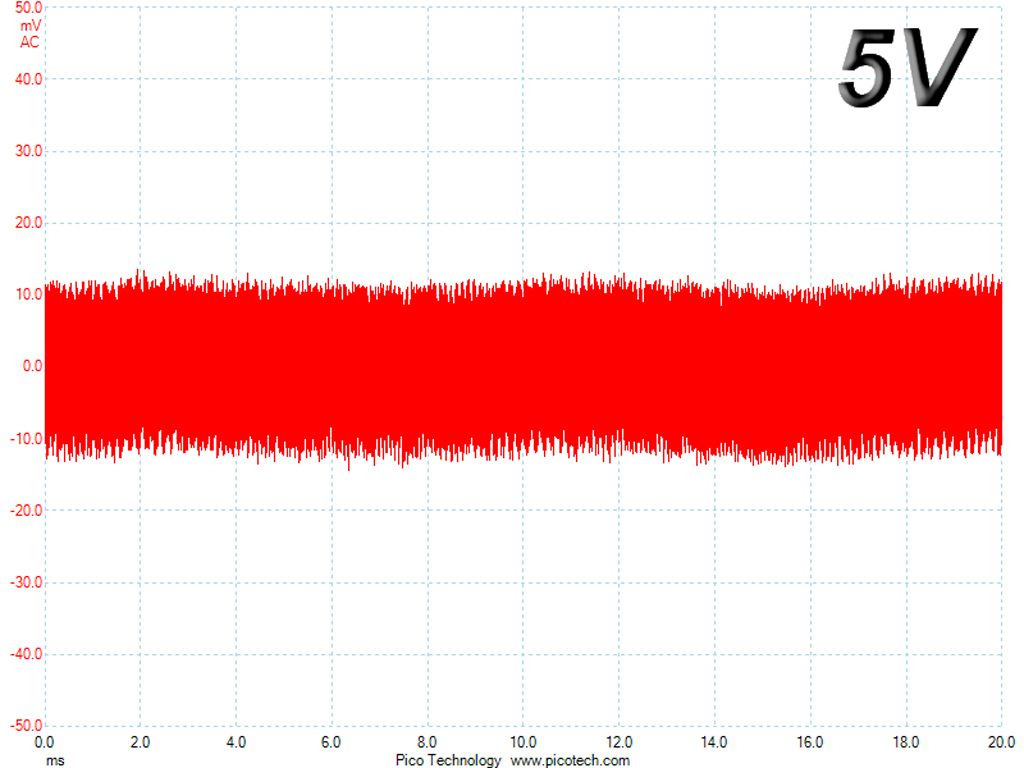

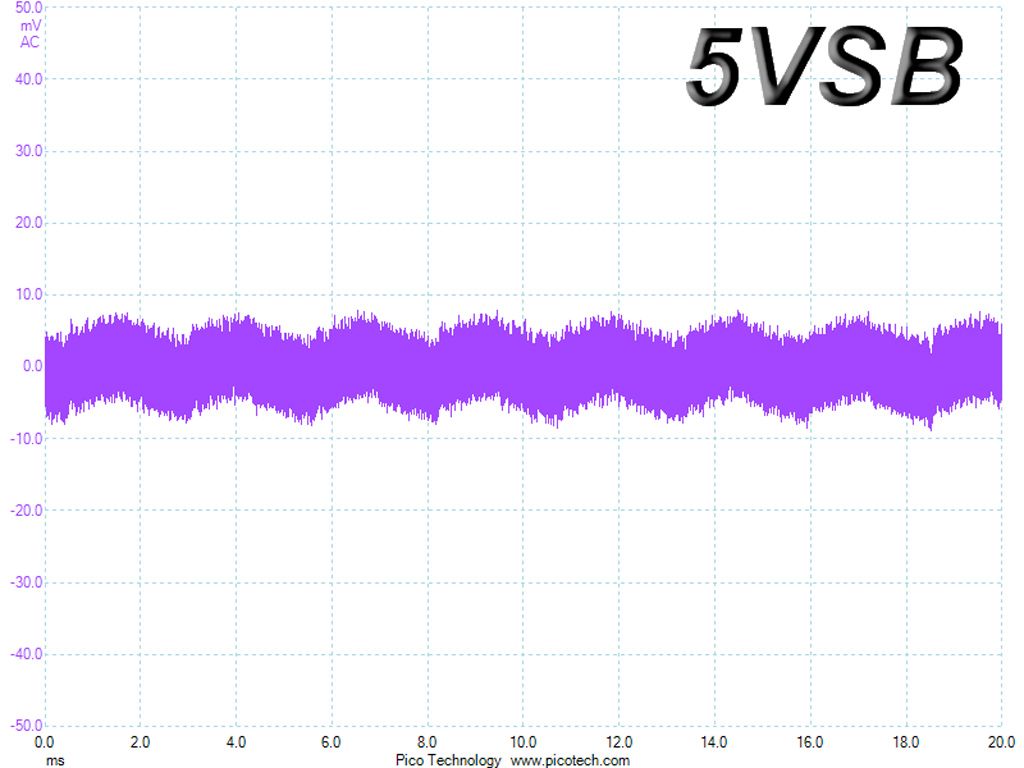

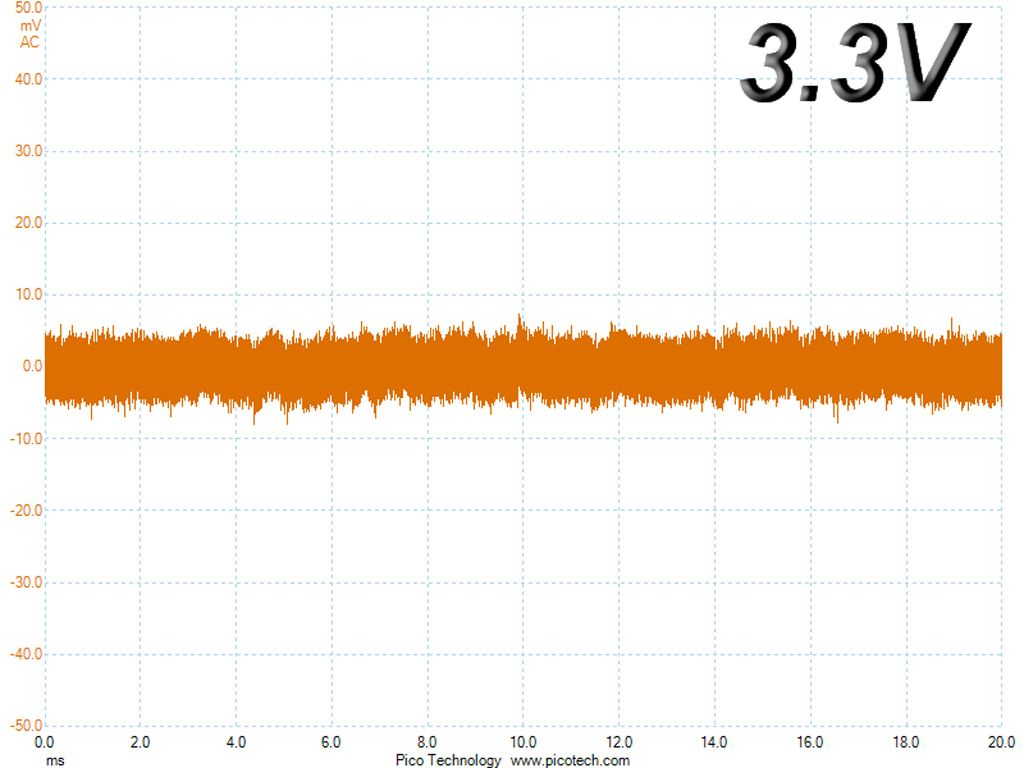

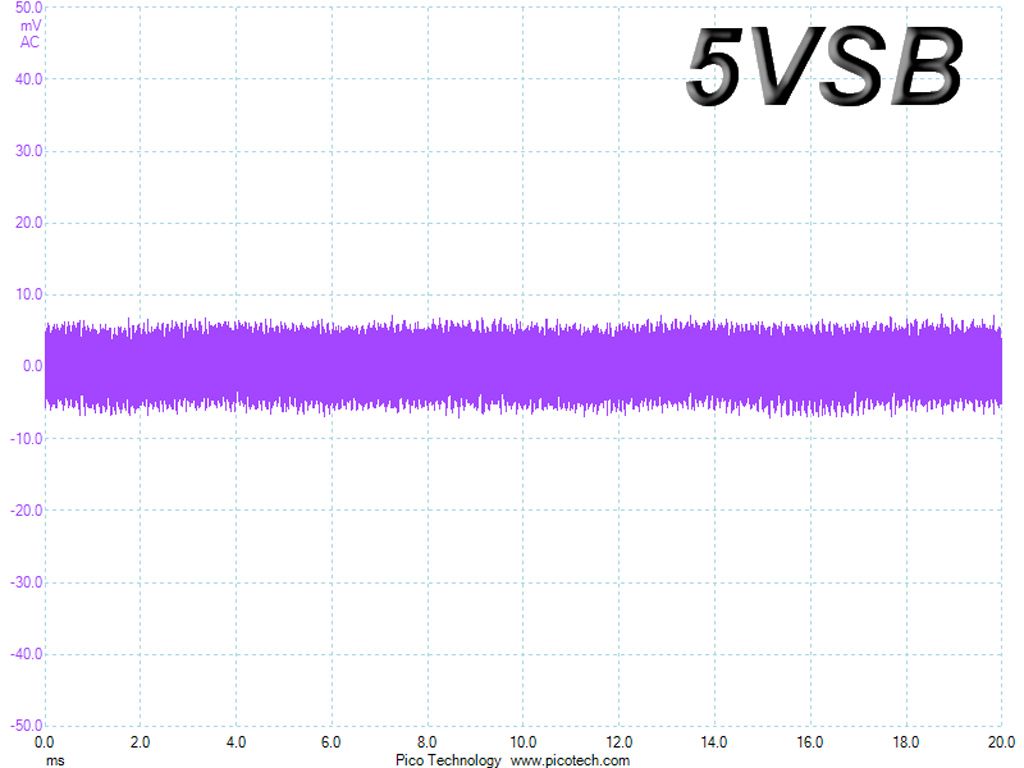

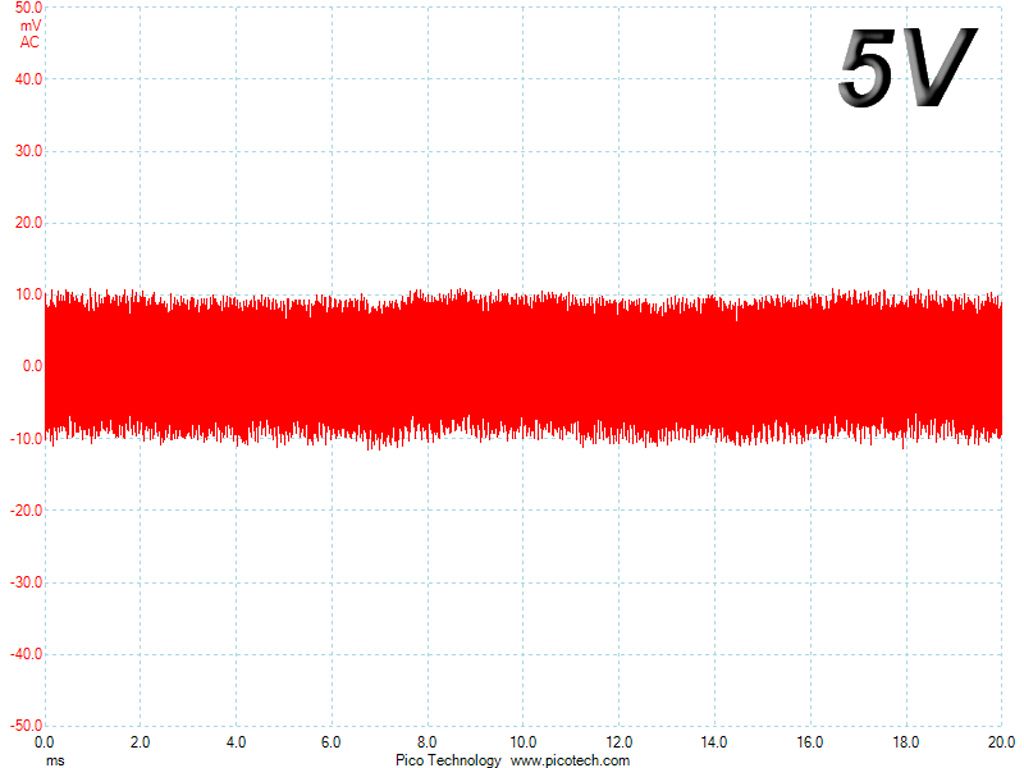

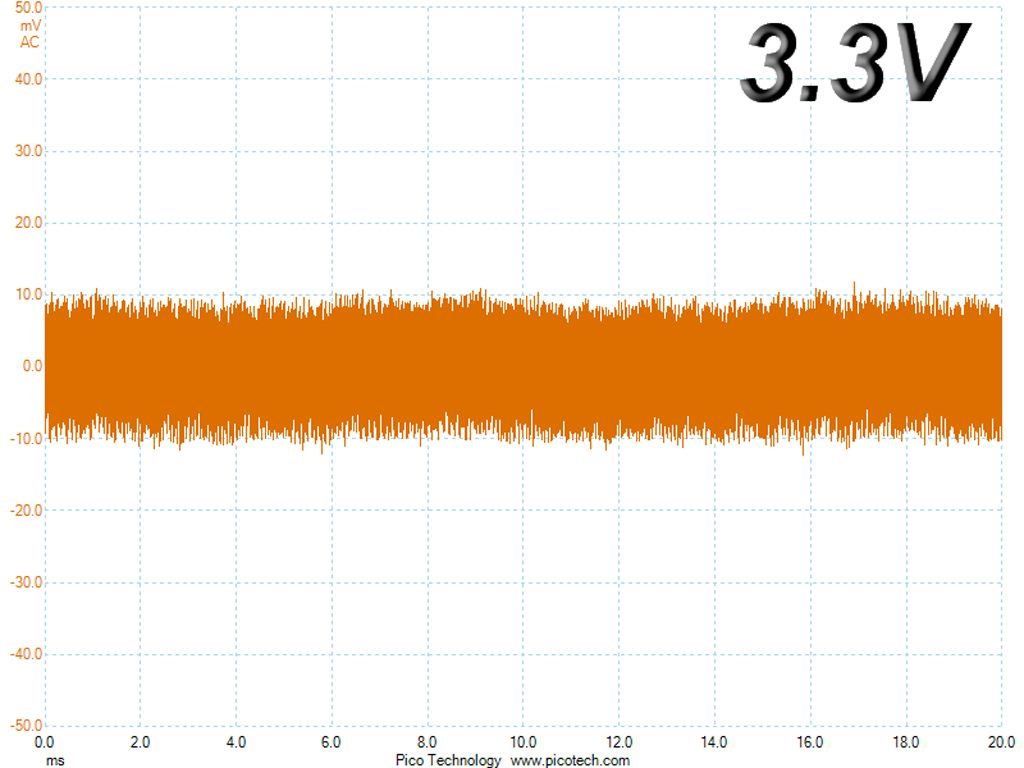

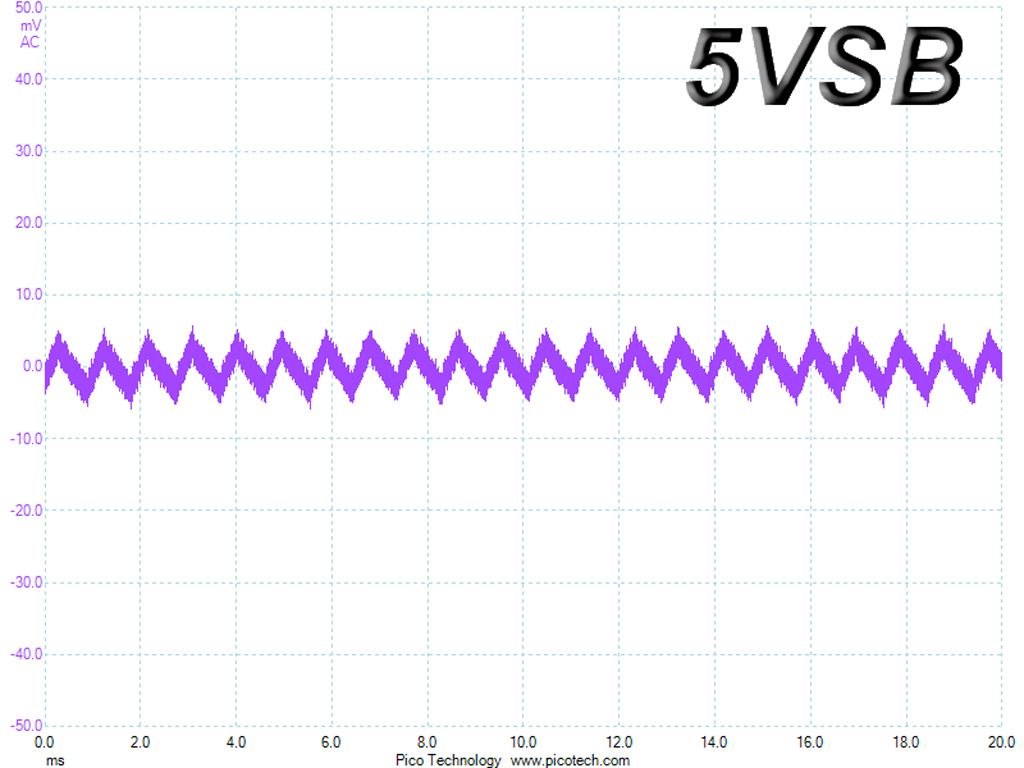

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard for all measurements.

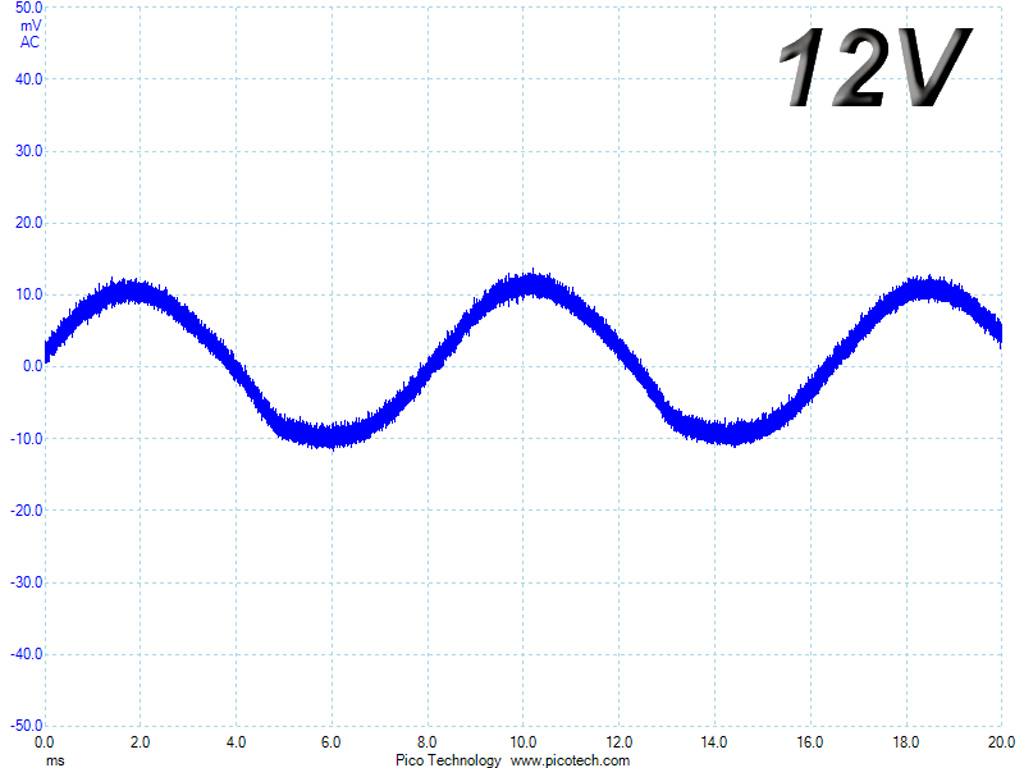

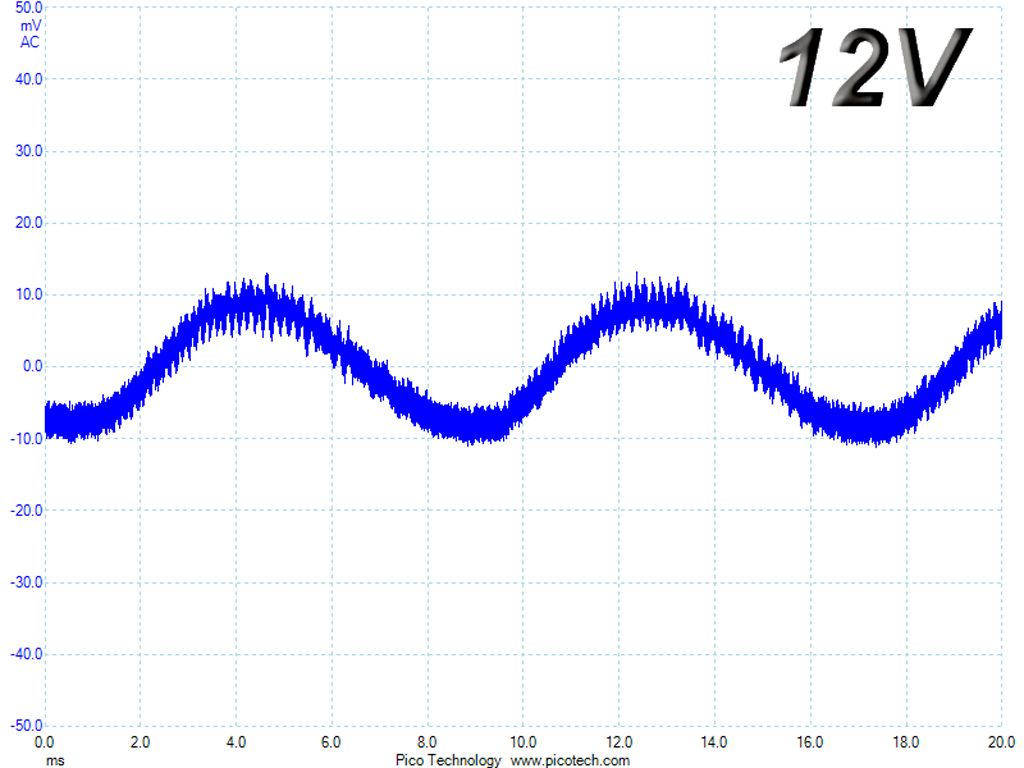

Ripple At Full Load
Image 1 of 4

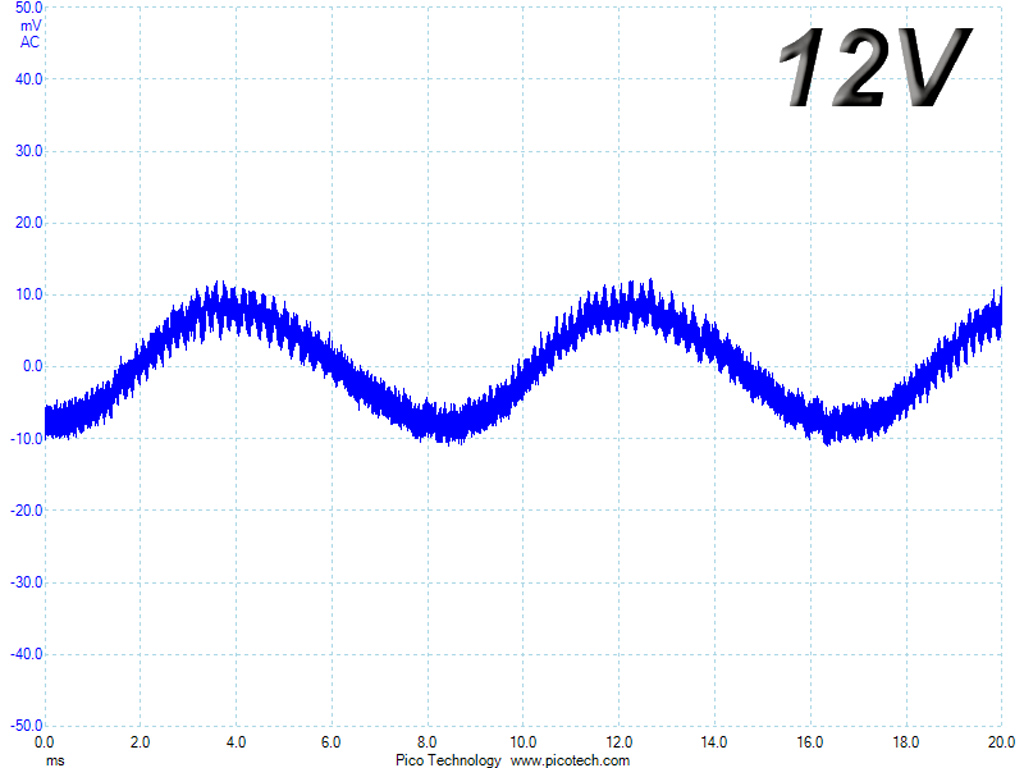

Ripple At 110-Percent Load
Image 1 of 4

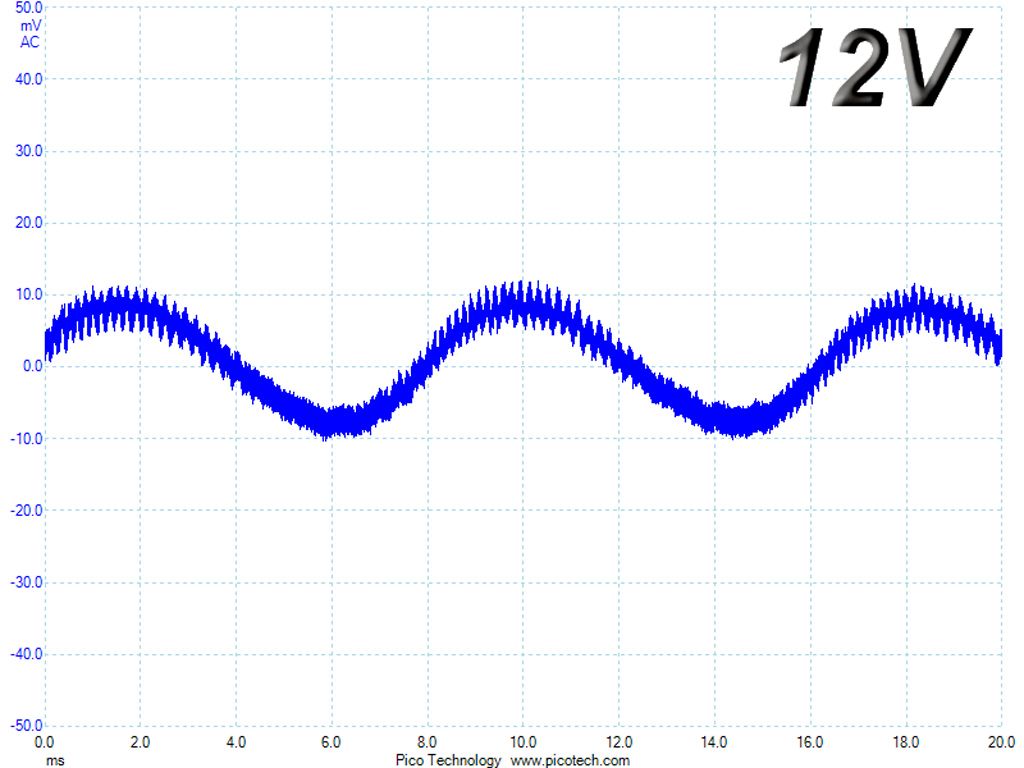

Ripple At Cross-Load 1
Image 1 of 4
Ripple At Cross-Load 2
Image 1 of 4
