Tom's Hardware Verdict
Phanteks’ Eclipse P200A might not be the most adventurous ITX case, but it is an impressively good all-rounder with a friendly price tag.
Pros
- +
+ Simple but effective design
- +
+ Easy to work in
- +
+ Excellent thermal and acoustic performance
- +
+ Includes good RGB controller
- +
+ Very affordable
Cons
- -
A bit unexciting
- -
Top PSU is a bit weird
Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
Unlike regular mid-towers, ITX cases generally take the board’s compact dimensions and use that to the designer’s benefit to craft some really funky cases. But sometimes you just want a classic layout but in a smaller form factor. For that audience, Phanteks just announced the P200A, which is really just a fairly standard-layout chassis for ITX systems.
Indeed, the P200A isn’t the most exciting ITX case, but where it underwhelms in its layout, it excels in functional simplicity, RGB, and most importantly: cost. This chassis carries an MSRP of just $50 for the standard variant or $70 if you want the RGB bells and whistles. We have the latter on the test bench today, together with the optional riser cable, so let’s find out if it’s good enough for our Best PC Cases list.
Specifications
| Type | Mini-ITX |
| Motherboard Support | Mini-ITX |
| Dimensions (HxWxD) | 14.4 x 8.1 x 15.7 inches (365 x 205 x 400 mm) |
| Max GPU Length | 13.0 inches (355 mm) |
| CPU Cooler Height | 6.5 inches (165 mm) |
| Max PSU Size | ATX, up to 7.5 inches (190 mm) recommended |
| External Bays | ✗ |
| Internal Bays | 4x 2.5-inch, optional 3.5-inch accessory available |
| Expansion Slots | 3x |
| Front I/O | 2x USB 3.0, USB-C, Headphone/Mic combo |
| Other | RGB Controller |
| Front Fans | 2x 120mm |
| Rear Fans | None, up to 1x 120mm |
| Top Fans | None |
| Bottom Fans | None, up to 2x 120mm |
| Side Fans | None, up to 2x 120mm |
| RGB | Yes |
| Damping | No |
Features

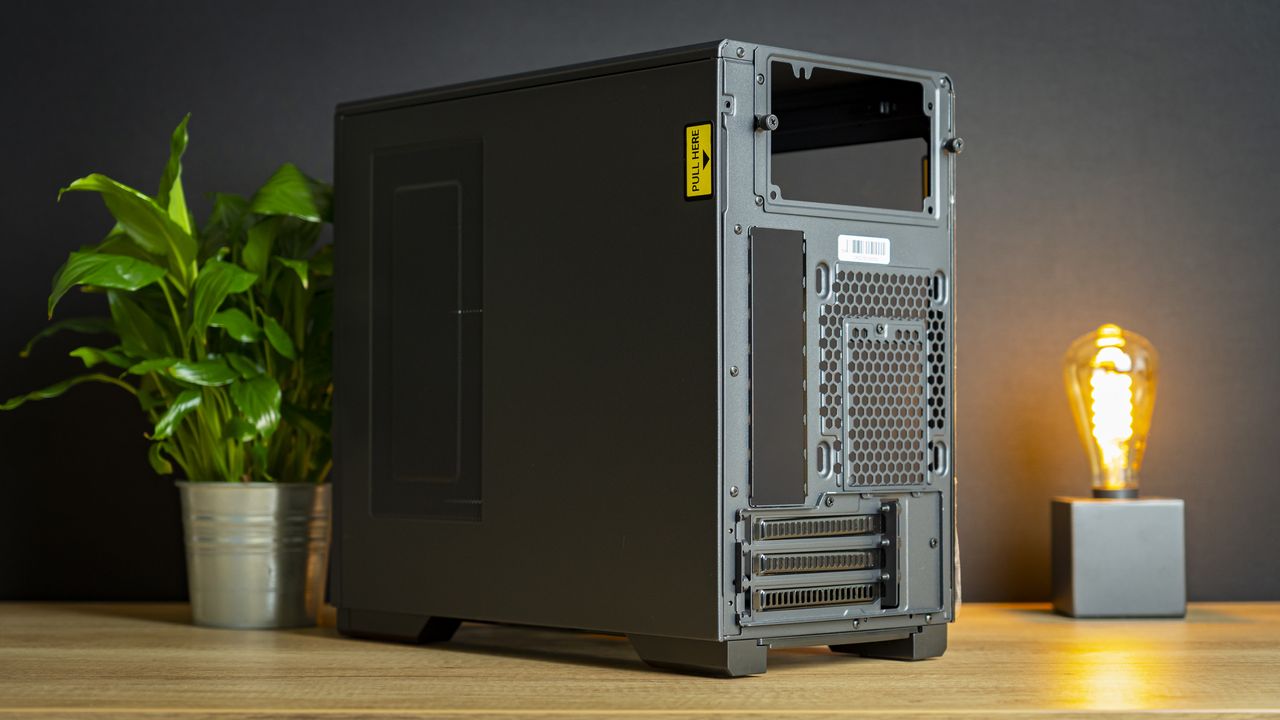

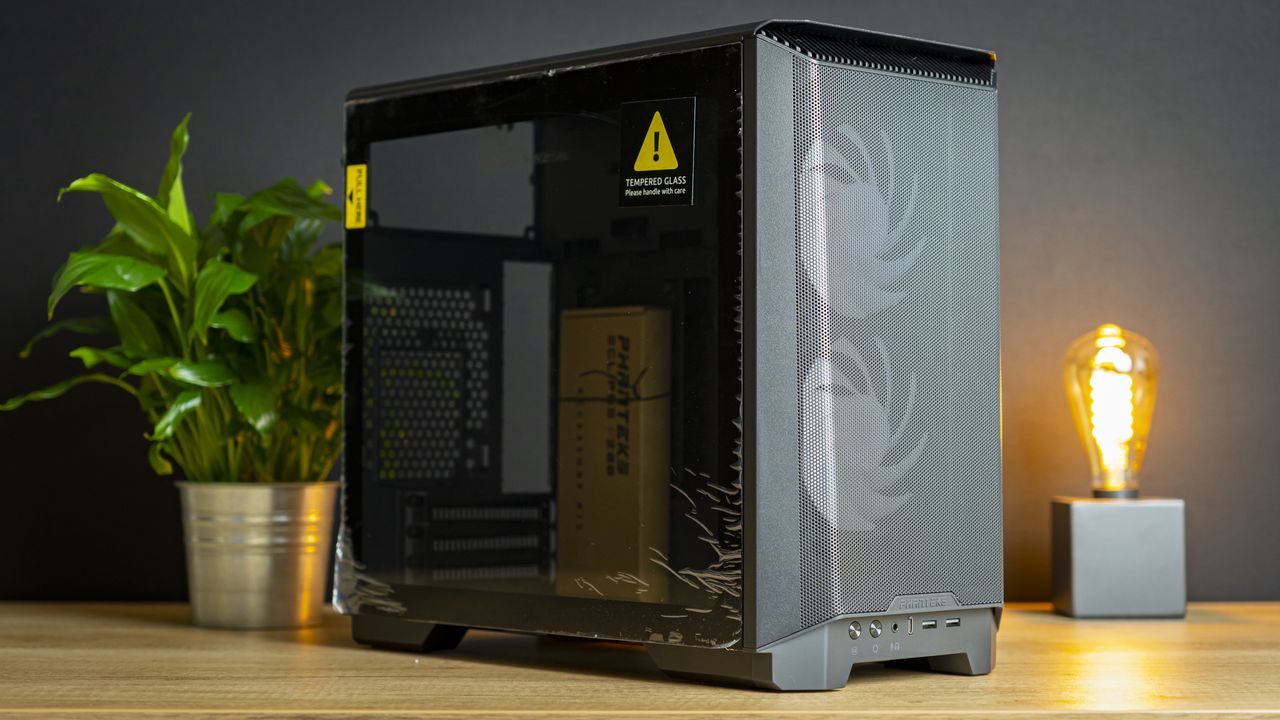

Touring around the chassis, we spot that it’s made from painted steel, has a plastic front with mesh that’s made from perforated, painted steel, and a glass side panel with a light tint -- but that’s not all. Unlike almost every other case that came out in the last decade, the PSU sits at the top here, which is a little strange but not a deal-breaker.

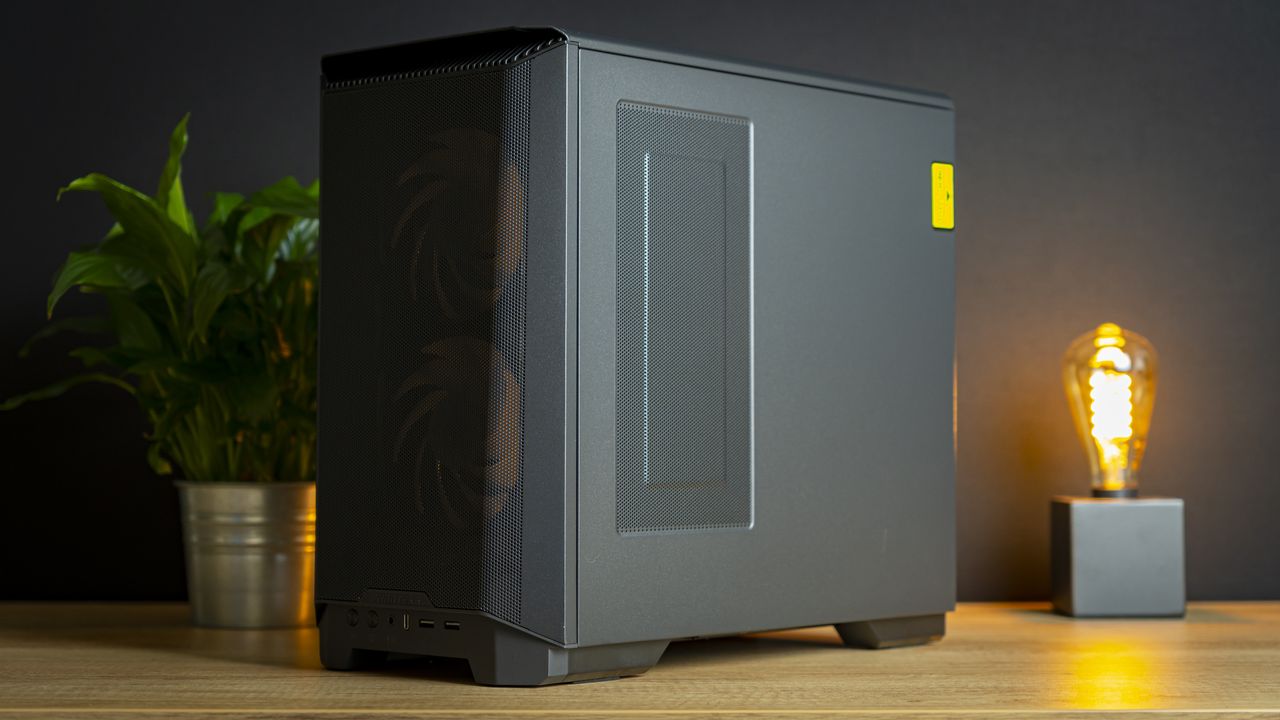

You’ll also spot an intake on the side of the chassis to aid with airflow, though no fans are mounted here from the factory.

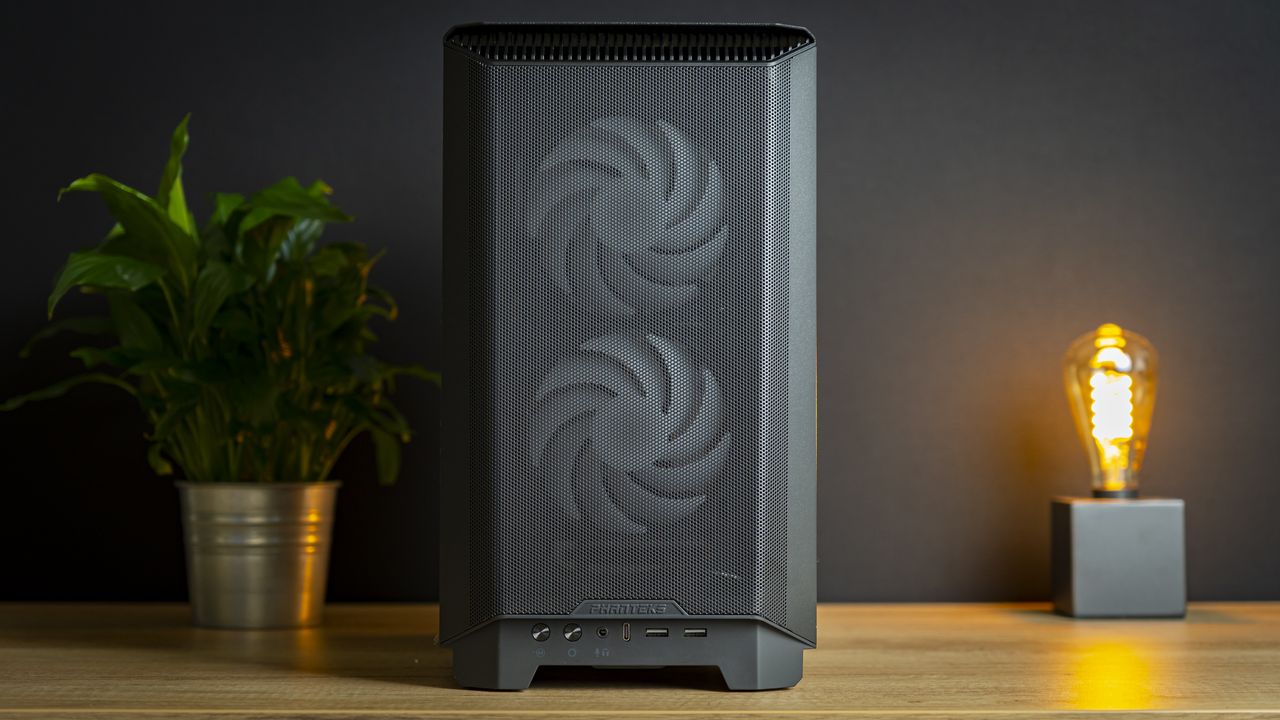

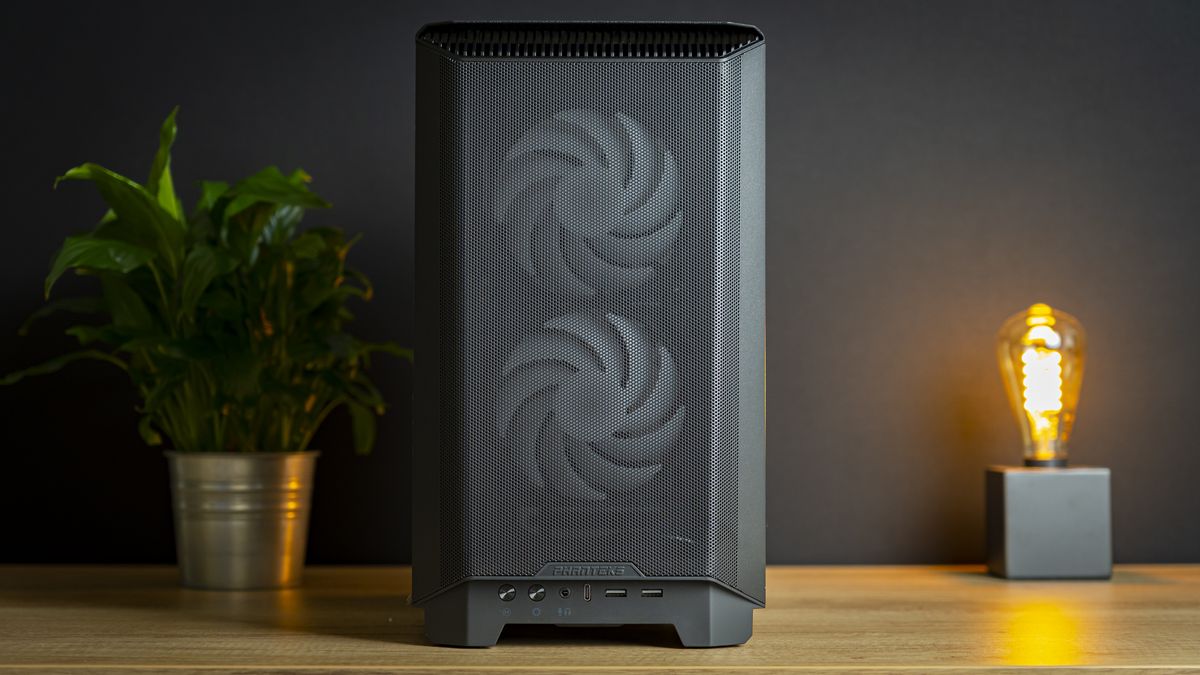

Front IO, mounted at the bottom, consists of two USB 3.0 ports, a USB Type-C port, mic/headphone combo jack and two buttons to control the RGB mode and color – indeed, this RGB variant comes with an RGB controller built in, and it’s quite a good controller with smooth effects and plenty of mode and color options.
The power button resides at the top of the chassis, and what’s nice about Phanteks’ approach is that it actually has two RGB LEDs for illumination. This means that the button is part of the RGB goodness, which is a nice touch on a budget case like this. There is no HDD activity LED, nor is there a reset switch, which makes connecting the IO pins on the inside a breeze.

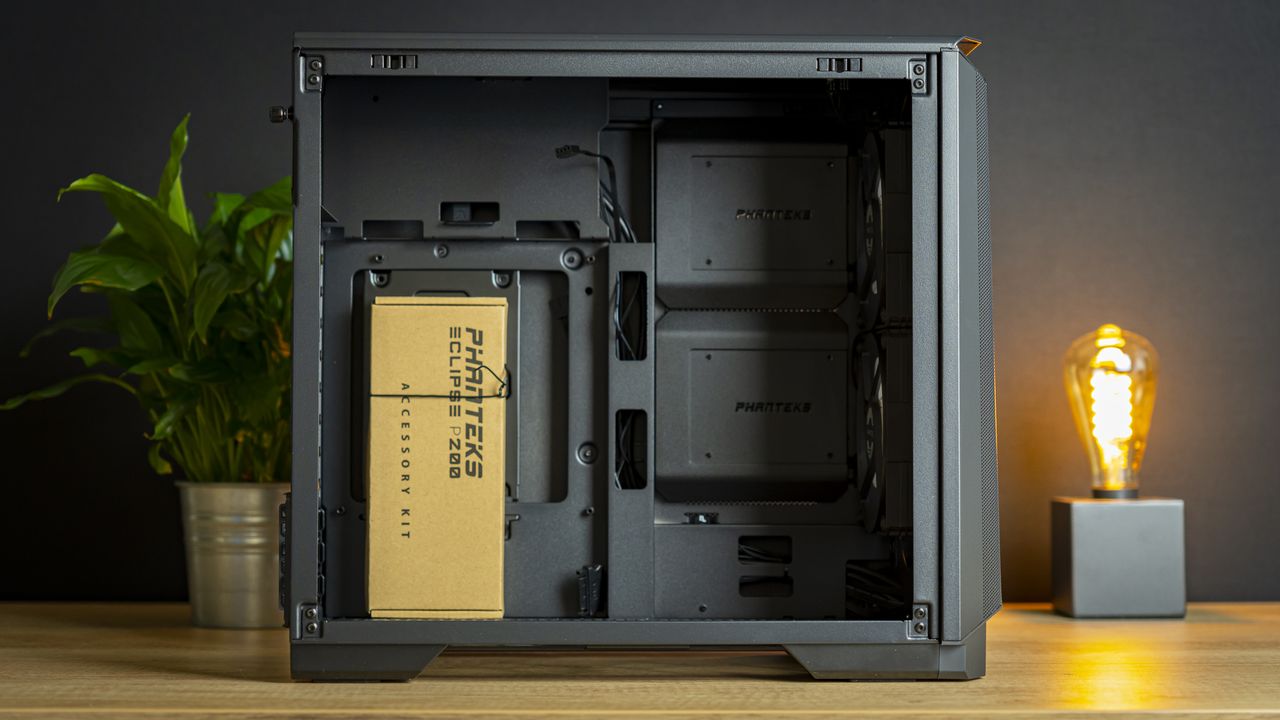

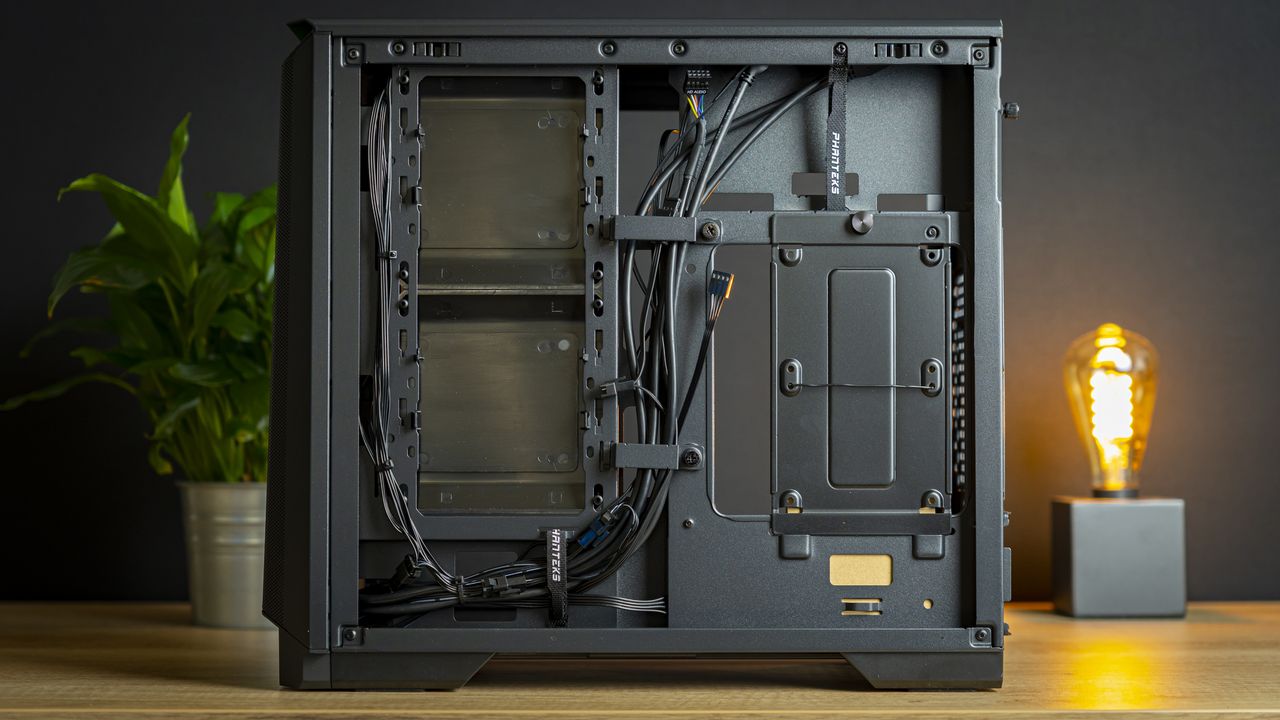

Inside the case you’ll find room for up to ATX power supplies, an ITX motherboard, large graphics cards, a 240mm radiator, and four 2.5-inch SSD mounts – two behind the motherboard and two on the side intake covers. There are no mounts for 3.5-inch drives, but you can buy optional brackets to install them – though in all fairness, most people probably aren’t going to use desktop drives in their next build anyway.
The chassis comes with two 120mm RGB fans pre-installed at the front intake location.
So without further ado, lets install a system inside the P200A.
