Load Regulation, Hold-Up Time, Inrush Current, Efficiency and Noise
To learn more about our PSU tests and methodology, please check out How We Test Power Supply Units.

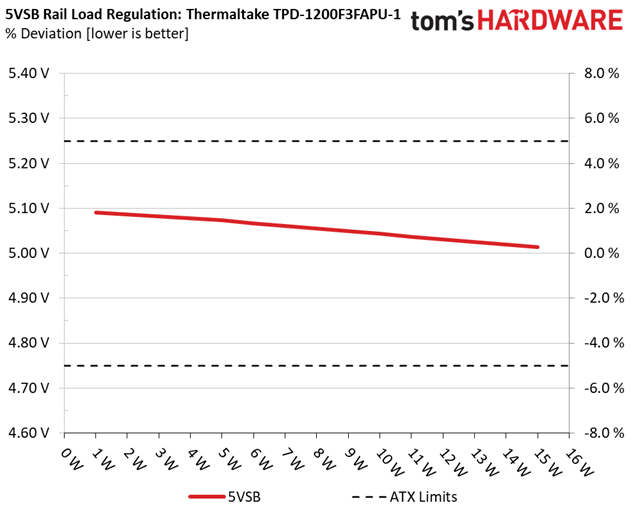

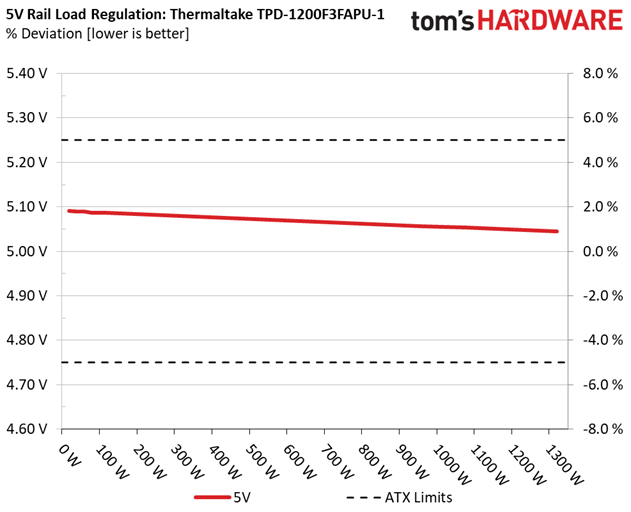

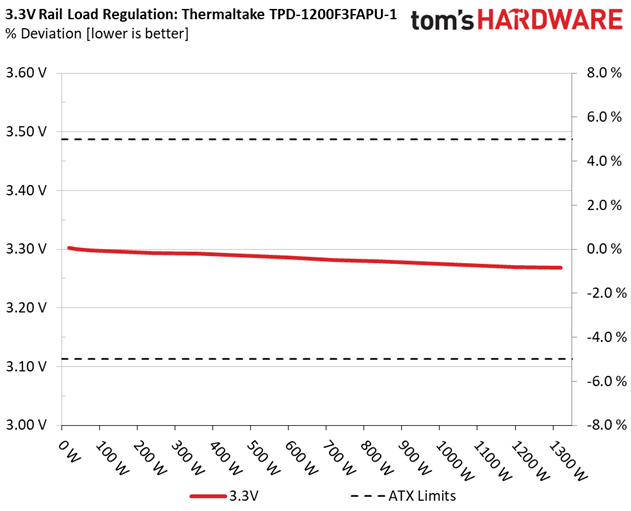

Primary Rails And 5VSB Load Regulation
The following charts show the main rails' voltage values recorded between a range of 40W up to the PSU's maximum specified load, along with the deviation (in percent). Tight regulation is an important consideration every time we review a power supply because it facilitates constant voltage levels despite varying loads. Tight load regulation also, among other factors, improves the system’s stability, especially under overclocked conditions and, at the same time, it applies less stress to the DC-DC converters that many system components utilize.

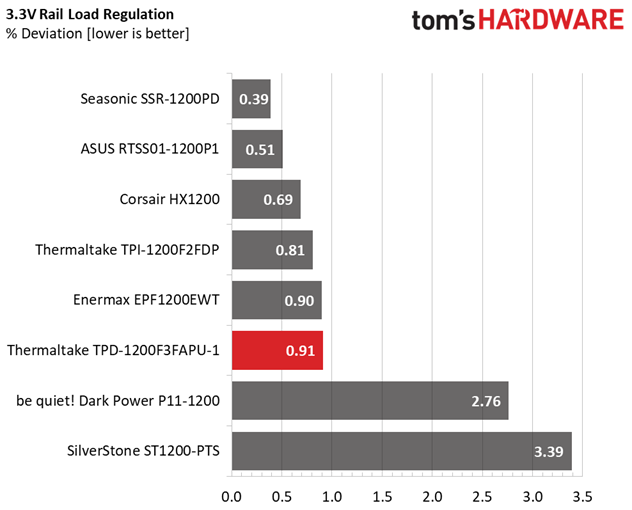

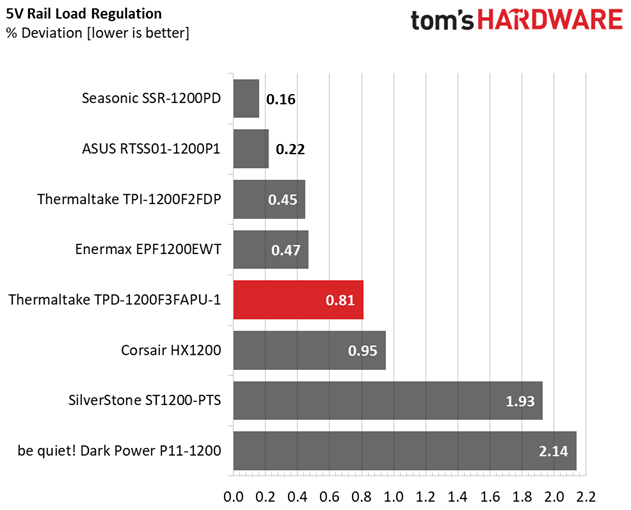

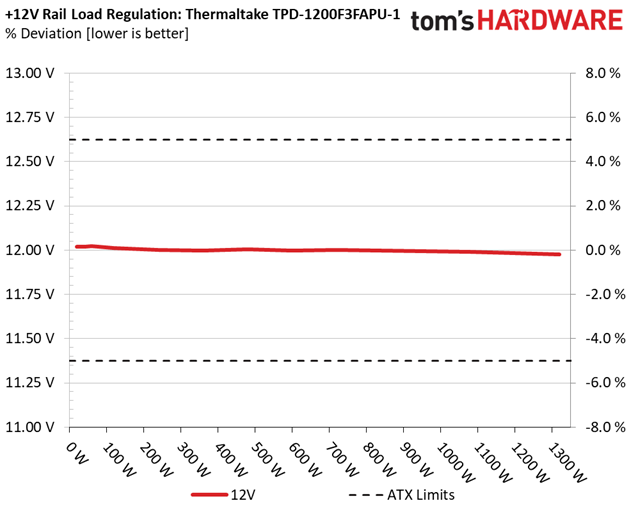

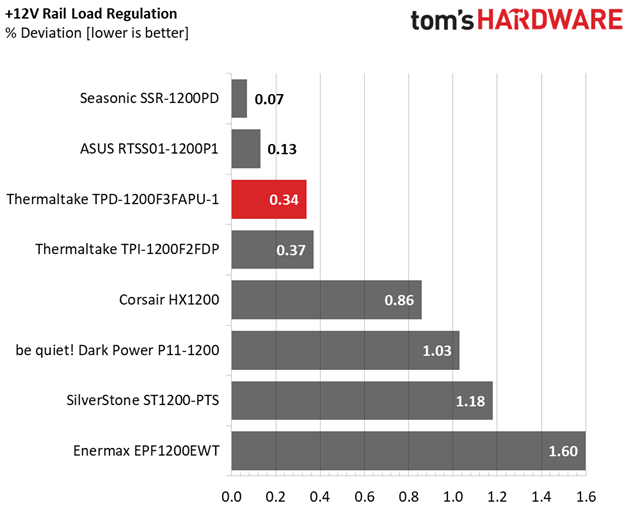

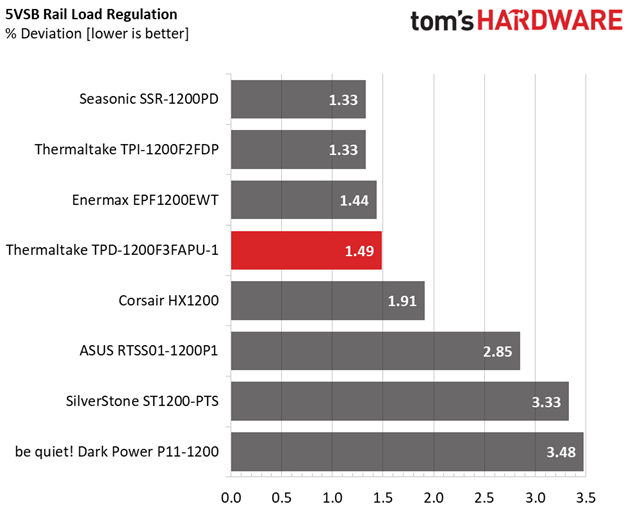

The load regulation is tight in all rails.
Hold-Up Time

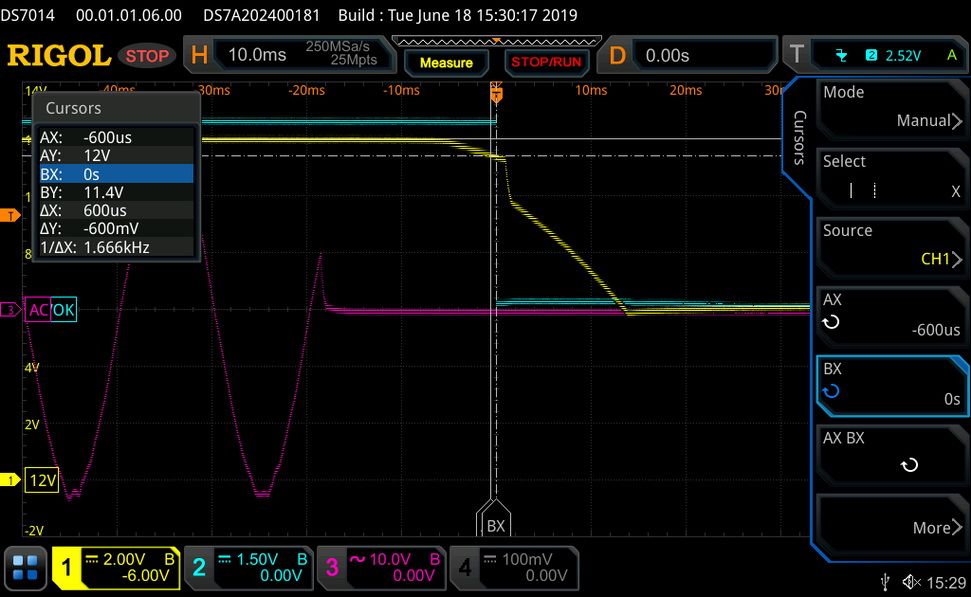

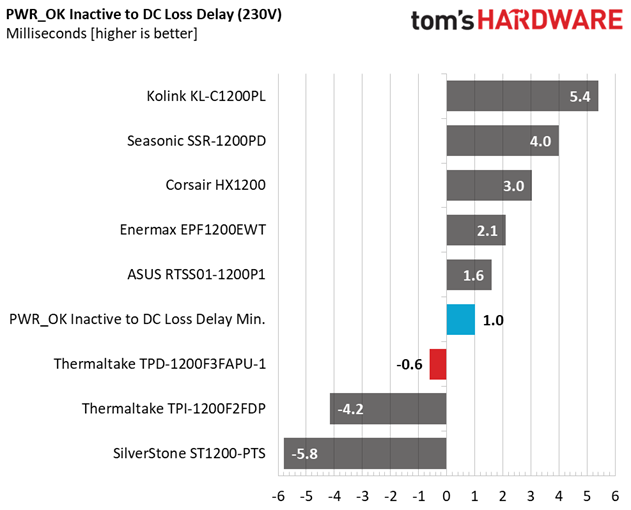

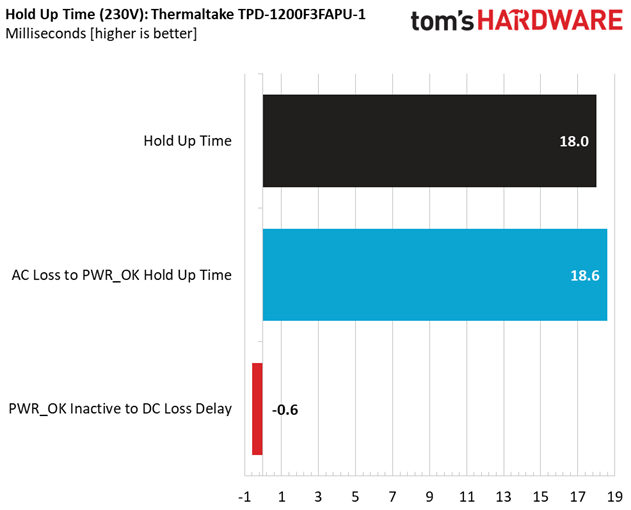

Put simply; hold-up time is the amount of time that the system can continue to run without shutting down or rebooting during a power interruption.

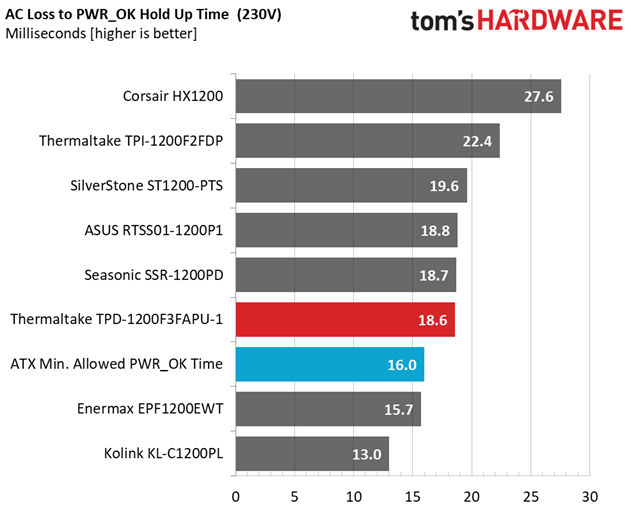

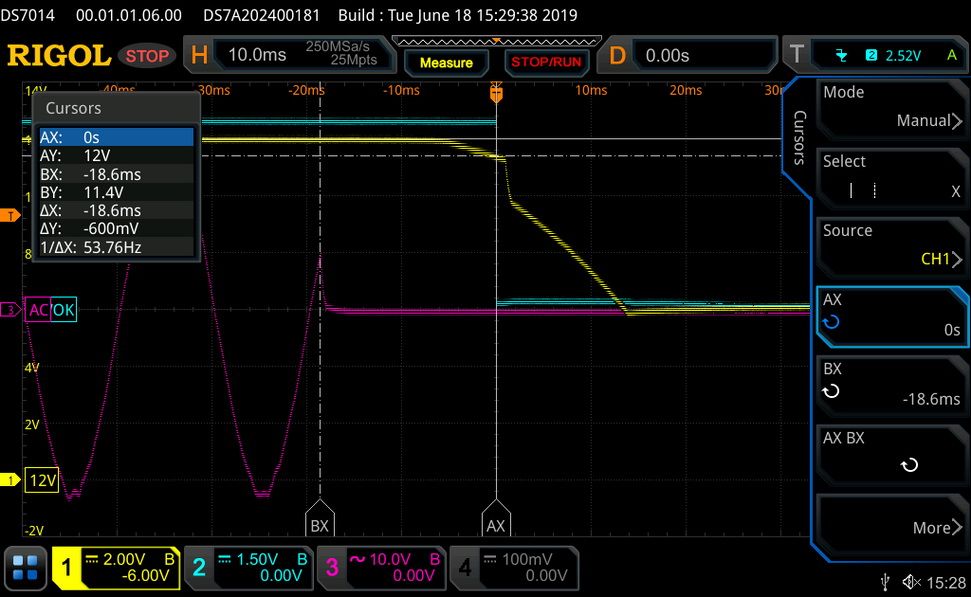

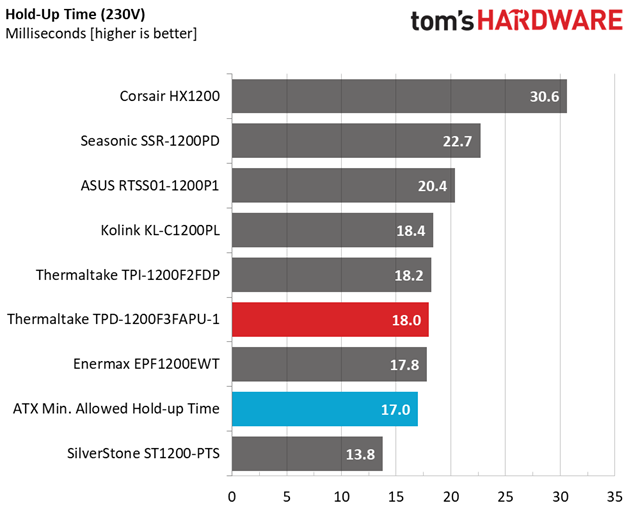

The hold-up time is longer than 17ms, but the power-ok signal is not accurate.
Inrush Current
Inrush current, or switch-on surge, refers to the maximum, instantaneous input current drawn by an electrical device when it is first turned on. A large enough inrush current can cause circuit breakers and fuses to trip. It can also damage switches, relays, and bridge rectifiers. As a result, the lower the inrush current of a PSU right as it is turned on, the better.

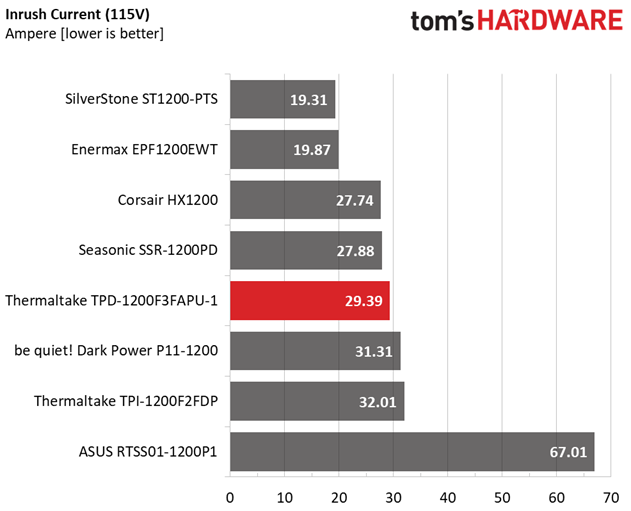

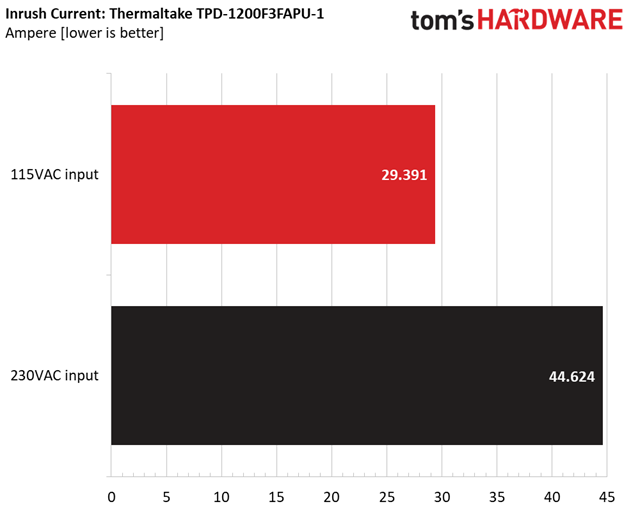

The registered inrush currents are low, given the PSU's capacity.

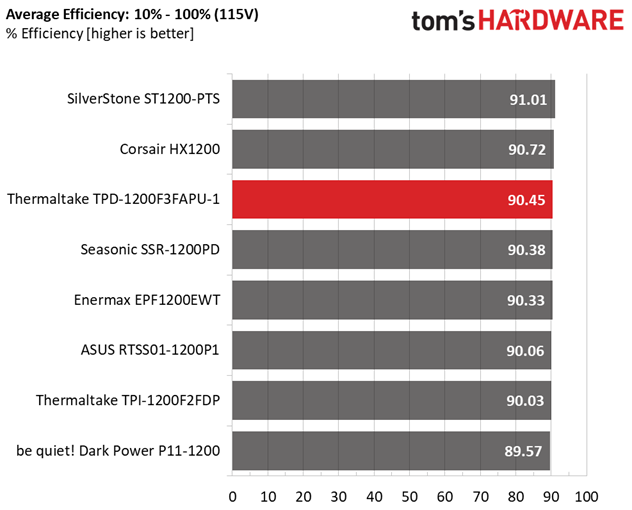

10-110% Load Tests
These tests reveal the Toughpower's load regulation and efficiency levels under high ambient temperatures. They also show how the fan speed profile behaves under increased operating temperatures.
Test # | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
1 | 8.207A | 1.968A | 2.003A | 0.986A | 120.189 | 87.757% | 0 | <6.0 | 48.19°C | 0.981 |
12.011V | 5.086V | 3.297V | 5.073V | 136.956 | 39.14°C | 115.14V | ||||
2 | 17.410A | 2.953A | 3.003A | 1.184A | 239.854 | 91.317% | 0 | <6.0 | 49.72°C | 0.994 |
12.002V | 5.082V | 3.294V | 5.067V | 262.660 | 40.26°C | 115.14V | ||||
3 | 26.948A | 3.447A | 3.492A | 1.383A | 359.348 | 91.721% | 1581 | 42.1 | 41.50°C | 0.997 |
11.999V | 5.078V | 3.292V | 5.061V | 391.784 | 51.27°C | 115.14V | ||||
4 | 36.539A | 3.943A | 4.011A | 1.583A | 479.779 | 91.833% | 1589 | 42.1 | 41.79°C | 0.998 |
12.003V | 5.074V | 3.289V | 5.055V | 522.450 | 51.84°C | 115.14V | ||||
5 | 45.791A | 4.932A | 5.019A | 1.783A | 599.900 | 91.887% | 1600 | 41.5 | 42.37°C | 0.998 |
11.998V | 5.070V | 3.286V | 5.049V | 652.870 | 52.72°C | 115.14V | ||||
6 | 55.020A | 5.924A | 6.034A | 1.983A | 720.048 | 91.155% | 1605 | 41.5 | 42.76°C | 0.998 |
12.000V | 5.065V | 3.282V | 5.043V | 789.919 | 53.75°C | 115.16V | ||||
7 | 64.235A | 6.918A | 7.044A | 2.184A | 839.802 | 90.669% | 1611 | 41.5 | 43.02°C | 0.998 |
11.998V | 5.061V | 3.279V | 5.037V | 926.231 | 54.54°C | 115.18V | ||||
8 | 73.521A | 7.912A | 8.058A | 2.385A | 960.293 | 90.073% | 1617 | 41.6 | 43.82°C | 0.998 |
11.995V | 5.057V | 3.276V | 5.031V | 1066.122 | 55.74°C | 115.18V | ||||
9 | 83.167A | 8.414A | 8.555A | 2.387A | 1079.610 | 89.468% | 1620 | 41.6 | 44.15°C | 0.998 |
11.989V | 5.053V | 3.273V | 5.029V | 1206.702 | 56.84°C | 115.12V | ||||
10 | 92.672A | 8.915A | 9.082A | 2.992A | 1200.107 | 88.581% | 1625 | 41.8 | 45.75°C | 0.998 |
11.982V | 5.049V | 3.270V | 5.014V | 1354.811 | 58.81°C | 115.14V | ||||
11 | 102.739A | 8.923A | 9.087A | 2.994A | 1320.118 | 87.763% | 1625 | 41.8 | 46.59°C | 0.997 |
11.976V | 5.045V | 3.268V | 5.011V | 1504.193 | 60.64°C | 115.16V | ||||
CL1 | 0.158A | 16.002A | 16.000A | 0.000A | 135.489 | 81.927% | 1585 | 42.1 | 42.01°C | 0.977 |
11.994V | 5.071V | 3.278V | 5.103V | 165.378 | 52.52°C | 115.13V | ||||
CL2 | 100.036A | 1.004A | 1.000A | 1.000A | 1212.736 | 88.907% | 1623 | 41.7 | 45.61°C | 0.998 |
11.989V | 5.056V | 3.284V | 5.045V | 1364.050 | 58.53°C | 115.15V |
In the first two tests, the PSU operates in passive mode, but afterward, the cooling fan has to operate at high speeds, to remove the heat. It is also quite strange the fact that in test #6 the fan's speed drops notably. This drop in the fan's speed also takes place with 100V and 230V input, at the same load level, so most likely, the MCU that controls the fan speed needs re-programming.
20-80W Load Tests
In the following tests, we measure the PSU's efficiency at loads significantly lower than 10% of its maximum capacity (the lowest load the 80 PLUS standard measures). This is important for representing when a PC is idle with power-saving features turned on.
Test # | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | PF/AC Volts |
1 | 1.209A | 0.492A | 0.484A | 0.197A | 19.634 | 64.220% | 0 | <6.0 | 0.750 |
12.018V | 5.091V | 3.302V | 5.090V | 30.573 | 115.14V | ||||
2 | 2.475A | 0.984A | 0.999A | 0.393A | 40.054 | 76.726% | 0 | <6.0 | 0.899 |
12.020V | 5.090V | 3.300V | 5.086V | 52.204 | 115.14V | ||||
3 | 3.670A | 1.474A | 1.483A | 0.591A | 59.522 | 80.770% | 0 | <6.0 | 0.948 |
12.023V | 5.089V | 3.299V | 5.082V | 73.693 | 115.14V | ||||
4 | 4.939A | 1.967A | 2.000A | 0.788A | 79.975 | 84.305% | 0 | <6.0 | 0.967 |
12.021V | 5.087V | 3.298V | 5.078V | 94.864 | 115.14V |
Because of the increased capacity, the PSU's efficiency is not so high under light loads.

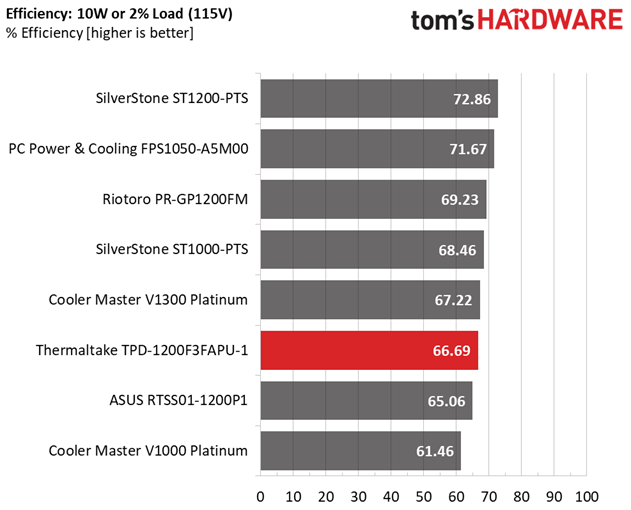

2% or 10W Load Test
Intel plans on raising the ante at efficiency levels under ultra-light loads. So from July 2020, the ATX spec will require 70% and higher efficiency with 115V input. The applied load is only 10W for PSUs with 500W and lower capacities, while for stronger units we dial 2% of their max-rated-capacity.
Test # | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | PF/AC Volts |
1 | 1.787A | 0.279A | 0.278A | 0.054A | 24.064 | 66.687% | 0 | <6.0 | 0.773 |
12.003V | 5.093V | 3.302V | 5.093V | 36.085 | 115.13V |
With 2% load the efficiency is high enough, but it doesn't exceed 70%.
Efficiency

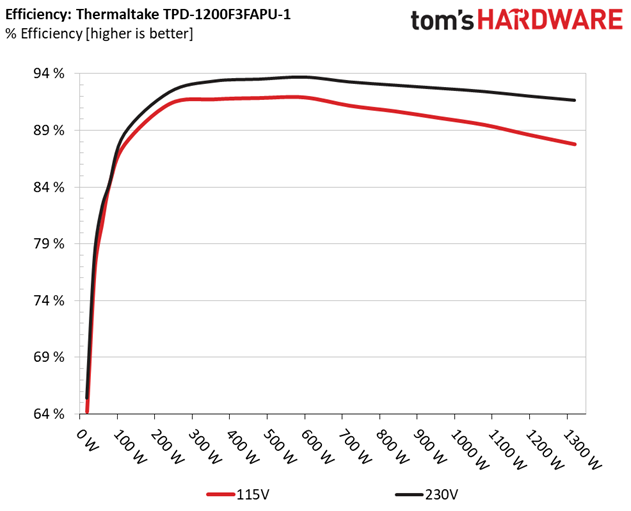

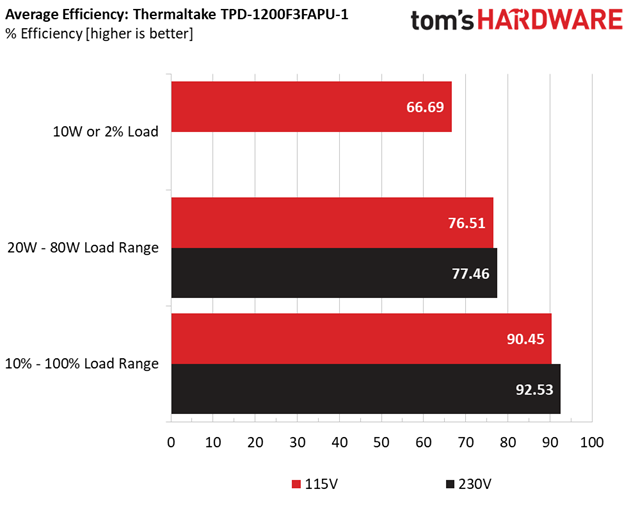

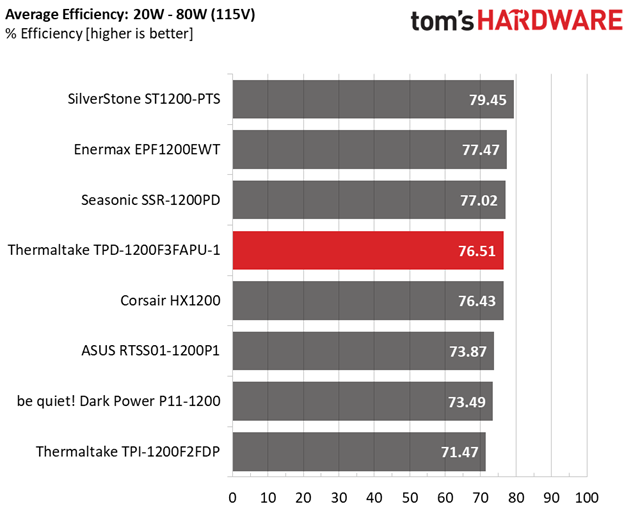

Next, we plotted a chart showing the Toughpower’s efficiency at low loads, and loads from 10 to 110% of its maximum rated capacity. The higher a PSU’s efficiency, the less energy goes wasted, leading to a reduced carbon footprint and lower electricity bills.
The unit's efficiency is high with normal loads and satisfactory with 2% of its max-rated- capacity and 20-80W loads.

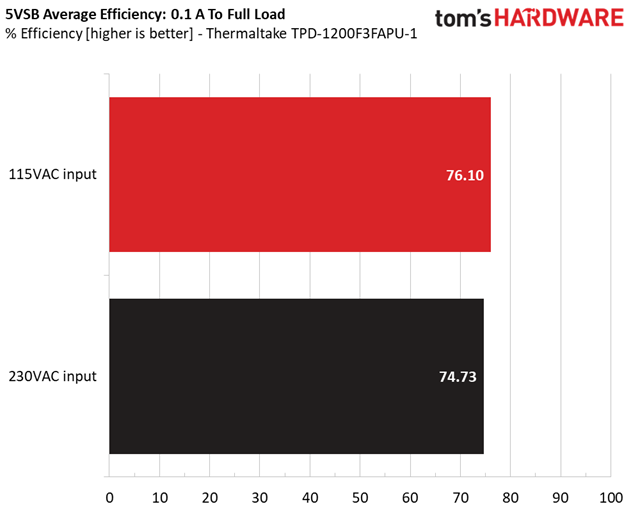

5VSB Efficiency
Test # | 5VSB | DC/AC (Watts) | Efficiency | PF/AC Volts |
1 | 0.100A | 0.500 | 74.074% | 0.053 |
4.997V | 0.675 | 115.13V | ||
2 | 0.250A | 1.249 | 76.767% | 0.123 |
4.994V | 1.627 | 115.13V | ||
3 | 0.550A | 2.744 | 77.800% | 0.233 |
4.988V | 3.527 | 115.13V | ||
4 | 1.000A | 4.980 | 77.054% | 0.340 |
4.979V | 6.463 | 115.13V | ||
5 | 1.500A | 7.456 | 77.017% | 0.406 |
4.970V | 9.681 | 115.13V | ||
6 | 3.000A | 14.819 | 76.521% | 0.490 |
4.939V | 19.366 | 115.12V |

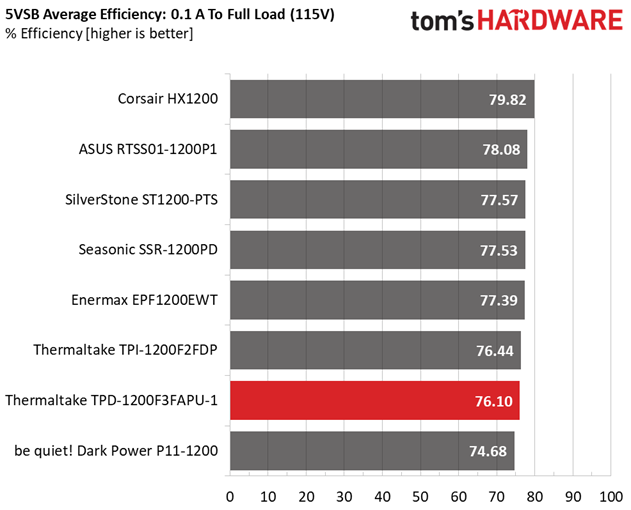

The 5VSB circuit's efficiency is low. CWT should use a more capable 5VSB circuit in this unit.

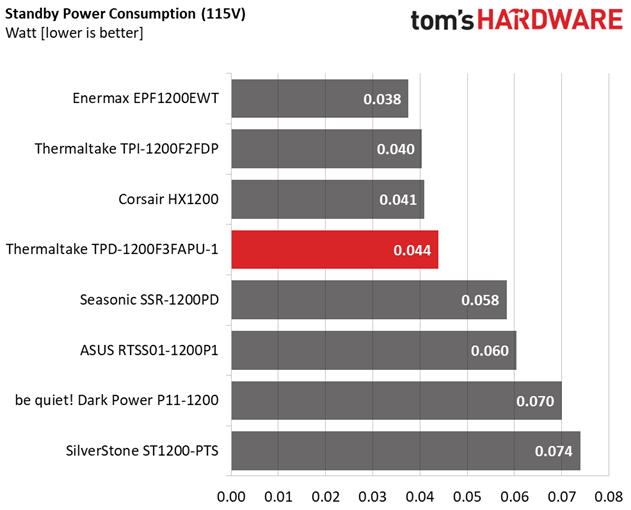

Power Consumption In Idle And Standby
Mode | 12V | 5V | 3.3V | 5VSB | Watts | PF/AC Volts |
Idle | 11.984V | 5.091V | 3.301V | 5.091V | 4.472 | 0.272 |
115.1V | ||||||
Standby | 0.044 | 0.004 | ||||
115.1V |

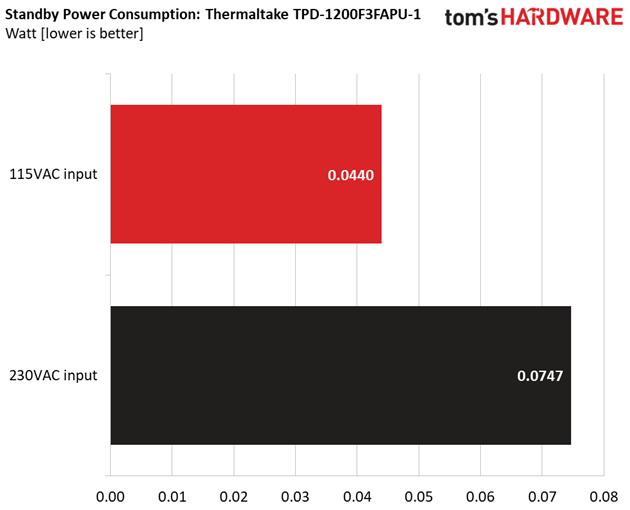

The vampire power is low, with both voltage inputs.
Fan RPM, Delta Temperature, And Output Noise
All results are obtained between an ambient temperature of 37 to 47 degrees Celsius (98.6 to 116.6 degrees Fahrenheit).
Although the cooling fan can spin at higher speeds, its speed profile doesn't allow it to go much higher than 1600RPM. This leads to a rather aggressive speed profile, though, since from 360W load the fan reaches its max permitted speed.
What makes an impression is the fan's speed drop with 600W load. Clearly, there is a problem with the fan controller's programming.
The following results were obtained at 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit) ambient temperature.
The fan profile remains aggressive under normal operating temperatures, as well. Even under light and mid-loads, there are regions where the fan's noise exceeds 40 dB(A).
