Phison S10: Toshiba MLC And TLC Versus Micron L95B MLC

Features
By Chris Ramseyer
published

Phison offered to let us test its S10 controller with three flash types that will ship in 2015: Toshiba's A19 TLC, 15nm MLC and Micron L95B 16nm MLC.

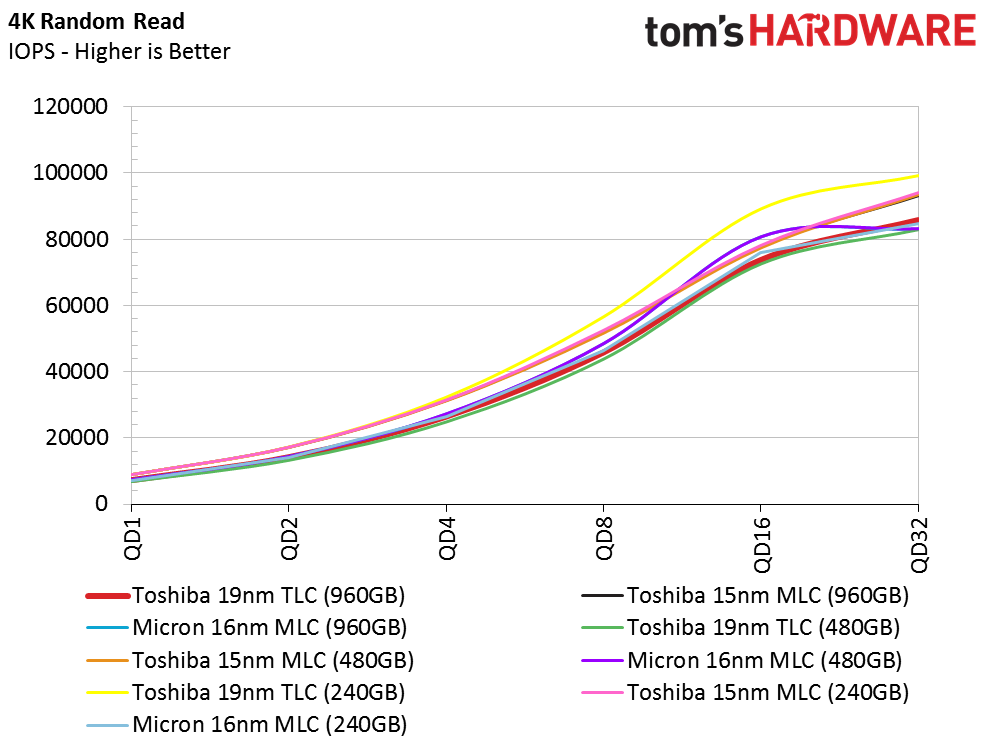

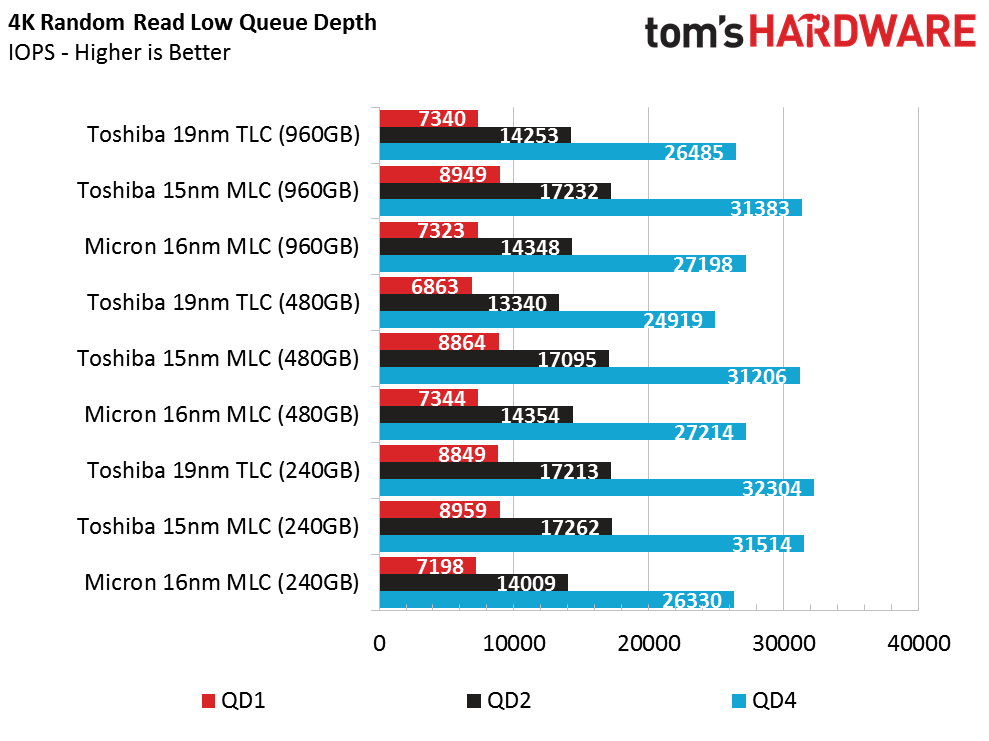

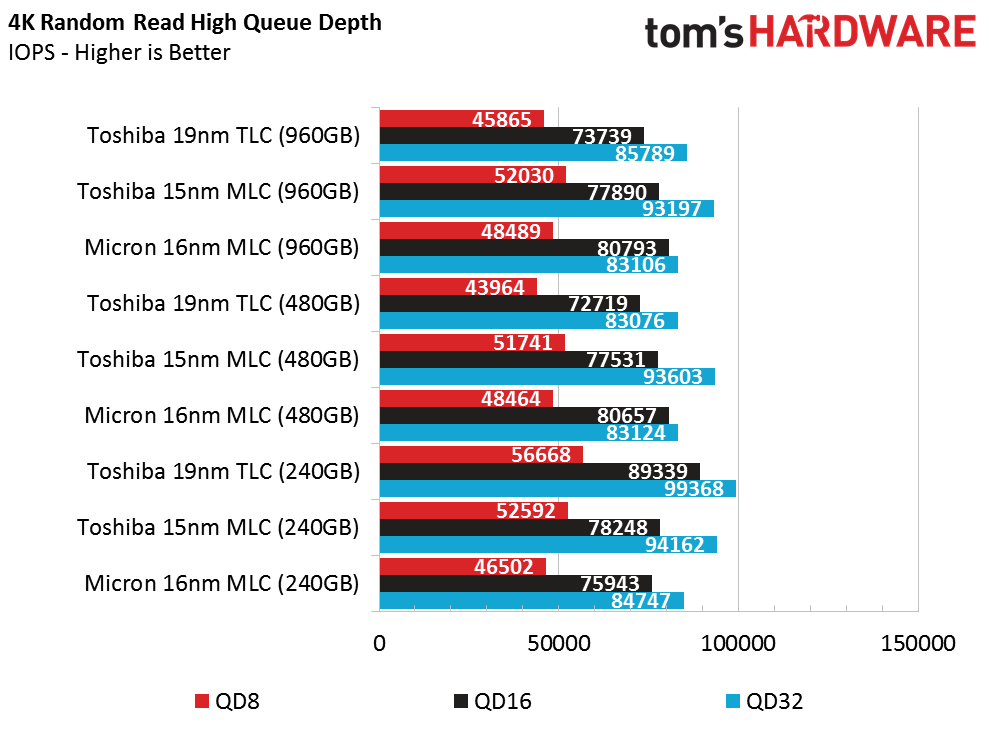

Random Read

Image 1 of 3

Our random read tests, just like the sequential read tests, show similar performance across all drives. In short, Toshiba MLC flash delivers higher random read performance than Micron's 16nm MLC. This is a lesson that goes all the way back to the 3xnm lithography days. The difference is small on the desktop, however, enterprise SSD users are more sensitive to it. OCZ even took advantage of Toshiba's higher random performance when it released a series of products with Max IOPS branding.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
