Phison S10: Toshiba MLC And TLC Versus Micron L95B MLC

Features
By
published

Phison offered to let us test its S10 controller with three flash types that will ship in 2015: Toshiba's A19 TLC, 15nm MLC and Micron L95B 16nm MLC.

128KB Sequential Mixed-Workload Steady State Performance

Image 1 of 3

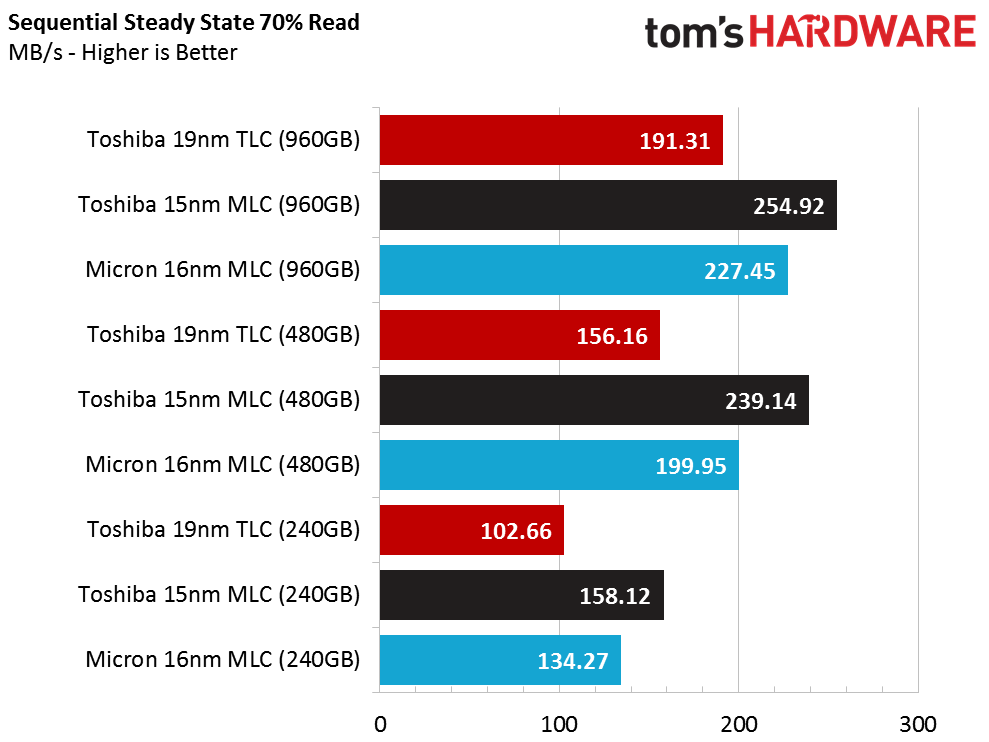

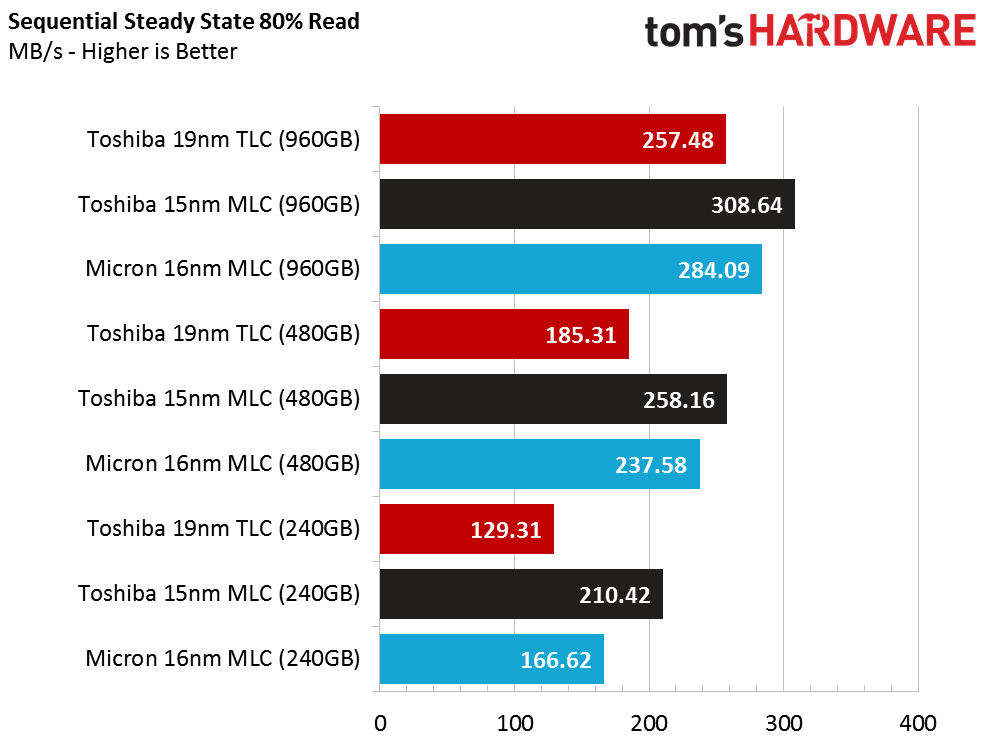

Measuring sequential steady state performance, we get back to the results we expected, with Toshiba 15nm MLC outperforming Micron MLC as the TLC flash trails.

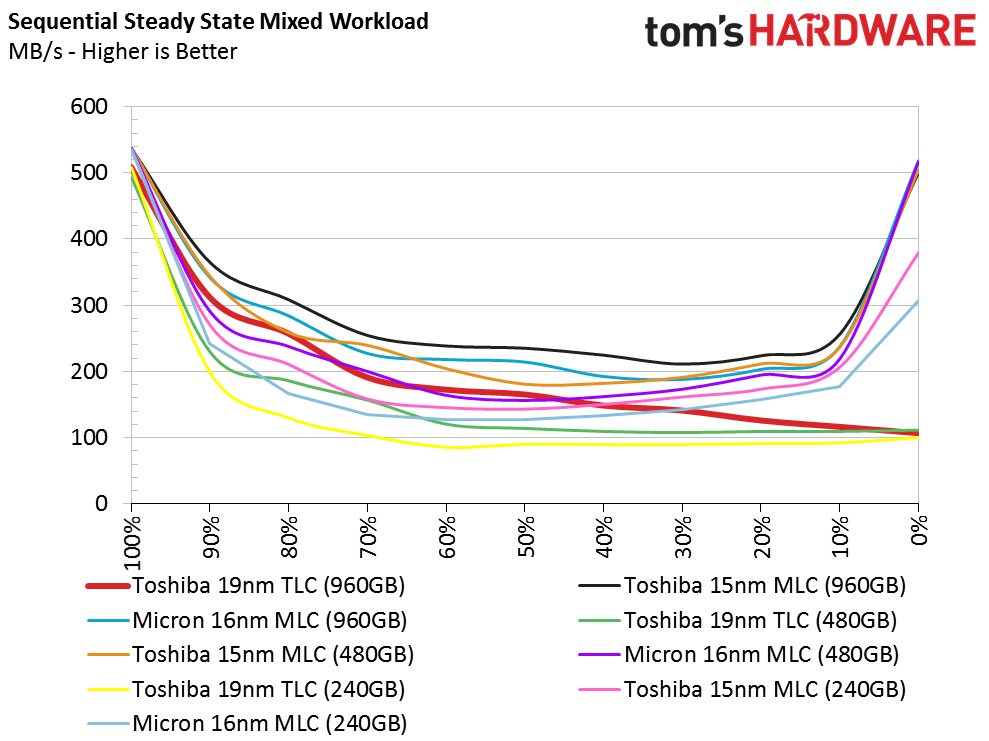

On the line chart, we also get to see 100% sequential steady state write performance. All three of the TLC drives deliver around 100 MB/s regardless of capacity. This is true TLC sequential write performance without emulated SLC buffers increasing burst performance.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
