Phison S10: Toshiba MLC And TLC Versus Micron L95B MLC

Features
By Chris Ramseyer
published

Phison offered to let us test its S10 controller with three flash types that will ship in 2015: Toshiba's A19 TLC, 15nm MLC and Micron L95B 16nm MLC.

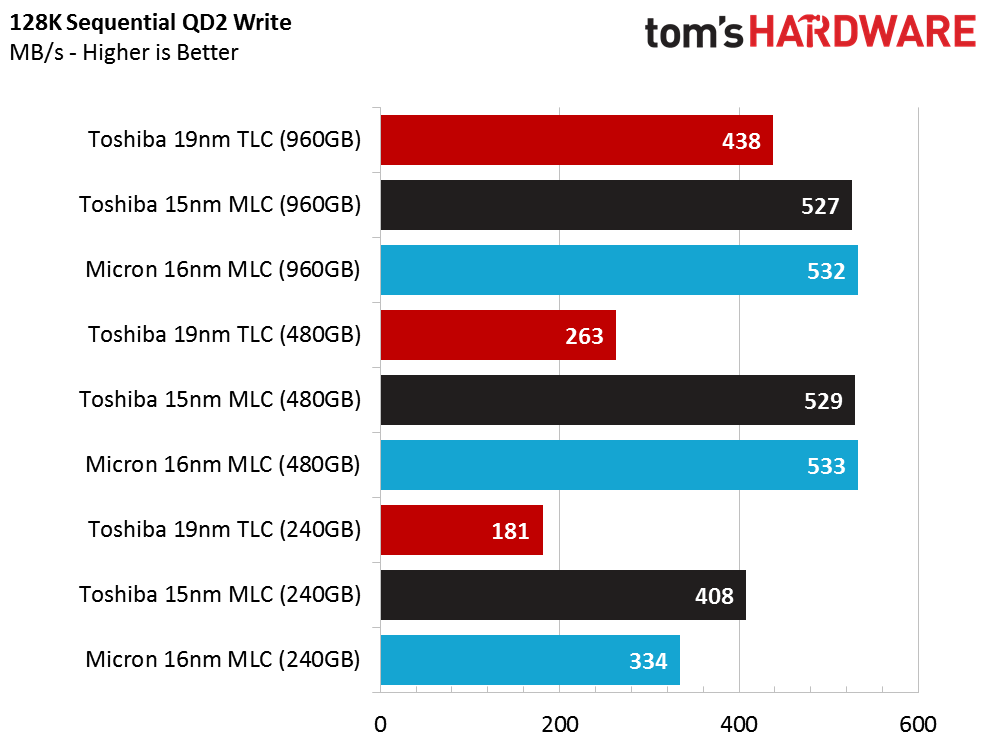

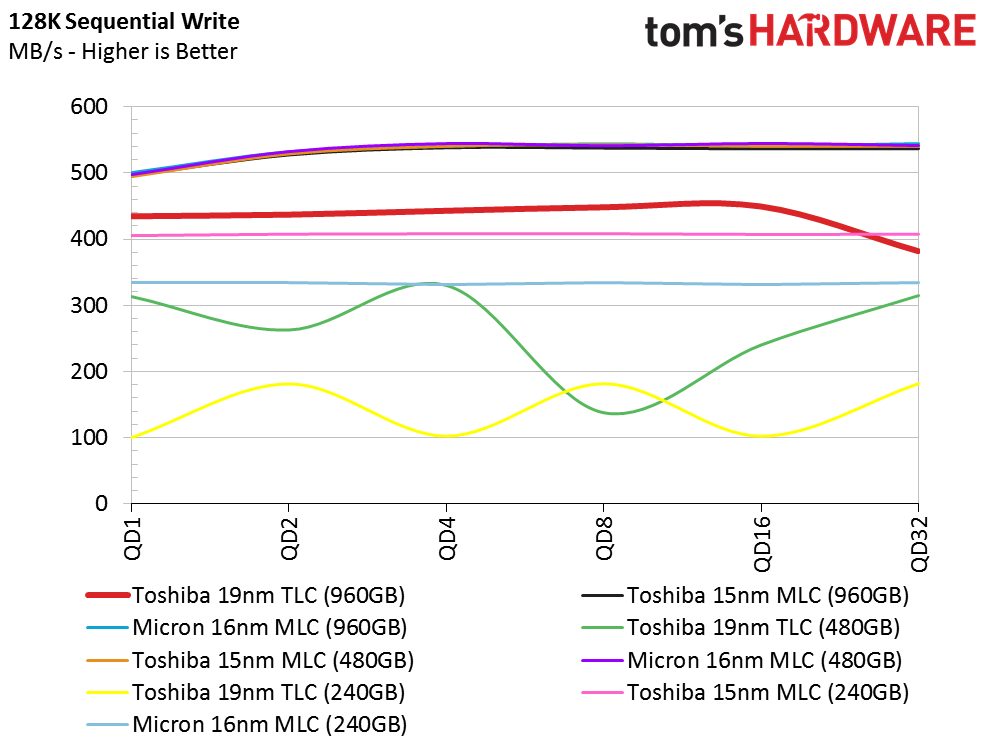

Sequential Write

Image 1 of 2

We really want to pay close attention to write performance. These days, enthusiasts pay more for this specification since read performance is almost always at the limit of SATA 6Gb/s anyway.

The two smaller drives with Toshiba A19 TLC get close enough to steady state during this portion of the test script that their numbers waver. We also see that a capacity advantage doesn't always translate to significantly higher write performance when it comes to TLC flash. The 960GB TLC drive delivers less sequential write performance than the smaller 480GB MLC versions. The same performance drop-off also occurs in the 480GB TLC drive compared to 240GB MLC drives.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
