Phison S10: Toshiba MLC And TLC Versus Micron L95B MLC

Features
By
published

Phison offered to let us test its S10 controller with three flash types that will ship in 2015: Toshiba's A19 TLC, 15nm MLC and Micron L95B 16nm MLC.

Random Write

Image 1 of 3

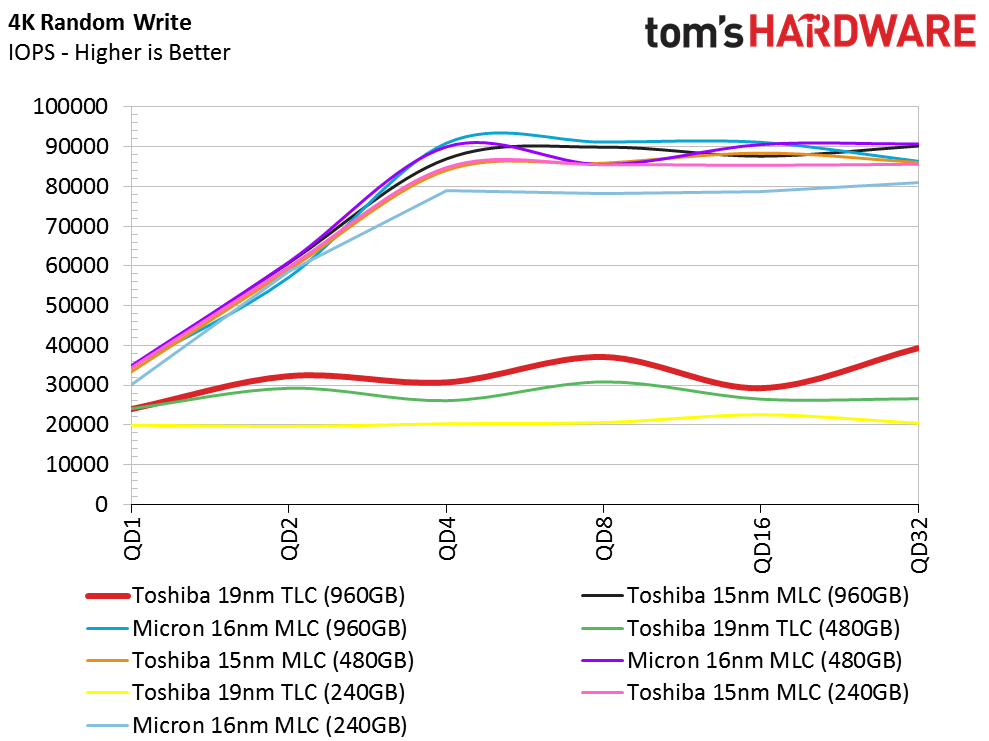

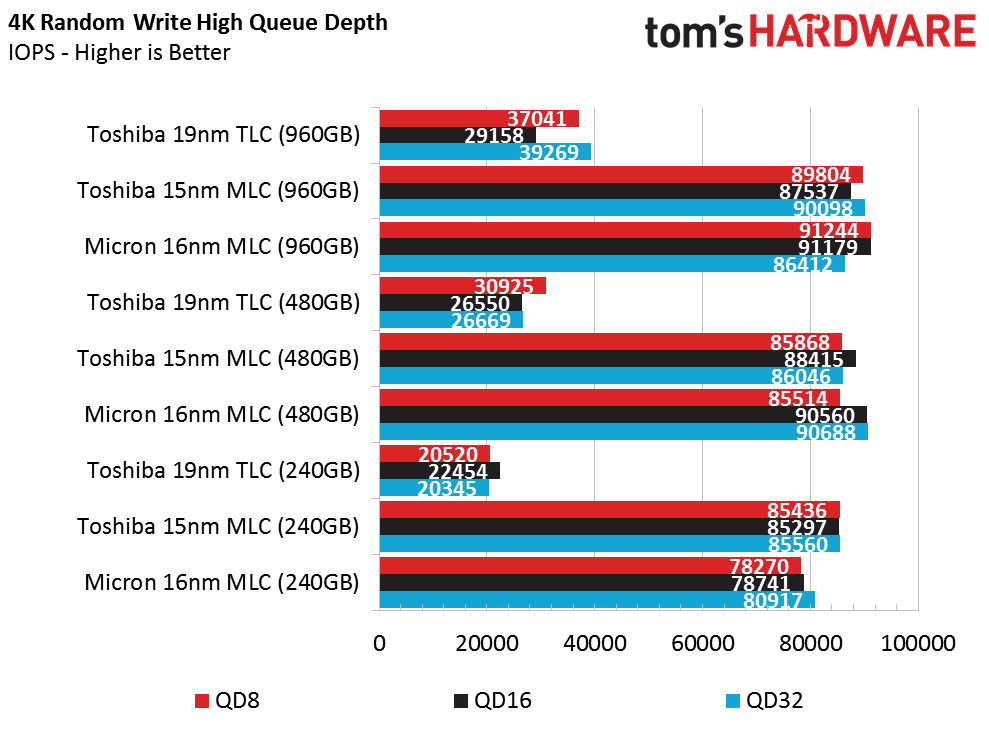

Toshiba A19 TLC takes a large performance hit in the random write category. At QD32, TLC delivers around one-third the random write performance of MLC flash from Toshiba and Micron. The MLC advantage is even greater at 256GB. We expected the 16-package TLC to perform a better than it did, if only because of the increased parallelism. It will be interesting to see what happens when a company uses just eight packages with TLC; performance may drop down to 10,000 random write IOPS.

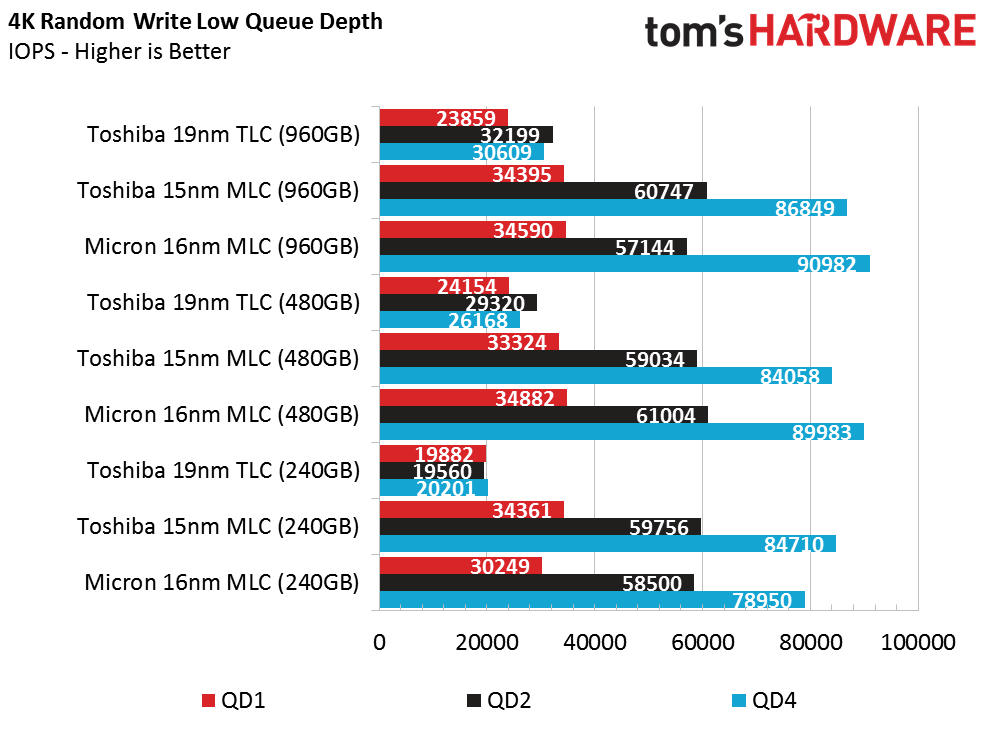

At a queue depth of one and two, the TLC drives close the gap. TLC-based products will make up the entry-level SSD market, so they'll be used for Web surfing, light gaming and general productivity tasks. Their performance is ample for those activities, and still well beyond what you'd get from a disk drive.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
