Valve Index VR Headset and Controllers Review: First Benchmarks

Valve is finally stepping out of the shadows to claim its place in the VR hardware market, and it’s aiming straight at the high-end. Valve’s Index VR headset and controllers are a significant upgrade over first-gen headsets—unless you run into problems.

Valve’s new headset is a big improvement in both design and features over competing headsets in consumer VR. My first impressions of the headset were very positive. The build quality is about as good as it gets, the material selection is fantastic and the feature set of the device leaves practically nothing to be desired.

However, after a few weeks (about 100 hours) of use, I started encountering technical difficulties (more on that in page 2). I’m not sure the headset is to blame, so take my experience with a grain of salt. There’s a good chance your experience would be different than mine.

As a result, we’ve only completed benchmarks for two VR games thus far and are holding off on giving it a final rating. We’ll update this review when we’re able to run our final benchmarks. In the meantime, here’s an in-depth look at the Valve Index hardware, controllers and a taste of its gaming capabilities.


Update 7/24/2019: Valve announced today that the full Valve Index VR bundle is back in stock in the U.S. The kit was made available in late June, but with high demand surpassing initial stock, (according to Valve), consumers were soon only able to reserve a kit. As of today, the full bundle is available for immediate shipping. Valve said a similar announcement regarding other SKUs is "forthcoming."

Valve Index VR  Headset Kit Specs

ScreenDual LCD, canted lenses
Resolution1440 x 1600 per eye (2880 x 1600 combined)
Subpixel RenderingRGB subpixels
Refresh Rate80, 90, 120 or 144 Hz
Field of ViewAdjustable up to 130 degrees
TrackingSteamVR 2.0 sensors, compatible with SteamVR 1.0 and 2.0 base stations
Eye adjustments58-70mm IPD mechanical, mechanical eye relief
Connections5m tether, 1m breakaway trident connector, USB 3.0, DisplayPort 1.2, 12V power
Cables

Tether cable with DisplayPort 1.2 and USB 3.0 2x USB controller charging cables 2x 4.5m base station power cables

Face CushionPermanently affixed to removable facial interface, foam covered in anti-microbial microfiber cloth
Cameras960 x 960 pixel, global shutter, RGB (Bayer)
Extra2x SteamVR 2.0 Base Stations and stands with mounting hardware
2x Index controllers
2x controller lanyards
Cleaning cloth
Regionalized power adapter(s)
Headset power supply
Headset cradle adapter (for smaller heads)

Weight (without cable)

809g
Price

$999 (including 2 controllers and 2 base stations)

$499 (headset only)

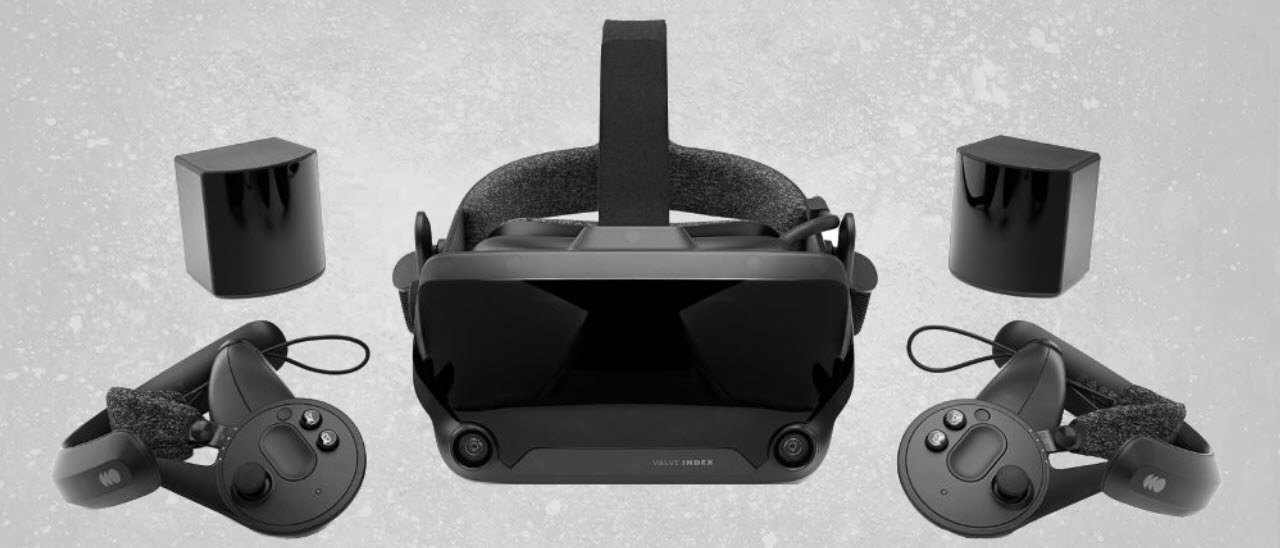

Meet Valve’s Index Headset

The Index product line is available as an a-la-carte upgrade solution for existing HTC Vive and Vive Pro owners, with the Index headset, Index controllers and second-generation Lighthouse base stations available individually for $499, $279, and $149 respectively. Valve also sells bundles with the headset and controllers together for $749, or complete packages that also include two base stations for $999. Our review is based on a full kit.

What’s in the Box?

The first thing that I noticed about Valve’s new headset is that every detail exudes an air of quality. Everything from the presentation of the packaging to the materials used is top notch.

Under the lid of the box, you’ll find the two base stations, two controllers and the headset on the top level. Under the top shelf, you’ll find the tether cable and appropriate power cables for the base stations and the headset. If you live in the U.S., you should receive power cables with the North American plug configuration. Overseas customers should receive plugs with two interchangeable ends for compatibility across the EU. Valve also includes a pair of wall mounts for the base stations.

The complete Index kit includes almost everything you could need except for one glaring oversight. The Index controllers include internal rechargeable batteries, like the Vive wand controllers, and Valve includes a pair of USB Type-C cables to charge them. However, we did not find wall plugs in the box to charge the controllers.

It is annoying when companies assume that customers already have a USB charger, let alone two. I used the chargers that came with my Vive, but if I didn’t have that matching pair I would have been forced to charge my controllers one by one or with charge plugs from different manufacturers. I would prefer to know that both controllers charge at the same pace, with chargers that the hardware manufacturer specified.

High-Quality, but Heavy, Build

There's no way to sugar coat it; the Index is weighty (809g). If you were hoping for a super-light headset, look at the HP Reverb (498g). The Index headset isn't quite as heavy as the Vive Pro (1,017g), but the weight isn’t as well balanced, so it feels more substantial than the Vive Pro. Valve’s headset also includes a heavy-duty data cable, which adds to the perceived weight.  Over 800g is not an insignificant amount of weight for your neck to carry.

Despite the disappointingly heavy frame, Valve’s Index is a big step forward for head-mounted display (HMD) design. Even before plugging it in, I could tell that it is the most well-built headsets I’ve ever tested. Valve’s material selection is top-notch, and I find it hard to complain about most of the company’s design choices.

Valve’s Index headset gave me a bit of deja-vu but in a good way. It reminded me of my experience with HTC’s Vive Pro headset, which remained my pick for best VR headset from the day that I received it until the day that I received the Index. When I evaluated HTC’s Vive Pro last year, I was immediately impressed with the build quality and the industrial design of the device. Now that I’ve spent a few weeks with Valve’s Index, I can’t help but think that the Vive Pro feels cheap in comparison.

Valve’s headset feels sturdy, with high-quality plastics and precision mechanical components whereas the Vive Pro creaks when I pick it up and the plastics feel like they belong on a child’s toy. It’s funny how an incremental improvement in product quality can make a device feel significantly better in your hands.

Mechanical Head Strap

The Index has a rigid, mechanically adjustable head strap that resembles the Vive’s Deluxe Audio Head Strap upgrade. The head strap wraps around the back of your head and includes a lower section that cradles to bottom of your skull for a secure fitment. The rear of the strap comprises a small dial that controls the size adjustment. The size adjustment feels smooth and precise, and unlike some headsets that we’ve tested, the mechanism feels like it includes precision gears that would last a long time.

Valve’s Index also includes an overhead fabric strap with a Velcro adjustment that helps relieve your cheeks of the stress of the headset’s weight.

Soft, Anti-Microbial Cushions

Apart from the precision mechanical adjustments that help provide a comfortable fitment, Valve sourced high-quality material for the cushions. From a distance, the pattern of the fabric makes it look like the Index features firm closed-cell foam cushions, but it’s one of the softest materials that I’ve ever put on my face.

The cushions are made of a thin, breathable foam material wrapped in an anti-microbial microfiber cloth. They're among the most comfortable of any VR headset that we’ve tested, but the company made a critical mistake with the cushion design; the cushions are not removable.

Replaceable Facial Interface

Technically, you can replace the facial interface to get a fresh cushion (Valve sells 2-packs for $39.99), but that would require replacing the entire plastic frame, which includes the flaps that block light at your nose. Fortunately, the facial interface is incredibly easy to remove. The component is secured with four magnets, so give the mask a light tug, and it will pop right off.

Valve said it would release the specifications for the interface, which would enable companies such as VR Cover to create aftermarket replacement, but I don’t think it’s too much to ask for a Velcro solution to enable cheap cushion replacements.

Permanent Rear Cushion

The cushion on the rear of the head strap is an entirely different story. But it can’t be removed at all, so when the cushion gets sweaty after an active workout in a game like Box VR, it won’t be easy to clean.

Valve includes a potential solution for the sweaty rear cushion in the box. The headset comes bundled with a foam rubber spacer, which slips into the opening below the dial. The spacer makes it possible for people with smaller heads to wear the Index, but it could double as a sweat barrier if your head is small enough to make use of it.

Goodbye Headphones, Hello Ear Speakers

The Index headset has integrated speakers, so you don’t need to fumble with additional headphones. Unlike other VR devices, Valve’s new headset doesn’t include traditional over-the-ear headphones. The Index includes innovative mini open-backed speakers that hover near your ears but don’t touch them.

I didn’t expect Valve’s bizarre speaker system to work well, but it didn’t take long to convince me otherwise. The speakers produce clear audio, with plenty of volume. Because they hover away from your head, you can still hear surrounding noise, like if someone is calling your name. Yet, the sound quality is so good you don’t have to worry about ambient noises impeding your immersion.

Update 8/9/2019: Valve provided an in-depth look at the tech, development and logic behind these speakers today. You can read it here

Adjustable IPD

The left side of the headset features a dial like the one on the rear, but this one controls the Index’s lens relief system, which allows you to bring the lenses as close as possible to your face. The Index’s lenses sit in tower-like structures that protrude towards your face from inside the visor. The dial allows you to adjust how far the lenses protrude from the inside. Valve recommends bringing the lenses as close to your eyes as possible to maximize the field of view (FOV) that you can see. There can be as much as a 10-degree difference in FOV with a 1cm distance adjustment.

In addition to the lens’s depth, the Index supports mechanical IPD (interpupillary distance) adjustment. On the bottom left side of the visor, you’ll find a slider that controls the distance between the two lenses. It supports 58-72mm pupil distances. Once again, the mechanical adjustment feels like it’s constructed with precision parts that would last a long time.

The Controllers Formerly Known as Knuckles

The Index controllers are arguably the most exciting part about Valve’s foray into VR hardware. In late 2016, Valve revealed the prototype of what would eventually become the Index controllers. These innovative input devices enabled a new, even more immersive form of interaction with virtual objects—but they were available only to a small group of select developers. Until now!

Unlike every input device that you’ve ever used for a video game, you don’t need to hold the Index controllers. They strap to your hand, which gives you the freedom to let go of them without worrying about dropping them. This enables actions like throwing a ball or opening your hand to pick something up.

The Index controllers have straps that secure the handle to your palm. The strap wraps around the outside of your hand and uses drawstring to secure it in place. The top of the strap can be adjusted to 4 different positions and features a swivel hinge to accommodate different size and shape hands.

The Index controllers also feature capacitive touch sensors in the handle and on the face buttons for animated finger movement. The handle has sensors for your pinky, ring and middle fingers; the trigger has a sensor for your index finger and the A, B, touchpad and thumbstick inputs have sensors for your thumb. The thumb sensors also give you two thumb positions; the A and B buttons place your thumb beside your hand and the thumbstick puts your thumb above your hand.

Additionally, the Index controllers have pressure sensors to detect how hard you squeeze the handles, allowing supporting games to differentiate between a light grip and a firm grip.
