Zalman ZM750-EBT PSU Review

Zalman's new EBT line consists of four PSUs ranging from 650W to 1kW capacity. Today, we're testing the ZM750-EBT, which, thanks to a low price, achieves a good value score. But how does it fare in terms of absolute performance?

Packaging, Contents, Exterior And Cabling

Packaging

Image 1 of 5

Image 2 of 5

Image 3 of 5

Image 4 of 5

Image 5 of 5

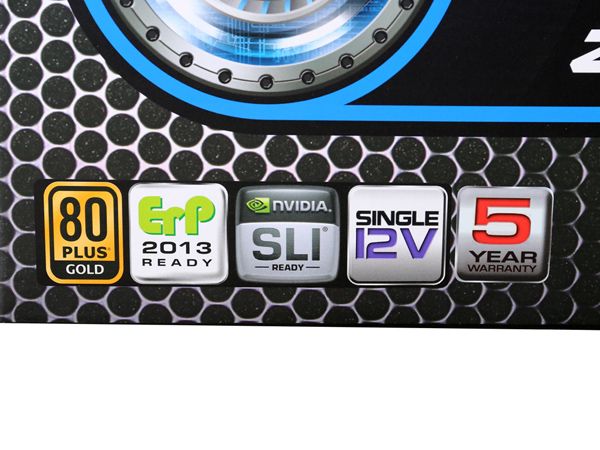

The box's graphic design is interesting. On the front, we find the series name, model number and capacity point. In the bottom-left corner, a series of icons depicts the 80 Plus Gold efficiency rating, ErP Lot 2013 compliance, SLI compatibility and the single +12V rail. There is also an icon mentioning five-year warranty coverage, though Zalman tells us it upgraded the warranty on all EBT models to seven years.

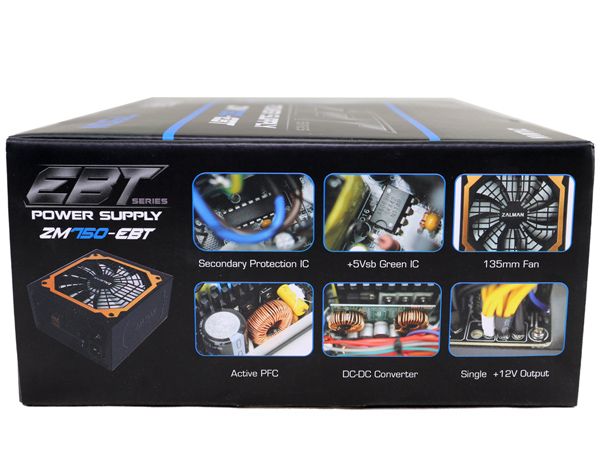

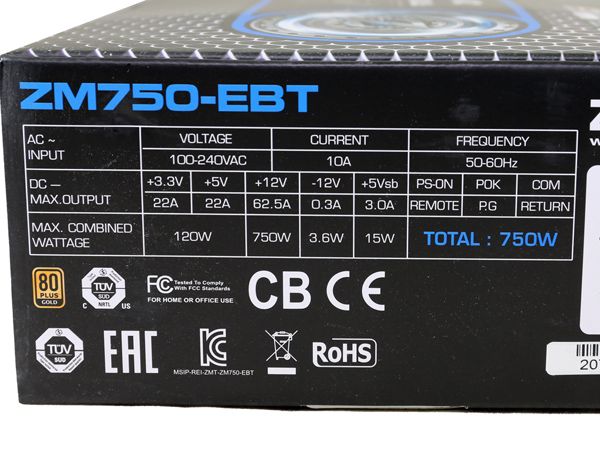

On the sides of the box you'll find the power specifications table and some interesting photos of the PSU's internals, showing the APFC converter's circuit, the standby PWM controller, the DC-DC converters that generate the minor rails, the protection's IC, the 135mm fan and the single +12V rail's wires.

Contents

Image 1 of 2

Image 2 of 2

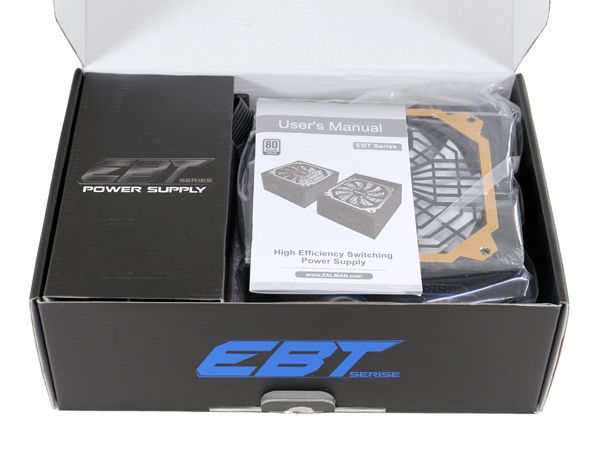

The box contents are nicely arranged, and the PSU is wrapped in a plastic bag. Its bottom is protected by a foam sheet. However, there's nothing covering the top, so you might say that there's something missing. According to Zalman though, only the first production batch misses the top foam cover.

Image 1 of 3

Image 2 of 3

Image 3 of 3

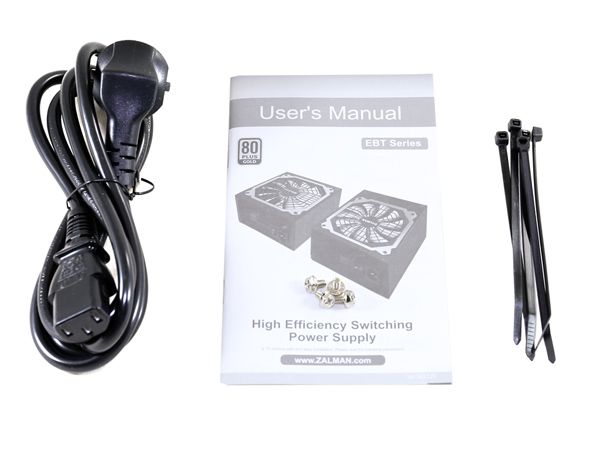

A small box contains the modular cables, along with the user's manual, a set of screws and the AC power cord.

Exterior

Image 1 of 3

Image 2 of 3

Image 3 of 3

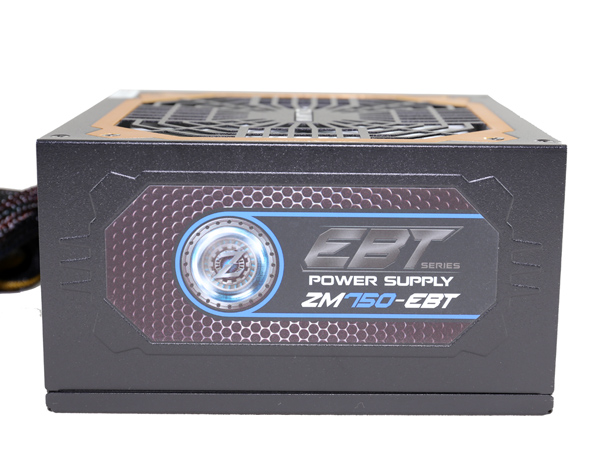

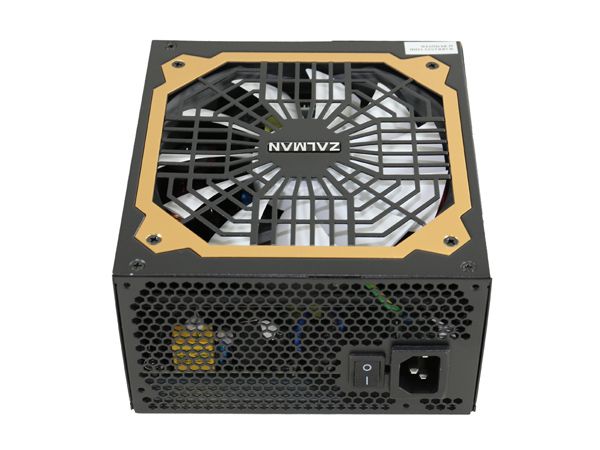

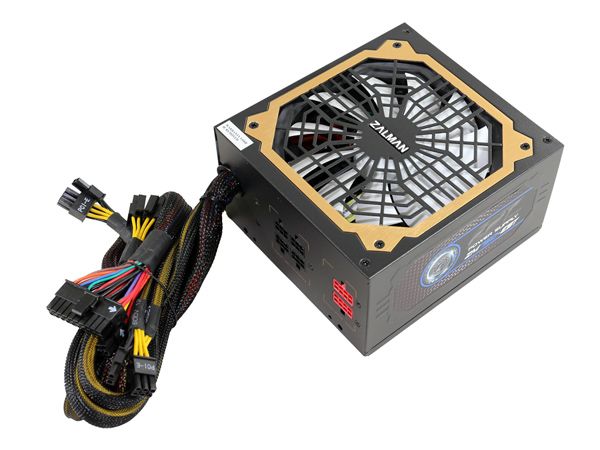

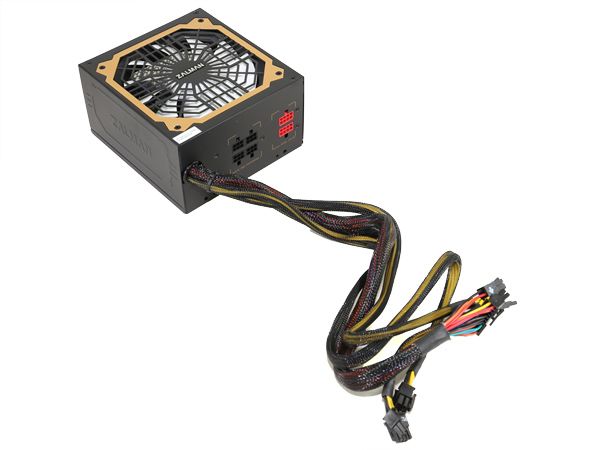

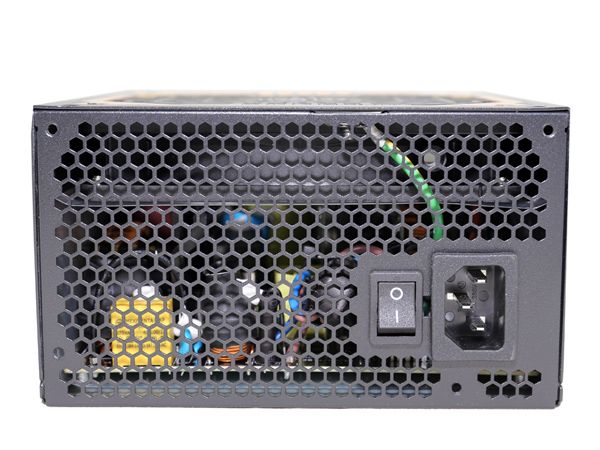

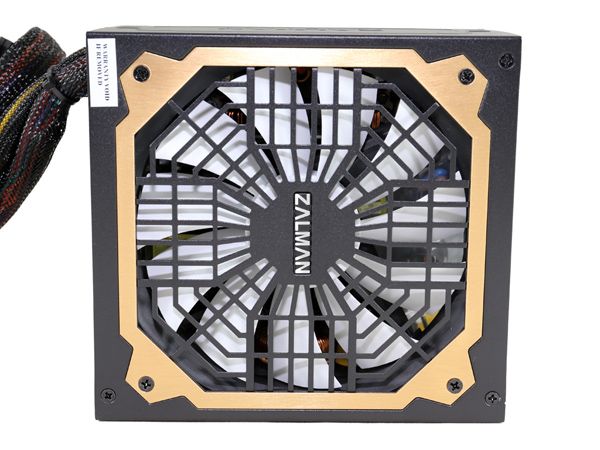

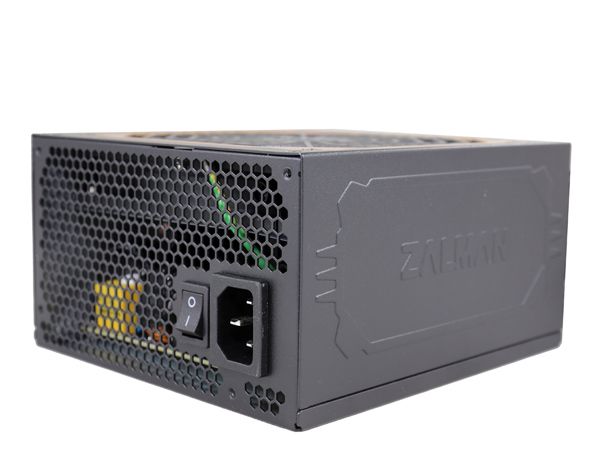

The PSU looks good thanks to its nice fan grille. Up front, you'll find a typical honeycomb-style exhaust grille. The power switch is installed next to the AC receptacle.

Image 1 of 2

Image 2 of 2

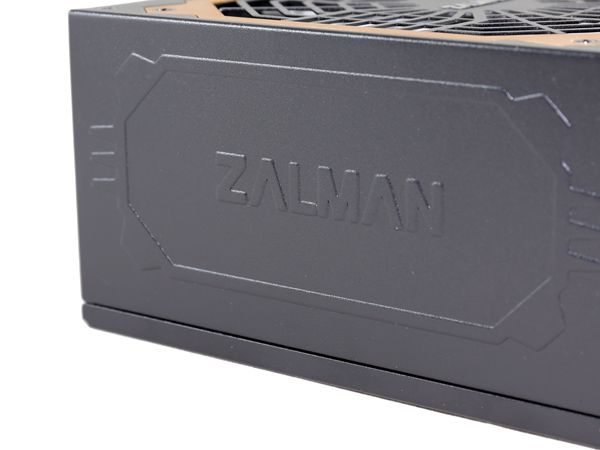

Zalman's logo is stamped on one of the PSU's sides. On the other side, there's a sticker with the power supply's model number.

Image 1 of 5

Image 2 of 5

Image 3 of 5

Image 4 of 5

Image 5 of 5

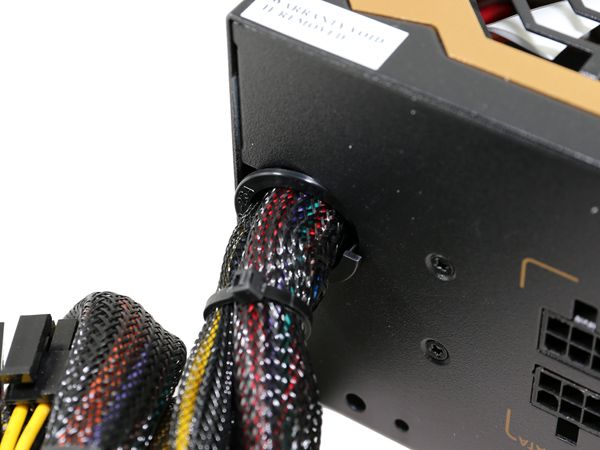

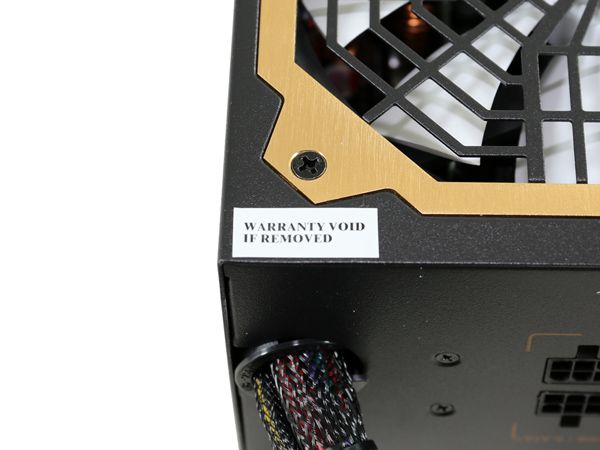

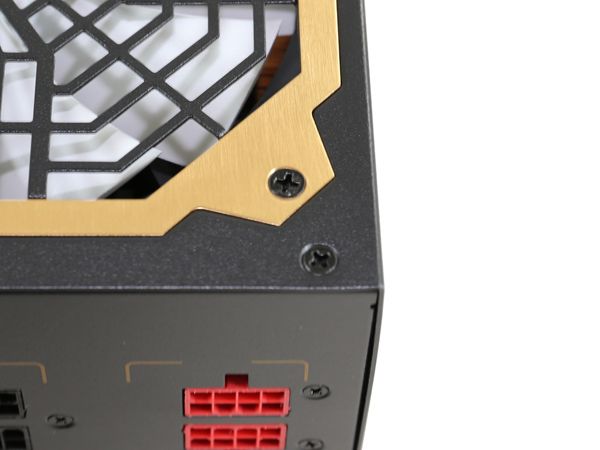

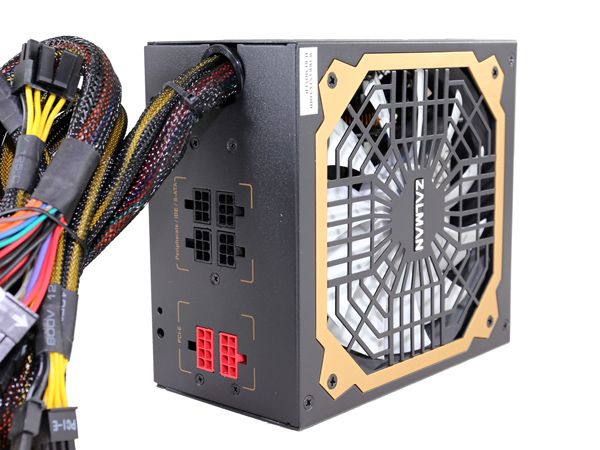

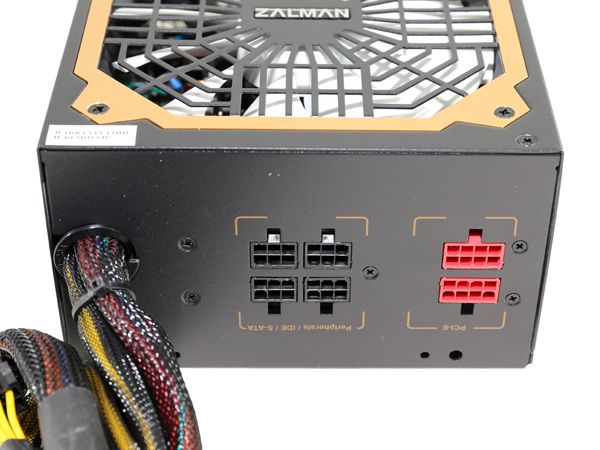

The modular panel consists of a few sockets. The red ones take auxiliary PCIe power cables, while the black ones correspond to peripheral cables. A plastic ring around the cable exit hole protects the fixed leads, which are sleeved all the way back into the PSU's housing.

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

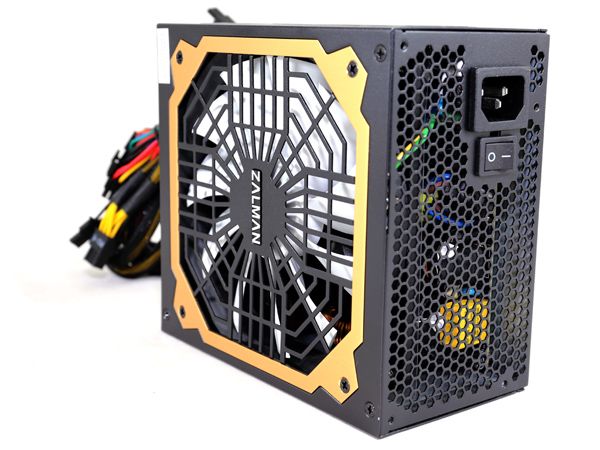

A high-quality finish and light matte coating are nearly scratch-proof. We definitely prefer matte finishes to glossy ones. After all, shiny surfaces have a tendency to attract more fingerprints.

Cabling

Image 1 of 6

Image 2 of 6

Image 3 of 6

Image 4 of 6

Image 5 of 6

Image 6 of 6

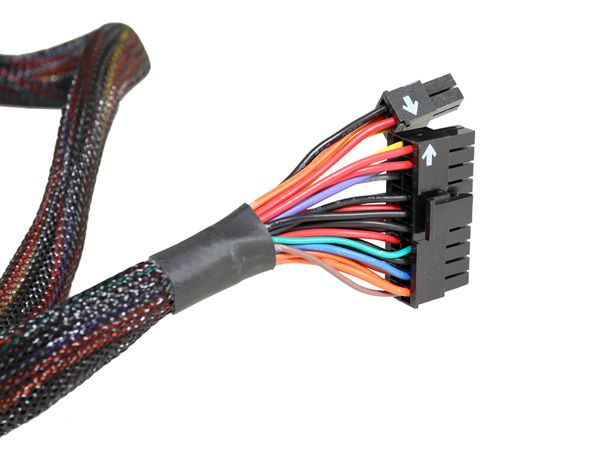

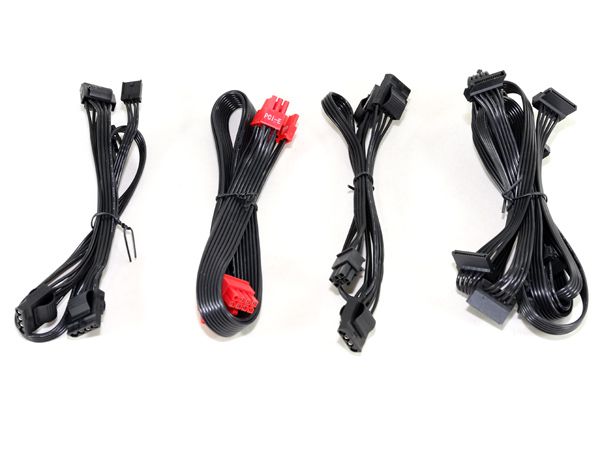

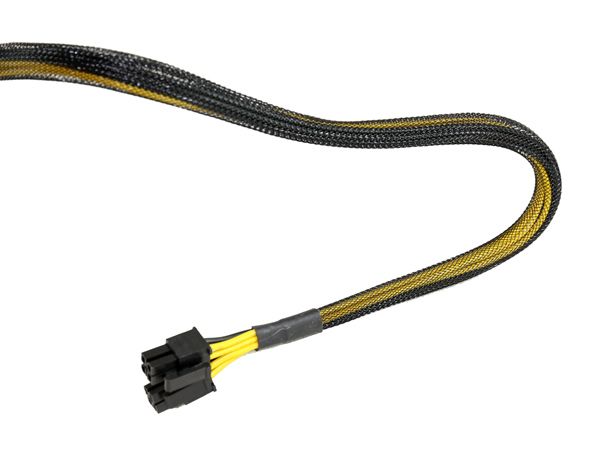

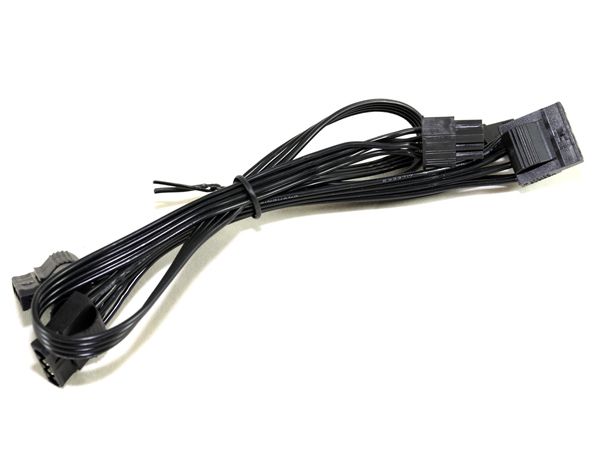

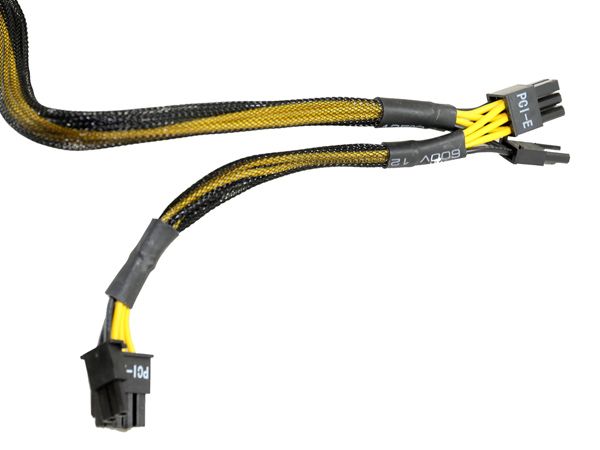

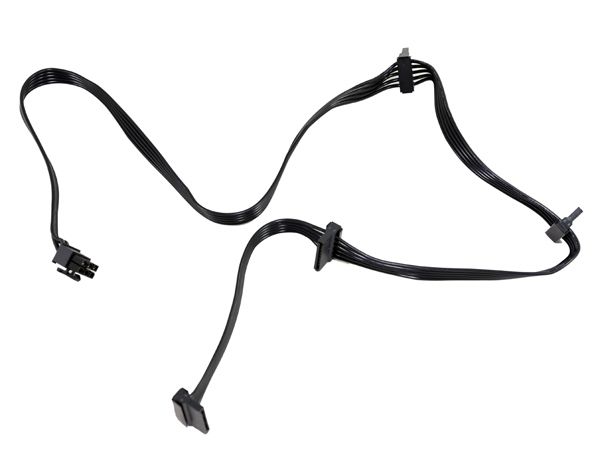

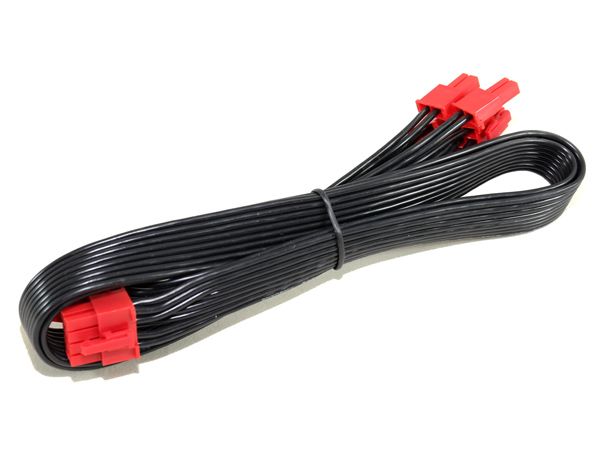

All three fixed cables consist of colored wires formed into a round shape. Sleeving quality is decent, especially for such an affordable product. In contrast, all of the modular cables are stealth and flat. Although the combination is a little strange, we've seen it many times, and not only in mainstream PSUs. For the record, though, we'd like manufacturers to know that it's more appealing to use the same type of cables on both fixed and modular cables, and avoid using weird-looking combos.

  • Onus
    Although the article does mention safety, a very valid point, it still managed to imply that a single-rail PSU was "better" due to the complexity of managing rail assignments so as to not trip OCP protections. I've have not seen a multi-rail PSU actually get dinged for this in a review for maybe 8-10 years; it seems that everyone does OCP "right," so this is no longer an issue, ever. That being the case, the greater safety of a multi-rail design is superior.
    I'll need to make at least another pass through this article, but failing on +5V ripple under heavy load probably makes this a solid tier-3 unit; I'm not going to run screaming if I see one, but I wouldn't buy it either.
    Reply
  • JQB45
    Tier-3 might be generous. There were a lot of cons. What good is a 7 year warranty if the PSU takes something else out in addition to the PSU.

    CONS: Ripple • Noisy under stress • Hold-up time • Inrush current • Sleeve-bearing fan • Single EPS connector • Inaccurate PWR_OK signal

    Also it must also be strongly pointed out that this unit does not meet ATX specifications.
    Reply
  • Onus
    True, but the tier-3 units are the ones considered solid for lighter loads. Those cons are why I certainly would not buy one for a gaming or rendering rig, but for the typical PC that may not need even half this power, I wouldn't worry about it.
    Reply
  • Sakkura
    The fact that it's not just barely breaking the ATX spec at 100% load, but already starts to go out of spec at 80% and then has two rails well out of spec at 100%, is what makes this a tier 4 unit, and a clear "do not buy" regardless of price.
    Reply
  • yyk71200
    One would expect that a gold rated powersupply would be at least a solid unit and a safe buy. Guess not. Shouldn't buy one simply based on advertised efficiency rating.
    Reply
  • Onus
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.
    Reply
  • JQB45
    17328110 said:
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.

    agreed
    Reply
  • COLGeek
    It is interesting to see Zalman developing this line of PSUs. Hopefully, they will be better than previous generations. Had a couple Zalman PSUs a few years ago, when I used to use Zalman heatsinks.

    One died days after the warranty expired and the other about a month after. I'll give Zalman credit, they made right by me by exchanging both, but it was a painful process.

    While I would not recommend these current products, I can at least "tolerate" them in budget builds.
    Reply
  • turkey3_scratch
    I would think anything out of spec should be Tier 4. Ripple is trash. 3.3V rail was on the brink of being out of spec. 12V was also quite terrible at 90mv.

    Anyway, I like your power supply reviews, Toms. You go more in-depth than any review site for power supplies (Hardwaresecrets, Johnnyguru).
    Reply
  • Sakkura
    17328110 said:
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.

    Considering the same platform performs decently in the Silverstone unit, there's at least some hope that Zalman can go back, adjust a few things, and get a decent budget unit out of this.

    Edit: I went back and looked at the Silverstone review. Ripple suppression was really good up to 90% load, then the 5V and 3.3V rails jumped hugely, especially the 3.3V. They did stay within ATX spec, but just barely. The 5V ripple went from 13.1mV at 90% to 40.5mV at 100%, 3.3V ripple went from 14.1mV at 90% to 49.9mV at 100%. Obviously the 3.3V ripple went out of spec at 110% load, as well as one of the crossloads, but that's a lesser sin.
