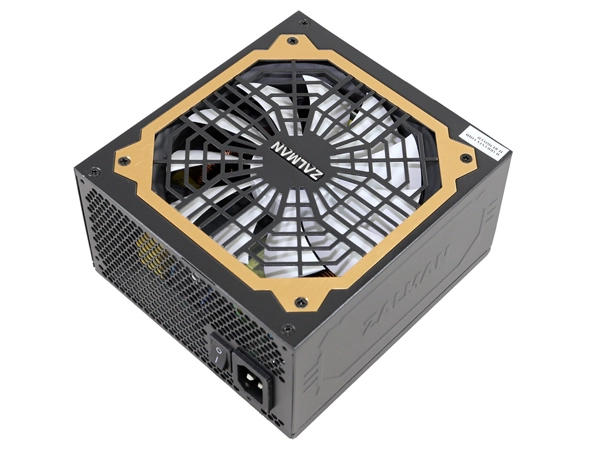

Zalman's new EBT line consists of four PSUs ranging from 650W to 1kW capacity. Today, we're testing the ZM750-EBT, which, thanks to a low price, achieves a good value score. But how does it fare in terms of absolute performance?

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Pros, Cons And Final Verdict

Although Sirfa delivers budget-friendly products that score high performance per dollar ratios, it cannot compete with vendors like Seasonic and Super Flower when it comes to absolute performance. The ZM750-EBT falls behind the competition, and the only thing saving its bacon is a low price. But spending $10 or $20 more gets you a PSU with better ripple suppression, longer hold-up time and quieter operation. It's your call whether to spend a bit extra or insist on a budget under $100.

Despite its disappointing performance, the ZM750-EBT's build quality is good, and the choice to go with Teapo capacitors seems to be a good one. While they're inferior to Japanese caps, we like them better than most Chinese capacitors and they aren't super expensive. This is why Teapo caps are favored on low-cost power supplies, and the truth is that a PSU's cap and fan choices are among the most important since they affect reliability. Speaking of, Zalman apparently trusts this platform a lot; it recently upgraded the factory warranty from five years to seven. This is a big selling point, and we're certain it'll help improve sales.

The ZM750-EBT does not match the other 750W 80 Plus Gold PSUs out there, owing to its poor ripple suppression. If Sirfa had managed to keep ripple within the ATX spec, even under tough operating conditions, then Zalman would have fared much better. Unfortunately, it seems like the company has a good reason to rate this supply at up to 40 °C for continuous full-load operation, even though the ATX spec recommends at least 50 °C.

Something else that bothered us about the ZM750-EBT is its low hold-up time, which, combined with a PWR_OK signal that drops very late, can lead to dangerous situations for your hardware. According to the ATX spec, all rails should be within the load regulation limits when the PWR_OK signal is zero, in case of AC power loss, and not the other way around. This is a great shame of course; all vendors should follow the ATX spec's requirements, especially when they claim that their products are compatible with a version of the specification.

MORE: Best Power Supplies
MORE: Power Supplies 101
MORE: How We Test Power Supplies
MORE: All Power Supply Content

Aris Mpitziopoulos is a Contributing Editor for Tom's Hardware, covering Power Supplies.

Follow us on Twitter @tomshardware, on Facebook and on Google+.

See more Power Supplies Reviews
Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.

13 Comments Comment from the forums
  • Onus
    Although the article does mention safety, a very valid point, it still managed to imply that a single-rail PSU was "better" due to the complexity of managing rail assignments so as to not trip OCP protections. I've have not seen a multi-rail PSU actually get dinged for this in a review for maybe 8-10 years; it seems that everyone does OCP "right," so this is no longer an issue, ever. That being the case, the greater safety of a multi-rail design is superior.
    I'll need to make at least another pass through this article, but failing on +5V ripple under heavy load probably makes this a solid tier-3 unit; I'm not going to run screaming if I see one, but I wouldn't buy it either.
    Reply
  • JQB45
    Tier-3 might be generous. There were a lot of cons. What good is a 7 year warranty if the PSU takes something else out in addition to the PSU.

    CONS: Ripple • Noisy under stress • Hold-up time • Inrush current • Sleeve-bearing fan • Single EPS connector • Inaccurate PWR_OK signal

    Also it must also be strongly pointed out that this unit does not meet ATX specifications.
    Reply
  • Onus
    True, but the tier-3 units are the ones considered solid for lighter loads. Those cons are why I certainly would not buy one for a gaming or rendering rig, but for the typical PC that may not need even half this power, I wouldn't worry about it.
    Reply
  • Sakkura
    The fact that it's not just barely breaking the ATX spec at 100% load, but already starts to go out of spec at 80% and then has two rails well out of spec at 100%, is what makes this a tier 4 unit, and a clear "do not buy" regardless of price.
    Reply
  • yyk71200
    One would expect that a gold rated powersupply would be at least a solid unit and a safe buy. Guess not. Shouldn't buy one simply based on advertised efficiency rating.
    Reply
  • Onus
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.
    Reply
  • JQB45
    17328110 said:
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.

    agreed
    Reply
  • COLGeek
    It is interesting to see Zalman developing this line of PSUs. Hopefully, they will be better than previous generations. Had a couple Zalman PSUs a few years ago, when I used to use Zalman heatsinks.

    One died days after the warranty expired and the other about a month after. I'll give Zalman credit, they made right by me by exchanging both, but it was a painful process.

    While I would not recommend these current products, I can at least "tolerate" them in budget builds.
    Reply
  • turkey3_scratch
    I would think anything out of spec should be Tier 4. Ripple is trash. 3.3V rail was on the brink of being out of spec. 12V was also quite terrible at 90mv.

    Anyway, I like your power supply reviews, Toms. You go more in-depth than any review site for power supplies (Hardwaresecrets, Johnnyguru).
    Reply
  • Sakkura
    17328110 said:
    That's definitely true. Coolermaster taught that lesson quite well.
    Hmmm, this one does seem a little worse than I thought at first. Any chance this particular unit had a problem? I'd think ripple could be fixed with a minor capacitor improvement, without adding too much to the price. Hopefully Zalman is paying attention.

    Considering the same platform performs decently in the Silverstone unit, there's at least some hope that Zalman can go back, adjust a few things, and get a decent budget unit out of this.

    Edit: I went back and looked at the Silverstone review. Ripple suppression was really good up to 90% load, then the 5V and 3.3V rails jumped hugely, especially the 3.3V. They did stay within ATX spec, but just barely. The 5V ripple went from 13.1mV at 90% to 40.5mV at 100%, 3.3V ripple went from 14.1mV at 90% to 49.9mV at 100%. Obviously the 3.3V ripple went out of spec at 110% load, as well as one of the crossloads, but that's a lesser sin.
