AMD Shares More Details On The Radeon VII

Yesterday was an exciting day for AMD aficionados as the California chipmaker announced its Radeon VII and demoed its third-generation Ryzen processors. AMD aims to target gaming enthusiasts and content creators with its new gaming graphics card.

(Image credit: AMD)

Many enthusiasts were praying for a Navi announcement. However, they received a die-shrunk version of Vega 10 instead. The Radeon VII employs AMD's existing Vega 20 graphics processor. In case you haven't been following AMD's discrete graphics card evolution, Vega 20 made its debut with the chipmaker's Radeon Instinct MI60 and MI50 data center graphics cards a couple of months ago. Both Vega 10 and Vega 20 take after the Graphics Core Next (GCN) 5.0 microarchitecture.

Meet The AMD Radeon VII

(Image credit: AMD)

Vega 10 was manufactured by GlobalFoundries under the company's 14nm FinFET node. It measured 487mm² and contained up to 12,500 million transistors. For Vega 20, AMD turned to TSMC and its 7nm FinFET manufacturing process. Although Vega 20 only measured 331mm², the die housed up to 13,230 million transistors. Thanks to this die-shrunk, AMD was able to deliver up to 1.8 times the gaming performance per area and double the memory capacity and memory bandwidth on the Radeon VII in comparison to the Radeon RX Vega 64.

(Image credit: AMD)

The AMD Radeon VII comes equipped with 60 compute units, and since the graphics card adheres to the GCN standard, this tallies up to 3,840 stream processors, 240 TMUs (texture mapping units), and 64 ROPs (render output units). AMD states that the Radeon VII will feature a 1,450MHz base clock and a boost clock that escalates up to 1,800MHz. The Radeon VII is good for up to 13.8 TFLOPs of single-precision floating-point performance.

On the memory side, it sports 16GB of HBM2 (second-generation High-Bandwidth Memory) operating across a 4,096-bit memory bus, which is capable of delivering a phenomenal memory bandwidth of up to 1 TB/s. AMD didn't disclose the Radeon VII's memory speed. However, if we do the math, the memory would need to be clocked at 1,000MHz (2,000MHz effective) to achieve a throughput of 1024 GB/s.

(Image credit: AMD)

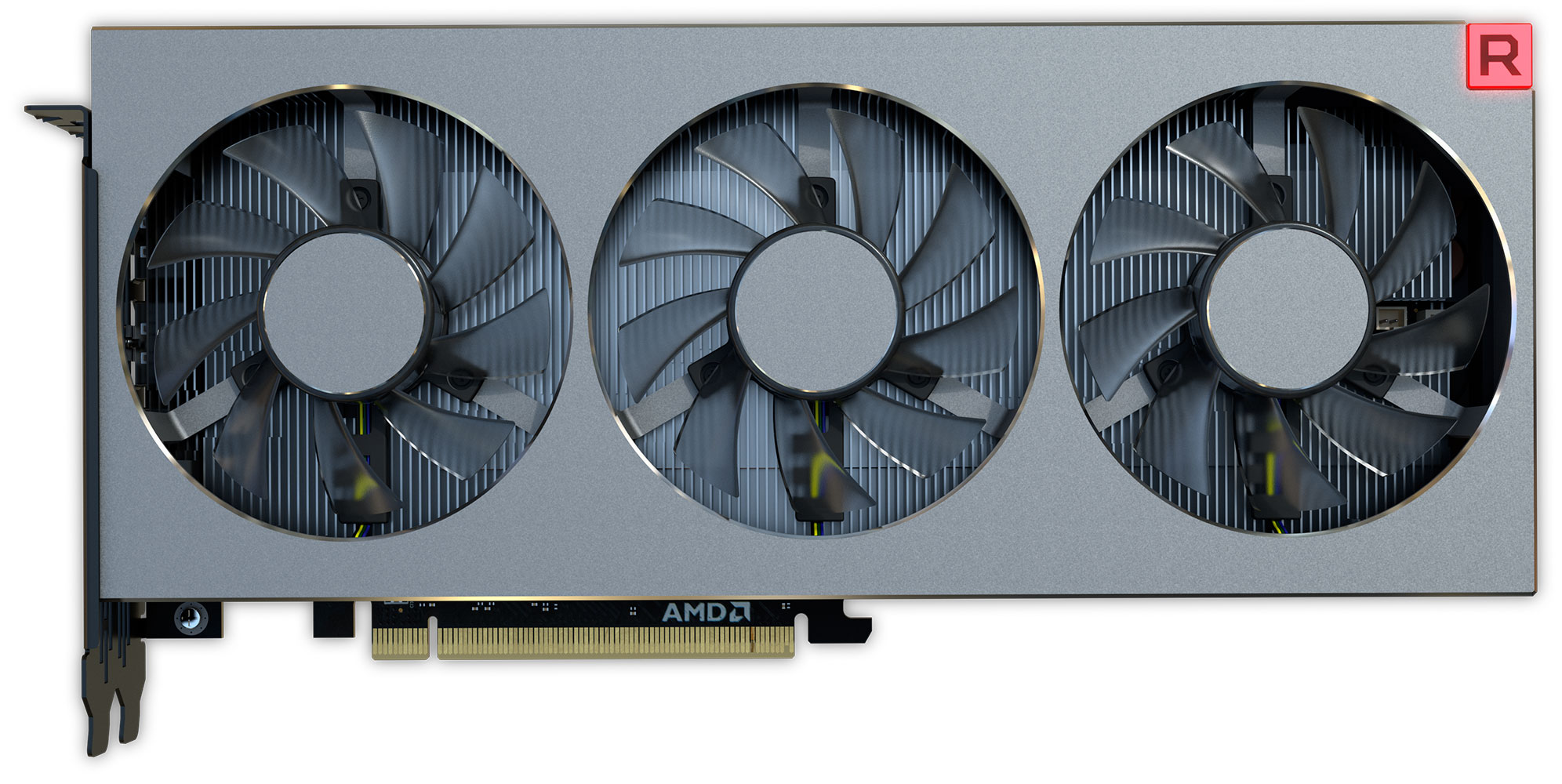

The Radeon VII's reference design flaunts a silver shroud, three cooling fans, and an illuminated Radeon logo on the side. On top of that, the graphics card is outfitted with two 8-pin PCIe power connectors. Although AMD didn't reveal the TDP (thermal design power), the Radeon VII's triple-fan cooler suggests it's somewhere in the range of around 295W. The reference model exhibited at AMD's CES 2019 keynote comes with three DisplayPort outputs and a single HDMI port.

Radeon VII vs Radeon RX Vega 64 vs GeForce RTX 2080

In order to prove the Radeon VII's prowess, AMD pitched the graphics card against the Radeon RX Vega 64 and the Nvidia GeForce RTX 2080 with the first being the flagship that it's replacing, and the latter being the rival it's targeting. AMD's results looked promising and revealed that the red chipmaker is closing the performance gap with Nvidia.

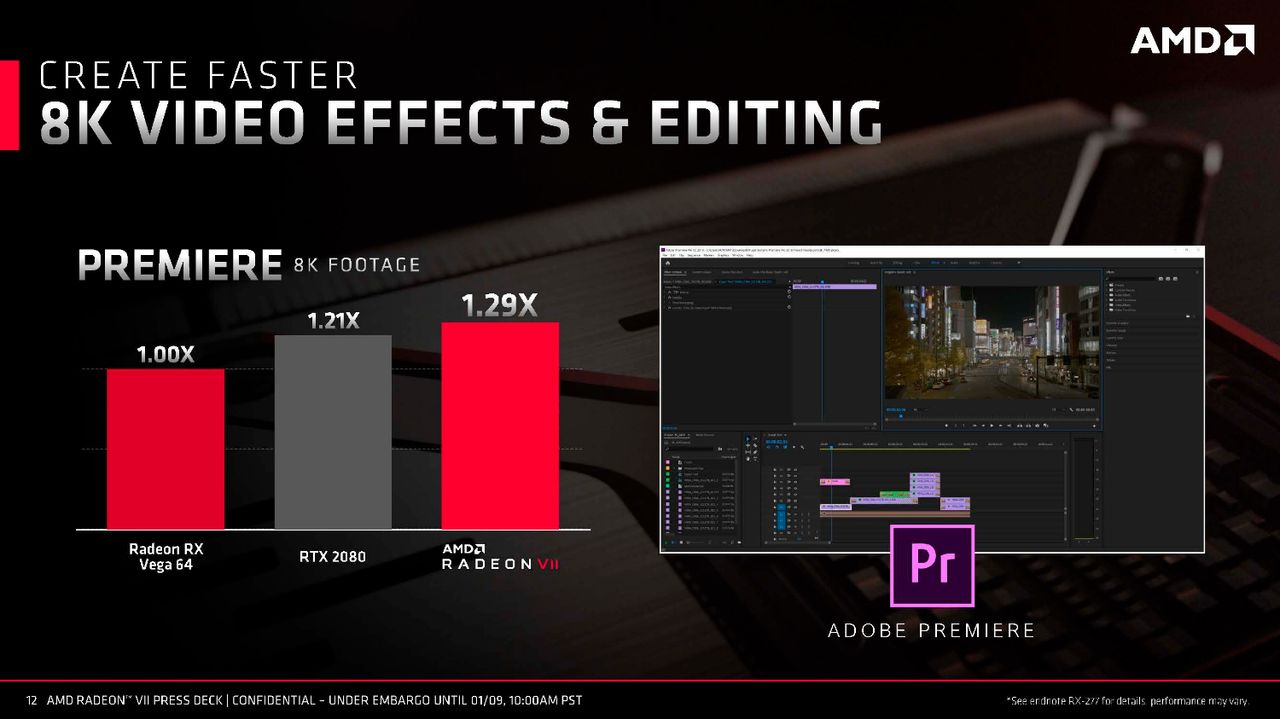

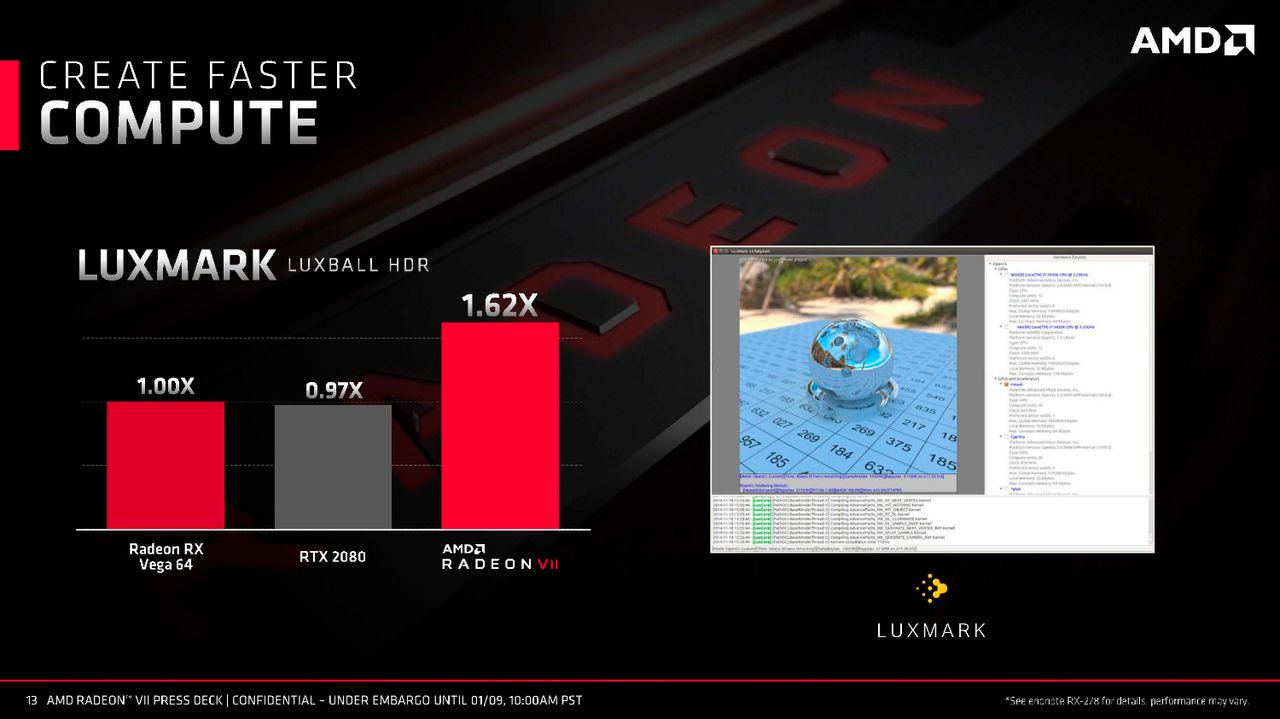

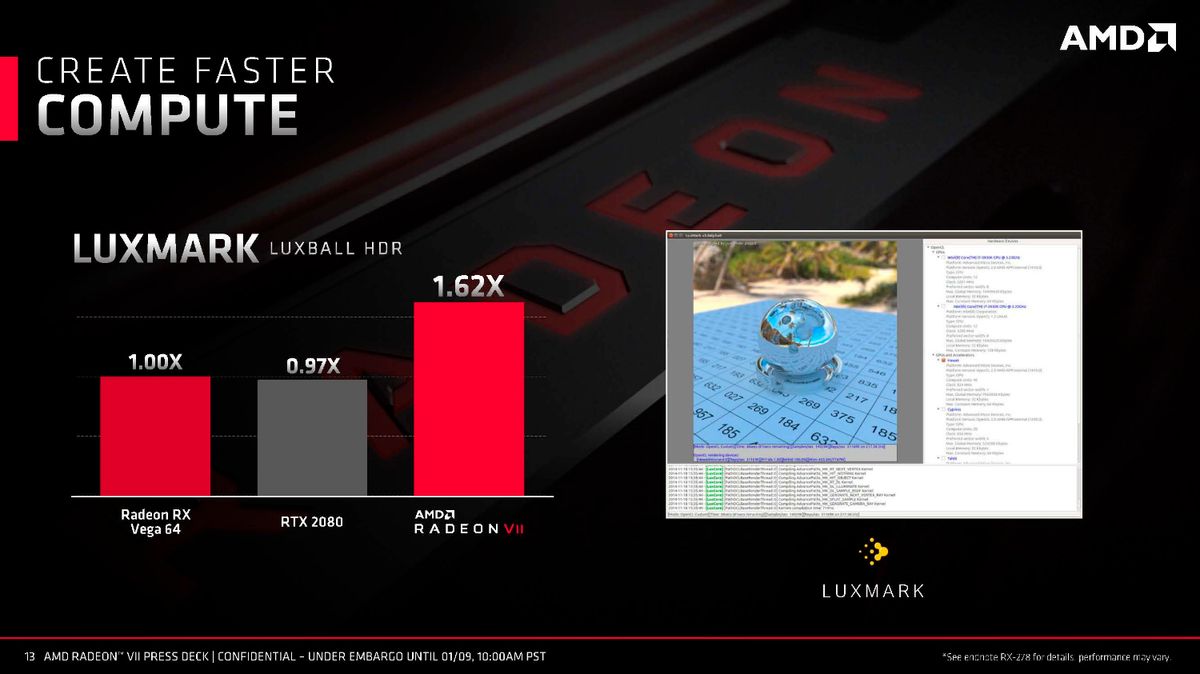

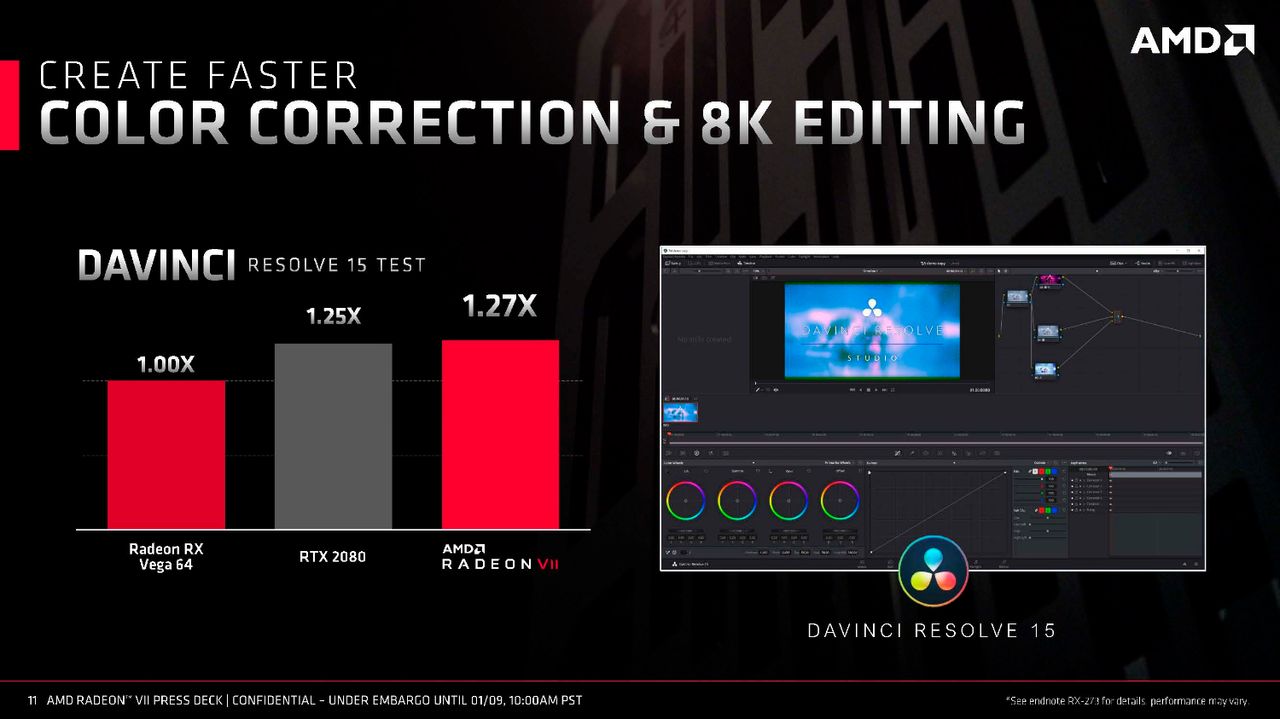

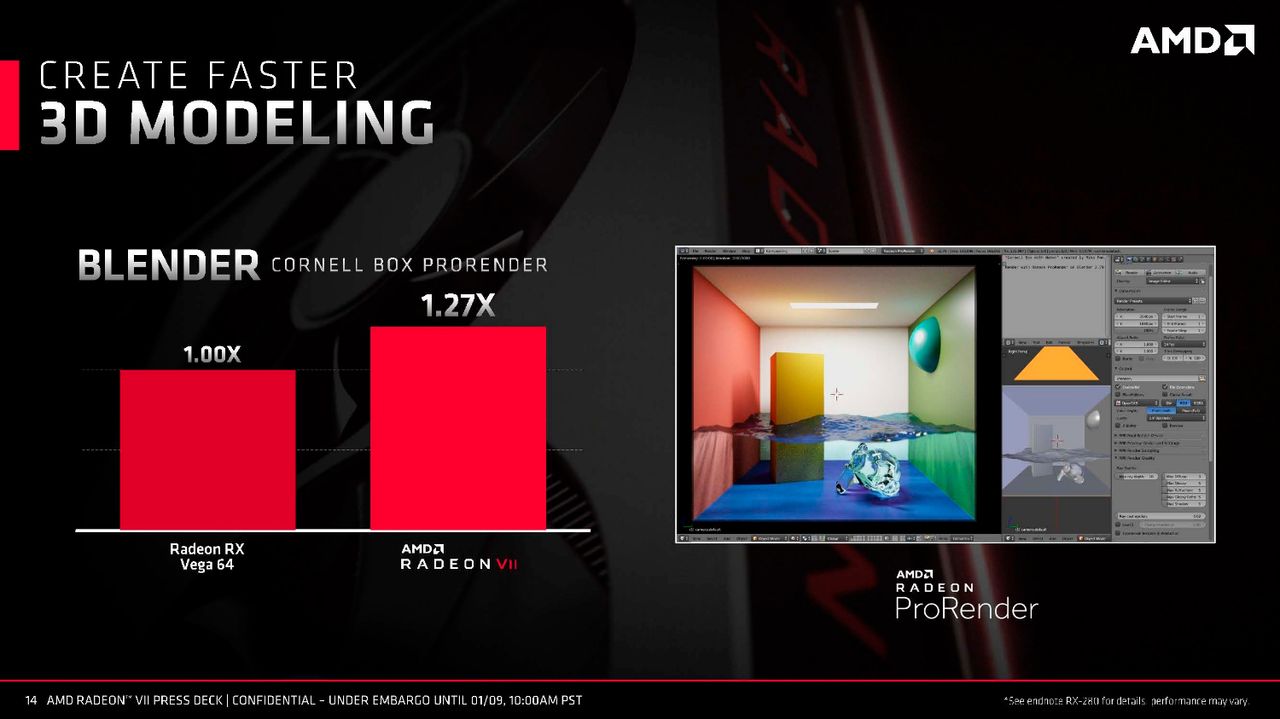

In the DaVinci Resolve 15 test, the Radeon VII is reportedly up to 27 percent faster than the Radeon RX Vega 64, and beats the GeForce RTX 2080 by 2 percent. While editing 8K footage in Adobe Premiere, the Radeon VII performs up to 29 percent and 8 percent faster than the Radeon RX Vega 64 and GeForce RTX 2080, respectively. However, the card only really begins to flex its muscles when it gets to LuxMark. The Radeon VII runs up to 62 percent faster than the Radeon RX Vega 64 and 65 percent faster than the GeForce RTX 2080. Lastly, the Radeon VII is 27 percent faster than the Radeon RX Vega 64 in Blender.

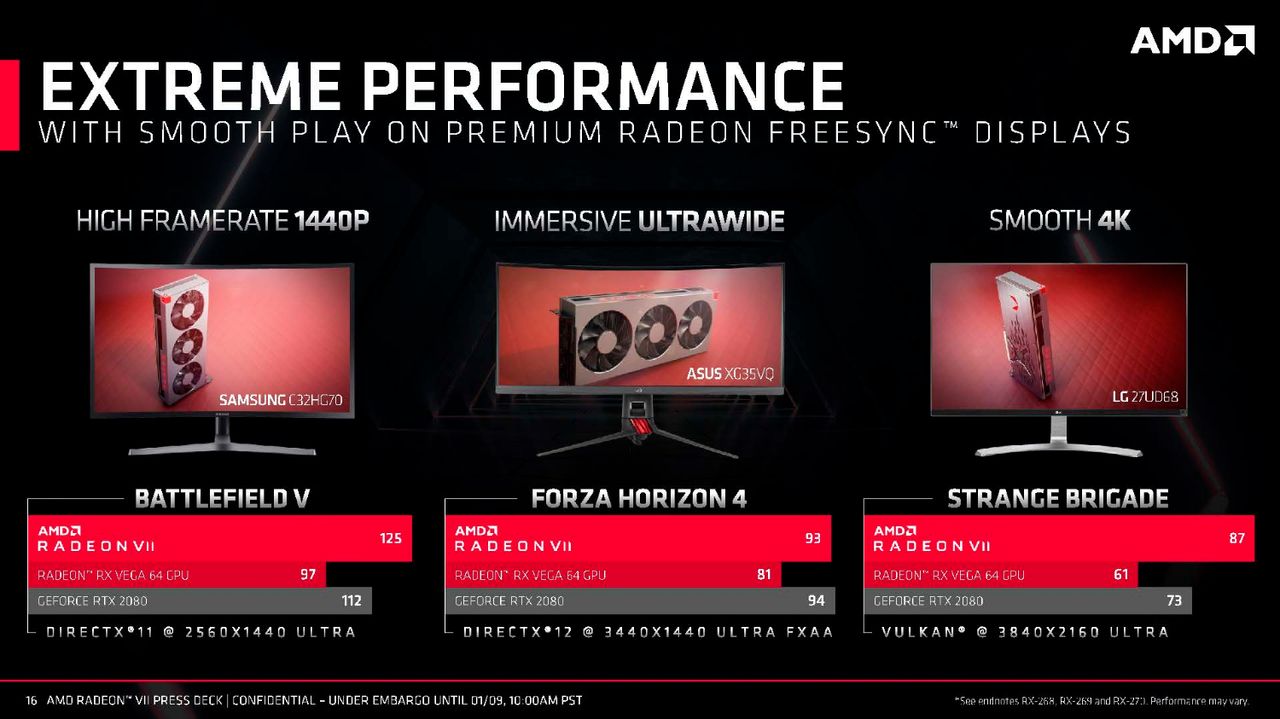

For the gaming tests, AMD benchmarked its new flagship at three different resolutions: 2560x1440, 3440x1440 super wide, and 3840x2160. The Radeon VII beats the RTX 2080 by 11.6 percent and the RX Vega 64 by 28.9 percent in Battlefield V at 2560 x 1440. In Forza Horizon 4 at 3440 x 1440, the Radeon VII is 14.8 percent faster than the Radeon RX Vega 64 but falls behind the GeForce RTX 2080 by 1 percent. When playing Strange Brigade at 3840 x 2160, it delivers up to 42.6 percent and 19.2 percent more performance than the RX Vega 64 and RTX 2080, respectively.

Swipe to scroll horizontally
GameAPIAMD Radeon VIIAMD Radeon RX Vega 64Difference
Assassin's Creed OdysseyDirectX 1136 FPS28 FPS28.6%
Battlefield 1DirectX 1280.5 FPS59.2 FPS36%
Battlefield VDirectX 1168.1 FPS50.5 FPS34.9%
Battlefield VDirectX 1262.2 FPS46.7 FPS33.2%
Call of Duty: Black Ops 4DirectX 1182.3 FPS68 FPS21%
Destiny 2DirectX 1165.1 FPS50.9 FPS27.9%
Deus Ex: Mankind DividedDirectX 1253.4 FPS40.2 FPS32.8%
Doom (2016)Vulkan89.5 FPS67.2 FPS33.2%
F1 2018DirectX 1278 FPS61 FPS27.9%
Fallout 76DirectX 1176.6 FPS45.5 FPS68.4%
Far Cry 5DirectX 1162 FPS49 FPS26.5%
FortniteDirectX 1146.9 FPS37.4 FPS25.4%
Forza Horizon 4DirectX 1272.8 FPS62.8 FPS15.9%
Grand Theft Auto VDirectX 1176.2 FPS60.1 FPS26.8%
Hitman 2DirectX 1153.3 FPS49.7 FPS7.5%
Just Cause 4DirectX 1150.8 FPS42.6 FPS19.3%
Middle-Earth: Shadow Of WarDirectX 1154.3 FPS41.6 FPS30.5%
Monster Hunter WorldDirectX 1135.4 FPS29.4 FPS20.4%
Rise of the Tomb RaiderDirectX 1258.3 FPS46 FPS26.7%
Shadow of the Tomb RaiderDirectX 1247.5 FPS36.3 FPS30.9%
Sid Meier's Civilization VIDirectX 1297.1 FPS78.1 FPS24.3%
Star Control: OriginsDirectX 1188.9 FPS69.2 FPS28.5%
Strange BrigadeVulkan86.7 FPS60.9 FPS42.4%
The Witcher 3DirectX 1155.4 FPS41.4 FPS33.8%
Tom Clancy's Ghost Recon: WildlandsDirectX 1136.3 FPS29.2 FPS24.3%
Total War: Warhammer 2DirectX 1134.6 FPS28.3 FPS22.3%
Wolfenstein II: The New ColossusVulkan93.4 FPS74.2 FPS25.9%

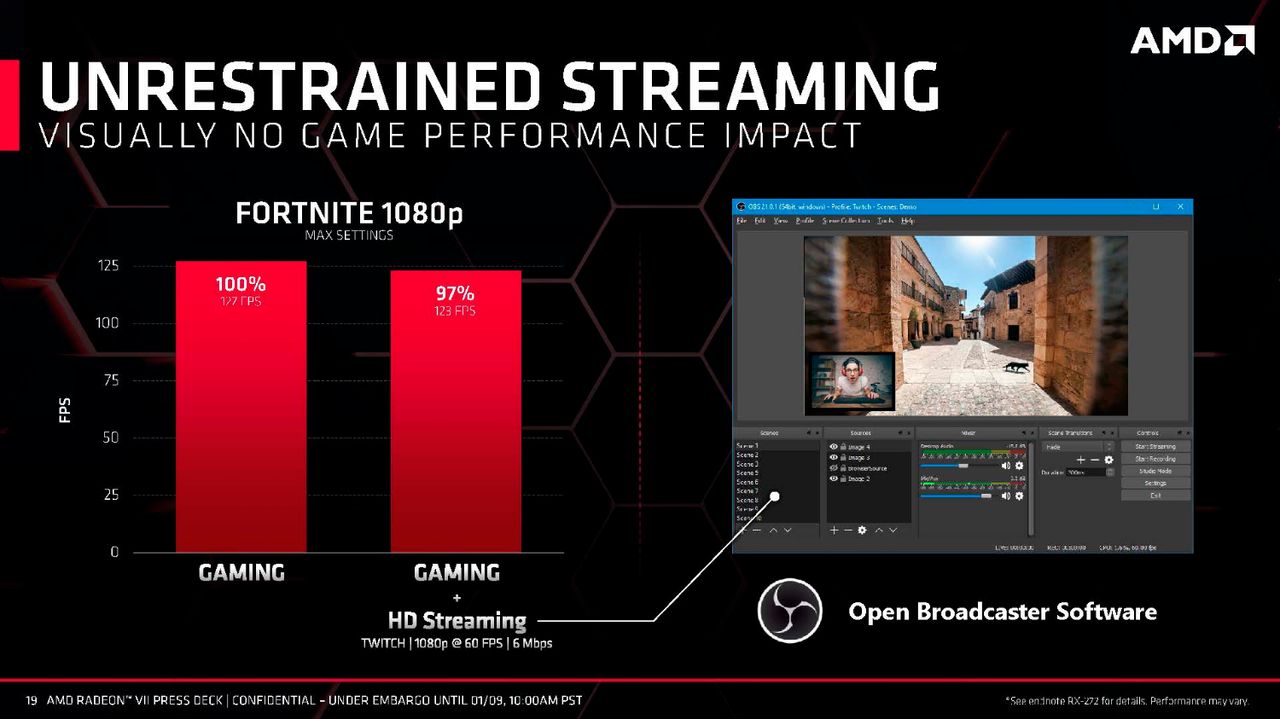

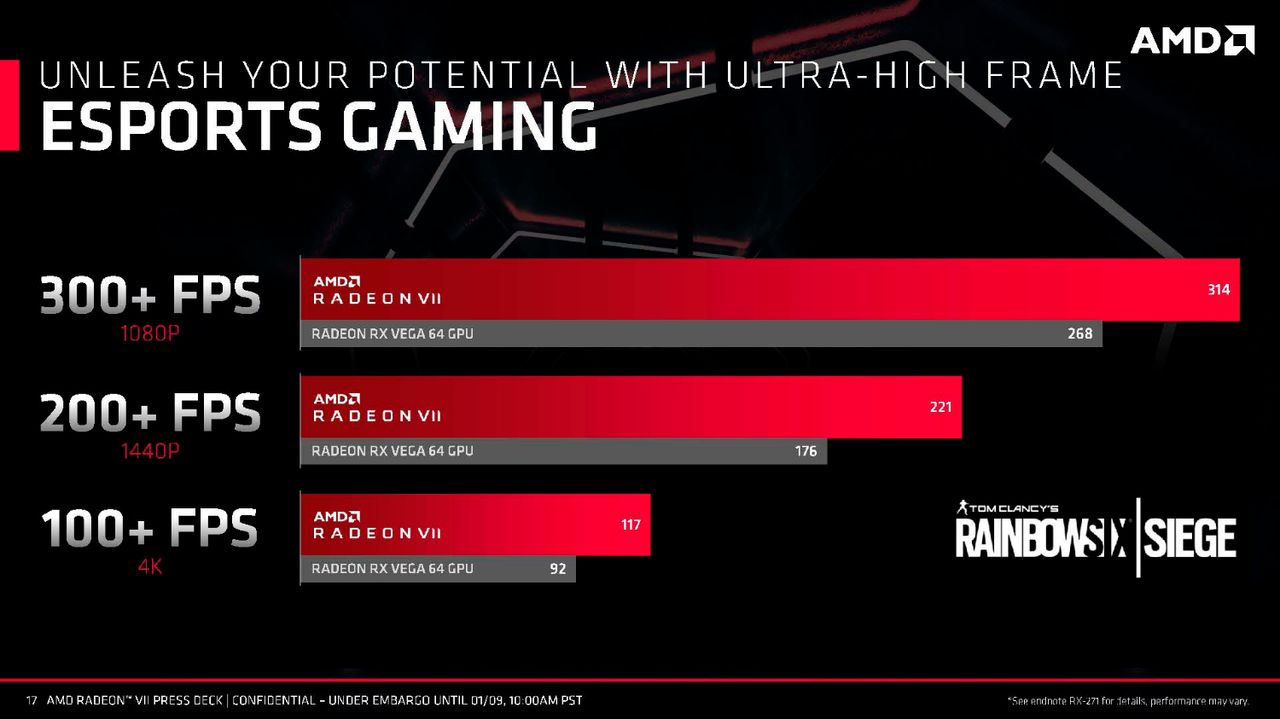

AMD also compared the Radeon VII in a couple of eSports titles. The card delivered over 300 FPS at 1080p, 200 FPS at 1440p, and 100 FPS at 4K in Tom Clancy's Rainbow Six Siege. When it comes to Fornite, it's around 25 percent faster than the RX Vega 64. AMD puts a strong emphasis on streaming. The performance cost for gaming and streaming simultaneously, Fornite at 1080p, 60 FPS with Open Broadcaster Software (OBS) on a Radeon VII is just a mere 3 percent.

Availability and Pricing

Consumers can purchase the Radeon VII for $699 directly from AMD beginning on February 7. For a limited time, the graphics card will come with the 'Raise the Game Fully Loaded' bundle, which includes free copies of Resident Evil 2, Devil May Cry 5, and Tom Clancy's The Division 2.

Correction: An earlier verison of this article incorrectly reported the number of ROPs as 128; it is 64.
