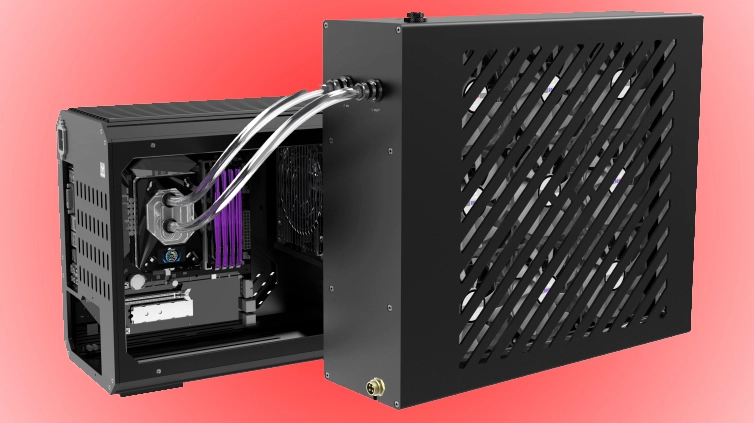

If you have several different GPUs or a very compact case with weak airflow, you can take your cooling to the next level by getting a giant cooler that sits outside of your case in its own box. Cooling specialist Bykski has introduced a huge external cooler to cater for your extreme cooling needs. The new Bykski B-1080-CEC-X “external cold exhaust heat dissipation chassis” features a 3x3 array of 120mm fans, with integrated pump, radiator and reservoir for easy plumb-and-go (G1/4) fitting to liquid cooling loops.
This unit measures 419 (H) x 488 (D) x 138mm (W) so looks like a typical mid-tower chassis but a little slimmer, but would overshadow a compact mini-ATX system. Twitter’s Momomo_us spotted this cooler listed at Y72,356 before tax in Japan, which is about $525 today.
Suggested uses of the Bykski B-1080-CEC-X are the following:
- Server cooling,
- High-end gaming systems,
- Compact computer systems with up to 4x GPUs,
- And for compact powerful systems which don’t have the internal space for a water cooling radiator.
In some of the above use-cases the B-1080-CEC-X might be overkill and a more modest external solution like a Bykski Granzon G10, or Bykski External 360mm radiator stand might be better, cheaper options (if you already have a radiator that doesn’t fit in your case, for example).
Whichever application you use this 9x120mm external cooler for, it is claimed to be capable of handling up to 2,000W of heat dissipation. That is plenty for a gaming system combining the most power hungry components popular with consumers right now, like the Core i9-13900K and GeForce RTX 4090 (250W+ and 600W+) running at full pelt. Like we said above, the B-1080-CEC-X might be overkill. However, perhaps it can run extremely quietly with lower thermal loads – slower RPM etc.

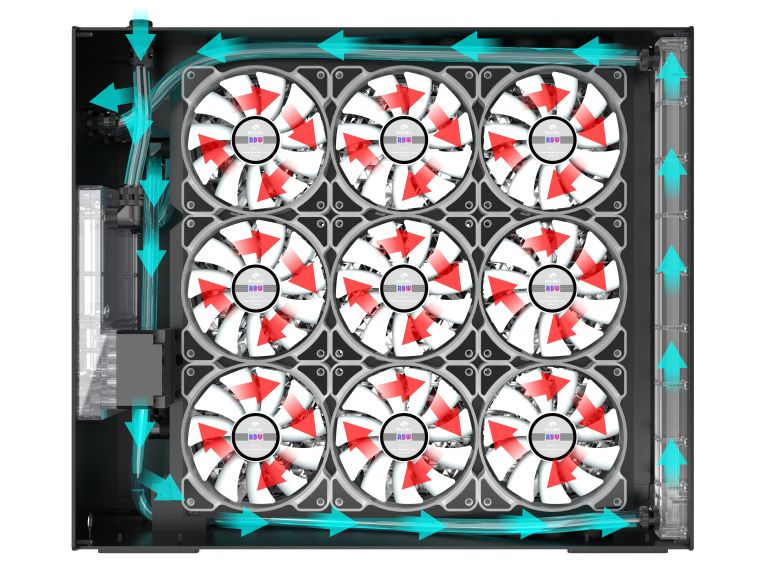

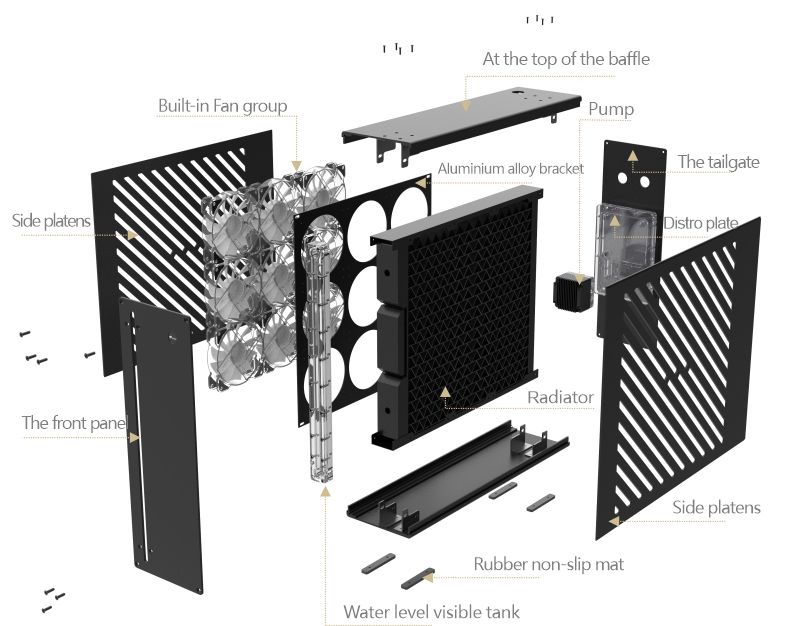

In addition to the support for 9x 120mm fans, the chunky B-1080-CEC-X bx contains a 46mm thick radiator made using a mix of copper and brass – with 30 double water flow channels. The integrated pump offers a water flow of up to 700 liters per minute, tested at up to 1.5bar, and connects with water loops using the popular G1/4 tubing.

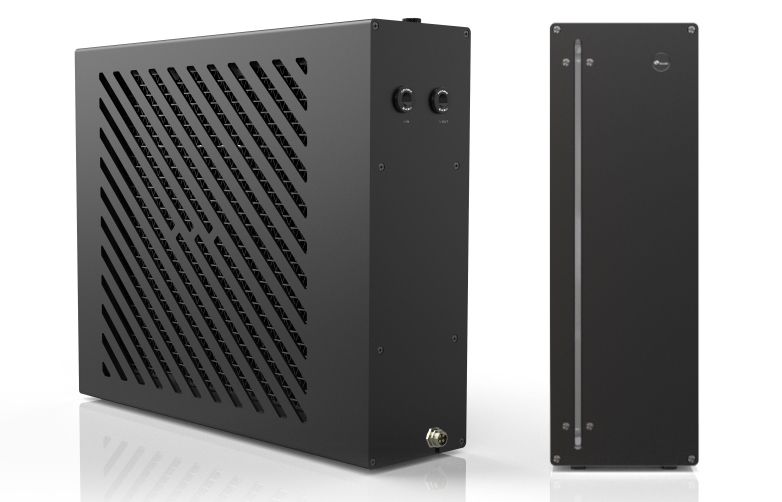

Looking at the fully built unit from the outside; there is a water level gauge on the front panel, significant venting both sides, around the back are both the fluid I/O connectors and power input (connecting to a 4-pin Molex HDD from your PC), as well as a water injection port atop of the case for top-ups.
Whether you think the Bykski B-1080-CEC-X is crazy, or is the external cooler you have been waiting for, let us know in the comments below. If you are in the market for system cooling, please check out our best CPU coolers of 2022 (not GPU), for some mainstream AiO and air solution recommendations.
