Intel B760 May Be Cheap, But Z690 Could Still Offer Better Value

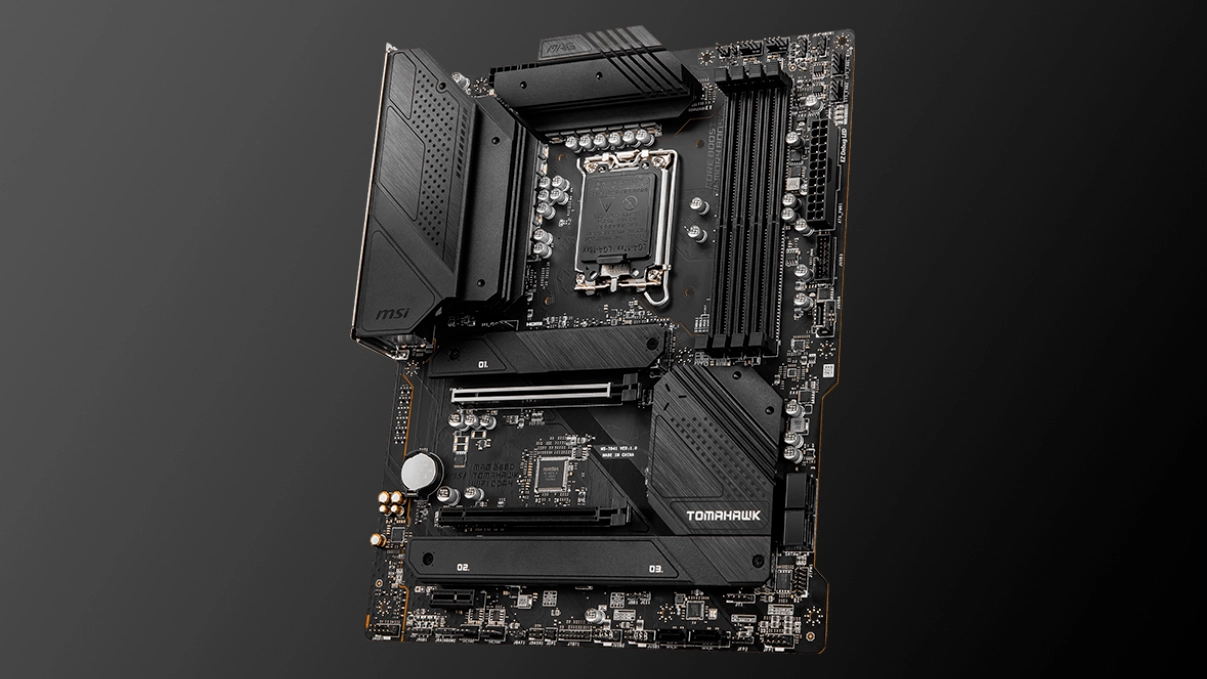

MAG B660 Tomahawk WiFi DDR4
MAG B660 Tomahawk WiFi DDR4 (Image credit: MSI)

Intel will launch the company's 13th Generation Raptor Lake non-K processors and the B760 chipset in early 2023. The chips will fight for a spot on the list of best CPUs and offer consumers a more accessible entry point into Intel's Raptor Lake family.

Like always, Intel released the Z790 chipset with the brand's trio of Raptor Lake K-series chips, including the Core i9-13900K, Core i7-13700K, and Core i5-13600K. The B760 chipset, on the other hand, doesn't have all the bells and whistles but still delivers the essential features to consumers. Chinese media Expreview (opens in new tab) has somehow gotten its hands on the potential specifications for the B760 chipset. Although the information looks accurate, we recommend you treat it cautiously.

Right off the bat, only the Z790 chipset will officially support processor overclocking, unlike AMD, which allows overclocking across its entire lineup of chipsets. With Alder Lake, some vendors had enabled BCLK overclocking on non-K series chips on specific B660 motherboards. The feature could make a return on B760 with the MAG B760M Mortar Max WiFi.

The B760 chipset reportedly comes with a PCIe 4.0 x4 DMI link that connects the chipset to the Raptor Lake processor. It's the same interface as the previous B660 chipset. It's a significant downgrade from the Z790 or the last-generation Z690 chipset, which rocks an x8 interface. The B760 chipset has four more PCIe 4.0 lanes than the B660 chipset, which is a nice upgrade. However, Intel allegedly sacrificed some of the PCIe 3.0 lanes. According to Expreview's chart, the B760 chipset only provides four PCIe 3.0 lanes, whereas the B660 chipset offers eight.

Intel B760 Chipset Specifications*

Swipe to scroll horizontally
Z790H770Z690B760B660
DMI 4.0 channelx8x8x8x4x4
PCIe 4.0201612106
PCIe 3.0881648
USB 3.2 Gen 2x2 (20 Gbps)52422
USB 3.2 Gen 2 (10 Gbps)1041044
USB 3.2 Gen 1 (5 Gbps)1081066
USB 2.01414141212
SATA 3.088844

*Specifications are unconfirmed.

The B760 chipset seemingly comes with identical connectivity options as the B660 chipset. So we're looking at a maximum of two USB 3.2 Gen 2x2 (20 Gbps) ports, four USB 3.2 Gen 2 (10 Gbps) ports, and six USB 3.2 Gen 1 (5 Gbps). As for USB 2.0 ports, it maxes out at 12.

As for storage, the B760 chipset has up to four SATA 3.0 ports, half of the Z790 chipset. However, it shouldn't be a massive drawback since many consumers will likely pair B760 motherboards with one of the best SSDs, which in the majority, are on the PCIe interface. Storage enthusiasts will probably look to the Z790 or H770 chipset that offers up to eight SATA 3.0 ports.

MSI B760 Motherboard Pricing

Swipe to scroll horizontally
MotherboardPricingB660 VersionDifference
MPG B760I Edge WiFi DDR4$209N/AN/A
MAG B760 Tomahawk WiFi$229$2195%
MAG B760 Tomahawk WiFi DDR4$219$2095%
MAG B760M Mortar Max WiFi$229N/AN/A
MAG B760M Mortar Max WiFi DDR4$219N/AN/A
MAG B760M Mortar WiFi$199$2095%
MAG B760M Mortar WiFi DDR4$189$1995%
MAG B760M Mortar$189$1995%
MAG B760M Mortar DDR4$179$1896%
Pro B760-P WiFi DDR4$179N/AN/A
Pro B760M-A WiFi DDR4$169$1690%

*Pricing is unconfirmed.

Hardware leaker chi11eddog (opens in new tab) has shared a list of MSI B760 motherboards with their alleged pricing. MSI appears to be preparing a balanced mix of DDR4 and DDR5 motherboards so consumers can opt for the former if they don't want to invest in premium DDR5 memory kits.

MSI's B760 motherboards may only cost $10 more than the B660 counterparts. So it translates to a 5% price increase, more or less. The offerings start at $179 and go up to $229. The problem is that many Z690 motherboards in that price range offer improved features and connectivity over the B760 motherboards. Remember that Raptor Lake is compatible with an Intel 600-series motherboard with a simple firmware upgrade.

The MSI Pro B760-P WiFi DDR4 could hit the market for $179. For comparison, the MSI Pro Z690-P DDR4 currently retails for $172.99 (opens in new tab). It's cheaper and has more features, even if you don't plan to overclock your processor. Like the Pro B760-P WiFi DDR4, there are other examples where the previous generation Z690 motherboards offer better value. However, retailers have already started to phase out Intel 600-series motherboards, so they may be hard to come by in the future, making 700-series motherboards the only available options.

Zhiye Liu
RAM Reviewer and News Editor

Zhiye Liu is a Freelance News Writer at Tom’s Hardware US. Although he loves everything that’s hardware, he has a soft spot for CPUs, GPUs, and RAM.

  • peterf28
    Do I need DMI 8x ? I plan to have 13400 or 13700, ~ RTX4080, two M.2/SSD drives, one HDD. Mostly casual gamer.
    Reply
  • InvalidError
    peterf28 said:
    Do I need DMI 8x ? I plan to have 13400 or 13700, ~ RTX4080, two M.2/SSD drives, one HDD. Mostly casual gamer.
    Just about the only people who may have problems with DMI 4.0x4 are those running NVMe 4.0x4 SSDs in RAID0/1/10.

    Normal people and gamers aren't likely to notice any meaningful performance penalty even from DMI 3.0x4, especially if all of the frequently used stuff is on the CPU-attached NVMe slot at 4.0/5.0x4.
    Reply
  • peterf28
    Ok
    InvalidError said:
    Just about the only people who may have problems with DMI 4.0x4 are those running NVMe 4.0x4 SSDs in RAID0/1/10.

    Normal people and gamers aren't likely to notice any meaningful performance penalty even from DMI 3.0x4, especially if all of the frequently used stuff is on the CPU-attached NVMe slot at 4.0/5.0x4.
    Then i take b760, newer is usually better for me. It will be massive upgrade for me from my i5- 2500k@4.7
    Reply
