Apple 5W Adapter Knock-offs: The Colorful A1265 Tear-Down

Another Troubling Area

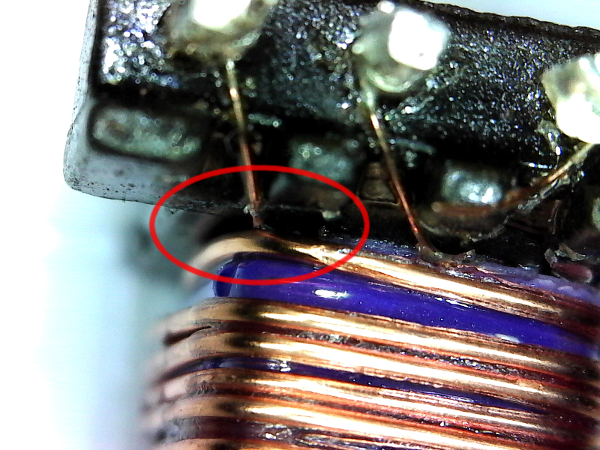

If you thought the taping flaw was bad, just wait: the secondary winding goes all the way to the primary side’s terminals where a nearly identical story repeats. Multiple bulges in the primary winding caused the secondary’s turns to slip to the sides. A particularly large bulge near the end caused the secondary’s top turn to butt up against the primary winding’s wire. In a properly made transformer, this part of the wire would be sleeved or otherwise double-insulated to prevent such manufacturing flaws from becoming an issue.


MORE: 10 Inexpensive Automotive USB Adapters Tested


MORE: Best Deals

Are Counterfeit A1265 Adapters A Good Investment?

Regardless of how convenient sub-$2 adapters might be, I cannot think of any good reason to recommend these death traps. If you do use one, treat whatever you plug into it as bare wire mains voltage.

The good?

  • Shouldn’t fall apart accidentally
  • Surprisingly fault-tolerant

The Bad?

  • Can barely provide 500mA at 115VAC and 750mA at 230VAC
  • Output ripple + noise in excess of 600mV at best
  • Poor output voltage regulation against load and AC input voltage

The Ugly?

  • No isolation slots to keep low voltage and high voltage separate
  • Isolation failure at the USB shield at merely 1kVAC
  • Non-Y-class EMI suppression capacitor failed at 1875V
  • MULTIPLE TRIVIAL YET POTENTIALLY LETHAL TRANSFORMER MANUFACTURING FLAWS
