We compared the 16TB Rocket XTRM-Q to the smaller and more portable 8TB Rocket XTRM-Q, as well as a few of the best portable SSDs on the market. These include the G-Technology G-Drive mobile Pro, LaCie Rugged SSD Pro, SanDisk Extreme Pro (v2), Samsung X5, and T7.
Game Scene Loading - Final Fantasy XIV
Final Fantasy XIV Shadowbringers is a free real-world game benchmark that easily and accurately compares game load times without the inaccuracy of using a stopwatch.
Samsung’s X5 and G-Technology’s G-Drive mobile Pro come out on top in the game loading test, so we can see that the QLC flash may be holding back the Sabrent a bit. The 16TB Rocket XTRM-Q fell into last place when tested as a single volume and just inched ahead of the 8TB model by less than half a second in RAID 0.

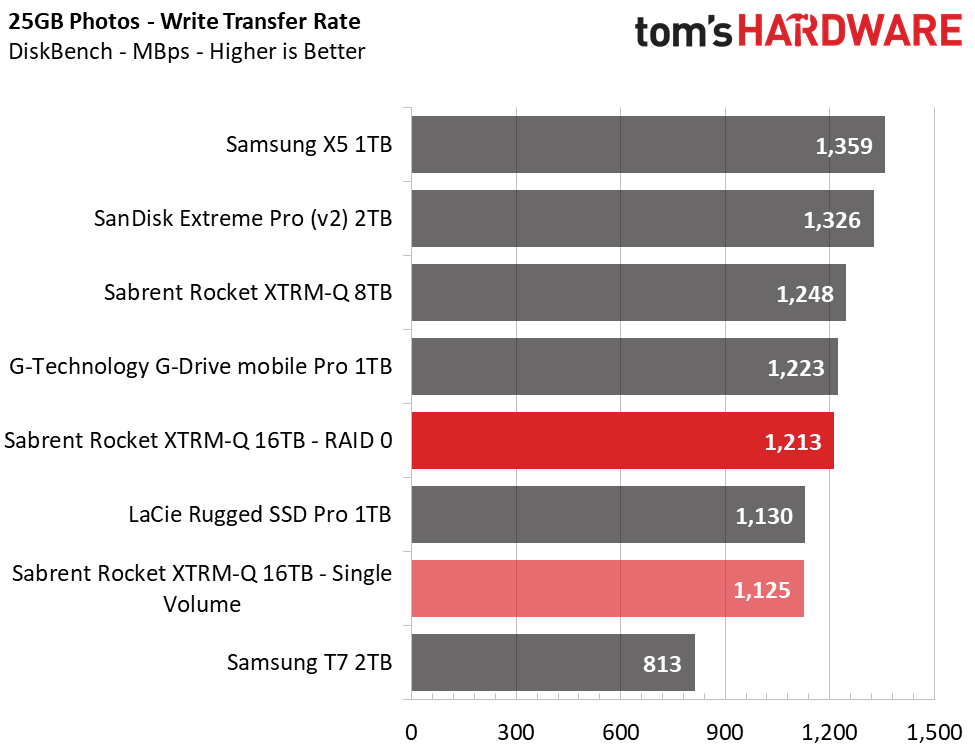

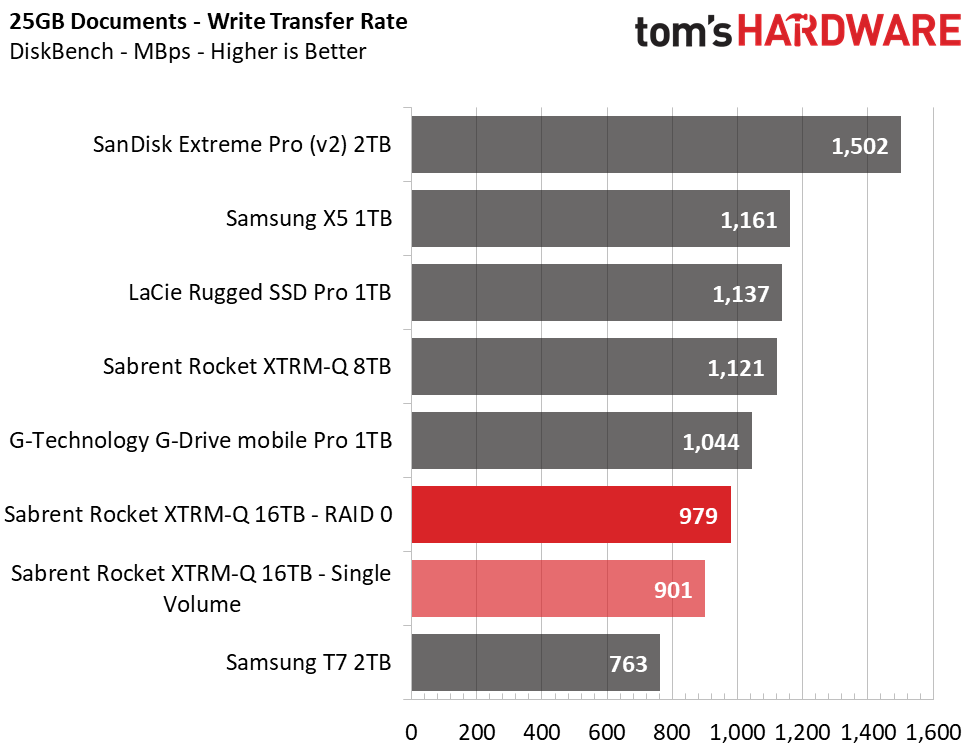

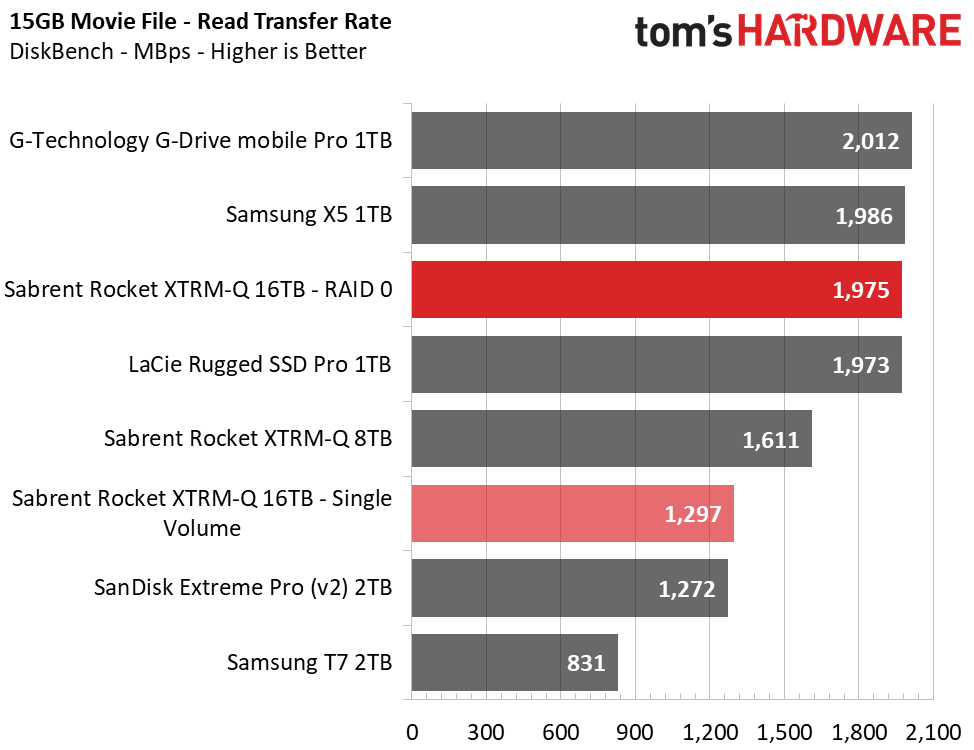

Transfer Rates – DiskBench

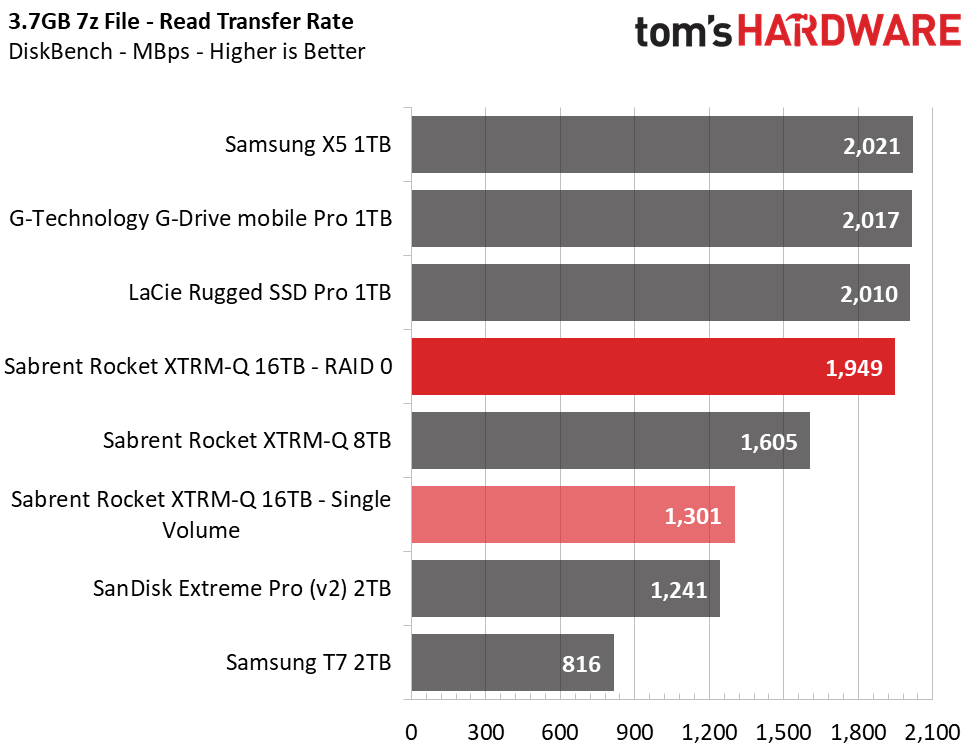

DiskBench is a storage benchmarking tool that allows us to test the transfer or copy performance of a storage device with real data. We test external drives with three file transfers that consist of 25GB of photos (10GB of jpgs and 15GB of RAW photos), 50GB of movies, and 25GB of documents. First, we transfer each folder from a 1TB NVMe SSD to the external device; then we follow up by reading a 3.7GB 7-zip file and a 15GB movie back from the device.

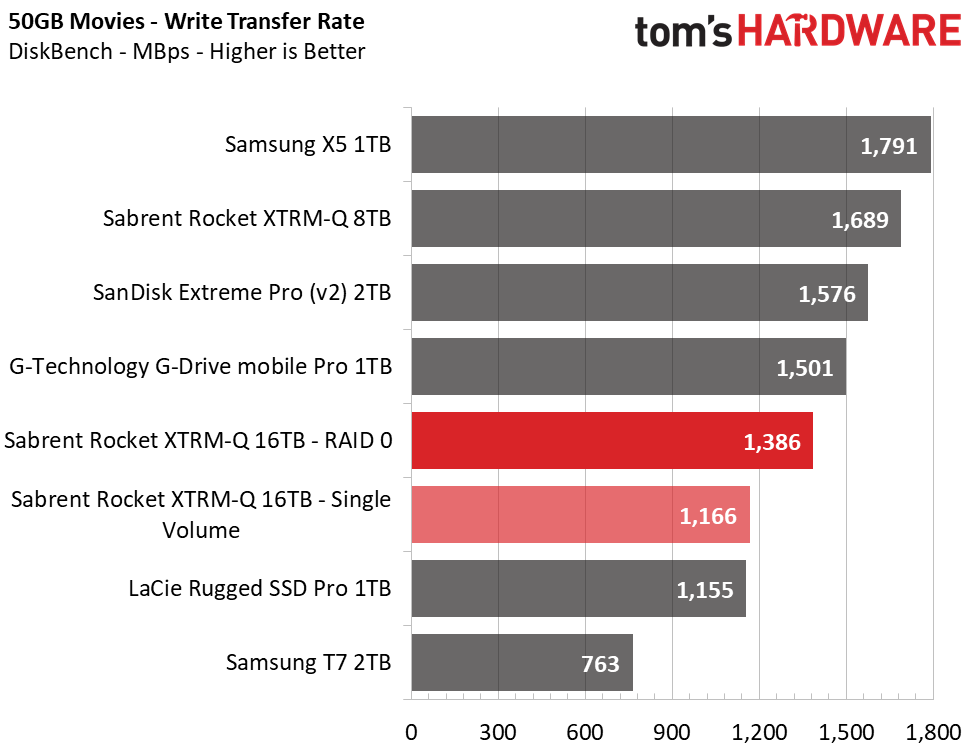

The Rocket XTRM-Q is fast during file transfers, but it isn’t enough to outperform the best. While RAID 0 provides twice the sequential bandwidth of a single volume, the drive’s RAID 0 performance wasn’t quite as fast as the Samsung X5 or the 8TB Rocket XTRM-Q. However, performance was roughly on par with the best when we read back the files.

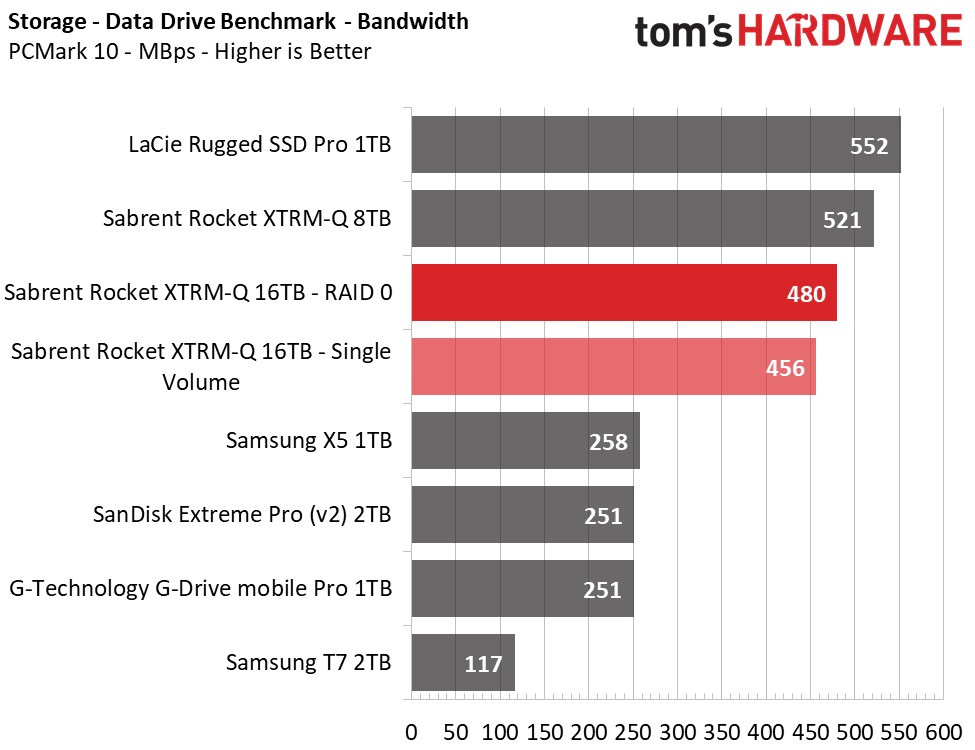

Trace Testing – PCMark 10 Storage: Data Drive Benchmark

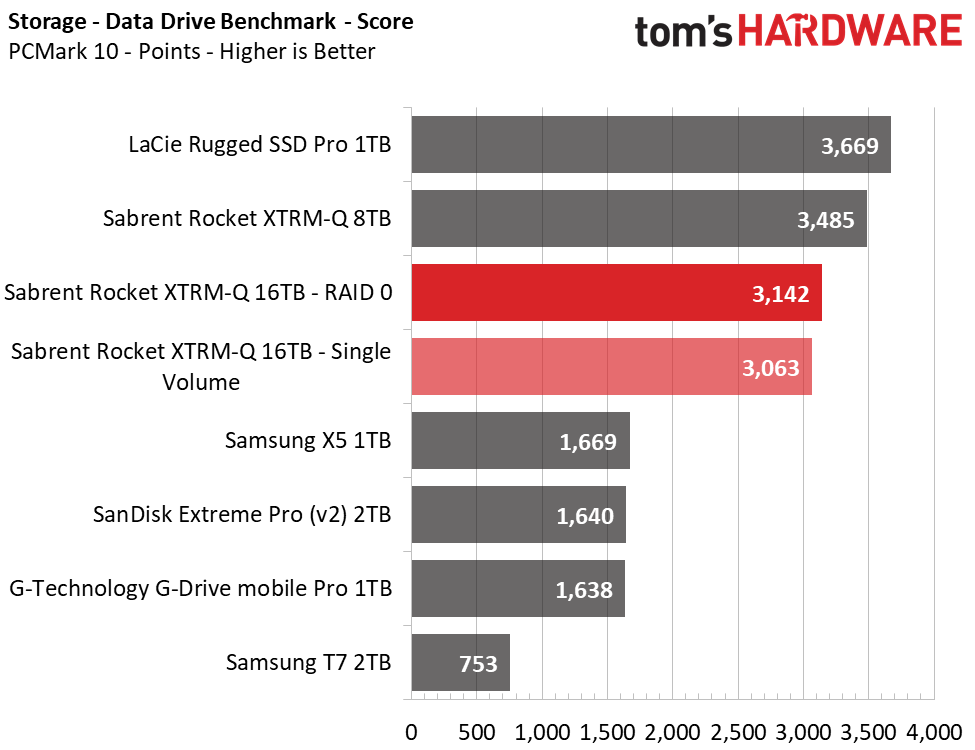

PCMark 10 is a trace-based benchmark that uses a wide-ranging set of real-world traces from popular applications and common tasks to measure the performance of storage devices. To test drives that store files rather than applications, we utilize the Data Drive Benchmark.

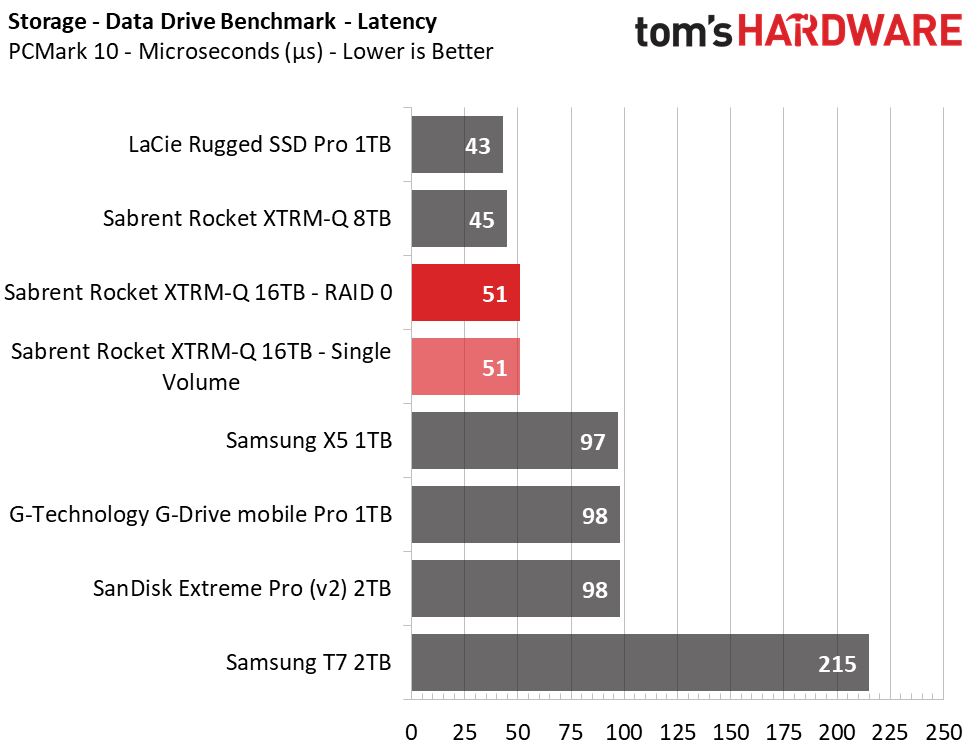

Regardless if you configure it in RAID 0 or if you use the two SSDs within separately, the XTRM-Q should provide responsive application performance. RAID 0 gave the XTRM-Q a boost in overall bandwidth, but its PCMark 10 latency scores remained the same.

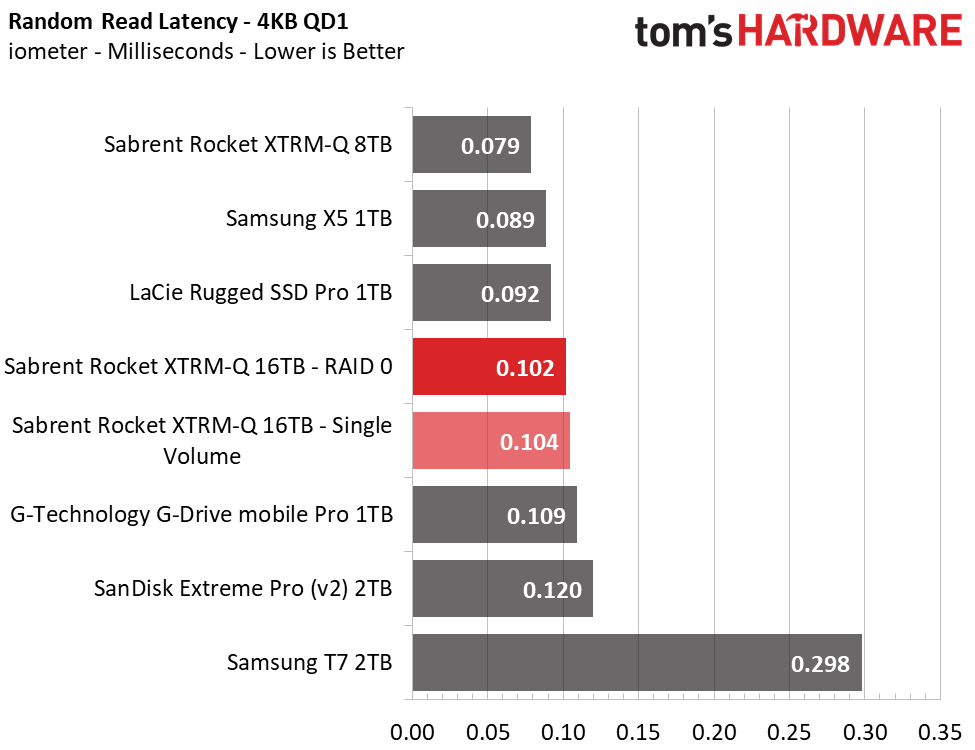

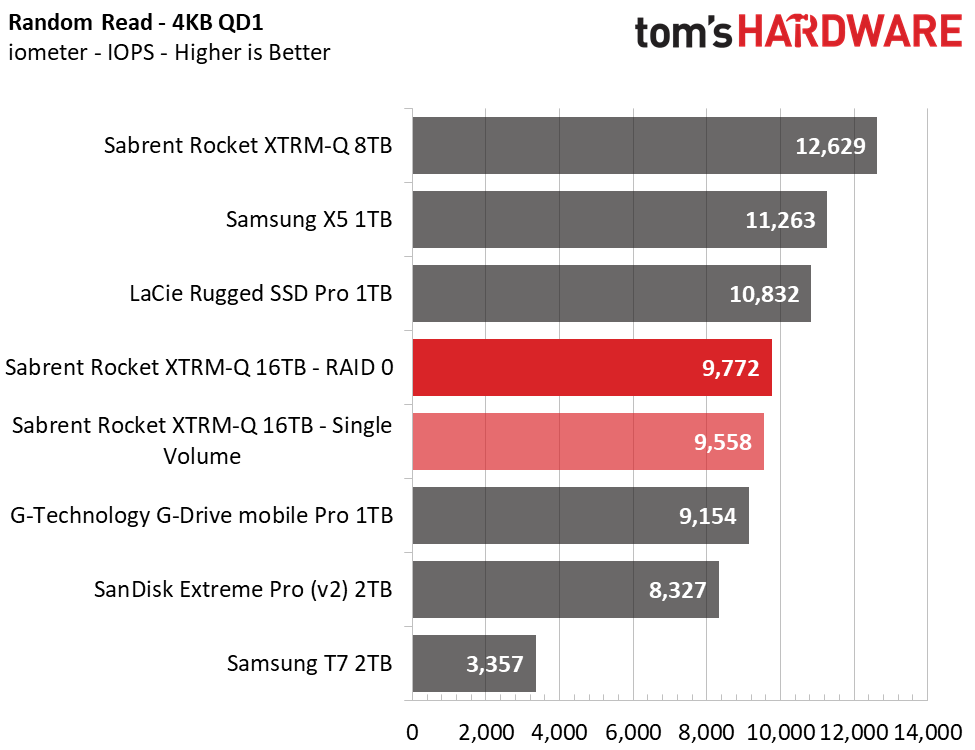

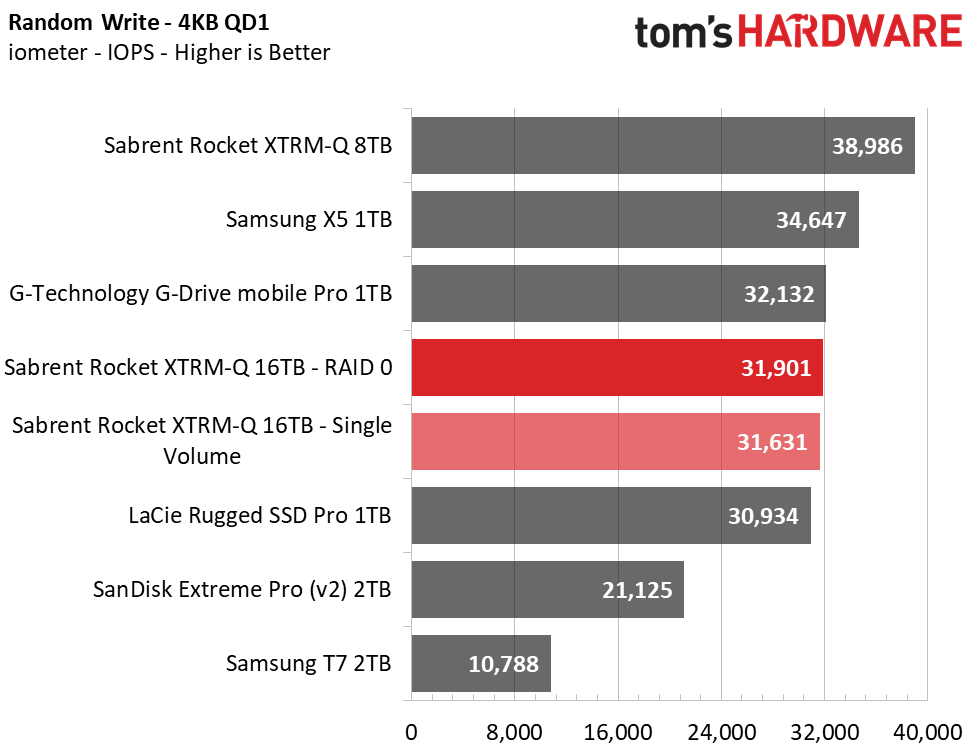

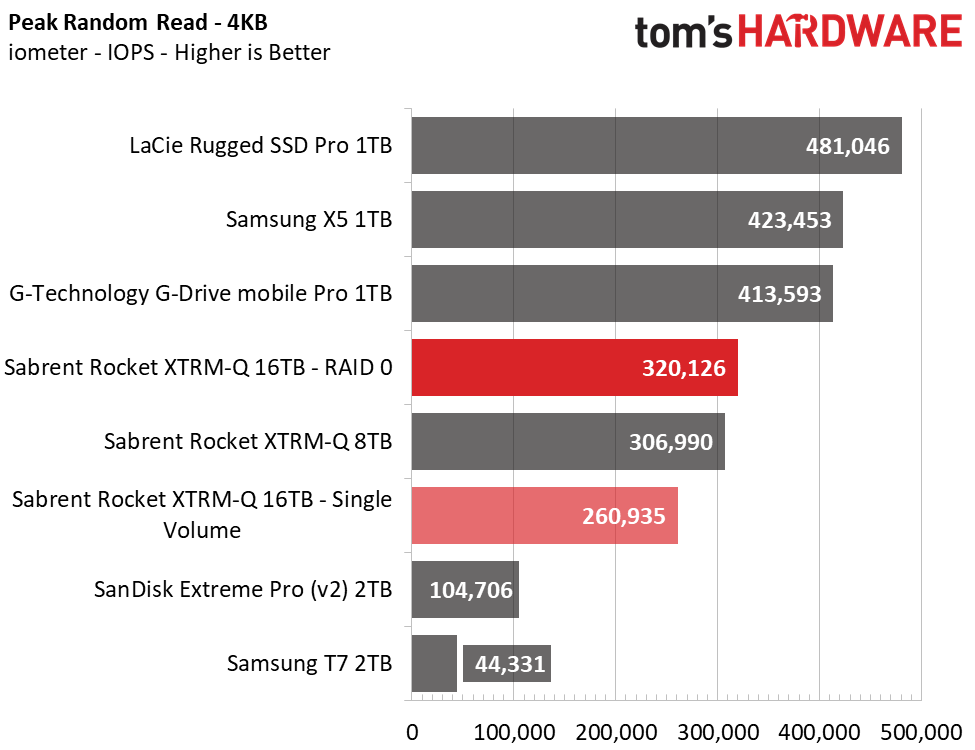

Synthetic Testing - ATTO / iometer

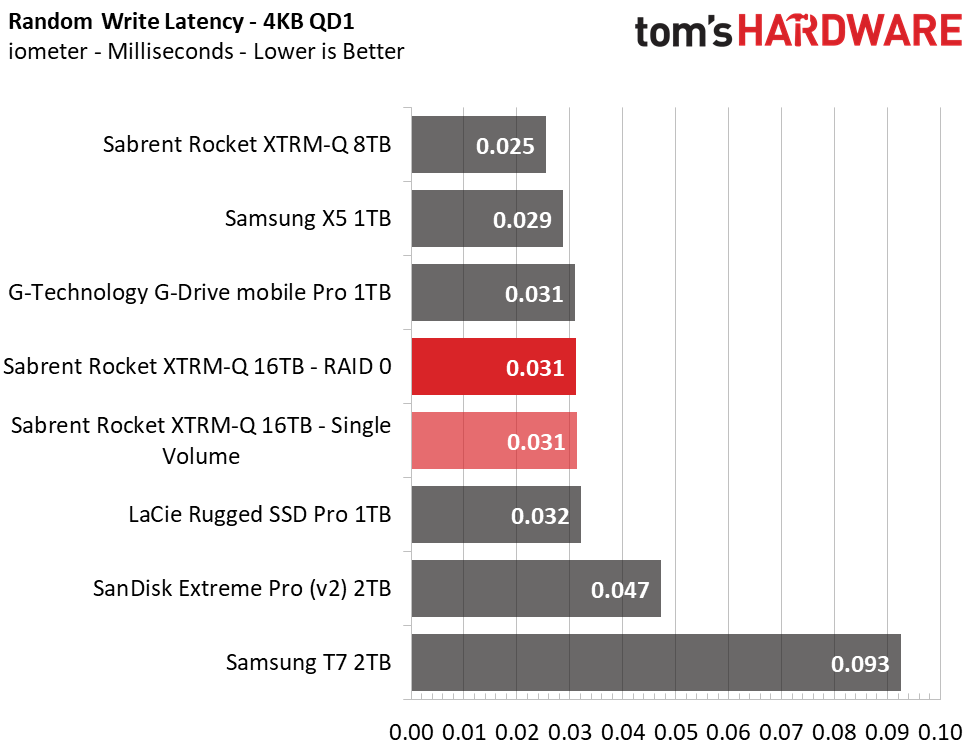

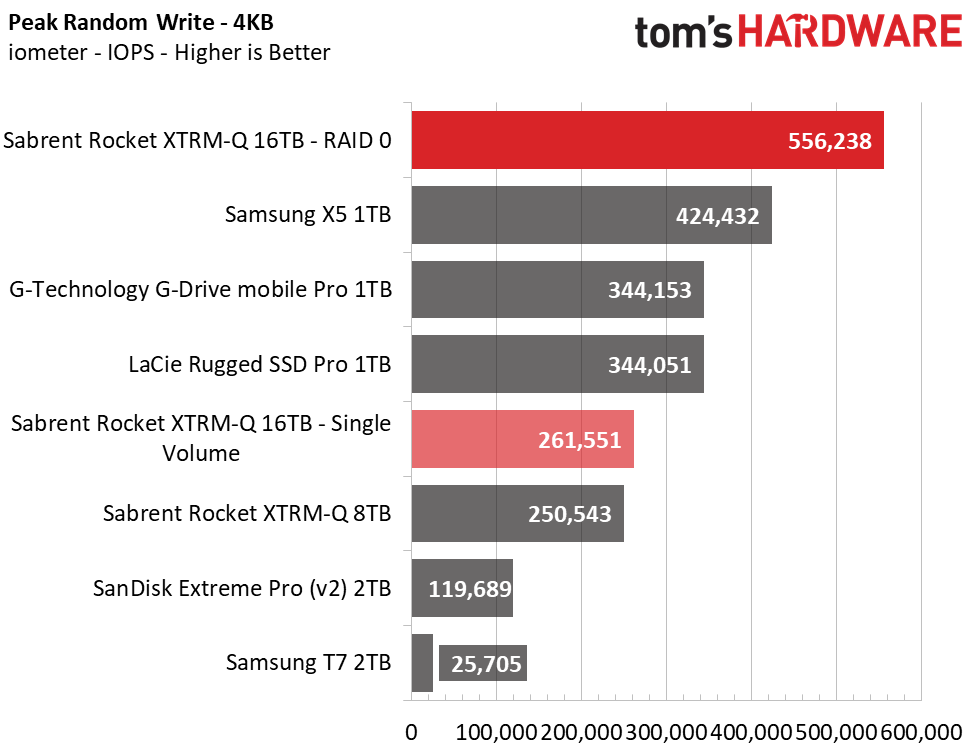

iometer is an advanced and highly configurable storage benchmarking tool while ATTO is a simple and free application that SSD vendors commonly use to assign sequential performance specifications to their products. Both of these tools give us insight into how the device handles different file sizes.

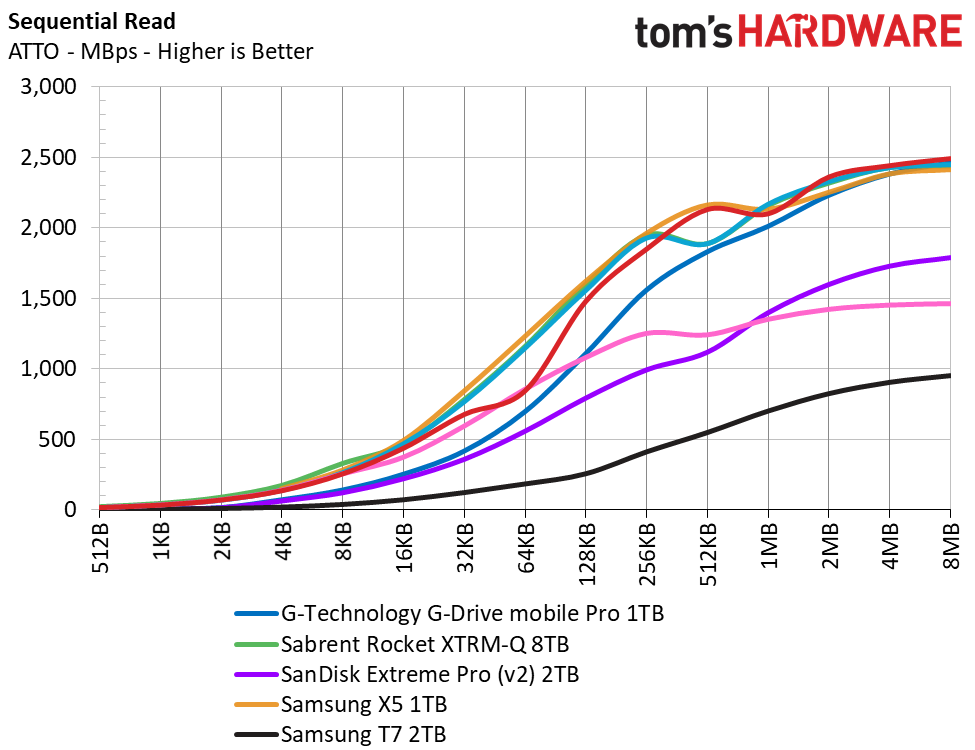

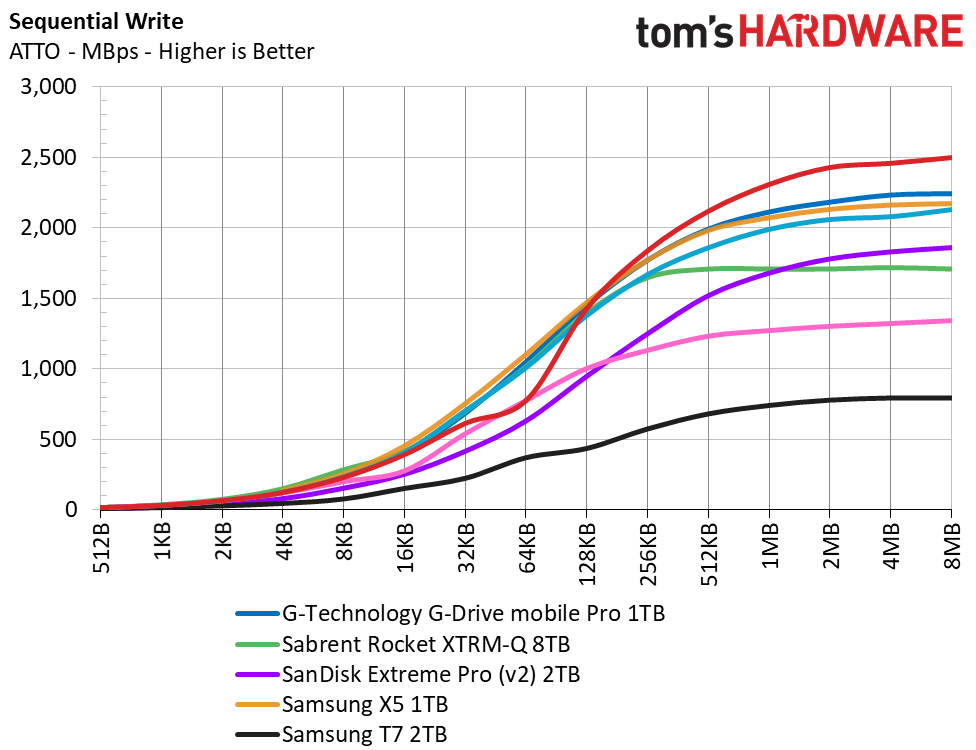

Based on ATTO’s results, Sabrent’s Rocket XTRM-Q delivers responsive performance across most block sizes, but lagged slightly behind the TLC drives at a queue depth (QD) of 1.

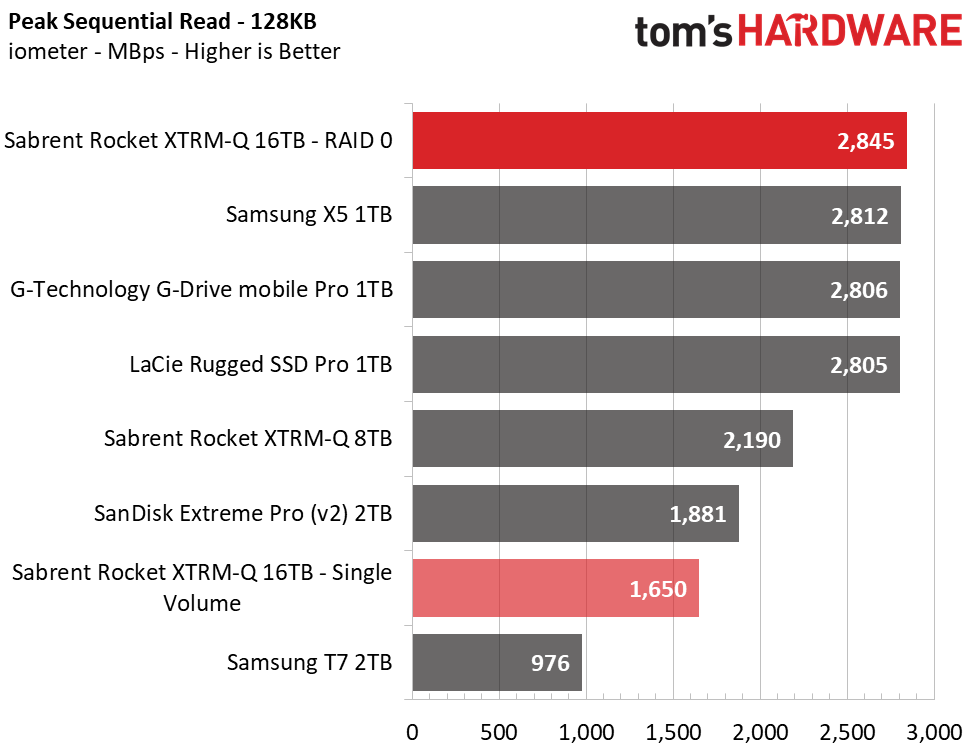

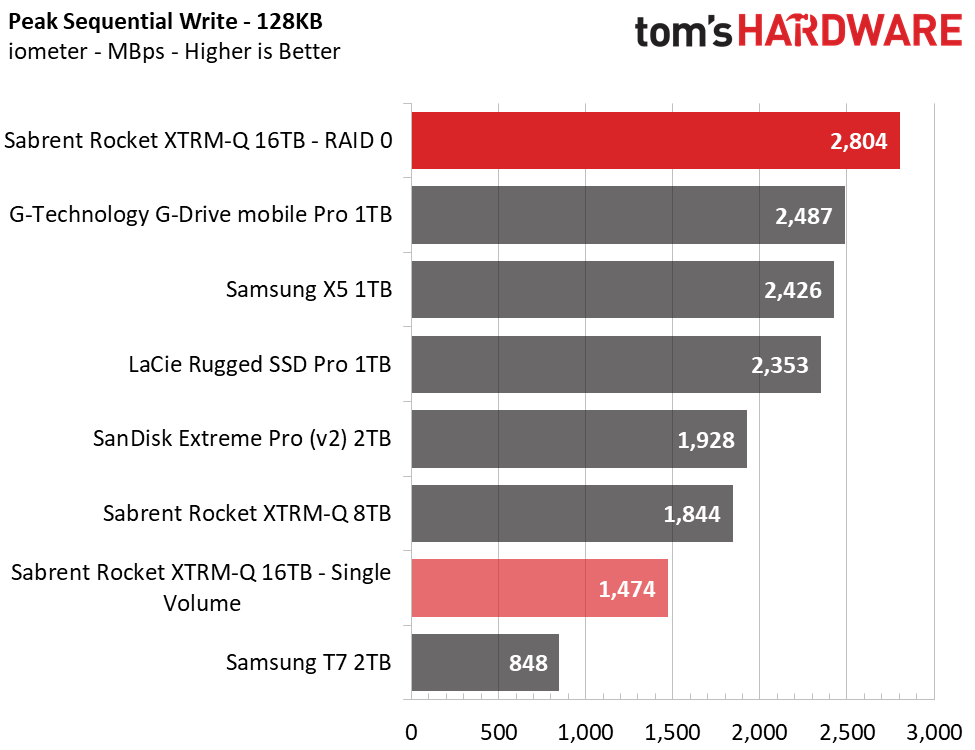

The SSD hit speeds of up to 2.8 GBps in both sequential read and write workloads when configured in RAID 0, and up to 1,650/1,474MBps read/write when configured as a JBOD.

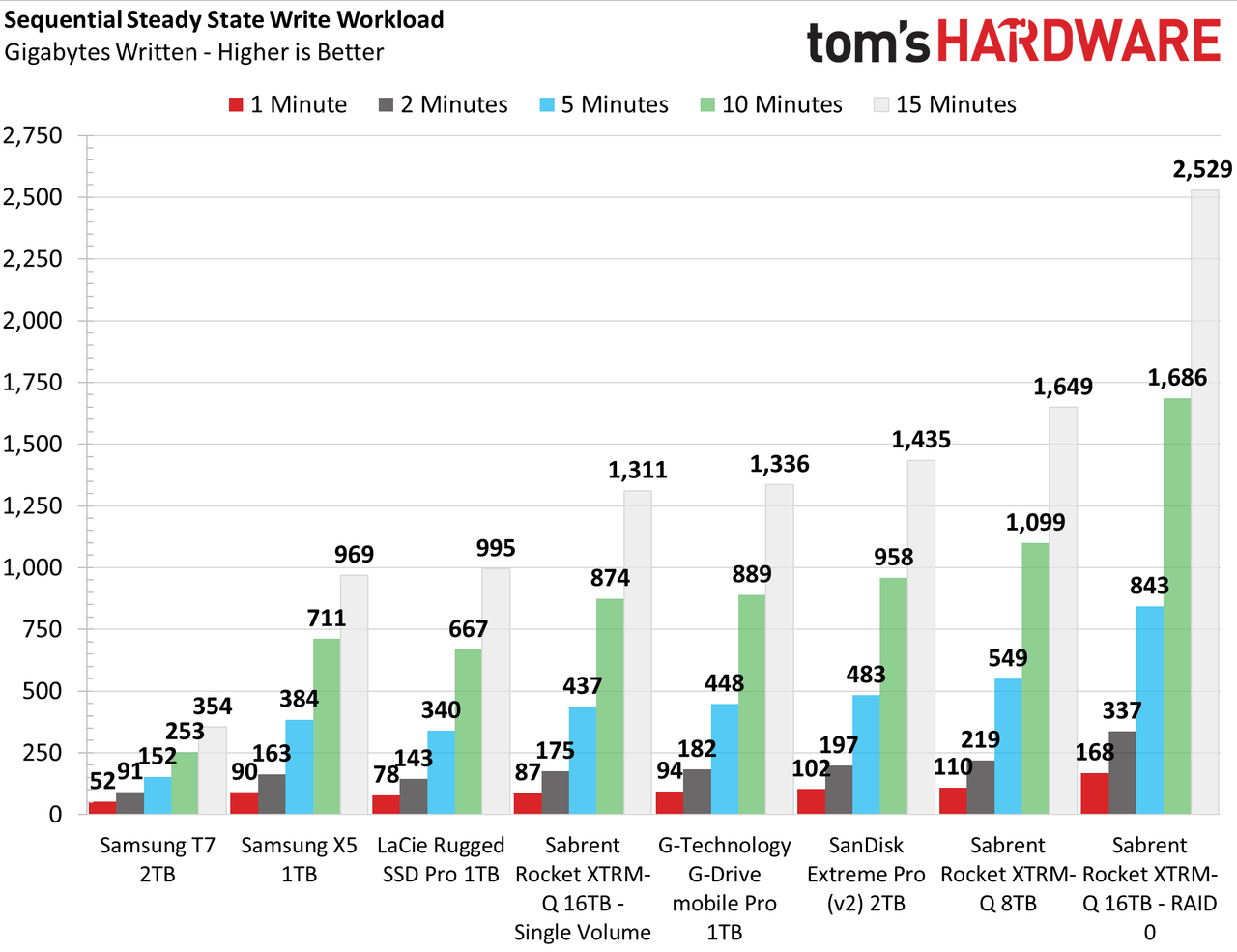

Sustained Write Performance, Cache Recovery and Temperature
Write speed and temperature are two important and inter-related metrics for external devices. Official write specifications are only part of the performance picture. Most SSDs implement a write cache, which is a fast area of (usually) pseudo-SLC programmed flash that absorbs incoming data. Sustained write speeds can suffer tremendously once the workload spills outside of the cache and into the "native" TLC or QLC flash.

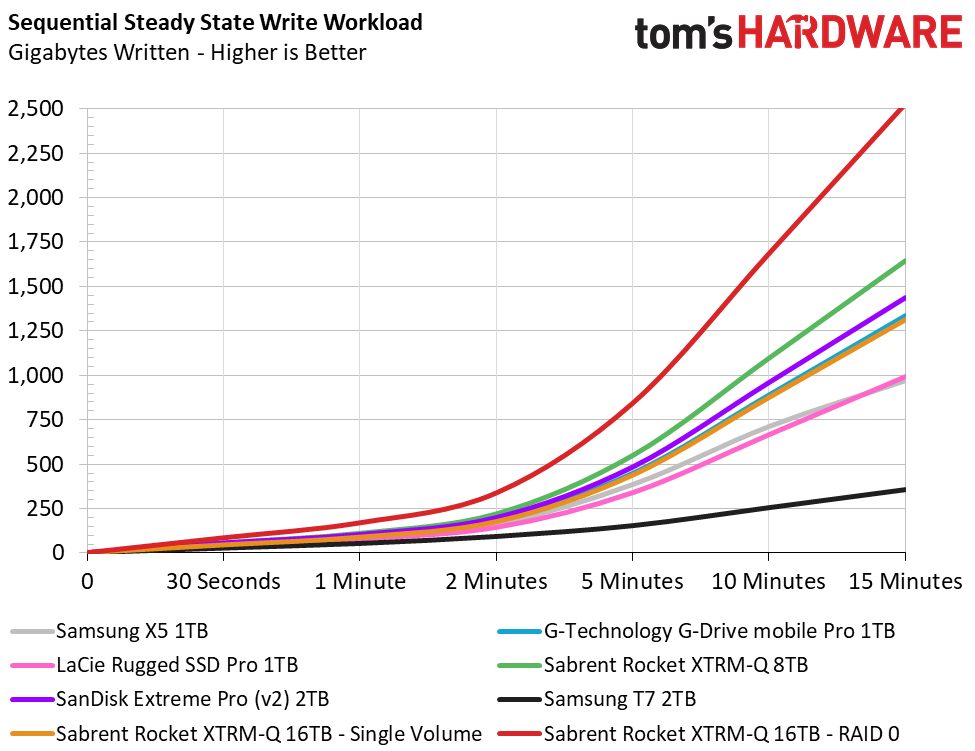

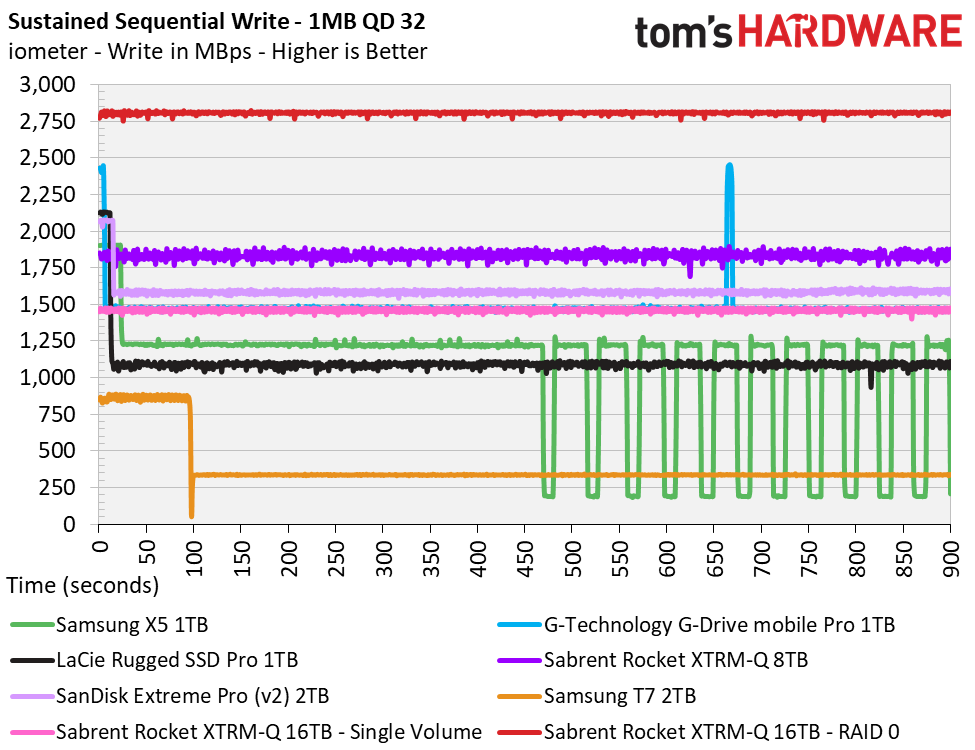

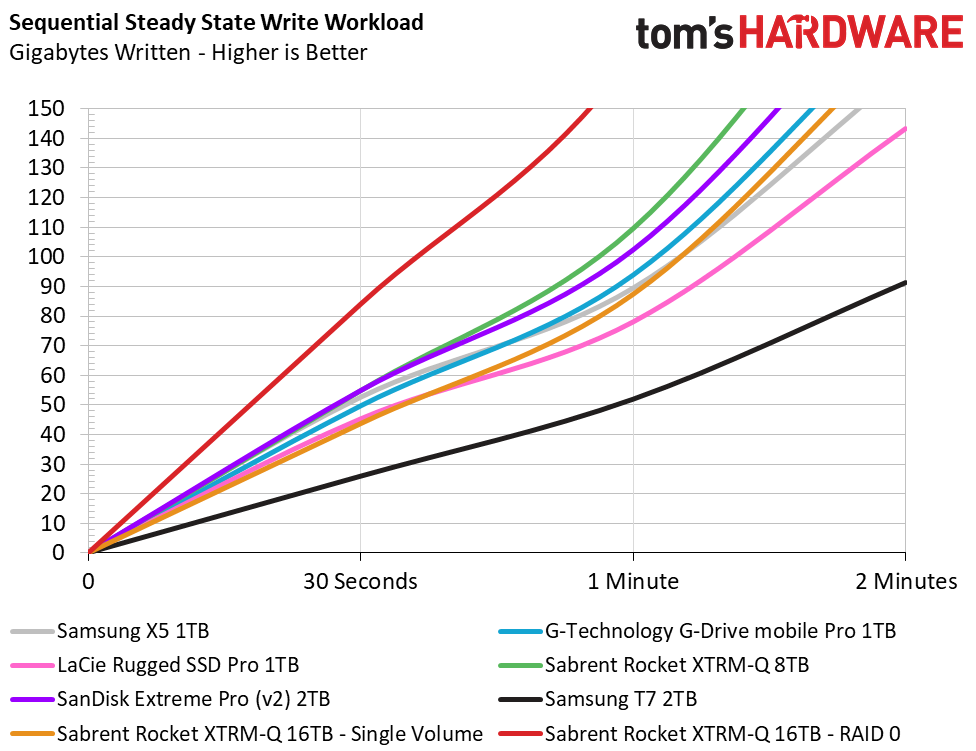

We use iometer to hammer the SSD with sequential writes for 15 minutes to measure both the size of the write cache and performance after the cache is saturated. We also monitor cache recovery via multiple idle rounds as well as the temperature of the drive via the S.M.A.R.T. data and an IR thermometer to see when (or if) thermal throttling kicks in and how it impacts performance.
The XTRM-Q has a huge SLC cache that spans one-quarter of each drive’s capacity. Configured in JBOD, it can absorb upwards of 2TB of writes before performance degrades, and up to 4TB of writes when configured in RAID 0.

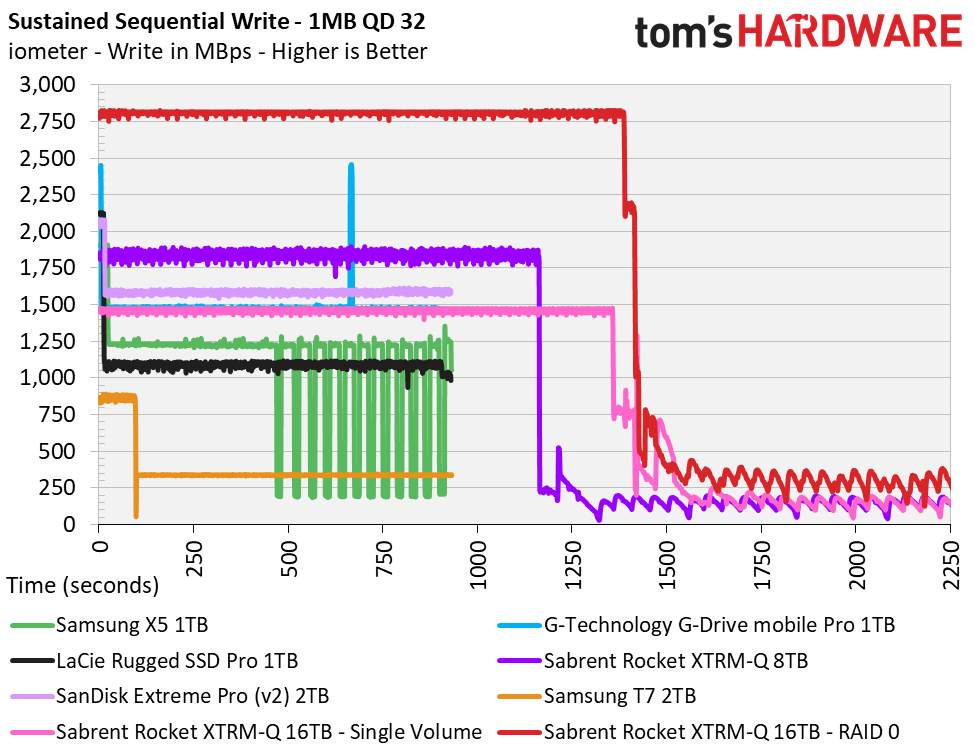

Sustained performance, in all configurations, is very low once the SLC cache is full. In JBOD mode, the Rocket XTRM-Q’s sustained performance degraded from 1,450 MBps to an average write speed of 150 MBps. In RAID 0, sustained performance averaged twice that, 300 MBps. The drive recovered roughly 400GB of SLC cache capacity after just a few minutes of idle time.
Operating temperatures ranged from roughly 35-40 degrees Celsius at idle and up to 42-45 degrees Celsius during most workloads. When configured in RAID 0 and bombarded with over 2TB of multiple sustained writes, the top surface temperature measured 47 degrees Celsius and the underside measured 53 degrees Celsius with no signs of thermal throttling.
Test Bench and Testing Notes
We use a Comet Lake platform with most background applications such as indexing, windows updates, and anti-virus disabled in the OS to reduce run-to-run variability. Each SSD is prefilled to 50% capacity and testing is carried out with write caching enabled.
|CPU||Intel Core i5-10600K|
|Motherboard||ASRock Z490 Taichi|
|Add-in Card||ASRock Thunderbolt 3 AIC R2.0|
|Memory||2x8GB Kingston HyperX Predator RGB DDR4 4000|
|Graphics||Intel UHD Graphics 630|
|CPU Cooling||Noctua NH-U14S|
|Case||Fractal Design Define 7 Compact|
|Power Supply||Corsair RM850x|
|OS Storage||WD_Black SN850 2TB|
|Operating System||Windows 10 Pro 64-bit 20H2|
