Corsair RM850x V2 PSU Review: Smaller And Quieter!

Teardown & Component Analysis

Before proceeding with this page we strongly encourage you to a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

General Data
Manufacturer (OEM)CWT
Primary Side

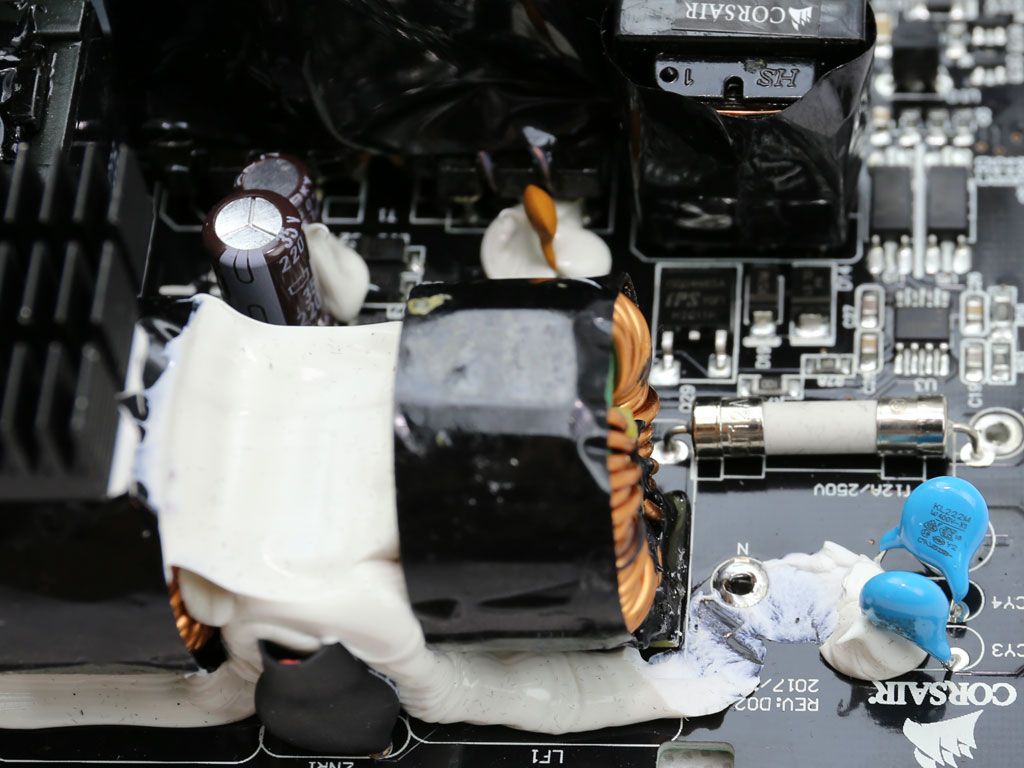

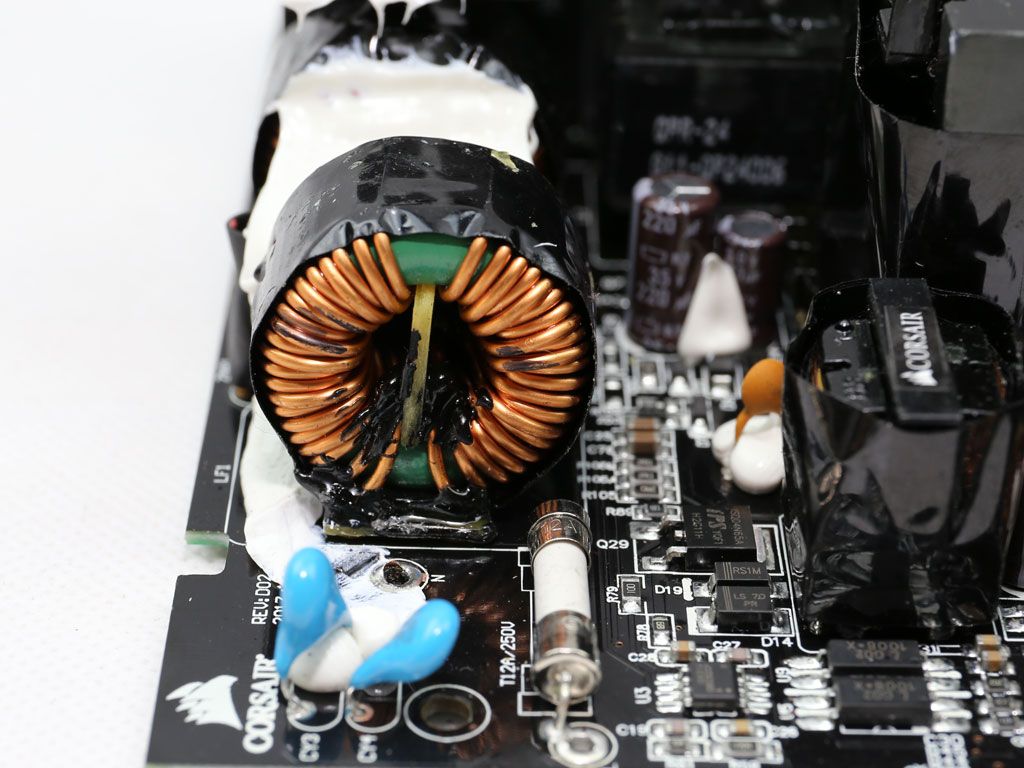

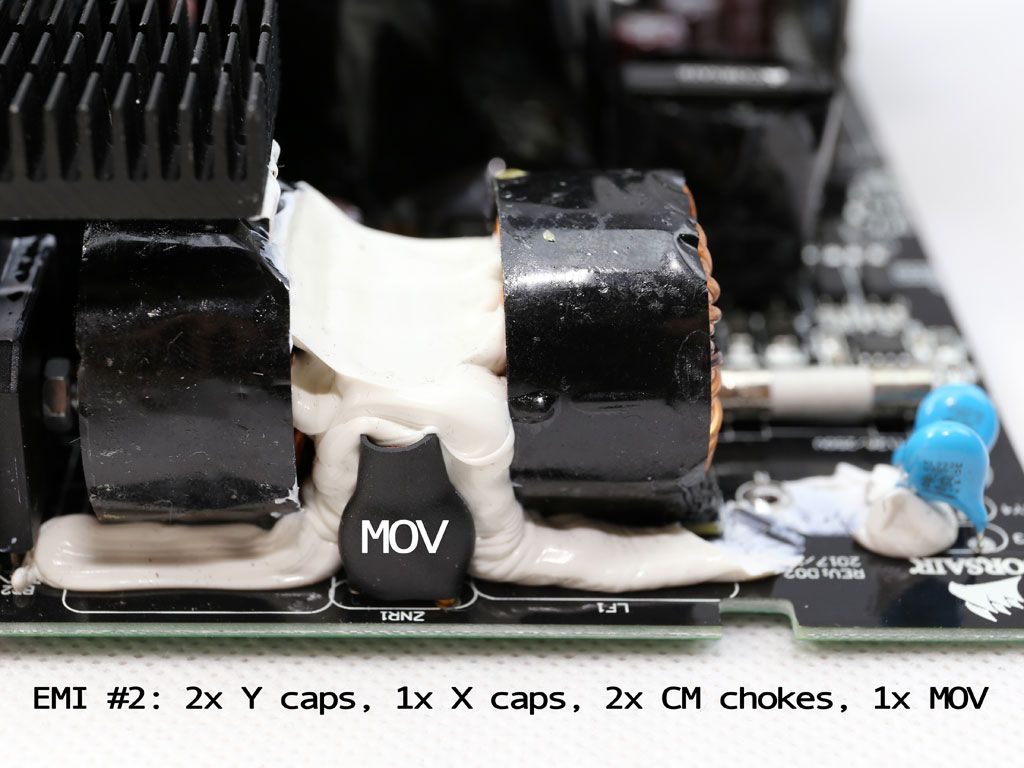

Transient Filter4x Y caps, 2x X caps, 2x CM chokes, 1x MOV

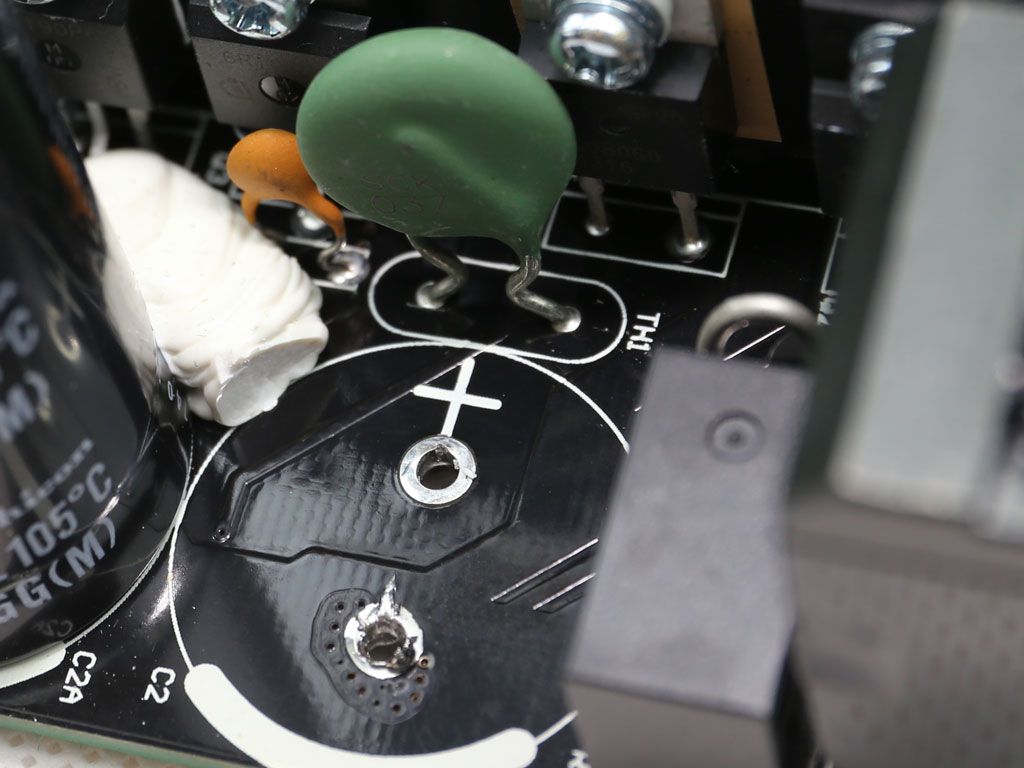

Inrush ProtectionNTC thermistor & relay

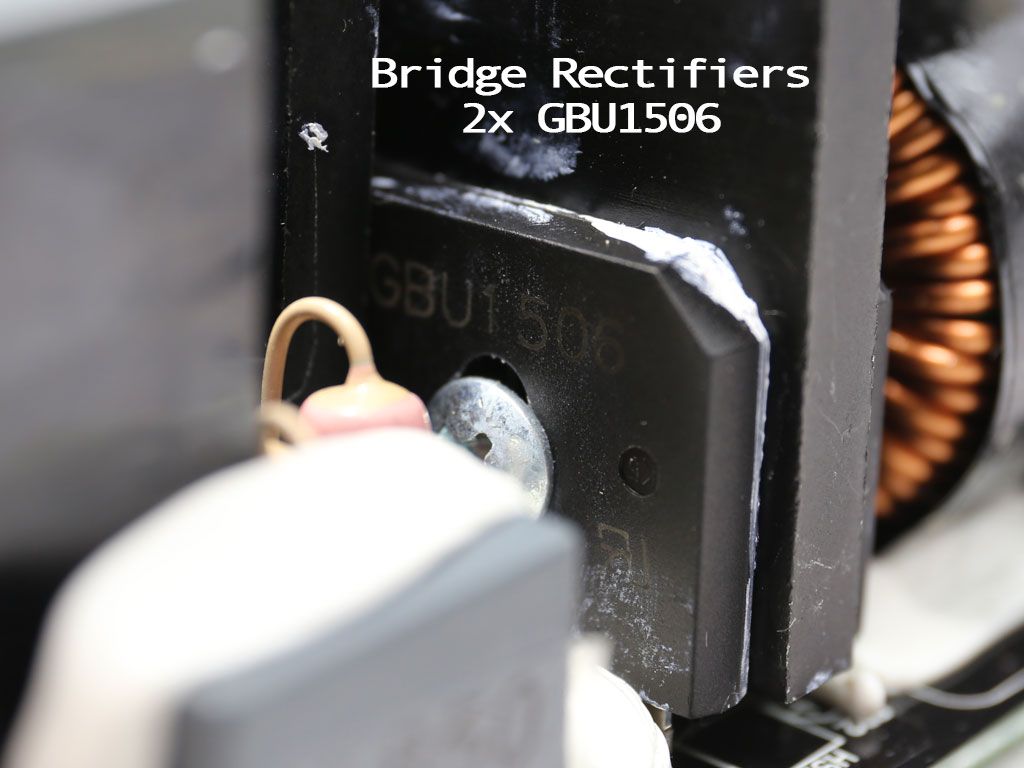

Bridge Rectifier(s)2x GBU1506 (600V, 15A @ 100°C)

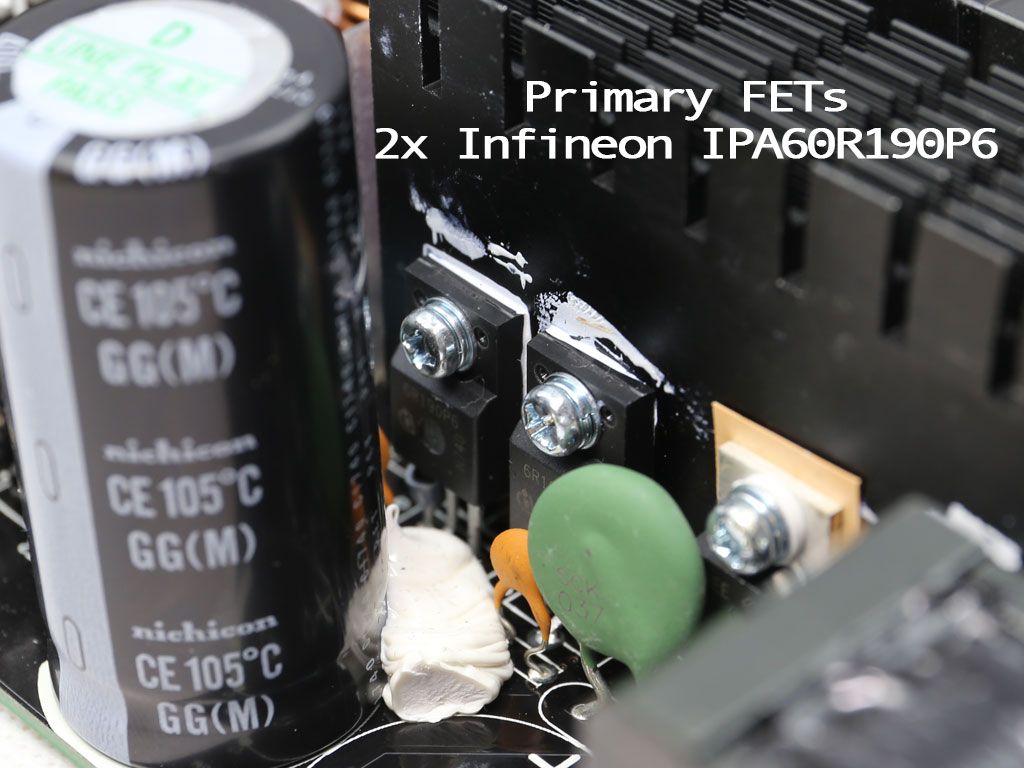

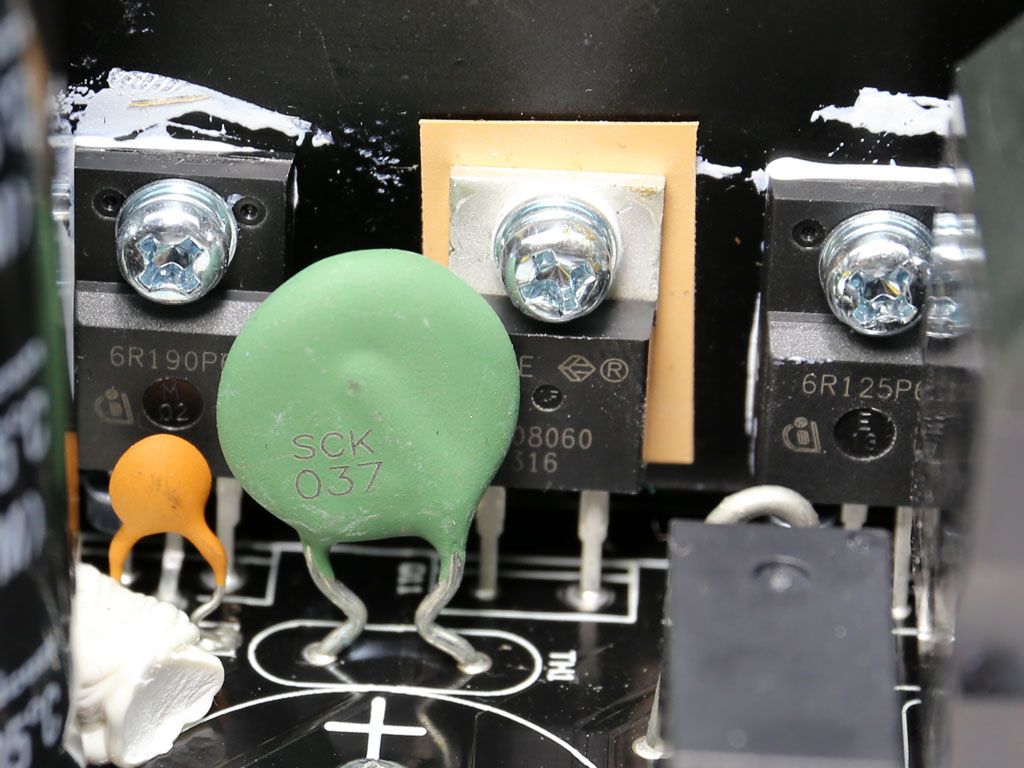

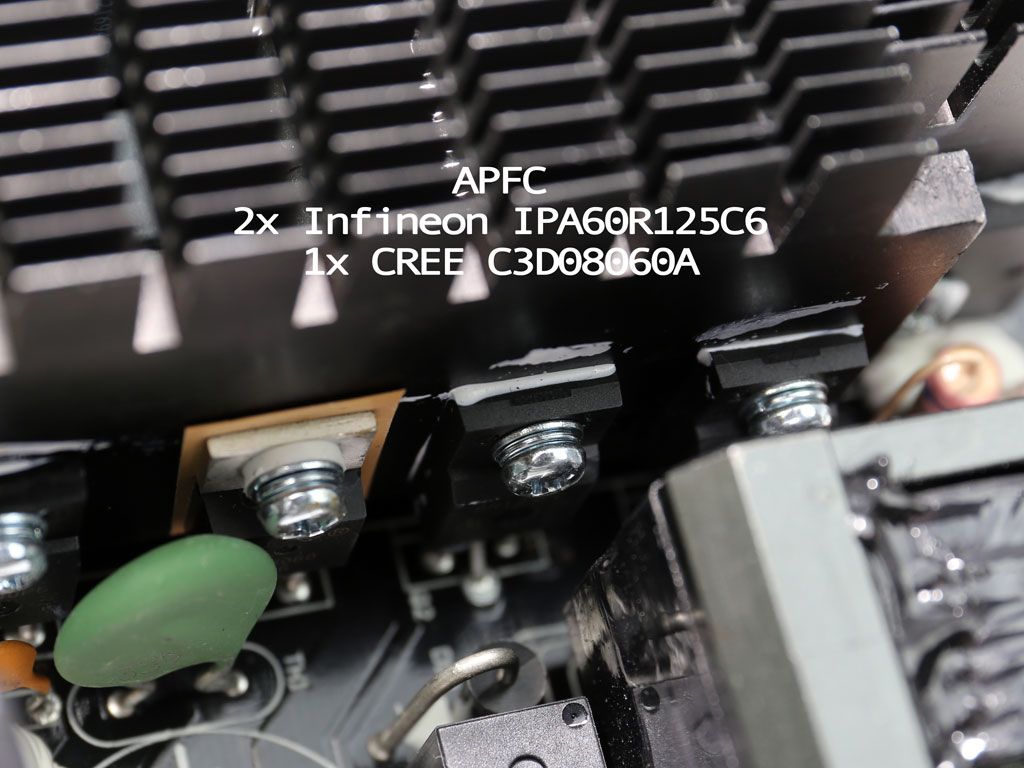

APFC MOSFETs2x Infineon IPA60R125C6  (650V, 19A @ 100°C, 0.125Ω) 1x SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode1x CREE C3D08060A (600V, 8A @ 152°C)

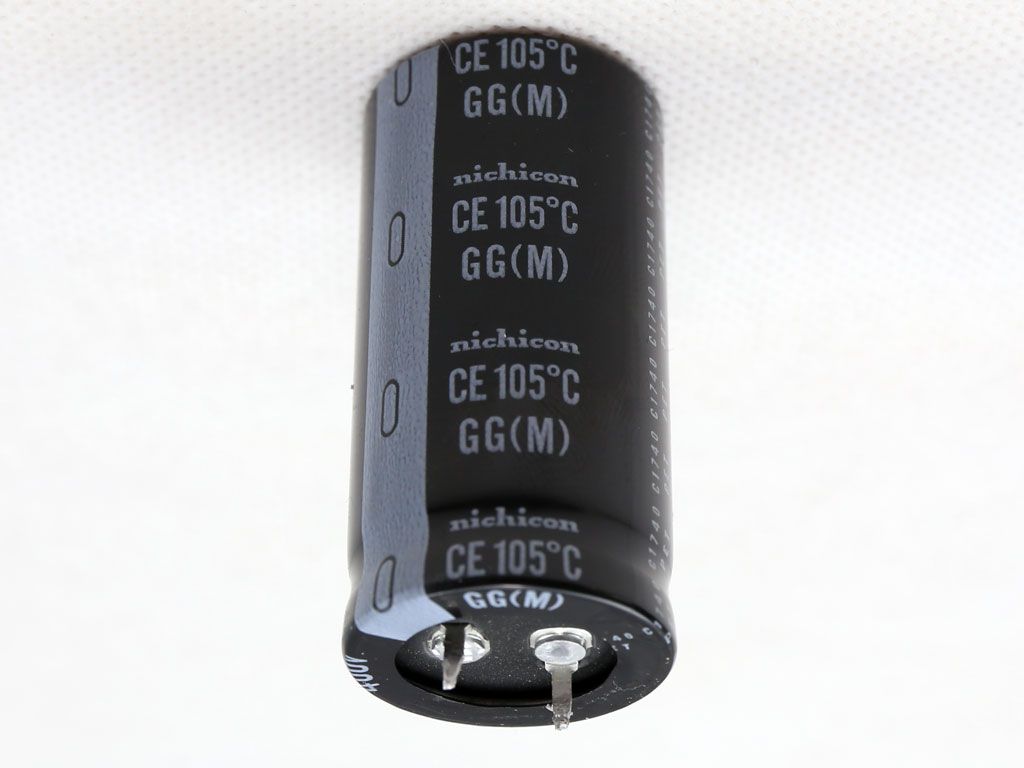

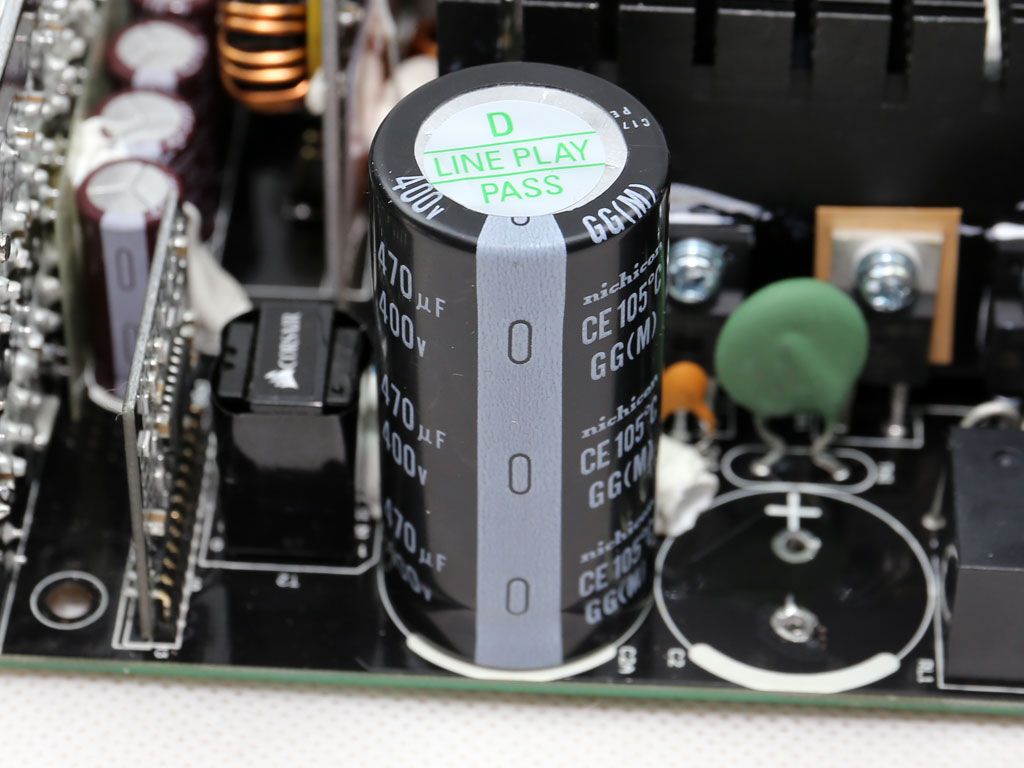

Hold-up Cap(s)2x Nichicon (400V, 470uF each or 940uF combined, 2000h @ 105°C, GG)
Main Switchers2x Infineon IPA60R190P6  (650V, 12.7A @ 100°C, 0.190Ω)

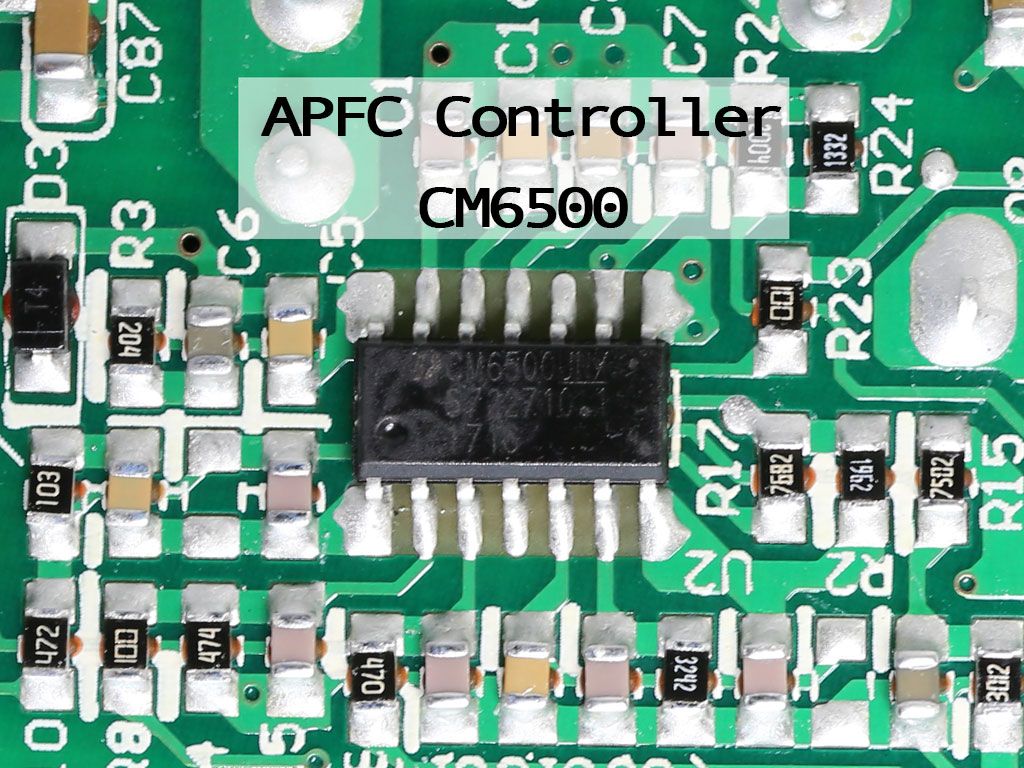

APFC ControllerChampion CM6500UNX

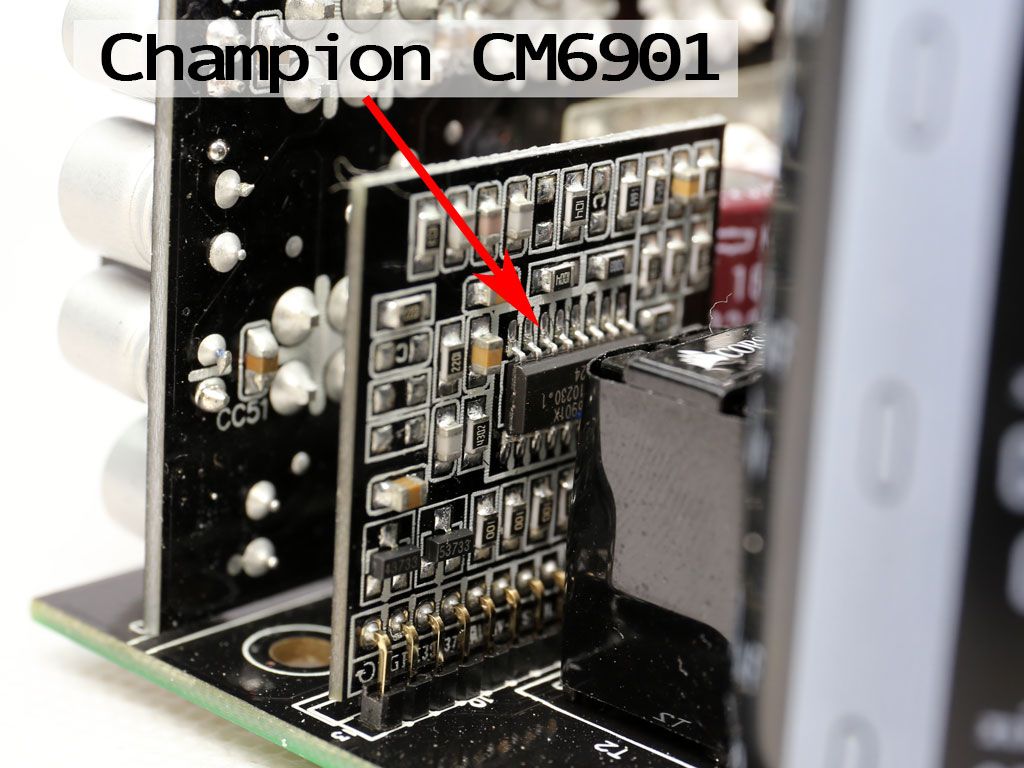

Switching ControllerChampion CM6901X
Fan ControllerPIC16F1503
TopologyPrimary side: Half-bridge & LLC resonant controller Secondary side: Synchronous rectification & DC-DC converters
Secondary Side

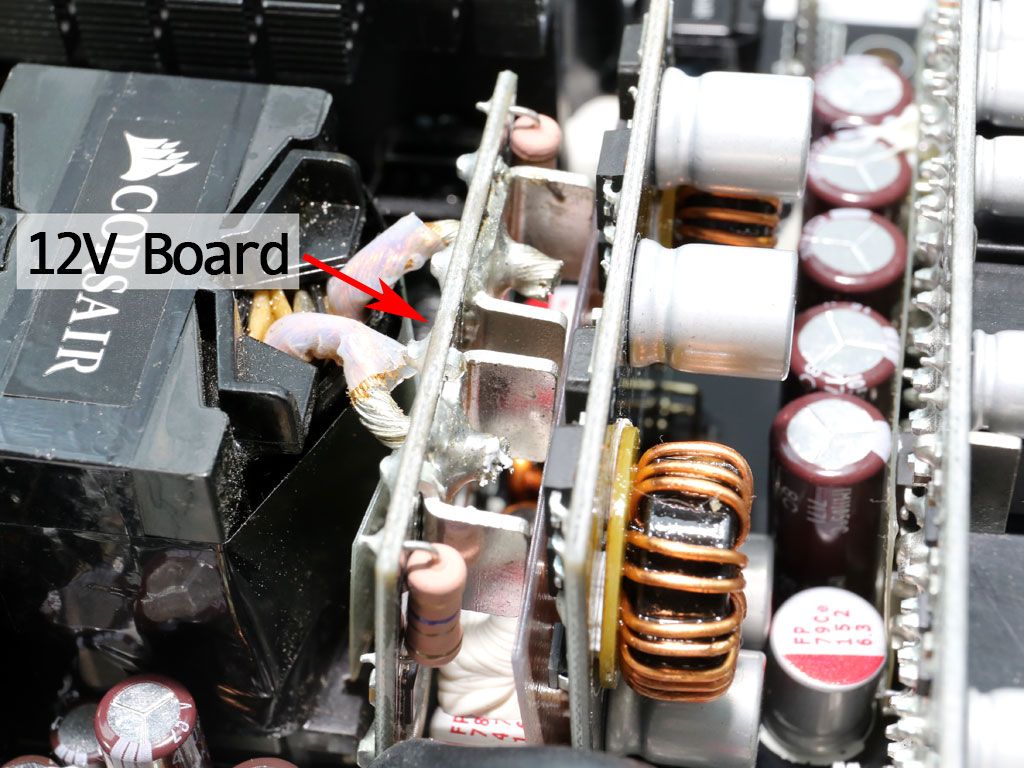

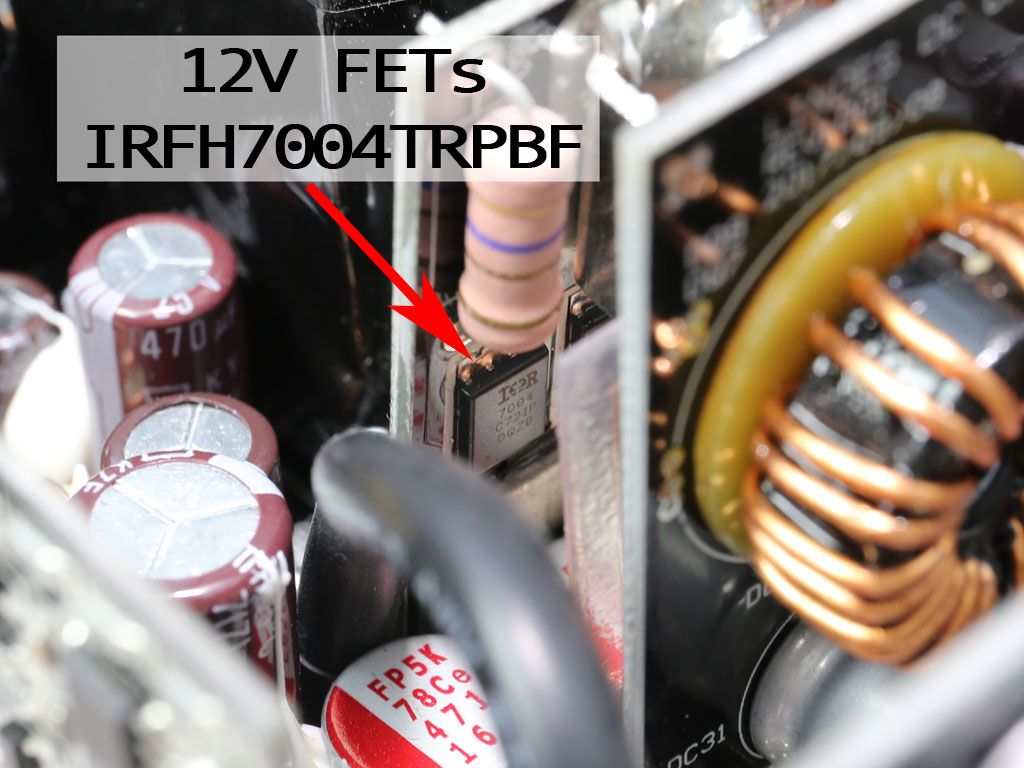

+12V MOSFETs6x International Rectifier IRFH7004TRPBF (40V, 164A @ 100°C, 1.4mΩ)

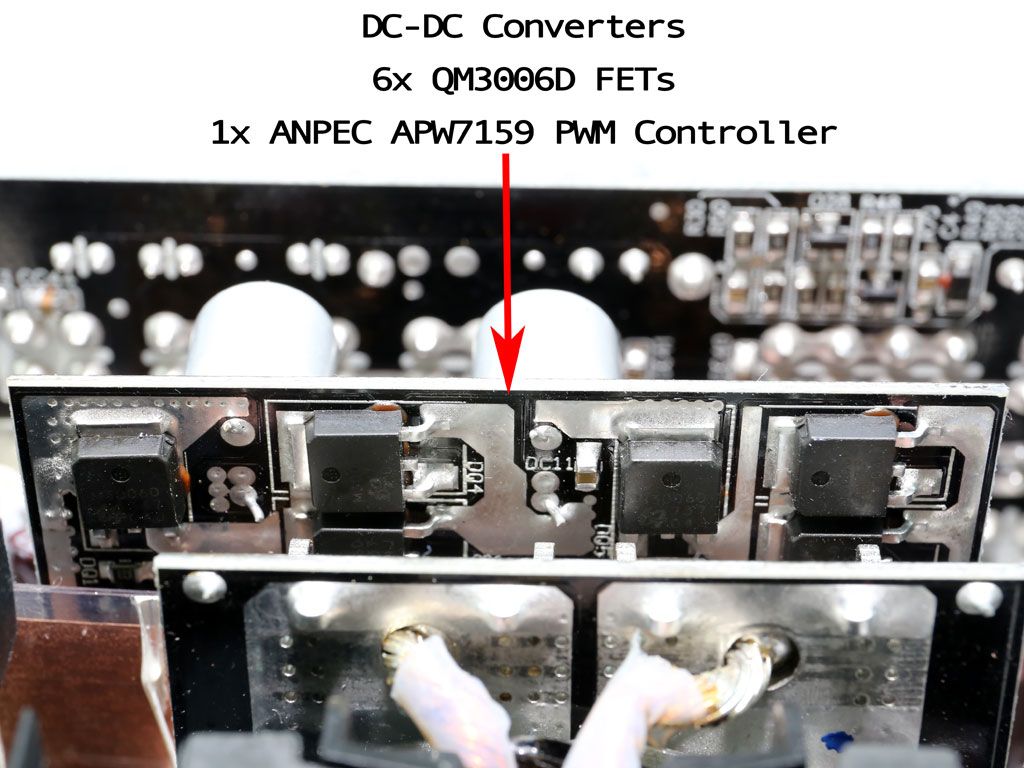

5V & 3.3VDC-DC Converters: 6x QM3006D (30V, 57A @ 100°C, 5.5mΩ) PWM Controller: Anpec APW7159

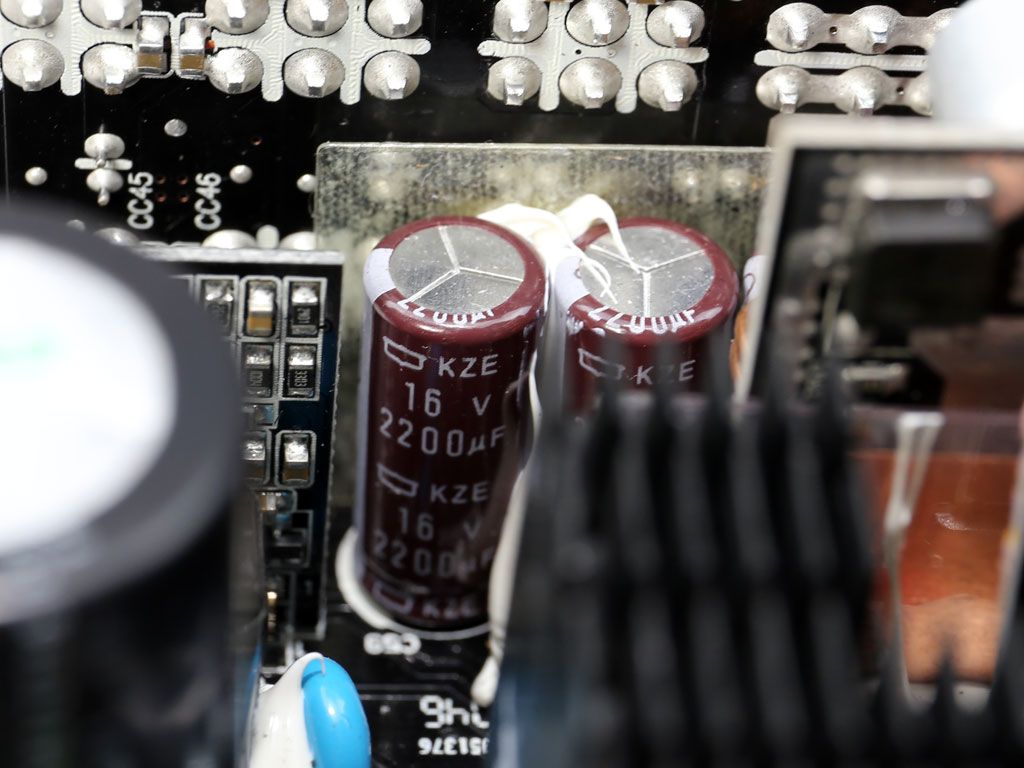

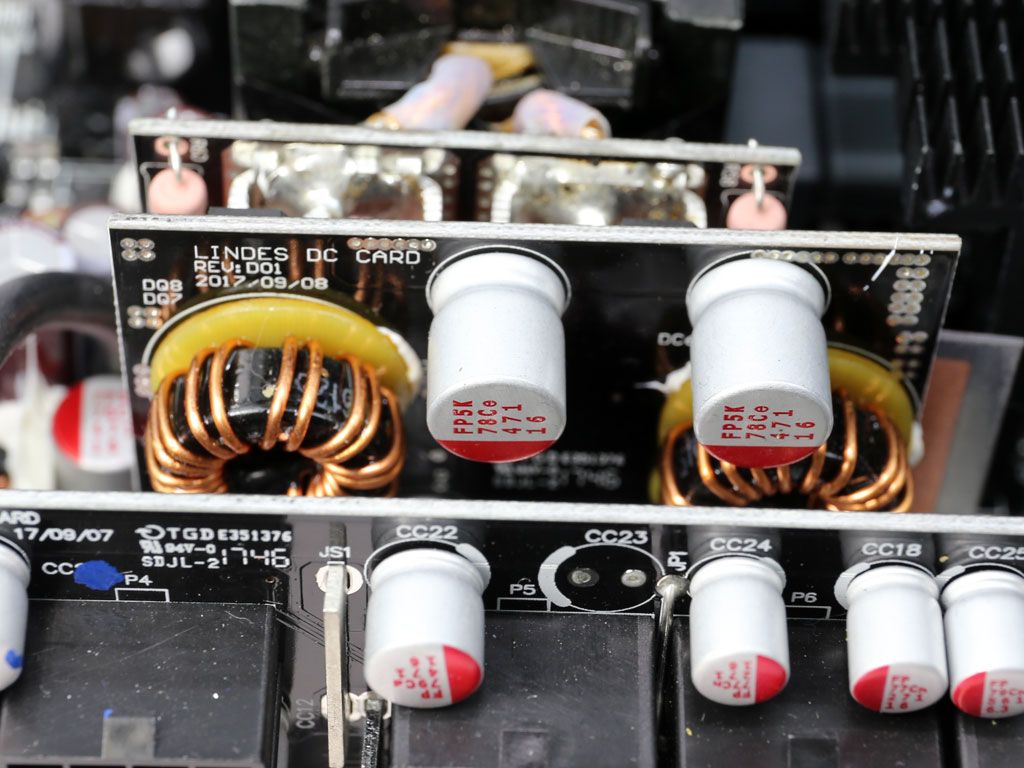

Filtering CapacitorsElectrolytics: Nippon Chemi-Con (1-5000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY) Polymers: FPCAP
Supervisor ICWeltrend WT7502 (OVP, UVP, SCP, PG) & LM393G

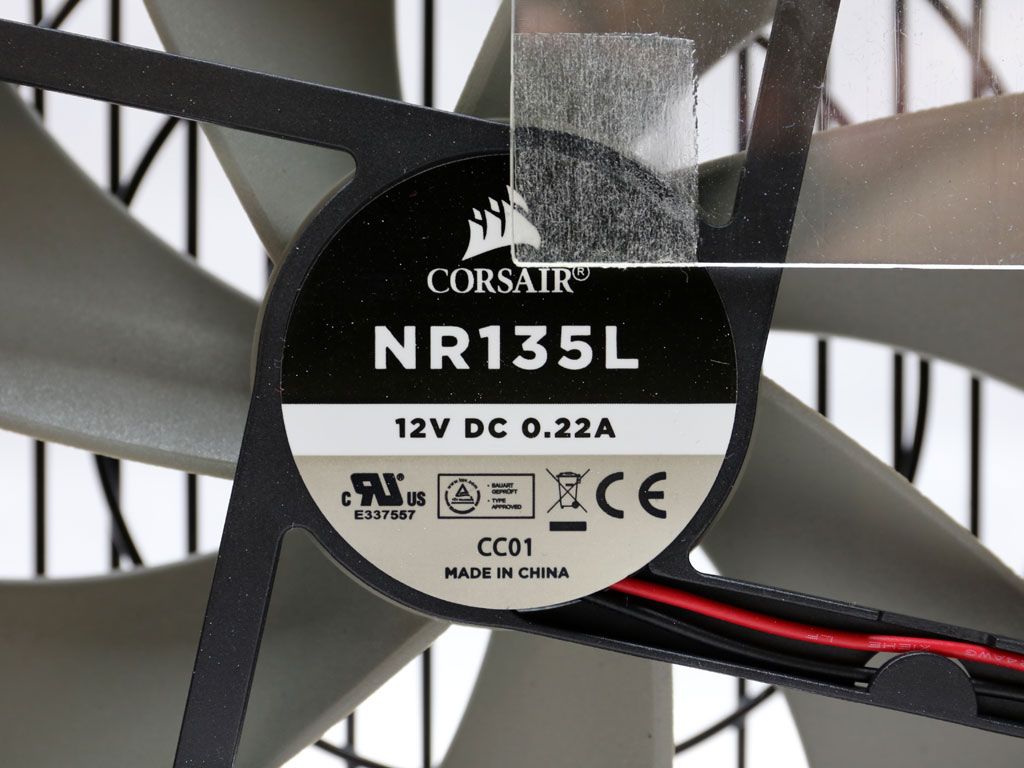

Fan ModelNR135L (12V, 0.22A, Rifle Bearing)

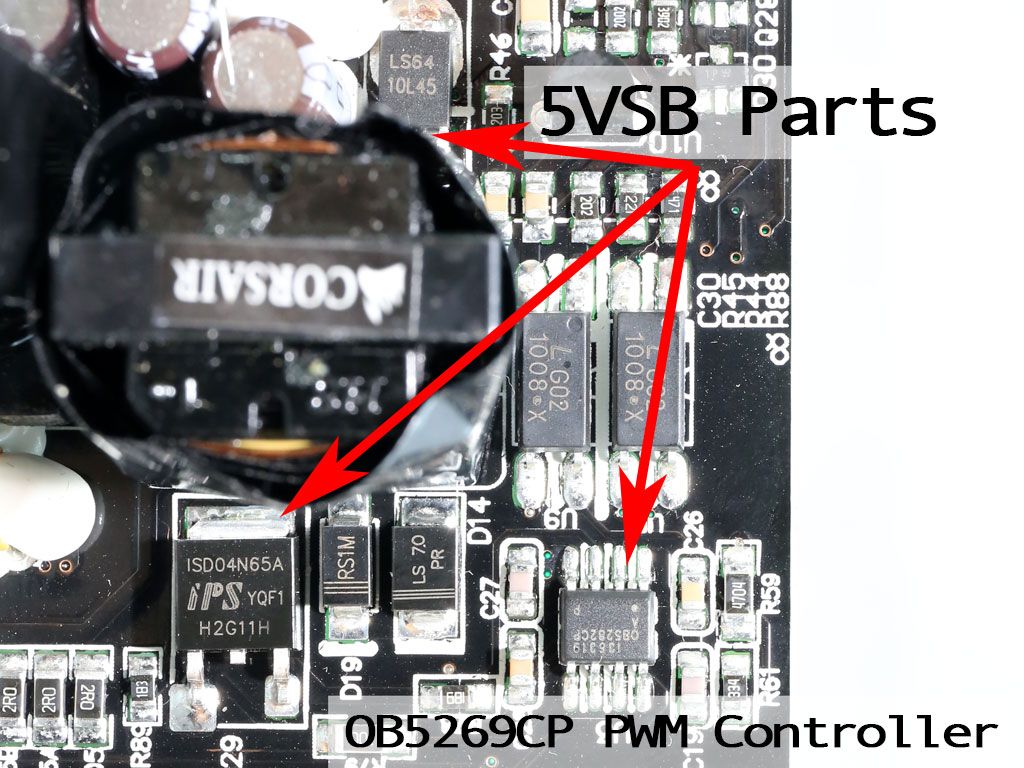

5VSB Circuit
RectifierSD04N65A, QM3004D,  LS64 10L45 SBR

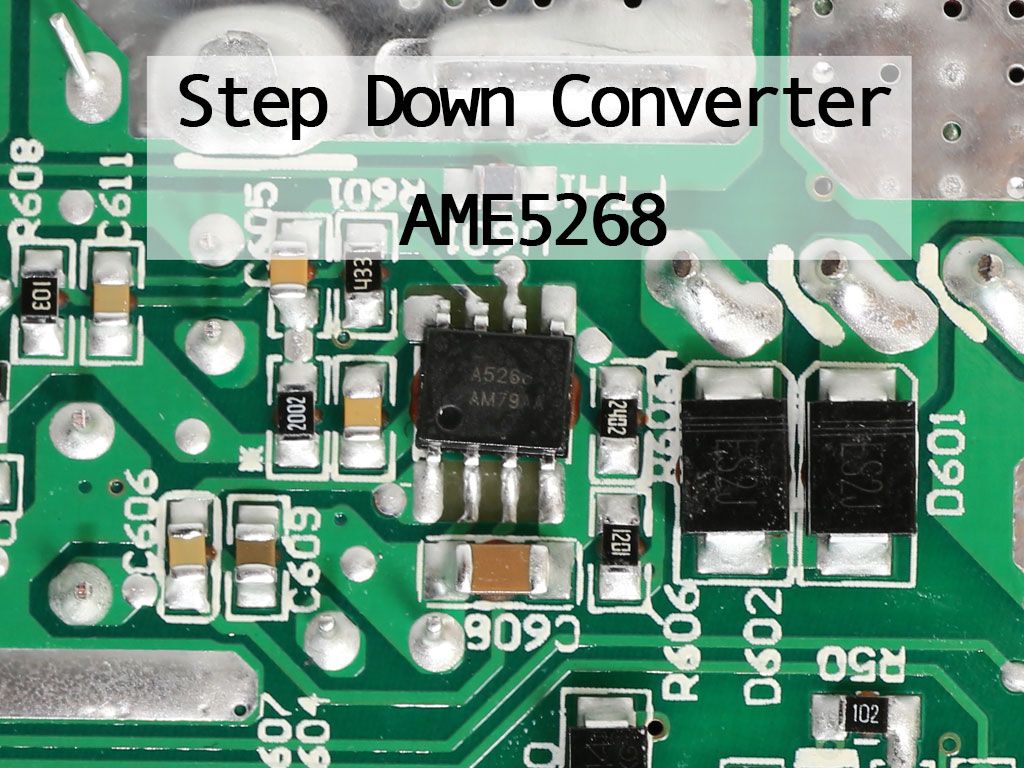

Step-Down ConverterAME5268
Standby PWM ControllerOn-Bright OB5269CP

There are a few differences between this PSU and the previous-generation RM850x. For starters, a bypass relay supports the NTC thermistor, allowing for increased efficiency and enhanced inrush current protection. On the primary side, CWT decided to swap out the Vishay FETs for Infineon ones. Both brands are good; however, Infineon products are more popular in high-end PSUs.

The bulk caps are exactly the same as Corsair's older RM850x. There was no reason to change them, since this PSU's hold-up time satisfies the ATX spec's requirements. Both the APFC and LLC resonant controllers are provided by Champion now, whereas the previous-gen RMx units used Infineon controllers.

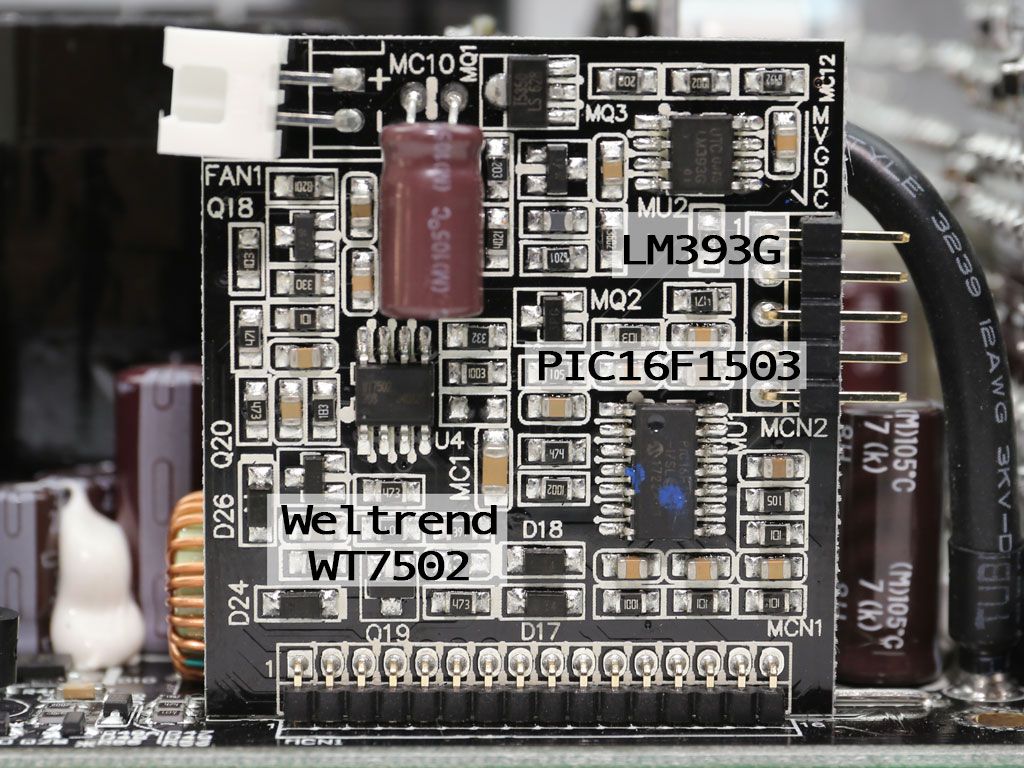

On the PSU's secondary side, changes are limited to the DC-DC converters. Corsair's updated design uses six QM3006D FETs rather than a combination of four QM3004D and two QM3006D FETs. Moreover, the fan control circuit employs a microcontroller that facilitates fine tuning of the fan's profile.

In general, this is a very good platform with compact dimensions that don't seem to negatively affect performance. Despite the lack of proper heat sinks on the secondary side, Corsair's semi-passive mode lasts a long time. On top of that, its fan profile is relaxed, even under tough conditions. This means that the platform is designed well, even in the face of limited airflow.

Image 1 of 33

Image 2 of 33

Image 3 of 33

Image 4 of 33

Image 5 of 33

Image 6 of 33

Image 7 of 33

Image 8 of 33

Image 9 of 33

Image 10 of 33

Image 11 of 33

Image 12 of 33

Image 13 of 33

Image 14 of 33

Image 15 of 33

Image 16 of 33

Image 17 of 33

Image 18 of 33

Image 19 of 33

Image 20 of 33

Image 21 of 33

Image 22 of 33

Image 23 of 33

Image 24 of 33

Image 25 of 33

Image 26 of 33

Image 27 of 33

Image 28 of 33

Image 29 of 33

Image 30 of 33

Image 31 of 33

Image 32 of 33

Image 33 of 33

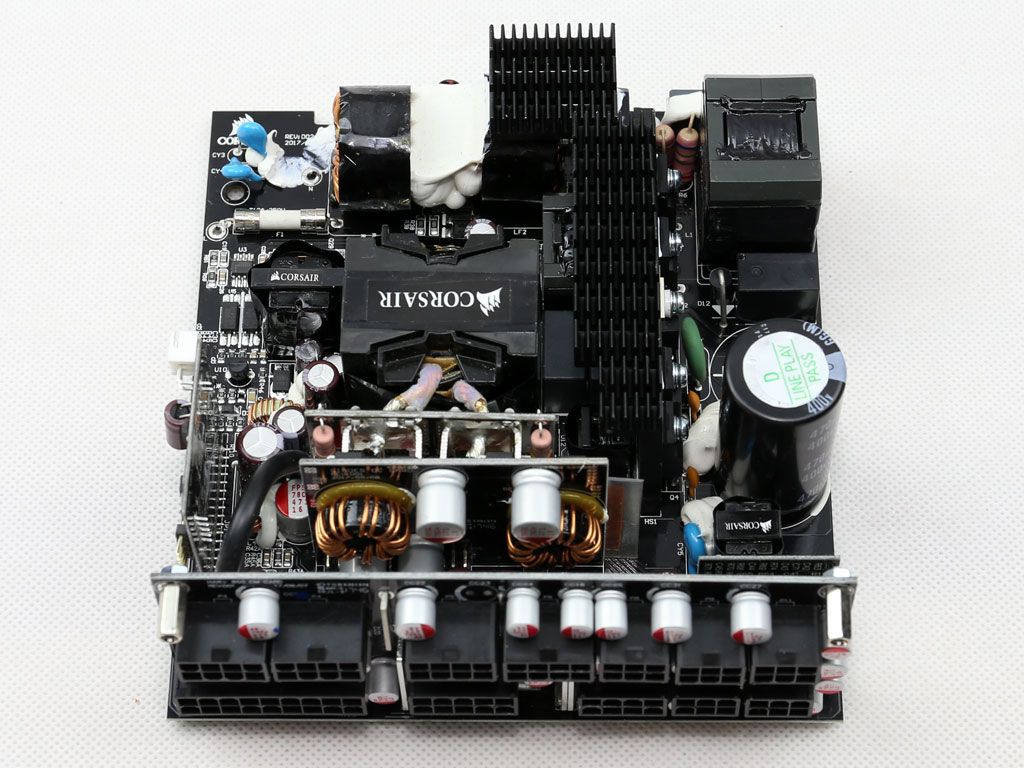

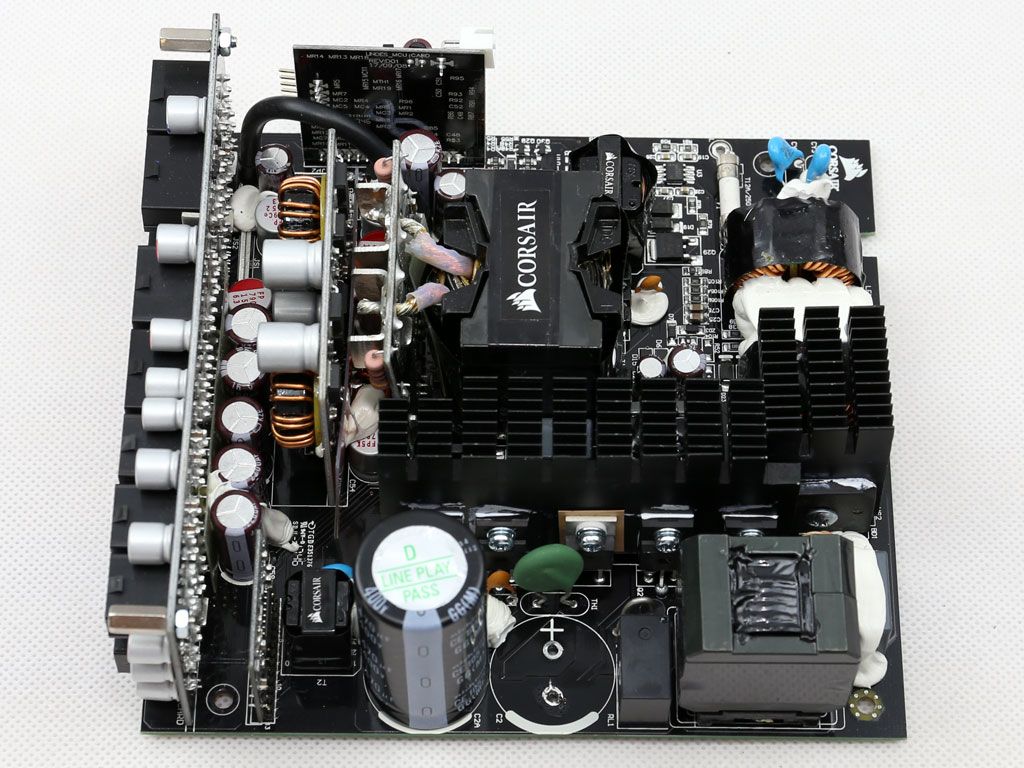

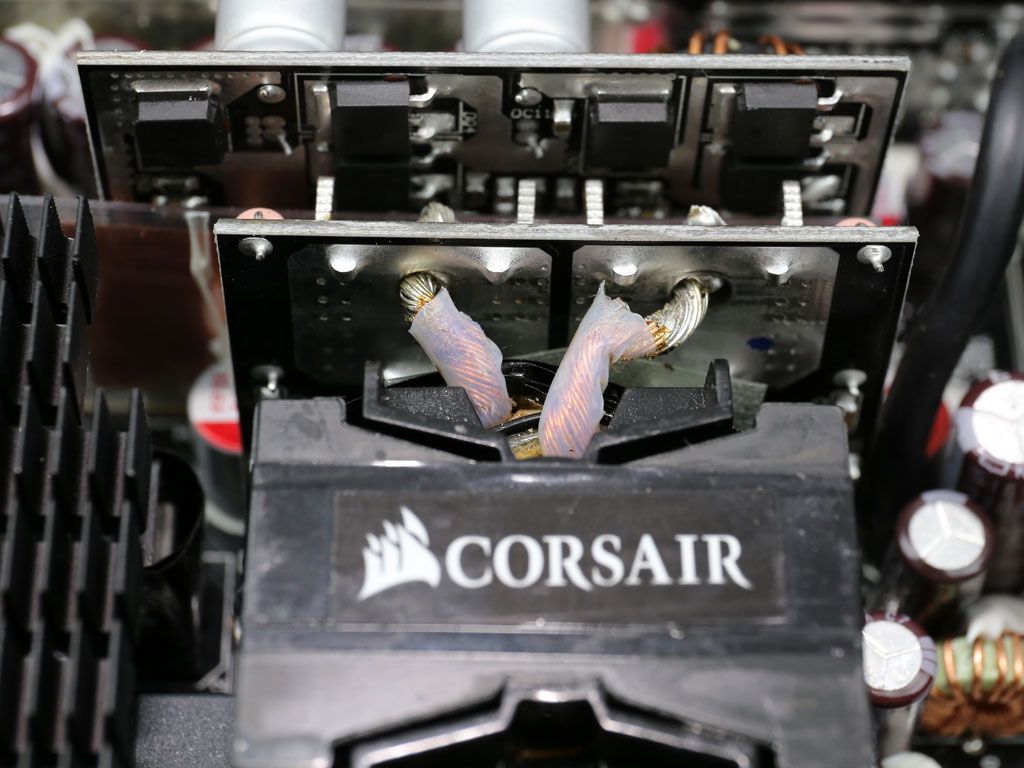

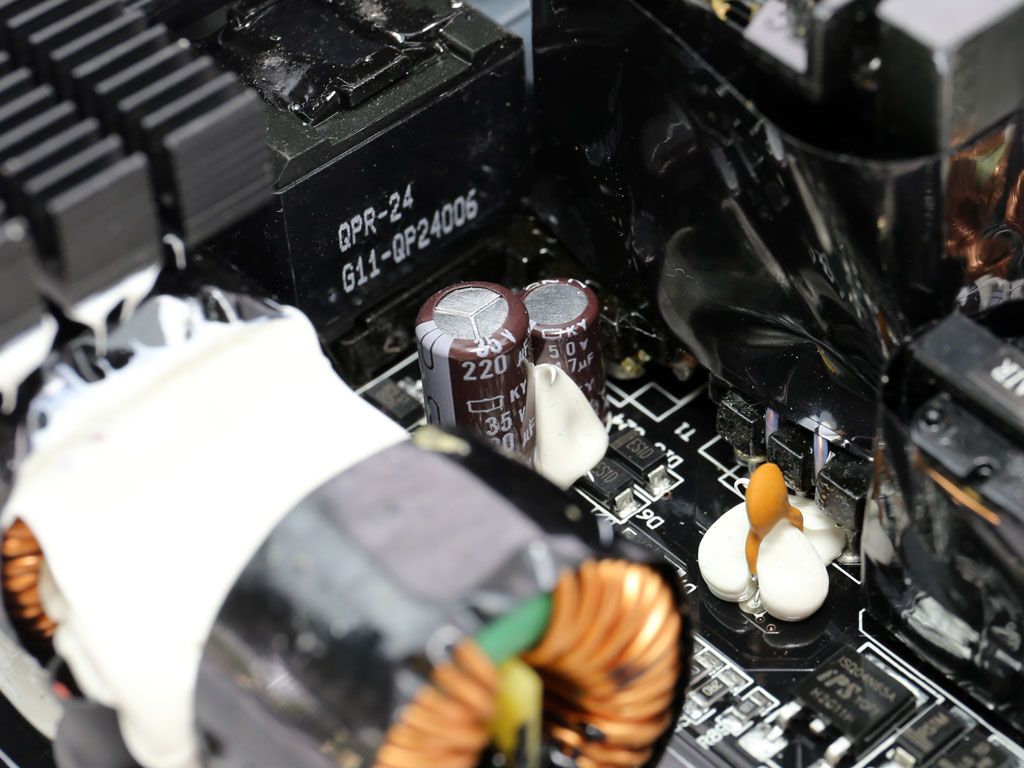

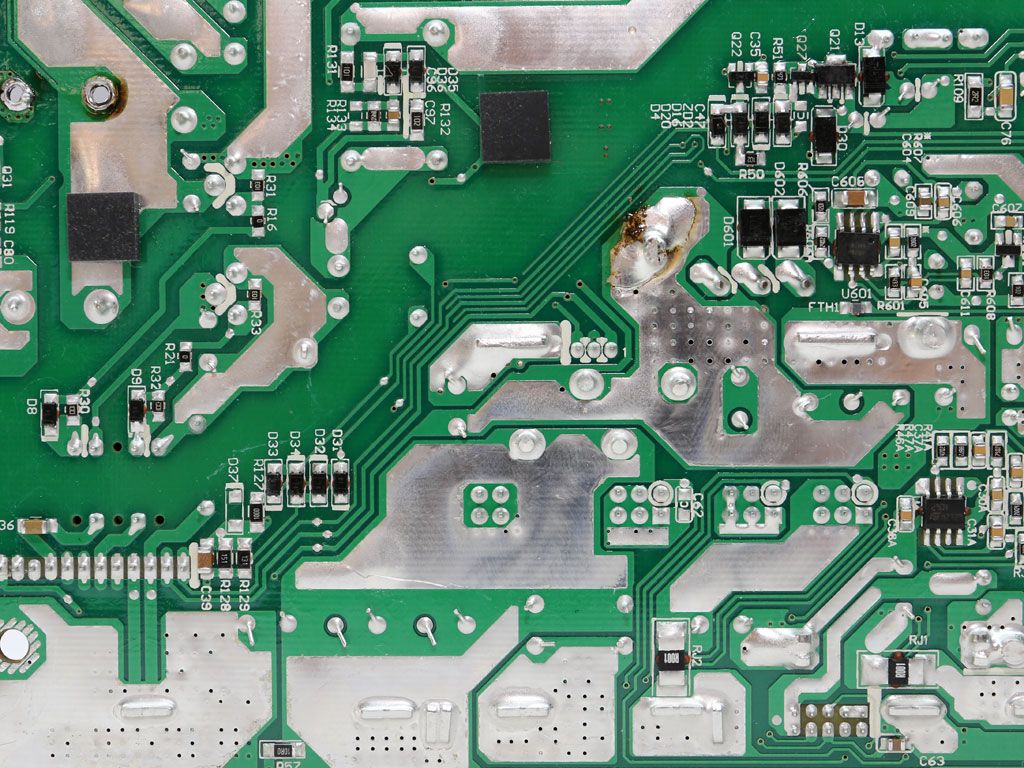

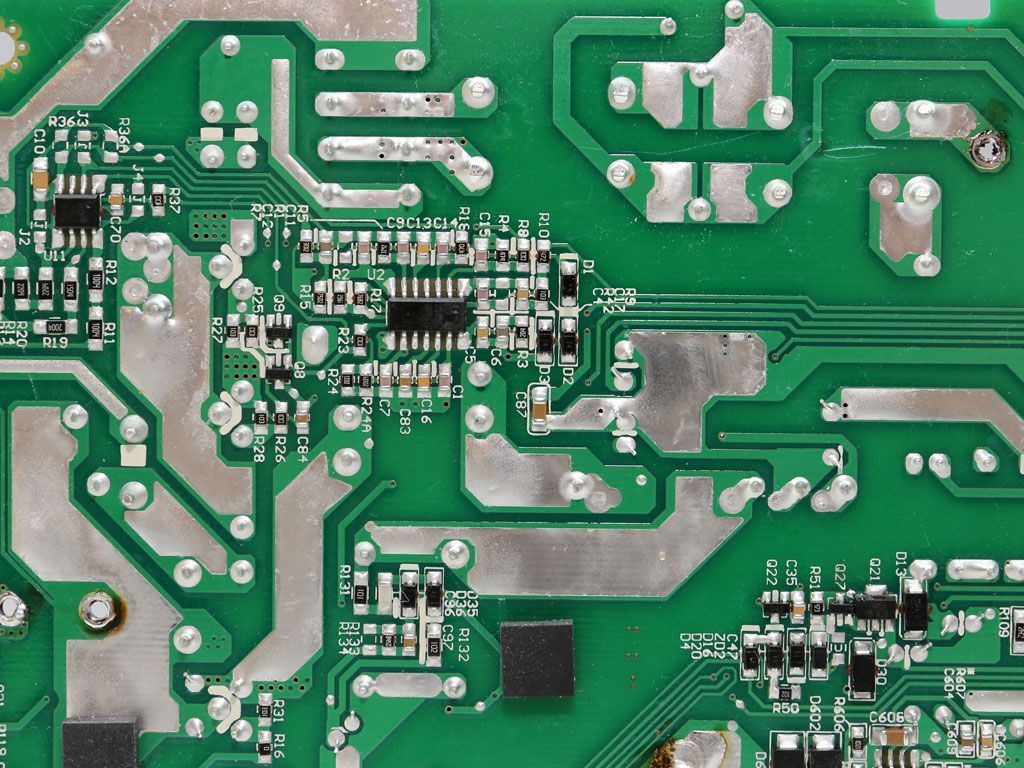

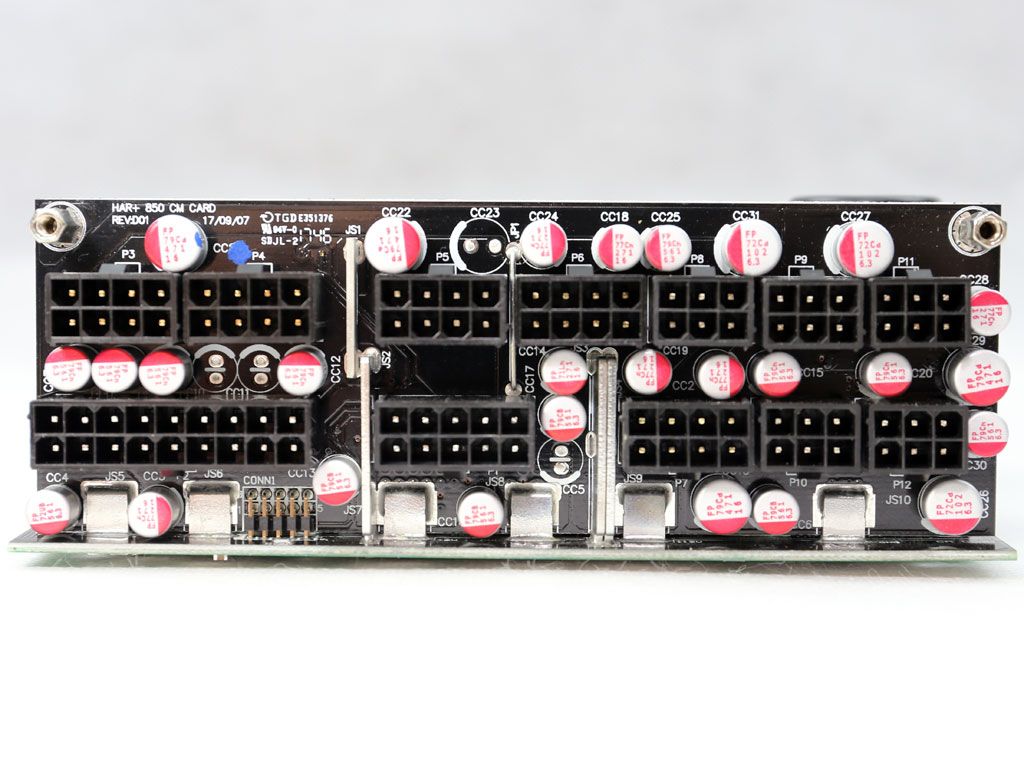

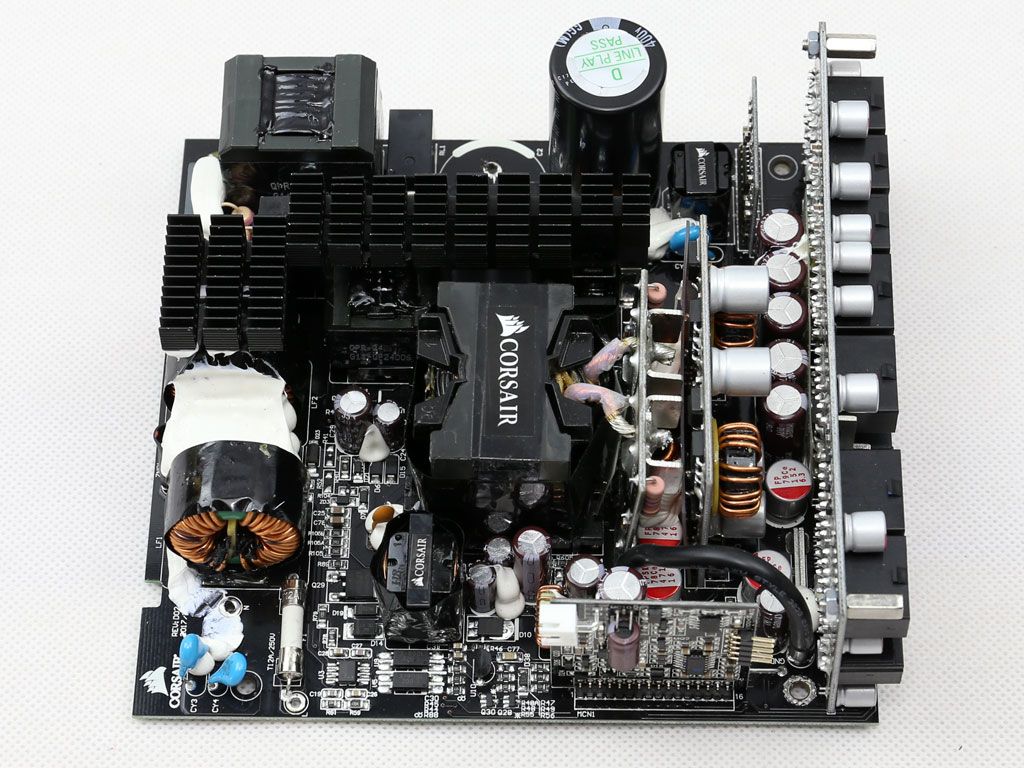

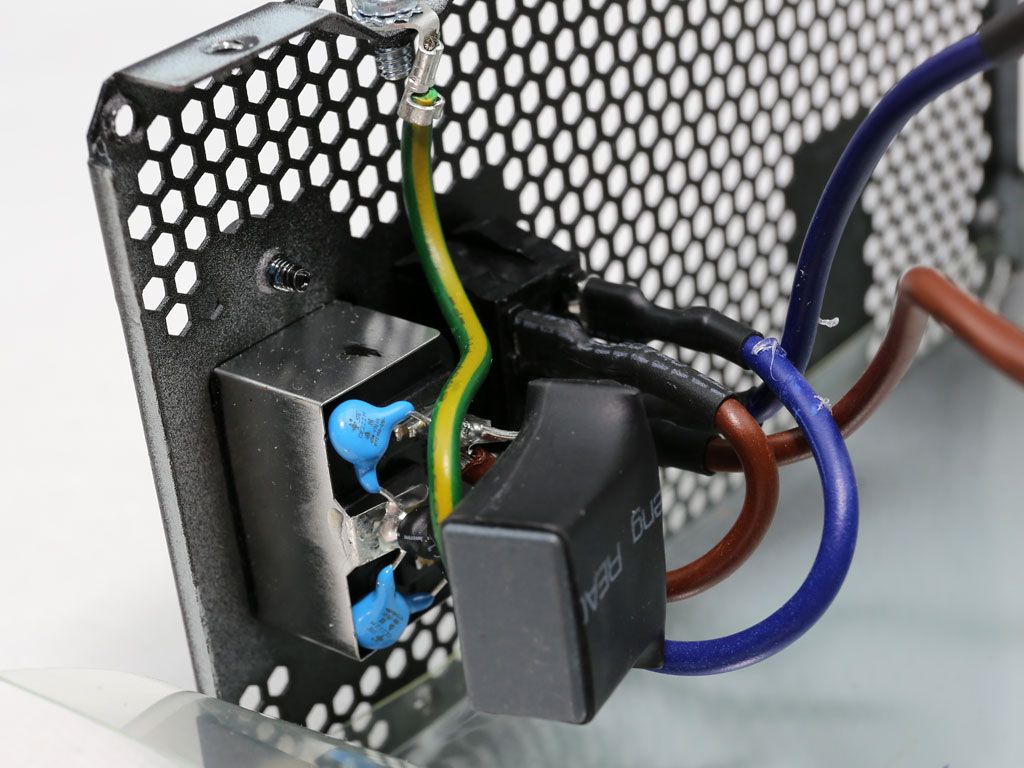

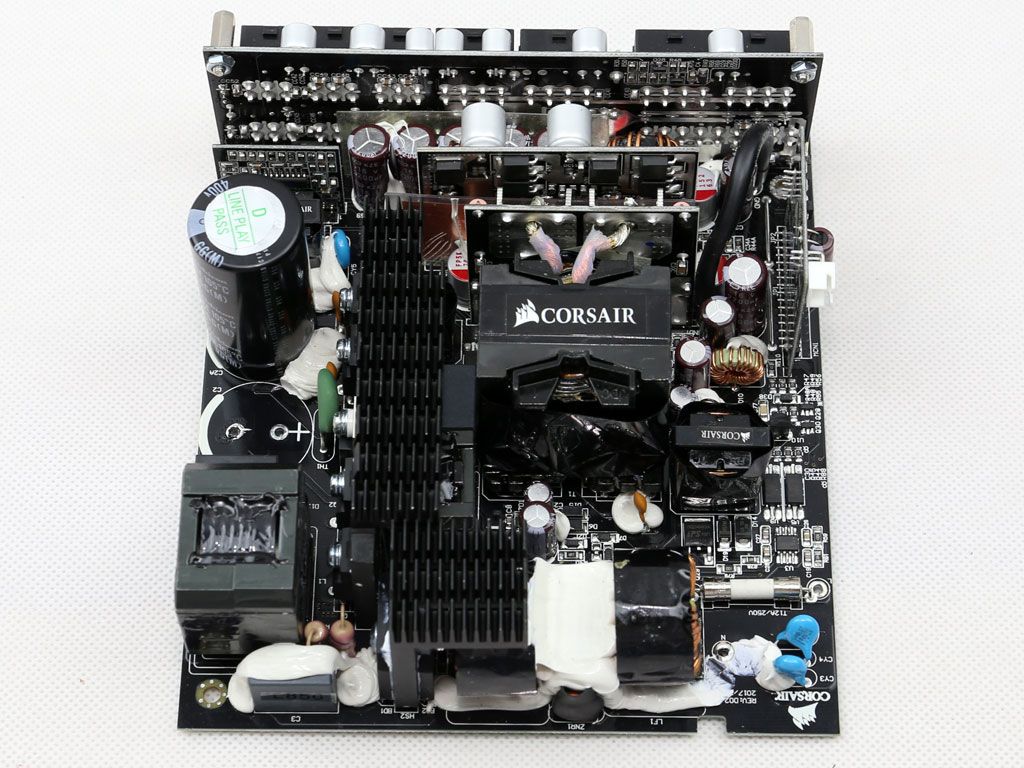

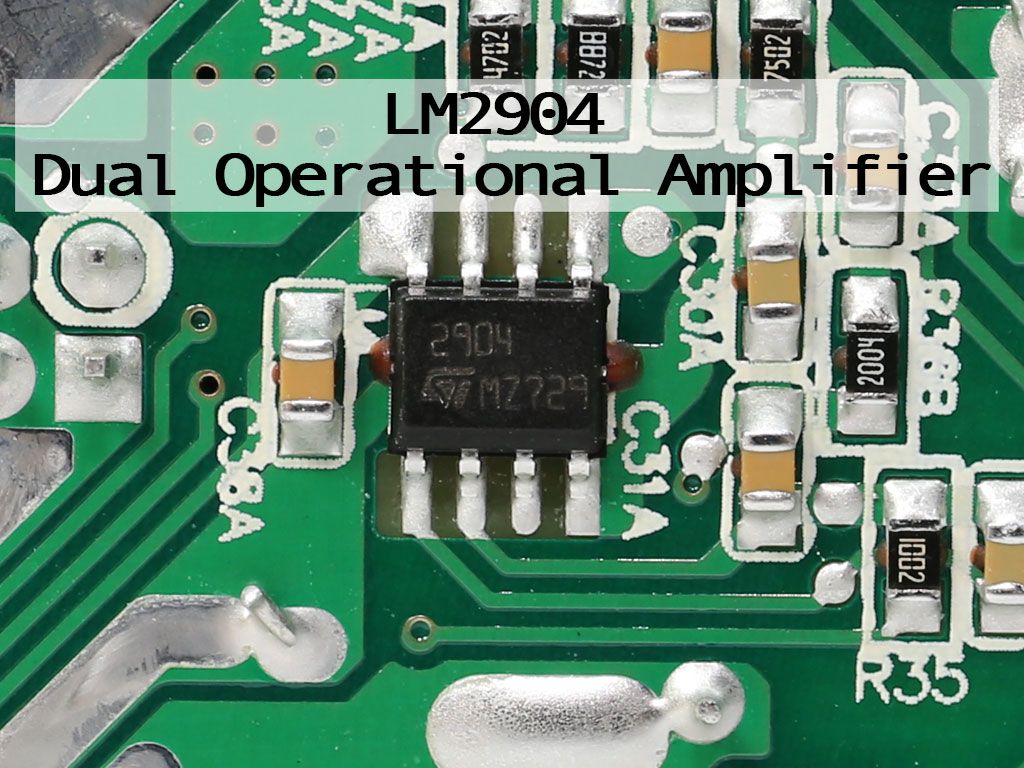

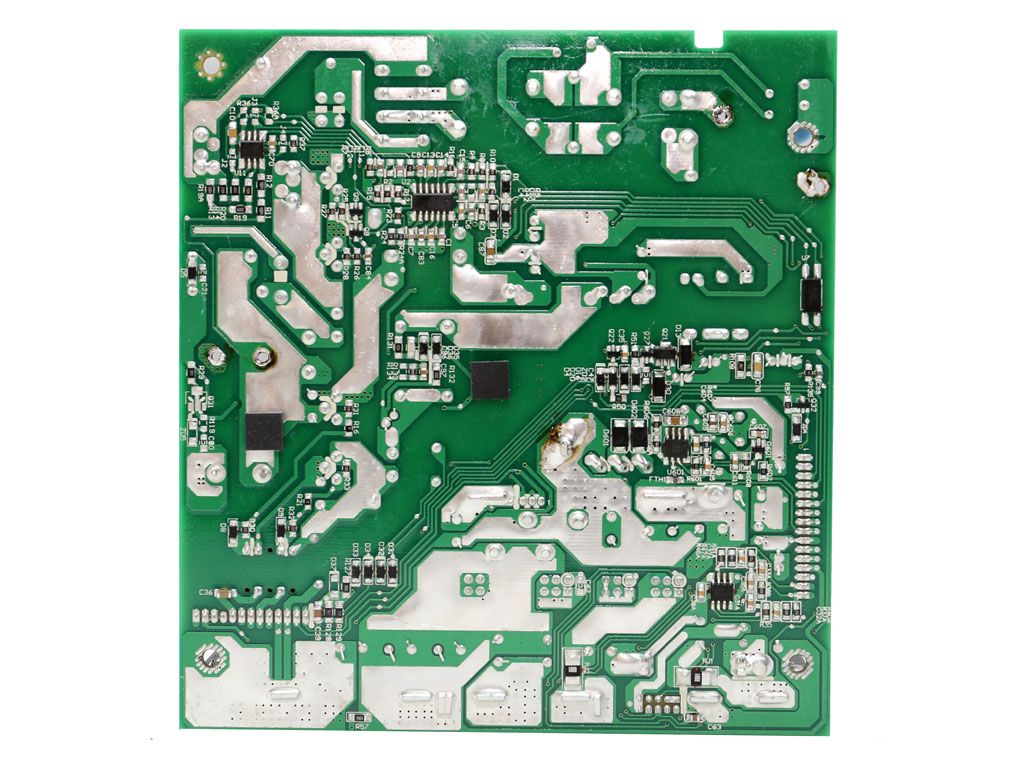

Here are some photos showing the PSU’s major parts.
