CPU Cooler Charts 2008, Part 2
Cooler Master Hyper TX2 - A Very Cool Bargain
Cooler Master Hyper TX2
Cooler Master is one of the well-established players in the CPU cooler market, and is introducing its follow-up model to the Hyper TX, appropriately named the Hyper TX2. Aside from the name, the two products don't really have much in common; the Hyper TX2 comes with three heatpipes that dissipate their heat through aluminum cooling fins. To cool the components on the motherboard as well, the TX2 sports a plastic hood that directs some of the airflow downwards, onto the board.
Hyper TX2 with a retention clip for AMD sockets
The slanted hood directs airflow at the motherboard components
The cooler is mounted using pushpins. While this is a good choice in principle, their placement is unfavorable. Luckily, the fan and its hood can simply be removed from the cooler, enabling a very quick and simple installation.
Thermal grease applied by the manufacturer

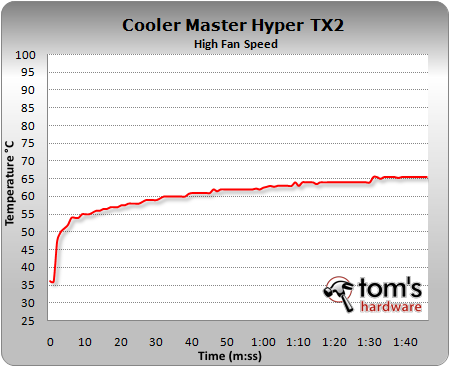

At high fan speeds, the Hyper TX2 offers good cooling performance, with the quad-core CPU reaching a maximum of 67°C. When fan speed is reduced, the CPU got up to 81°C, which is only just barely acceptable. The cooler is almost inaudible when installed in the case.
Stay on the Cutting Edge
Join the experts who read Tom's Hardware for the inside track on enthusiast PC tech news — and have for over 25 years. We'll send breaking news and in-depth reviews of CPUs, GPUs, AI, maker hardware and more straight to your inbox.
Cooler Master's Hyper TX2 can be found in stores for around €17. At this price, it is an incredible bargain and receives our recommendation.
Retail package of the Cooler Master Hyper TX 2
Technical Data | ||
---|---|---|
CPU | 100% load | idle |
Temperature 12V | 67.5 °C | 35.5 °C |
Temperature 5V | 81 °C | 37.5 °C |
Noise | 41.2 dB(A) | 37.5 dB(A) |
Fan Speed | 1820 RPM | 1025 RPM |
Weight | 488 grams | Row 5 - Cell 2 |
Intel Socket | 775 | Row 6 - Cell 2 |
AMD Socket | AM2 | AM2+ |
Row 8 - Cell 0 | 939 | 940 |
The Hyper TX2 on the testbed platform
