11-Drive DRAMless SSD Round Up

512GB Benchmark Results

Comparison Products

The 512GB-class products are all retail units available for purchase. The SanDisk SSD Plus and Z410 appear again, this time with 480GB of capacity. The Patriot Spark joins the SanDisk duo and is the only product that makes the full LBA range available to the user. Running the Spark with more than 480GB of data could pose a serious performance issue. Most SSDs will use any available space as spare area, but this drive doesn't have a reserve for background activities if the drive is nearly full.

The SSD Plus is the only product in this review with a DRAM cache. We already had the drive tested and the charts compiled before we realized this DRAMless SSD actually has DRAM (at this capacity). We left it in as a comparison point.

Sequential Read Performance

To read about our storage tests in-depth, please check out How We Test HDDs And SSDs. We cover four-corner testing on page six of our How We Test guide.

Image 1 of 2

Image 2 of 2

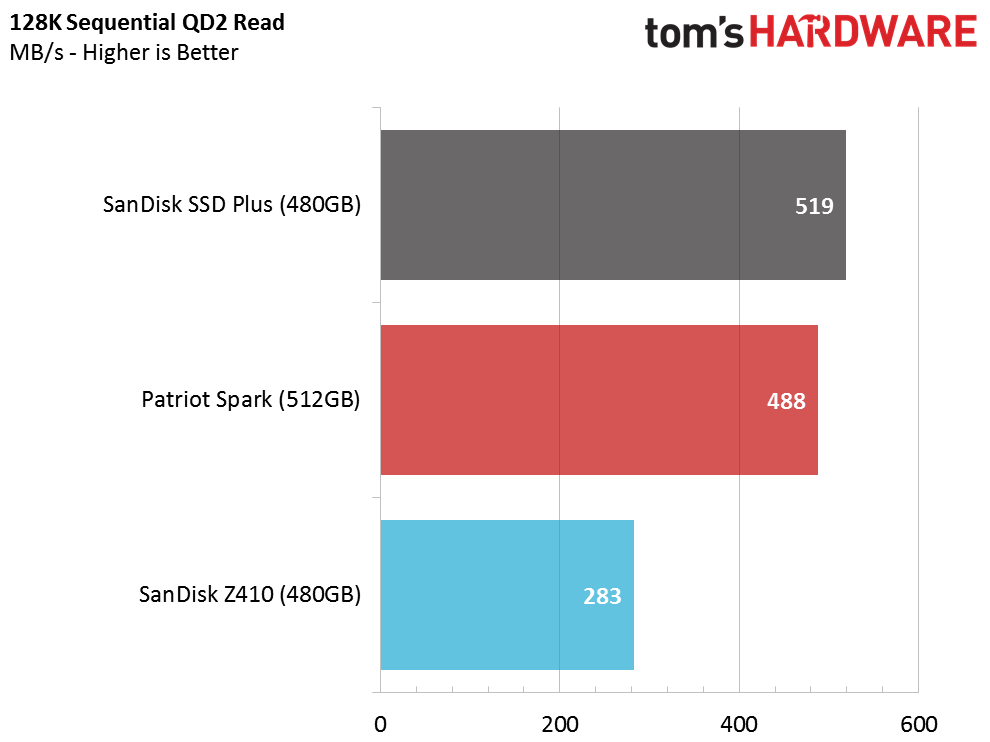

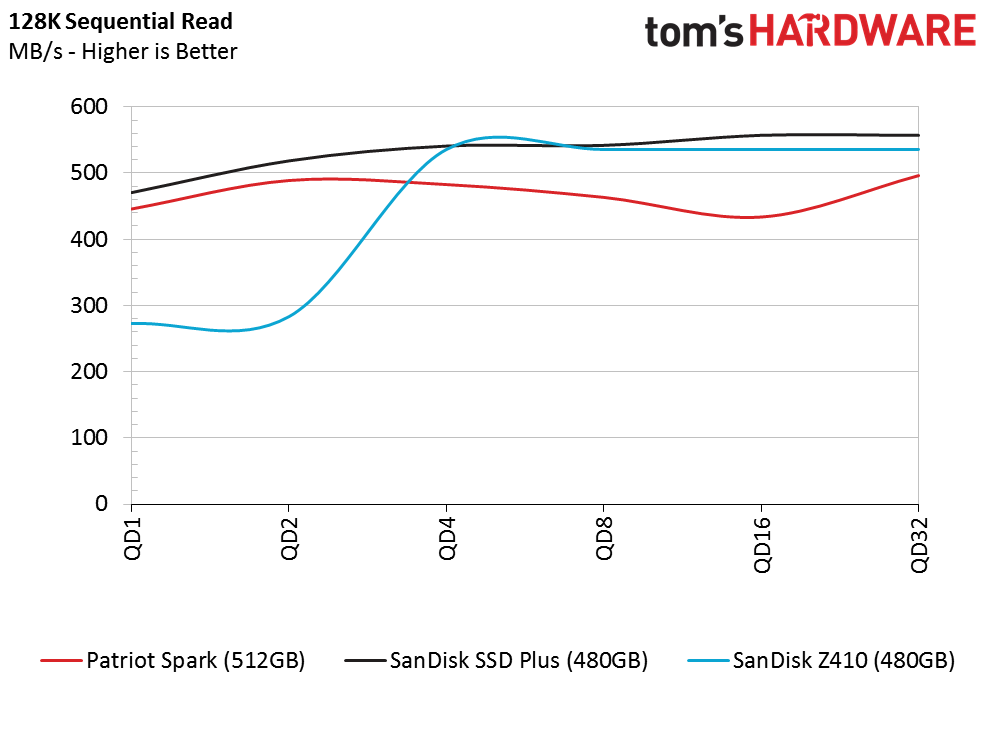

This version of the SanDisk SSD Plus uses a Marvell Dean 4-channel flash processor. This is the same part used in the Crucial MX300, SanDisk X400, and a few other new mainstream SSDs. The Spark joins the SSD Plus with acceptable sequential read performance, but the Z410 trails both at low queue depths.

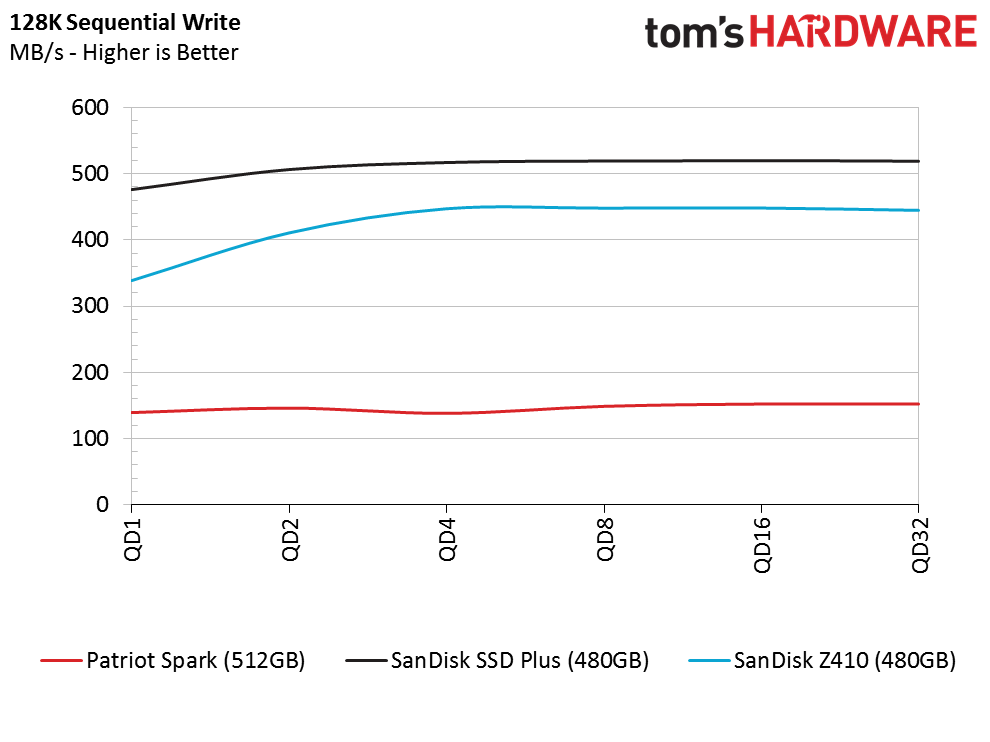

Sequential Write Performance

Image 1 of 2

Image 2 of 2

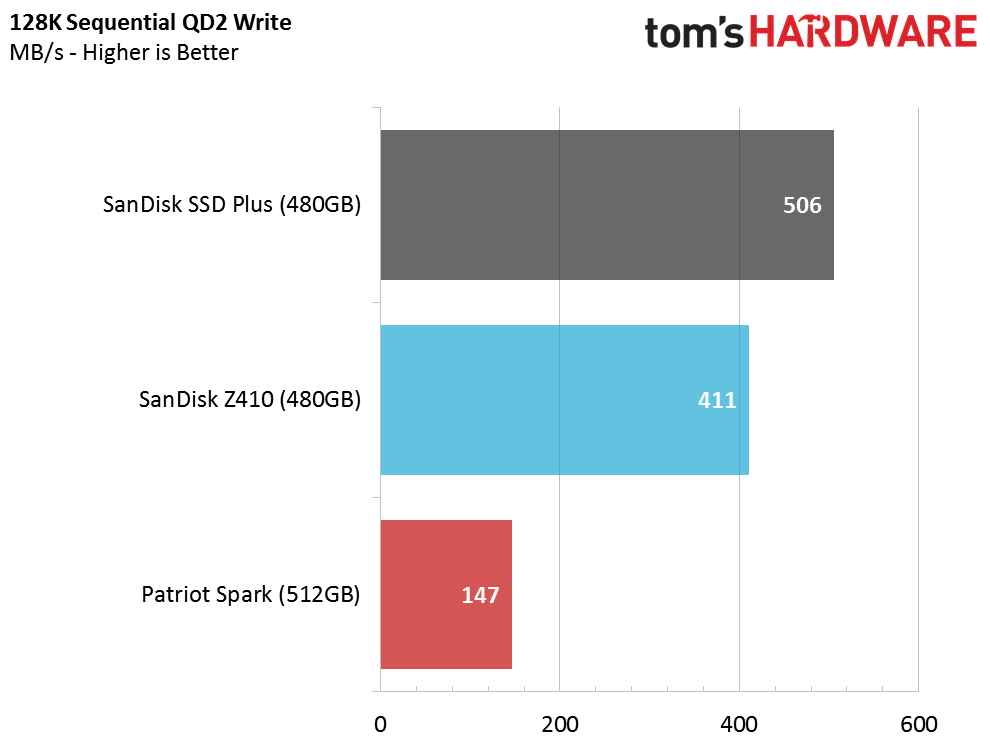

The Patriot Spark 512GB has a rough time in our sequential write test. In the next section, the Spark gives us a misleading result during a write to the full usable space of the drive. In this test, following other disk activity, the Spark trails the other DRAMless SSDs.

Sustained Sequential Write Performance

Image 1 of 3

Image 2 of 3

Image 3 of 3

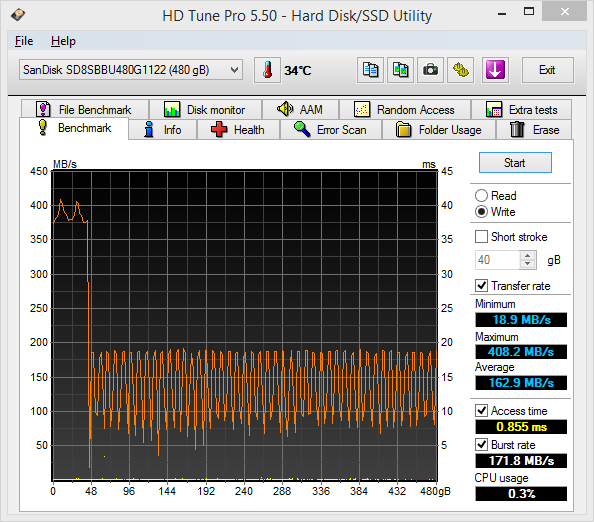

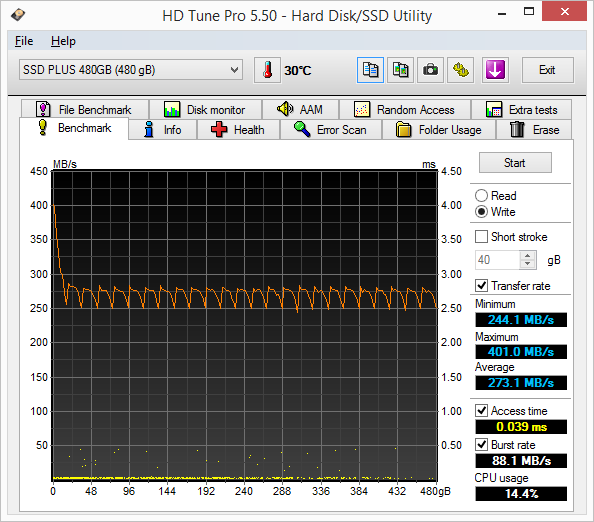

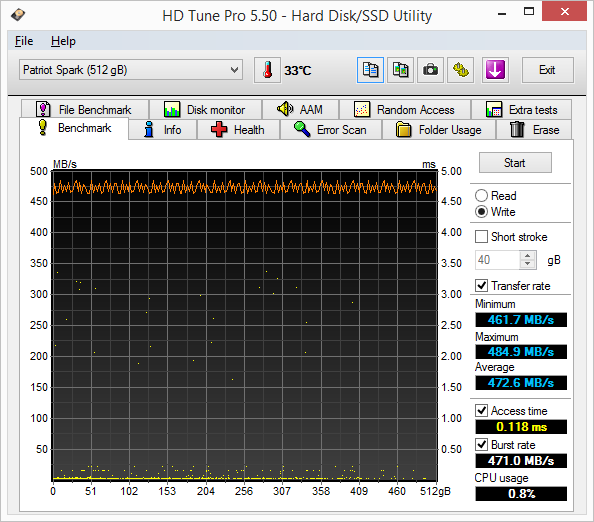

This is where things get interesting. The HD Tune Pro write workload is the second test we perform when new SSDs hit the lab (the first is an HD Tune Pro read workload across the entire LBA range). The Spark 512GB didn't drop to native TLC speeds on the first pass, but it provided 150 MB/s during the second pass.

The two SanDisk SSDs deliver different levels of performance. The SSD Plus has a DRAM cache and a newer generation controller, so we can't chalk all of the performance variances up to the cache alone.

Random Read Performance

Image 1 of 3

Image 2 of 3

Image 3 of 3

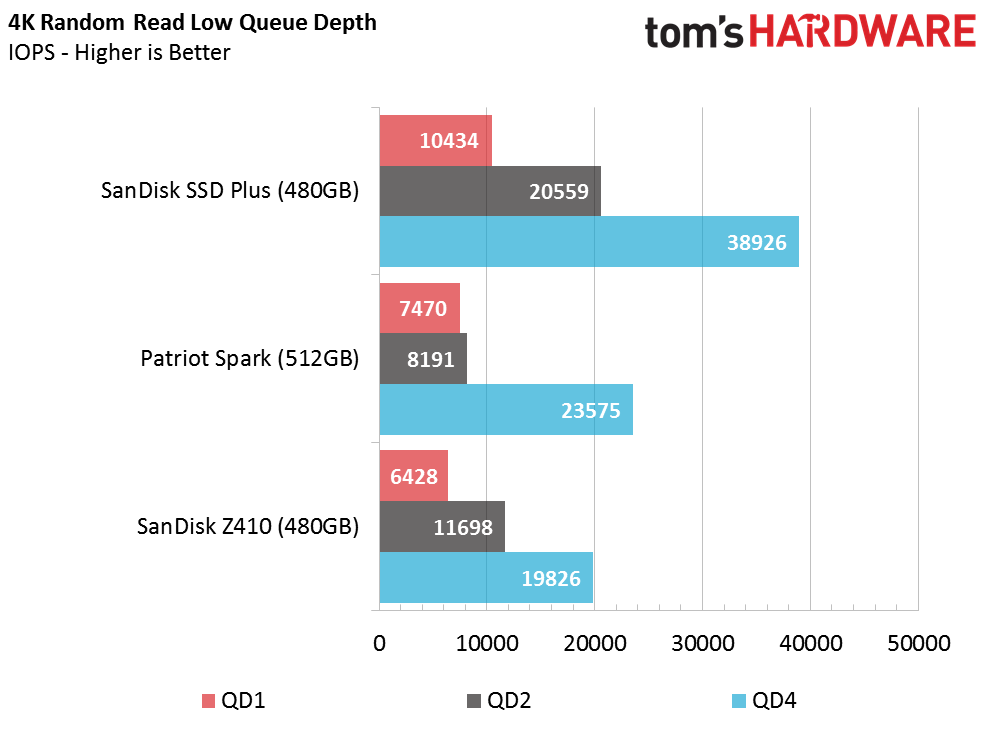

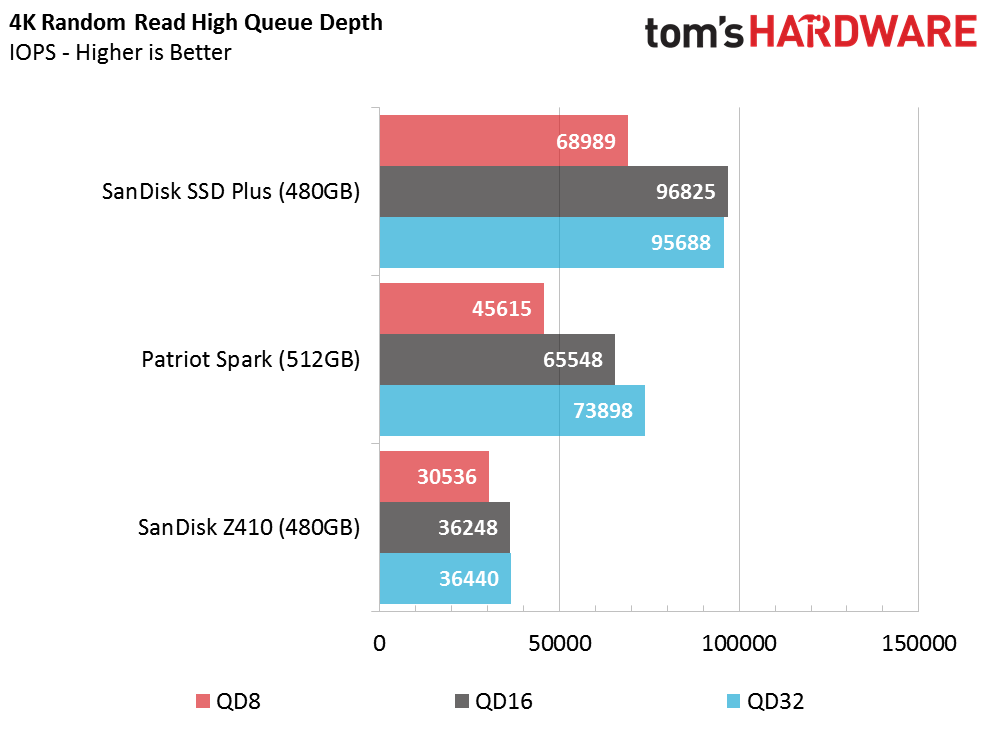

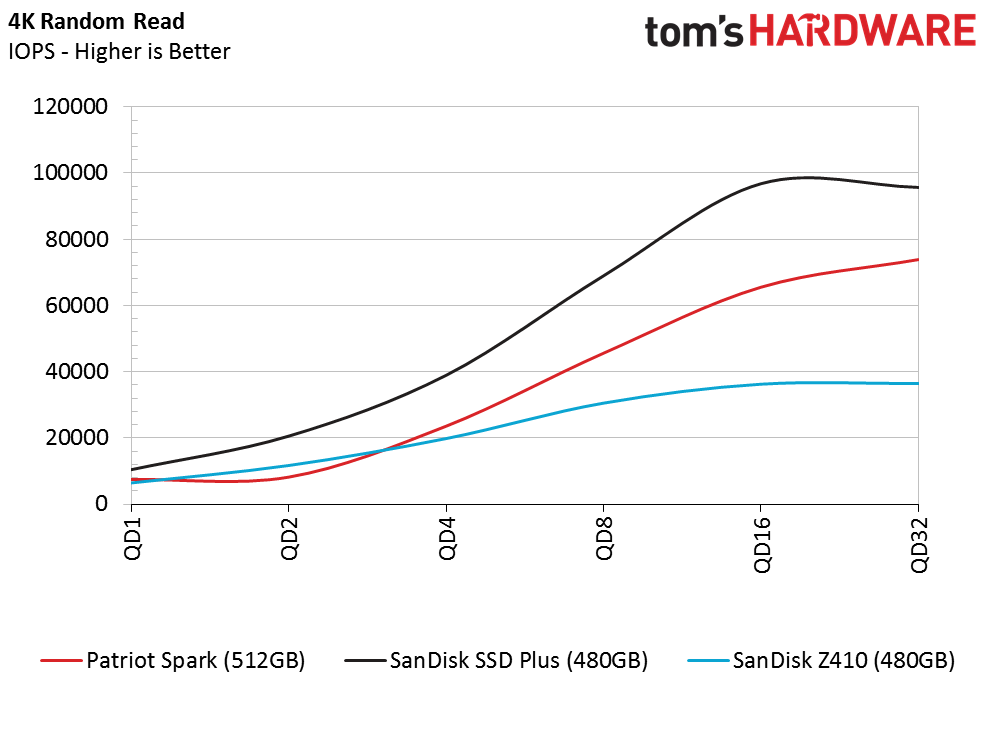

A DRAM cache increases random performance more than sequential performance, so it didn't come as a surprise when the SSD Plus 480GB outperformed the other two products. The Patriot Spark delivers better random performance at high queue depths compared to the Z410, but both DRAMless SSDs start out with nearly equal QD1 performance.

Random Write Performance

Image 1 of 2

Image 2 of 2

The SanDisk Z410 nearly drops off the chart. The Z410 appears to enter into a panic mode, which is never a good sign for flash-based storage. The result still weighs in at nearly 600 IOPS, but the SSD paused at some point during the test. The two other products perform as expected.

80 Percent Sequential Mixed Workload

We describe our mixed workload testing in detail here and describe our steady state tests here.

The increased parallel operations, which is the benefit of more NAND on the high capacity models, allows the three 512GB-class SSDs to deliver a significant performance increase over the models with less capacity. This is really the starting point for most of our readers as far as capacity and pricing go. It’s nice to see that these drives still deliver more performance than a hard disk drive (which has DRAM) even with the DRAMless disability in the architecture.

80 Percent Mixed Random Workload

That doesn't mean you should feel inspired to buy one of these products. All three would make a poor boot drive. The SSD Plus 480GB is the only model that we would consider a true entry-level SSD. You could use the others as low-cost mass storage with comparable sequential write performance to modern 7,200 RPM 2.5" disk drives.

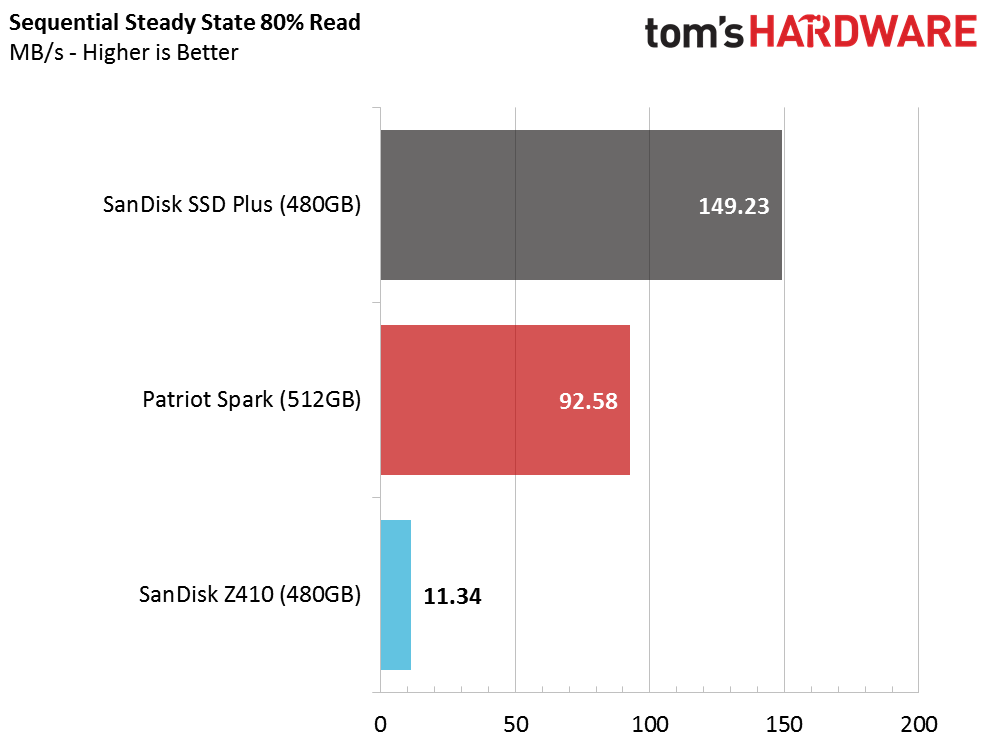

Sequential Steady-State

Image 1 of 3

Image 2 of 3

Image 3 of 3

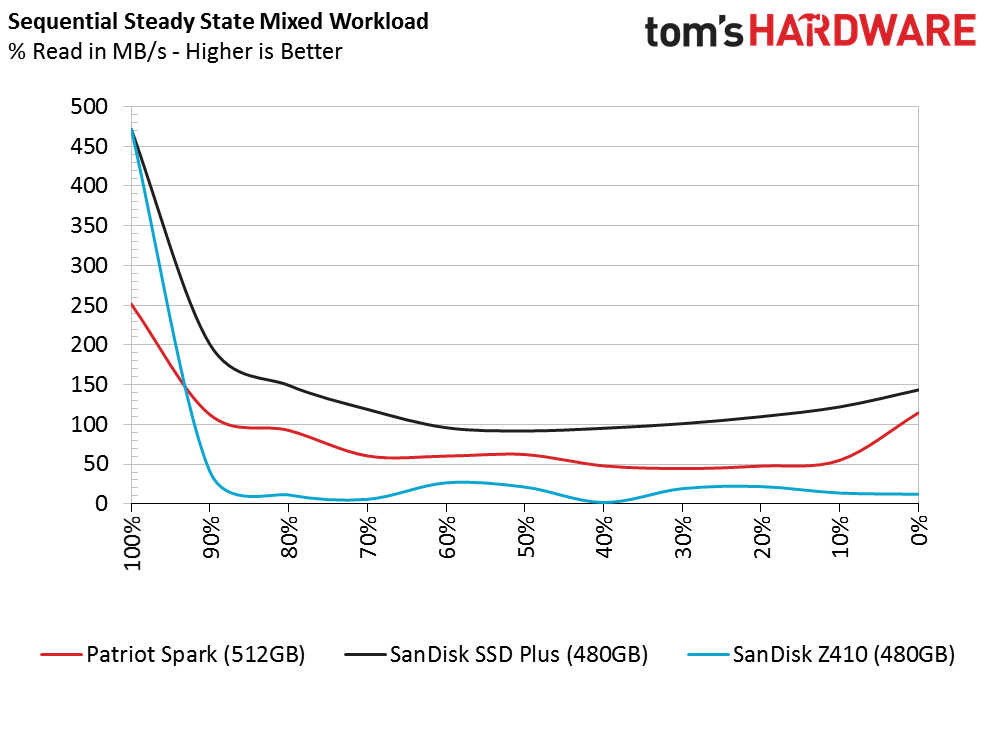

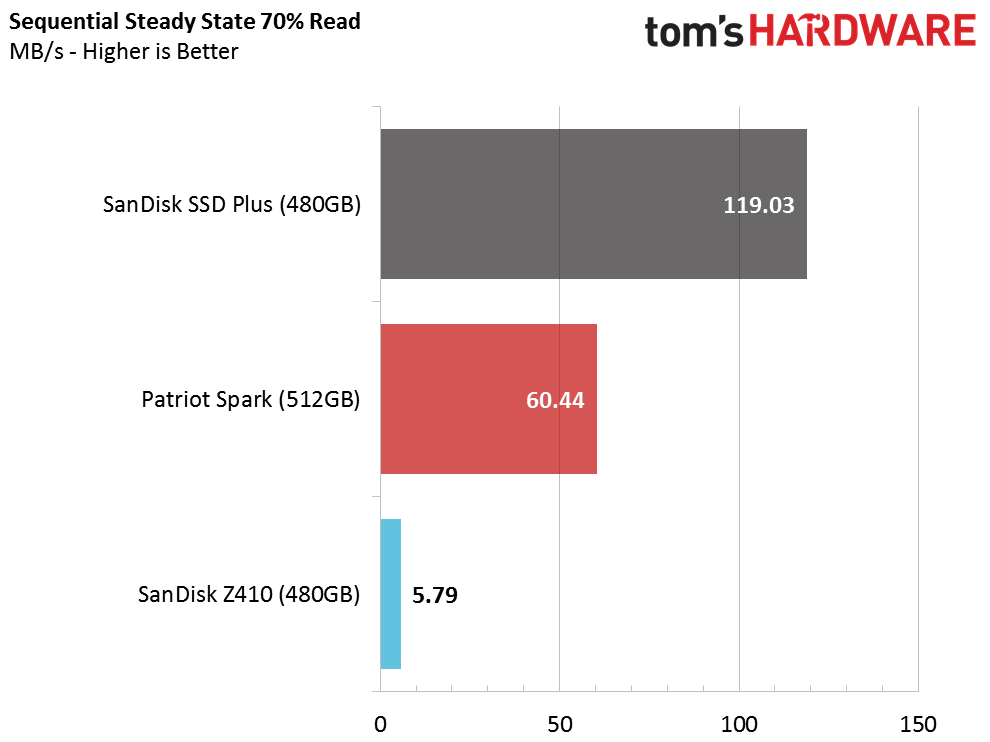

It's interesting to see the different programming involved with the Z410 in different capacities. Normally we would expect the larger drive to deliver better performance across the board, but DRAMless products manage to turn the additional capacity into a disadvantage. It's important to understand what the cache does; it stores the LBA map for faster access. The size of the map swells as the amount of data on the drive increases. This drive has to manage a map that is four times larger than a 120GB model and twice the size of the 240GB model. That makes any steady-state level workloads frustratingly impossible.

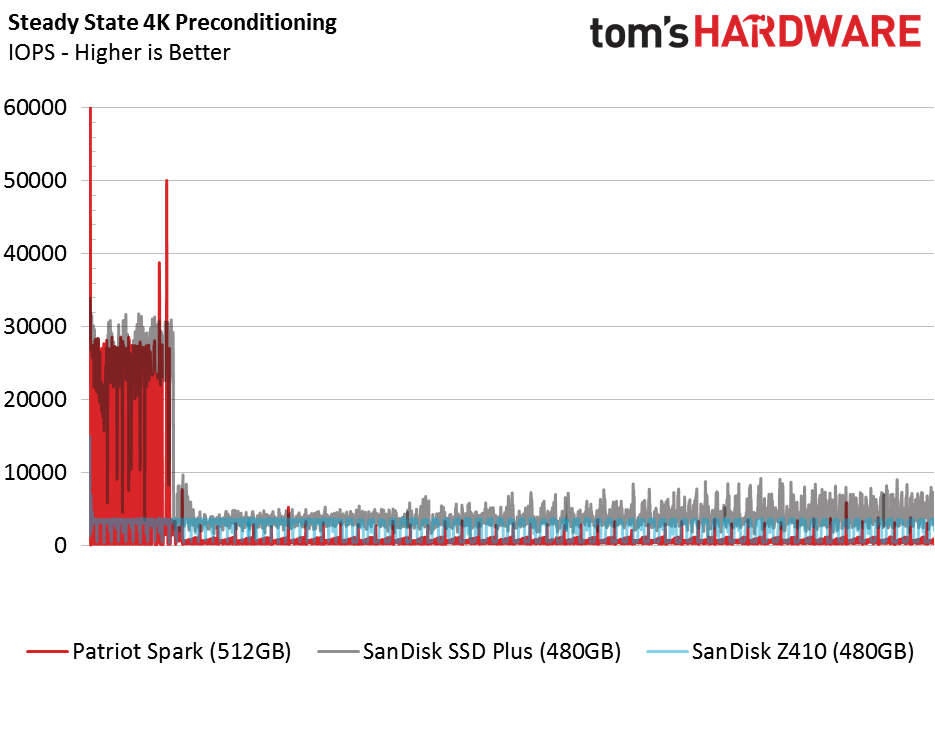

Random Steady-State

Image 1 of 2

Image 2 of 2

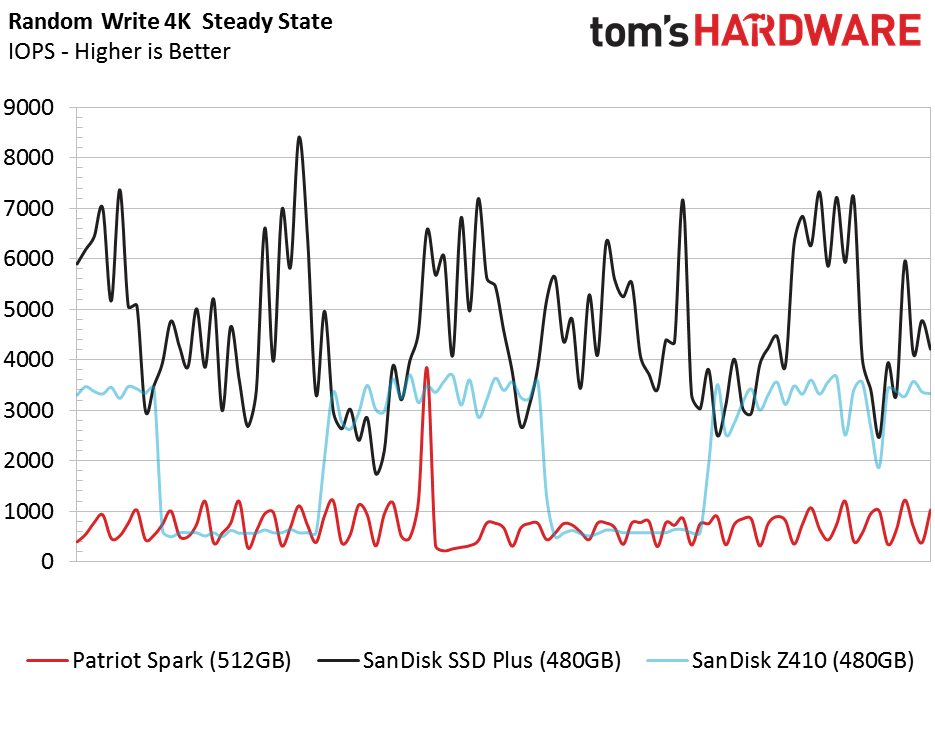

There is a wide gap between the three products during the steady-state random write test. The DRAM in the SSD Plus really helps here. The DRAMless Z410 shows the small amount of cache embedded in the controller caching the map, but it delivers inconsistent performance. The Spark has consistent performance but delivers it sparingly.

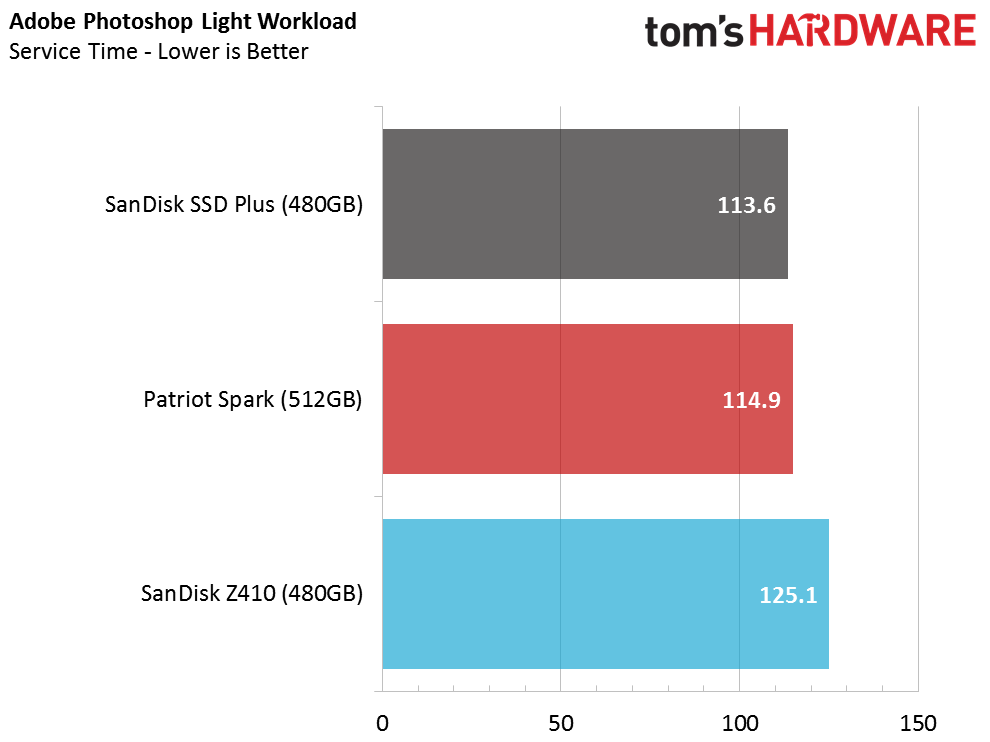

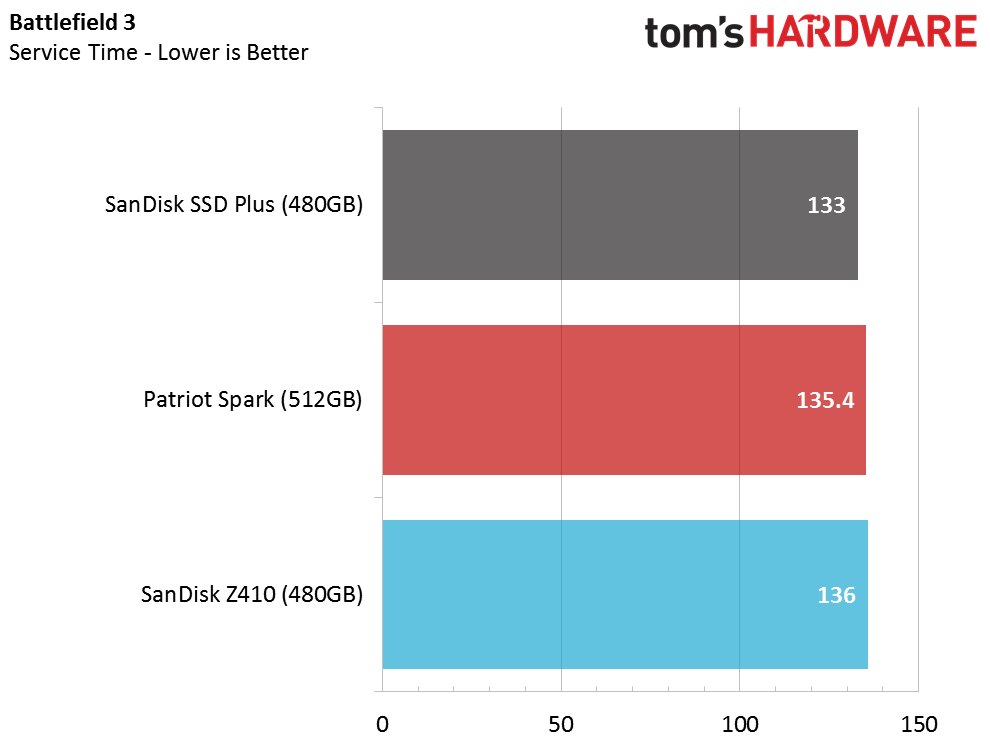

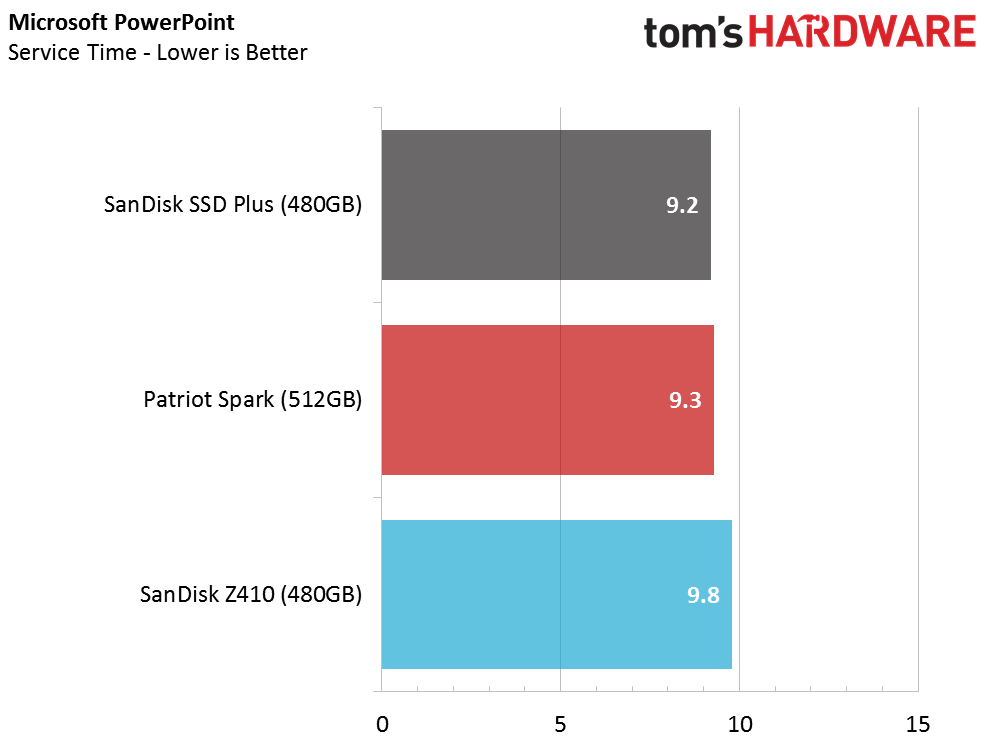

PCMark 8 Real-World Software Performance

For details on our real-world software performance testing, please click here.

Image 1 of 10

Image 2 of 10

Image 3 of 10

Image 4 of 10

Image 5 of 10

Image 6 of 10

Image 7 of 10

Image 8 of 10

Image 9 of 10

Image 10 of 10

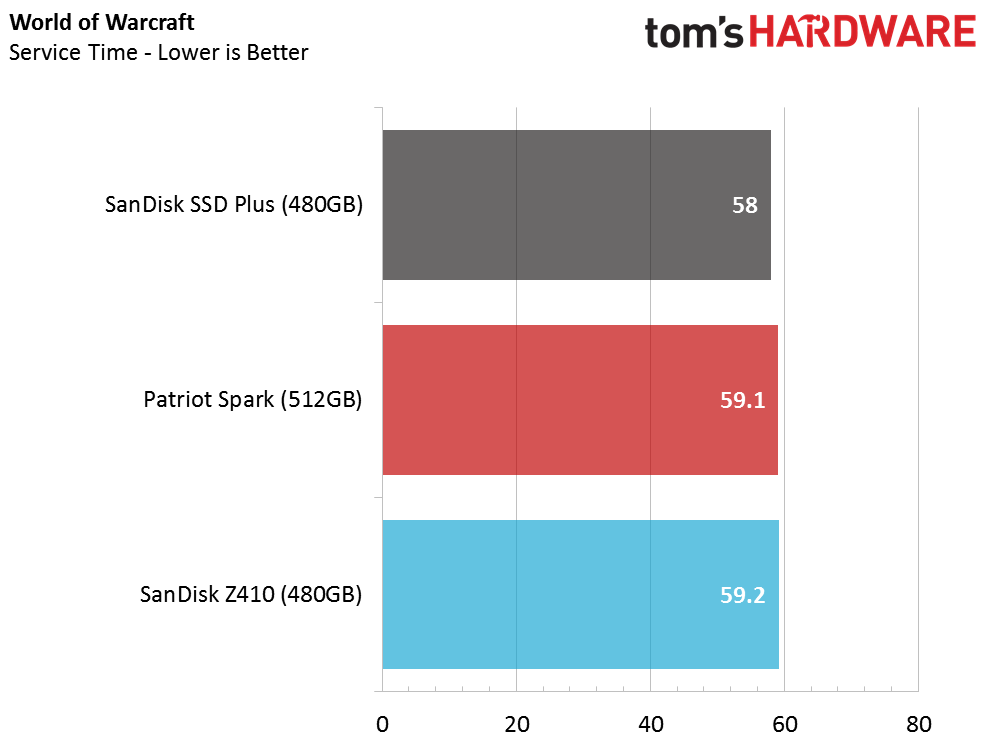

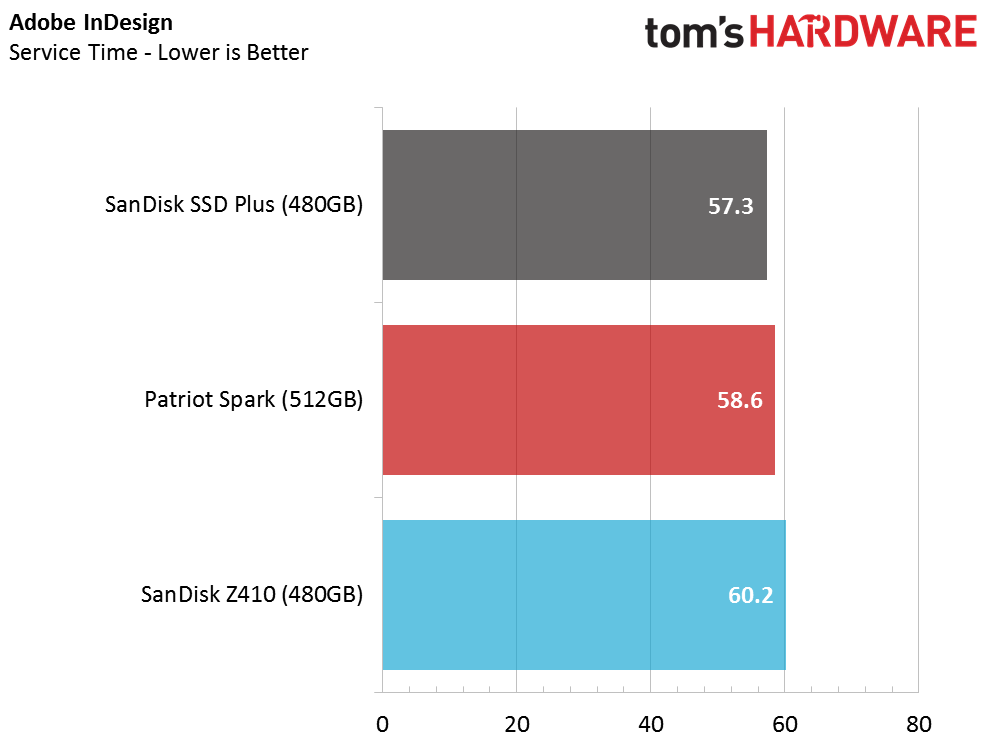

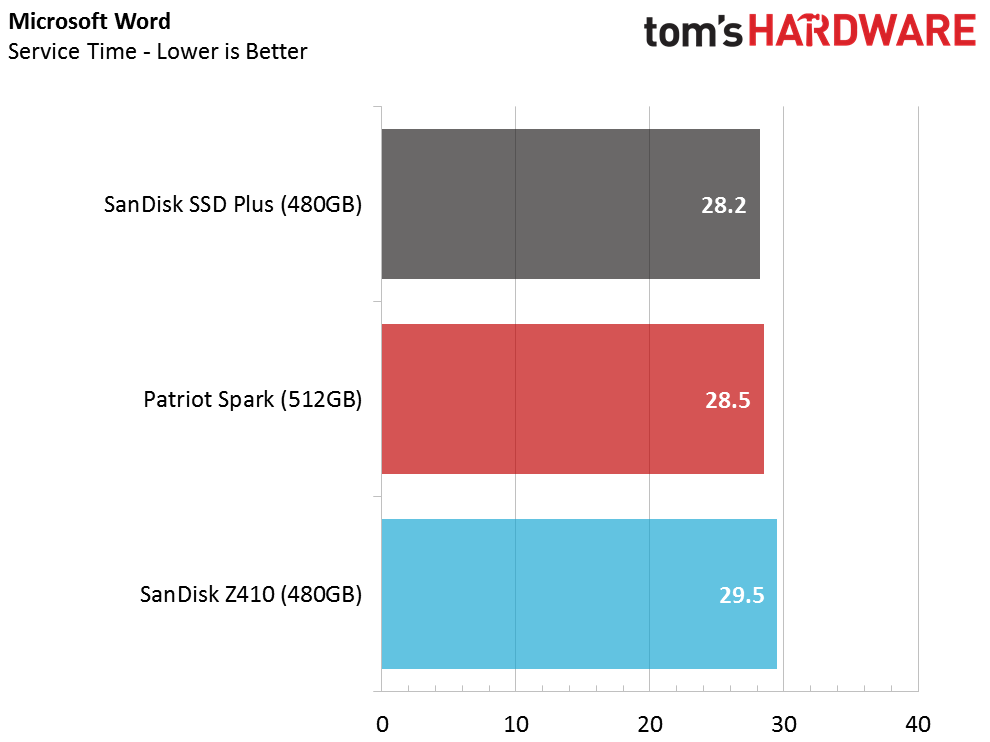

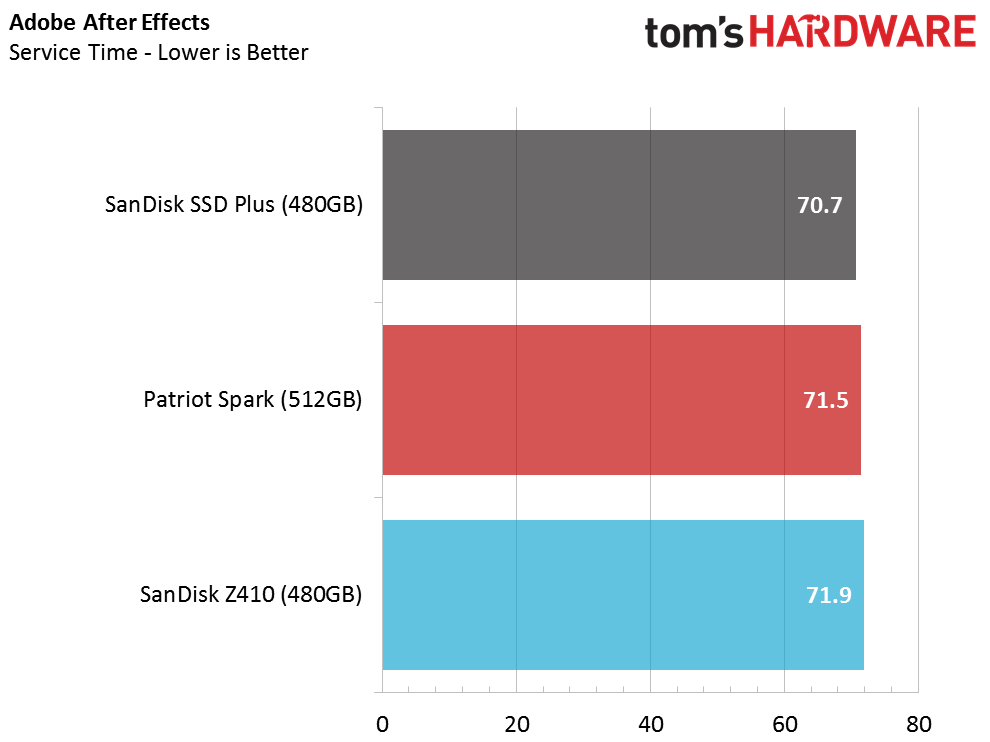

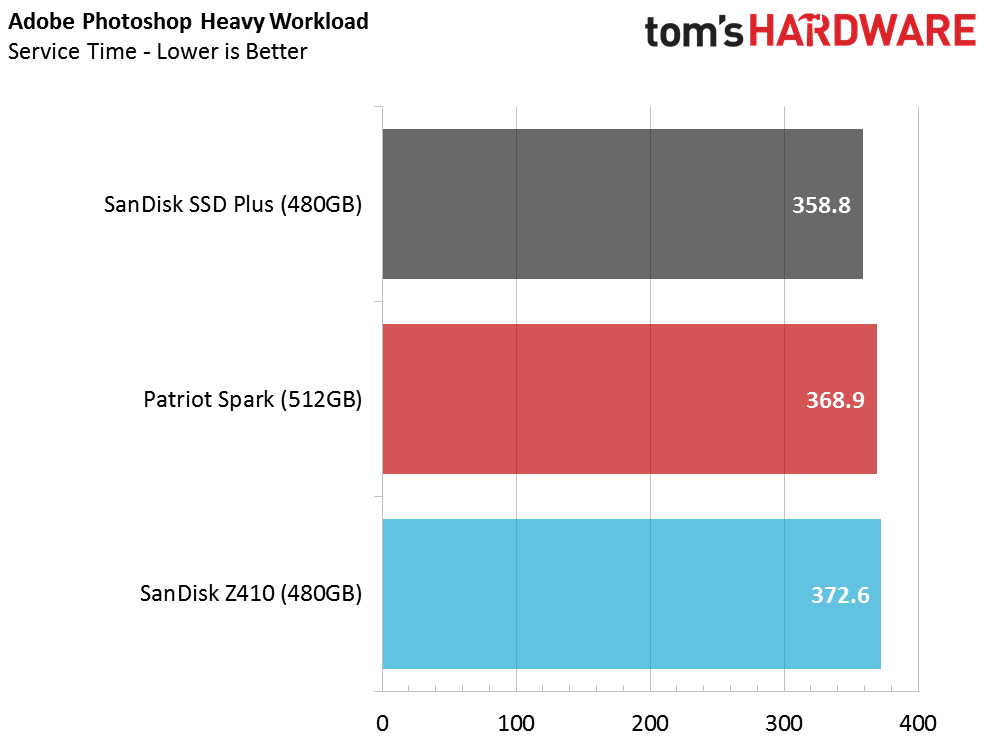

The SSD Plus uses nearly the same configuration as the X400 we tested a few months ago. It doesn't perform as well with applications and time-based tasks, but it serves as a good way to compare an entry-level SSD's performance to the two DRAMless retail products. In some of the tests, we see the difference in the split seconds, but in many, we see the difference in seconds.

It's important to remember that under the RGB lights and fancy components a PC is just a tool. You always want your tool to operate as efficiently as possible. You don't change the job if it takes several seconds longer than it should, you change the tool.

Application Storage Bandwidth

Seconds add up throughout the day. Productivity is important, even if it comes in the form of a few hundred extra megabytes a second.

PCMark 8 Advanced Workload Performance

To learn how we test advanced workload performance, please click here.

Image 1 of 3

Image 2 of 3

Image 3 of 3

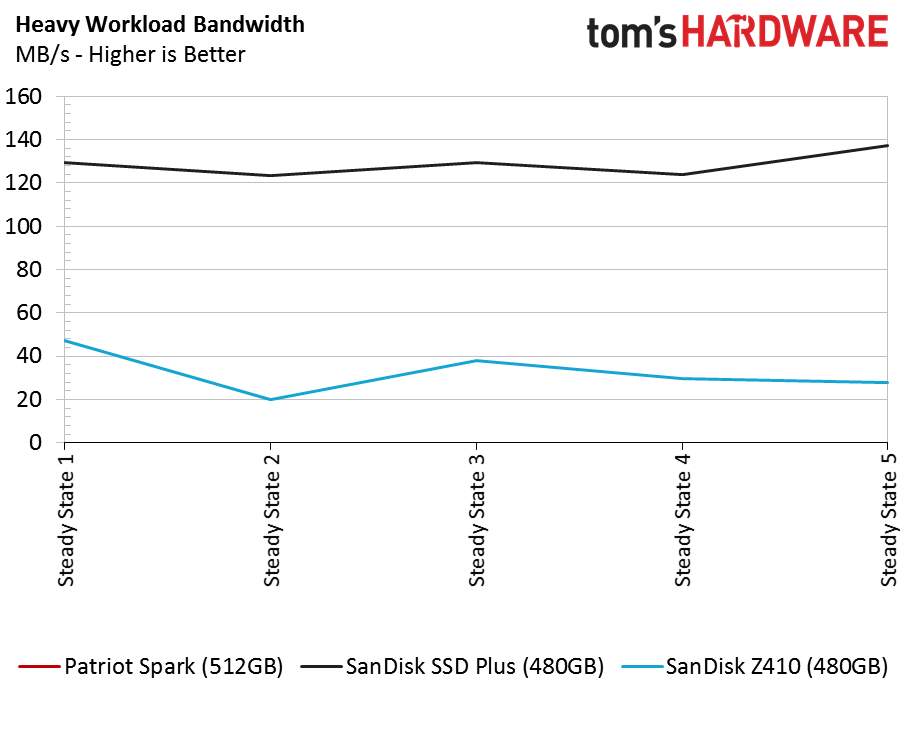

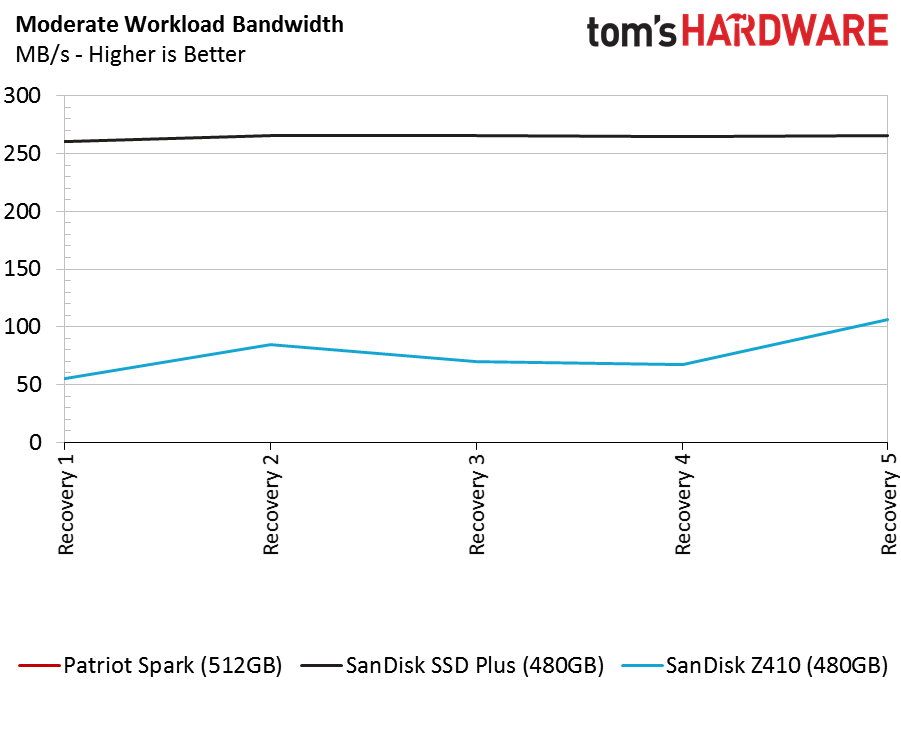

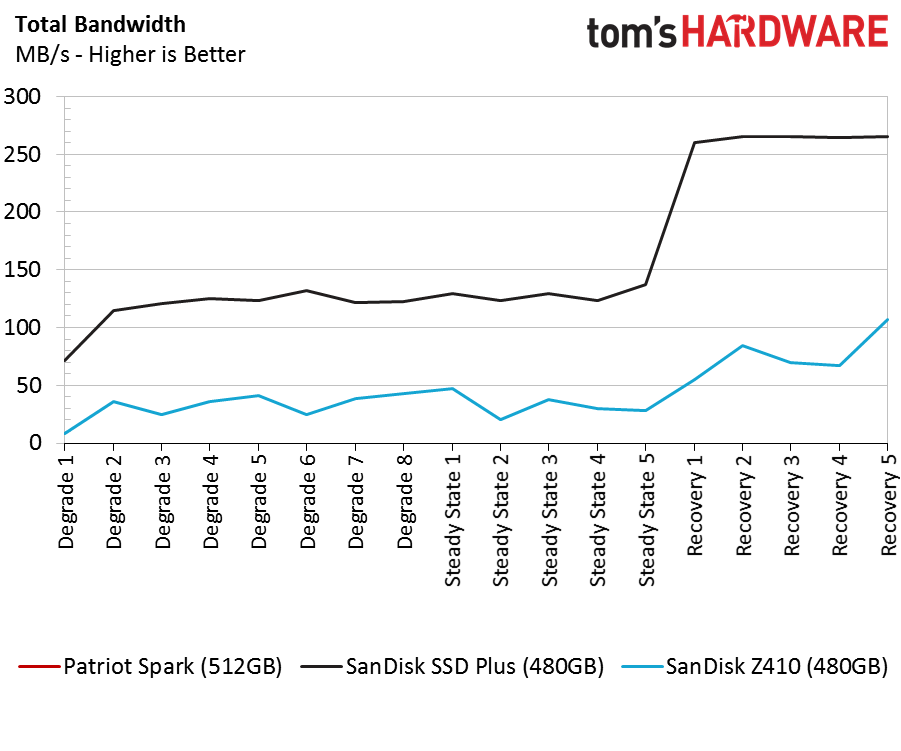

We ran the PCMark 8 Extended Storage Test five times on the Patriot Spark 512GB, and it failed the test every time. First, the test fills the entire user space to build a dirty playground to play in, and then it gives the drive idle time to sweep up the dirty cells. The Spark 512GB doesn't have a significant area for fresh data cells, so it failed early in the test during the "dirty" portion. We mentioned at the start of this page that if you fill the Spark 512GB, it will cause problems later.

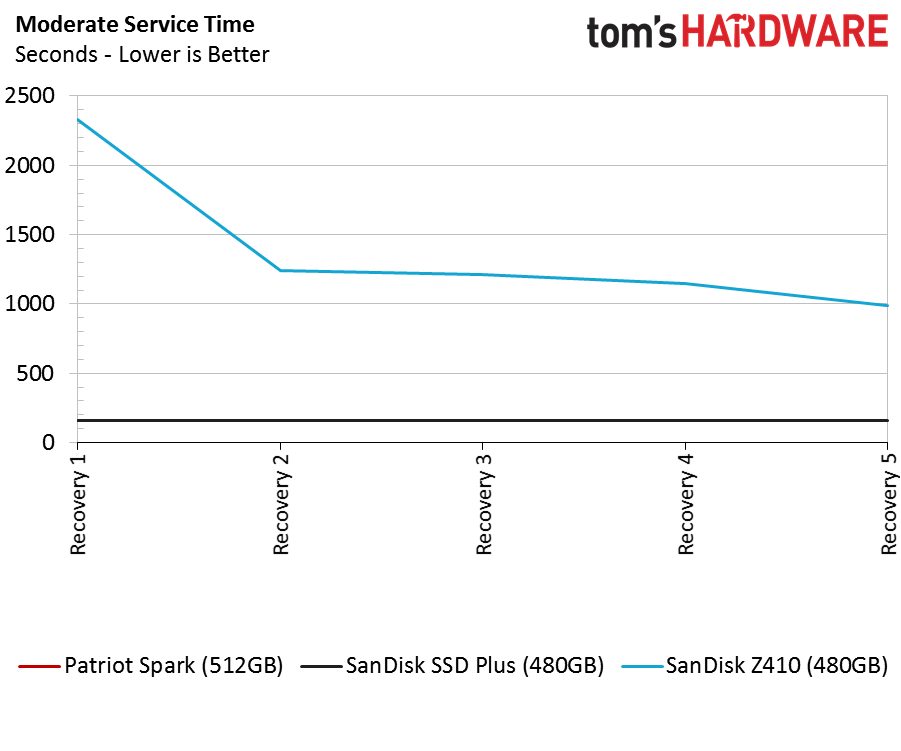

Total Service Time

Image 1 of 3

Image 2 of 3

Image 3 of 3

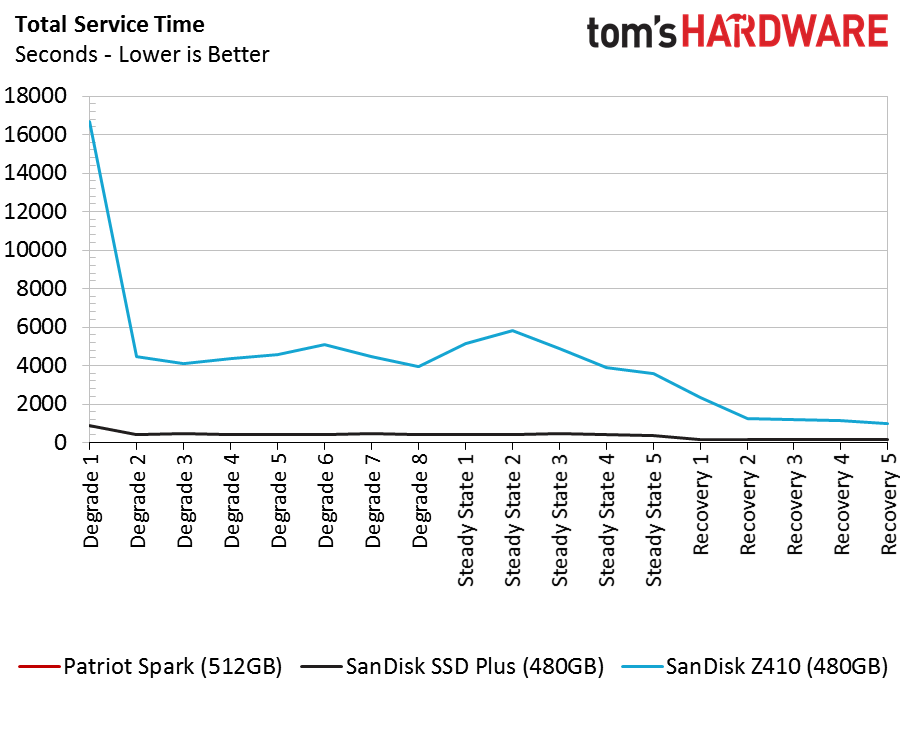

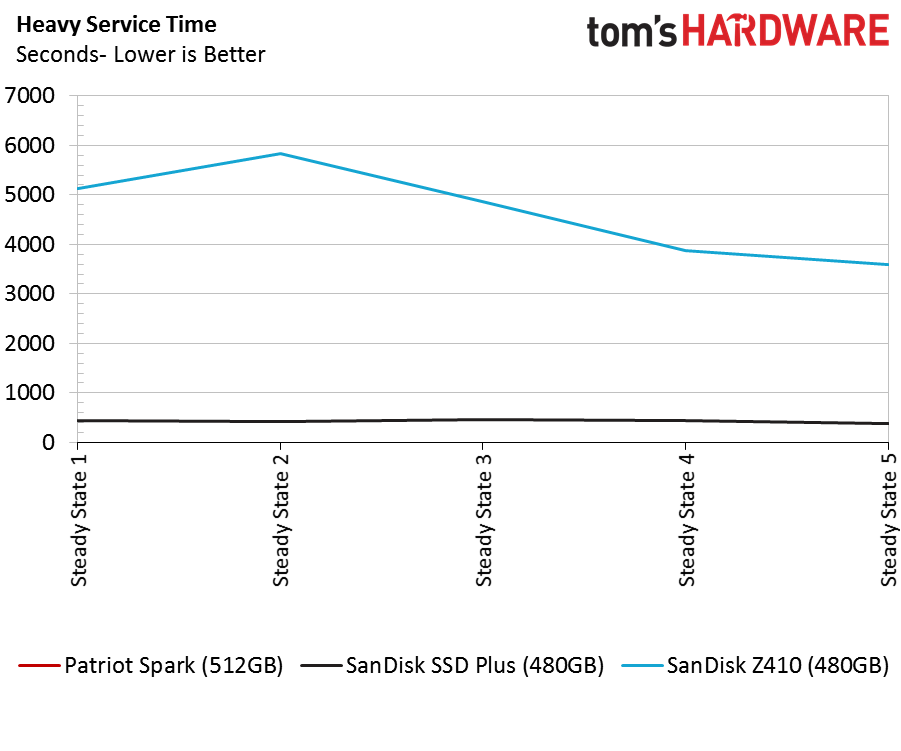

The SanDisk SSD Plus didn't deliver a great service time test, but it beat the Z410 by a large margin.

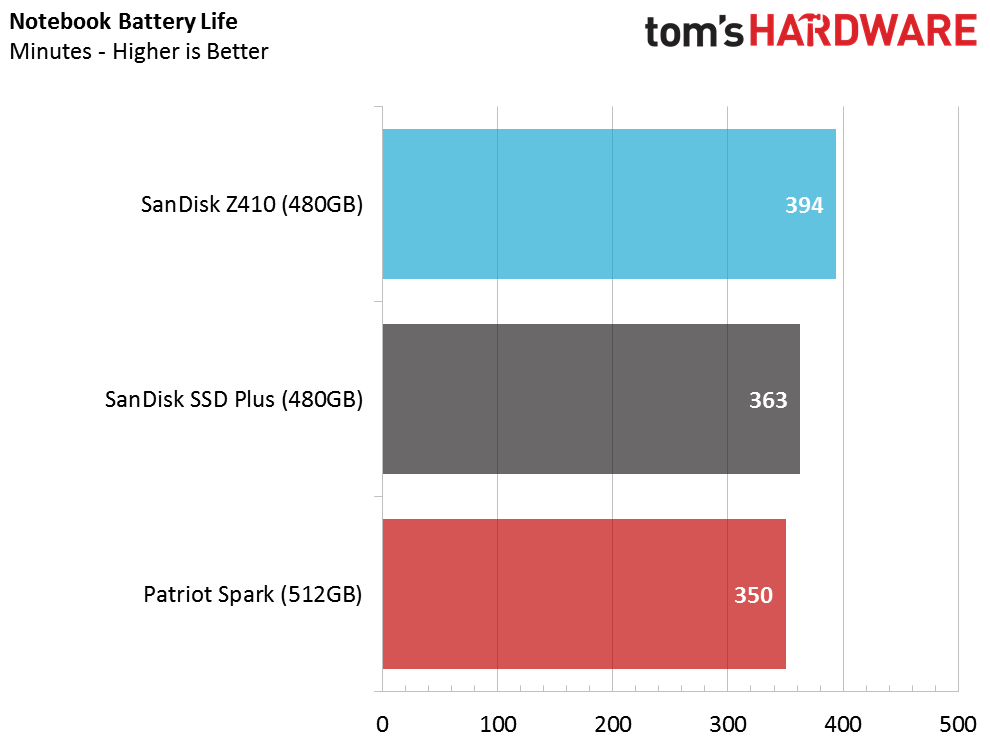

Notebook Battery Life

Image 1 of 2

Image 2 of 2

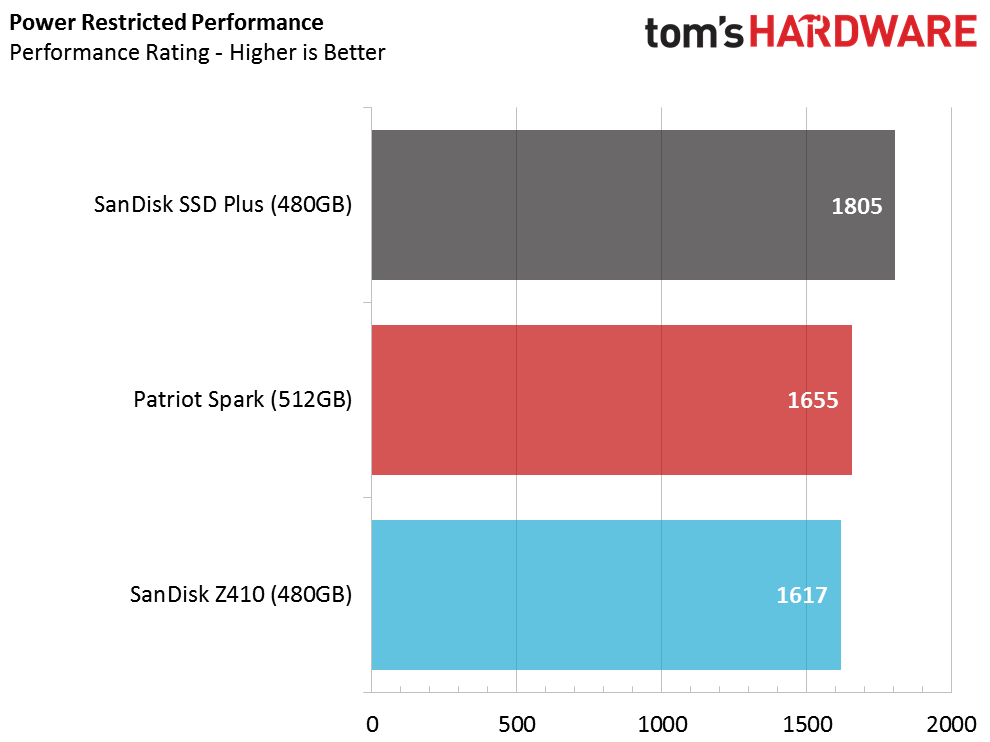

The SanDisk Z410 without a power-hungry DRAM package once again delivers more notebook battery time than any of the other DRAMless retail products. The SMI SM2256XT has power consumption down to a science.
