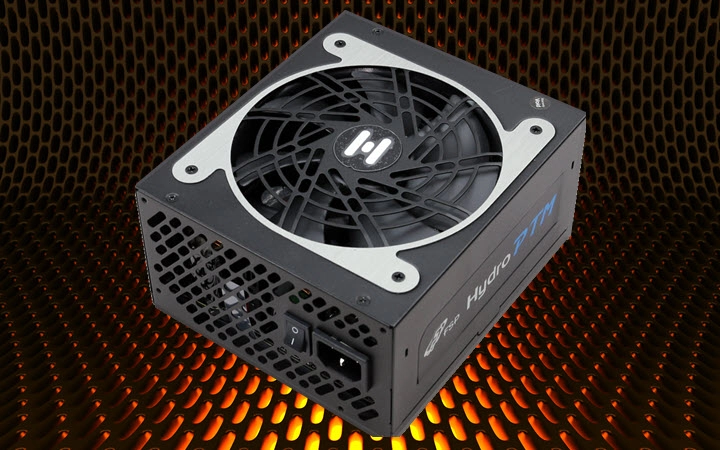

FSP Hydro PTM 650W PSU Review: Clean, Quiet Power for Mid-Range PCs

Tom's Hardware Verdict

This is a good power supply that suffers due to a high price that lands it among higher-end competition like the Seasonic SSR-650PX. The HPT650M's main strengths are quiet operation, an efficient 5VSB rail, good ripple suppression, and a pair of EPS connectors (rare at the 650W capacity point). Unfortunately, those connectors are installed on the same cable, so you cannot fully utilize them if you want to stay on the safe side.

Pros

  • +

    Efficient

  • +

    Well-implemented 5VSB rail

  • +

    Quiet operation

  • +

    High-quality electrolytic caps

  • +

    Fully modular

  • +

    2x EPS & 4x PCIe connectors

  • +

    Fluid dynamic bearing fan

  • +

    10-year warranty

Cons

  • -

    Needs a lower price tag to improve value

  • -

    Transient response could be better

  • -

    Two EPS connectors on the same cable could cause problems

  • -

    Low hold-up time

  • -

    Failed EMI testing

  • -

    Fairly large chassis

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Features and Specifications

FSP's new Hydro PTM family shows that that company is trying hard to attract mainstream attention. However, the series faces strong competition from Seasonic's Focus Plus Platinum line-up, which sells at similar prices, offers better performance, and operates quietly. The HPT650M we're reviewing today does employ high-quality components. It's distinctive-looking, too. But aesthetics are of course an ancillary consideration for a piece of hardware that spends its life hidden away inside of your case.

According to FSP, the three-member Hydro PTM family is designed for gaming enthusiasts and overclockers with mid-range PCs. In our experience, the 650W model would complement a Core i7/Ryzen 7 CPU and one high-end graphics card from AMD or Nvidia. These days, dual-GPU configurations are increasingly rare. But if you have the need for two cards in CrossFire or SLI, consider a PSU with more capacity.

The 650W FSP Hydro PTM boasts 80 PLUS Platinum and ETA-A efficiency ratings, along with a LAMBDA-A noise certification. Although those are impressive achievements, the competition is indeed fierce in the HPT650M's price category. It needs to perform exceptionally in order to stand out.

Beyond its unique external design, the HPT650M also sports fully modular cabling and very quiet operation thanks to its relaxed fan profile and fluid dynamic bearing fan. Other interesting features include Japanese electrolytic capacitors, a complete set of protection features, and a 10-year warranty that shows how confident FSP is in its platform. You'll also find two sets of changeable stickers in the PSU's bundle, which allows you to swap between colors and graphic designs.

Specifications

Swipe to scroll horizontally
Manufacturer (OEM)FSP Technology
Max. DC Output650W
Efficiency80 PLUS Platinum, ETA-A- (85-88%)
NoiseLAMBDA-A (20-25 dB[A])
Modular✓ (Fully)
Intel C6/C7 Power State Support
Operating Temperature (Continuous Full Load)0 - 50°C
Over-Voltage Protection
Under-Voltage Protection
Over-Power Protection
Over-Current (+12V) Protection
Over-Temperature Protection
Short Circuit Protection
Surge Protection
Inrush Current Protection
Fan Failure Protection
No Load Operation
Cooling135mm fluid dynamic bearing fan (MGA13512HF-A25)
Semi-Passive Operation
Dimensions (W x H x D)152 x 88 x 172mm
Weight1.7 kg (3.75 lb)
Form FactorATX12V v2.4, EPS 2.92
Warranty10 years

Given the aforementioned 80 PLUS and Cybenetics ratings, we already know that this is an efficient power supply. Again, its suite of protection features is complete. There is no semi-passive mode, but we don't consider that a problem since the HPT650M's fan profile is fairly relaxed. To be frank, we actually prefer to have the fan constantly spinning. It keeps heat from building up inside of the PSU.

A 172mm depth measurement makes this a fairly large power supply, especially since you can find higher-capacity models just 140mm-deep. FSP should probably start looking for ways to shrink its enclosures, keeping pace with current trends.

Power Specifications

Swipe to scroll horizontally
Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.172.50.3
Watts12065012.53.6
Total Max. Power (W)650

Combined power on the minor rails is low, but completely acceptable in a modern PSU. The +12V rail can deliver the HPT650M's full power on its own. Meanwhile, the 5VSB rail's capacity is fairly typical based on competing models we've reviewed.

Cables & Connectors

Swipe to scroll horizontally
Modular Cables
DescriptionCable CountConnector Count (Total)GaugeIn Cable Capacitors
ATX connector 20+4 pin (600mm)1118-22AWG
Eight-pin EPS12V (700mm) / 4+4 EPS12V (+150mm)11 / 118AWG
6+2-pin PCIe (650mm+150mm) 1218AWG
6+2-pin PCIe (500mm+150mm) 1218AWG
SATA (500mm+150mm+150mm+150mm)2818AWG
SATA (500mm+150mm) / Four-pin Molex (150mm+100mm)12 / 218AWG
SATA (500mm+150mm) / Four-pin Molex (150mm) / FDD (+150mm)12 / 1 / 118-22AWG
AC Power Cord (1400mm) - C13 coupler1116AWG-

The cables are sufficiently long. We don't like that there are two EPS connectors on one cable, though. This is a major shortcoming in our opinion, since a single EPS connector can deliver up to 336W. Even if 16-gauge wires were used, the cable still wouldn't be able to handle full output from two EPS connectors.

Four PCIe connectors are enough for a 650W power supply, and 12 SATA connectors are probably overkill in this category. We'll take them, though. The components that use SATA connectors don't need much power, after all. On the other hand, there are only three 4-pin Molex connectors. If the rarely used FDD connector was provided by an adapter instead, FSP could have given us four connectors instead.

There are no in-cable capacitors to speak of. Moreover, all of the cables are stealth and flat. This should help simplify installation, allowing builders to tuck cable runs out of the way.
