Intel Skulltrail Part 1: The Power of 8 Cores

Expensive And Large - Intel D5400XS Motherboard, Continued

For its on-board sound chip, Intel chose the Sigmatel STAC9274 also found on several other Intel motherboards. This chip is considered one of the best on-board sound solutions. The D5400XS also features an optical digital output.

Sigmatel on-board sound chip

In addition to the power and reset switches, the motherboard also sports a Port-80 diagnostic display, a system speaker and a blue HDD-LED.

Speaker and reset button

Port 80 Display

eSATA Ports

Swipe to scroll horizontally
D5400XS Motherboard Feature Table
ComponentOn BoardI/O-Shield
PCI2none
PCIe 16x4none
PCIe 4xnonenone
SATA6none
eSATAnone2
LPTnonenone
COMnonenone
Firewire 1394a11
USB 2.046
Fan (PWM)3none
Fan5none

Board - No Room For High-End Graphics Cards

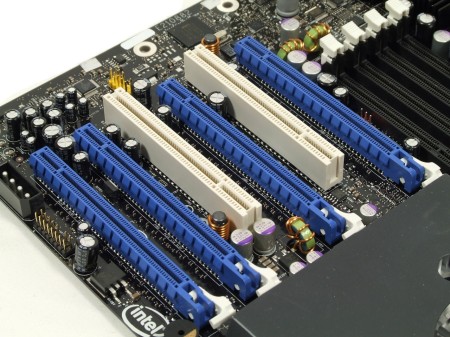

Four x16 PEG slots

Intel's D5400XS motherboard features four PCI-Express x16 slots for graphics cards. Thus, buyers can create multi-card configurations using either Nvidia's SLI or ATI's Crossfire. Sadly, the spacing between the ports was poorly chosen, accommodating either up to three dual-slot cards or four single-slot cards. This is quite disappointing for a motherboard from the high-end price bracket. While it is true that neither graphics chip company currently offers support for four-card configurations today, the Skulltrail represents the ideal performance basis for just such a setup - and the same should hold true for the expandability and upgrade options. Sadly, this does not hold true for the current design.
