Nine External Thunderbolt Storage Devices, Rounded Up

By Andrew Ku
published

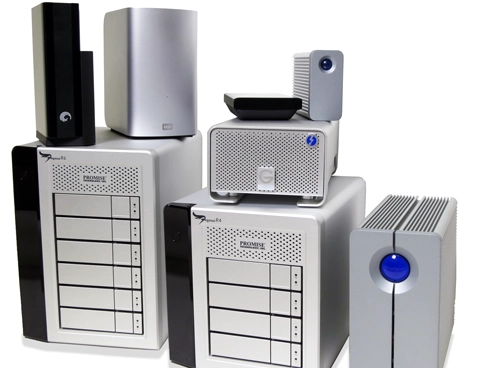

We compare nine different Thunderbolt-based storage solutions, delivering scorching sequential throughput. Of the nine, three submissions rise to the top. Although it remains pricey, in the applications where it makes sense, Thunderbolt cannot be beat.

LaCie 2big 6 TB

Swipe to scroll horizontally
SKU900019190001929000193
RPM7200 RPM7200 RPM7200 RPM
Capacity4 TB6 TB8 TB
Devices2 x 2 TB2 x 3 TB2 x 4 TB
Price (MSRP)$600$750unreleased
Market Price$570$715unreleased

LaCie’s 2big external RAID enclosure, featuring hot-swappable bays, is a much better option for enthusiasts looking for a little flexibility without jeopardizing warranty coverage. The 2big isn't a clear winner over LaCie's Little Big Disk in every way, though. It's larger and less portable, whereas the Little Big Disk leverages 2.5" drives to keep its form factor much more compact. But that shouldn't be a deterrent; the 2big accepts higher-capacity 3.5" storage and is deliberately designed to be stationary. If you need mobility, LaCie has more purpose-built solutions (like the Little Big Disk).

As with pretty much all of the Thunderbolt-based products we're looking at today, the 2big isn't an inexpensive piece of hardware. LaCie's 4 TB model (9000191) sells for $600, or ~$0.15 per GB. Jumping to the 6 TB model (9000192) increases the price to $750, but reduces the cost per-gigabyte to ~$0.09. Fortunately, both available versions can be found online for a bit less.

Regardless of the capacity point, LaCie utilizes Seagate's 7200.14 Barracuda (ST3000DM001) family inside its 2big models. That's a respectable choice, as the 7200.14 happens to be a decent middle-of-the-road performer.

The 2big employs the same Intel CV82524EF/L and Marvell 88SE9182 configuration as the Little Big Disk, but it integrates beefier power circuitry to support 3.5" disk drives.

Expect to see sequential read results somewhere in the neighborhood of 400 MB/s from the 2 big in a RAID 0 configuration. Writes level off around ~290 MB/s.

Protecting your data with RAID 1 nearly halves those performance numbers.

Andrew Ku
24 Comments Comment from the forums
  • saiyan
    No benchmark for 8-drive Thunderbolt deivces such as Areca ARC-8050 ?
    Reply
  • acku
    9535164 said:
    No benchmark for 8-drive Thunderbolt deivces such as Areca ARC-8050 ?

    What the R6 isn't expensive enough? :p Honestly, we couldn't include the ARC-8050 (http://www.areca.com.tw/products/thunderbolt.htm) because it's not readily available for purchase (yet).

    Cheers,
    Andrew Ku
    TomsHardware.com
    Reply
  • mayankleoboy1
    storage is OK, but an externally powered GPU is the most interesting application of thunderbolt.

    with the external PCI-E device specification coming soon, i believe the days of thunderbolt are limited.
    Reply
  • web2dot0
    mayankleoboy1storage is OK, but an externally powered GPU is the most interesting application of thunderbolt.with the external PCI-E device specification coming soon, i believe the days of thunderbolt are limited.
    Thunderbolt IS ePCI-E. Well, using Intel's implementation. You think the specification will somehow make things cheaper? Nope.
    Reply
  • chovav
    Thank you Andrew for this review, it certainly makes it clear whether you should invest in thunderbolt or not.

    Could you maybe do add a random read/write graph comparing GoFlex Desk with USB3 and Thunderbolt?

    I was also wondering what the CPU usage is during read/write - is there any impact at all? or does the thunderbolt controller bear all the processing grunt-work?

    Thanks again, great article.
    Reply
  • CaedenV
    web2dot0Thunderbolt IS ePCI-E. Well, using Intel's implementation. You think the specification will somehow make things cheaper? Nope.thunderbolt is a medium that allows for multiple interconnect protocols to be transmitted over the same wire. It can send PCIe, it can send DP, it was supposed to be able to send USB 1/2/3, as well as Ethernet, all over the same wire... but we have not seen that happen over the copper version that was released.

    The external PCIe will be cheaper and easier because it will be hosted directly by the mobo chipset, or the CPU by tapping into already existing hardware. Chip makers will not have to add a new and expensive tech to the device, the connection will just siphon off lanes that are already there. And because it is already standardized and cheap technology it will be easier and cheaper to implement. Finally it will be an open standard that multiple manufacturers can adopt. Thunderbolt (as much as I love the idea) is made and operated by Intel, and Intel wants to charge a premium for it. Until there are multiple chip makers who can make it, then it will continue to be too expensive... and when multiple chip makers can make it then Intel will be the only one worth buying (much like their network interfaces) because nobody can do quality like intel, but at least the price will come down.
    Reply
  • mayankleoboy1
    ^ like the Marvell SATA controllers.

    And thunderbolt is not going optical fibre in the coming years. the cable is too expensive and cant carry much power.

    and the fact that apple is using it gives some clues about its price, compatibility, usability and openness.

    i remember how TB was promoted : one single wire from your PC to a TB brick. and from that brick you added USB, ethernet, firewire, DP, HDMI. basically it was touted as "1 wire for everything". supposed to be magical, and we all know how that turns out.
    Reply
  • acku
    CaedenVthunderbolt is a medium that allows for multiple interconnect protocols to be transmitted over the same wire. It can send PCIe, it can send DP, it was supposed to be able to send USB 1/2/3, as well as Ethernet, all over the same wire... but we have not seen that happen over the copper version that was released.The external PCIe will be cheaper and easier because it will be hosted directly by the mobo chipset, or the CPU by tapping into already existing hardware. Chip makers will not have to add a new and expensive tech to the device, the connection will just siphon off lanes that are already there. And because it is already standardized and cheap technology it will be easier and cheaper to implement. Finally it will be an open standard that multiple manufacturers can adopt. Thunderbolt (as much as I love the idea) is made and operated by Intel, and Intel wants to charge a premium for it. Until there are multiple chip makers who can make it, then it will continue to be too expensive... and when multiple chip makers can make it then Intel will be the only one worth buying (much like their network interfaces) because nobody can do quality like intel, but at least the price will come down.
    Read http://www.tomshardware.com/reviews/thunderbolt-performance-z77a-gd80,3205.html Thunderbolt can externalize anything. It just has to have the controller. It is external PCIe. External USB 3.0 and ethernet are possible but unlikely because they are already on the mobo.

    From a practical standpoint, external PCIe may cheaper, but it's pointless from a performance standpoint http://en.wikipedia.org/wiki/PCI_Express#External_PCIe_cards. Everything is limited to a PCIe 1.0 x1 connection. The new ExpressCard standard (v2.0) ups bandwidth to slightly more than PCIe 1.0 x2, which still isn't that fast compared to TB (PCIe 2.0 x4 uplink). Plus ExpressCard only lets you connect a single device. It's one and done after that. For a mobile user, Thunderbolt is the way to go. Worse, you can't count on EC to be available. I'm already seeing Ultrabooks with TB. It makes sense because it doesn't require a lot of space. EC requires more space, hence it will be a greater rarity now that TB is out.

    It looks expensive now but be patient. TB is something you will want. Many people need to look past the role Apple played. It clearly is a performance oriented technology that opens up a whole new world, especially on the mobile side.

    Cheers,
    Andrew Ku
    Tom's Hardware.com

    Reply
  • web2dot0
    CaedenVthunderbolt is a medium that allows for multiple interconnect protocols to be transmitted over the same wire. It can send PCIe, it can send DP, it was supposed to be able to send USB 1/2/3, as well as Ethernet, all over the same wire... but we have not seen that happen over the copper version that was released.The external PCIe will be cheaper and easier because it will be hosted directly by the mobo chipset, or the CPU by tapping into already existing hardware. Chip makers will not have to add a new and expensive tech to the device, the connection will just siphon off lanes that are already there. And because it is already standardized and cheap technology it will be easier and cheaper to implement. Finally it will be an open standard that multiple manufacturers can adopt. Thunderbolt (as much as I love the idea) is made and operated by Intel, and Intel wants to charge a premium for it. Until there are multiple chip makers who can make it, then it will continue to be too expensive... and when multiple chip makers can make it then Intel will be the only one worth buying (much like their network interfaces) because nobody can do quality like intel, but at least the price will come down.
    Thank you for your Wikipedia quote. Everybody can quote from the spec sheet. The trouble is you make it seem like Intel are bunch of morons building a interconnect that nobody uses. That's is plain wrong. Just like SSDs, they will come down in price and next thing you know, you'll be asking yourself why in the world would I not use Thunderbolt. Imagine running a external GPU on your Retina Display MacbookPro when you dock your laptop. There'll be a lineup of people buying that technology at a premium price.

    Partnering with Apple is no accident. 2 giant corporations backing the initiative is nothing to sneeze at. Give it a few years, and you'll soon find out the true power of Thunderbolt. USB 3.0 complements Thunderbolt.
    Reply
  • mayankleoboy1
    edit
    Reply
