Sapphire Radeon RX Vega 64 Nitro+ Review

Cooling & Noise

Cooling Solution & Backplate

There’s a direct relationship between power consumption and waste heat, and it's the thermal solution's job to cope with the latter. Sapphire's Radeon RX Vega 64 Nitro+ has a huge cooler, as we've seen, with a massive fin-laden sink sitting on top of a big vapor chamber. That vapor chamber’s waste heat is dissipated across the cooler's body through no fewer than six heat pipes that are installed above and lie down on top of it.

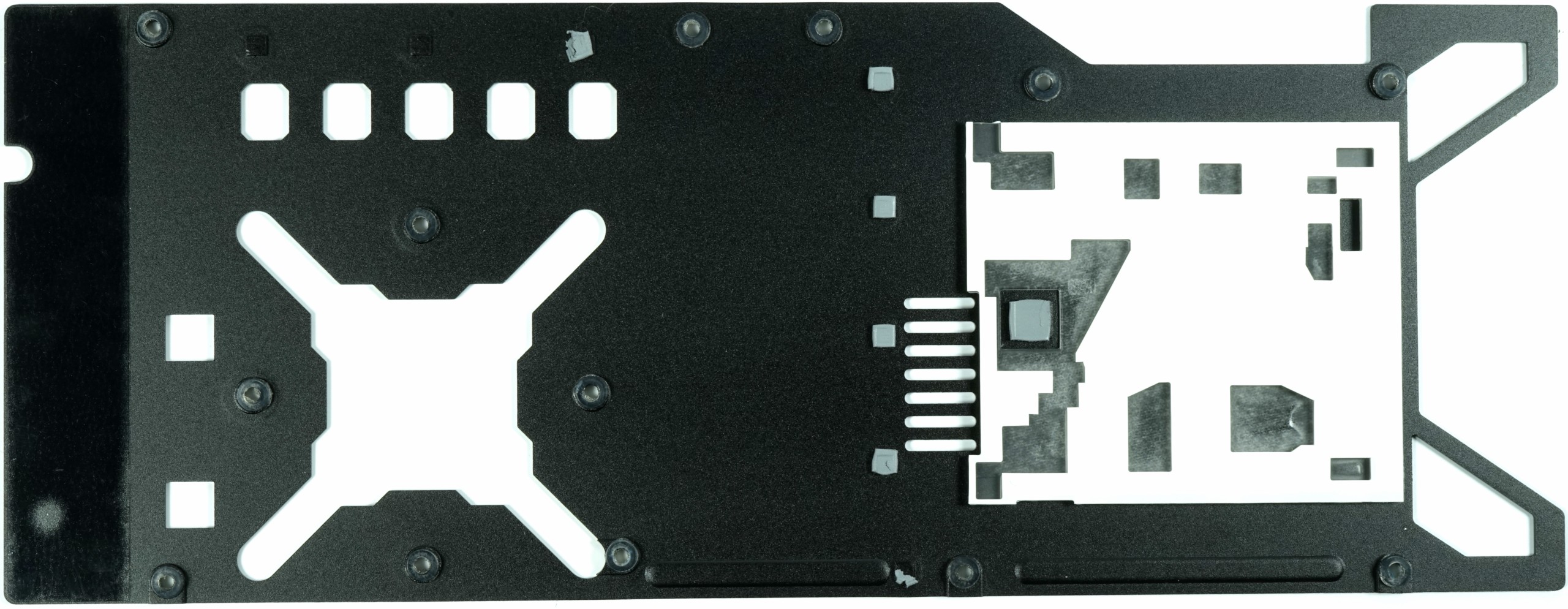

Sapphire applies a black coating to the backplate's inside surface to help it absorb radiated heat more effectively. A more active approach is taken for some of the components on the PCB's back side: the phase doublers, the memory voltage converter’s gate driver, and the PWM controller are connected to the backplate using thermal pads.

Cooling System Overview
Type
Air cooler
GPU Cooling
Vapor chamber
Cooling Fins
Aluminum, vertical orientation
Tight spacing; some bent
Heat Pipes
3x 8mm + 3x 6mm
Copper composite material, nickel-plated
VRM Cooling
GPU and memory VRM via cooling frame
RAM Cooling
Memory cooling of HBM2 module via vapor chamber
Fans
2x 9.7cm fan (10cm opening), nine blades
1x 8.7cm fan (9 cm opening), 11 blades
Semi-passive control
Backplate
Aluminum
Cools phase doublers, PWM controller, and VRM gate driver

Apart from the vapor chamber responsible for the GPU and HBM2, there are three central 8mm heat pipes and two outer 6mm pipes, all of which are made of nickel-plated composite material. They transport the GPU’s thermal energy to different areas of the cooler’s body. There’s also a sixth 6mm heat pipe, which is shorter and bent, above the voltage converters.

The cooler’s performance is truly awesome. As a side note, we can also see just how many screws Sapphire uses around the vapor chamber. Four of them fasten the vapor chamber to the package, and another four are used in the cooling frame area around the package. This way, pressure on the package’s sensitive interposer is distributed evenly.

Fan Curves & Noise

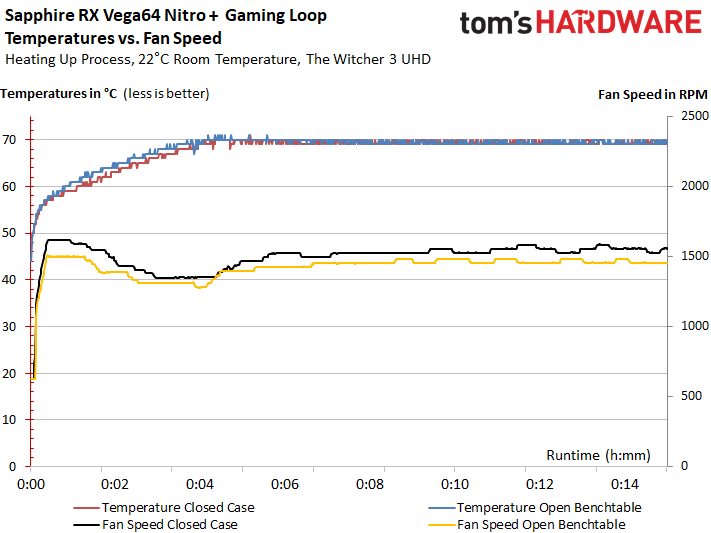

The fan curves illustrate Sapphire's custom implementation. A semi-passive mode is enabled through a programmable controller, which also results in WattMan displaying rotational speed, even after the controller turns off the fans. This little trick might create some confusion when looking at the sensor readings, but an external tachometer helps clarify. The shape of the curve is interesting as well, assuring us that the GPU doesn't exceed its 70°C target temperature.

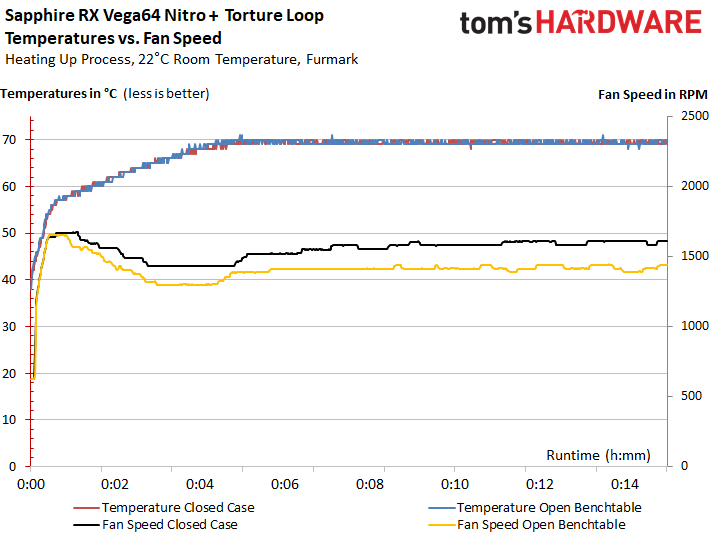

Switching to the stress test doesn’t really change anything. Overall, the card’s three fans are sufficient.

Sapphire's Radeon RX Vega 64 Nitro+ does have some reserves where fan speed is concerned. This is to say that the card could operate more quietly, but there would be a price to pay for this in the form of a lower GPU frequency. The default configuration represents a well-balanced compromise.

Fan RPM & Noise Measurements
Fan RPM Open Benchtable Maximum
1493 RPM
Fan RPM Open Benchtable Average
1485 RPM
Fan RPM Closed Case Maximum1611 RPM
Fan RPM Closed Case Average1585 RPM
Noise (Air) Maximum
39.8 dB(A)
Noise (Air) Average
39.1 dB(A)
Noise (Air) Idle0 dB(A)
Noise Characteristics /
Subjective Impressions
Almost no low-frequency bearing noises
Some motor noises below 1 Hz
Moderate air and turbulence noises
Some coil whine

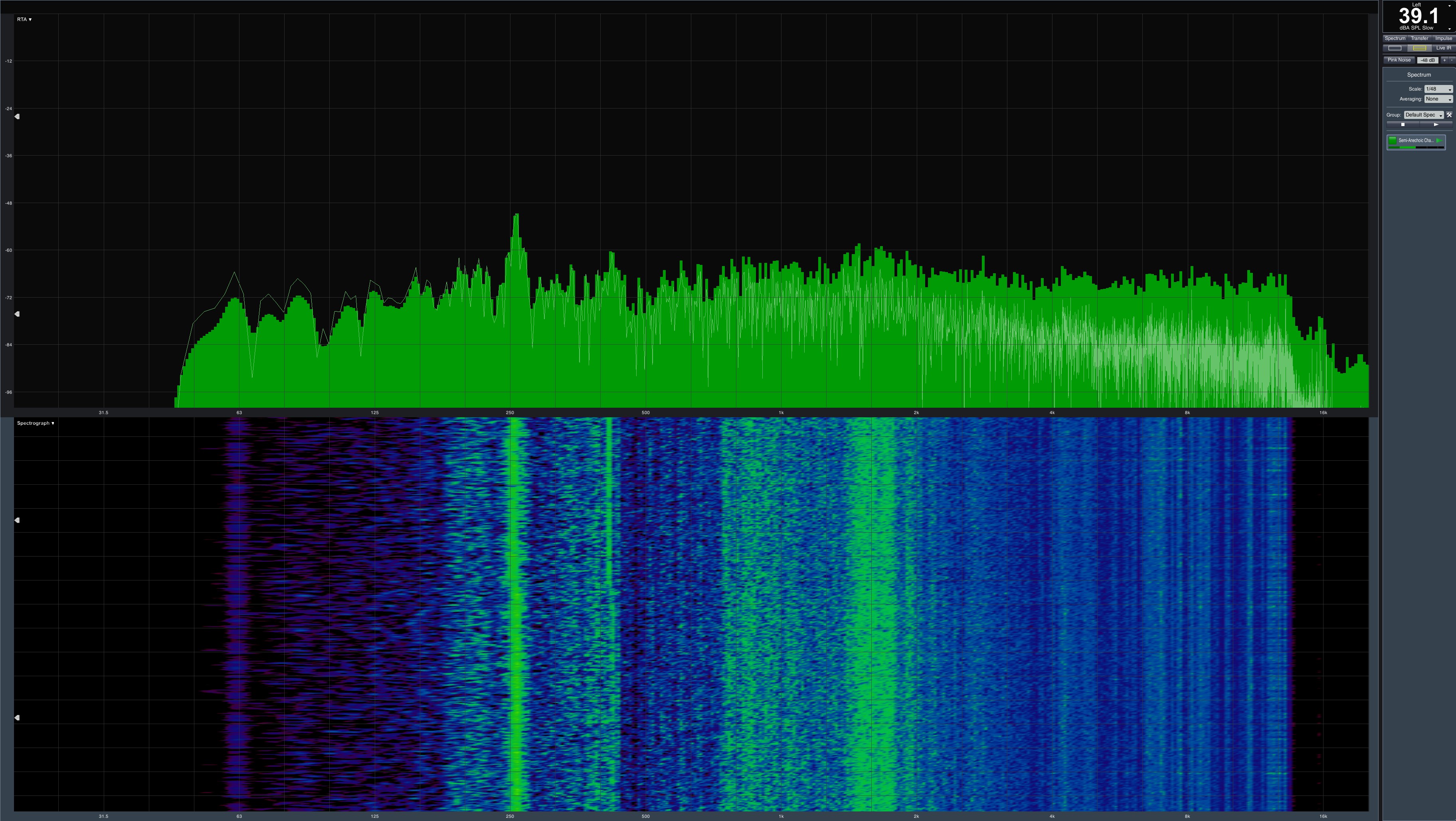

This snapshot illustrates the entire frequency range of our laboratory measurements, adding some data to our subjective observations.

A 39.1 dB(A) measurement is great for a high-performance graphics card like this one. We were particularly impressed by its behavior in the closed case, with our hotbox reaching up to 50°C during our overclocking efforts.
