SCSI Lives! Quantum Atlas 10K II

Drive Details

Swipe to scroll horizontally
Quantum Atlas 10K II
Capacity9.2, 18.4, 36.7 and 73.4 GB
Rotation speed10.000 rpm
Average seek time4.7 ms
Cache memory8 MBytes
Warranty time3 years

More Information can be found in the product datasheet .

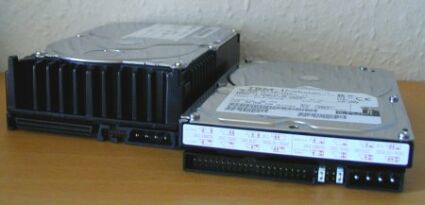

Here you can see the Atlas 10K II (left) and a IBM DTLA drive. The SCSI drive has a height of 1.6" whilst IBM's DeskStar model has 1".

This high-end model is the first hard drive I know that comes with a BGA chip.

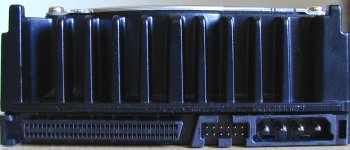

Looking at the back side you can see the 68-pin connector and the black ribs which are meant to improve the heat dissipation.
