Seasonic Focus Plus 750 Gold PSU Review

By Aris Mpitziopoulos
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Packaging, Contents, Exterior & Cabling

Packaging

Image 1 of 7

The box's design looks nice, with gold accents stealing the show. On one of the two sides, we find technical and power specification tables. The back covers the SSR-750FX's most important features, including its efficiency rating, the DC-DC converters, the single +12V output, high-quality filtering capacitors, the 120mm FDB fan, Seasonic's semi-passive mode, fully modular cabling, and a 10-year warranty.

Tight load regulation is also mentioned as one of this PSU's strengths; according to Seasonic, it's within 3% on all rails. In reality, that's not particularly tight by today's standards. We think you need to be close to 1% (or lower) for such a claim.

Contents

Image 1 of 6

Protection inside the box is adequate; two packing foam pieces totally surround the PSU. On top of the PSU, you'll find a piece of paper describing a giveaway for customers who share their personal experience on Amazon and Newegg. This contest is only for U.S. residents, though.

The PSU is stored inside of a cloth bag. It's definitely a nice touch, given that most PSUs in this price range arrive in plain plastic bags.

Image 1 of 2

The bundle includes a user's manual, a set of Velcro straps, several zip ties, four fixing bolts, a case badge, and a pouch that can be used to store unused modular cables.

Image 1 of 2

An AC power cord is also provided.

Exterior

Image 1 of 3

Up front, we find the AC receptacle, the power switch, and a push button that toggles the semi-passive mode on and off. Two decals on the sides show Seasonic's logo and the line's name. A power specifications table is easy to reference on the bottom.

Image 1 of 2

The fully modular panel includes 11 sockets.

Image 1 of 3

The SSR-750FX's design isn't particularly innovative, but its finish looks nice. Light-gray stripes around the screws up top, along with a gold Seasonic badge on the fan, are nice details.

Cabling

Image 1 of 6

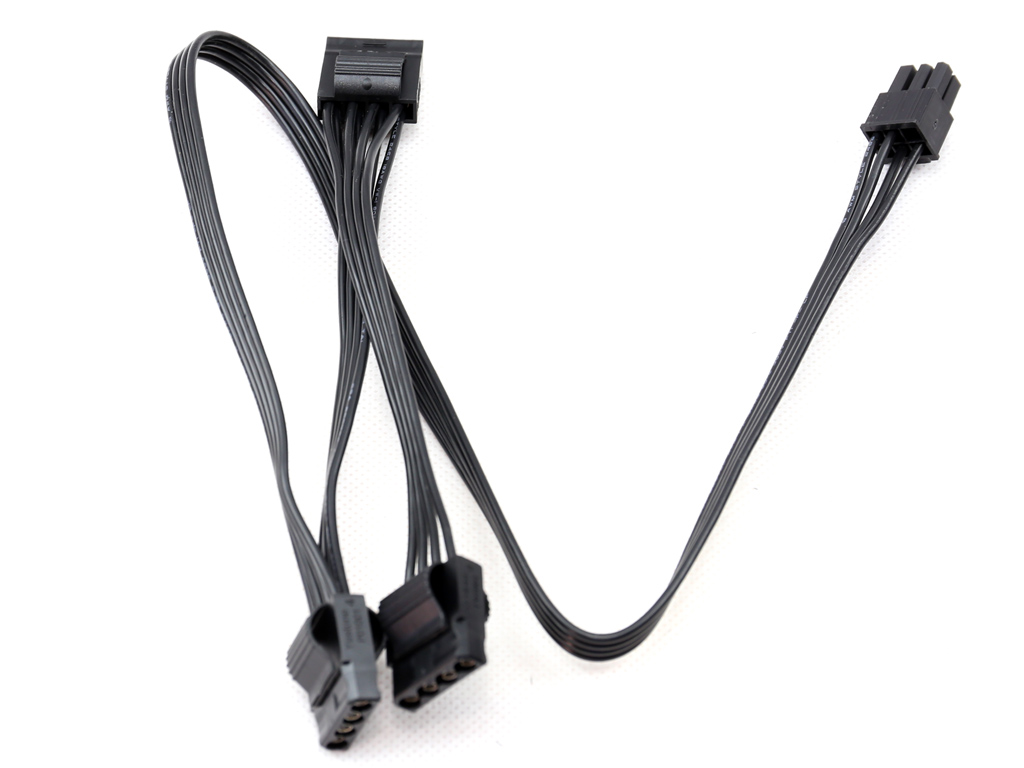

Unfortunately, Seasonic adds extra ripple-filtering capacitors to the ATX, EPS, and PCIe cables, so they're quite bulky. You'll have a harder time routing them around inside of your case as a result. The peripheral cables, which lack those extra caps, are flat, so they won't inhibit airflow inside of your chassis as much.


MORE: Best Power Supplies


MORE: How We Test Power Supplies


MORE: All Power Supply Content

Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.

7 Comments Comment from the forums
  • none77
    Thank you for the detailed review.
    In the transient response test
    Advanced Transient Response at 50 Percent – 200ms
    the +3.3 pass.
    Reply
  • BugariaM
    As always, here are the most detailed reviews on the PSU.
    Thank you and keep it up!

    The only thing that is not quite clear to me. What is the criterion for voltage drop in % to get PASS/FAIL in "Advanced Transient Response Tests"?

    You declare that:

    "In all tests, we measure the voltage drops." The voltages should remain within the ATX specification's regulation limits. "

    For ATX 2.2 we have:

    12v - 10%
    5v - 5%
    3.3v - 5%
    5VSB - 5%


    However, looking at your reviews, there are often situations where, at <5%, the power supply gets the FAIL mark and vice versa, some at >5% receive PASS

    Why is this happening?
    Reply
  • BugariaM
    Sorry, a typo
    Of course for 12v - 5%
    Reply
  • Aris_Mp
    the limit is 5% however the voltage rails of the PSUs' under test in the majority of cases aren't at the nominal voltages, but higher, so even with 5% deviation voltages go don't bellow the limits that the ATX spec sets (11.4V, 4.75V, 3.14V). Only if a rail goes below those voltage levels it fails. The 5% is just an indication that the ATX provides to specify the voltages above.
    Reply
  • BugariaM
    Now everything became clear to me.
    Thank you.
    Reply
