Seasonic Focus Plus 750 Gold PSU Review

By

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the SSR-750FX's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).

Test12V5V3.3V5VSBPass/Fail
10% Load8.9mV6.0mV8.2mV5.7mVPass
20% Load12.7mV6.1mV8.5mV5.9mVPass
30% Load15.2mV6.3mV8.5mV6.1mVPass
40% Load17.1mV7.8mV10.4mV6.5mVPass
50% Load18.3mV7.8mV9.1mV6.5mVPass
60% Load20.2mV10.4mV10.6mV7.2mVPass
70% Load21.9mV11.4mV11.6mV8.4mVPass
80% Load23.0mV11.6mV11.8mV9.4mVPass
90% Load26.2mV13.1mV13.1mV9.8mVPass
100% Load27.9mV13.2mV14.6mV11.6mVPass
110% Load28.6mV15.4mV15.9mV12.2mVPass
Cross-Load 112.3mV11.3mV9.4mV8.2mVPass
Cross-Load 227.2mV10.6mV12.8mV9.2mVPass
Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

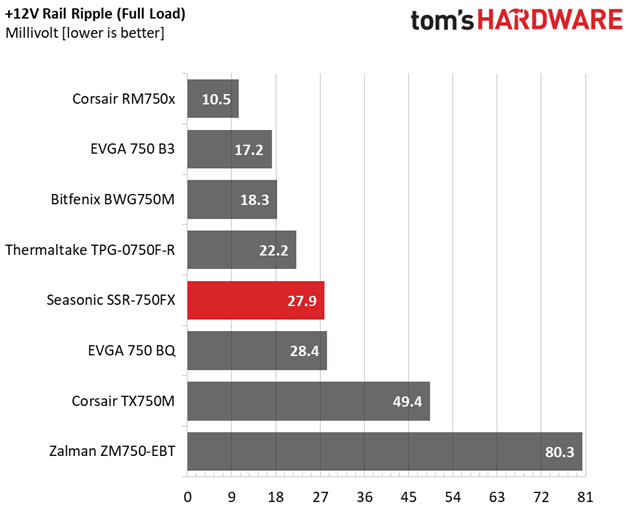

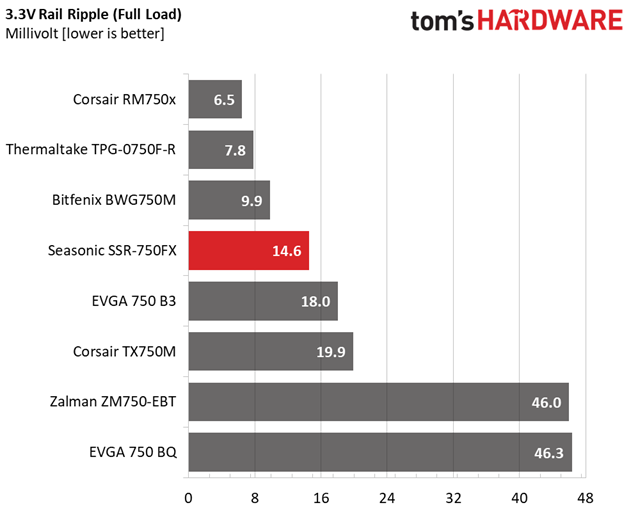

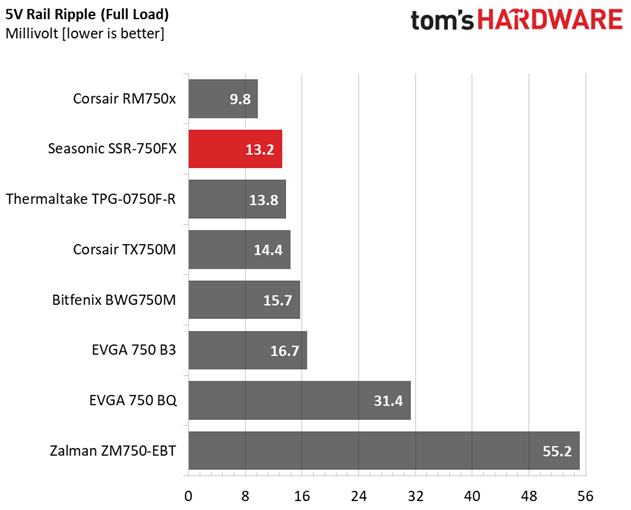

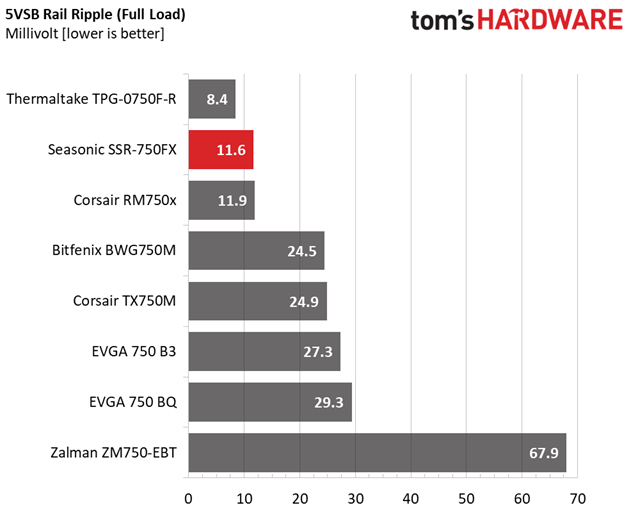

The addition of filtering caps on the modular cables, along with a good overall design, enable impressive ripple suppression. Seasonic still doesn't achieve Super Flower levels, but it'd be silly to complain. Even under 110% load, the +12V rail doesn't exceed 30mV, while the minor rails stay below 16mV in the worst-case scenario.

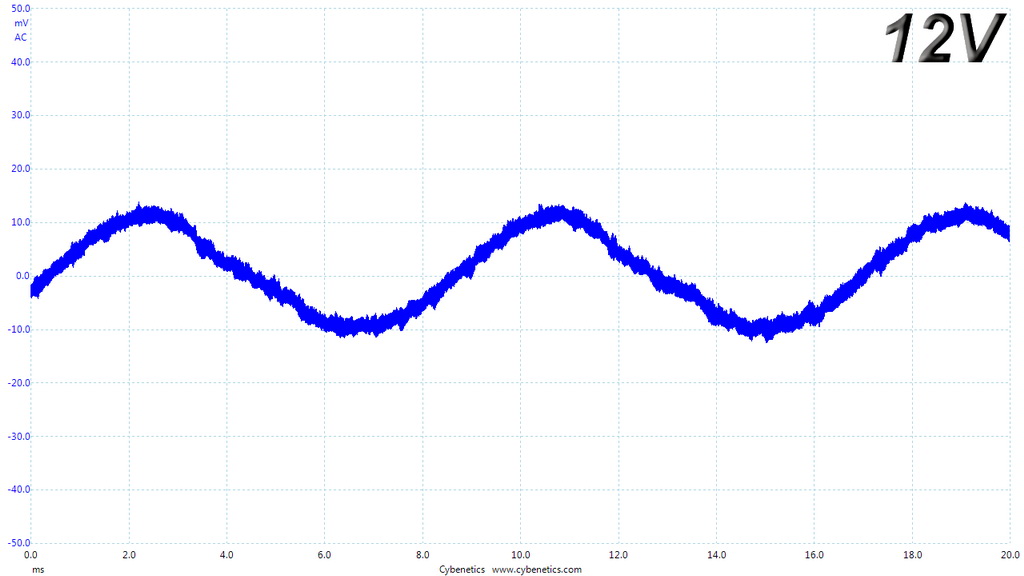

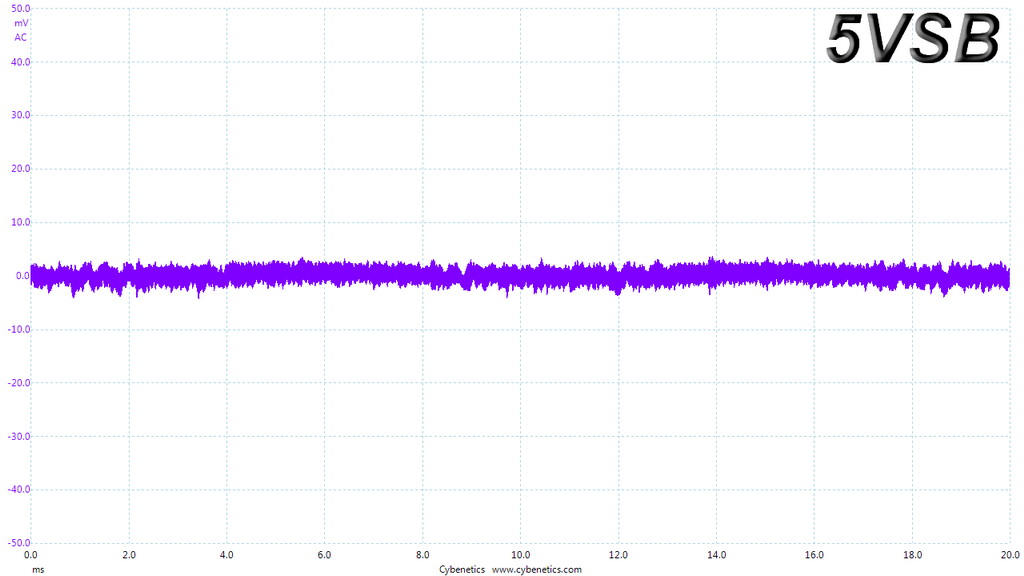

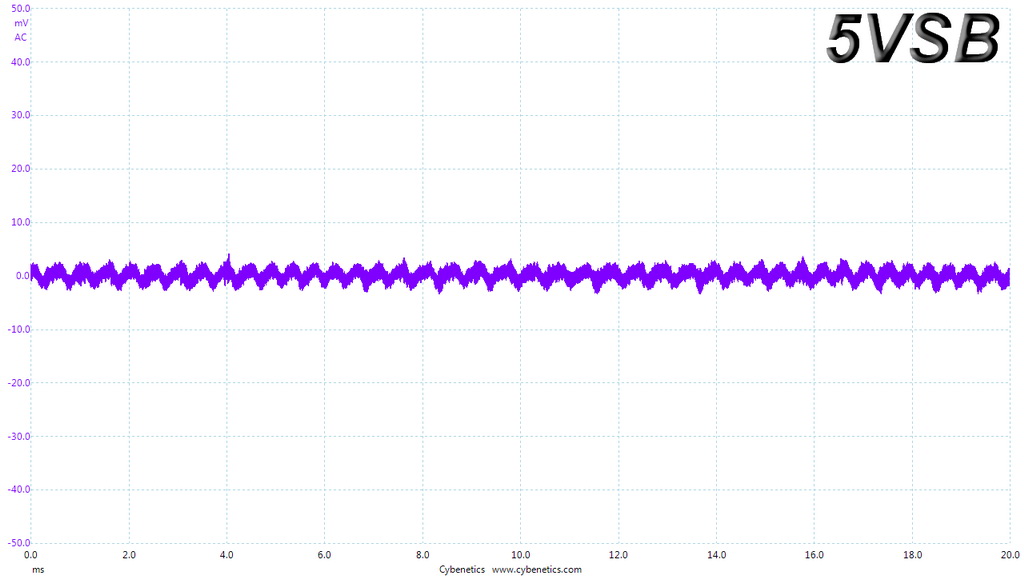

Ripple Oscilloscope Screenshots

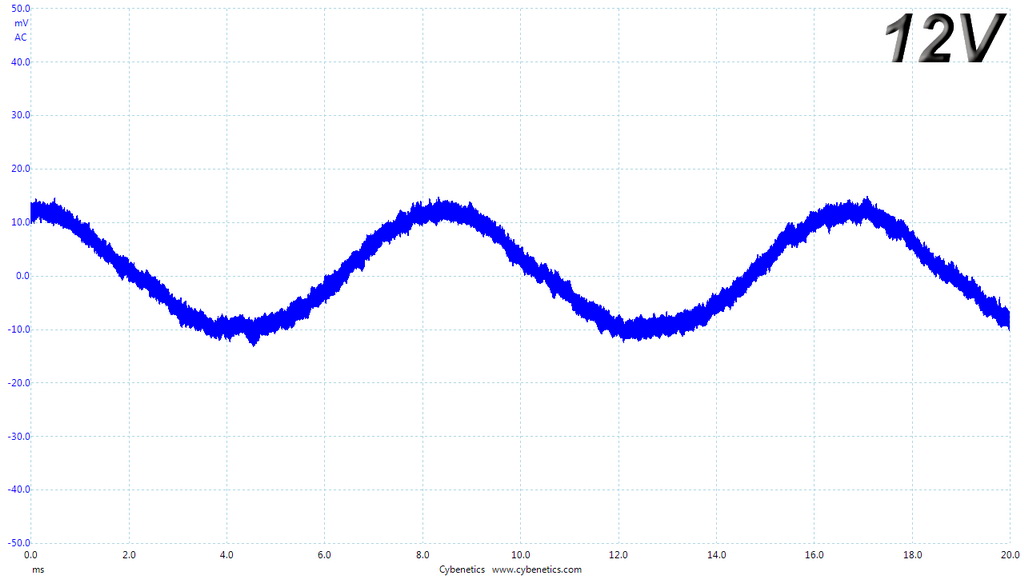

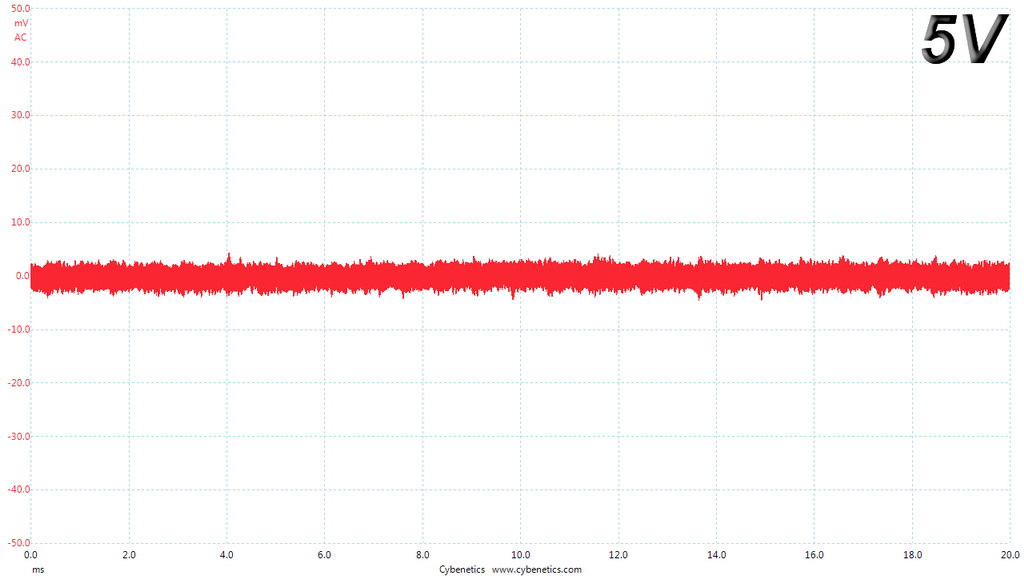

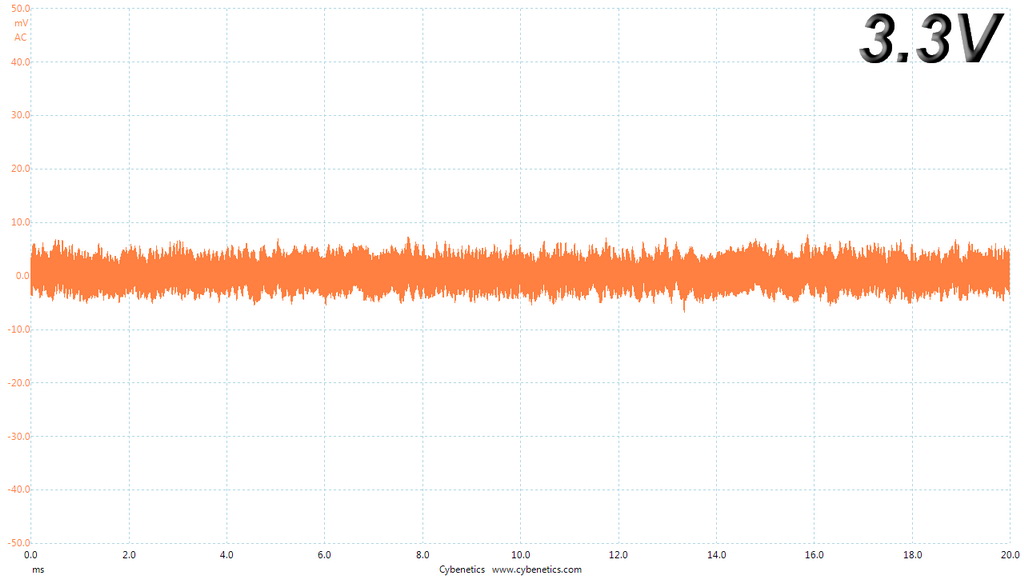

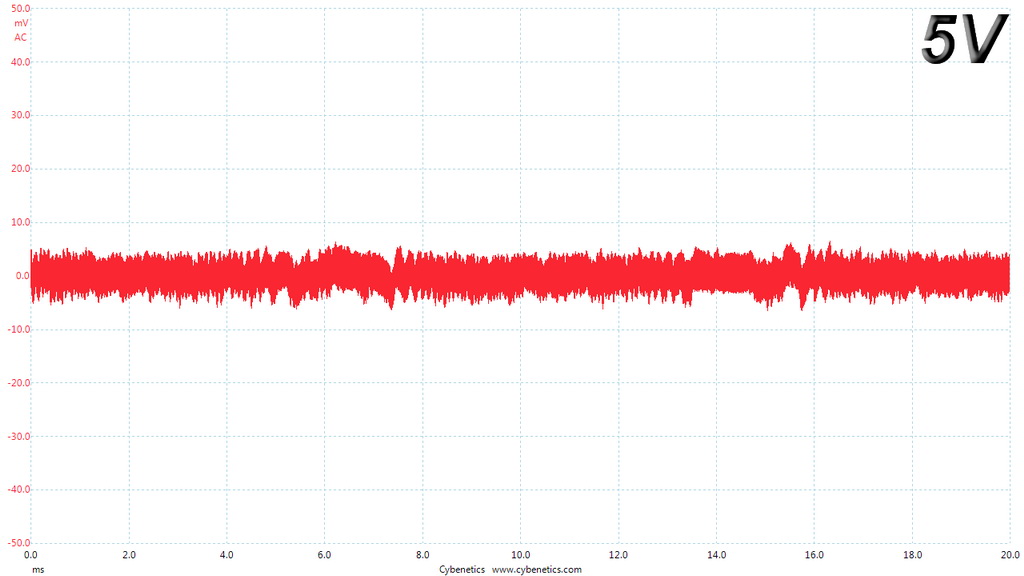

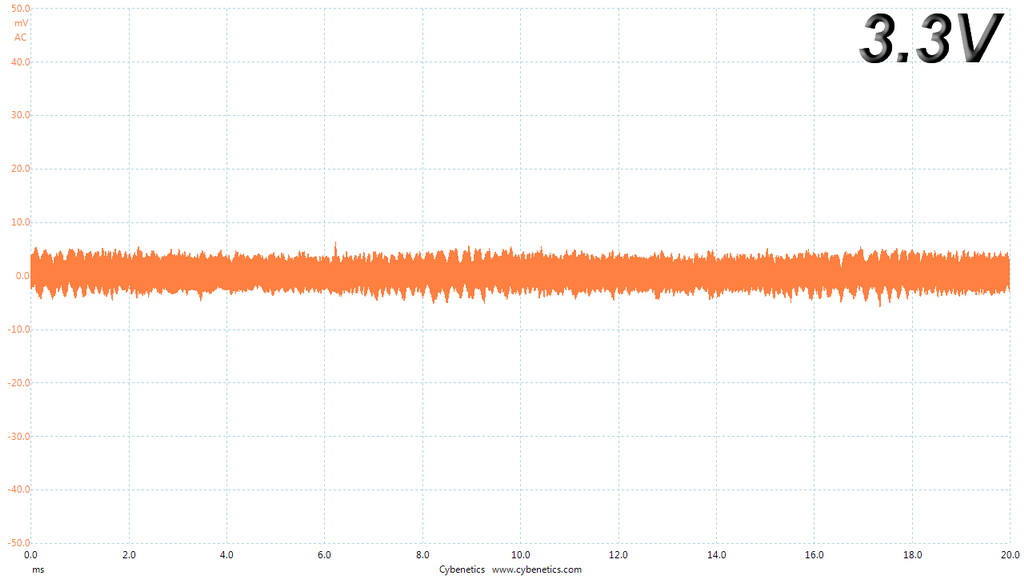

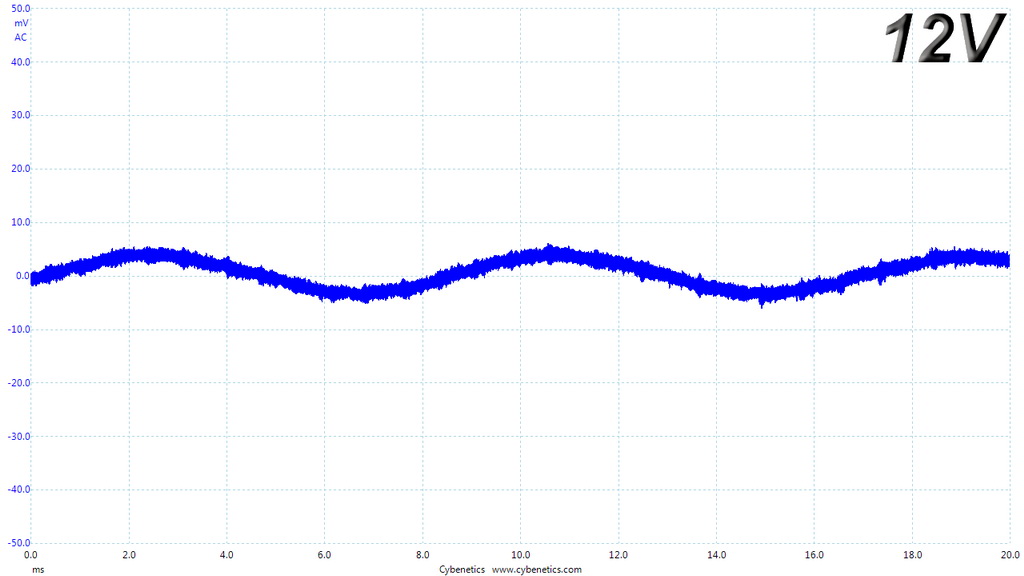

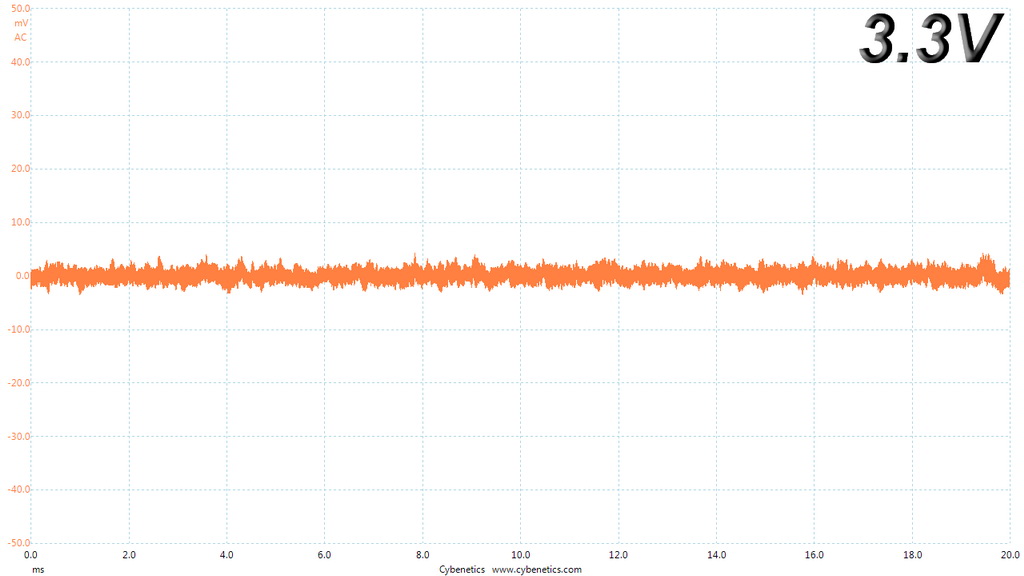

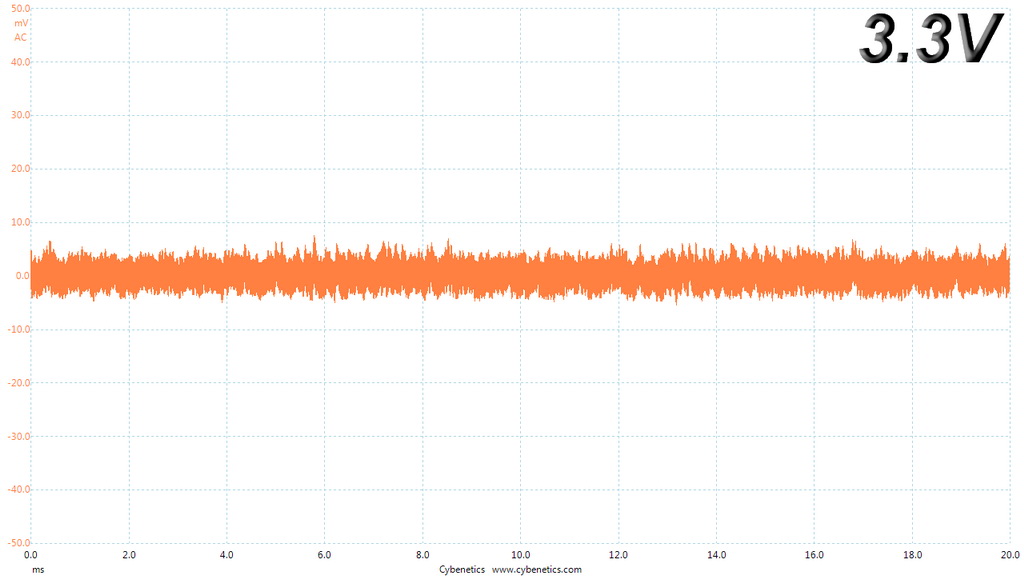

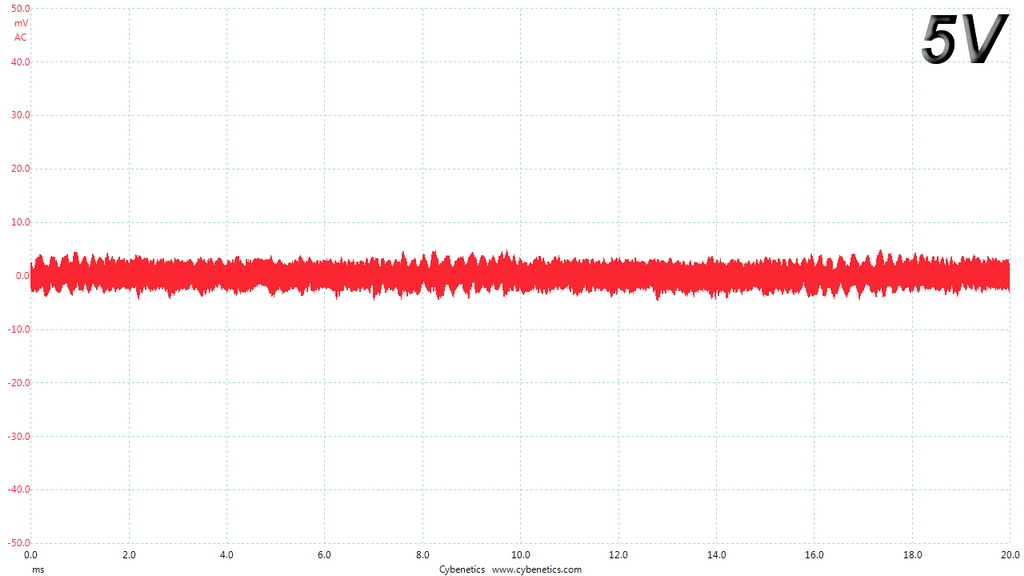

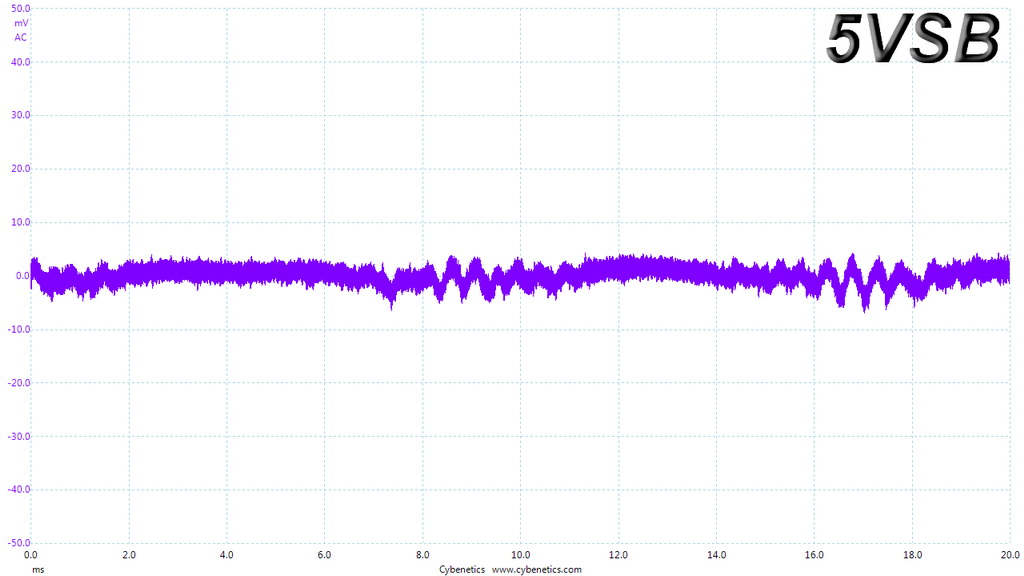

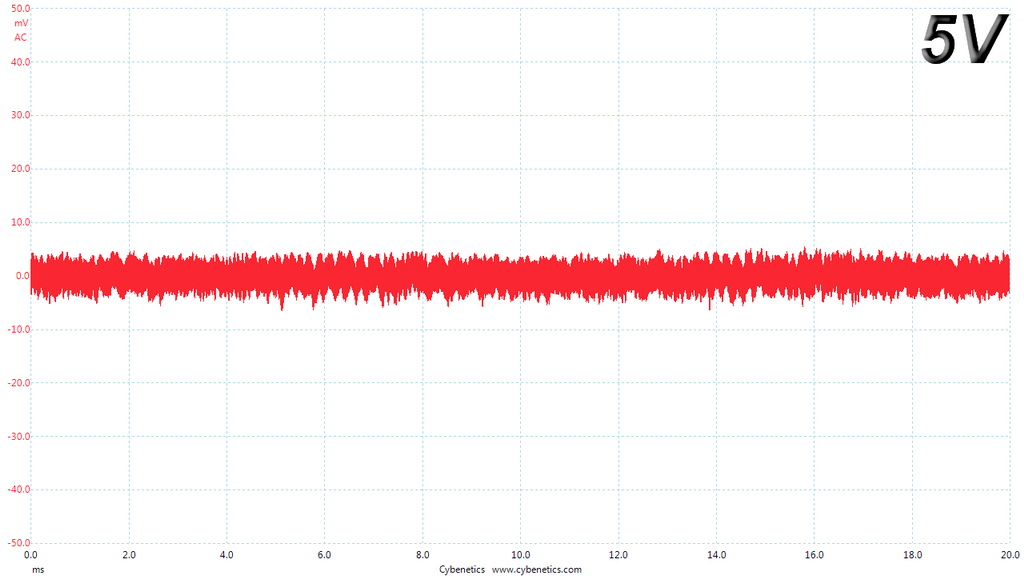

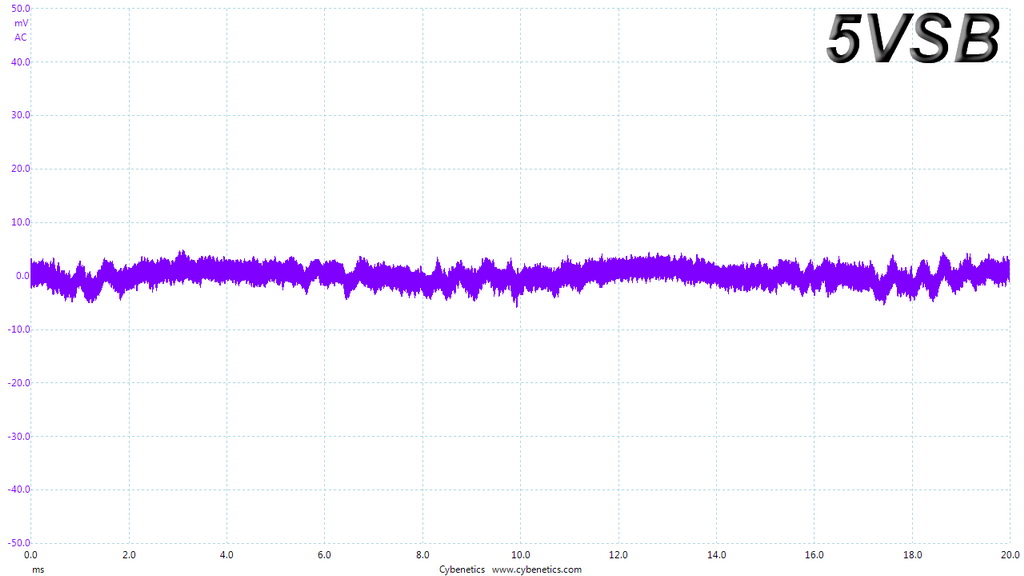

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

Ripple At Full Load

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Ripple At 110-Percent Load

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Ripple At Cross-Load 1

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Ripple At Cross-Load 2

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4


MORE: Best Power Supplies


MORE: How We Test Power Supplies


MORE: All Power Supply Content
