Corsair RM850x SHIFT 850W power supply review: Platinum performance at Gold pricing

Corsair has established its market position through calculated innovation rather than incremental refinement. While competitors obsessed over efficiency percentages and cable braiding aesthetics, Corsair questioned fundamental assumptions about power supply integration. The result stands before us: the RM850x SHIFT, a unit that literally shifts the paradigm by relocating modular connectors from their traditional rear position to the left chassis side, enabling direct cable routing behind the motherboard tray. Will this innovation be enough to edge out its competition? We put the RM850x SHIFT through its paces to determine if it earns a spot on our Best Power Supplies list.

The RM850x SHIFT's architectural transformation represents more than aesthetic ambition. By repositioning connectors perpendicular to conventional orientation, Corsair eliminates visible cable management challenges entirely, assuming builders possess cases specifically designed to accommodate this radical departure from standard PSU layouts. The gamble here is not technical. Rather, Corsair bets that a substantial segment of enthusiast builders will prioritize cable management perfection enough to accept reduced case compatibility.

The 2025 revision of the RM850x SHIFT builds upon the foundation established by the original 2023 model. It adheres to Intel ATX 12V v3.1 and PCIe 5.1 specifications, achieving Cybenetics Platinum certification that promises efficiency exceeding 91% at nominal loads. Strangely, Corsair markets this unit under Gold certification, likely to avoid internal competition with their HX series despite the unit's actual Platinum-level performance. At retail pricing around $180, the RM850x SHIFT occupies an interesting position. It costs more than several conventional Gold units but delivers efficiency and electrical performance exceeding its certification while offering cable management innovations that conventional designs are simply unable to.

Specifications and Design

In the Box

The Corsair RM850x SHIFT arrives in packaging featuring the company's signature black and yellow aesthetic theme that has become synonymous with Corsair products. The sturdy cardboard construction provides substantial protection during transport. Inside, a protective pouch and carefully designed cardboard inserts cradle the unit securely.

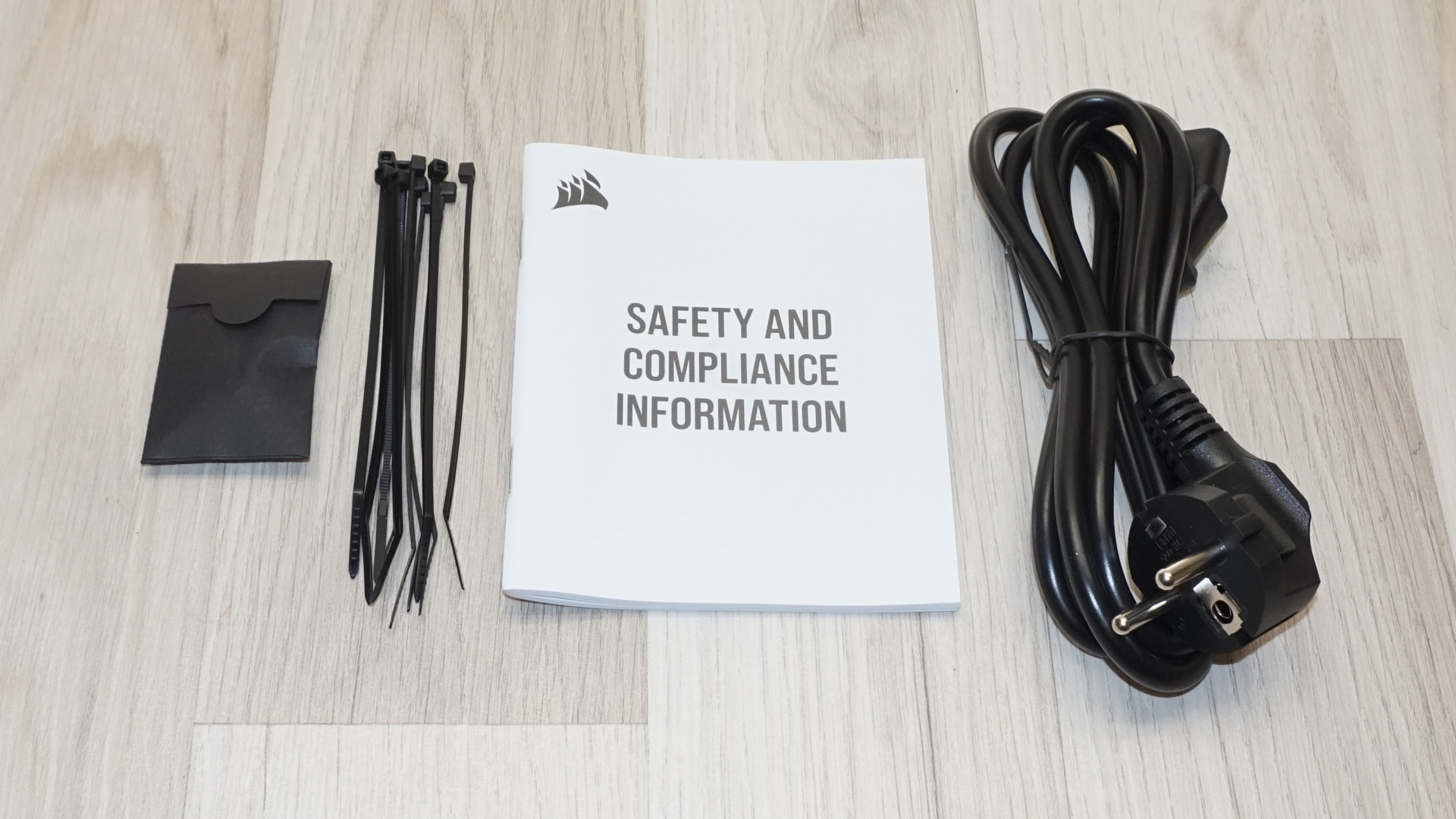

The accessory bundle remains rudimentary, including almost only the bare essentials. Corsair provides standard mounting screws, an AC power cable, and a few cable ties. The company has moved toward paper bags instead of plastic where possible, a minor but appreciated environmental consideration.

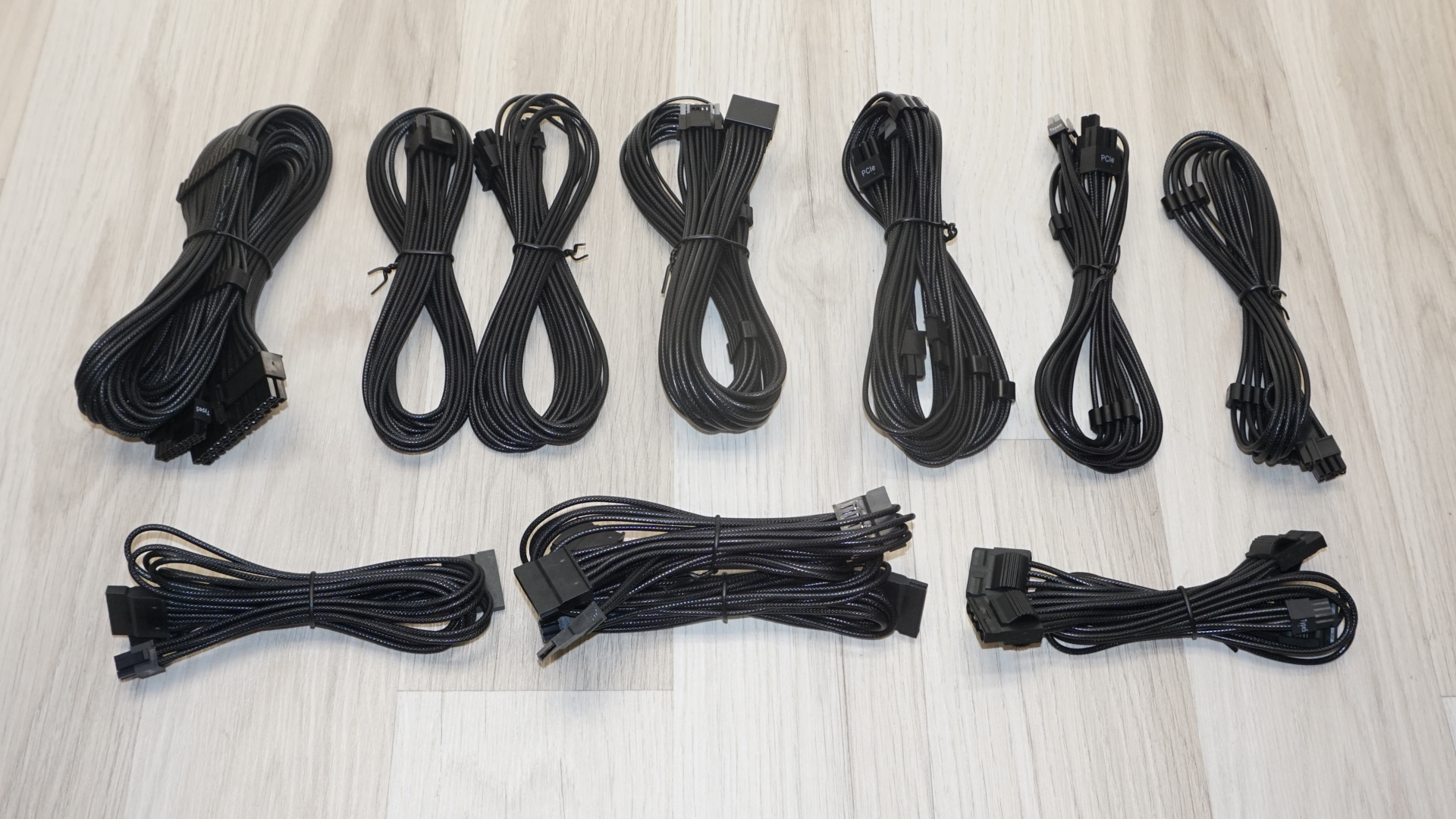

The cable situation deserves extensive discussion, as Corsair has implemented their proprietary Type-5 cable system throughout the RM850x SHIFT. Every cable features all-black construction with matching connectors and conductors, employing ribbon-line flat cables with per-wire sleeving that provides visual appeal without the bulk of traditional braided solutions. More significantly, these cables utilize smaller connectors on the PSU side, the same type employed by the 12V-2x6 plug.

The connector configuration reveals strategic decisions about target audience. The unit provides a single 12V-2x6 connector capable of delivering up to 600W to compatible graphics cards, alongside four traditional 6+2 pin PCIe connectors for broader compatibility. Corsair implements these four connectors across three cables: two of the 6+2 PCIe connectors have dedicated cables, while the third cable carries two connectors.

External Appearance

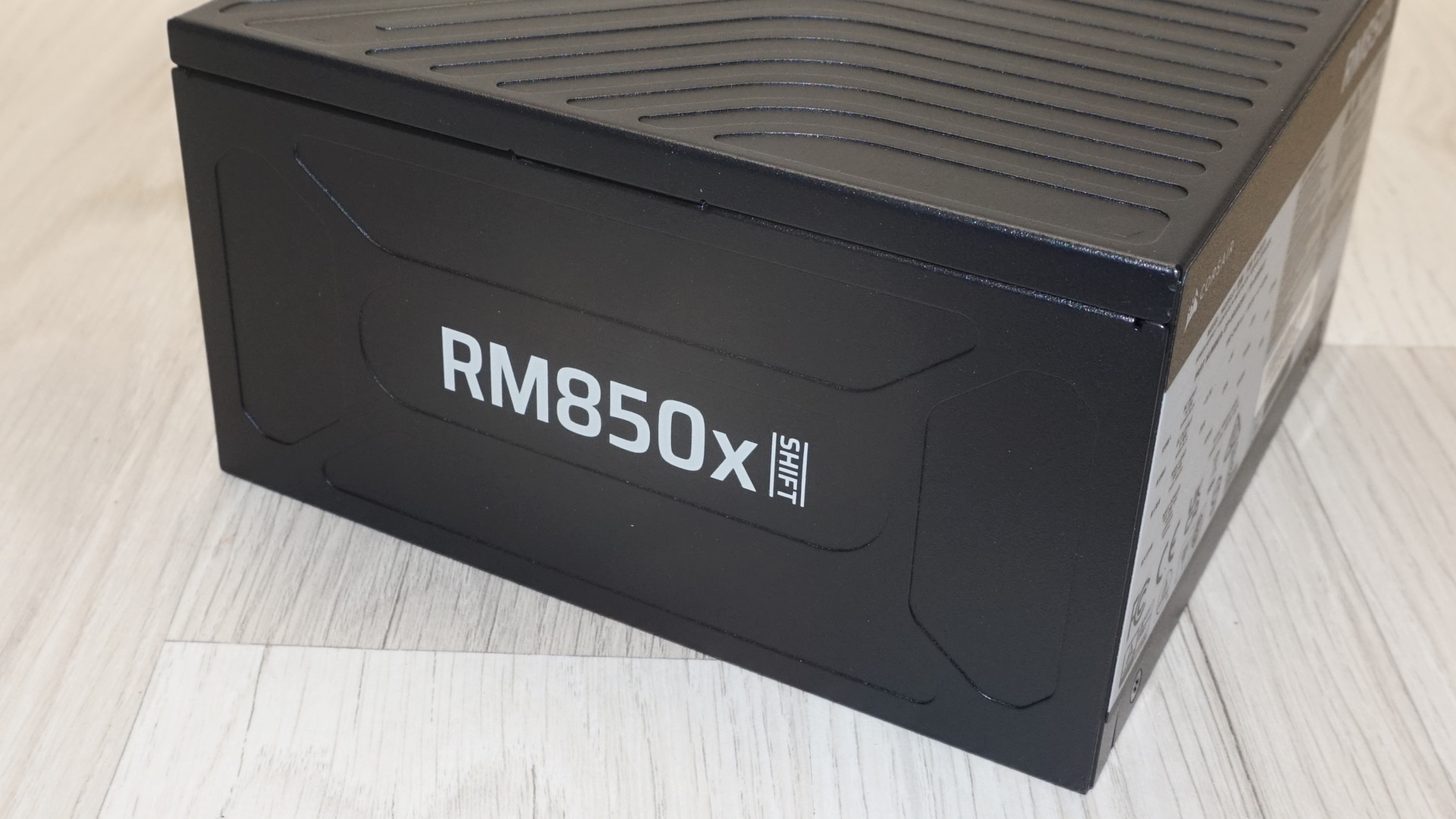

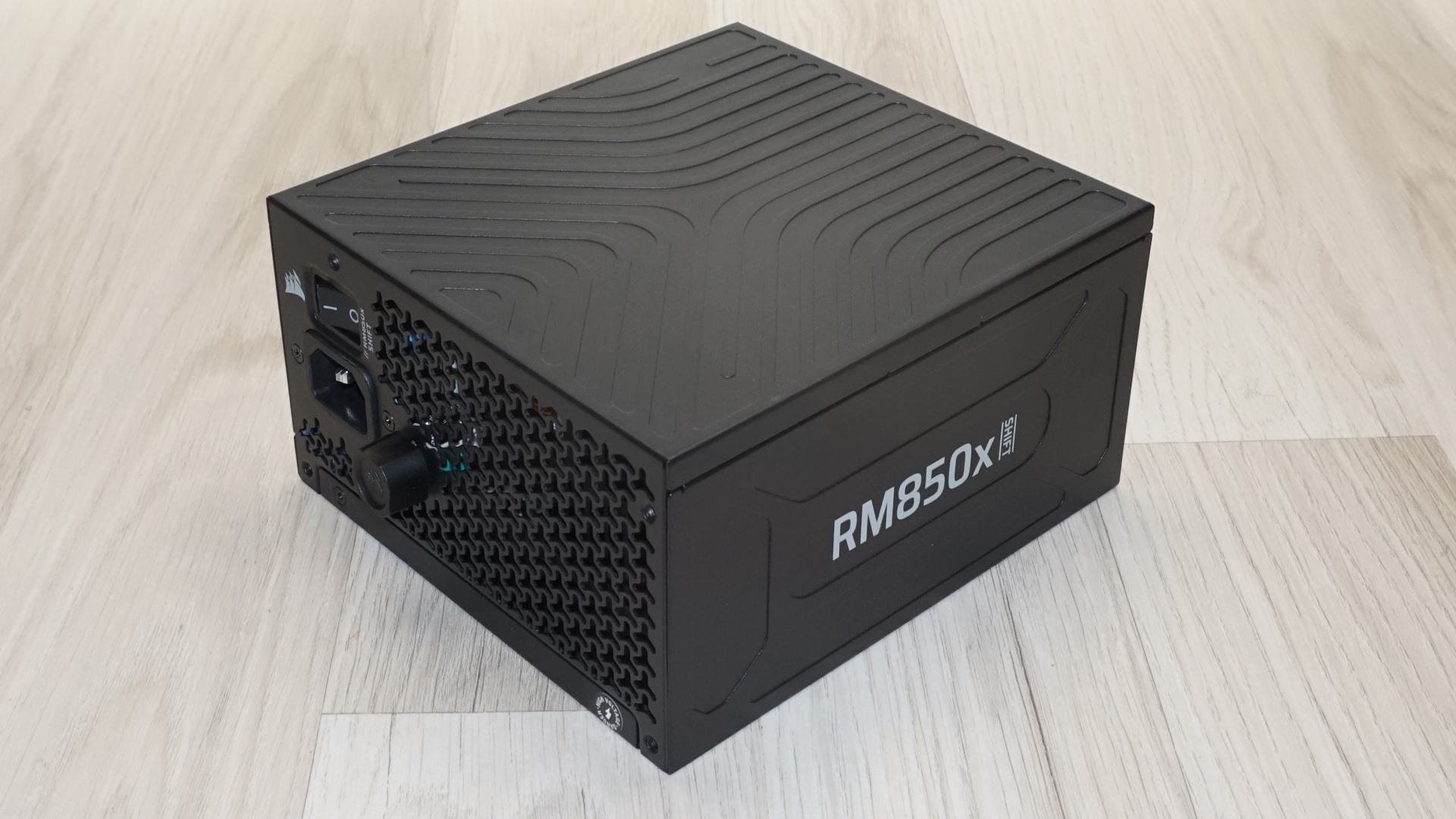

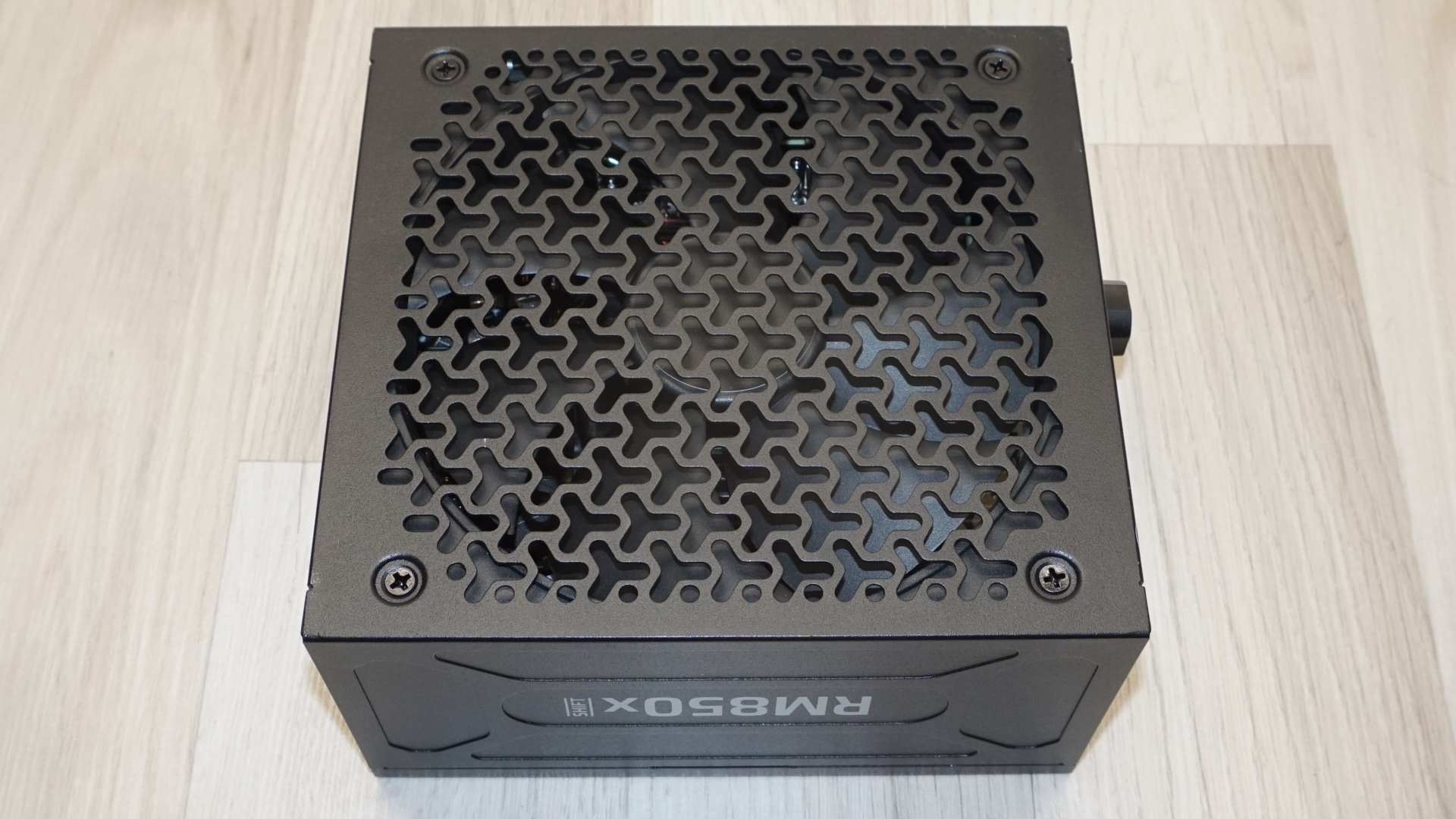

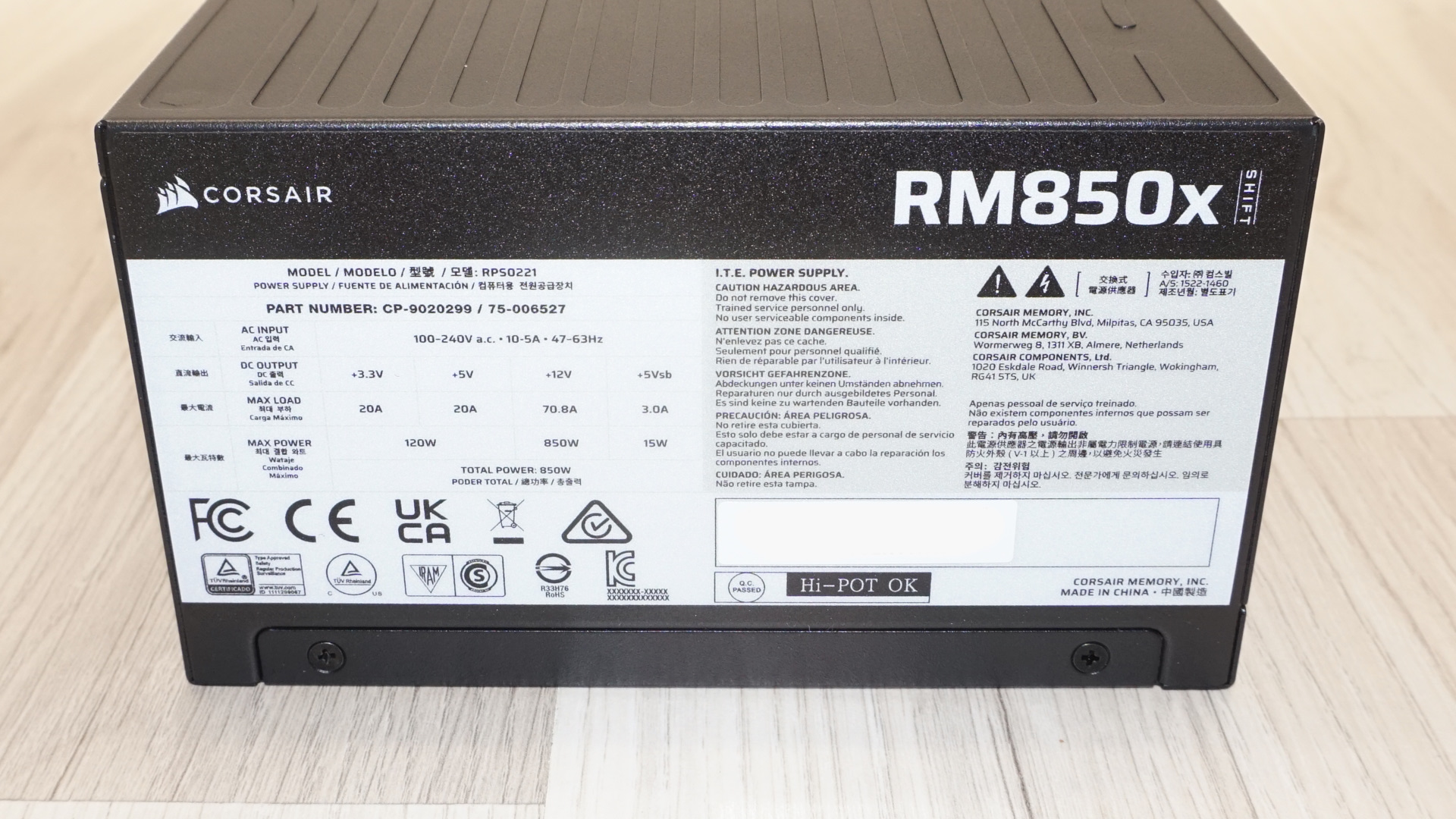

Corsair designed the RM850x SHIFT to combine functional innovation with understated visual flair. The chassis receives a matte black paint finish that demonstrates excellent quality, resistant to fingerprints and casual scratching while finished to tolerances that eliminate any trace of budget manufacturing techniques. At 160mm depth, the RM850x SHIFT extends slightly beyond typical ATX dimensions but the design of the unit itself warrants a case compatibility check regardless of its length.

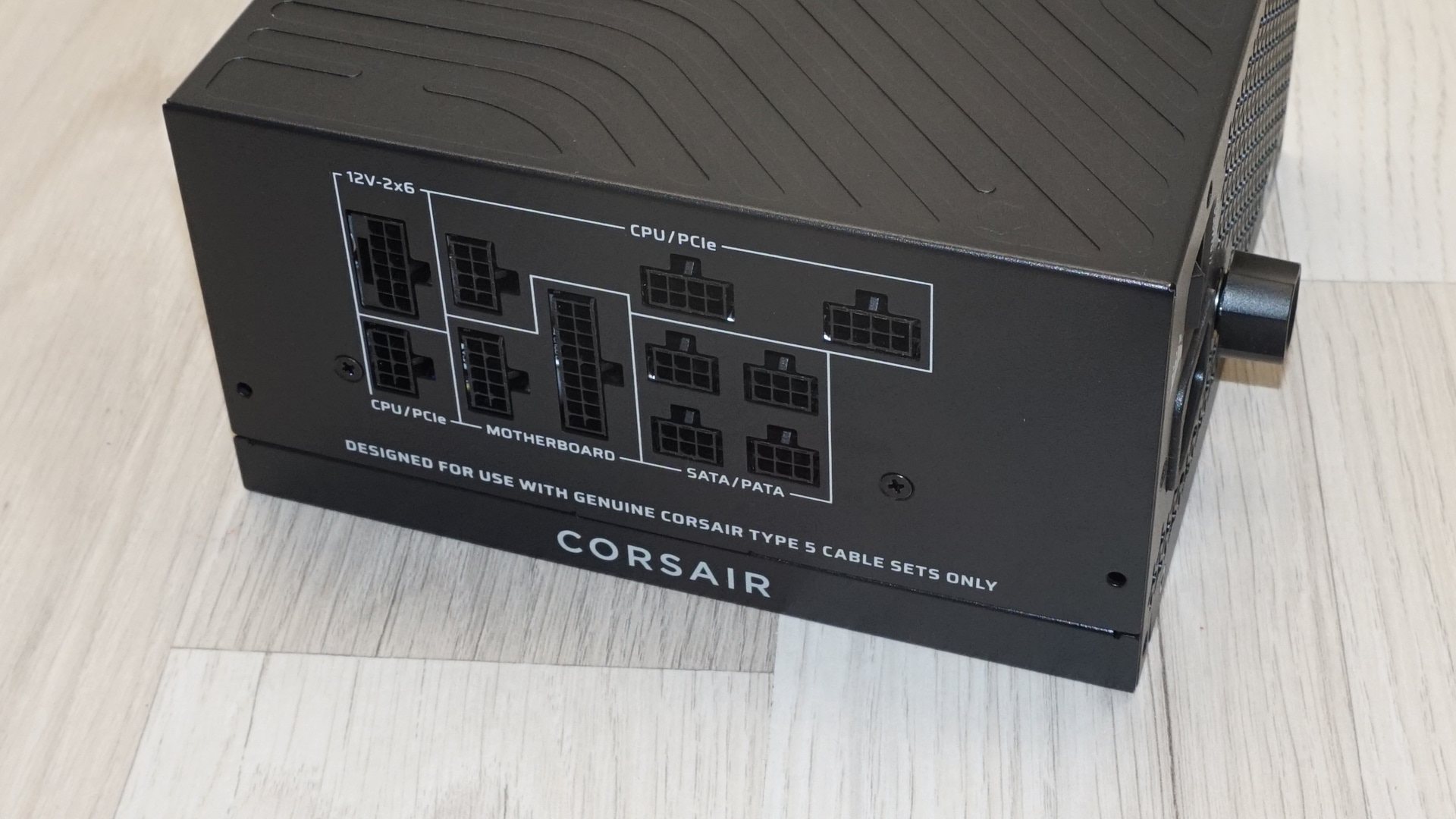

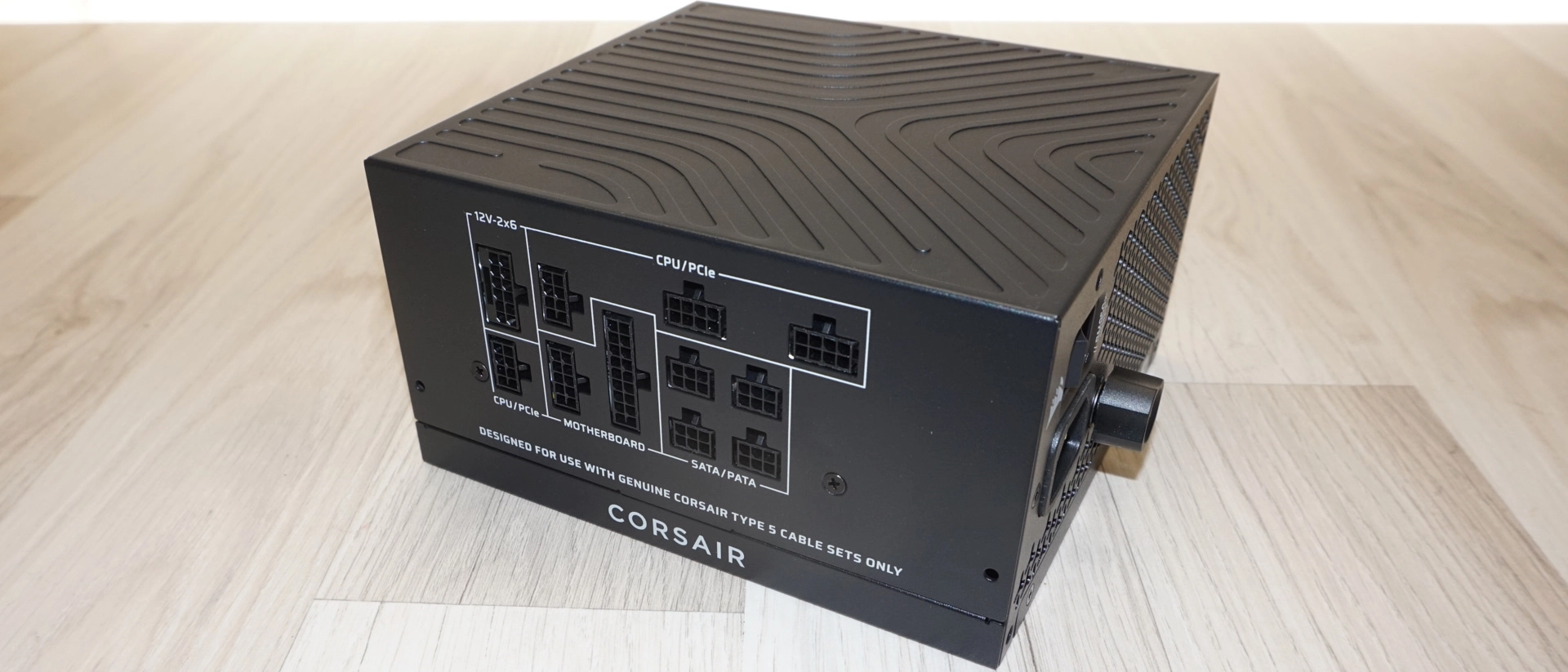

The shifted modular panel mounted on the left side represents the defining feature, dramatically altering cable routing geometry compared to traditional rear-mounted configurations and necessitating compatibility verification. This placement allows cables to exit directly toward cable management channels behind the motherboard tray, but only in cases specifically designed to accommodate this unconventional layout. Corsair recommends at least 30mm clearance on the PSU's left side for proper cable routing.

Image 1 of 2

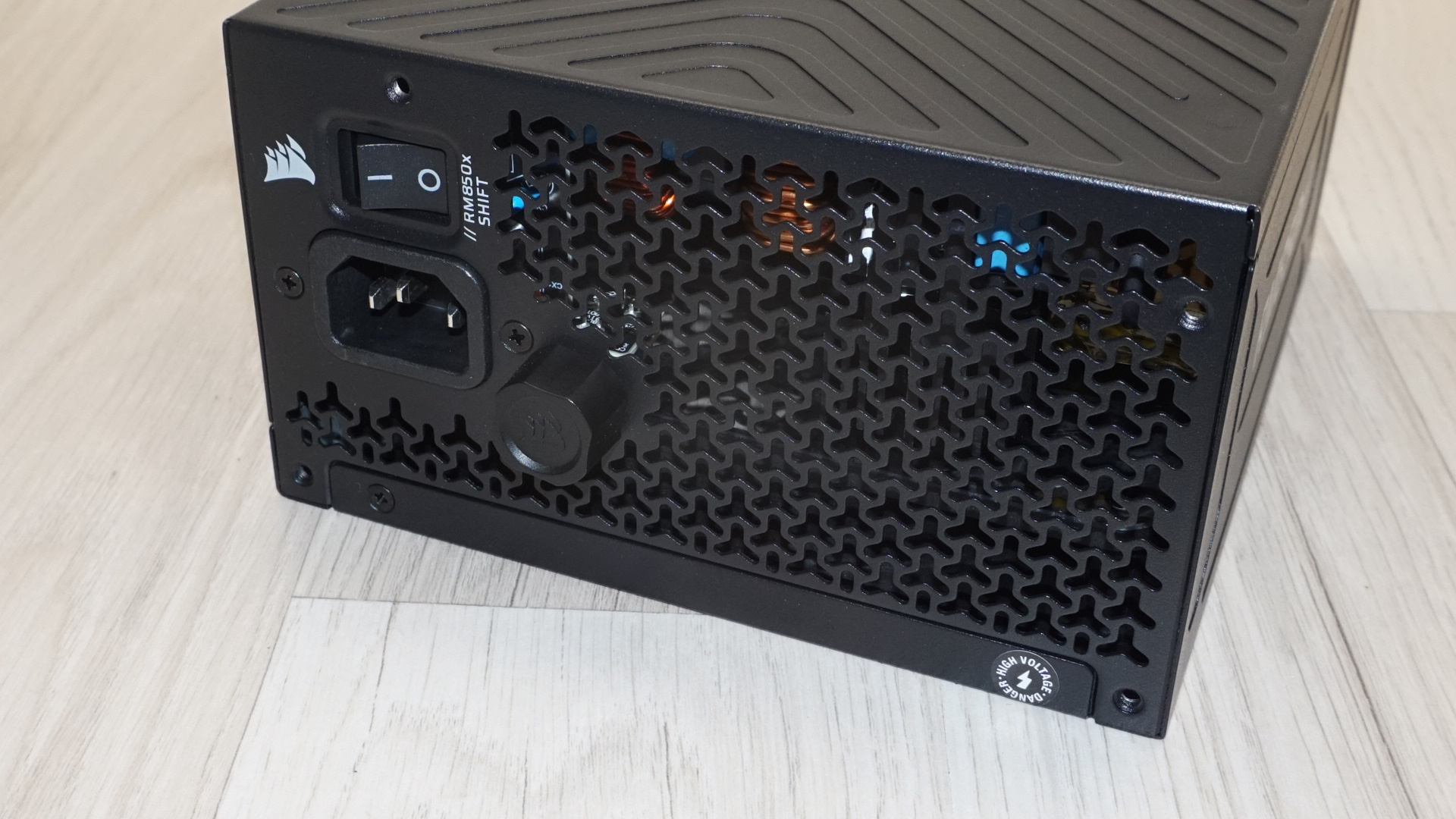

The front panel has a standard AC receptacle and on/off switch, as well as a fan speed control knob. This represents the most visible external difference from the previous SHIFT model, which lacked direct fan control beyond its programmed zero-RPM behavior. The control knob switches the fan from “Auto” (when all the way down) to a manual mode that forces the fan to continuously at a user-defined speed. If that user-set speed is too low to keep the unit functioning safely, it will force the fan to speed up. A decorative etched logo adorns the right side panel, while the fan grille integrated into the top surface features a distinctive fidget spinner pattern cutout design. The same geometric motif appears covering the chassis top. The rear panel hosts the electrical specifications and certifications sticker. The left side panel presents the modular connector array with subtle printed legends identifying each socket's purpose. These Type-5 connectors are notably smaller than conventional modular connections.

Image 1 of 2

Internal Design

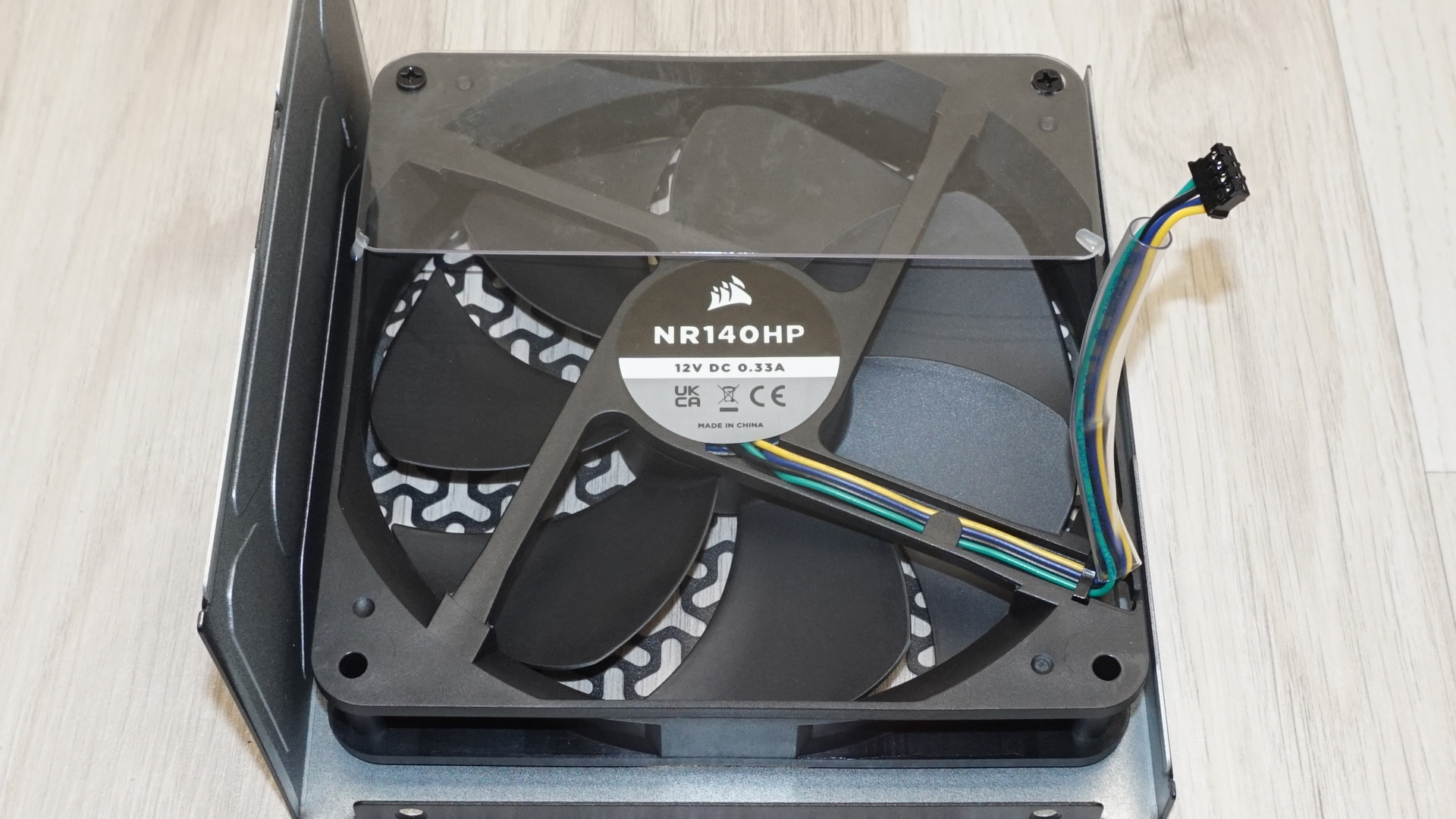

A Corsair NR140HP 140mm fan equipped with a fluid dynamic bearing engine handles thermal management duties. FDB technology represents the premium tier of fan bearing designs, offering exceptional reliability and remarkably quiet operation compared to sleeve or rifle bearing alternatives. These fans maintain low acoustic signatures even at elevated speeds while delivering MTBF figures that support Corsair's ten-year warranty confidently. While Corsair has not published detailed specifications for this particular fan model, testing reveals maximum rotational speeds approaching 2200-2300 RPM, a capability that the unit's thermal control circuitry ensures remains untapped during typical operating conditions.

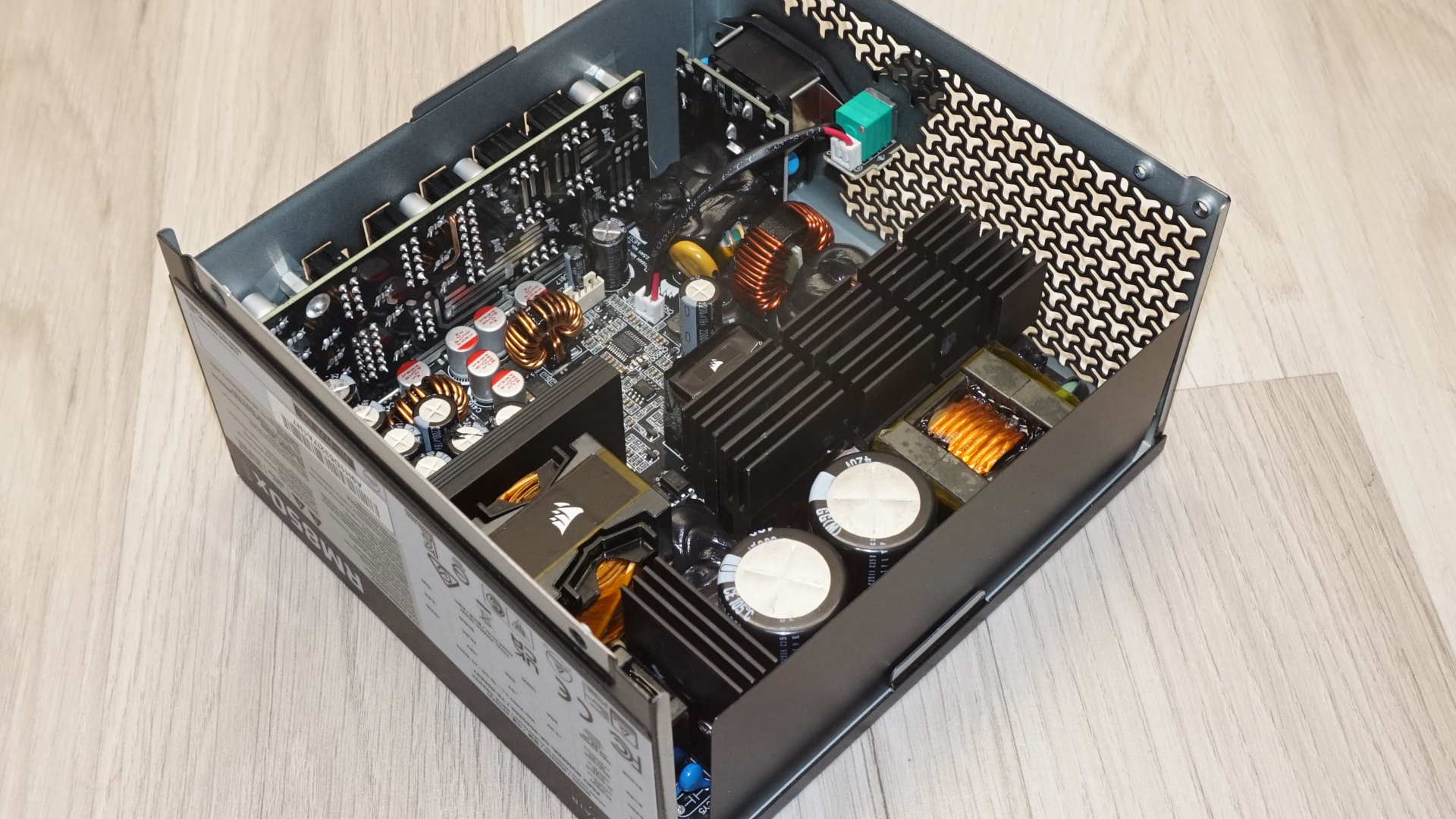

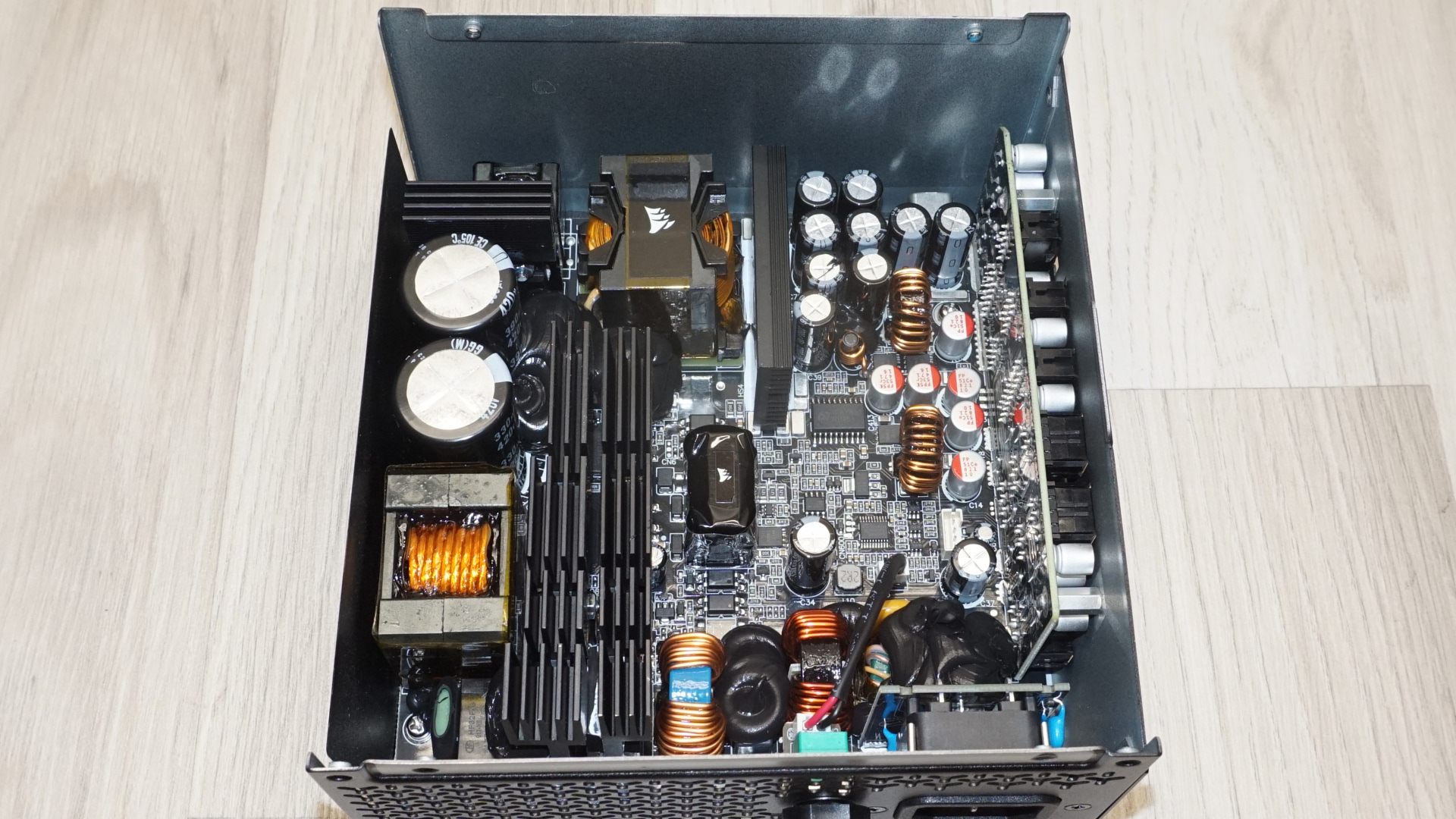

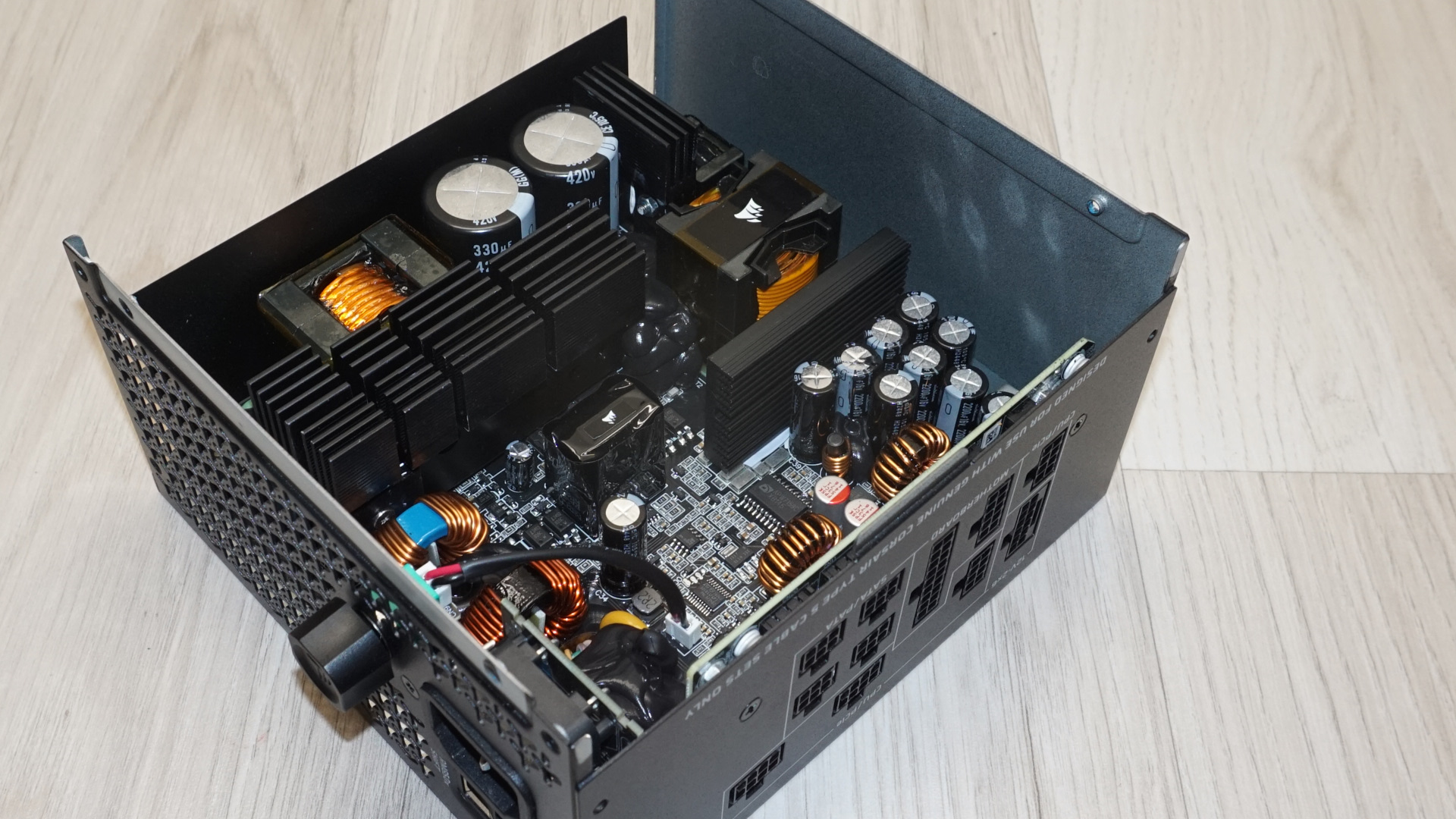

Great Wall serves as the OEM behind this platform, a choice that brings decades of experience designing mid-to-top tier power supplies for numerous brands. This heavily distinguishes this version from the 2024 variant, which Channel-Well Technology manufactures. The Chinese manufacturer's engineering prowess has graced many enthusiast-grade products, establishing them as a capable partner for premium PSU development. The core design philosophy here does not deviate dramatically from conventional high-end units. Active PFC, synchronous rectification, and DC-to-DC conversion for minor rails all appear as expected. However, the PCB orientation rotates 90 degrees clockwise to accommodate the side-mounted connector arrangement. This seemingly simple transformation actually demands comprehensive redesign, as component placement, heat dissipation paths, and electrical routing all shift to maintain performance within the altered geometry.

Image 1 of 2

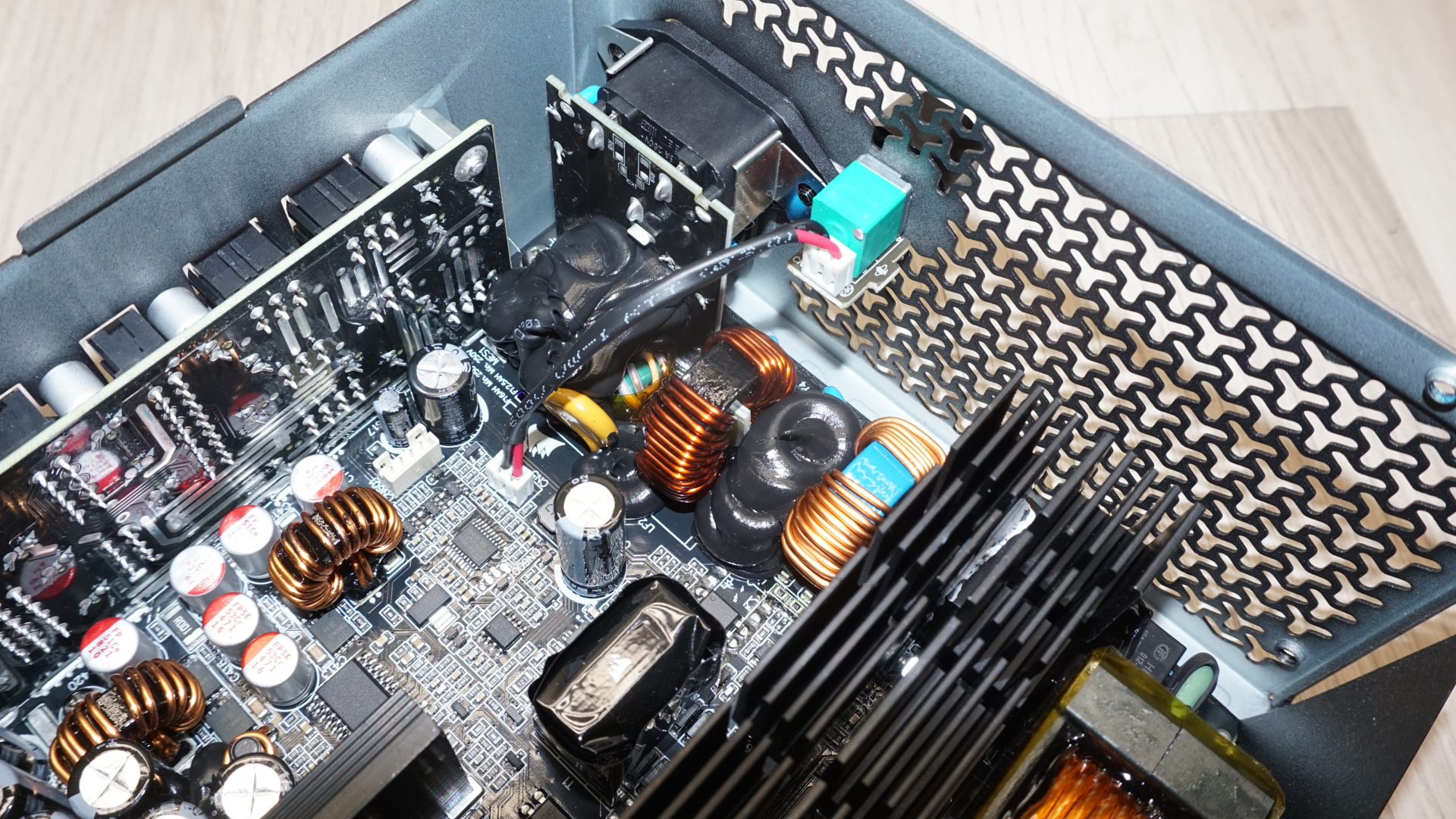

The input filtering stage implements adequate protection with six Y capacitors (four Y capacitors according to some specifications), two X capacitors, and two filtering inductors. Two rectifying bridges mount on a sizable heatsink immediately following filtration, providing thermal management for these critical components. The APFC circuitry employs a straightforward approach to power factor correction. Two STM 33N60DM2 MOSFETs handle primary active PFC duties alongside a diode. One encased inductor paired with two Nichicon capacitors (390 μF and 330 μF) form the passive components of the APFC circuit.

Image 1 of 2

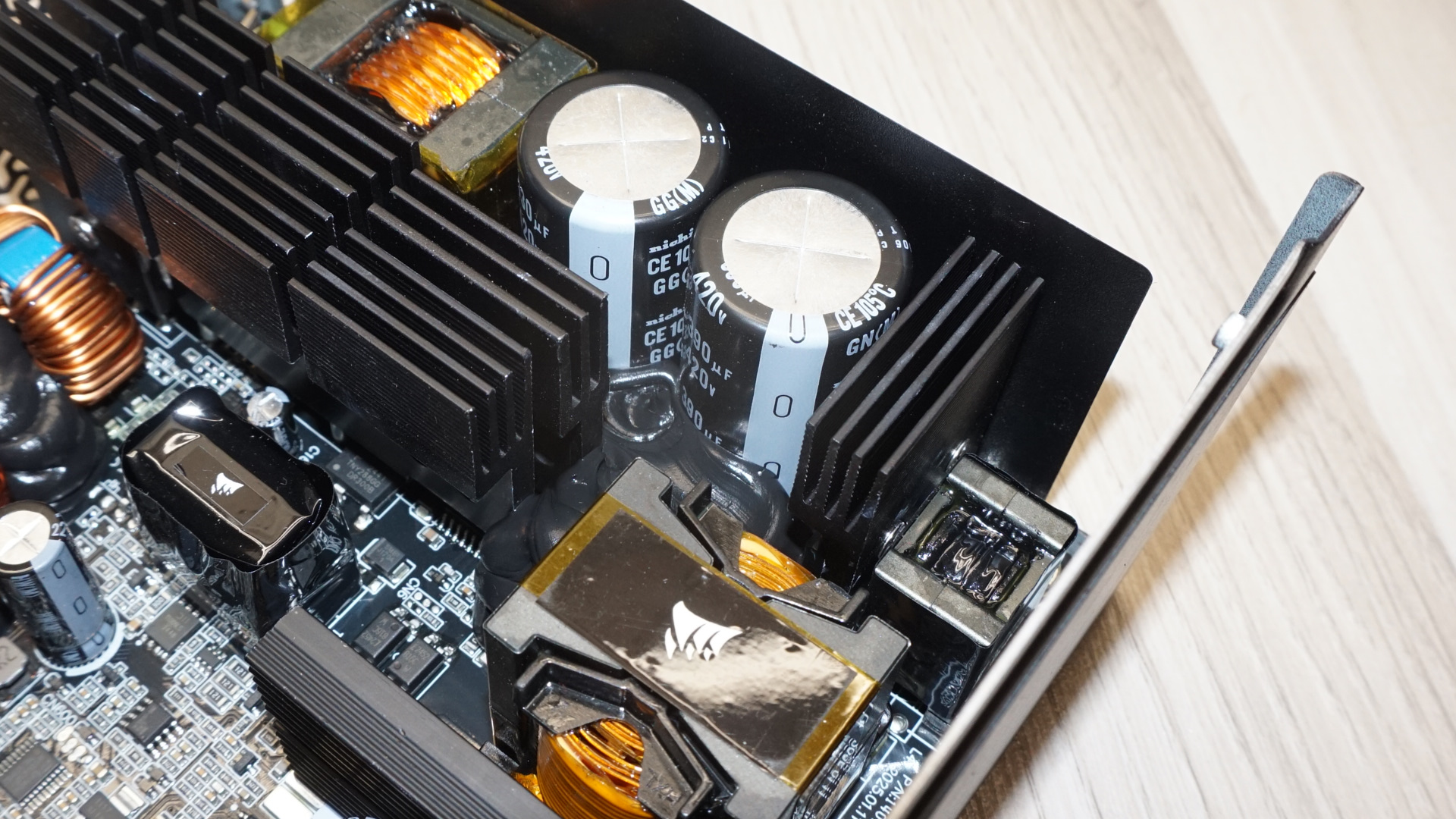

The primary inversion stage employs two STM MOSFETs identical to those used for the PFC circuit, configured in a half-bridge topology and mounted on substantial heatsinks alongside the APFC bulk capacitors. These heatsinks provide ample thermal dissipation area, suggesting conservative thermal design that prioritizes longevity over minimal material investment. The secondary side implementation places four Toshiba MOSFETs cooled by an odd-looking heatsink for synchronous rectification, generating the primary 12V rail. While only four MOSFETs seems modest compared to flagship units employing eight or ten, the efficient devices prove adequate for 850W output. A separate vertical daughterboard houses DC-to-DC converter circuits that generate the 3.3V and 5V rails from the primary 12V bus.

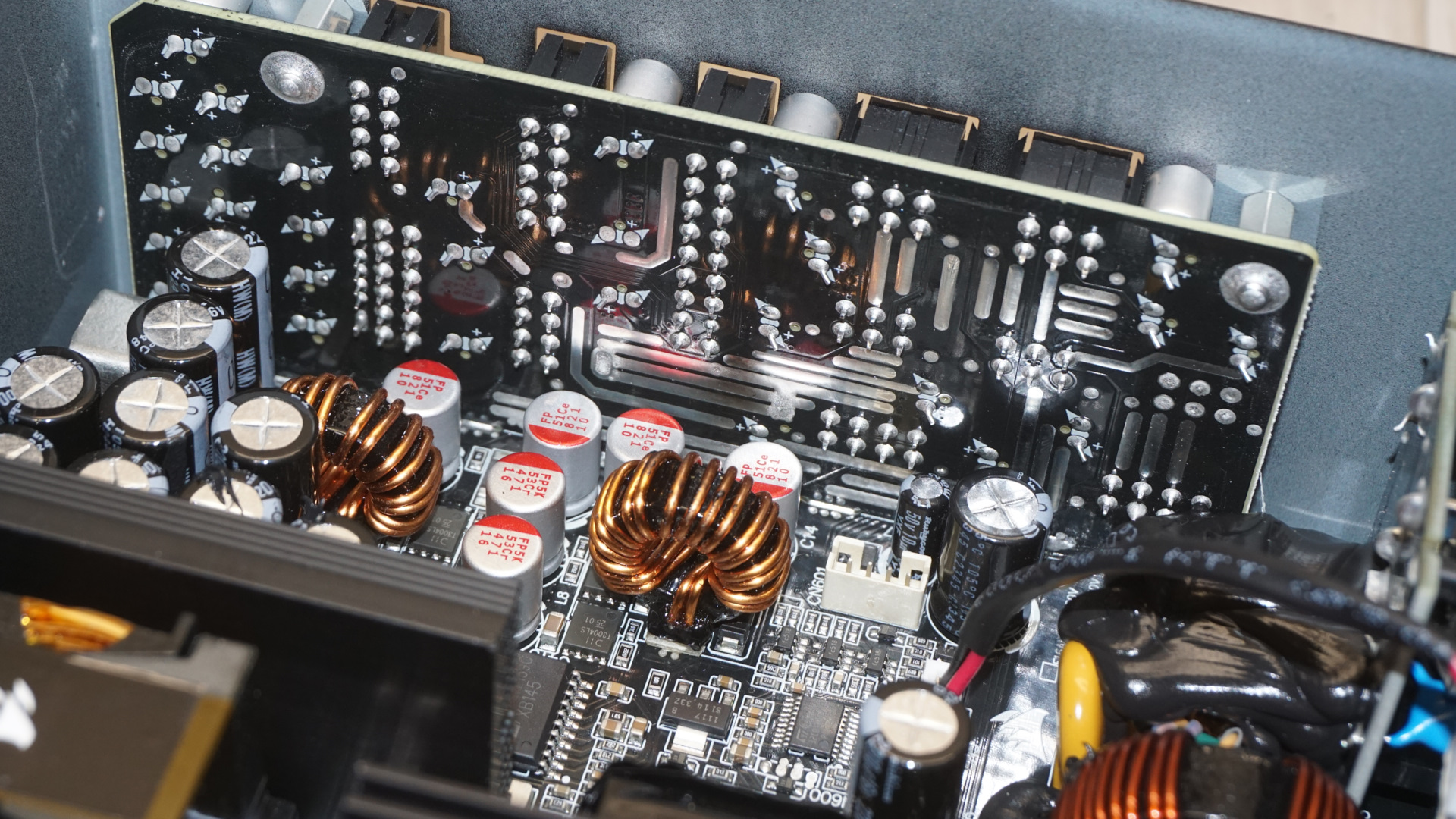

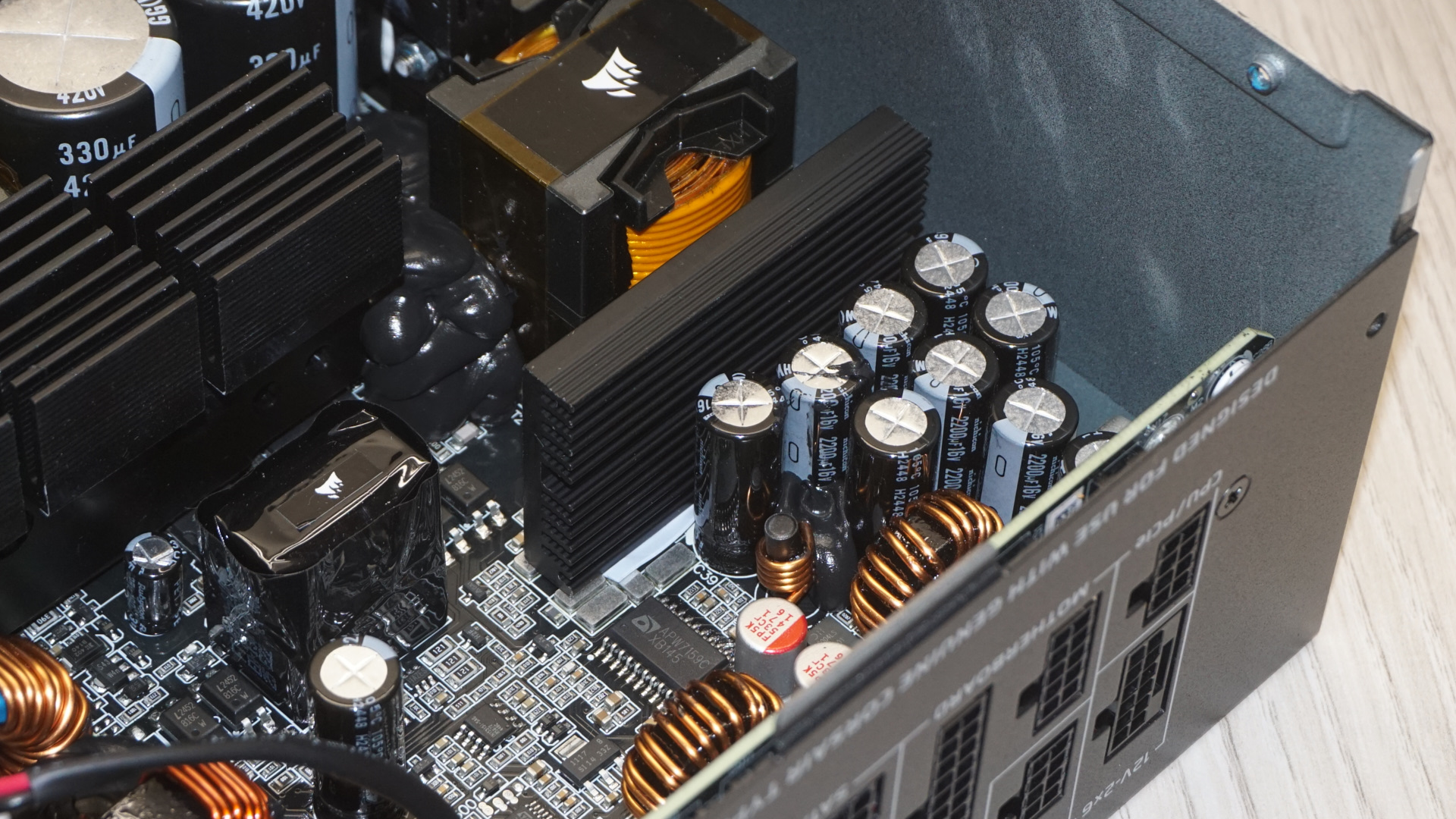

The capacitor selection throughout the secondary side draws predominantly from Nichicon, a very reputable Japanese manufacturer known for reliability and longevity. Only one Rubycon electrolytic capacitor appears, breaking Nichicon's near-complete dominance in this unit. The premium component selection throughout promises long-term stability and performance retention.

One notable architectural decision: the RM850x SHIFT completely omits the -12V rail, recognizing this legacy specification as unnecessary for modern systems.

Cold Test Results

Cold Test Results (25°C Ambient)

For the testing of PSUs, we are using high precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox and various other bits and parts.

Image 1 of 5

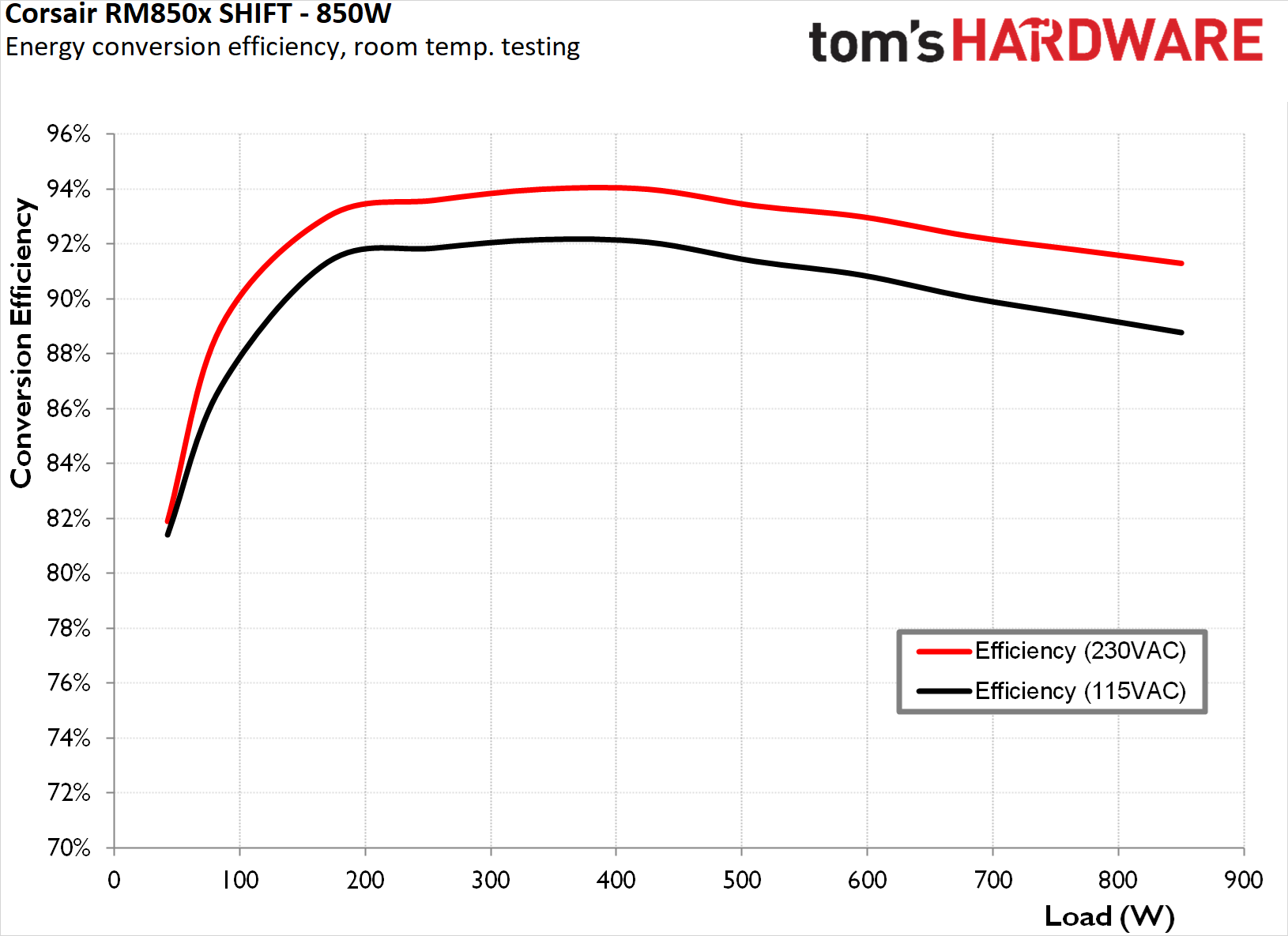

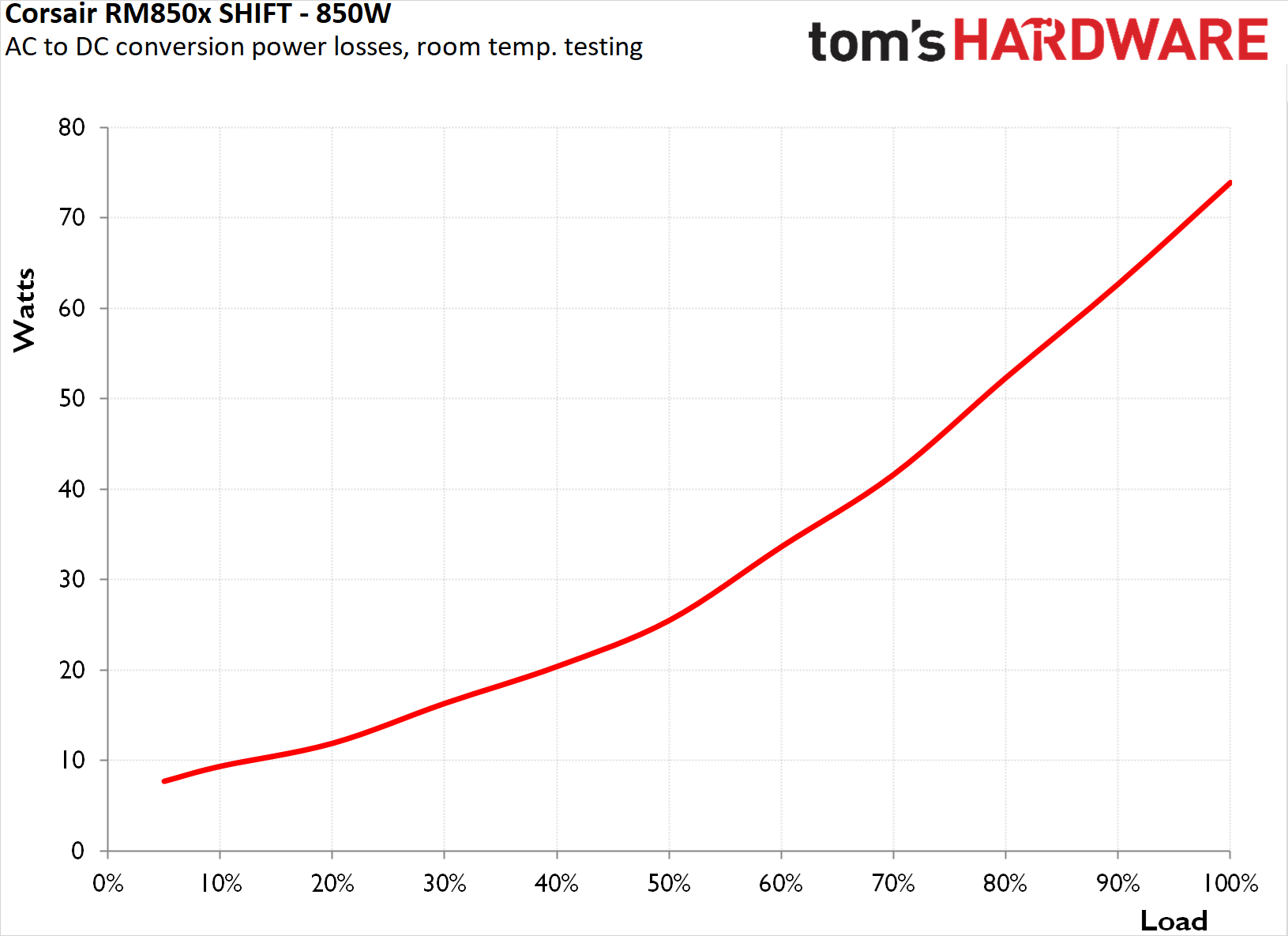

Under controlled cold testing conditions with 25°C ambient temperature, the Corsair RM850x SHIFT delivered efficiency performance that substantially exceeds its Gold certification. At 115 VAC input voltage, the unit achieved an average nominal load efficiency of 90.5%, while 230 VAC input improved performance to 92.5%, figures that comfortably satisfy Cybenetics Platinum certification requirements. The efficiency curve exhibits excellent behavior, peaking at approximately 50% load before declining gradually as power draw increases. This efficiency profile remains remarkably stable across most of the operational range, never dropping precipitously even as loads approach maximum capacity. Very low load efficiency proves quite good as well for an 850W class unit. Compared to the previous version, the 230 VAC efficiency is almost identical but the 115 VAC efficiency has been significantly improved.

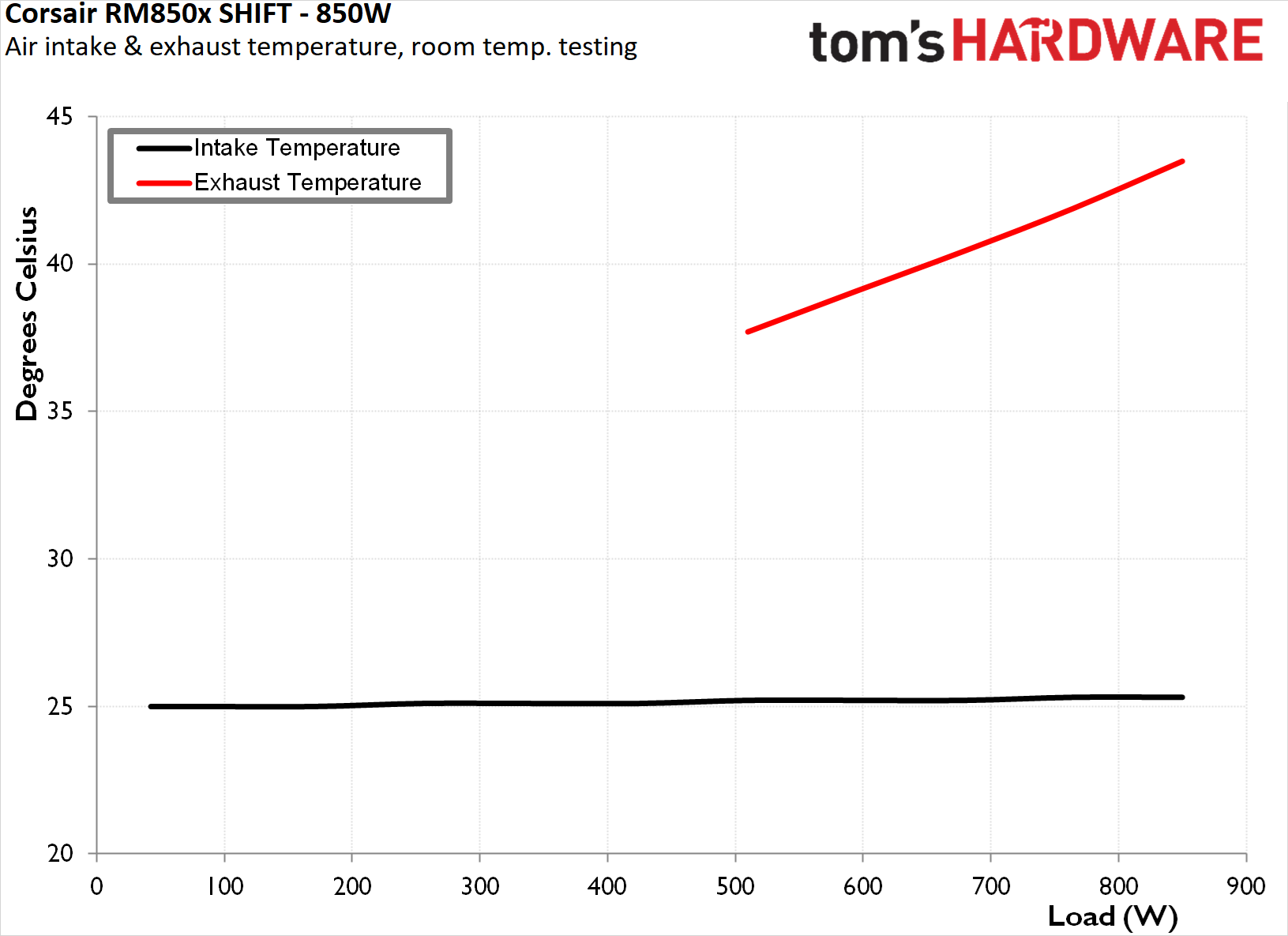

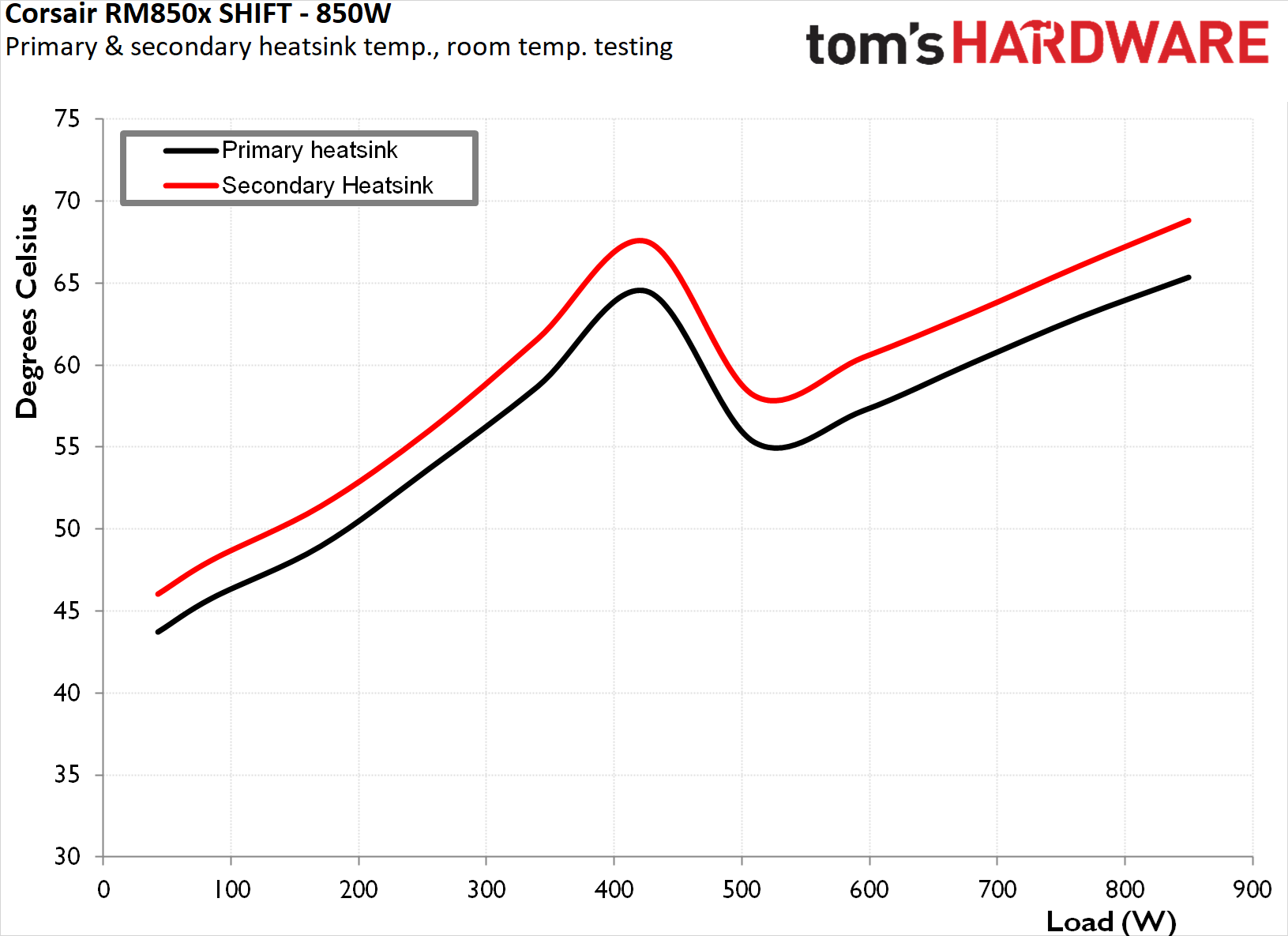

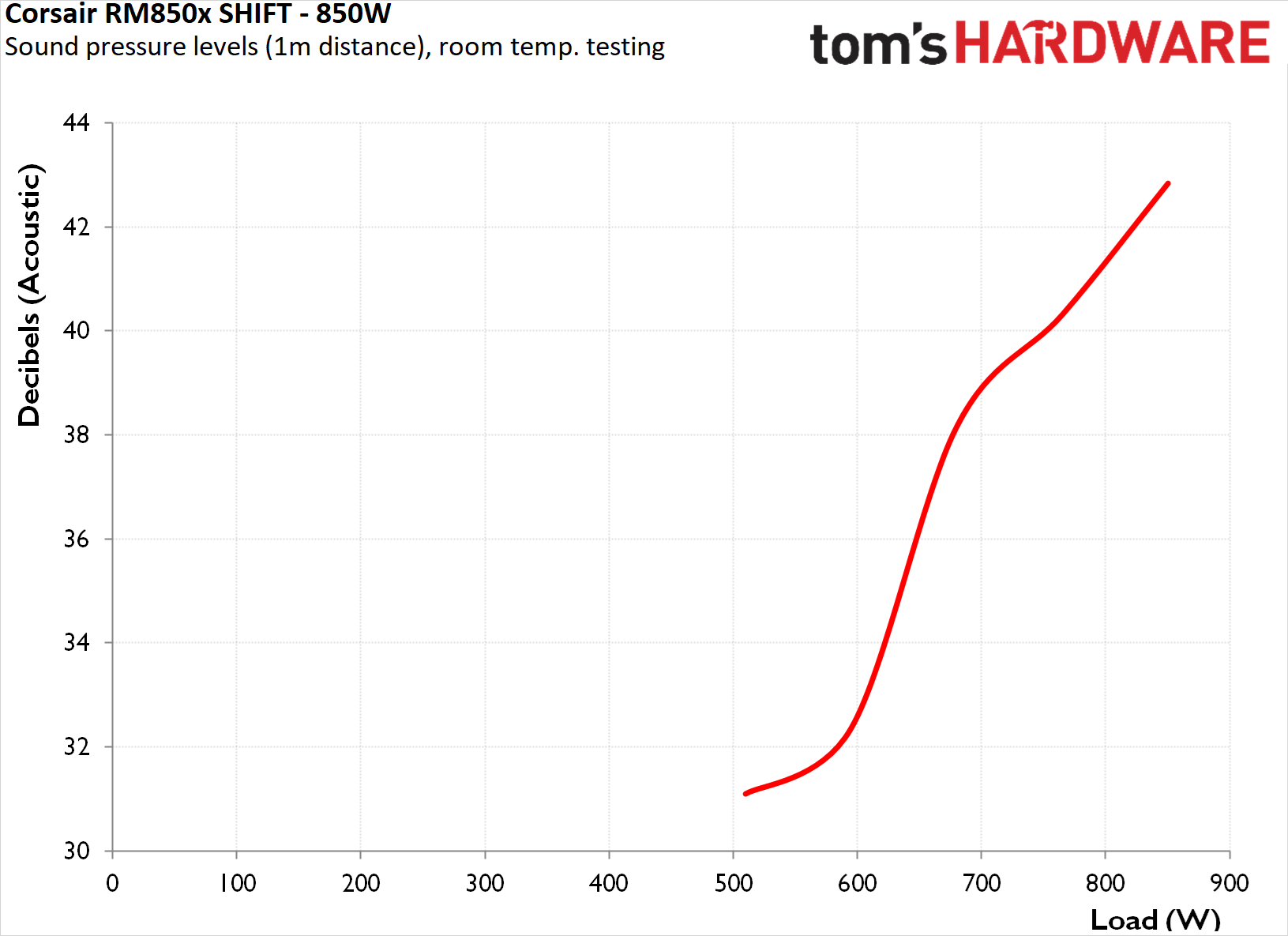

The fan behavior during cold testing reveals sophisticated thermal management programming. The NR140HP fan remains completely inactive until load reaches approximately 500W, activating slowly at first and increasing speed gradually as load increases. This zero-RPM mode ensures virtually silent operation at low and medium loads, a feature increasingly expected in modern power supplies. Even at maximum load, the fan never approaches its maximum 2200+ RPM capability, maintaining remarkably low noise levels that belie the unit's Gold certification. For a Gold-level product, the RM850x SHIFT operates exceptionally quietly. Internal temperatures remain very low throughout testing, indicating that the thermal design provides substantial headroom and that Corsair has prioritized longevity and acoustic comfort over minimal heatsink investment.

Hot Test Results

Hot Test Results (~45°C Ambient)

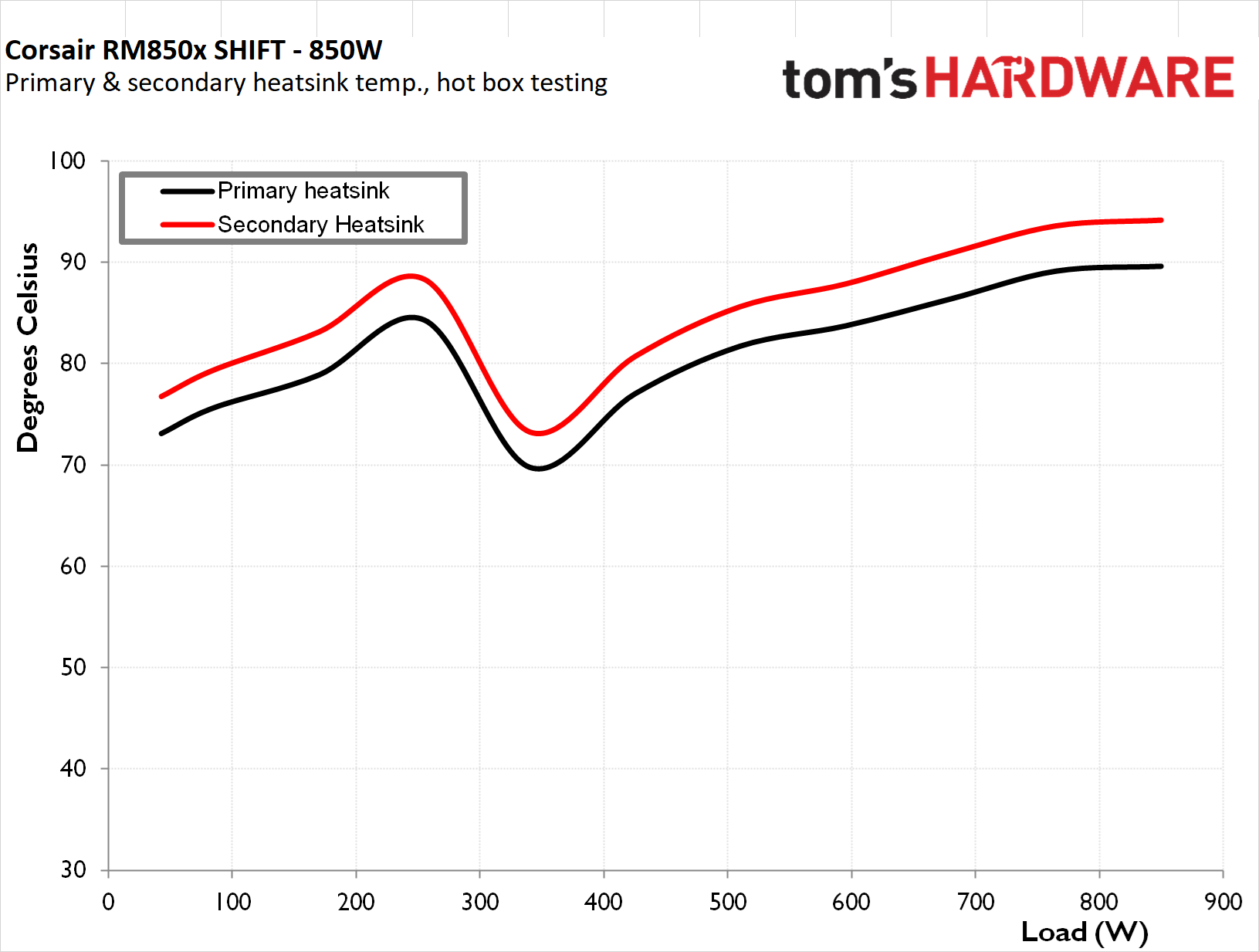

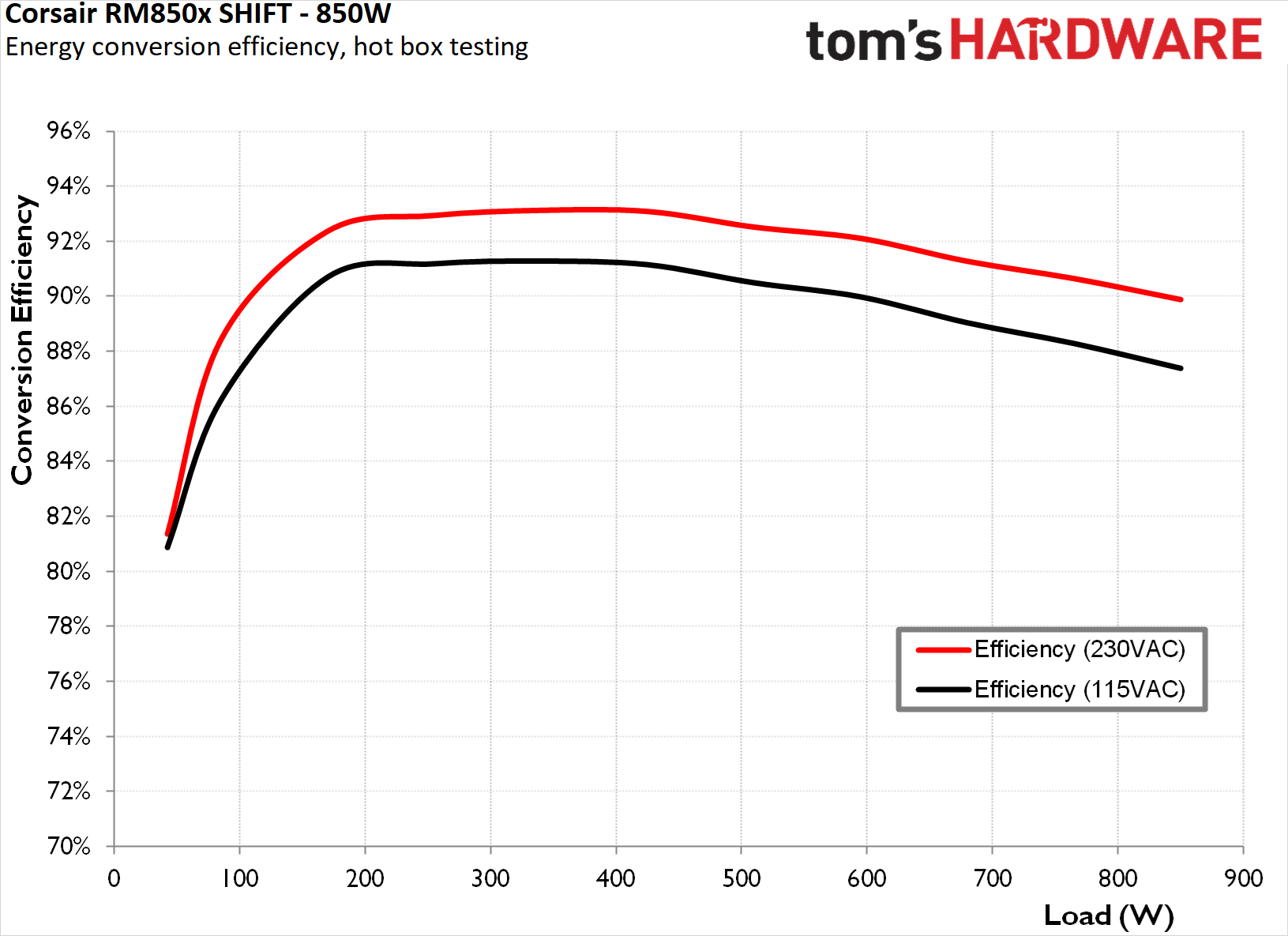

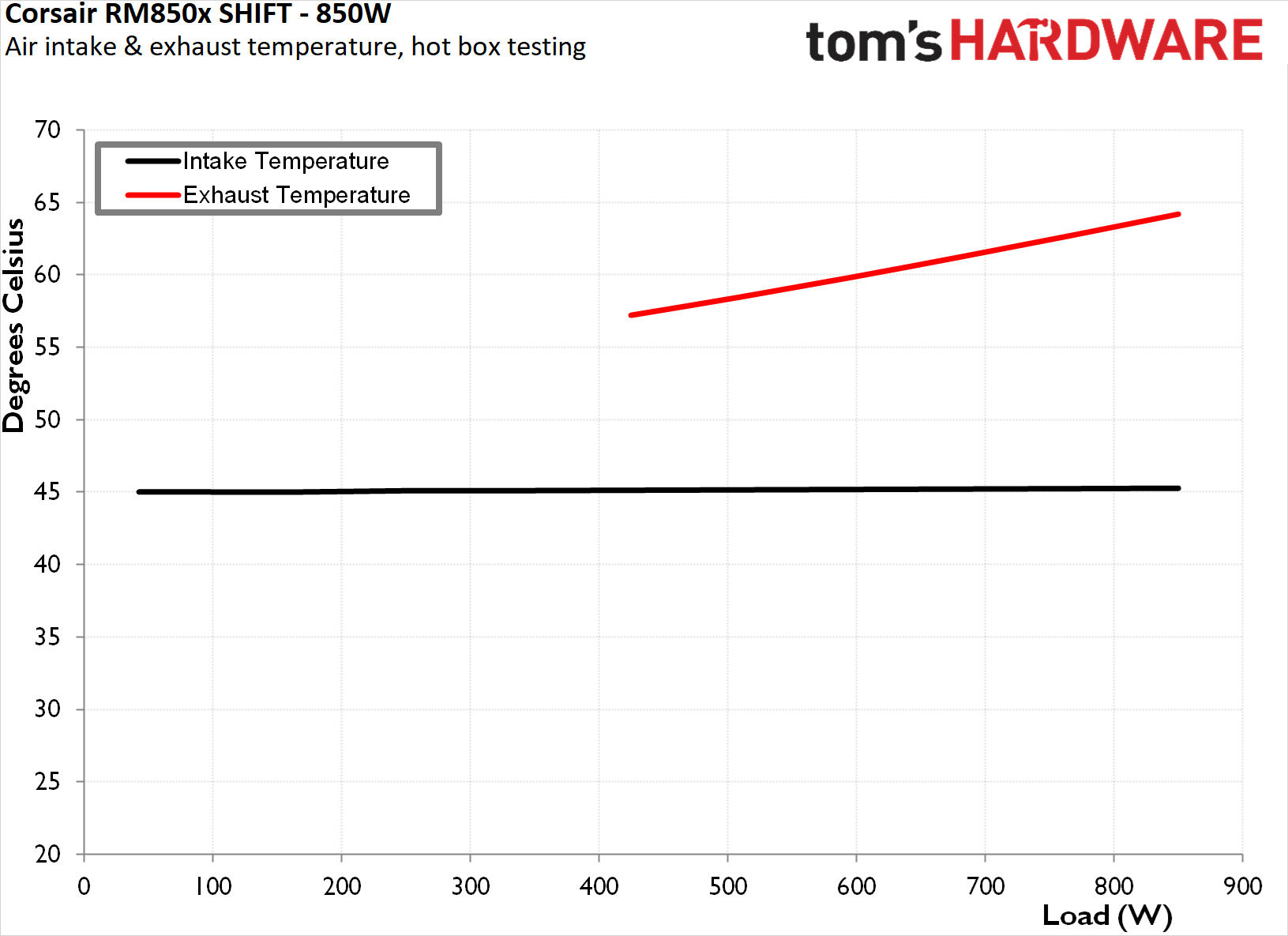

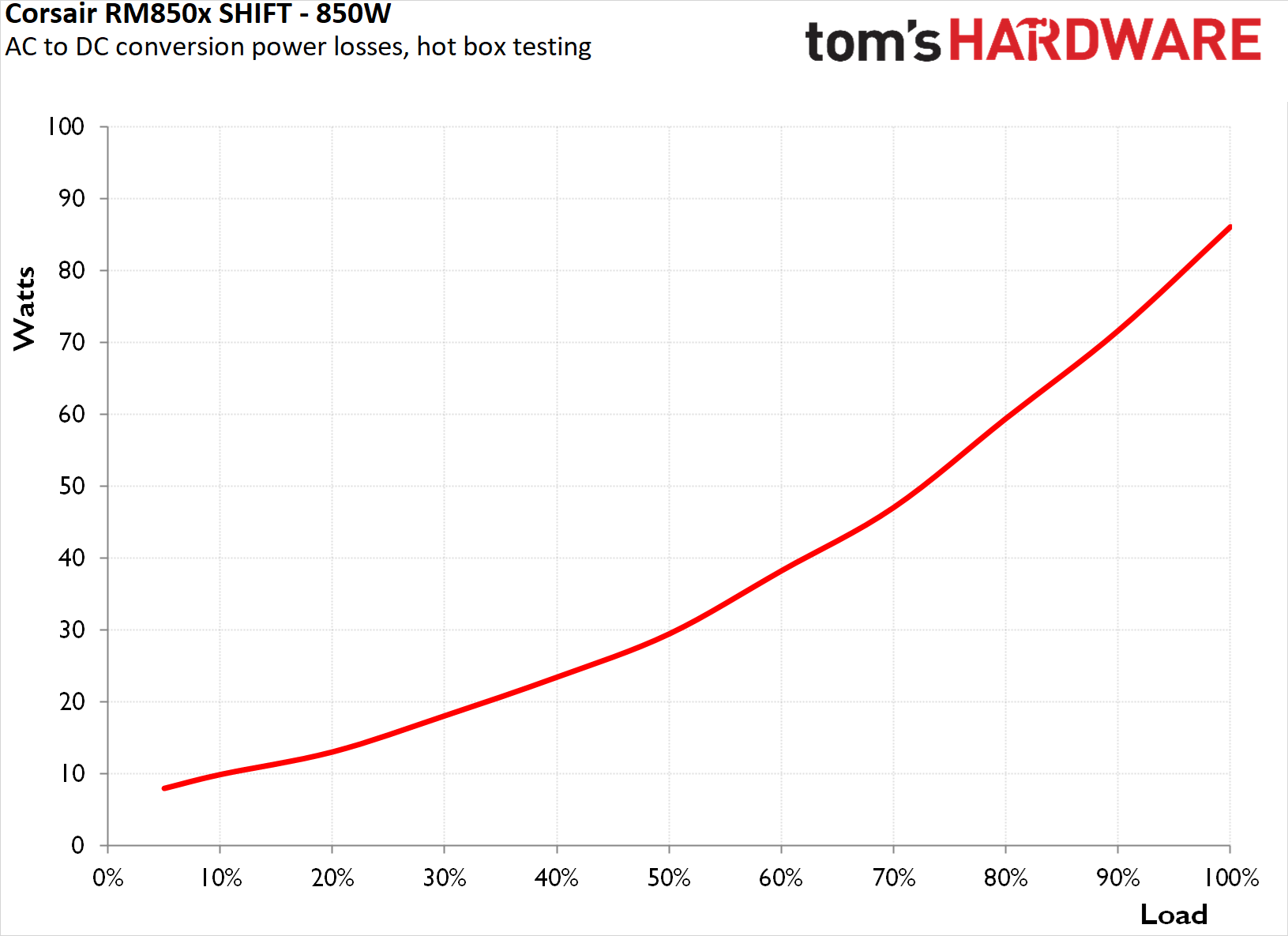

Elevated ambient temperature testing reveals the RM850x SHIFT's good resilience to thermal stress under adverse operating conditions. Average nominal load efficiency measures 89.6% at 115 VAC and 91.6% at 230 VAC, representing measurable but not excessive degradation from cold test results. The unit demonstrates no signs of thermal stress, with efficiency remaining stable even when heavily loaded for prolonged periods. Performance here is greatly superior compared to that of the previous version.

Image 1 of 5

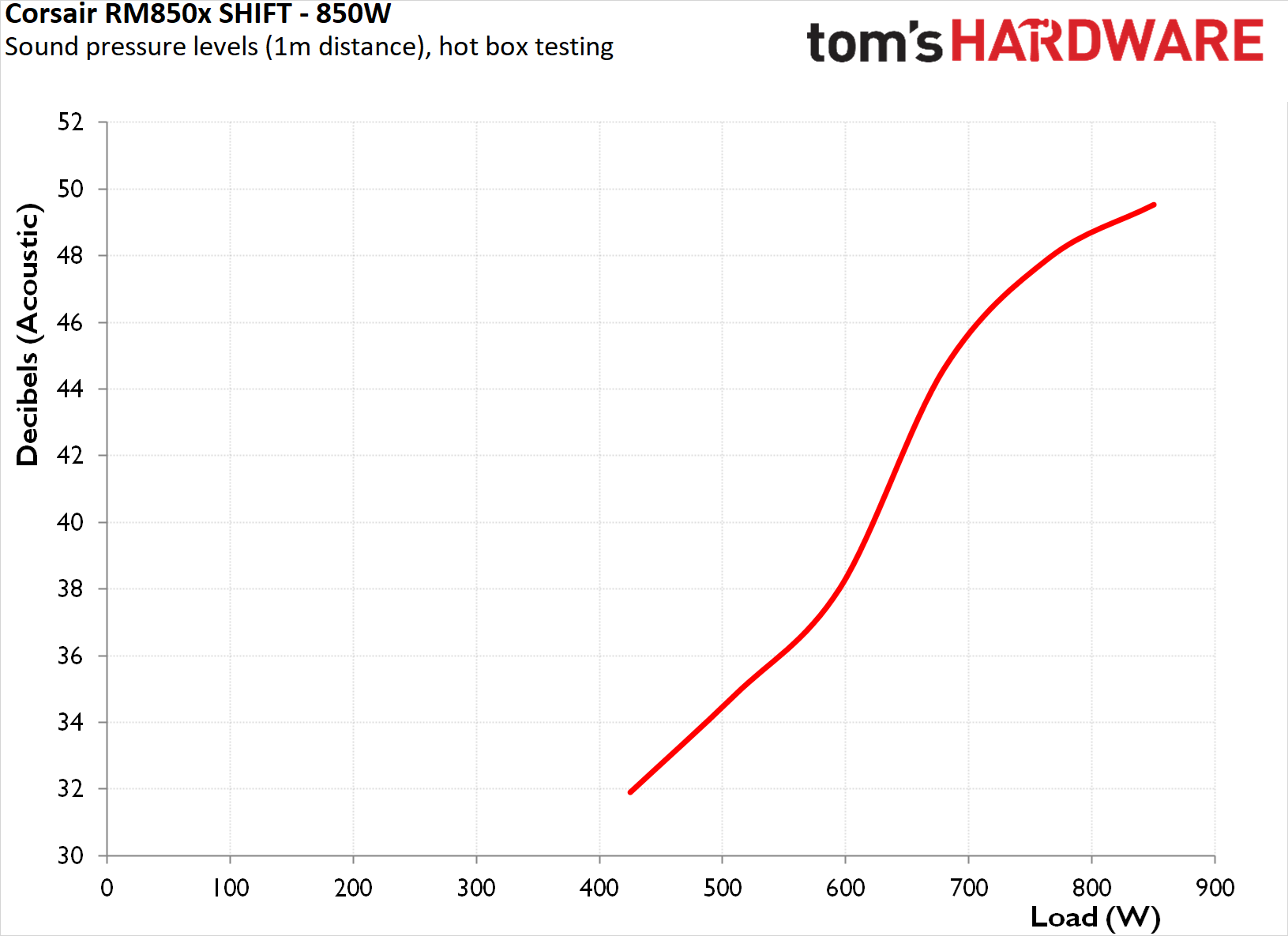

The fan profile under hot conditions reveals adjusted thermal management. Fan activation occurs somewhat earlier than during cold testing, and rotational speeds increase more aggressively as loads climb. However, the fan still never reaches its maximum speed capability, maintaining controlled acoustic output even under thermal stress. The fan speed increases almost linearly alongside load, keeping internal temperatures steady throughout the test. Internal temperatures remain relatively low even at maximum load, demonstrating excellent thermal management. The acoustic performance remains outstanding even under these challenging conditions.

PSU Quality and Bottom Line

Power Supply Quality

The Corsair RM850x SHIFT's electrical performance validates its position as a unit that substantially exceeds its Gold certification, delivering metrics that challenge Platinum-certified competitors. Voltage ripple suppression proves exceptional across all rails: the 12V rail peaks at merely 28 mV, while the 5V and 3.3V rails achieve 16 mV and 14 mV respectively. These figures represent roughly one-quarter of the ATX specification's recommended limits, placing the RM850x SHIFT among the cleanest power supplies available regardless of certification level. Voltage regulation achieves near-perfection across all rails, demonstrating the benefits of premium component selection. The primary 12V rail maintains outstanding 0.7% regulation from 20% to 100% load. The minor 5V and 3.3V rails achieve even better results at 0.5% regulation each, specifications that exceed typical requirements substantially and ensure devices receive pristine power. These regulation figures compete favorably with units costing significantly more.

During our thorough assessment, we evaluate the essential protection features of every power supply unit we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP). All protection mechanisms were activated and functioned correctly during testing.

Over Current Protection triggers at reasonable thresholds: 124% on the 3.3V rail, 146% on the 5V rail, and 146% on the 12V rail. These settings provide adequate headroom for transient current spikes while protecting against sustained overcurrent conditions that could damage components. The relatively high OCP thresholds suggest confidence in the platform's capabilities. Over Power Protection activates at 125% under hot conditions, providing appropriate safeguards against excessive total power draw while allowing headroom for brief transient loads.

Bottom Line

The Corsair RM850x SHIFT (2025) exists at the intersection of innovation and pragmatism, forcing builders to weigh transformative cable management against compatibility constraints while offering meaningful improvements over its predecessor. From a purely electrical perspective, this unit performs magnificently, substantially exceeding its Gold certification and delivering Platinum-level performance. The voltage regulation competes with virtually anything in the market, regardless of price; ripple suppression achieves levels typically reserved for flagship units, and efficiency remains firmly in Platinum territory across diverse loading conditions.

Great Wall's proven platform heritage promises long-term reliability, while Corsair's premium component selection throughout (Japanese capacitors, quality MOSFETs, FDB fan) ensures this unit will likely outlive the systems it powers. The addition of the manual fan speed control knob represents the most significant functional improvement in the 2025 revision. While the original forced users to accept its automatic zero-RPM behavior without override capability, the 2025 model allows builders to adjust minimum fan speeds according to their specific thermal requirements and acoustic preferences. This seemingly minor addition addresses a legitimate limitation, particularly for enthusiasts who want to be in control.

Yet the RM850x SHIFT's defining characteristic is its shifted connector arrangement that simultaneously represents its greatest strength and most significant limitation. When paired with compatible cases featuring appropriate PSU bay designs and cable routing provisions, this configuration delivers cable management that conventional power supplies cannot match. Cables route directly behind the motherboard tray without traversing visible spaces, creating builds where power delivery infrastructure essentially disappears from view. However, this architectural revolution demands specific case compatibility, typically requiring at least 30mm clearance on the PSU's left side and cases with appropriate cutouts and routing channels. Builders must verify compatibility carefully before purchase, the very friction point that universal standards specifically aim to eliminate.

The retail pricing around $180 creates an interesting value proposition. This positions the RM850x SHIFT above conventional Gold units but below typical Platinum offerings. Given that this unit actually delivers Platinum efficiency and electrical performance that challenges more expensive competitors, the pricing appears reasonable for target customers. The Type-5 flat cables, exceptional electrical performance, and revolutionary cable management combine to justify the premium over conventional Gold units. However, those customers represent a narrower segment than typical power supply purchasers. Mainstream builders seeking reliable 850W power delivery will find numerous conventional alternatives that deliver comparable electrical performance without compatibility constraints.

Corsair's decision to market this unit as Gold-certified despite its actual Platinum-level performance seems counterproductive. While presumably intended to avoid internal competition with the HX series, it undersells the unit's genuine capabilities. Buyers researching specifications might dismiss the RM850x SHIFT as merely another Gold unit when it actually outperforms many Platinum-certified competitors. This marketing approach benefits savvy buyers who recognize the value but potentially alienates those judging solely by certification badges.

The Corsair RM850x SHIFT ultimately succeeds brilliantly for its intended audience: enthusiast builders with compatible cases who prioritize cable management perfection and appreciate genuine performance value over certification badges. For this demographic, the RM850x SHIFT represents one of the finest power supplies available at its price point, delivering flagship electrical performance wrapped in genuinely transformative integration. Its ten-year warranty, zero-RPM operation, excellent thermal performance, and exceptional build quality further strengthen the value proposition for buyers who appreciate engineering that exceeds its marketing. For builders outside this target demographic, such as those with incompatible cases, those unwilling to verify compatibility requirements, or those prioritizing universal compatibility over clean cable management, the RM850x SHIFT's innovations may not justify its constraints. These buyers would be better served by conventional alternatives offering comparable electrical performance without compatibility limitations.

The fundamental question is not whether the RM850x SHIFT represents good engineering. It unquestionably does, delivering Platinum performance at Gold pricing with innovative cable management. The question is whether its specific innovations align with your build requirements and whether you possess a compatible case to leverage its distinctive architecture. For the right builder with the right setup, this PSU achieves something genuinely special. For others, conventional excellence exists in more universally compatible forms.
