Super Flower Leadex Titanium 1000W PSU Review

Reviews
By
published

Super Flower was one of the first companies to release an 80 Plus Titanium-rated PSU. Following the ultra-high-capacity SF-1600F14H unit, the company released two more Titanium PSUs, one of which we're evaluating today.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the SF-1000F14HT's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load5.5mV5.3mV10.6mV6.6mVPass
20% Load8.5mV7.7mV13.3mV6.7mVPass
30% Load11.1mV9.5mV16.7mV7.5mVPass
40% Load12.1mV10.7mV17.7mV8.0mVPass
50% Load12.9mV13.0mV18.2mV8.6mVPass
60% Load13.9mV14.6mV23.7mV9.7mVPass
70% Load14.8mV16.2mV25.3mV10.7mVPass
80% Load15.6mV18.6mV27.2mV11.4mVPass
90% Load16.6mV20.7mV30.3mV12.1mVPass
100% Load17.6mV23.4mV36.1mV13.7mVPass
110% Load19.0mV26.4mV38.5mV14.5mVPass
Cross-Load 110.9mV8.6mV14.2mV18.6mVPass
Cross-Load 215.1mV22.4mV37.3mV13.1mVPass

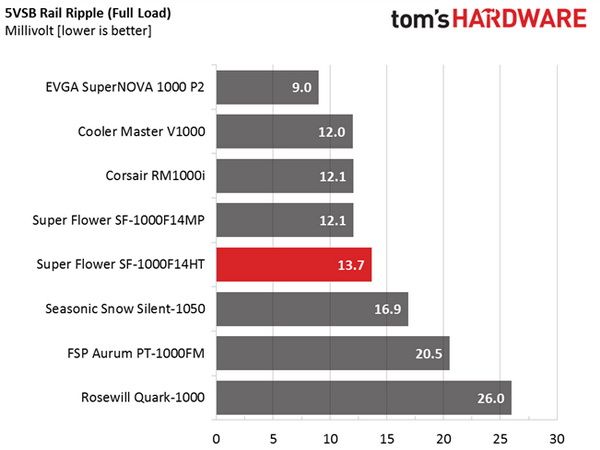

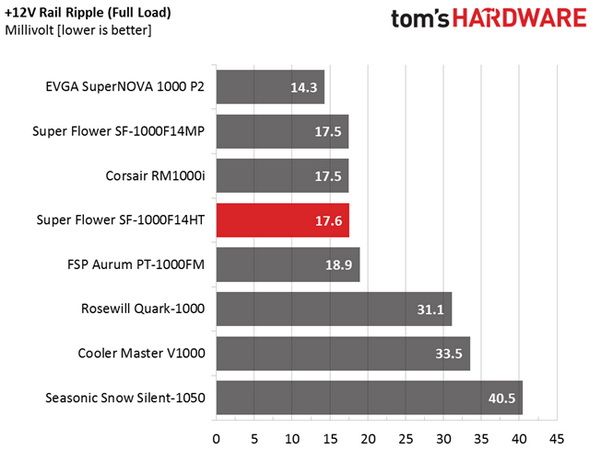

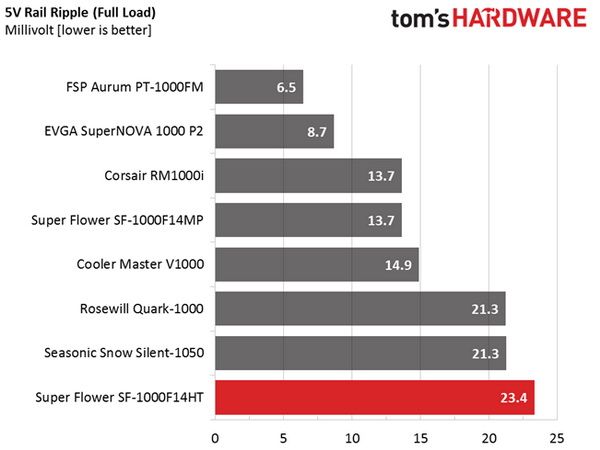

Image 1 of 4

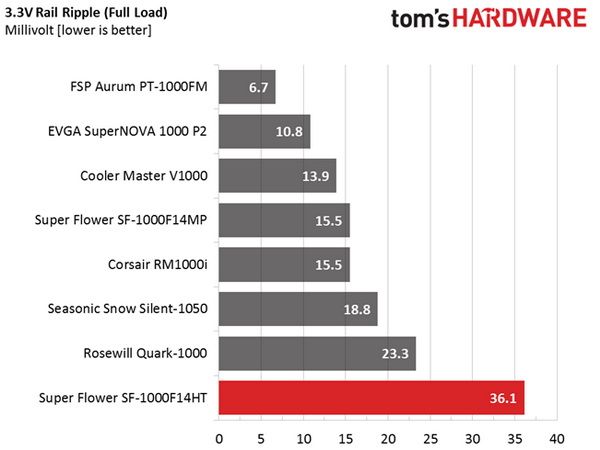

Ripple suppression is good on every rail except 3.3V, where we measured a 36mV worst-case scenario. There were probably sacrifices made there to allow for higher efficiency. The 80 Plus Titanium requirements are difficult to achieve, and a non-digital platform has to use every trick in the book to achieve them.

Ripple Oscilloscope Screenshots

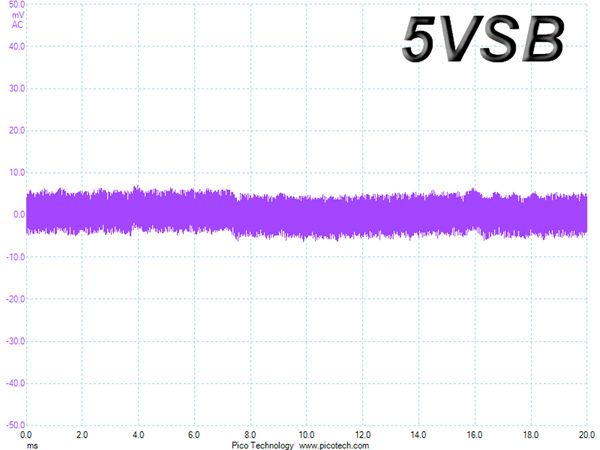

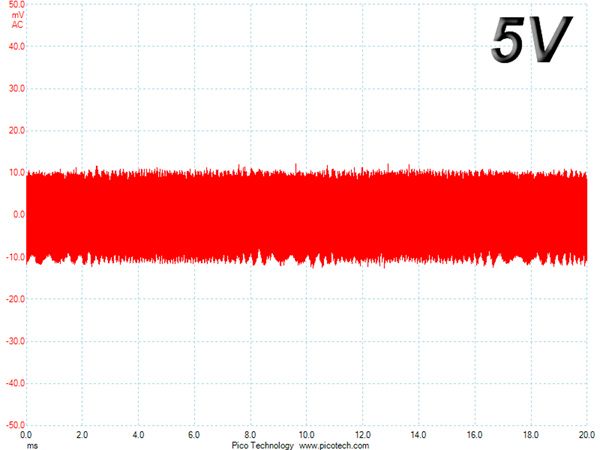

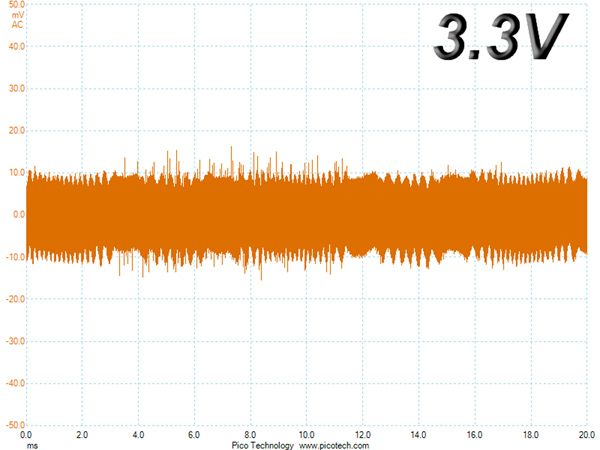

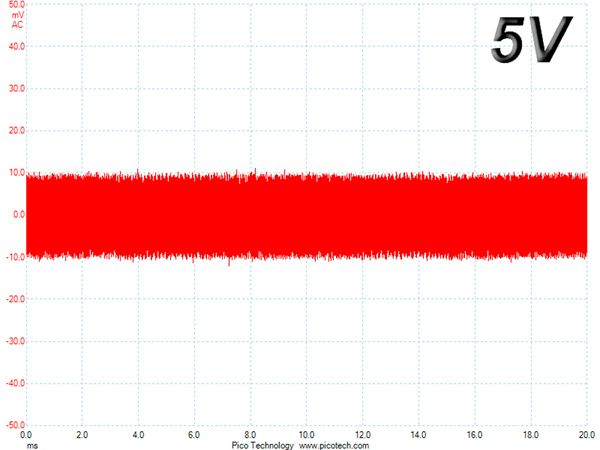

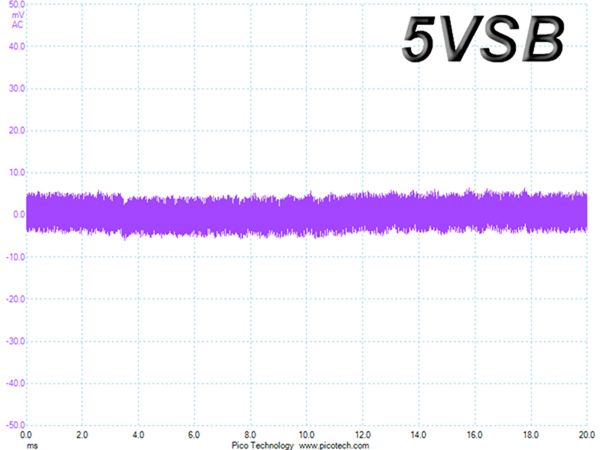

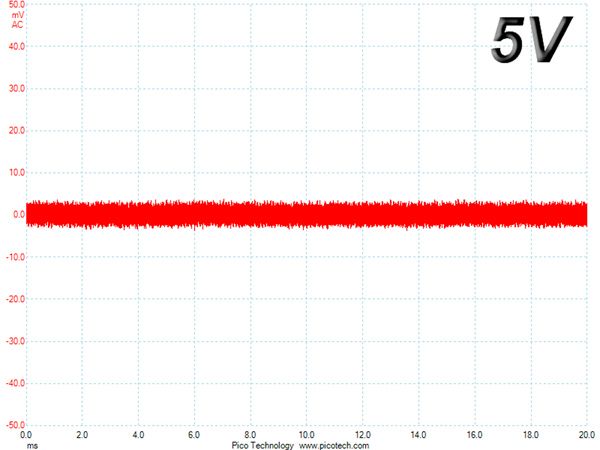

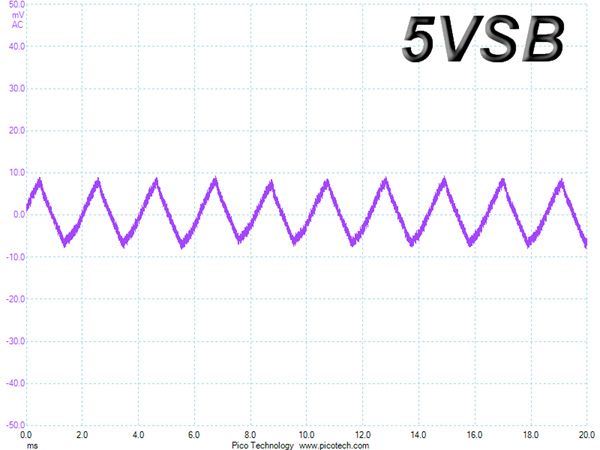

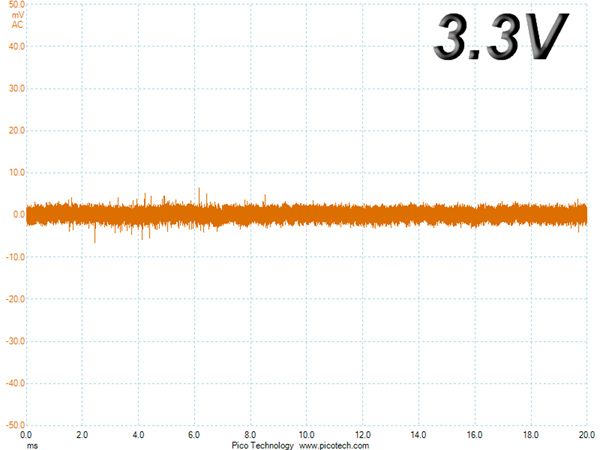

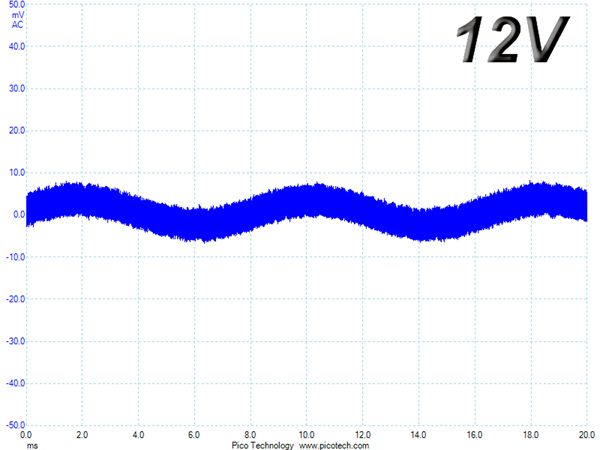

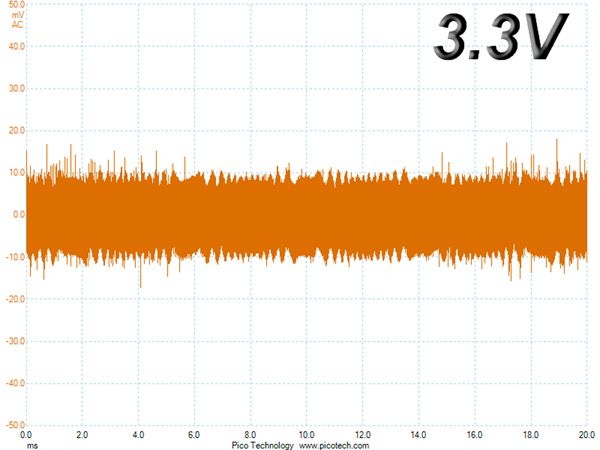

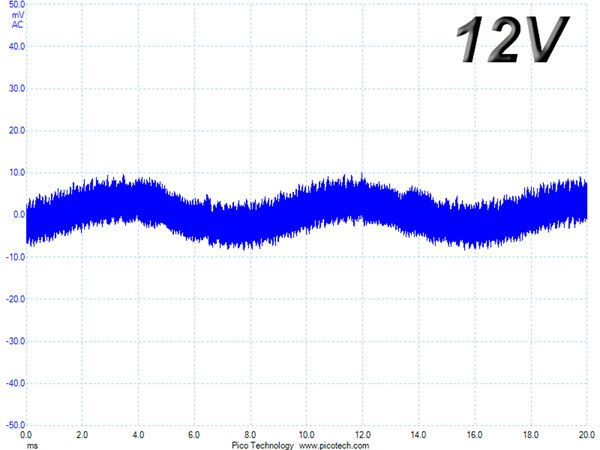

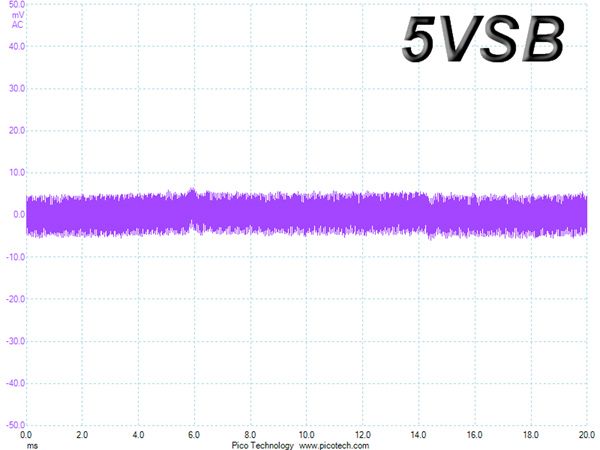

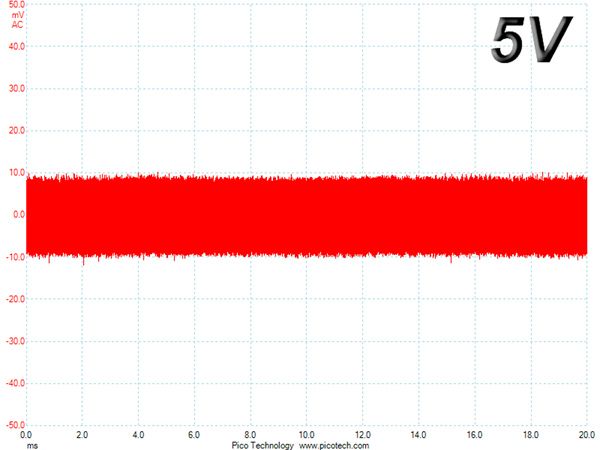

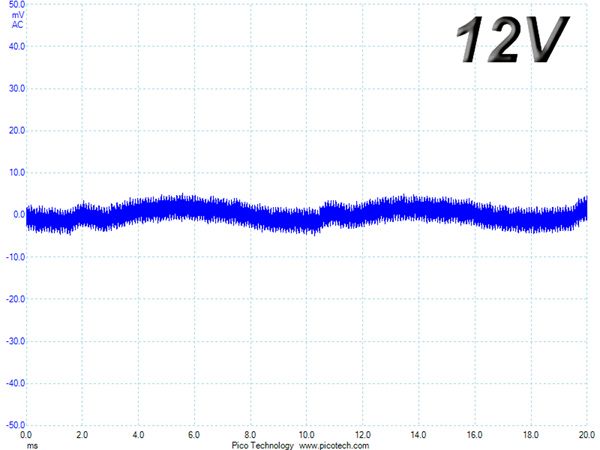

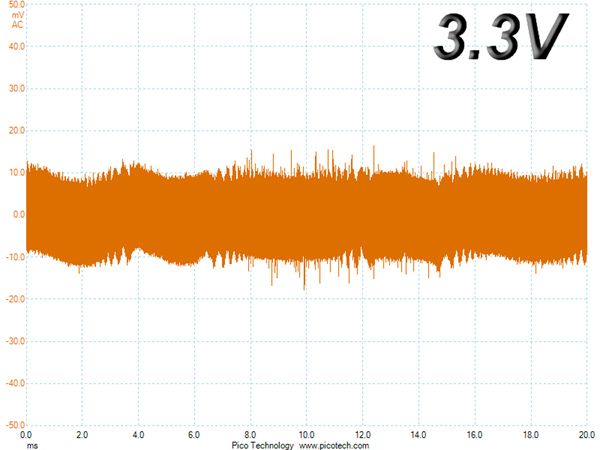

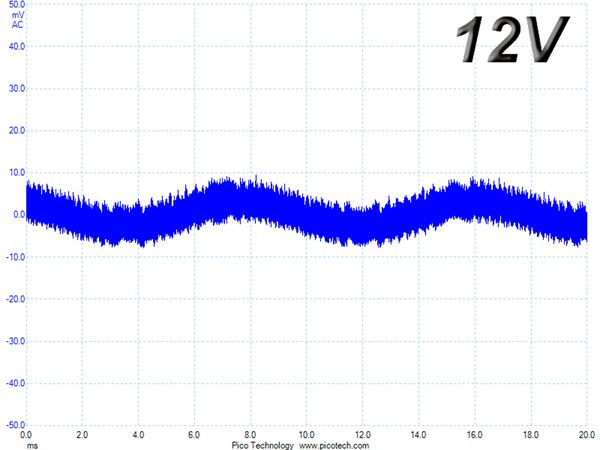

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple and noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

Ripple At Full Load

Image 1 of 4

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
