Intel Xeon Platinum 8176 Scalable Processor Review

Intel dominates in the data center. And although AMD's EPYC is on the horizon, for now, the company primarily competes with itself. Intel has to give its customers a reason to upgrade, and adding more cores typically helps. Unfortunately, the weight of legacy interconnects has slowed progress on that front. Clearly, architectural changes need to happen, even if there are growing pains to contend with.

That's where we find Intel and its Xeon Scalable Platform Family. Look beyond the obviously re-conceptualized branding for a moment. The real improvements come from a reworked cache topology and, perhaps more important, a new mesh interconnect that increases processor scalability and performance. These alterations, some of which surfaced in the Core i9-7900X, set the stage for a more significant speed-up than we expected from the Skylake architecture.

Perhaps you already know about the support for quicker DDR4 memory modules, a lot more PCIe connectivity, and AVX-512 extensions. There are also expanded QuickAssist Technology capabilities. In an effort to create new opportunities, Intel adds other features that go beyond what you'd expect from a typical host processor. It builds a 100 Gb/s Omni-Path networking fabric directly onto the Xeon package, which is complemented by a quad-10Gb Ethernet controller on the platform controller hub. We're even told to expect integrated FPGAs in the future.

All of this functionality leads to an overwhelming product stack of 58 new Xeon processors. If that isn't enough differentiation for you, enjoy choosing between seven PCH options.

The Xeon Platinum 8176 Scalable Processor

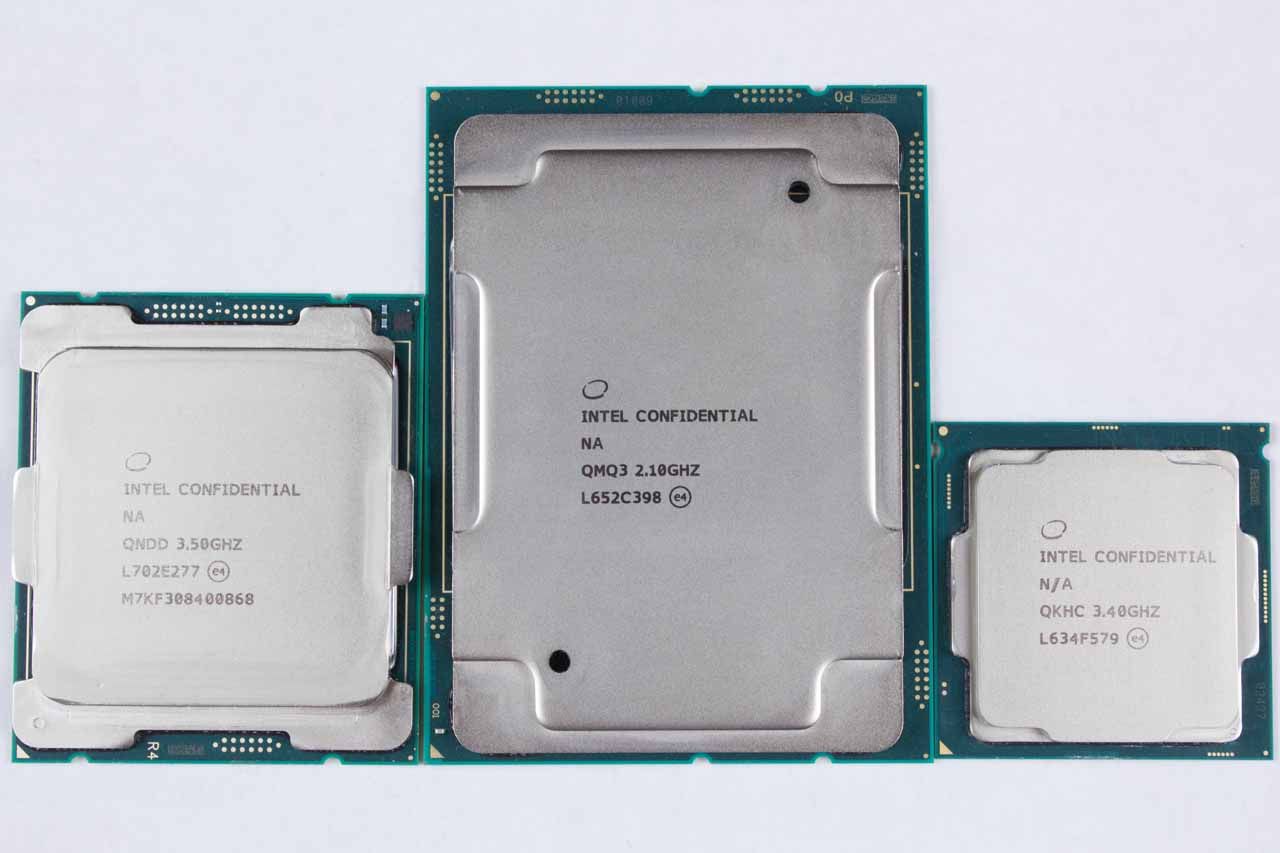

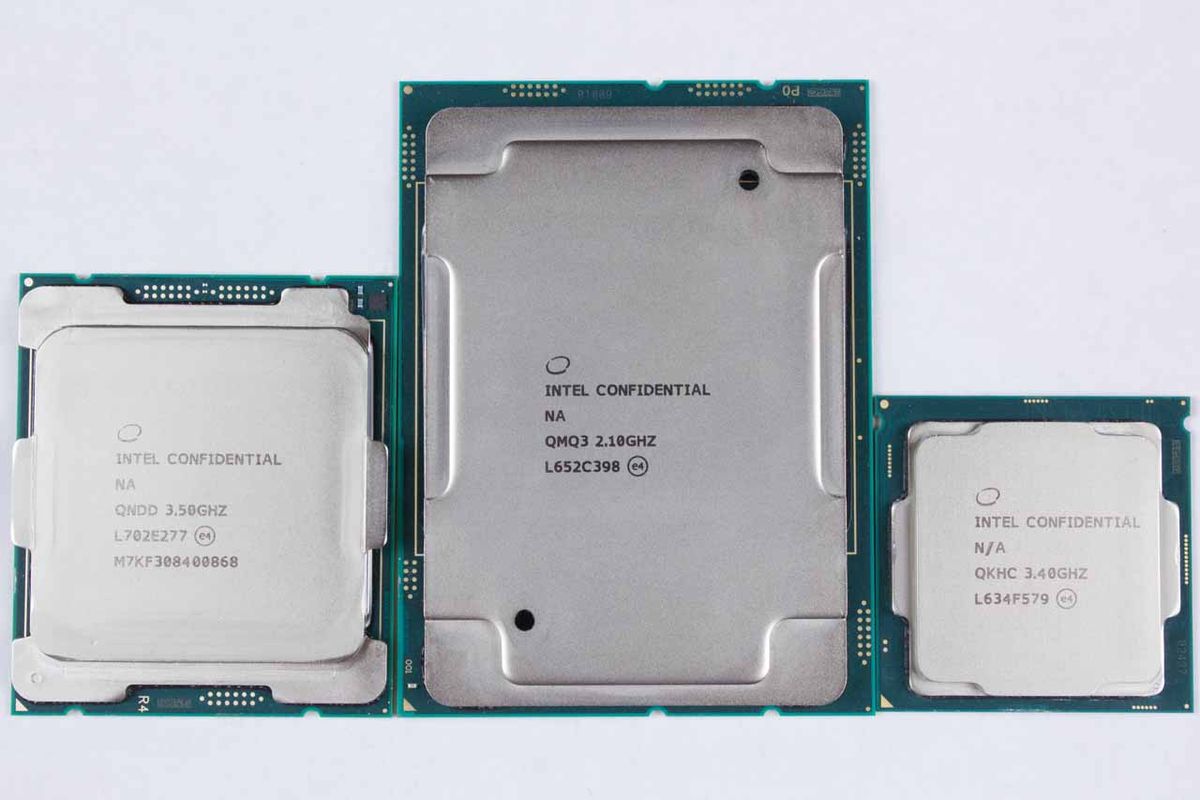

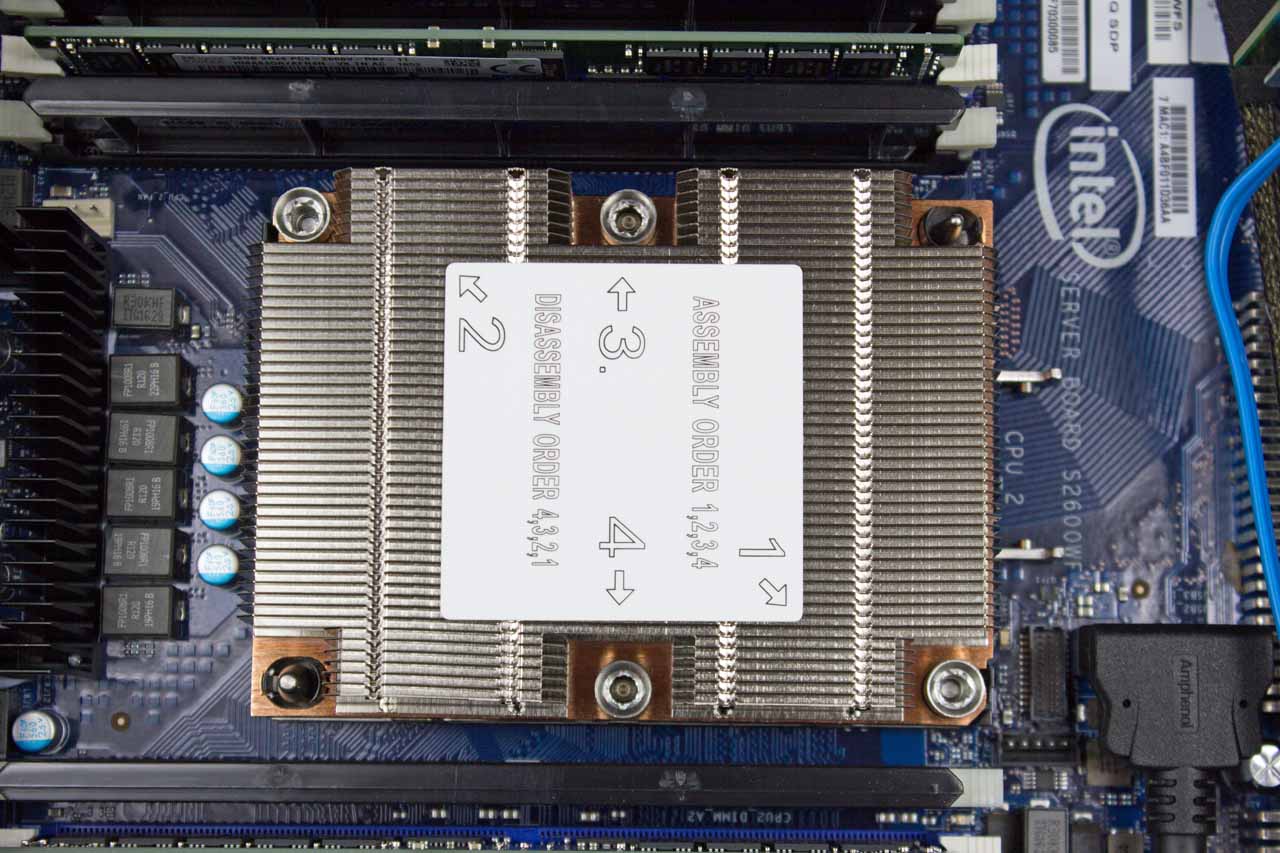

The Platinum 8176 processor is a big step forward. Here, we see it flanked by Intel's desktop Core i7 and HEDT Core i9 CPUs. Although we're no longer dealing with the socket latching mechanism Intel previously employed, these chips still use a Land Grid Array (LGA) interface. Interestingly, you first snap the processor into the heat sink, where two plastic clamps hold it tight. A pair of guide pins on the socket ensure correct sink and processor placement. Then, once installed, you secure the heat sink with four Torx screws. The processors drop into Socket P, otherwise known as LGA 3647, on platforms with Intel's C610 Lewisburg family of platform controller hubs.

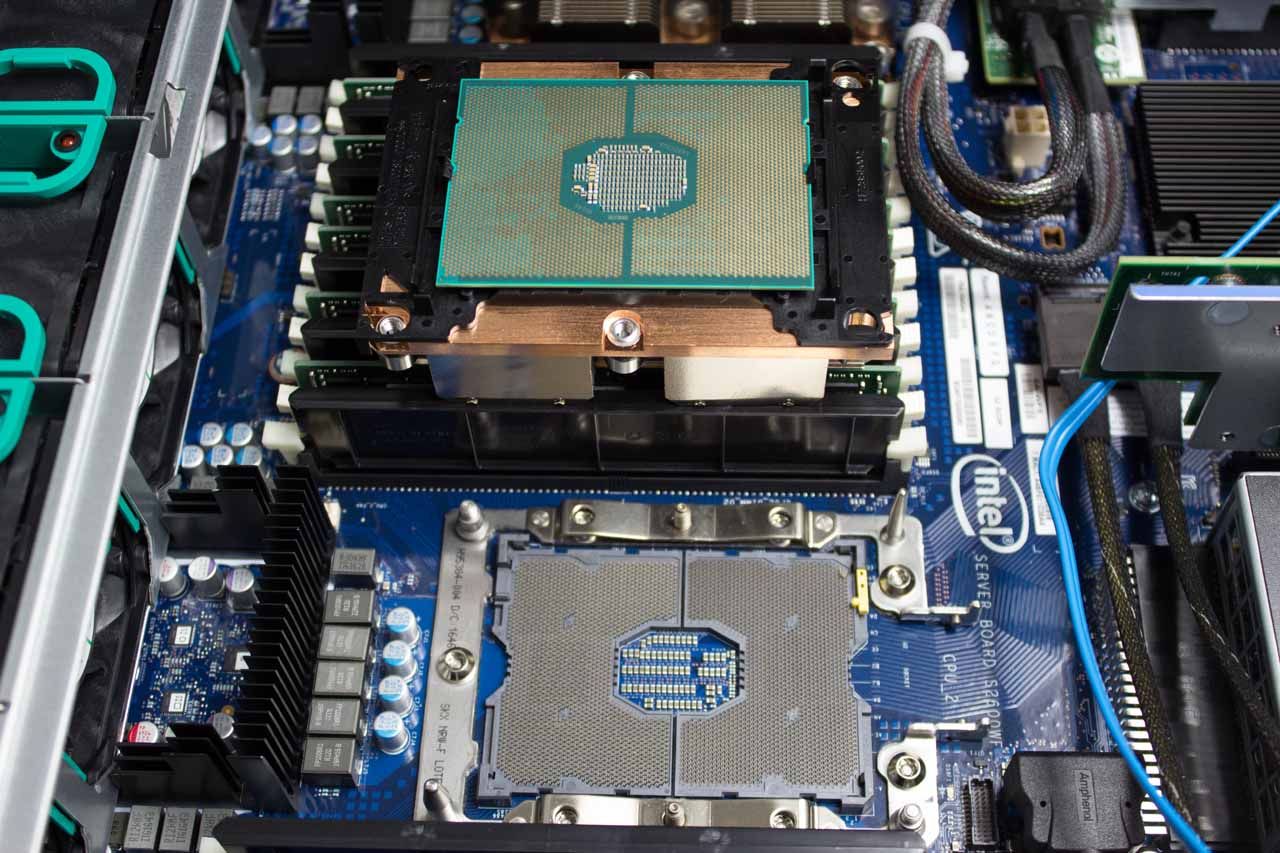

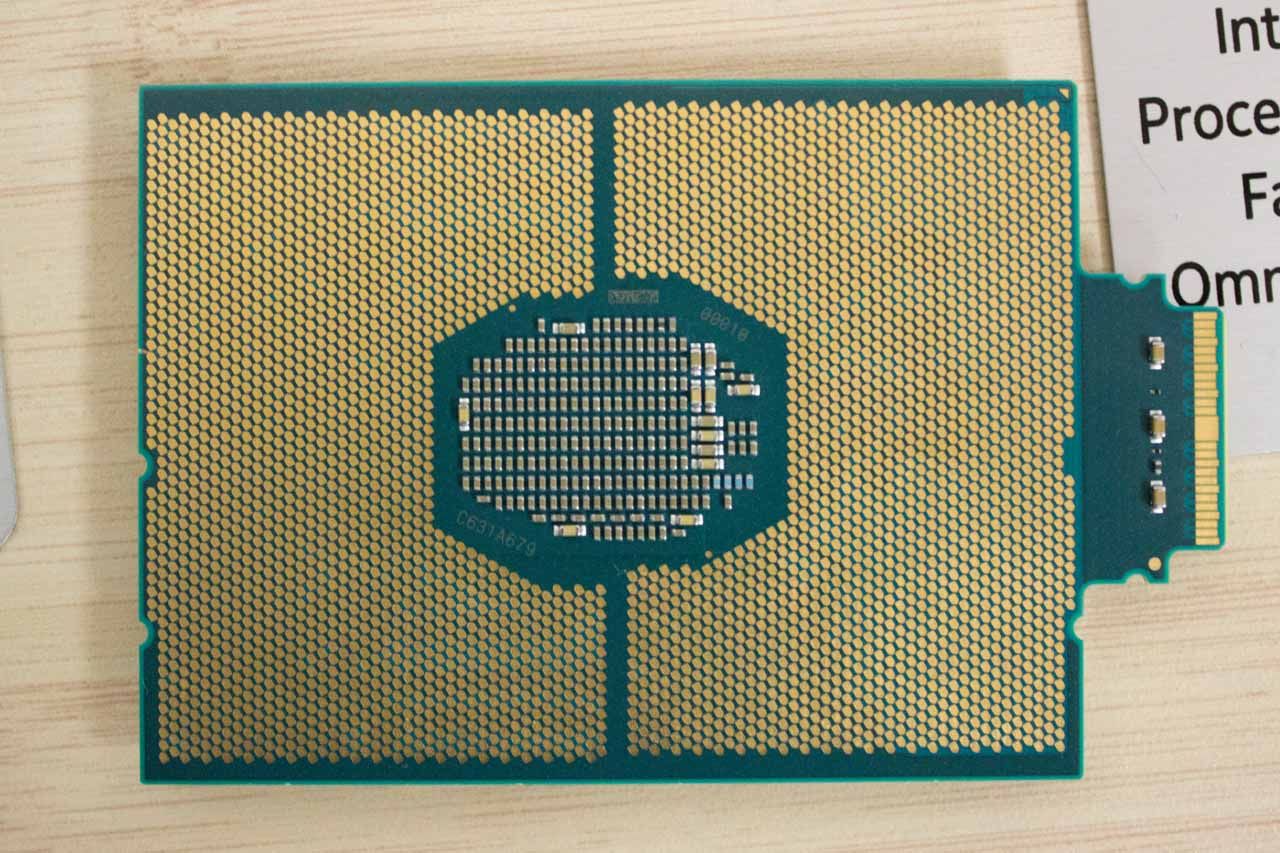

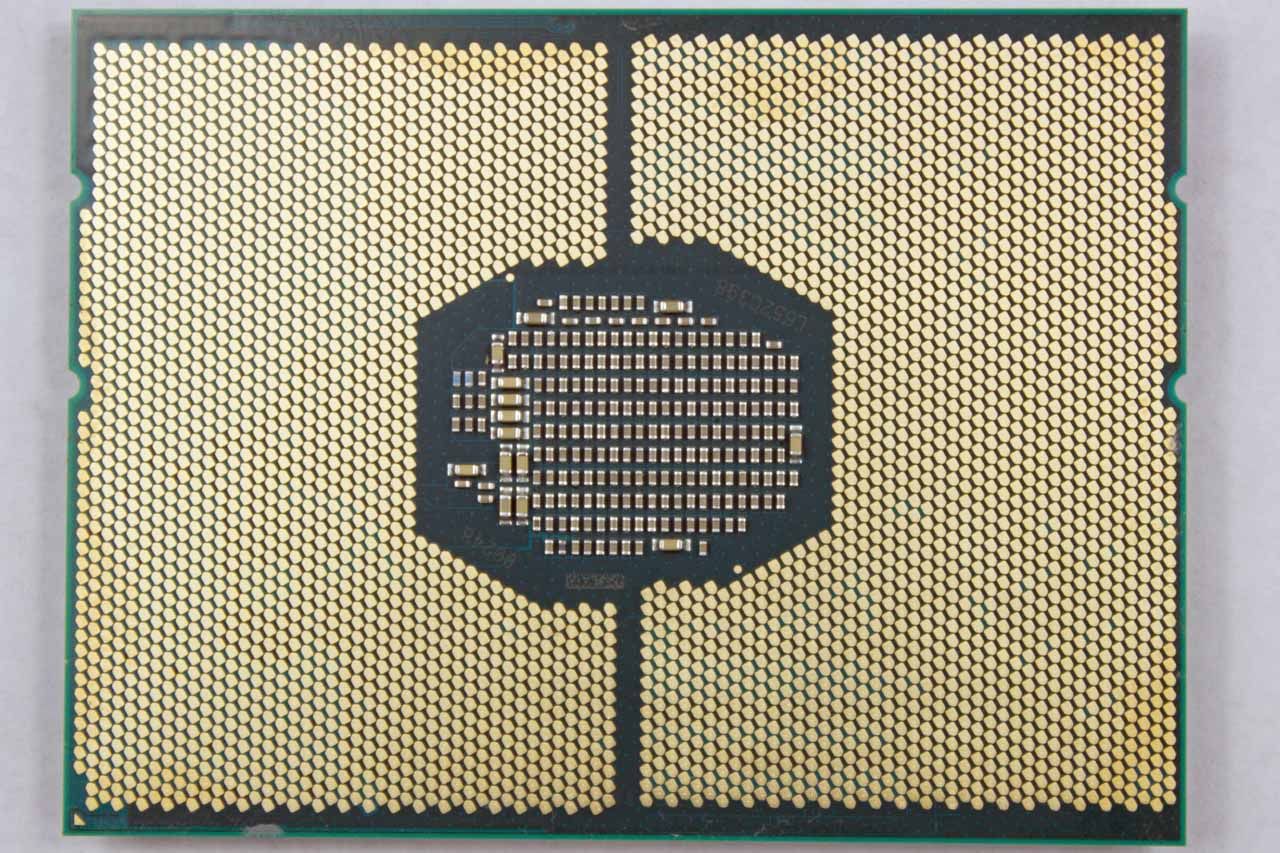

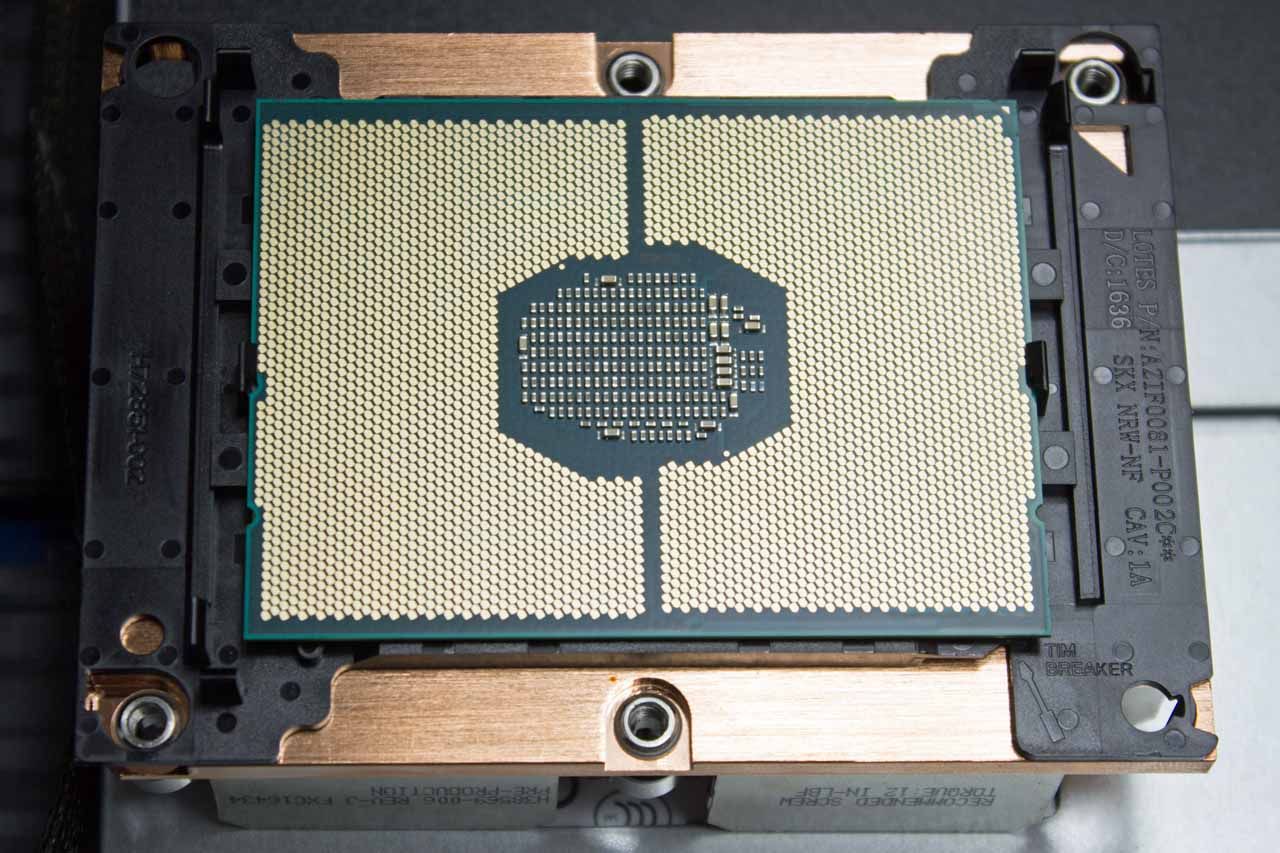

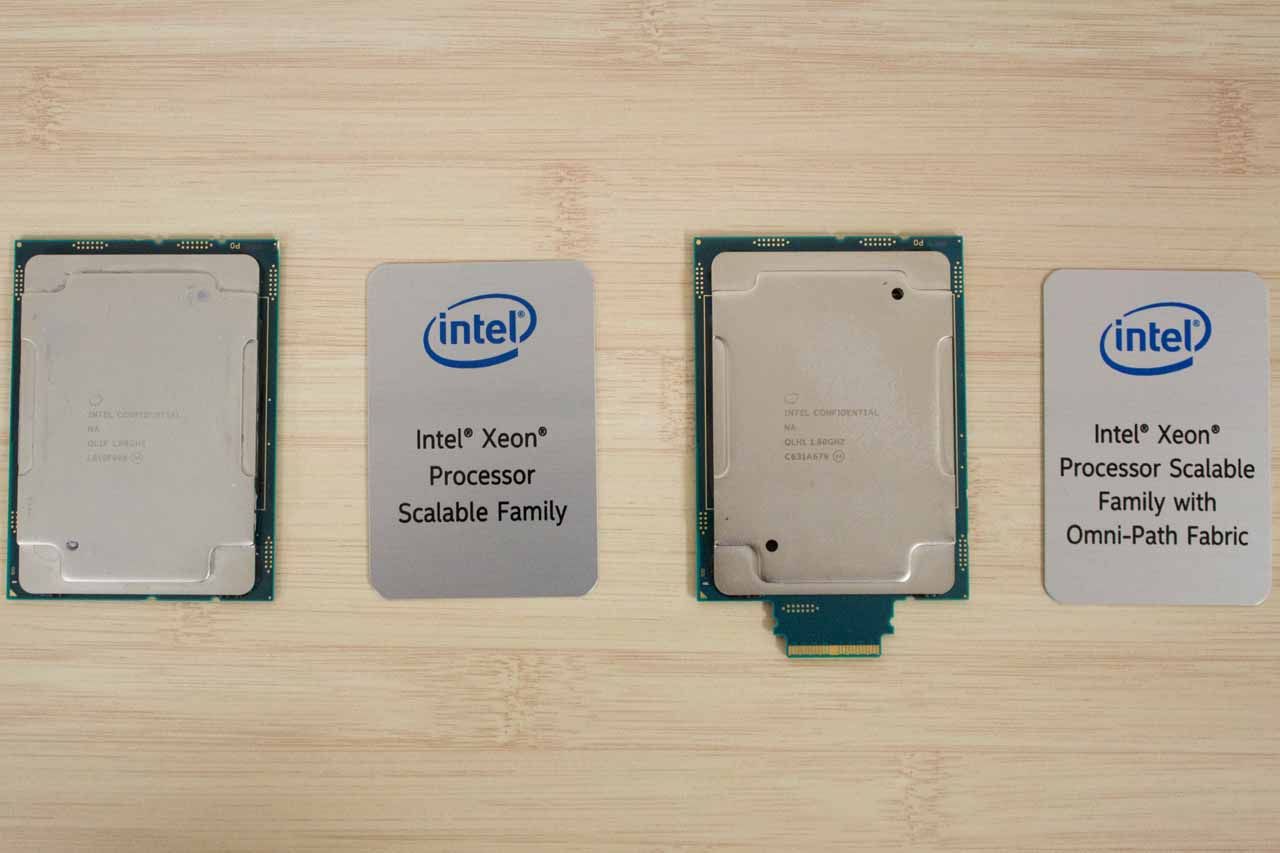

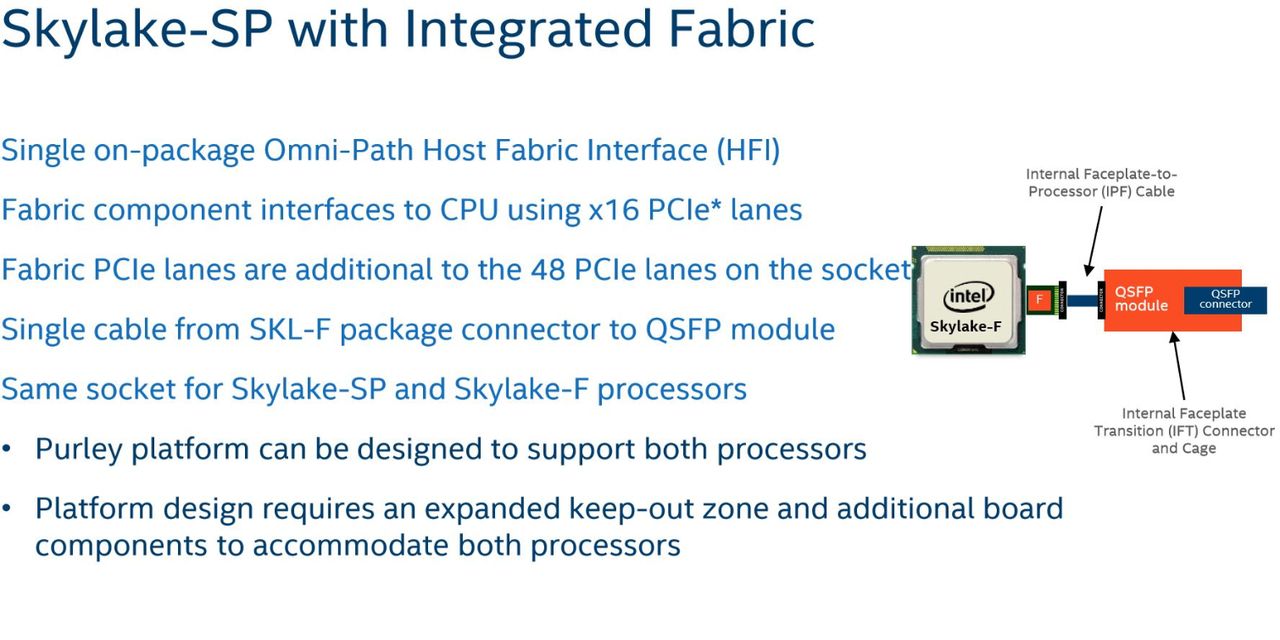

That massive expanse of 3647 pins, representing a huge jump from last gen's 2011-pin arrays, helps enable a host of fresh functionality. The socket mounting mechanism also has a large gap on one end to accommodate an Internal Faceplate-to-Processor cable that plugs into Omni-Path-enabled processors. Plugging networking cables into CPUs? Intel pioneered that with its Xeon Phi processors, which share the same socket design. We've included a picture of a Xeon processor with Omni-Path connectivity, and we can see the PCB extension that houses the Host Fabric Interface (HFI). This enables 100 Gb/s of network throughput through a dedicated on-chip PCIe 3.0 x16 connection. You're going to have to pay dearly for it; we just don't know how much yet.

Even without Omni-Path, you can expect a lot of these Xeons to cost an arm and a leg. The 28C/56T Platinum 8176 sells for no less than $8719, and if you want the maximum per-core performance, get ready to drop $13,011 for each Platinum 8180M. Most of these models will find homes in OEM systems, so there are plenty of deployment options; the processor supports from two to eight+ sockets.

Specifications

The Platinum family's higher core counts definitely sets it apart from the previous-gen Xeon E5-2600 v4 line-up, based on Broadwell-EP. Intel went from a 22-core ceiling to 28, and Hyper-Threading doubles that difference per socket when you're looking at available threads to schedule. As with Core i9-7900X, memory support goes from DDR4-2400 to DDR4-2666. More important, though, and unlike Skylake-X, we're now working with as many as six memory channels, rather than four. This facilitates up to 768GB of DDR4 for the standard models and up to 1.5TB for the enhanced "M" models. The six-channel design also provides a >60% improvement in theoretical bandwidth, which is a necessary upgrade to feed the additional cores.

Intel scales back on last-level cache: the E5-2600 family came with up to 55MB, while the Platinum series tops out at 38.5MB. However, it quadruples the L2 cache, ramping up from 256KB per core to 1MB. Purportedly, that helps in a majority of data center-oriented workloads, which tend to prize locality.

165W 8176Active Cores -->
1-23-45-89-1213-1617-2021-2425-28
2.1 GHz Non-AVX BaseNon-AVX Turbos3.83.63.53.53.43.12.92.8
1.7 GHz AVX 2.0 BaseAVX 2.0 Turbos3.63.43.33.32.92.72.52.4
1.3 GHz AVX-512 BaseAVX-512 Turbos3.53.332.62.32.121.9

The 165W Platinum 8176, like most Intel processors, has various Turbo Boost frequencies dictated by active core count and instruction stream composition. Intel's Turbo Boost algorithms are powerful; they allow the processor to produce more work per-core with both non-AVX and "denser" AVX-based workloads. There are also different base frequencies corresponding to the various instruction sets. This matrix gets pretty complex, especially if you want to compare multiple SKUs. We compiled the 8176's various clock rates into the table above as an example.

In this generation, Intel transitions from the QuickPath Interconnect (QPI), a dedicated bus that allows one CPU to communicate with other CPUs, to its Ultra Path Interconnect. The UPI increases bandwidth to 10.4 GT/s per channel and features a more efficient protocol. You'll notice the Platinum 8176 has three UPI links, much like the old Xeon E7s.

Intel also claims AVX-512 support enables up to a 60% increase in compute density. Moreover, the step up to 48 PCIe 3.0 lanes offers up to 50% higher aggregate bandwidth. This increase is important, as a proliferation of NVMe-based storage drives more traffic across PCI Express. Intel also offers integrated QuickAssist Technology in the chipset to accelerate cryptographic workloads and compression/decompression performance.

Intel's new vROC (Virtual RAID On CPU) technology also surfaces, allowing you to create RAID volumes with up to 24 SSDs. The CPU manages this array instead of the PCH, improving performance and enabling boot support. Counter to most speculation, the technology accommodates any SSD vendor that chooses to support it; you're not confined to Intel SSDs. Simply pay $100 for a RAID 0- and 1-capable key or $250 for RAID 5.
