New Benchmarks Show GTX 1650 and RX 6400 Outperforming Intel's Arc A380 Graphics Card

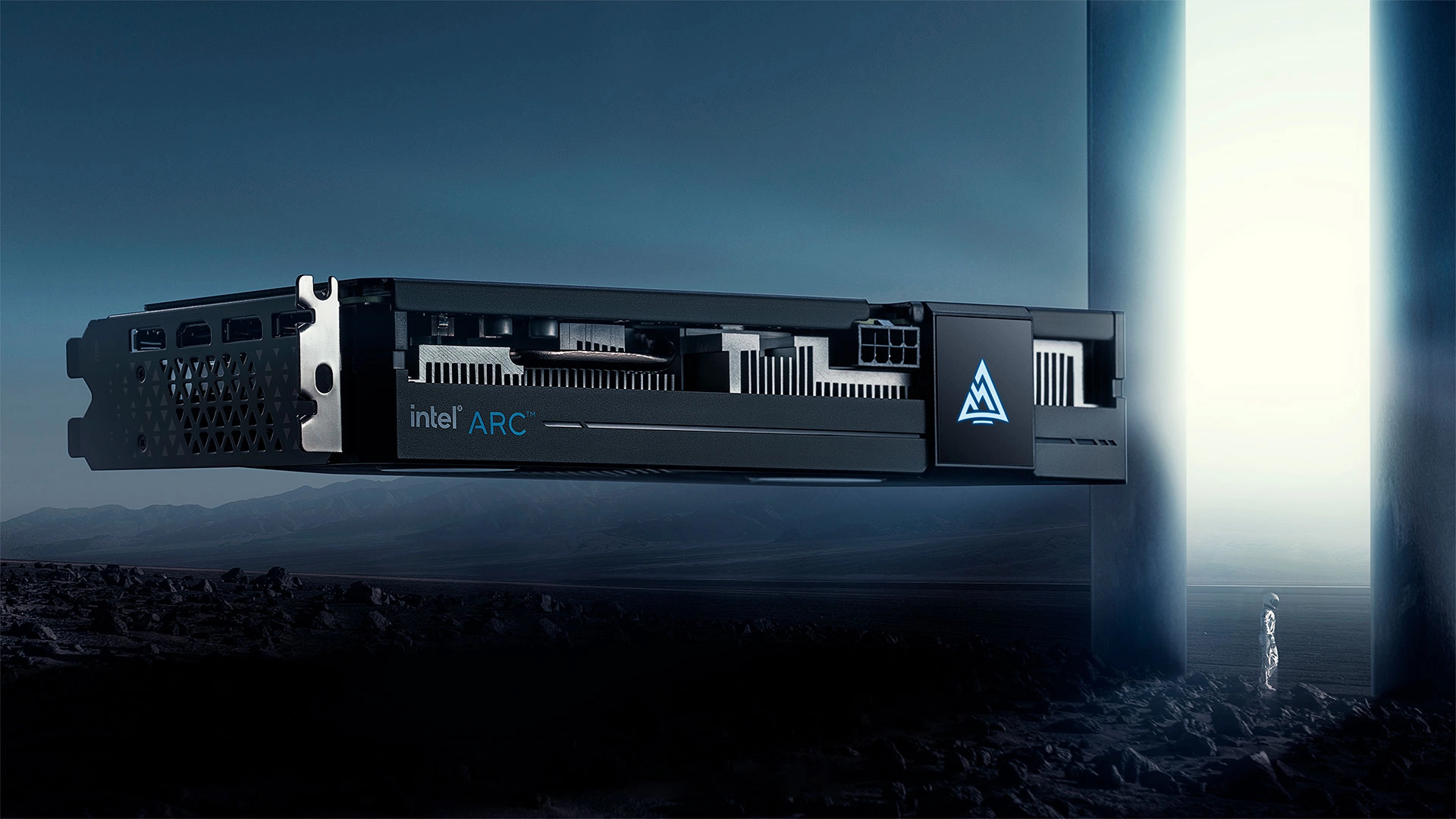

Intel Arc A380 by Gunnir — "Into the Unknown"
(Image credit: Gunnir)

Intel recently shared performance metrics of its new Arc A380 desktop GPU in 17 gaming titles, with direct comparisons to the GTX 1650 and RX 6400 — which were all tested on the same PC. On average, the A380 lost in comparison to the GTX 1650 and RX 6400, which will make it one of the slowest entry-level GPUs when it arrives on the US market. Even as a budget offering, Intel will have a tough time making our best graphics card list.

The A300 series is Intel's entry-level desktop GPU, using the smaller "ACM-G11" Arch Alchemist chip. Unlike the mobile A350M and A370M, however, it does have all eight of Intel's Xe GPU cores and enabled alongside the full 96-bit GDDR6 memory interface. That's nearly the same core configuration as the entry-level Arc A370M mobile GPU, but with 50% more memory, 66% more memory bandwidth, and significantly higher GPU clocks that can reach up to 2.45 GHz.

TBP (typical board power) is also higher at 75W, perhaps more, and Intel's Arc A380 will come in several variants. Cards that run at less than 75W can get by without a power connector and have a 2 GHz clock speed, cards with up to an 80W TBP will require at least a 6-pin power connector and can run at up to 2.25 GHz, and cards with an 87W or higher TBP can run at 2.35 GHz or more.

We don't know what card Intel used for the tests, and the Gunnir card images shown here with the 8-pin power connector are for reference purposes only. The test PC was equipped with a Core i5-12600K, 2x16GB DDR4-3200 memory, an MSI Z690-A Pro WiFi DDR4 motherboard (actually the same motherboard we use in our GPU testbed), and a 4TB M600 Pro XT SSD, running Windows 11.

For now, the Arc A380 is the only desktop GPU available to look at on Intel's Arc website. But according to previous driver leaks, we should expect Intel's A500 series and A700 series of desktop GPUs to arrive at some point. Here are the numbers, and again these come straight from Intel's Arc A380 reviewer's guide — we're sharing them with permission while we attempt to get a card for our own in-depth testing. Take these figures with a healthy dose of skepticism, in other words, as most manufacturer provided benchmarks attempt to show products in a better light.

Swipe to scroll horizontally
Intel Arc A380 GPU Comparison — Intel Provided Benchmarks
GamesIntel Arc A380GeForce GTX 1650Radeon RX 6400
17 Game Geometric Mean96.4114.5105.0
Age of Empires 48010294
Apex Legends101124112
Battlefield V728594
Control677572
Destiny 28810989
DOTA 2230267266
F1 202110411296
GTA V142164180
Hitman 3778991
Naraka Bladepoint706864
NiZhan200200200
PUBG7810795
The Riftbreaker113141124
The Witcher 38510181
Total War: Troy789875
Warframe779898
Wolfenstein Youngblood9513096

On average, the Arc A380 lost to the GTX 1650 by 19% and lost to the RX 6400 by 9%. When we compare each GPU on a game-by-game basis, the Arc A380 only beats the RX 6400 in four of the 17 titles and beats the GTX 1650 in one of them (Naraka Bladepoint). There's also a three-way tie in NiZhan, where all the GPUs managed 200 fps, though we're not sure why Intel would even bother to include that particular benchmark since it looks like there's a frame rate cap.

Regardless, it isn't exactly encouraging to see the new Intel GPU getting beat out by an entry-level Nvidia GPU released over three years ago, and an ultra low-level Radeon GPU that is literally a cut down Navi 24 mobile GPU slapped onto a graphics card PCB. Over the past few months, we've heard reports that Intel's graphics drivers are playing a significant role in gaming performance with these new A-series GPUs, with poor optimization being a big issue.

Perhaps Intel can turn things around and provide well-optimized gaming drivers in the near future once its A-series lineup makes it to rest of the world market. Intel also recently showed its expected performance for the higher tier A700M mobile parts, which looked at least fairly capable. But if Intel has the same driver problems on its mid-range A500 and flagship A700 series graphics cards, where gaming performance matters even more, Intel's GPU division is going to be dealing with serious challenges in a market that's already quite competitive.

Arc A-Series Mobile Lineup

(Image credit: Intel)

For the entry-level and mobile parts, it's not just gaming performance that Intel is hyping up. Arc includes the Xe media engine, which supports up to 8K encode and decode of AVC (H.264), HEVC (H.265), VP9, and AV1 — and Arc is the only GPU right now with hardware encoding support of AV1. Comparing the A380 against a Core i5-12600K CPU encode of an AV1 video, the A380 took less than a quarter of the time (53 seconds versus 234 seconds).

Arc A380 was also faster in other video encoding scenarios, like an HEVC encode using DaVinci Resolve where Intel's Deep Link feature that leverages the CPU graphics and dedicated GPU allowed it to finish the task in 16 seconds compared to 25 seconds on a GTX 1650 card. Interestingly, just the UHD Graphics 770 or Arc A380 alone required 30 seconds, so encoding performance very nearly doubled thanks to Deep Link.

If you're more interested in the media capabilities, Arc might be a great option when it comes to the US market. For gamers, let's hope additional driver improvements can help narrow the gap that Intel's currently showing.
