AMD Radeon Pro W7600 and W7500 Revealed

AMD Radeon Pro W7600 W7500 photos
(Image credit: AMD)

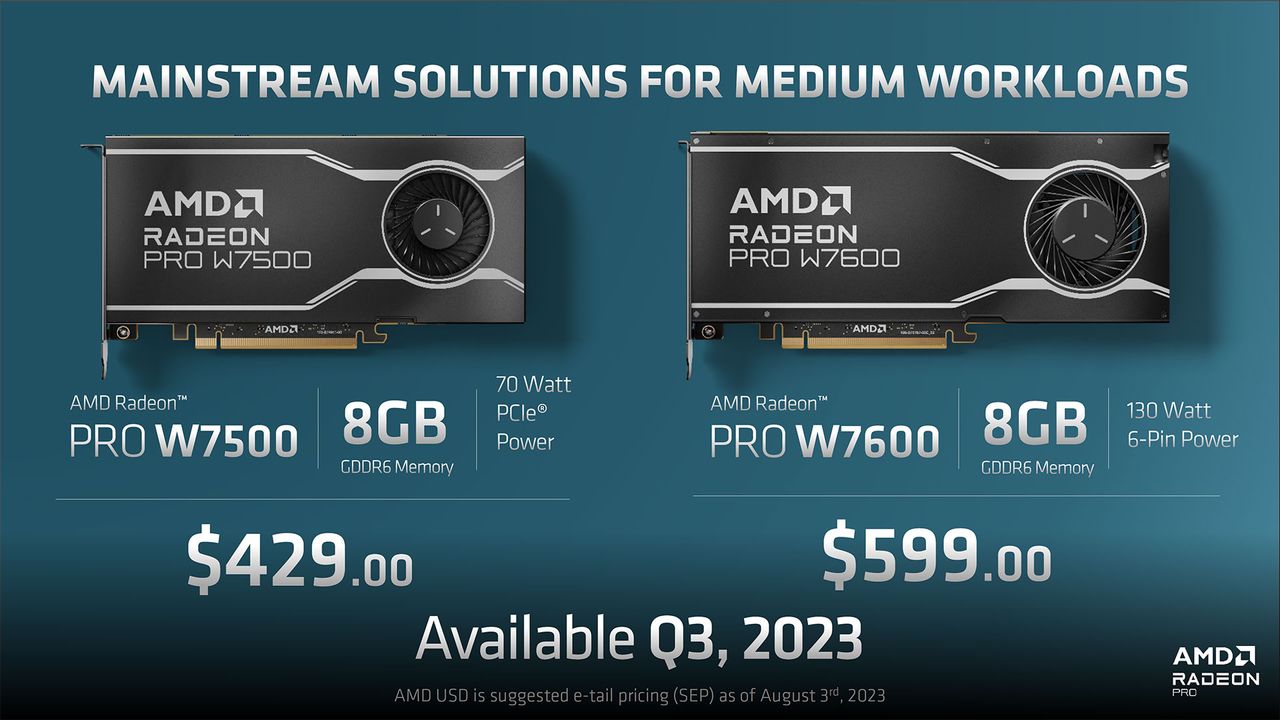

AMD has announced two brand new RDNA 3 workstation GPUs today known as the Radeon Pro W7600 and Radeon Pro W7500. These new GPUs are aimed at the entry-level market arriving with single-slot cooling solutions. They use the Navi 33 die, with 8GB of GDDR6 memory on a 128-bit interface — just like the Radeon RX 7600. The difference is in the drivers and a few other aspects, as well as the TBP (total board power) and cooling.

Both new workstation GPUs come with AMD's latest feature set from the RDNA 3 architecture. That means AV1 encode and decode, enhancements to the compute units (CUs), and DisplayPort 2.1 outputs. Note that unlike the Radeon Pro W7900 and W7800, the W7600 and W7500 feature up to UHBR10 (ultra hit bitrate 10 Gbps) video outputs. The consumer RX 7000-series has UHBR13.5 support (up to 54 Gbps total), while the top workstation GPUs have UHBR20 support (up to 80 Gbps).

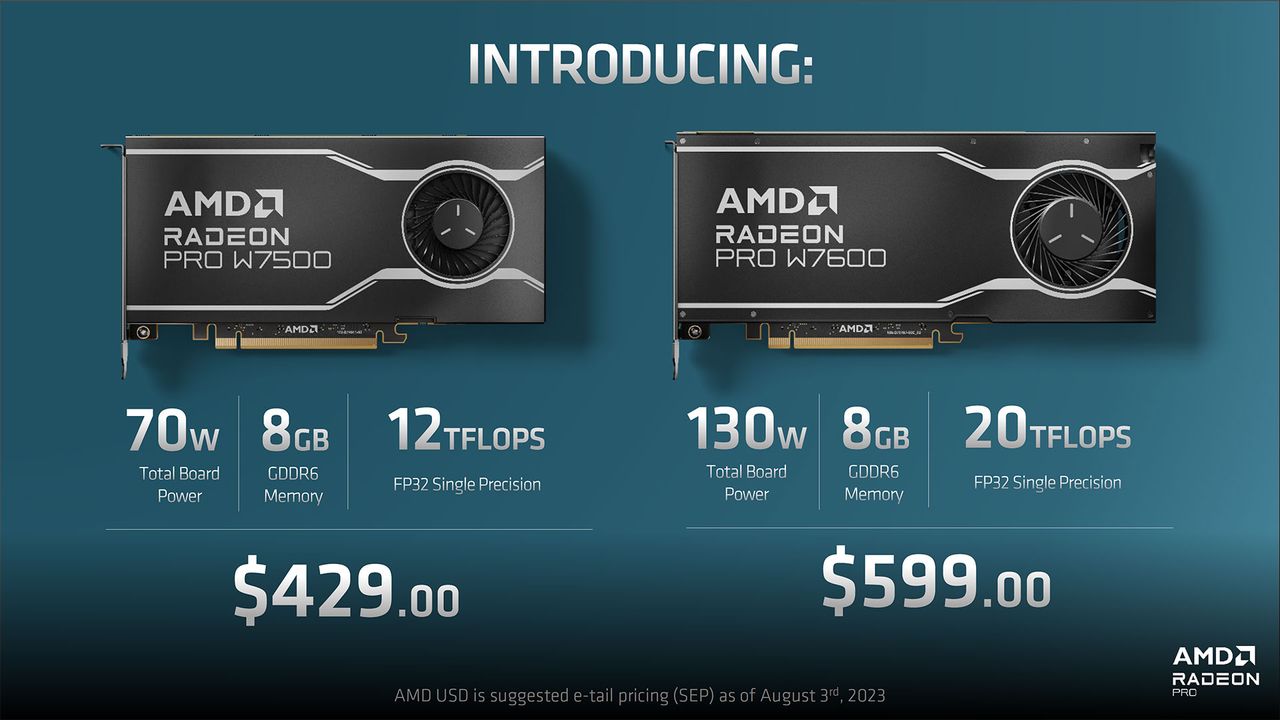

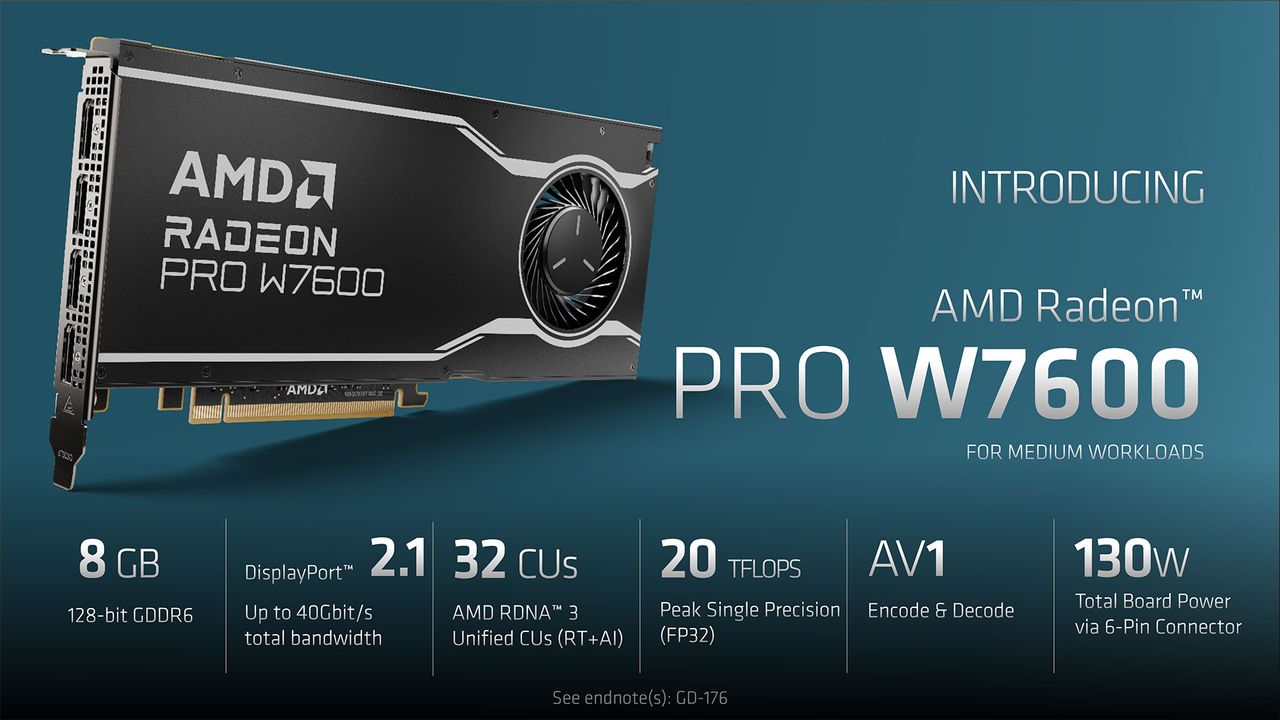

The W7600 is the faster card of the two. Specs include a full Navi 33 die with 32 CUs, 64 AI accelerators, 8GB of 18 Gbps GDDR6 memory, a 128-bit wide memory interface, and a 130W power rating. As previously mentioned this model features a single-slot cooling solution that will make it easy to integrate into any system, no matter how big or small it might be. It has a single 6-pin power connector.

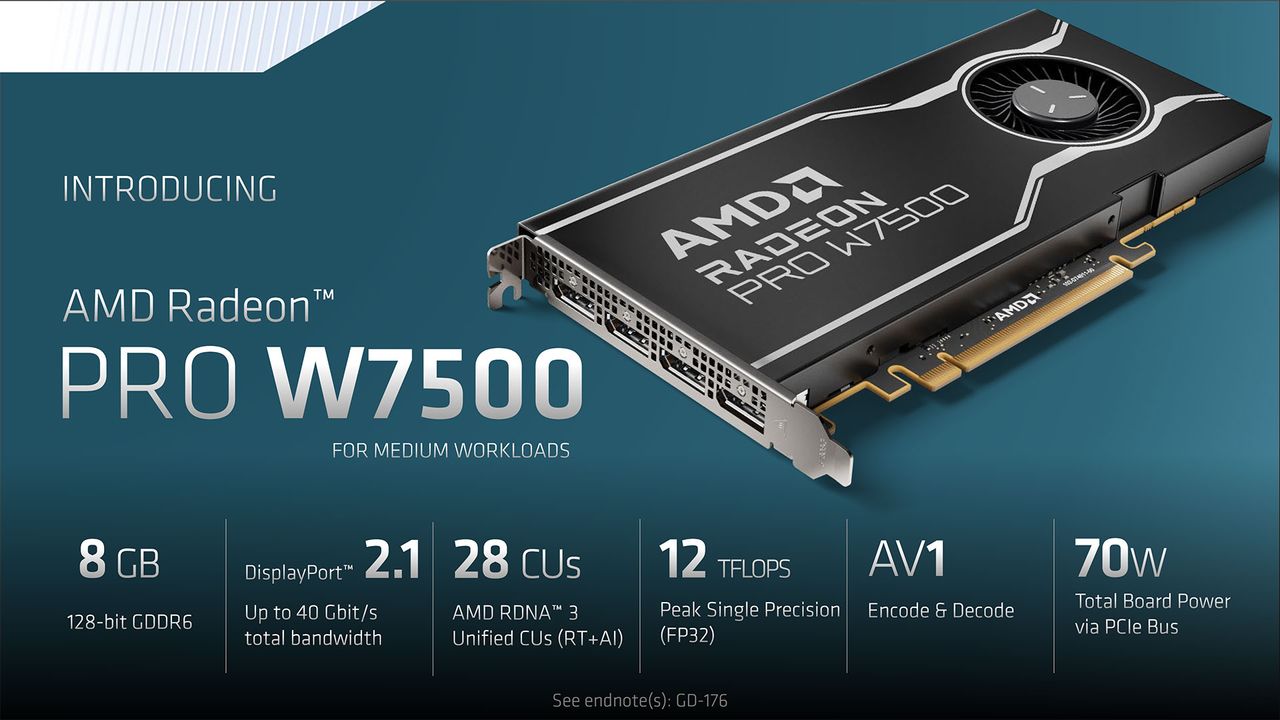

The W7500 is the lowest-level card in AMD's RDNA 3 workstation portfolio right now. It comes with the same Navi 33 die as the W7600 but with fewer cores and a slower memory subsystem. Specs include 28 CUs, 56 AI Accelerators, 8GB of 11 Gbps GDDR6 memory, a 128-bit memory bus, and a 70W power rating. Thanks to its extremely low power rating, the W7500 operates without any supplemental power connectors, which means it can slot into systems with less-capable power supplies. It also comes with a slightly shorter single-slot cooler that will help case compatibility even more.

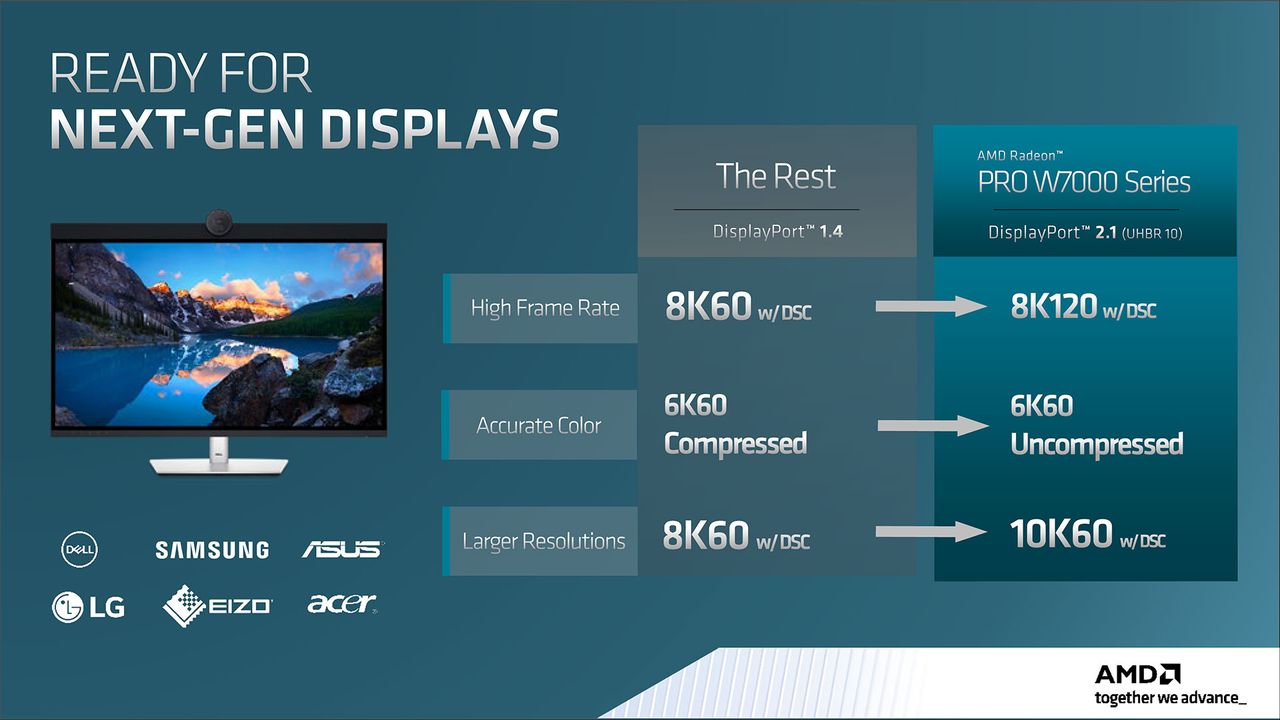

As mentioned above, both the W7600 and W7500 have DisplayPort 2.1 UHBR 10 support, which enables both GPUs to support extremely high refresh rates and resolutions. Both GPUs are capable of running up to four 8K 120Hz or 10K 60Hz displays with Display Stream Compression, or up to four 6K 60Hz panels without
compression.

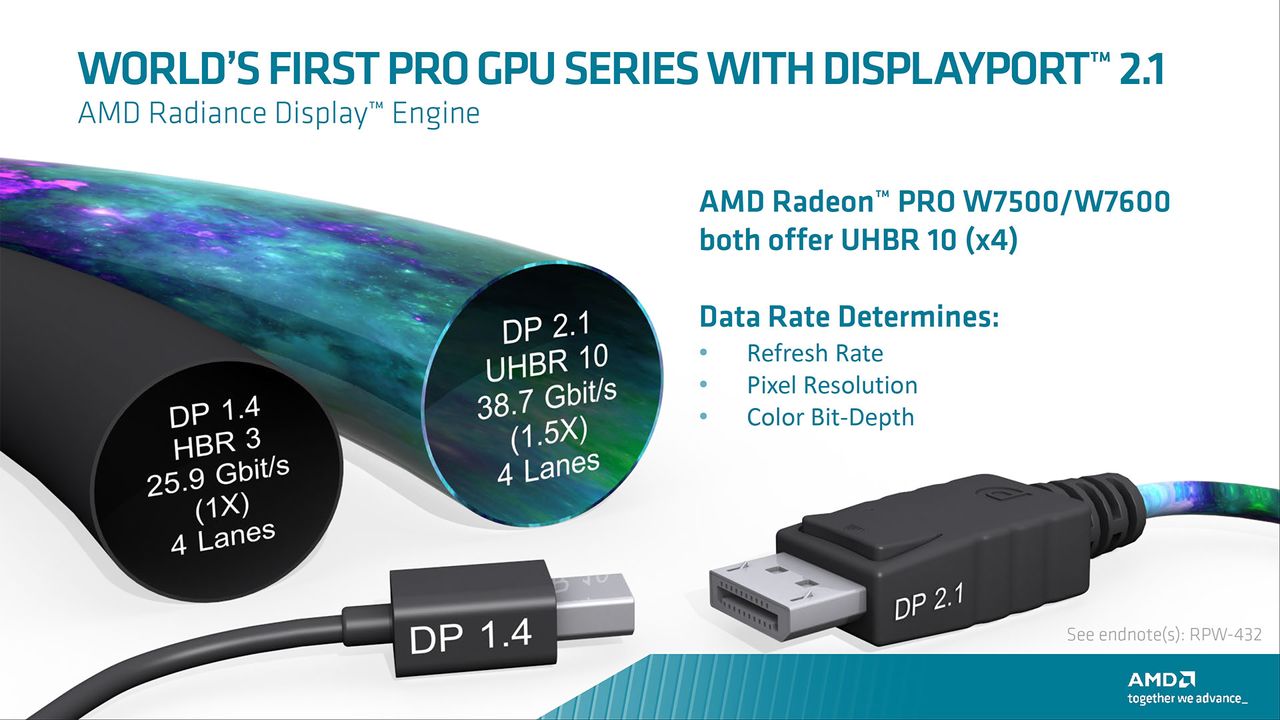

Technically, UHBR10 ends up with slightly lower bandwidth than HDMI 2.1 (48 Gbps), but it's a big upgrade over DisplayPort 1.4a's HBR3 (32.4 Gbps). There are different encoding schemes, so UHBR10 has a maximum data rate of 38.79 Gbps with 128b/132b encoding, HBR3 has a maximum data rate of 25.92 Gbps with 8b/10b encoding, and HDMI 2.1 has a max data rate of 42 Gbps with 16b/18b encoding.

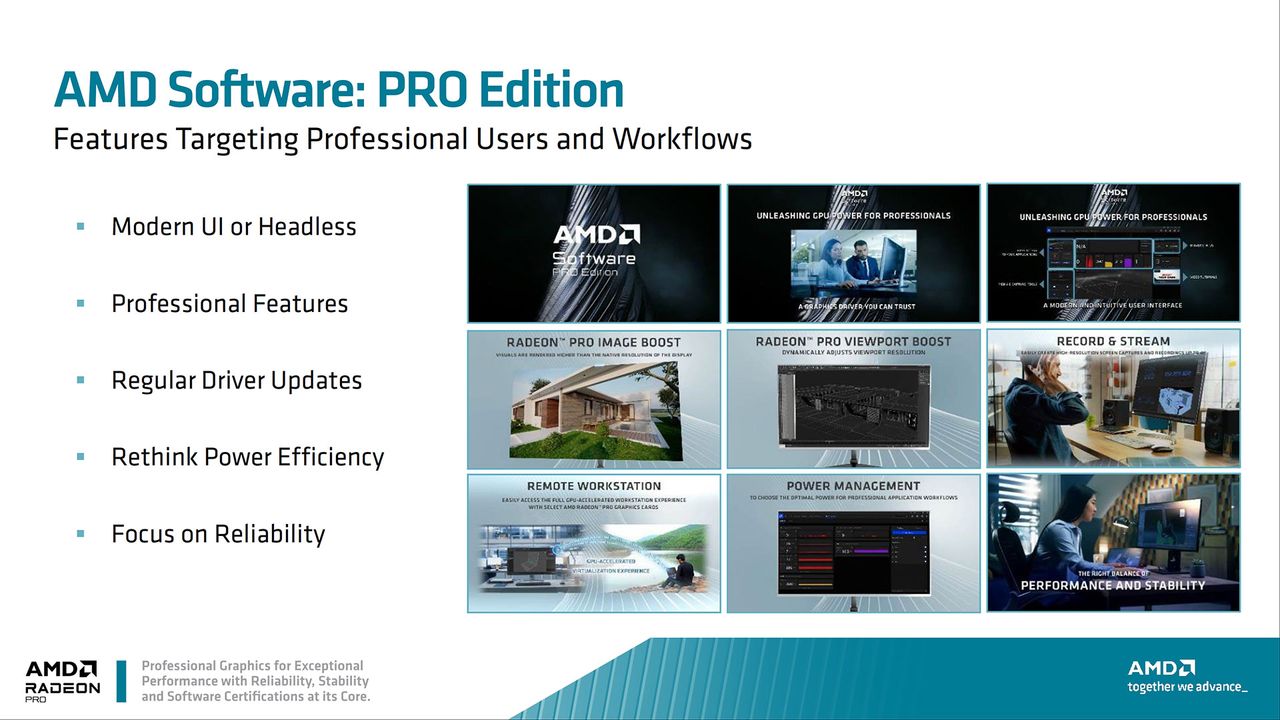

Since these cards are also workstation cards, they get access to AMD's pro drivers that are optimized for non-gaming productivity-based applications. You can still run games and other graphics applications on them, but they're primarily for professional content creation — you get less raw performance for a higher price than the consumer Radeon parts.

AMD Radeon Pro W7600 W7500 photos

(Image credit: AMD)
Swipe to scroll horizontally

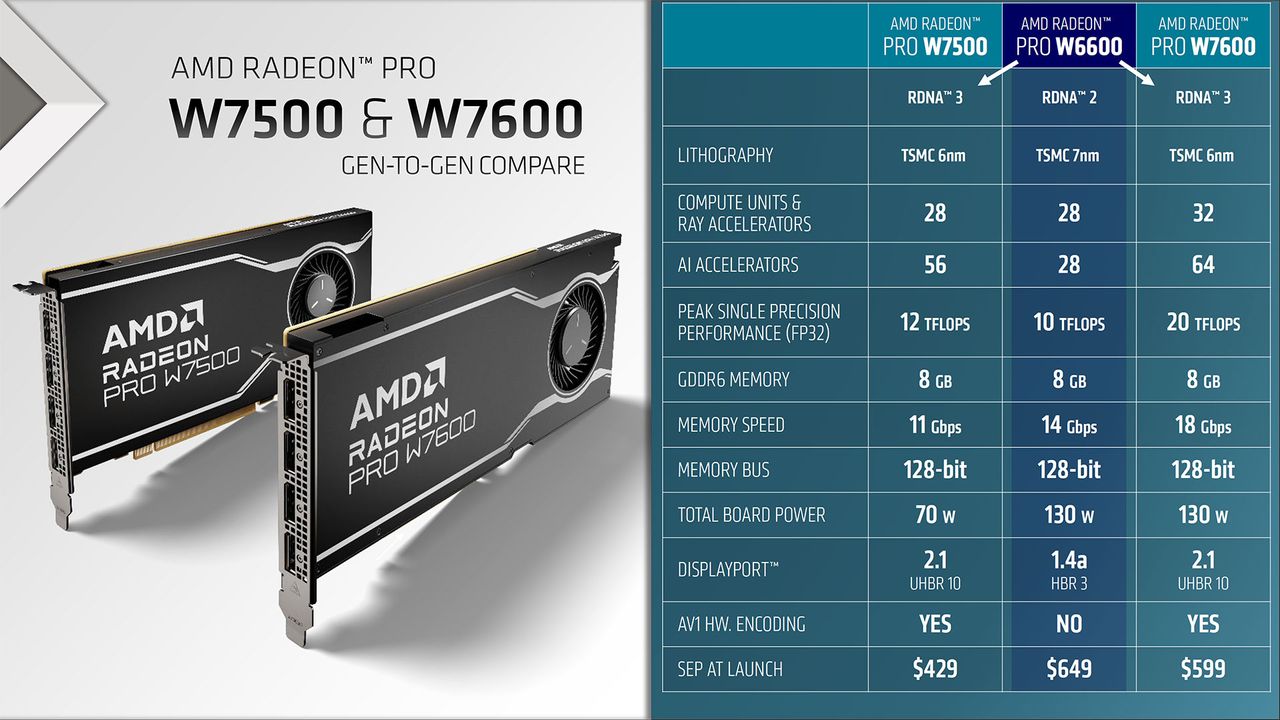

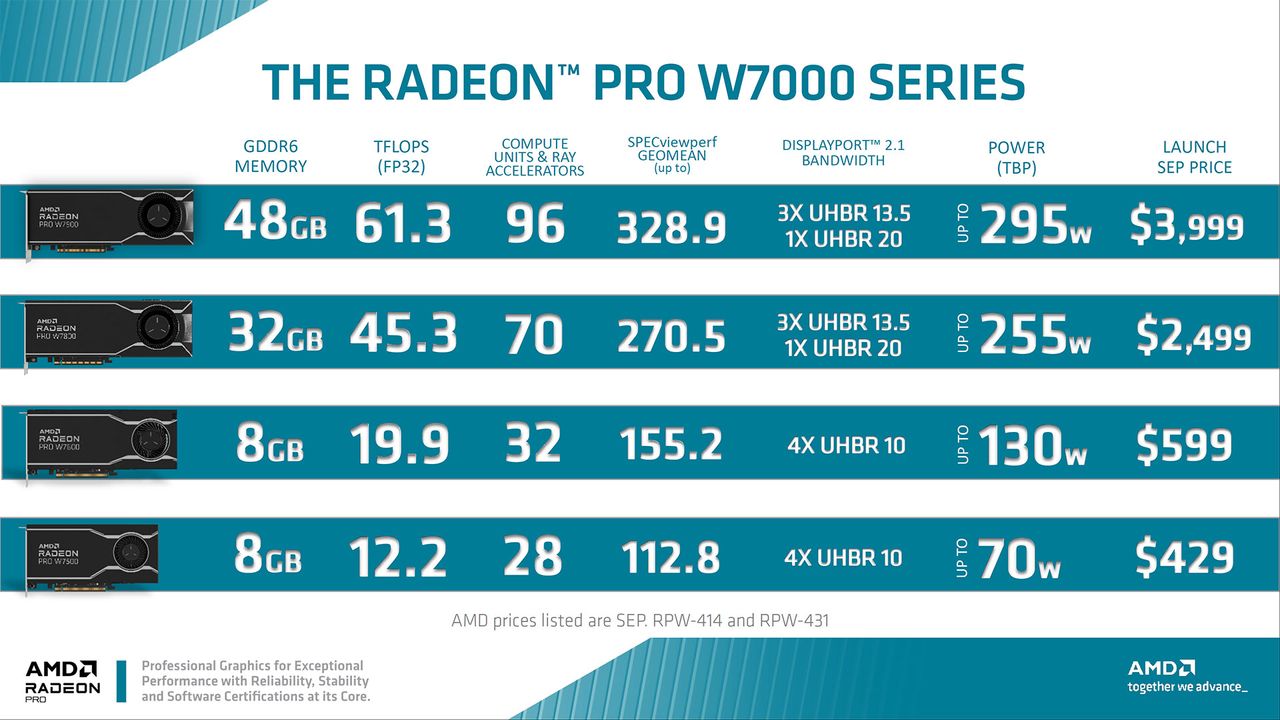

Header Cell - Column 0 Radeon Pro W7600Radeon Pro W7500Radeon Pro W6600
ArchitectureRDNA 3RDNA 3RDNA 2
LithographyTSMC 6nmTSMC 6nmTSMC 7nm
Compute Units & Ray Accelerators322828
AI Accelerators645628
Peak Single-Precision Performance (FP32))20 TFLOPS12 TFLOPS10 TFLOPS
GDDR6 Memory8 GB8 GB8 GB
Memory Speed18 Gbps11 Gbps14 Gbps
Memory Bus128-bit128-bit128-bit
Total Board Power (TBP)130W70W130W
DisplayPort2.1 UHBR 102.1 UHBR 101.4a HBR 3
AV1 HW. EncodingYesYesNo
SEP At Launch$599$429$649
