Report: AMD Ups Radeon RX 5600 XT Performance Amid Nvidia RTX 2060 Price Cut

Pulse Radeon RX 5600 XT

Pulse Radeon RX 5600 XT (Image credit: Sapphire)

AMD has allegedly pushed out a new vBIOS to all its graphics cards partners to raise the performance on the its looming Radeon RX 5600 XT graphics card, Chinese news outlet HKEPC reported today. The move would likely be a response to Nvidia slashing the RTX 2060's price from $349 down to $299.

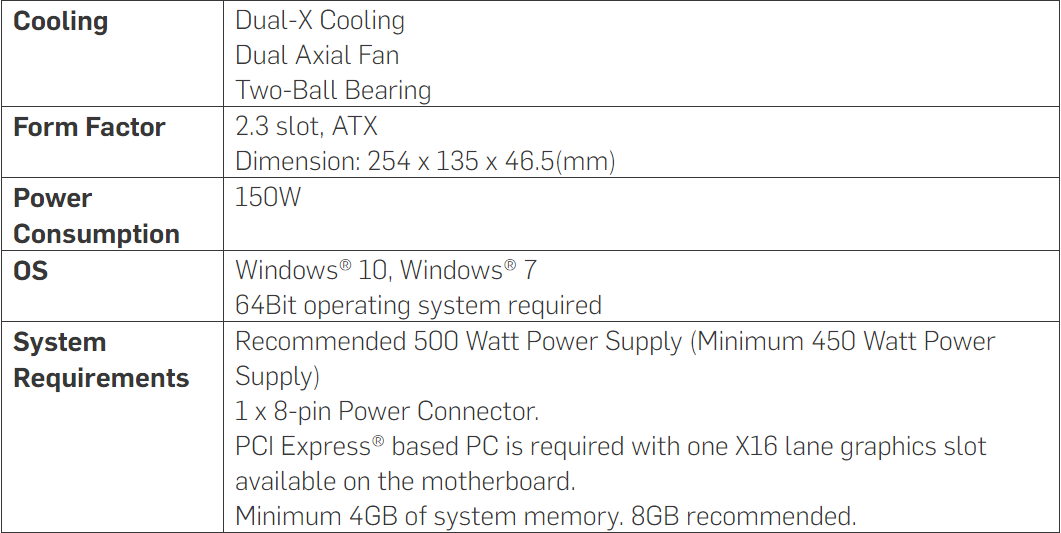

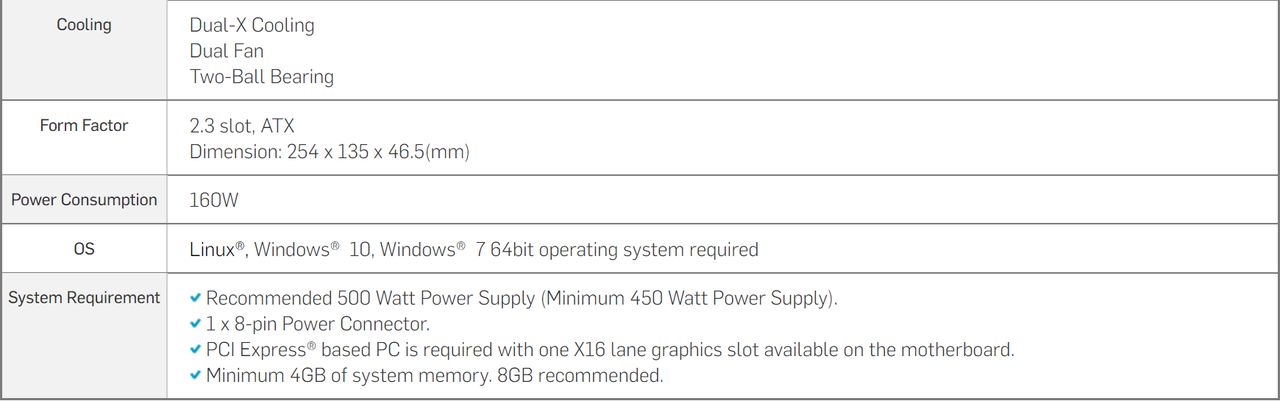

With the reported vBIOS, the RX 5600 XT looks like a different graphics card now. For starters, the vBIOS is said to increase the RX 5600 XT's TBP (typical board power) from 150W to 160W. The extra 10W should be enough headroom to bolster the graphics card's performance quite a bit.

Sapphire announced its Pulse Radeon RX 5600 XT just two days ago. However, it has since updated the card's specs. This leaves us wondering if Sapphire has already received AMD's vBIOS.

Image 1 of 4

Pulse Radeon RX 5600 XT

Pulse Radeon RX 5600 XT (Image credit: Sapphire)
Image 2 of 4

Pulse Radeon RX 5600 XT

Pulse Radeon RX 5600 XT (Image credit: Sapphire)
Image 3 of 4

Pulse Radeon RX 5600 XT

Pulse Radeon RX 5600 XT (Image credit: Sapphire)
Image 4 of 4

Pulse Radeon RX 5600 XT

Pulse Radeon RX 5600 XT (Image credit: Sapphire)

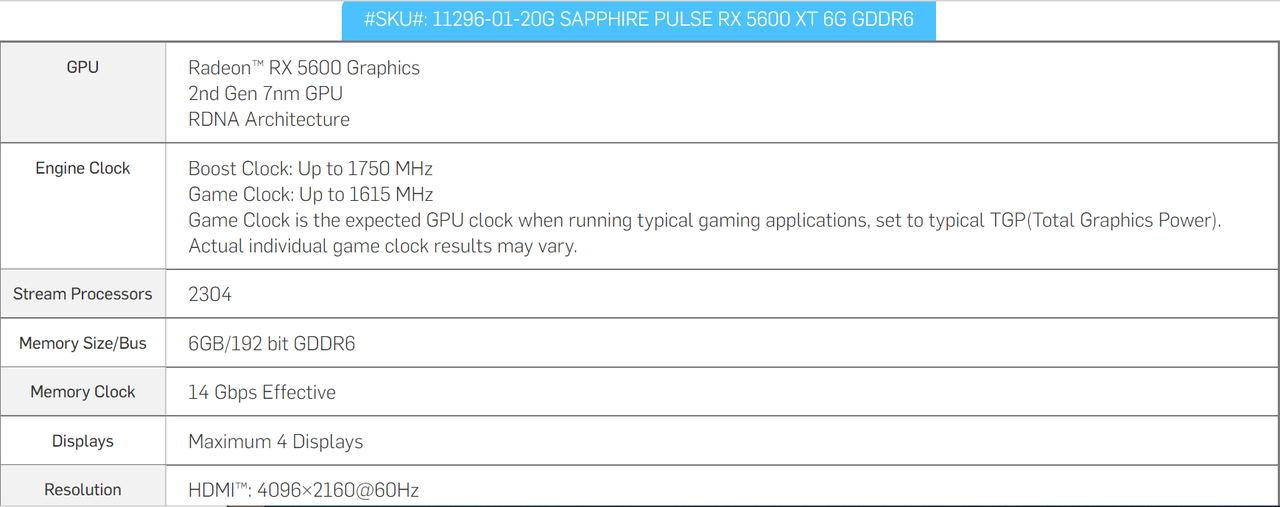

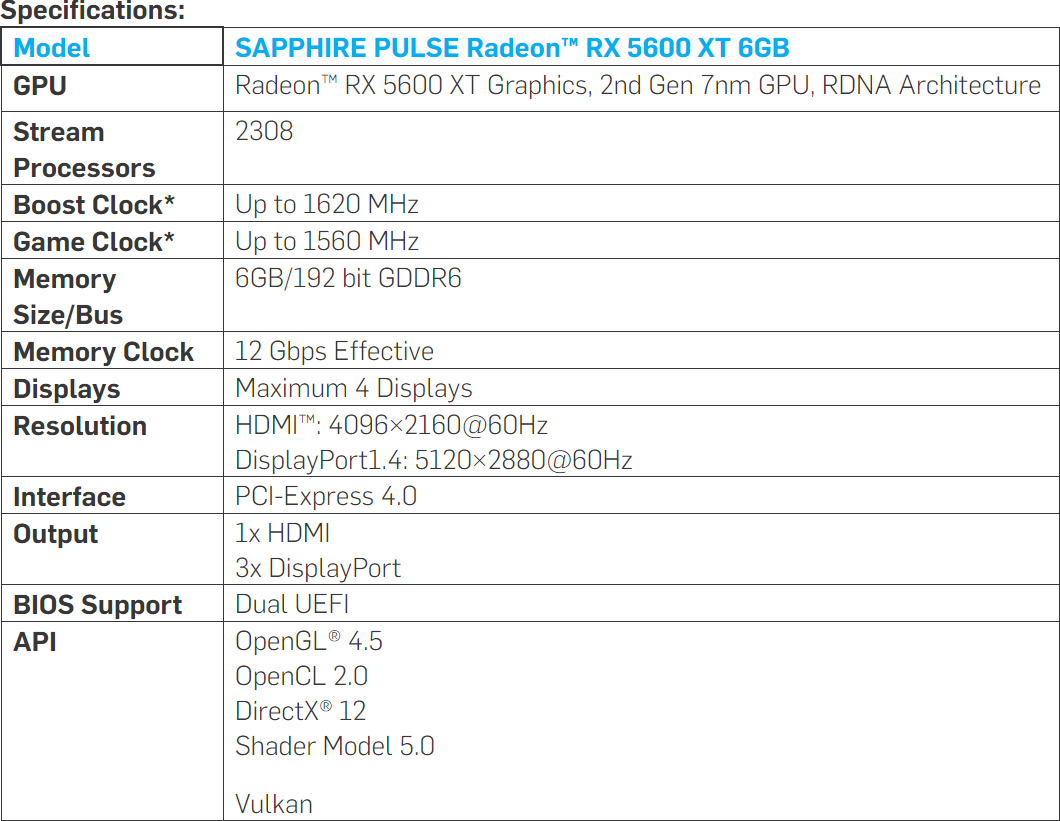

The Pulse Radeon RX 5600 XT originally featured a 1,560 MHz game clock and 1,620 MHz boost clock. Now, it's specced with a 1,615 MHz game clock and a boost clock up 1,750 MHz. That's a 3.5% and 8% improvement in the game and boost clocks, respectively.

Meanwhile, the specs have gone from listing the memory speed as 12 Gbps to it running at 14 Gbps. That's a 16.7% bump. The faster memory allows the graphics card to deliver a memory bandwidth up to 336 GBps, compared to the original 288 GBps figure.

Radeon RX 5600 XT Specifications

Radeon RX 5700Pulse Radeon RX 5600 XTRadeon RX 5600 XT
Architecture (GPU)RDNA (Navi 10)RDNA (Navi 10)RDNA (Navi 10)
Shading Units2,3042,3042,304
Texture Units144144144
ROPs646464
Base Clock Rate1,465 MHz??
Game Clock Rate1,625 MHz1,615 MHz1,375 MHz
Boost Clock Rate1,725 MHz1,750 MHz1,560 MHz
Memory Clock14 GBps14 GBps12 GBps
Memory Capacity8GB GDDR66GB GDDR66GB GDDR6
Memory Bus256-bit192-bit192-bit
Memory Bandwidth448 GBps336 GBps288 GBps
L2 Cache4MB4MB4MB
TBP180W160W150W
Transistor Count10.3 billion251 mm²251 mm²
Die Size251 mm²251 mm²251 mm²
Price$349?$279

The RX 5700 was already very close to the RX 5600 XT to start with. The RX 5700 had the slight upper-hand, thanks to its higher operating clocks and faster memory. But with these new reported specs, the RX 5600 XT would practically match the RX 5700, except for having 2GB less memory, reduced memory bus and lower TBP. It would seem that AMD essentially converted the RX 5600 XT into a RX 5700 6GB. Both graphics card utilize a variant of the Navi 10 die, so AMD is free to tweak the specifications as desired.

The RX 5600 XT's upgrade should give the graphics card a 10-15% performance boost. With these new enhancements, it'll be exciting to see if the RX 5600 XT gets within striking distance of the RTX 2060

Remember, the RX 5600 XT is expected to debut at $279, and despite the RTX 2060's recent price cut, AMD's offering is still $20 cheaper.
